Product Type	Bathroom Scale
Brand	ECG
Model	OV 122
Display Type	LCD
Maximum Weight Capacity	180 kg / 396 lb
Division (Accuracy)	100 g / 0.2 lb
Units of Measurement	kg, lb, st
Auto-On	Yes, step-on activation
Auto-Off	Yes, after approx. 10 seconds of inactivity
Low Battery Indicator	Yes
Overload Indicator	Yes
Power Source	1 x CR2032 lithium battery (included)
Platform Material	Tempered glass
Dimensions (W x D x H)	30 x 30 x 2.5 cm
Weight of Scale	1.5 kg
Cleaning Instructions	Wipe with a damp cloth; do not immerse in water
Safety Precautions	Use on a hard, flat surface; avoid dropping or overloading
Spare Parts Available	Batteries (CR2032)
Repairability	Non-repairable by user; contact service center for issues

Frequently Asked Questions - OV 122 ECG

How do I change the battery?

Open the battery compartment on the underside of the scale. Remove the old CR2032 battery and insert a new one with the positive side (+) facing up. Close the compartment securely.

Why does the scale show 'Err' or 'Lo'?

'Err' indicates an overload or unstable weighing. Remove weight and restart. 'Lo' means the battery is low; replace it with a new CR2032 battery.

Can I use the scale on carpet?

For accurate results, place the scale on a hard, flat surface like tile or wood flooring. Carpet can cause inaccurate readings.

How do I switch between kg, lb, and st?

Press the unit button on the back or bottom of the scale to cycle through kg, lb, and st. The display will show the selected unit.

What is the maximum weight for this scale?

The maximum capacity is 180 kg (396 lb). Do not exceed this limit to avoid damaging the scale.

How do I clean the scale without damaging it?

Use a damp cloth to wipe the glass surface. Do not use abrasive cleaners or immerse the scale in water.

Why does the display show '0.0' after stepping on?

This is normal. The scale requires a few seconds to stabilize. Stand still until the reading locks. If it doesn't, check battery or surface.

Can I replace the battery with any coin cell?

Only use CR2032 lithium batteries. Other types may not provide correct voltage or fit properly.

My scale shows inconsistent readings. What can I do?

Ensure the scale is on a level, hard surface. Calibrate by turning it on and letting it show '0.0' before stepping on. Also check battery.

Is the scale covered by warranty?

Refer to the warranty card included. Typically, ECG scales have a 2-year warranty against manufacturing defects. Keep your proof of purchase.

USER MANUAL OV 122 ECG

OV 122 solar

DIGITÁLNÍ OSOBNÍ VÁHA SE SOLÁRNÍMI PANELY

NÁVOD K OBSLUZE

CZ

DIGITÁLNA OSOBNÁ VÁHA SO SOLÁRNYMI PANELMI

NÁVOD NA OBSLUHU

SK

CYFROWA WAGA OSOBISTA Z PANELAMI SŁONECZNYMI

INSTRUKCJA OBSŁUGI

PL

NAPELEMES DIGITÁLIS SZEMÉLYMÉRLEG

HASZNÁLATI ÚTMUTATÓ

HU

DIGITALE PERSONENWAAGE MIT SOLARPANEL

BEDIENUNGSANLEITUNG

DE

DIGITAL SCALE WITH SOLAR PANELS

INSTRUCTION MANUAL

EN

BEZPEČNOSTNÍ POKYNY

Silhouette of a foot stepping on a surface with a small object nearby (no text or symbols)

VAROVNÉ UPOZORNENIA

Pretáženie

Silhouette of a foot stepping on a surface with a spoon and water droplets (no text or symbols)

Pozor: Nebezpečenstvo pošmyknutia sa na mokrom povrchu!

TECHNICKÉ ÚDAJE

Silhouette of a foot stepping on a surface with a small object nearby (no text or symbols)

Silhouette of a foot stepping on a surface with a spoon and fish, no text or symbols present

Silhouette of a foot stepping on a surface with a small fish and water droplets (no text or symbols)

Read carefully and save for future use!

Warning: The safety instructions, contained in this manual, do not include all conditions and situations possible. The user must understand that common sense, caution and care are factors that cannot be integrated into any product. Therefore, these factors shall be ensured by the user/s using and operating this product. We are not liable for damages caused during shipping, by incorrect use, or the modification or adjustment of any part of the appliance.

To avoid injuries, basic precautions shall always be taken, including the following:

1. The OV 12 digital scale is designated for household use only.
2. Refer to an authorized service centre for all necessary repairs!
3. Do not use the scale near devices with electromagnetic fields. Place the scale far enough from this type of device to prevent mutual interference.
4. The result value is only for orientation. This product is not a medical scale. Always consult a physician for prescription drugs and diets to reach your optimum weight.
5. Do not insert any objects into the openings of the device.
6. The scale can be used for weighing people from ages 10 and up.
7. Household pets shall not be weighed with the scale.
8. Protect the scale against falling and shocks and do not jump on the scale.
9. You or the device can slip on a wet surface. Keep balance on the scale during the weighing process and do not stand on the edge of the scale on a fl at surface either.
10. Use the scale only in accordance with the instructions given in this manual.
11. The manufacturer is not liable for damages caused by the improper use of this device.
12. This appliance can be used by children ages 8 and older and by the physically and mentally impaired or by individuals with insufficient experience and knowledge, if supervised or trained to use the appliance in a safe manner and understand potential dangers. Children shall not play with the appliance. Cleaning and maintenance operations performed by the user shall not be carried out by children, if they are not older than 8 years and under supervision. Children under the age of 8 shall keep away from the appliance and its power supply.

Attention:

1. Always take off your shoes and socks before weighing yourself.
2. We recommend weighing yourself every day at the same time.
3. Weighing results can be misleading after an intensive training session, diet or in extremely high temperatures.

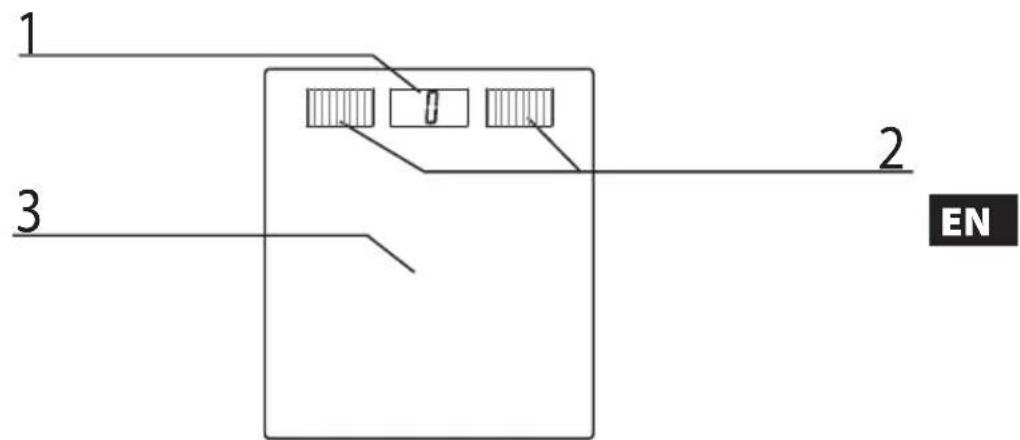

DESCRIPTION

1. LCD display
2. Solar panels
3. Weighing surface

POWER

1. The scale is powered by solar panels. It only operates with light (daylight or artificial).
2. The scale will switch off if the light is too low. In this case, take the scale to an area with better light and wait for it to be activated.
3. The recommended illuminance for using the scale is at least 70 lx. "0" flashes on the display when the scale is in standby mode.

USE

DO NOT COVER the solar panels when using the scale.

1. The scale must be placed on a flat, hard and stable surface (not on a carpet, weighing would be inaccurate).

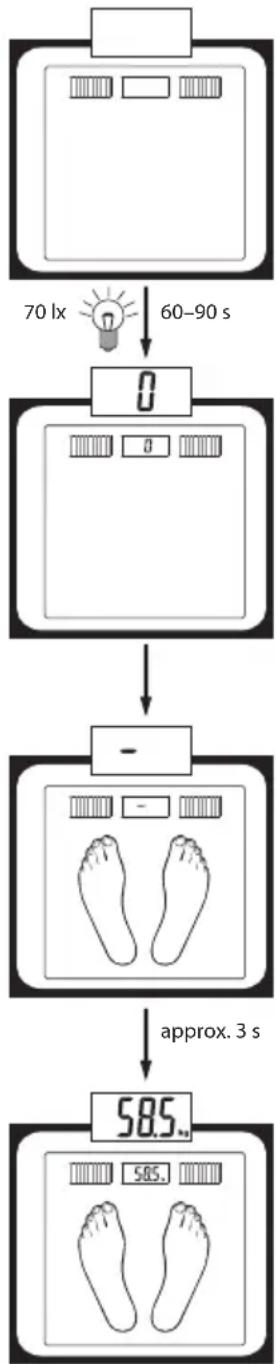

2. Make sure the weight is placed in an area well lit by the sun or by artificial light and the panels are not covered. "0" begins flashing on the display.

Note: If "0" does not flash on the LCD display, improve the lighting or move the scale to an area with an illuminance of at least 70 lx. The scale will reactivate itself after 60–90 seconds (this period is shorter based on the intensity of the light).

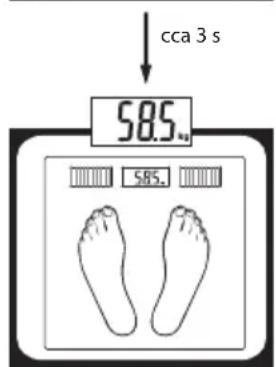

1. Step on to the scale carefully. “--” is shown on the display meaning the weighing process is under way. Stand straight on the scale, do not move and wait until your weight is shown on the display, stable (approx. 3 seconds).
2. The LCD display shows the measured weight for about 12 seconds.
3. After getting off the scale, the device will automatically switch into standby mode and "0" begins flashing on the display.
4. After weighing yourself, put the scale away in a place where it will not interfere.

Adding weight

If, for example, you would like to determine the weight of your child, weigh yourself first (weight until the numbers become stable), then without getting off the weight, take your child into your hands. The display will show the weighing process and the weight will stabilize. Now you can see the total weight. Subtracting your own weight from the newly obtained value will give you the weight of your child.

Note: The weighed object must have more than 2 kg.

UNIT CONVERSION

The device can display your weight in the metric or imperial system.

You can switch units via the switch located on the bottom side of the scale.

Shifting the switch between positions converts the weight between kilograms (kg) and pounds (lb).

Weight switch

WARNINGS

Overload

Overloading the scale – max. weight is 150 kg. Please get off the scale to prevent damage.

Repeated weighing

If the letter "C" appears on the scale after getting off, it means an error occurred during the weighing process.

Please repeat the weighing/measuring process.

MAINTENANCE AND CLEANING

1. The glass surface becomes slippery when wet. Keep dry!
2. Stand still during while weighing yourself.
3. Do not expose the scale to impacts, shocks and do not allow the scale to fall to the ground.
4. The scale is an accurate device which must be carefully handled.
5. For cleaning, use a wet towel and make sure no water get inside the scale. DO NOT USE chemical cleaning agents/cleaning agents with an abrasive effect. Do not immerse the device into water!
6. Use the scale in a cool room with dry air.
7. Keep the scale in a level position.
8. If an error appears on the display and this problem persists for a longer period of time, please refer to your vendor for advice (do not forget that the scale is activated with solar panels reacting to light, to ensure proper functionality, place the scale into the dark and then again into the light).

Silhouette of a foot stepping on a surface with a small fish and scattered dots (no text or symbols)

Attention: Danger of slipping on wet surface!

TECHNICAL INFORMATION

6 mm impact resistant safety glass

Slim design (21 mm)

Extra large LCD display (73 × 33 mm)

Maximum capacity 150 kg

Measures in increments of 100 g

Imperial / metric conversion

Auto reset

Auto ON/OFF

Warning signal indication

Power: solar panels

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard – deliver to scrapyard. Packing foil, PE bags, plastic elements – throw into plastic recycling containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product.

Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directive requirements on electromagnetic compatibility and electrical safety.

Changes in text and technical parameters reserved.

08/05
