USER MANUAL ROYAL 49 S HUSQVARNA

Simple line drawing of an open book with no text or symbols visible

ROYAL 49S ROYAL 49SE ROYAL 49S/BBC

CE

Operator's Manual

Read the operator's manual carefully and make sure that you understand the contents before using the lawnmower.

Betriebsanleitung

IMPORTANT! Read operating instructions carefully before using the mower. Fill the engine with oil. The manufacturer reserves the right to carry out product modifications without further notice.

Guarantee, complaint Guarantee and complaint matters are dealt with in accordance with the Sale of Goods Act. Further information may be obtained from your dealer or the supplier.

1. Handle Assembly

2. Grassbox

3. Bottle of oil

4. Instruction Manual

5. Mulching Plug

6. Key Start (Royal 49SE)

7. BBC Lever (Royal 49S/BBC)

8. Warning Label

9. Rating Label

10. Battery Charger (Royal 49SE)

D - INHALT

(N) KARTONGENS INNHOLD

(D) KARTONINHALT

(I) CONTENUTO DEL CARTONE

(DK) KARTONINDHOLD

(F) CONTENU DU CARTON

(P) LEGENDAS DOS DESENHOS

(SF) PAKETIN SISÄLTÖ

(NL) INHOUD

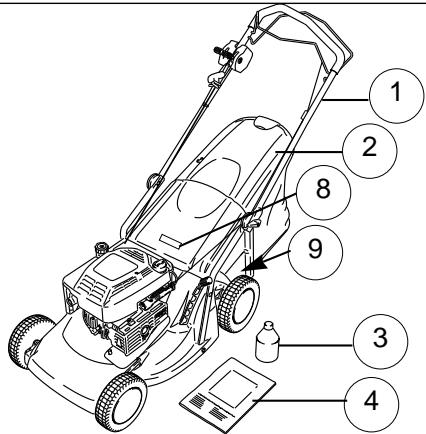

(A) ROYAL 49S

Labeled diagram of a lawn mower with numbered parts for identification

Line drawing of a folded paper or envelope with a numbered circle (5) at the bottom left, no text or symbols present.

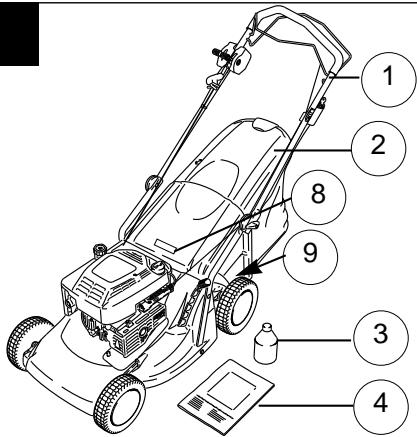

(A) ROYAL 49SE

UK ONLY 10

Labeled diagram of a lawn mower with numbered parts for identification

Technical line drawing of a mechanical clamp or bracket assembly with a numbered label (6) pointing to the handle (no text or symbols beyond the number)

Line drawing of a folded paper airplane with a numbered circle highlighting the number 5 (no text or symbols on the diagram itself)

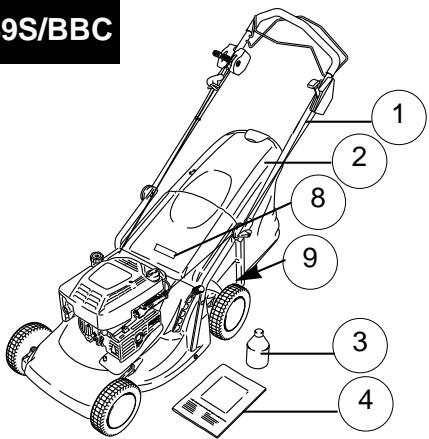

(A) ROYAL 49S/BBC

9S/BBC 1 2 8 9 3 4

7

Line drawing of a folded paper or envelope with a numbered circle (5) at the bottom left, no text or symbols present.

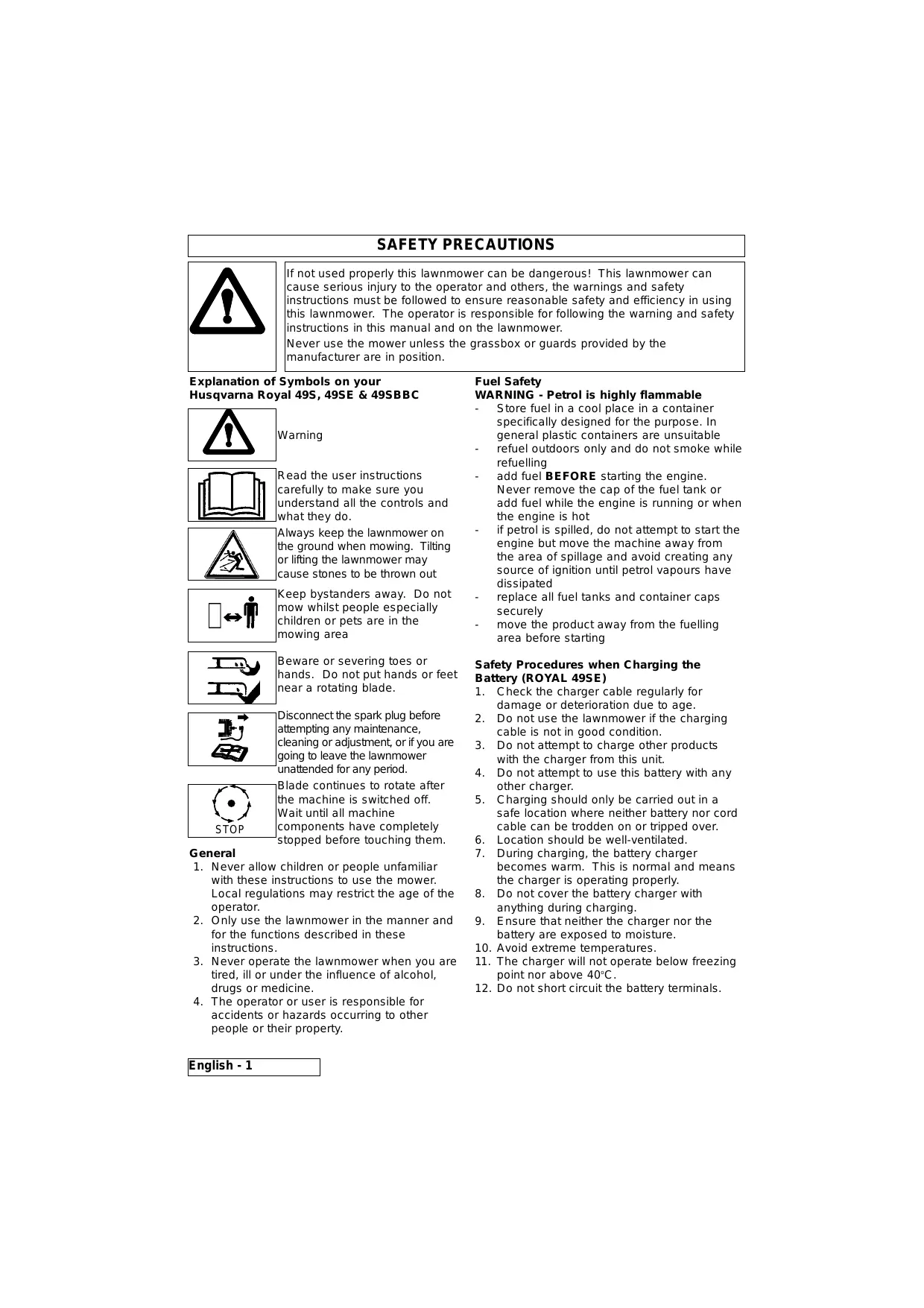

SAFETY PRECAUTIONS

If not used properly this lawnmower can be dangerous! This lawnmower can cause serious injury to the operator and others, the warnings and safety instructions must be followed to ensure reasonable safety and efficiency in using this lawnmower. The operator is responsible for following the warning and safety instructions in this manual and on the lawnmower.

Never use the mower unless the grassbox or guards provided by the manufacturer are in position.

Explanation of Symbols on your Husqvarna Royal 49S, 49SE & 49SBBC

Warning

Read the user instructions carefully to make sure you understand all the controls and what they do.

Always keep the lawnmower on the ground when mowing. Tilting or lifting the lawnmower may cause stones to be thrown out

Keep bystanders away. Do not mow whilst people especially children or pets are in the mowing area

Beware or severing toes or hands. Do not put hands or feet near a rotating blade.

Disconnect the spark plug before attempting any maintenance, cleaning or adjustment, or if you are going to leave the lawnmower unattended for any period.

Blade continues to rotate after the machine is switched off. Wait until all machine components have completely stopped before touching them.

General

1. Never allow children or people unfamiliar with these instructions to use the mower. Local regulations may restrict the age of the operator.
2. Only use the lawnmower in the manner and for the functions described in these instructions.
3. Never operate the lawnmower when you are tired, ill or under the influence of alcohol, drugs or medicine.
4. The operator or user is responsible for accidents or hazards occurring to other people or their property.

Fuel Safety WARNING - Petrol is highly flammable

• Store fuel in a cool place in a container specifically designed for the purpose. In general plastic containers are unsuitable
• refuel outdoors only and do not smoke while refuelling
• add fuel BEFORE starting the engine. Never remove the cap of the fuel tank or add fuel while the engine is running or when the engine is hot
• if petrol is spilled, do not attempt to start the engine but move the machine away from the area of spillage and avoid creating any source of ignition until petrol vapours have dissipated
• replace all fuel tanks and container caps securely
• move the product away from the fuelling area before starting

Safety Procedures when Charging the Battery (ROYAL 49SE)

1. Check the charger cable regularly for damage or deterioration due to age.
2. Do not use the lawnmower if the charging cable is not in good condition.
3. Do not attempt to charge other products with the charger from this unit.
4. Do not attempt to use this battery with any other charger.
5. Charging should only be carried out in a safe location where neither battery nor cord cable can be trodden on or tripped over.

6. Location should be well-ventilated.

7. During charging, the battery charger becomes warm. This is normal and means the charger is operating properly.

8. Do not cover the battery charger with anything during charging.

9. Ensure that neither the charger nor the battery are exposed to moisture.

10. Avoid extreme temperatures.

11. The charger will not operate below freezing point nor above 40^ C.

12. Do not short circuit the battery terminals.

SAFETY PRECAUTIONS

Preparation

1. Do not mow barefoot or in open sandals. Always wear suitable clothing, gloves, and stout shoes.
2. The use of ear protection is recommended.
3. Make sure the lawn is clear of sticks, stones, bones, wire and debris; they could be thrown by the blade.
4. Before using always visually inspect to see that blades, blade bolts and cutter assembly are not worn or damaged. Replace worn or damaged blades together with their fixings in sets to preserve balance.
5. Replace faulty silencers.

Use

1. Do not operate the engine in a confined space where exhaust fumes (carbon monoxide) can collect.
2. Use the lawnmower only in daylight or good artificial light.
3. Avoid operating your lawnmower in wet grass, where feasible.
4. Take care in wet grass, you may lose your footing.
5. On slopes, be extra careful of your footing and wear non-slip footwear.
6. Mow across the face of slopes, never up and down.
7. Exercise extreme caution when changing direction on slopes.
8. Mowing on banks and slopes can be dangerous. Do not mow on banks or steep slopes.
9. Do not walk backwards when mowing, you could trip. Walk never run.
10. Never cut grass by pulling the mower towards you.
11. Stop the engine before pushing the mower across surfaces other than grass and when transporting the lawnmower to and from the area to be mowed.
12. Never operate the lawnmower with damaged guards or without guards in place.
13. Do not overspeed the engine or alter governor settings. Excessive speed is dangerous and shortens lawnmower life.
14. Disengage all blade and drive clutches before starting.
15. Always start the lawnmower carefully with feet well away from the blades.
16. Do not tilt lawnmower when starting the engine

17. Do not put hands near the grass discharge chute whilst engine is running.

18. Never pick up or carry a lawnmower while the engine is running

19. Spark plug wire may be hot - handle with care.
20. Do not attempt any maintenance on your lawnmower when the engine is hot.
21. Stop the engine, and wait until the blade has stopped:-

- before leaving the mower unattended for any period;

- before refuelling

1. Stop the engine, wait until the blade has stopped and disconnect the spark plug lead:-

2. before clearing a blockage;

3. before checking, cleaning or working on the appliance;
4. if you hit an object. Do not use your lawnmower until you are sure that the entire lawnmower is in a safe operating condition.;
5. if the lawnmower starts to vibrate abnormally. Check immediately. Excessive vibration can cause injury.
6. Reduce the throttle setting during engine shut down and, if the engine is provided with a shut-off valve, turn the fuel off at the conclusion of mowing.

Maintenance and storage

1. Keep all nuts, bolts and screws tight to be sure the lawnmower is in safe working condition.
2. Check the grassbox/grassbag frequently for wear or deterioration.
   3 Replace worn or damaged parts for safety.
3. Only use the replacement blade, blade bolt, spacer and impeller specified for this product.
4. Never store the lawnmower with fuel in the tank inside a building where fumes can reach an open flame or spark.
5. Allow the engine to cool before storing in any enclosure.
6. To reduce fire hazard, keep the engine, silencer, battery compartment and fuel storage area free of grass, leaves or excessive grease.
7. If the fuel tank has to be drained, this should be done outdoors.
8. Be careful during adjustment of the machine to prevent entrapment of the fingers between moving blades and fixed parts of the machine.

PRODUCT RATING LABEL

B

Product Number ....

Model Number ....

Serial Number.....

Date of Purchase ....

Place of Purchase....

- PLEASE KEEP PROOF OF PURCHASE

Your product is uniquely identified by a silver and black product rating label. To ensure you have full product information when obtaining spares or advice from one of our approved service centres or if you need to contact our customer service department you should make a note in the space provided of the information shown in Fig B

ASSEMBLY INSTRUCTIONS

Handle Assembly

1. Your product is supplied with the handles folded over the product. (C1)

Line drawing of a car chassis with visible wheels and structural components (no text or symbols)

1. Locate cord in the pull cord guide on the lower handle. (D2) ROYAL 49S AND ROYAL 49S/BBC ONLY

Line drawing of a hand holding a tool over a textured surface, no text or symbols present

1. Loosen handle adjusters (C2) on both sides of the product and lift handle assembly up.

C2 handle adjuster

1. Locate cord in the pull cord guide on the upper handle. (D3)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

1. Adjust handle assembly to the most comfortable operating position (C3) and tighten handle adjusters (C2) on both sides of the product

Line drawing of a person using a lawn mower to adjust equipment (no text or symbols)

Fitting the Grassbox

1. Lift safety flap. (E1)
2. Locate grassbox to machine. (E2)
3. Locate safety flap onto the top of the grassbox. (E3). Ensure the grassbox is securely located.

Line drawing of a car interior with hands adjusting the seat area (no text or symbols)

Recoil Starter

1. Disconnect the spark plug lead.

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a car engine bay with visible components and parts, no text or symbols present

Line drawing of a bicycle rear view with wheels and a basket (no text or symbols)

1. Pull the Operator Presence Control (D1) to release the brake on the engine. ROYAL 49S AND ROYAL 49SE ONLY

You must release the brake by pulling the OPC lever to the handle before pulling out the cord.

Please Note :- Ensure no gap remains between the safety flap and the grassbox

Where grass collection is not required you can use the lawnmower without the grassbox. Ensure the safety flap is fully closed

English - 3

ENGINE NOTES

Oil

1. Check oil level periodically and after every five hours of operation.
2. Add oil as necessary to keep the level to the FULL mark on the dipstick.
3. Use a good quality SAE 30 four stroke oil.
4. To fill with oil:- a) Remove oil filler cap. (F1) b) Fill to the FULL mark on the dipstick. (F2)
5. Change the oil after the first five hours operation and thereafter every 25 working hours.
6. Always change the oil while the engine is warm - but not hot - never attempt any maintenance on a hot engine.

Mechanical assembly diagram showing a lever mechanism with a pin and pivot point (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with no visible text or symbols

Petrol

1. Use fresh regular grade lead free petrol.
2. Do not fill the fuel tank when the engine is hot.
3. Do not fill the fuel tank while smoking.
4. Do not fill the fuel tank while the engine is running.
5. To avoid introducing dirt into the fuel system, wipe all grass and dirt from the petrol filler cap before unscrewing it. (G1)
6. It is recommended that you fill the tank through a funnel with a filter. (G2)
7. Wipe away spillages before starting.

Line drawing of a car's front wheel and dashboard (no text or symbols)

Diagram of a car gear shift lever with a bucket and valve (no text or symbols)

Please Note :- move the product away from the fuelling area before starting

STARTING - PRIMING THE ENGINE

Please Note:- When starting the engine for the first time, fill with oil and petrol as described above in the Oil and Petrol section.

Priming is usually unnecessary when restarting a warm engine. However, cool weather may require priming to be repeated.

Starting the engine for the first time

Line drawing of a car's front and side views showing engine, dashboard, and exhaust components (no text or symbols)

1. Advance engine speed control to FAST '+' as illustrated in the Use - starting and stopping section.
2. Push primer bulb (H) firmly five times
3. Follow instructions in the Use - starting and stopping section.
4. If engine fails to start after three pulls of the pull cord, push primer bulb three times and repeat step 3.

Starting engine thereafter

1. Move engine speed control to FAST ‘+’ position and push primer bulb firmly three times before starting engine. (if engine stopped because it ran out of fuel, refuel engine - push primer bulb three times.

USE - STARTING AND STOPPING

Starting & Stopping Royal 49S Starting

1. Connect the spark plug lead.
2. Move the Engine Speed Control to the FAST '+' position before starting. (J1)
3. Pull the operator presence control (OPC) to release the brake on the engine and the blade.(J2)
4. Pull the recoil starter fully towards you until you feel the full resistance, return the handle slowly then pull the handle firmly towards you to its full extent. (J3)
5. After the engine has started, allow to run for 30 seconds before commencing to use.

Engaging the Drive

1. Forward drive is engaged and disengaged with the Powerdrive lever at the top of the handle (J4).
2. Drive speed can be altered with the drive speed control. (J5)
3. Releasing the Powerdrive Lever stops the forward drive automatically.

Stopping

1. Release the powerdrive lever.
2. Release the OPC lever.

J1 + -

Illustration of a hand holding a tool with a spring scale, no text or symbols present

J3 recoil starter

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

J5 drive speed control engine speed control

Starting & Stopping Royal 49SE Starting

1. Follow steps 1-3 for the Royal 49S
2. Turn the key and hold until the engine starts (K1). The key will return to the original position when released.
3. If the engine fails to start when you turn the key your battery may need charging.

Please note:- Your Royal 49SE can be started manually by following steps 1-5 in

Starting & Stopping Royal 49S

Key Start Only - During mowing, your engine will recharge the battery

Engaging the Drive - See Royal 49S

Stopping - See Royal 49S

Starting & Stopping Royal 49S/BBC (BBC - Blade, Brake, Clutch)

1. Follow steps 1 - 2 - 4 and 5 for the Royal 49S.
2. Pull the BBC arm to the handle (L1).
3. While holding the BBC arm, push forward BBC control lever until a click is heard (L2).
4. Release the BBC control lever which will return to its original position.
5. Releasing the BBC arm will stop the blade from rotating.

Please Note:

Leaving the engine running without the blade rotating for an extended length of time could lead to the engine overheating.

Illustration of a person using a bicycle seatbelt mechanism (no text or symbols)

Diagram of a hand holding a curved mechanical component, labeled L2 (no text or symbols on the diagram itself)

Engaging the Drive - See Royal 49S

Stopping

1. Release the powerdrive lever.
2. Release the BBC arm.
3. Move Engine Speed Control to the '-' position.

USE - MOWING

How to Mow

1. Always use the correct mowing position (M1).
2. Start mowing from the outside edge of the lawn, mowing in strips in alternate directions (M2).
3. Mow twice a week in the growing season, your lawn will suffer if more that one third of its length is cut at one time and this may also result in poor collection.

M1

Illustration of a person using a lawn mower to maintain a vehicle (no text or symbols)

M2

Isometric diagram of a mechanical assembly with directional arrows and a central cart (no text or symbols)

Emptying the Grassbox

1. Release the latch on the grassbox. (M6)
2. Release collection bag from grassbox frame. (M7)
3. Empty grassbox. (M8)

M6

Line drawing of a hand using a sewing machine to cut or mark fabric (no text or symbols)

Line drawing of a computer monitor with a grid-patterned front panel (no text or symbols)

Line drawing of a person handling a large object, possibly a tool or device, with no visible text or symbols.

Please Note:-

Do not overload your Lawnmower

When mowing in long thick grass a first cut with the cutting height adjusted to its highest setting, see Cutting Height, will help reduce engine overload and will help prevent damage to your lawnmower.

Cutting Height

Adjustment

1. The height of cut is altered by pulling the adjustment lever away from the location slots and moving to the selected position (M3).

Grass Collection

Indicator

1. Your lawnmower has a grass collection indicator which tells you when the grassbox needs emptying. (M4)
2. When the indicator is at the top of the tube, grass is being collected.
3. When the indicator starts to drop, it's time to empty the grassbox. Adopt a stationary position, keeping the lawnmower running for 10 seconds. Release the OPC lever or BBC arm and remove the grassbox for emptying.(M5)

Interior view of a car showing dashboard, steering wheel, and exhaust pipe (no text or symbols)

Simple line diagram showing a curved path with a circular object, labeled M4 (no text or symbols beyond label)

Line drawing of a car engine compartment with no visible text or symbols

Using as a mulcher

1. Your lawnmower is supplied with a mulching plug. (M9)
2. Stop your lawnmower as described in Use - starting and stopping, and disconnect the spark plug.
3. Lift safety flap. Twist and slide mulching plug into rear discharge chute. (M10)
4. Ensure mulching plug is securely fitted. (M11)
5. The mulching plug prevents grass from being collected by blocking the collection chute on the underside of the deck. (M12)
6. Ensure the safety flap is positioned correctly. (M13)

Line drawing of a geometric 3D object resembling a folded paper or prism, with no visible text or symbols.

M10

Line drawing of a vehicle chassis frame with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a small wheeled vehicle with visible wheels and engine components (no text or symbols)

MAINTENANCE

IMPORTANT

Do not attempt any maintenance on your lawnmower when the engine is hot.

Cleaning

IMPORTANT

Never use water for cleaning your lawnmower. Do not clean with chemical, including petrol, or solvents - some can destroy critical plastic parts.

1. Remove grass from under the deck with a brush (N1 and N2).

Mechanical assembly diagram showing a rotating component with levers and gears (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

1. Using a soft brush - remove grass clippings from the engine air intakes and exhaust (N3), cutting height adjustment area. (N4), around the wheels (N5) and the grassbox (N6 & N7).

Line drawing of a car's wheel assembly with hands operating it (no text or symbols)

1. Wipe over the surface of your lawnmower with a dry cloth.

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of hands cleaning a car wheel rim with a textured handle (no text or symbols)

Line drawing of a hand using a tool to interact with a mechanical device (no text or symbols)

Line drawing of a hand using a tool to cut a plastic bag with a handle (no text or symbols)

Cutting System Removing the Blade P1 or P2 BBC Only

• Disconnect the spark plug lead.
• Use spanner to loosen blade bolt by turning anti-clockwise.
• Remove the blade bolt, blade and spacer washer.
• Inspect for damage and clean as necessary.

Fitting the Blade P1 or P2 BBC Only

1. Fit the blade to the machine with the sharp edges pointing away from
2. Re-assemble blade bolt through blade and spacer washer.
3. Hold firmly and tighten blade bolt firmly with a spanner. Do not over tighten.

English - 7

P1- 49S/49SE

P2 - BBC Only

Technical line drawing of a mechanical assembly with gears and levers (no text or symbols)

Please note

If you have a machine fitted with BBC then you must remove both blade bolts with a hexagonal drive key.

Always handle the blade with care - sharp edges could cause injury.

USE GLOVES

Renew your metal blade after 50 hours mowing or 2 years whichever is the sooner - regardless of condition. If the blade is cracked or damaged replace it with a new one.

How to Charge the Battery (49SE ONLY)

1. Stop your lawnmower.
2. Disconnect the spark plug
3. Remove the cap from the charging point at the bottom of the wiring loom (Q).
4. Plug charger lead into connection on battery loom

5. Plug the battery charger into a domestic electric socket.

6. Charging will then commence.

7. Charge for 24 hours.

8. After charging, disconnect the charger from the socket and charging point.

9. Replace the cap on the charging point.

10. The unit is now ready for use

ENVIRONMENTAL INFORMATION

Electrolux Outdoor Products are manufactured under an Environmental Management System (ISO 14001) using, where practical, components manufactured in the most environmentally responsible manner, according to company procedures, and with the potential for recycling at the end of the products' life.

• Packaging is recyclable and plastic components have been labelled (where practical) for categorised recycling.
• Awareness of the environment must be considered when disposing of ‘end-of-life’ product.
• If necessary, contact your local authority for disposal information.

BATTERY DISPOSAL

• The battery should be taken to an Approved Service Centre or your local Recycling Station.
• Do NOT dispose of used battery with household waste
• Lead/Acid batteries can be harmful and should be disposed of through the recognised recycling facility in accordance with European Regulation
• Do NOT dispose of battery to water.
• Do NOT incinerate

DISPOSAL OF FUELS AND LUBRICATING OILS

• Wear protective clothing when handling any fuels and lubricants.
• Avoid contact with skin.
• Remove petrol and engine oil before transporting the product.
• Contact your local authority for information of your nearest Recycling/Disposal Station.
• Do NOT dispose of used fuels/oils with household waste
• Waste fuels/oils are harmful, but can be recycled and should be disposed of through the recognised facilities.
• Do NOT dispose of used fuels/oils to water.
• Do NOT incinerate

MAINTENANCE

Battery Replacement

1. The battery is located underneath a cover behind the engine.
2. Stop the lawnmower and disconnect the spark plug.
3. Remove the screws from the cover.
4. Remove cover to gain access to the battery.

IMPORTANT:-Replacement batteries will need to be charged before use.

Ensure that neither the charger nor the battery are exposed to moisture

The battery pack can be replaced by unclipping the battery from its housing and disconnecting the battery pack from the battery leads.

General Guidance on Rechargeable Battery

1. Charging time is 24 hours.
2. Under normal usage the battery will be charged during the running of the engine.
3. To keep in prime condition the battery should be charged at least once every six months.
4. Exceeding the charging period may shorten the battery life.
5. Protect electric cable. Never carry the battery charger by the electric cable only.
6. If after an extended usage period the battery quickly runs down after a full 24 hour charging period, a replacement battery is probably needed.
7. Do not attempt to open the main body casing.
8. Clean only with a dry soft cloth.
9. Never use a damp cloth or flammable liquids such as petrol, white spirits, thinners etc.
10. Dispose of old batteries safely.

The engine brake cable should always be adjusted to stop the engine within 3 sec. CAUTION! For adjustment contact your authorized service dealer.

At the End of the Mowing Season

1. Replace blade, bolts, nuts or screws, if necessary.
2. Clean your lawnmower thoroughly.
3. Ask your local Service Centre to clean the air filter thoroughly and carry out any service or repairs required.
4. Drain engine of oil and petrol.

Storing your Lawnmower

1. Do not store your lawnmower immediately after use.
2. Wait until the engine has cooled to avoid a potential fire hazard.
3. Clean your lawnmower
4. Store in a cool, dry place where your lawnmower is protected from damage.

Service Recommendations

We strongly recommend that your product is serviced at least every twelve months, more often in a professional application.

Engine Maintenance Schedule

Follow the hourly or calendar intervals, whichever occur first. More frequent service is required when operating in adverse conditions

First 5 hours - Change oil.

Every 5 hours or daily - Check oil lever. Clean finger guard. Clean around muffler.

Every 25 hours or every season - Change oil if operating under heavy load or high ambient temperature. Service air cleaner.

Every 50 hours or every season - Change oil. Inspect spark arrester, if equipped.

Every 100 hours or every season - Clean cooling system*. Replace spark plug.

* Clean more often under dusty conditions, or when airborne debris is present or after prolonged operation cutting tall, dry grass.

Engine Servicing & Guarantee

The engine fitted to your lawnmower is guaranteed by the Engine Manufacturer. To obtain further information contact your dealer.

Fault Finding

Engine Will Not Start

1. Ensure OPC Lever /BBC arm is in the start position.
2. Check that the control lever is in the '+' position
3. Check that there is sufficient fuel in the tank and the cap air vent is clear.
4. Remove and dry the spark plug.
5. Petrol may be stale. Replace.
6. Check that the blade bolt is tight. A loose bolt could cause difficult starting.
7. If the engine will still not start, immediately disconnect the spark plug lead.
8. CONSULT YOUR LOCAL APPROVED SERVICE CENTRE.

Engine Will Not Turn Over (49SE only)

1. Ensure OPC Lever /BBC arm is in the start position.
2. Battery flat - start your lawnmower manually.
3. If the engine will still not turn over, immediately disconnect the spark plug lead.
4. CONSULT YOUR LOCAL APPROVED SERVICE CENTRE.

Lack of Engine Power and/or Overheating

1. Check that the control lever is in the 'normal' position.
2. Disconnect the spark plug lead and allow the engine to cool down.
3. Clean grass clippings and debris from around the engine and air inlets and the underside of the deck including the chute.
4. Clean the engine air filter (Ask your local Approved Service Centre to clean the engine air filter thoroughly).
5. Petrol may be stale replace.
6. If the engine still lacks power and/or is overheating, immediately disconnect the spark plug lead.
7. CONSULT YOUR LOCAL APPROVED SERVICE CENTRE.

Excessive Vibration

1. Disconnect the spark plug lead.
2. Check that the blade is correctly fitted see page 7.
3. If the blade is damaged or worn replace it with a new one.
4. If vibration persists, immediately disconnect the spark plug lead.
5. CONSULT YOUR LOCAL APPROVED SERVICE CENTRE.

Line drawing of a car chassis with wheels and structural components (no text or symbols)

C2

Griffeinstellvorrichtung

Line drawing of a person using a lawn mower (no text or symbols)

D1

Illustration of a hand using a tool to measure a mechanical component (no text or symbols visible)

Line drawing of a car's front wheel assembly with visible brackets and wheels (no text or symbols)

D2

Line drawing of a person using a tool to interact with another person (no text or symbols present)

D3

Technical line drawing of a mechanical clamp or tool with a spring and lever (no text or symbols)

E1

Line drawing of a mechanical device with hands operating it (no text or symbols)

E3

Line drawing of a bicycle with wheels and a basket (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a pin and pivot point (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Benzin

Line drawing of a car's front wheel and dashboard (no text or symbols)

G2

Line drawing of a car interior showing engine, dashboard, and exhaust components (no text or symbols)

Illustration of a hand holding a tool with a spring scale, no text or symbols present

J3 Zugstarter

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Pure mechanical diagram showing a pulley or lever mechanism without any text, numbers, or symbols

Illustration of a person using a bicycle seatbelt, no text or symbols present

Diagram of a hand holding a curved mechanical component with a rotating arrow, labeled L2 (no text or symbols on the diagram itself)

Illustration of a person using a lawn mower to maintain a vehicle (no text or symbols)

M2

Isometric diagram of a mechanical assembly with directional arrows and a central cart (no text or symbols)

Hinweis:

Interior view of a vehicle dashboard with steering wheel and gear (no visible text or symbols)

Abstract diagram with intersecting lines and a central oval shape, labeled M4 (no text or symbols within the diagram itself)

Line drawing of a car engine compartment with visible structural components (no text or symbols)

Line drawing of a hand using a sewing machine to cut fabric or mesh (no text or symbols)

M7

Line drawing of a basket with a handle and woven pattern, no text or symbols present

Line drawing of a person handling a large object outdoors (no text or symbols)

Line drawing of a geometric 3D object resembling a folded paper or prism, with no visible text or symbols.

M10

Technical line drawing of a vehicle chassis frame with no visible text or symbols

M12

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a small wheeled vehicle with wheels and a handle, labeled M13 (no text or symbols on the diagram itself)

6 - DEUTSCH

WARTUNG

WICHTIG

Mechanical assembly diagram showing a rotating wheel with levers and gears (no text or symbols)

Illustration of a hand using a tool to clean or repair a mechanical component (no text or symbols visible)

Illustration of hands operating a vehicle engine with a tire and dashboard (no text or symbols visible)

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing hands operating a component with no visible text or symbols

Line drawing of a hand using a tool to interact with a mechanical device (no text or symbols visible)

Line drawing of a hand holding a tray with a mesh structure, no text or symbols present

Schneidwerk

Messer ausbauen

P1 oder P2,

P1- 49S/49SE

P2 - Nur BBC

Hinweis

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Line drawing of a car's front wheel assembly (no text or symbols)

Line drawing of a person using a lawn mower on a lawn (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols)

Line drawing of a car engine bay with visible components and parts (no text or symbols)

Illustration of hands using a tool to interact with a mechanical component (no text or symbols visible)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a mechanical device with a hand operating it, no text or symbols present

Line drawing of a bicycle with wheels and a basket (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a pin and pivot point (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Essence

Line drawing of a car's front wheel and dashboard (no text or symbols)

Mechanical diagram showing a lever mechanism with no visible text or symbols

Line drawing of a car's front and side views showing engine, dashboard, and exhaust components (no text or symbols)

Illustration of a hand holding a tool with a spring scale, no text or symbols present

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Arrêt

Pure mechanical diagram showing a lever mechanism with no text or symbols

Illustration of a person using a bicycle seatbelt device (no text or symbols)

Diagram of a hand holding a curved mechanical component, labeled L2 (no text or symbols on the diagram itself)

Illustration of a person using a lawn mower to maintain a vehicle (no text or symbols)

M2

Isometric diagram of a mechanical assembly with directional arrows and a central cart (no text or symbols)

Simple line diagram showing a circular object on parallel lines with curved lines, labeled M4 (no text or symbols beyond label)

M5

Line drawing of a bicycle's front wheel and steering wheel assembly (no text or symbols)

Line drawing of a basket with a handle and woven pattern, no text or symbols present

M6

Line drawing of a hand using a tool to cut or mark a piece of material (no text or symbols)

Illustration of a person in protective gear handling materials, labeled M8 (no text or symbols on the diagram itself)

Broyage

Line drawing of a geometric 3D object resembling a folded paper or prism, with no visible text or symbols.

M10

Line drawing of a vehicle chassis frame with no visible text or symbols

M12

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a small wheeled vehicle with visible wheels and a handle (no text or symbols)

ENTRETIEN

IMPORTANT

Mechanical assembly diagram showing a hand operating a car wheel with visible tire tracks (no text or symbols)

Illustration of a hand using a tool to cut a mechanical component, labeled N2 (no text or symbols on the diagram itself)

Illustration of hands operating a vehicle chassis with tire and engine components (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing hands operating a component with no visible text or symbols

Line drawing of a mechanical device with hands operating it, no visible text or symbols

Line drawing of a hand using a tool to clean or filter a mesh structure (no text or symbols)

Système de Coupe

Dépose de la lame

P1- 49S/49SE

P2 BBC uniquement

Vibrations excessives

Line drawing of a car chassis with visible engine and wheels (no text or symbols)

C2 stelschroef

Line drawing of a person using a lawn mower to adjust equipment (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols)

Line drawing of a car's front wheel assembly with visible gears and wheels (no text or symbols)

D2

Line drawing of a hand holding a tool near a textured object (no text or symbols)

Technical line drawing of a mechanical clamp or tool with a spring and lever (no text or symbols)

E1

Line drawing of a mechanical device with hands operating it, no text or symbols present

E3

Line drawing of a bicycle with wheels and a basket (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Benzine

Line drawing of a car's front wheel and dashboard (no text or symbols)

Mechanical diagram showing a lever mechanism with no visible text or symbols

Line drawing of a car interior showing engine, dashboard, and exhaust components (no text or symbols)

Illustration of a hand holding a cable or connector with a spring scale, no text or symbols present

Illustration of a hand using a tool to adjust or clamp a mechanical component (no text or symbols visible)

J5 Snelheidshendel Gashendel

Pure mechanical diagram showing a lever mechanism with no text or symbols

Line drawing of a person using a bicycle seatbelt device (no text or symbols)

Diagram of a mechanical clamp or bracket with a curved handle and a separate bracket, labeled L2 (no text or symbols present)

Illustration of a person using a lawn mower to maintain a vehicle (no text or symbols present)

M2

Isometric diagram of a mechanical assembly with directional arrows and a central component (no text or symbols)

Interior view of a vehicle showing dashboard, steering wheel, and battery compartment (no text or symbols visible)

Simple line diagram showing a curved path with a circular object, labeled M4 (no text or symbols beyond label)

Line drawing of a car engine compartment with no visible text or symbols

De grasopvangbak legen

Line drawing of a hand holding a tool over a mesh or mesh structure (no text or symbols)

M7

Line drawing of a basket with a handle and woven pattern, no text or symbols present

Illustration of a person pouring liquid from a container into a pile (no text or symbols)

Pure line drawing of a 3D geometric structure without any text, numbers, or symbols

M10

Line drawing of a hand operating a vehicle with a gear shift indicator (no text or symbols)

M11

Technical line drawing of a vehicle chassis frame with visible wheels and structural components (no text or symbols)

M12

Technical line drawing of a mechanical component with no visible text or symbols

M13

Line drawing of a small wheeled vehicle with attached motors (no text or symbols)

6 -NEDERLANDS

ONDERHOUD

BELANGRIJK

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical illustration of a mechanical assembly with a hand holding a tool, no visible text or symbols

Line drawing of a car being loaded with a tool, showing engine and wheel components (no text or symbols)

Line drawing of a lawn mower with visible mechanical components and no text or symbols

Mechanical assembly diagram showing a gear and cam mechanism (no text or symbols)

Line drawing of a bicycle's seatbelt mechanism with hand and tool (no text or symbols)

Line drawing of a hand holding a basket with a grid pattern, no text or symbols present

Snijmechanisme

P1- 49S/49SE

P2 - alleen BBC

Let op

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Line drawing of a car chassis with visible engine compartment and wheels (no text or symbols)

C2

Ajustador de mango

Line drawing of a person using a lawn mower (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a car's front wheel assembly with visible brackets and wheels (no text or symbols)

D2

Line drawing of a person using a tool to interact with another person (no text or symbols present)

Technical line drawing of a mechanical clamp or tool with spring and lever components (no text or symbols)

E1

Line drawing of a mechanical device with hands operating it, no text or symbols present

E3

Line drawing of a bicycle rear view with wheels and cabin (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Gasolina

Line drawing of a car's front wheel and dashboard (no text or symbols)

Diagram of a car gear shift lever with a bucket and valve (no text or symbols)

Line drawing of a car interior showing engine, dashboard, and exhaust components (no text or symbols)

Illustration of a hand holding a cable or connector with a spring scale, no text or symbols present

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Pure mechanical diagram showing a lever mechanism with no text or symbols

Illustration of a person adjusting a seatbelt with a belt, no text or symbols present

Diagram of a mechanical clamp or bracket with a curved arrow indicating rotation (no text or symbols)

Parada

Line drawing of a person pushing a lawn mower (no text or symbols)

Isometric diagram of a U-shaped structure with directional arrows and a small mechanical component, labeled M2 (no text or symbols on the diagram itself)

Diagram of a car interior showing dashboard, steering wheel, and gear mechanism (no text or labels)

Simple line diagram showing a curved path with a circular object, labeled M4 (no text or symbols beyond label)

Line drawing of a car engine compartment with visible structural components and no text or symbols

Line drawing of a computer keyboard with hand typing on top (no text or symbols)

Top-down schematic of a mechanical component labeled M12, showing internal components and assembly lines (no readable text or symbols)

Line drawing of a hand holding a small object over a surface, with no visible text or symbols

Line drawing of a person pouring liquid from a container into a pile (no text or symbols)

Line drawing of a geometric object resembling a folded paper or envelope, with no visible text or symbols.

M10

Line drawing of a vehicle chassis frame with wheels and a cylindrical component (no text or symbols)

Line drawing of a small wheeled vehicle with wheels and a handle, labeled M13 (no text or symbols on the diagram itself)

6 - ESPAÑOL

MANTENIMIENTO

IMPORTANTE

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a hand using a tool to adjust or install a mechanical component, labeled 'N2' in the top-left corner (no other text or symbols)

Line drawing of a hand using a tool to adjust or install a vehicle chassis (no text or symbols visible)

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing hands operating a component with a textured handle (no text or symbols)

Line drawing of a hand using a tool to interact with a mechanical device (no text or symbols visible)

Line drawing of a hand holding a tray with a grid pattern, no text or symbols present

P1- 49S/49SE

P2 - Sólo BBC

ESPAÑOL- 7

Warning symbol with exclamation mark inside triangle, commonly used to indicate caution or hazard

Line drawing of a car chassis with visible engine and wheels (no text or symbols)

C2

Line drawing of a person using a lawn mower (no text or symbols)

D1

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

1. Posicione a corda na guia da corda de arranque situada na pega inferior. (D2) ROYAL 49S E ROYAL 49S/BBC APENAS

2. Posicione a corda na guia da corda de arranque situada na pega superior. (D3)

Line drawing of a mechanical vehicle with wheels and structural components (no text or symbols)

D2

Line drawing of a hand holding a tool near a textured object (no text or symbols)

Technical line drawing of a mechanical clamp or tool with a spring and lever (no text or symbols)

E1

Line drawing of a mechanical device with hands operating it, no text or symbols present

E3

Line drawing of a bicycle with wheels and a basket (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a pin and pivot point (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

Gasolina

Line drawing of a car's front wheel and dashboard (no text or symbols)

Mechanical diagram showing a lever mechanism with no visible text or symbols

Line drawing of a car's front and side views showing engine, dashboard, and exhaust components (no text or symbols)

Arranque Posterior do Motor

Illustration of a hand holding a tool with a spring scale, no text or symbols present

J3 Sistema de Arranque com Recolha

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Pure mechanical diagram showing a bracket and connecting rods without any text or symbols

Line drawing of a person using a bicycle seatbelt device (no text or symbols)

Diagram of a mechanical clamp or bracket with a hand holding the handle (no text or symbols)

Engrenamento - Ver Royal 49S

Paragem

Line drawing of a person using a lawn mower (no text or symbols)

M2

Isometric diagram of a mechanical assembly with directional arrows and a central component (no text or symbols)

Note que:-

Diagram of a vehicle's internal components and dashboard, showing battery, gear, and wheel assembly (no text or labels)

M4

Simple line diagram with curved lines and a shaded oval object, no text or symbols present

M5

Line drawing of a vehicle's front wheel assembly (no text or symbols)

Line drawing of a woven basket with hands operating it (no text or symbols)

M6

Line drawing of a hand using a tool to cut or mark a textured surface (no text or symbols)

Line drawing of a person carrying a large object, possibly a tool or device, in motion (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a geometric object resembling a folded paper or prism, with no visible text or symbols.

M10

Technical line drawing of a vehicle chassis frame with no visible text or symbols

Line drawing of a small wheeled vehicle with wheels and a handle, labeled M13 (no text or symbols on the diagram itself)

6 - PORTUGUÊS

MANUTENÇÃO

IMPORTANTE

Mechanical assembly diagram showing a motor or gear mechanism with no visible text or symbols

N2

2.

Illustration of hands operating a vehicle chassis with tires and sensors (no text or symbols)

Mechanical assembly diagram showing a vehicle with levers and suspension components (no text or symbols)

Mechanical assembly diagram showing hands operating a component with gears and shafts (no text or symbols)

Line drawing of a mechanical device with hands operating it, labeled N6 (no text or symbols on the diagram itself)

Line drawing of a hand using a tool to clean or inspect a grid-patterned object (no text or symbols)

P1- 49S/49SE

P2 - Apenas BBC

PORTUGUÊS - 7

Note que:

Warning symbol with exclamation mark inside triangle, commonly used to indicate caution or hazard

Line drawing of a car's front wheel assembly (no text or symbols)

C2

Line drawing of a person using a lawn mower (no text or symbols)

D1

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a car interior with visible structural elements and dashboard (no text or symbols)

D2

Line drawing of a hand holding a tool near a textured object (no text or symbols)

Technical line drawing of a mechanical clamp or tool with a spring and lever (no text or symbols)

Line drawing of a mechanical device with a hand operating it, no text or symbols present

E3

Line drawing of a bicycle with wheels and a basket (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a pin and pivot point (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

Benzina

Line drawing of a car's front wheel and dashboard (no text or symbols)

Mechanical diagram showing a lever mechanism with a bucket and valve (no text or symbols)

Line drawing of a car's front and side views showing engine, dashboard, and exhaust components (no text or symbols)

Illustration of a hand using a tool to adjust or install a cable or cable assembly (no text or symbols visible)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Pure mechanical diagram showing a pulley system with no text or symbols

Illustration of a hand using a bicycle seatbelt mechanism (no text or symbols)

Diagram of a hand holding a flexible hose with a curved handle and a mechanical component, labeled L2 (no text or symbols present)

Arresto

Line drawing of a person pushing a lawn mower (no text or symbols)

M2

Pure schematic diagram of a mechanical or electrical component with directional arrows, no text or symbols present.

Nota bene:

Interior view of a vehicle showing dashboard, steering wheel, and battery compartment (no text or symbols visible)

M4

Pure diagram of parallel lines with a central oval object, no text or symbols present

Line drawing of a car engine compartment with visible structural lines and components (no text or symbols)

Line drawing of a hand using a tool to cut or mark a surface, with no text or symbols present.

M7

Line drawing of a woven basket with handles, no text or symbols present

Illustration of a person pouring liquid from a container into a pile (no text or symbols)

Line drawing of a geometric 3D object resembling a folded paper or prism, with no visible text or symbols.

M10

Technical line drawing of a vehicle chassis frame with no visible text or symbols

M12

Illustration of a mechanical device with gears and a central circular component (no text or symbols)

Line drawing of a small wheeled vehicle with wheels and a hand tool, labeled M13 (no text or symbols on the diagram itself)

MANUTENZIONE

IMPORTANTE

Technical line drawing of a mechanical assembly with gears and levers (no text or symbols)

Technical line drawing of a mechanical assembly with a hand operating a tool (no text or symbols)

Line drawing of a car engine bay with a hand operating the wheel (no text or symbols)

1. Strofinare la superficie del tosaerba con un panno asciutto.

Technical line drawing of a mechanical assembly with gears and levers (no text or symbols)

Mechanical assembly diagram showing hands operating a component with no visible text or symbols

Line drawing of a hand using a tool to handle a mechanical component (no text or symbols)

Line drawing of a hand holding a mesh net with a handle, no text or symbols present

P1- 49S/49SE

P2 - Solo BBC

Nota bene:

Certificate of Conformity / Certificat de Comformite

I, THE UNDERSIGNED/JE SOUSSIGNÉ:P. HOWELLS OF ELECTROLUX OUTDOOR PRODUCTS, AYCLIFFE INDUSTRIAL ESTATE, NEWTON AYCLIFFE, COUNTY DURHAM DL5 6UP ENGLAND

1. Category/Categorie....Petrol Wheeled Rotary
2. Make/Marque.....Electrolux Outdoor Products

Conforms to the specifications of Directive 84/538/EEC/

Conforme aux specifications de la directive 84/538/CEE

Tested by (Laboratory)

Speed of Rotation of Cutting Device/

Electrolux Outdoor Products

Aycliffe Industrial Estate

NEWTON AYCLIFFE

Co.Durham DL5 6UP

ENGLAND

Telephone - (00) 44 1325 300303

Fax - (00) 44 1325 310339

UK Telephone - 01325 300303 Fax - 01325 310339

1999

Our policy of continuous improvement means that the specification of products may be altered from time to time without prior notice. Electrolux Outdoor Products manufacture products for a number of well known brands under various registered patents, designs and trademarks in several countries.

© Electrolux Outdoor Products Ltd. Registered Office, Electrolux Works, Oakley Road, Luton LU4 9QQ

Registered number 974979 England
