Product Type	Meat Grinder
Brand	Zelmer
Model	ZMM4248W
Color	White
Motor Blocked Power (MBP)	1900 W
Maximum Continuous Operation	10 minutes
Interval Between Operations	30 minutes
Noise Level (L_WA)	77 dB(A)
Voltage	220-240 V AC (as per rating plate)
Included Accessories	Mincer unit (body, screw, knife, 4 mm screen, threaded ring, tray, pusher); Shredder (fine grating drum, coarse grating drum, slicing drum, pulping drum, body, tray, pusher)
Optional Accessories	Juicer, Burr grinder, additional screens (2.7 mm, 8 mm), sausage stuffing tube
Material	Plastic housing, stainless steel blade and screens
Safety Features	Mechanical motor protection (breakable coupling); lock button; ventilation openings
Cleaning	Hand wash plastic parts in warm water; metal parts in hot water; screens and cutter lubricated with culinary oil; some plastic parts dishwasher safe (max 60°C)
Storage	Storage compartment for cord and accessories
Usage	Household use only; indoor use up to 2000 m altitude
Warranty	Refer to manufacturer; repair by qualified service only
Dimensions (Approximate)	Not specified in manual; typical meat grinder size
Weight (Approximate)	Not specified in manual

Frequently Asked Questions - ZMM4248W Zelmer

What is the maximum continuous operation time for the Zelmer ZMM4248W meat grinder?

The maximum continuous operation time is 10 minutes. After that, a 30-minute break is required before restarting.

Can I wash the metal parts in the dishwasher?

No, metal parts such as screens and cutters should be washed manually in warm water with dishwashing liquid. Dishwasher detergents may cause darkening of the metal.

How do I protect the motor from overload?

The grinder has a mechanical safety device: the coupling teeth break if overloaded (e.g., bones enter). Replace the broken coupling by unscrewing the screw in the scroll and fitting a new one.

What accessories are included with the ZMM4248W?

The package includes the mincer unit (body, screw, double-side cutter, 4 mm screen, threaded ring, tray, pusher) and a shredder with four drums (fine, coarse, slicing, pulping). Juicer and burr grinder are optional.

Can I grind bones or hard products?

No, bones, sinews, and hard products like dried peas or maize can damage the grinder. Only mince boneless meat and soft produce.

How do I clean the shredder?

Disassemble the shredder and wash plastic parts in warm water with dishwashing liquid. Use a wooden spoon to remove residues from inside the body or drum. Do not immerse the drive unit.

What is the noise level of the grinder?

The noise level (L_WA) is 77 dB(A).

Can I use the grinder for making sausages?

Yes, use the optional sausage stuffing tube. Soak the casing in warm water for 10 minutes before fitting. Ensure the meat mixture is not too runny to avoid leakage.

How do I store the appliance after use?

Turn off and unplug. Disassemble the mincer unit, clean and dry all parts. Place the power cord in the storage compartment, store the tray, and keep the screen in the recess.

What should I do if the grinder does not start?

Check that the power cord is plugged in and the switch is on. If it still does not start, bring the appliance to a Zelmer service center for repair.

USER MANUAL ZMM4248W Zelmer

White Zelmer electrician feeder with a white blade and mesh head (no visible text or symbols on the device body)

PLF iNSTRUKCJA UŻYTKOWANIA MASZYNKA DO MIELENIA 7–12
EN USER MANUAL MEAT MINCER 13–18
DE BEDIENUNGSANLEITUNG FLEISCHWOLF 19–25
RO INSTRUCTIUNI DE UTILIZARE DISPOZITV PENTRU TOCAT 26-31

ИНСТРУКЦИЯ ЗА УПОТРЕБА МАШИНКА ЗА МЕЛЕНЕ 32-37
RU ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ МЯСОРУБКА 38-43
UA ІНСТРУКЦІЯ З ВИКОРИСТАННЯ М'ЯСОРУБКА 44–49

ZMM42...

MASZYNKA DO MIELENIA meat mincer

zelmer

Multifunctional helper in every kitchen – grating, mincing, slicing and juicing.

Black-and-white photo of a kitchen electric shaver with food items including strawberries, bread, and eggurt (no text or symbols visible)

A

B

G

H

Close-up of a mechanical component with threaded end and curved side, showing motion arrows (no text or symbols)

Close-up of hands holding a mechanical component with a close-up inset showing a cable being inserted (no text or symbols visible)

Close-up of hands performing a finger manipulation or cleaning operation on a grater (no text or symbols visible)

Close-up of a hand holding a white pipe fitting with a magnified inset showing a circular detail (no text or symbols visible)

Close-up of hands performing a massage or massage technique on a white object, no visible text or symbols

Close-up of hands performing a medical procedure on a wrist, with an arrow indicating motion (no text or symbols visible)

Hand inserting a card into a device, showing the card being inserted (no text or symbols visible)

Close-up of hands using a balance scale to lift or press a cylindrical object, with arrows indicating downward motion (no text or symbols)

Close-up of a white laboratory brush tool with two cups, no visible text or symbols

Hand holding a power plug inserted into a white electrical outlet, with arrows indicating direction (no text or symbols)

Close-up of hands operating a white electronic device with a knob and control buttons (no visible text or symbols)

PL

Szanowni Klienci!

Congratulations on your choice of our appliance, and welcome among the users of Zelmer products.

In order to achieve best possible results we recommend using exclusively original Zelmer accessories. They have been specially designed for this product.

Please read this user manual carefully. Pay special attention to important safety instructions. Keep this user manual for future reference.

Appliance features

Shred, grind, squeeze, grate – Zelmer – one choice and so many options.

If one appliance could mince meat, shred and slice nuts and vegetables, sieve fruit to prepare delicious meals for babies or seasonal preserves, and even grind grain, seeds, nuts or coffee beans ... Now, all this is within your reach thanks to Zelmer mincers. Zelmer, an undisputed leader in the mincer category, presents the full range of ZMM42... products. These appliances can cope with each, even the most difficult task. Owing to the unique motor cooling system, the Zelmer mincer easily achieves "exceptionally large power", with the motor blocked power value amounting to 1900 W. Thanks to its perfect design solutions, after disengaging the standard mincer body and attaching a suitable module, the appliance can be transformed into a shredder, fruit juicer or burr grinder (model-dependent accessories, also available as options). Having only one appliance in the kitchen, you will delight the household members and guests with a range of refined meals. The Zelmer mincer will prove to be ideal during the fruit season: thanks to the fruit juicer you will prepare homemade juices, puree or fruit jellies. The shredder will help you prepare vegetables for soup, which, after being stored in a freezer, will delight you with the summer bouquet of tastes when it is grey and cold outside your window. The foodstuff mincer is intended for use in households.

Zelmer – Your invaluable helper in the kitchen.

Safety precautions and instructions for proper use of the appliance

Before starting to use the appliance, become familiar with the whole content of this user manual.

Make sure that you understand the instructions given below.

DANGER! / WARNING! Risk of injury

- Do not operate the appliance when the power cord is damaged or the housing shows visible damage.

- If the non-detachable power cord is damaged, it should be replaced by the manufacturer or at specialist service centre or by a qualified person in order to avoid any hazards.

- The appliance may only be repaired by qualified service personnel. Improper servicing may cause a serious hazard to the user. In case of defects contact ZELMER specialist service centre.

• Take special care when operating the appliance in the presence of children.

• Turn off and unplug the appliance before replacing accessories or approaching its movable parts.

• Always unplug the appliance from the electrical outlet when it is left unattended and before assembling, disassembling and cleaning.

• This product is not intended for use by children. Keep the appliance and the power cable out of reach of children.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children shall not play with the appliance.

• The appliance must only be used with the feeder tray.
• Only use the appliance indoors at room temperature and up to 2000 m above sea level.

WARNING! Risk of property damage

Do not disconnect the plug from the socket by pulling the power cord.

Always plug the appliance to the mains (AC only) with voltage corresponding to that indicated on the rating plate.

Do not expose the appliance to temperatures above 60°C. The appliance can be damaged.

Use the pusher only when pushing the food. Using objects other than the pusher may cause damage to the mincer and the motor.

Do not overload the appliance with too much product or by pushing too hard with the pusher.

Carefully assemble the mincer unit, as the improper assembly results in poor mincing quality and may cause the knife and the screen to blunt. Replace the blunt cutter or screen with the new ones.

Do not obstruct the ventilation openings in the housing during operation.

Do not place the appliance on a soft surface.

Do not immerse the appliance drive unit in water and do not wash it under running water.

Do not wash accessories when mounted on the drive unit. Do not use abrasive cleaning agents such as emulsions, creams, pastes, etc. for cleaning the appliance housing. They may remove graphical symbols, such as scales, markings, warning signs, etc.

Wash all accessories in warm water and washing up liquid. Rinse and dry carefully.

The screens and double-side cutter must be kept lubricated. Apply a little culinary oil to them before using.

Do not run the appliance empty if the screen has not been oiled.

HINT Information on the product and hints on its use

This appliance is intended for domestic use only.

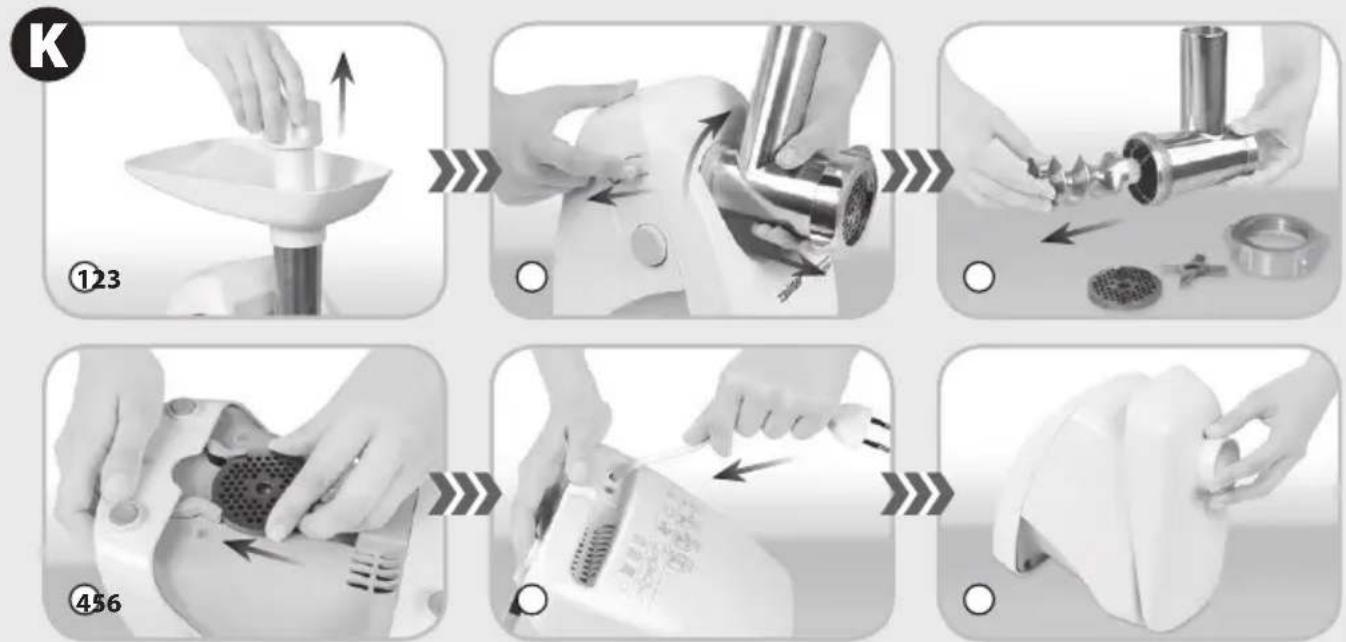

Unplug the appliance after you finish using it. Put away the cord, pushing it gently through the opening and place the plug in the compartment.

If the appliance cannot be switched on, bring it to a service centre.

Separate the meat to be minced from bones, sinews, gristles and veins.

Cut large portions of the product into smaller pieces before mincing.

Do not grind dry poppy seed. The poppy seed must be scalded and soaked for dozen or so hours before mincing.

Use a soft brush for cleaning the metal parts.

Do not wash the metal parts in dishwashers. Abrasive detergents used in dishwashers may cause the metal parts to become dark. Wash them manually using traditional washing-up liquids.

Technical data

The technical parameters are given on the rating plate of the product.

Maximum time of non-stop operation: 10 minutes

An interval between repeated operation: 30 minutes

Noise level ( L_WA ): 77 dB(A)

MBP - Motor Blocked Power 1900 W

TYPES OF ZELMER MINCERS

The table below shows a range of accessories available for the mincers and covered by this user manual.

VIB	Accessories
	Mincer unit No. 8 Shredder Juicer Burr grinder
ZMM4280*	● ● ● ●
ZMM4282*	●	○	●	○
ZMM4283*	●	●/Two cutting drums available	●	○
ZMM4248*	●	●	○	○
ZMM4288*	●	○	○	○
*appliance colour, ● - basic accessories, ○ - additional accessories available in shops

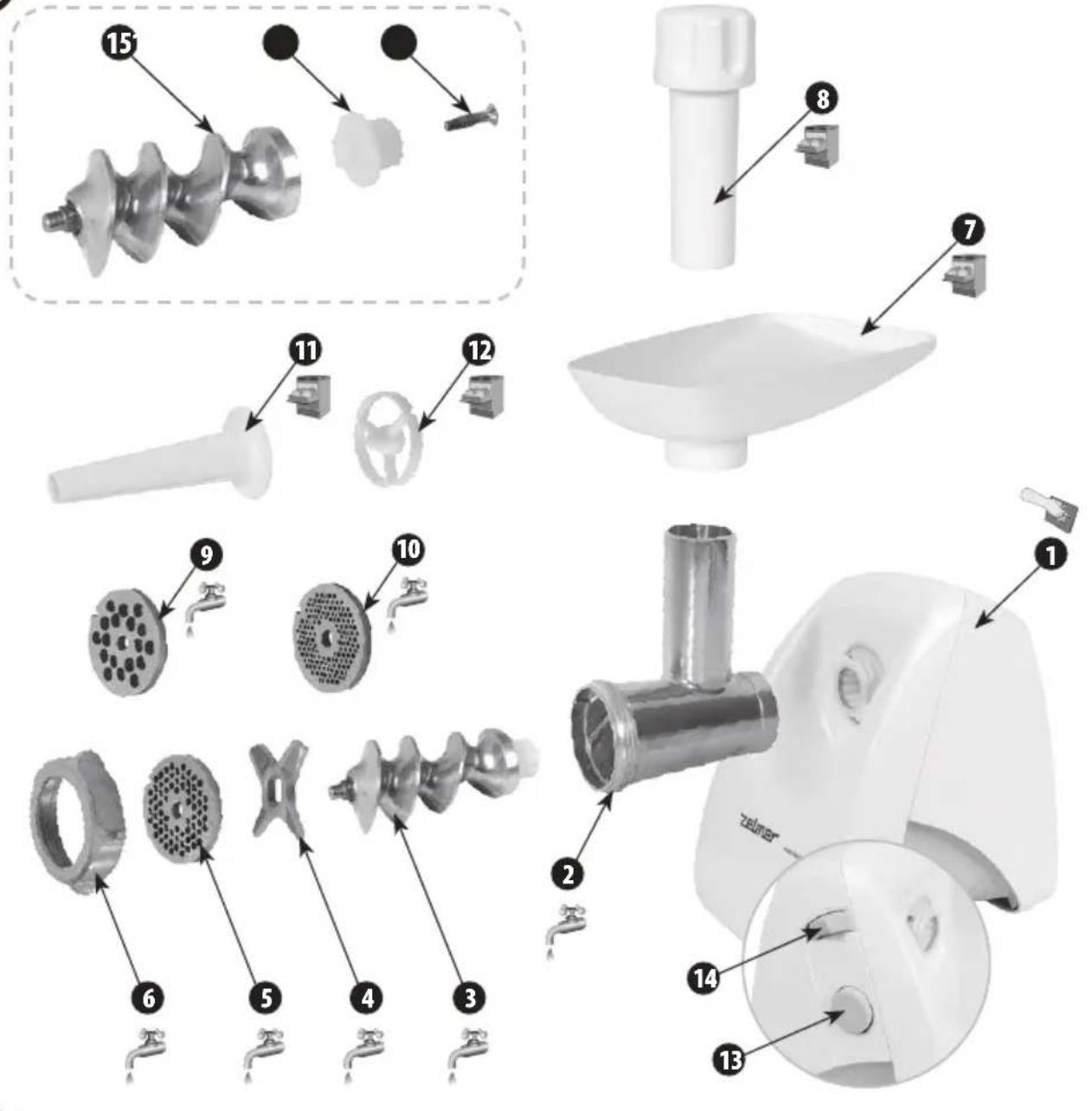

Appliance description

The foodstuff mincer consists of:

1 Drive unit – each drive unit is designed to work with each mincing unit and shredder manufactured by ZELMER. There are ventilation openings in the rear cavity of the drive unit compartment.

Mincer unit consisting of:

2 Mincer body
3 Feed screw with attached coupling
4 Double-side cutter
5 Screen with 4 mm holes
6 Threaded ring
7 Tray
8 Pusher

Parts and accessories comprising:

9 Screen with 8 mm holes
10 Screen with 2.7 mm holes (comes with ZMM4288, ZMM4248, ZMM4280
11 Sausage stuffing tube
12 Insert
13 Switch
14 Lock button

Mechanical safety device for the motor

15 Scroll
16 Coupling
17 Screw M5x20

The mincer is equipped with mechanical protection, which secures the motor against damage – the teeth of the scroll coupling will break when the mincer is overloaded (e.g., when bones have entered inside the mincer body).

Replace the broken coupling with the new one:

unscrew the screw (17) in the scroll (3) with the broken coupling,
remove the broken coupling (16),
fit the new coupling (16) and tighten it with the screw (17).

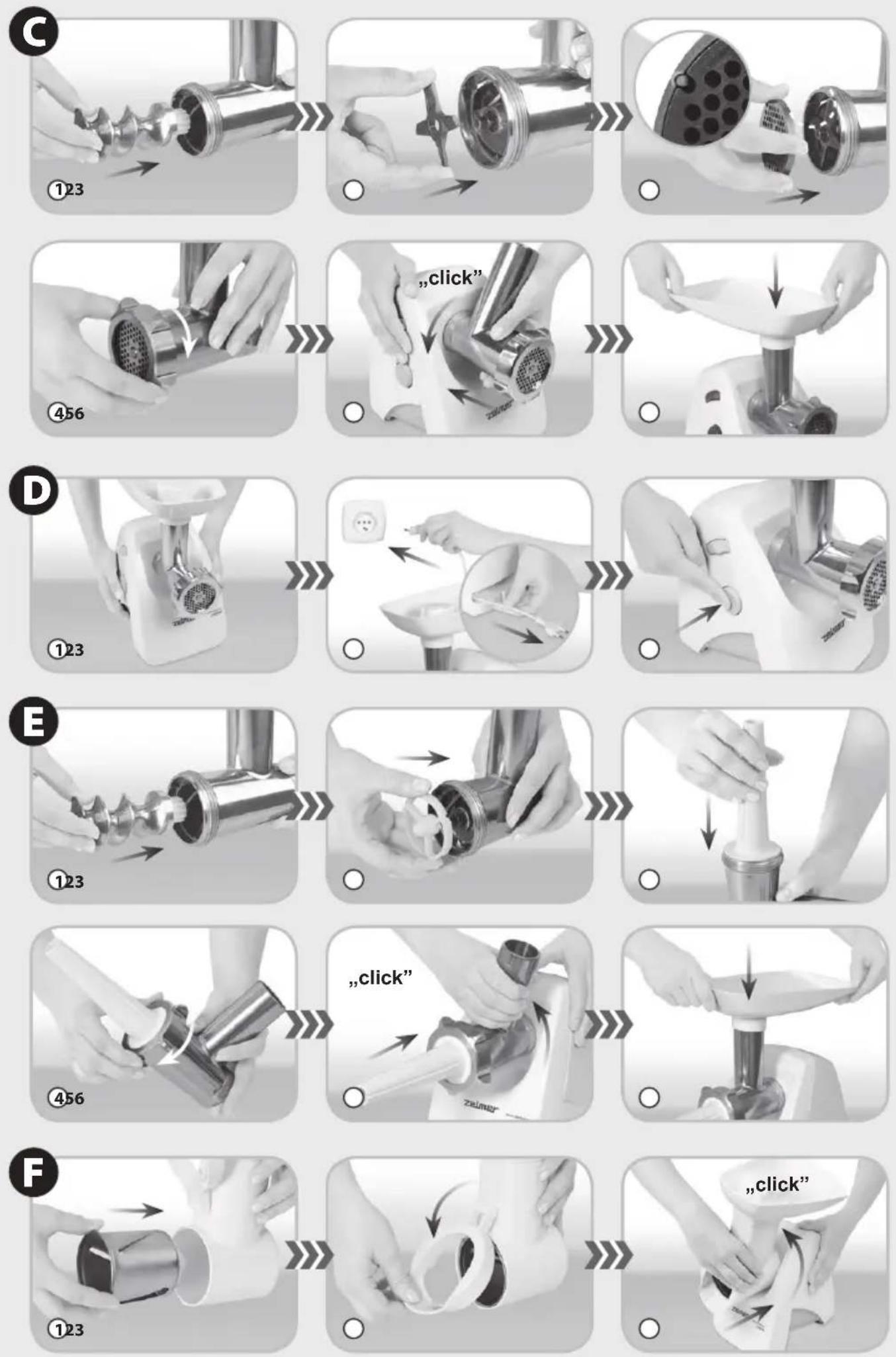

Working with the mincer unit

Insert the following parts into the mincer body (2):

① Insert the scroll (3) with the coupling (16) facing inside.
② Fit the knife (4) onto the pin of the scroll (3).
③ Place the screen (e.g. screen with 4 mm holes) over the knife so that the protrusion in the mincer body will fit into the groove in the circumference of the screen.
④ Tightly fit all the elements of the mincer unit.

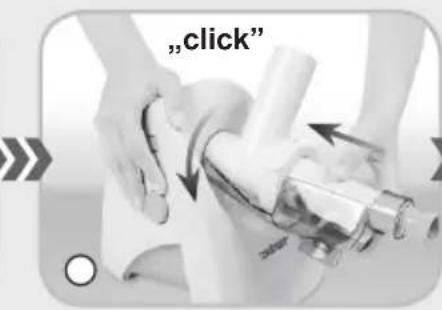

⑤ Fit the assembled mincer unit onto the drive unit (1) and turn it until you hear a click of the lock.
⑥ Place the tray (7) on the mincer body (2).

Preparing the mincer for operation and starting the mincer

① Place the drive unit (1) near the mains socket on a hard, stable surface. Do not obstruct the ventilation openings in the housing.

Wash all parts and accessories before the first use.

Assemble all the required parts and attach them to the drive unit.

② Carefully pull out the power cord, and then insert the plug in the mains socket.
③ Start the mincer by means of the switch button (13).

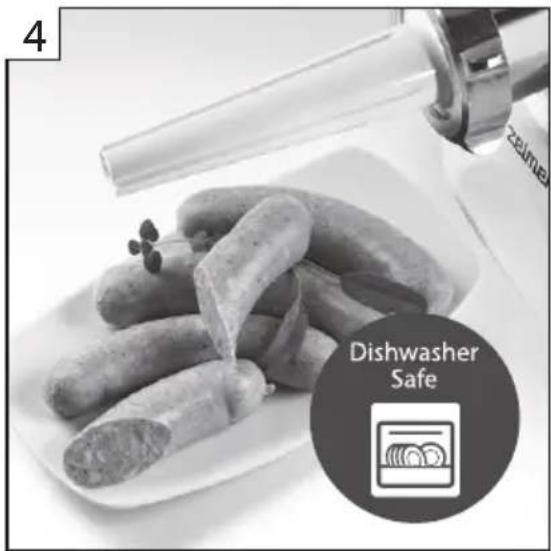

Working with the sausage stuffing tube

Insert the following parts into the mincer body (2):

① Insert the scroll (3) with the coupling (16) facing inside.
② Fit the insert (12) onto the pin of the scroll (3).
③ Fit the sausage stuffing tube (11).
④ Tightly fit all the elements with the threaded ring (6).
⑤ Fit the assembled mincer unit onto the drive unit (1) and turn it until you hear a click of the lock.
⑥ Place the tray (7) on the mincer body (2).

Before fitting the casing, soak it in warm water for about 10 minutes.

Fit the wet casing onto the sausage stuffing tube (11).

Make sure not to clog the ventilation openings in the tube.

The meat mass filling the casing cannot be "too rare". Large amount of fluids can cause their leakage and penetration inside the mincer.

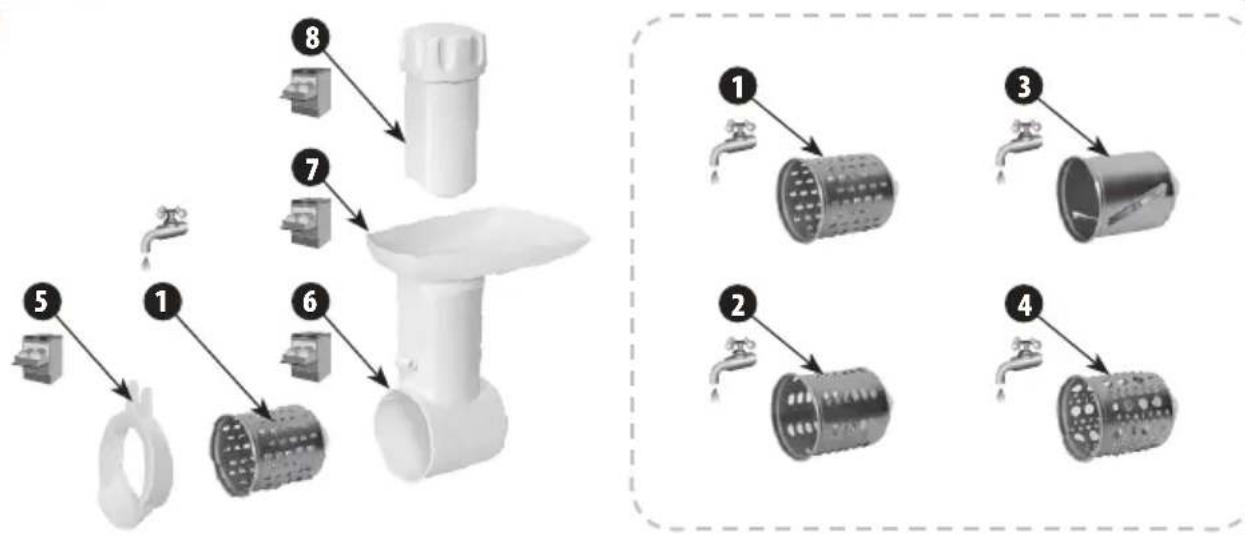

Shredder

1 Fine grating drum
2 Coarse grating drum (unavailable with ZMM4283)
3 Slicing drum (unavailable with ZMM4283)
4 Pulping drum
5 Locking tab
6 Body
7 Tray
8 Pusher

The shredder is equipped with two drums to grate into small and bigger chips (cheese, carrot, celery, baked beetroots, etc.). The third grating drum (slicing drum) is used to grate vegetables (potatoes, onions, cucumbers, etc.). The fourth grating drum (pulping drum) is used to grate fruit and vegetables (potatoes, beetroots, etc.) into pulp.

WORKING WITH THE SHREDDER

① Release the locking tab (5) and insert one of the grating drums with the coupling facing the inside of the body.
② Snap the locking tab (5).
③ Attach the shredder body (6) in the same way as the mincer body.

Cut large products into smaller elements, which you can be easily put into the shredder body.

Do not grate soft fruits containing hard stones.

When the work is finished turn off and unplug the appliance.

Remove the food remaining in the shredder body or inside the grating drum with a wooden spoon.

The blades of the drums do not require any regeneration.

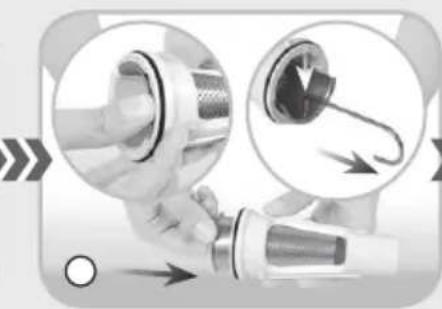

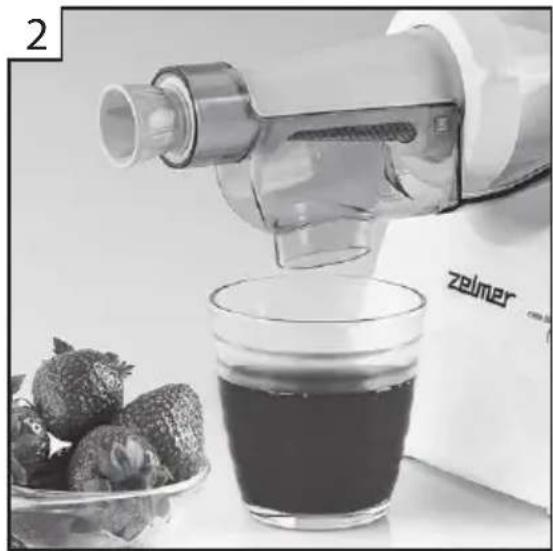

Juicer

The juicer is an accessory for some types of mincers. It allows squeezing juice from fruits such as: raspberries, currants, strawberries, gooseberry and additionally from grapes and tomatoes. Berry fruits such as currants can be squeezed with stalks. Fruits with large stones, such as plums, cherries etc. can be squeezed in the appliance after removing the stones.

Parts of the juicer:

1 Chamber
2 Worm
3 Body
4 Nut
5 Juice channel
6 Adjusting screw
7 Bowl (from the mincer unit)
8 Pusher (from the mincer unit)
9 Screen - 2 pieces

No. 1 – smaller openings

No. 2 – larger openings

10 Large sealing ring for the body (3)
11 Small sealing ring for the worm (2)
12 Hook
13 Brush

Use only the pusher to push fruits (8).

① Make sure that the sealing rings (10) and (11) are fitted onto the body (3) and the worm (2). If not, insert them into the sealing grooves in these elements (the body and the worm).
② Insert the screen (9) into the body (3) and press firmly home.

In order to remove the sieve (9) out of the body (3), it is helpful to use the hook (12). Put the shorter end of the hook (12) into the hole of the sieve (9), and pull the sieve (9) outside.

③ Insert the worm (2) into the chamber (1).

④ Insert the body with the screen onto the worm making sure that the sieve faces downwards, and the positioning slot fits into the protrusion in the chamber.
⑤ Screw on the nut (4) to attach the body to the chamber (1).
⑥ Screw the adjusting screw (6) into the body (3).
⑦ Slide the juice channel (5) over the adjusting screw until it snaps on the body (3) – “click”.
⑧ Attach the assembled juicer to the drive unit in the same way as the mincer body.
⑨ Insert the bowl (7) and the pusher (8) – from the mincer unit – onto the feeding tube.
10 Place the appropriate dishes for the juice and pomace under the outlet of the juice channel (5) and the adjusting screw (6).
⑪ Plug in the appliance.
⑫ Turn the appliance on by means of the switch button, and then feed the fruit, pushing with the pusher.

In order for the juice squeezing process to run properly do not screw the adjustment screw too deeply in the initial operation phase. After assessing the amount of juice in the processed fruits, adjust the screw in order to obtain an adequate effectiveness and to avoid clogging the appliance.

Observe the pomace dryness during squeezing. If it is too dry, unscrew the adjusting screw (6), to avoid clogging the appliance with the pomace.

The screw adjustment depends on the type of processed fruits, in case of juicy and ripe fruits adjust the screw deeper, and for fruits that are not as juicy, the level of screw adjustment should be lower.

If the screw adjustment does not provide an adequate squeezing effectiveness, you can process the pomace once again.

The clogging of the chamber outlet (in the adjustment screw (3)) with the pomace of juicy fruits can cause the flooding of the drive unit.

Unplug the appliance if the chamber outlet becomes clogged. Pay special attention on the juice squeezing process, make sure the screen openings are not clogged. Disconnect the juicer from the drive unit (as in the case of the mincer body), dismantle the juicer, clean (wash) the juicer elements. Use the included brush to clean the appliance, especially the screen.

Burr grinder

1 Nut
2 Burr regulator
3 Body with knob
4 Internal burr
5 External burr
6 Worm
7 Grinder chamber
8 Pan
9 The groove of the body must fit into the protrusion of the grinder chamber

DEVICE DESCRIPTION

The device can be used for grinding such products as: food grains, oily seeds and dry foodstuffs.

The burr grinder enables grinding such products as: wheat, oat, rice, granular coffee, all-spice, charlock, walnuts, hazelnuts dried mushrooms, almonds, soya, linseed, buckwheat groats, peeled sunflower seeds, etc.

Do not grind the oily products by the minimal granulation set up. Grinding device can be glued or blocked.

The device is not dedicated for grinding very hard products such as dried pea, maize.

THE INSTALLATION OF THE GRINDER ON THE DEVICE

① When the grinder chamber (7) is turned right by about 45^ , fit the assembled grinder onto the drive unit by inserting the protrusions of the grinder chamber (7) into the recesses in the drive unit, and then turn it left until you hear a “click” of the lock. It means that the grinder has been attached correctly.

USAGE AND REGULATION OF THE GRINDER

Before the first use, wash (see "CLEANING") and dry the disassembled grinder, and then grind around 50 grams of product (e.g. food grain) with the grinder set to medium grinding. The ground product must not be used because it is contaminated and must be thrown away.

Maximum time of non-stop operation of the grinder is 10 minutes. This condition corresponds to the maximum time of non-stop operation of the mincer for which a 45-minute break is required after 10 minutes of non-stop operation.

The device must not be operated without load. unloaded. Each time before staring the device, fill it with the product.

② Fill the pan (8) with grain.
③ Set the body handle (3) to coarse grinding.

④ Turn on the mincer motor.
⑤ The ground product will pour out through the opening.
⑥ Depending on the desired grinding level or the type of grain, adjust the burr regulator (2) with the body handle in order to obtain the product with the adequate granulation level. By turning it clockwise you will obtain a finer ground product, by turning it counter-clockwise – coarser ground product.

The finest (minimum) grinding level is achieved by setting the handle to line 1, and the coarsest (maximum) grinding level by setting it to the STOP line. See the graphic on the body (3) and burr regulator (2).

By attempting to twist or turn the handle beyond the STOP line during the operation you can damage the device.

It is recommended that the burr regulator (2) is set between line 1 and the STOP line during the grinder operation.

Remember to wash the grinder thoroughly before grinding different types of product. It will prevent mixing of odours.

soft grain such as oat or linseed it is necessary to select the coarse-graining setting.

Do not look into the grinding chamber during operation, as the grains which pop out sometimes, can hurt you (e.g. your eye).

CLEANING AND MAINTENANCE

The grinder does not require cleaning after each operation (if one type of product is ground only), because the worm (6) prevents the grain residues from depositing in the grinder. Dry the steel burrs (4, 5) using a soft cloth after cleaning to prevent corrosion. In case of long-term storage, conserve the burrs by greasing them (you can use edible oil). Do not immerse the burr in boiling water. The plastic parts (without the graphic) can be washed in the dishwasher (max. 60°C).

After the work has been finished

Turn off and unplug the appliance.

① Remove the pusher and take out the tray from the mincer body.
② Press the lock button, turn the mincer unit right and remove it.
③ Disassemble the elements of the mincer unit, sausage stuffing tube.

Place the power cord as well as the cleaned and dried parts in the storage compartment.

④ Place the screen in the recess.
⑤ Put away the power cord.
⑥ Store the tray.

Cleaning and maintenance

Clean the drive with a wet cloth, with an addition of dishwashing liquid.
Wash the plastic parts in warm water, with addition of the dishwashing liquid.
Wash the metal parts in hot water, with addition of the dishwashing liquid.
Carefully dry the washed elements.
Assemble the dry parts of the mincer unit or the shredder.
Wash all accessories in warm water and washing up liquid. Rinse and dry carefully.
The screens and double-side cutter must be kept lubricated. Apply a little culinary oil to them before using.

Disposal

Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE). The guideline

determines the framework for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposal facilities.

The manufacturer does not accept any liability for any damages resulting from unintended use or improper operation of the appliance. The manufacturer reserves the right to modify the product at any time, without prior notice, in order to adjust it to legal regulations, standards and directives or due to constructional, commercial, aesthetic and other reasons.

Black-and-white photo of a salad preparation setup with kitchen utensils, craters, and a bowl of fresh vegetables (no text or symbols visible)

Black-and-white photo of a Zeimer juice being poured into a glass of dark liquid, with strawberries in the background (no text or symbols visible)

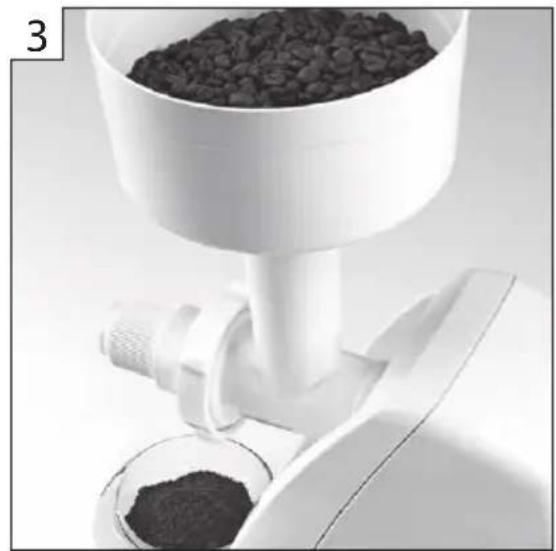

Close-up of a white ceramic coffee maker with black coffee beans being poured into a glass bowl (no text or symbols visible)

PL 1. Szatkownica w komplecie z łarkami na cienkie, grube wiórka, krojenie w plasterki i przecieranie ziemniaków 2. Wyciskarka do miękkich owoców i warzyw – domowe przetwory 3. Młynek żarnowy – proste mielenie ziarenek kawy, zbóż 4. Nasadka masarska. Możliwość mycia w zmywarce
EN 1. Shredder attachments with barrels in the set for cutting into thin or thick chips, and slicing or grating potatoes 2. Juicer for soft fruits and vegetables – homemade preserves 3. Seed grinder – easy grinding of coffee beans, cereals 4. Sausage attachment. Dishwasher safe
DE 1. Gemüseschneider im Set mit Aufsätzen zum groben und feinen Raspeln, Schneiden in feine Scheiben sowie Reiben von Kartoffeln 2. Presse für weiches Obst und Gemüse – für Eingemachtes 3. Kegelmühle – einfaches Mahlen von Kaffee und Getrieide 4. Wurst-Aufsatz. Geschirrspülgeeignet
RO 1. Dispozitiv cu 4 cilindri pentru radere / feliere 2. Storcâtor pentru roşii și fructe moi – pentru conserve preparate în casă 3. Moara pentru cereale sau boabe de cafea 4. Accesoriu pentru umplut cârnați, lavabil în mașina de spălat vase

Zelmer takes care of the environment. This user manual has been printed on 100% recycled paper.
