Product Type	Meat grinder (meat mincer) with multiple attachments
Brand	Zelmer
Model	ZMM3502B
Color	White
Material	Plastic body, stainless steel cutting parts and handle
Power Supply	Check product label for voltage and frequency
Continuous Operation Time	Maximum 10 minutes; cool down before restarting
Motor Protection	Mechanical safety device with breakable coupling
Functions	Meat mincing, sausage stuffing, shredding (grating, slicing, pureeing), tomato juice extraction
Included Accessories	Food pusher, hopper plate, feed screw, cutting blade, fine/medium/coarse cutting plates, fixing ring, sausage attachment, shredder discs (grating, slicing, pureeing), juice extractor set (screw, chamber, filter, tray, splash protector, regulator screw)
Number of Cutting Plates	3 (fine, medium, coarse)
Safety Features	Safety lock on head, overload protection
Cleaning	Hand wash recommended; plastic parts dishwasher safe; metal parts not dishwasher safe
Maintenance	Replace broken coupling if overloaded
Max Mincer Capacity	8.5 kg beef in 10 minutes
Max Juicer Capacity	0.3 kg tomatoes in 1 minute
Max Shredder Capacity	0.5 kg soaked carrots in 1 minute
Maximum Altitude	2000 m above sea level
Warranty	2 years
Intended Use	Domestic use only

Frequently Asked Questions - ZMM3502B Zelmer

How do I assemble the meat mincer?

Insert the scroll with the coupling facing inside. Fit the knife onto the pin of the scroll with the blade outward. Place the cutting disc over the knife so the protrusion fits into the groove. Tighten with the threaded ring. Attach the assembled unit to the drive unit and turn until you hear a click. Place the tray on top.

What is the maximum continuous operation time?

The continuous operation should not exceed 10 minutes. If exceeded, suspend operation and let the machine cool down before restarting.

Can I wash metal parts in the dishwasher?

No, it is forbidden to wash metal accessories in the dishwasher as aggressive cleaning agents may discolor and damage them. Only plastic parts are dishwasher safe. Rinse metal parts under running water and dry immediately.

What should I do if the motor stops during operation?

The motor has a mechanical safety device. If overloaded (e.g., bones entered), the coupling breaks. Unplug the appliance, remove the broken coupling, and replace it with a new one by unscrewing the old one and screwing on the new coupling.

How do I clean the appliance?

Always turn off and unplug before cleaning. Do not immerse the motor or power cord in water. Disassemble the mincing chamber by pressing the lock button and rotating. Clean plastic parts with a brush (blades are sharp). Rinse metal parts under running water (max 60°C) and dry immediately.

What accessories are included with the ZMM3502B?

The ZMM3502B includes: food pusher, hopper plate, feed screw, cutting blade, fine/medium/coarse cutting plates, fixing ring, sausage attachment, shredder discs (grating, slicing, pureeing), juice extractor set (screw, chamber, filter, tray, splash protector, regulator screw).

How do I use the sausage stuffer?

Insert the scroll with the coupling facing inside. Fit the insert onto the pin, then fit the sausage stuffing tube. Tighten with the threaded ring. Attach to the drive unit until it clicks. Soak the casing for 10 minutes before fitting. Use only the pusher to push meat. Ensure meat is not too thin to avoid leakage.

What is the maximum altitude for use?

This appliance is intended for use at a maximum altitude of 2000 m above sea level.

Can children use this appliance?

This appliance shall not be used by children. Keep the appliance and its cord out of reach of children. Persons with reduced capabilities may use it only under supervision.

What should I do if the supply cord is damaged?

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard.

USER MANUAL ZMM3502B Zelmer

White zelmer electrician tool with stainless steel handle and meshing (no visible text or symbols)

EN USER MANUAL Meat mincer

DE BENUTZERHANDBUCH Fleischwolf

CZ NÁVOD K POUŽITÍ Mlynek na maso

RODZAJE MASZYNEK DO MIELENIA MIĘSA MARKI ZELMER

WE WOULD LIKE TO THANK YOU FOR CHOOSING ZELMER. WE WISH THE PRODUCT PERFORMS TO YOUR SATISFACTION AND PLEASURE.

TYPES OF ZELMER MEAT MINCERS

Below, you can see an assortment of equipment anticipated for meat mincers, which the user manual refers to

MODEL MIN	CING CHAMBER	DOUBLE SIDE KNIFE	SMALL HOLE DISC	MEDIUM HOLE DISC	BIG HOLE DISCI	SAUSAGE STUFFER	SHREDDER JUICE EX-TRACTOR
ZMM3501B	5+-+++-	--
ZMM3502B	5+-+++big -
ZMM3503B	5+-+++small +

DESCRIPTION

1. Food pusher
2. Hopper plate
3. Head
4. Feed screw
5. Cutting blade
6. Cutting plate (fine)
7. Fixing ring
8. Cutting plate (coarse)
9. Cutting plate (medium)
10. Kebbe
11. Sausage attachment
12. Locking knob
13. Motor housing
14. ON/Off switch

Shredder

1. Grating drum
2. Slicing drum
3. Pureeing drum
4. Body
5. Pusher

Juice extractor accessory

1. Juicer screw
2. Juicer chamber
3. Filter
4. Juicer tray
5. Juicer anti splash protector
6. Juicer regulator screw

SAFETY INSTRUCTIONS

If the supply cord is damaged it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Respect the operating times of the accessories indicated

in their specific sections of the manual.

Proceed according to maintenance and cleaning section of this manual for cleaning. Warning: potential injury from misuse!

Care shall be taken when handling the sharp cutting knives and during cleaning.

Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Children shall not play with the appliance.

The device is intended for domestic use only. It is not intended for use in applications such as:

- employee kitchens in stores, offices and other work environments

- farms

- by customers in hotels, motels and other environments residential

- bed and breakfast environments

This appliance is intended for use at a maximum altitude of 2000m above sea level.

IMPORTANT WARNINGS

This appliance is designed for home use and should never be used for commercial or industrial use under any circumstances. Any incorrect use or improper handling of the product shall render the warranty null and void.

Prior to plugging in the product, check that your mains voltage is the same as the one indicated on the product label.

The mains connection cable must not be tangled or wrapped around the product during use.

Do not use the device, or connect and disconnect to the supply mains with the hands and/or feet wet.

Do not pull on the connection cord in order to unplug it or use it as a handle Unplug the product immediately from the mains in the event of any breakdown or damage and contact

an official technical support service. In order to prevent any risk of danger, do not open the device. Only qualified technical personnel from the brand's Official technical support service may carry out repairs or procedures on the device. This appliance is designed for home use and should never be used for commercial or industrial use under any circumstances. Any incorrect use or improper handling of the product shall the warranty null and void.

Prior to plugging in the product, check that your mains is the same as the one indicated on the product label.

Check the filter every time before squeezing. Do not use the juicer any more in case of any cracks or damage, and get in touch with the nearest dealer and manufacturer.

B&B Trends S.L. disclaims all liability for damages that may occur to people, animals or objects, for the non-observance of these warnings.

INSTRUCTIONS FOR USE

Meat Grinder

The continuous operation should not exceed 10 minutes; suspend the operation in the event of exceeding 10 minutes and restart the machine after cooling down.

Preparing the meat mincer to work and the actuation of the appliance

Place the drive unit close to the power network socket, on a firm surface so as not to cover the ventilation holes within the casing.

Before the first use of the meat mincer, wash the equipment elements.

Assemble the appropriate equipment and join it with the drive unit.

Plug in the unit.

Turn the meat mincer on with the main switch

Operating the mincing set

Insert the following parts into the mincer body :

Insert the scroll with the coupling facing inside. Fit the knife onto the pin of the scroll. Make sure the blade is outward (failure will be caused for incorrect placement)

Place the disc over the knife so that the protrusion in the mincer body will fit into the groove in the circumference of the disc.

Tightly fit all the elements of the mincer unit.

Fit the assembled mincer unit onto the drive unit and turn it until you hear a click of the lock. It means that the body has been properly installed.

Place the tray on the mincer chamber

NB: Use only the pusher to push products.

Operating the sausage stuffer

Insert the following parts into the mincer body: Insert the scroll with the coupling facing inside. Fit the insert onto the pin of the scroll.

Fit the sausage stuffing tube.

Tightly fit all the elements with the threaded ring. Fit the assembled mincer unit onto the drive unit and turn it until you hear a click of the lock.

Place the tray on the mincer body.

Soak the casing for about 10 minutes before fitting. Fit the wet casing on the sausage filler nozzle.

NB: Make sure not to block the ventilation openings on the nozzle.

NB2: The meant cannot be “too thin”. A large liquid content may cause its leakage to the inside of the mincer.

Shredder

The shredder is equipped with 2 or 3 discs. The first, for grating into chips (cheese, carrots, celery, roast beetroot, etc.). The second disc (slicing disc) is used for grating vegetables (potatoes, onions, cucumbers, etc.). The third cutting disc (drum disc) is used for mashing vegetables (potatoes, beetroot, etc.) and fruit.

Operating the shredder

Assemble the chamber of the shredder just as like mincing chamber.

Place the required cutting rolls on feeding tube, make sure the bottom of cutting rolls is tightly compacted to the salad tube.

Cut large products into smaller elements, which you can easily put into the mincing chamber.

Do not mash soft fruits containing stones.

When the work is finished pull the power cord out from the network supply \socket.

Remove the food remaining in the shredder chamber or on the grater with a wooden spoon.

NB: blades of the disc do not require any regeneration.

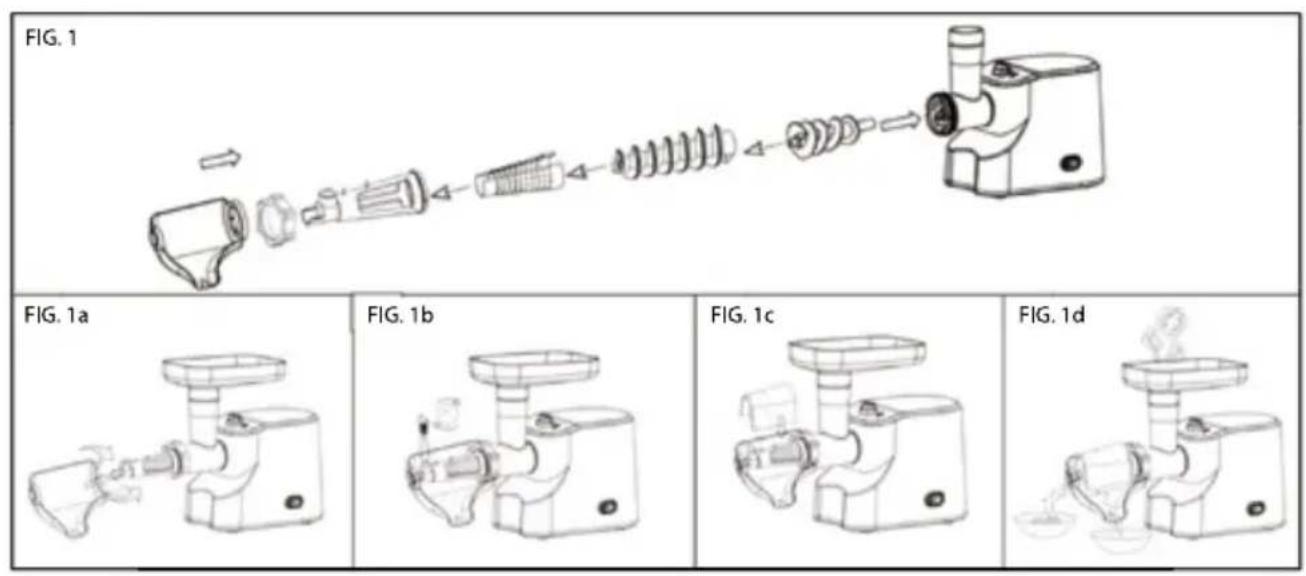

Operating the juice extractor

Please follow the picture on the way to the tomatoes accessories installed.

Insert the following parts into the mincer body:

Insert the scroll with the coupling facing inside. Fit the insert onto the pin of the scroll.

Fit the juicer screw and juicer chamber

Tightly fit all the elements with the threaded ring

Fit the assembled mincer unit onto the drive unit and turn it until you hear a click of the lock.

Place the juicer anti splash protector

Chop in tomatoes firstly. Turn on the power switch and make sure the equipment moves all right before put.

Use food pusher. Use the juicer regulator screw to regulate the release of pulp.

Mechanical safety device for the motor

The meat mincer is equipped with mechanical protection, which secures the motor against any damage – teeth of the coupling break, when the meat mincer is overloaded (f. ex. when bones have entered into the mincing chamber).

The broken coupling should be replaced with a new one:

- unscrew the coupling from the feed screw,

- remove the broken coupling

- put on the new coupling and screw it.

After the work has been finished

Turn off the unit and unplug it.

Remove the pusher and remove the food tray off the mincing chamber or the shredder chamber.

Press the safety lock and turn the mincing set or the grating chamber into right and take it off.

Take apart all the elements of the mincing set, the chamber with the sausage stuffer or the shredder.

MAINTENANCE AND CLEANING

Before cleaning, always turn off the appliance and unplug it from the power supply.

Do not immerse the appliance and power cord in water or other liquids or wash them in the dishwasher.

Prompt: it is suggested that clean the appliance immediately after use, which is easy for cleaning.

In the event of disassembling the appliance, rotate the appliance on the opposite direction of installation direction.

When disassembling all mincing chamber or body of shredder, press on the lock button 1 with one hand and screw off the mincing chamber or body of shredder with the other hand as the direction of the arrow shown in the right picture.

Please be careful for the disassembly of the appliance, so as not to scratch your fingers.

Do not use abrasives, scrubbers, acetone and alcohol to clean juicer.

Since some parts are relatively sharp, clean them with a brush, so as not to scratch fingers;

Neither immerse the motor in water, nor rinse it under the water tap. Water temperature for cleaning should not exceed 60^ C.

Only plastic parts are suitable for dishwashing machine.

It is forbidden to wash metal accessories in the dishwasher, as the aggressive cleaning agents used in these devices may discolour the metal parts and damage them.

Those parts should be rinsed under running water and dried immediately.

Table of recipes

The continuous operation should not exceed 10 minutes; suspend the operation in the event of exceeding 10 minutes and restart the machine after cooling down.

ACCESSORY LOAD QUANTITY	NTITY TIME OF OPERATION
Mincer function Beef 8,5kg	10 minutes
Tomato juicer Tomato 0,3kg	1 minute
Shredder Soaked carrots	0,5 kg	1 minute

PRODUCT DISPOSAL

This product complies with European Directive 2012/19/EU on electrical and electronic devices, known as WEEE (Waste Electrical and Electronic Equipment), provides the legal framework applicable in the European Union for the disposal and reuse of waste electronic and electrical devices. Do not dispose of this product in the bin, instead going to the electrical and electronic waste collection centre closest to your home.

ELIMINAREA PRODUSULUI

B&B TRENDS, S.L. guarantees compliance of this product for the use for which it is intended for a period of two years. In the case of breakdown during the term of this warranty, users are entitled to repair or else the replacement of the product at no charge if the former is unavailable, unless one of these options proves impossible to fulfill or is disproportionate. In this case, you can then opt for a reduction in price or cancellation of the sale, which must be dealt with directly with the sales vendor. This also covers replacement of spare parts provided that the product has been used according to the recommendations specified in this manual for both cases, and has not been tampered with by any third party that is not authorised by B&B TRENDS, S.L. The warranty will not cover any parts subject to wear and tear. This warranty does not affect your rights as a consumer in accordance with the provisions in Directive 1999/44/EC for member states of the European Union.

USE OF WARRANTY

Customers must contact a B&B TRENDS, S.L. authorised Technical Service for repair of the product. Since any tampering of the same by anyone not authorised by B&B TRENDS, S.L., or the careless or improper use of the same shall render this warranty null and void. The warranty must be fully completed and delivered along with the receipt or delivery docket for the effective exercise of rights under this warranty.

This warranty should be retained by the user as well as the invoice, receipt or the delivery docket to facilitate the exercise of these rights. For technical service and after-sales care outside the Polish territory, please submit your query to the point of sale where you purchased the item or check for further aftersales information at www.zelmer.com
