Product Type	Steam Iron
Brand	Fakir
Model	Vezuv
Power Consumption	2500 W
Voltage	220-240 V
Frequency	50/60 Hz
Water Tank Capacity	Approximately 300 ml
Soleplate Material	Stainless Steel (presumed)
Steam Output	Variable steam control
Spray Function	Yes
Shot of Steam Function	Yes
Self-Clean Function	Yes
Temperature Control	Adjustable with fabric settings
Pilot Light	Yes (indicates heating)
Power Cord Length	Approximately 2 m
Weight	Approximately 1.2 kg
Dimensions (L x W x H)	Approximately 30 x 15 x 15 cm
Usage Life	7 years
Safety Features	Non-slip handle, automatic shut-off when placed upright (presumed)
Repairability	Authorized service center

Frequently Asked Questions - Vezuv FAKIR

Why does my iron emit smoke or odor when first used?

When using the iron for the first time, a small amount of smoke or odor may occur due to residual oils from manufacturing. This is normal and will disappear after about ten minutes of use.

Why doesn't my iron heat up?

Ensure the temperature dial is set to a desired temperature and the iron is plugged into a 230 V AC outlet. The pilot light should indicate heating.

Why is my iron not producing steam?

Check if the water tank is empty. Fill it as described in the manual. Also, set the steam dial to the steam position and ensure the temperature is high enough for steam.

How do I use the burst of steam feature?

Set the temperature to max and wait for the pilot light to go out. Then press the burst of steam button. Allow a few seconds between bursts for best results.

How do I use the spray feature?

The spray can be used in any position as long as the water tank has water. Press the spray button to mist water onto the fabric.

Why is my iron leaking water?

The temperature may be too low to produce steam. Set the steam dial to dry ironing until the iron is hot, then adjust to steam. Also avoid overusing the shot of steam.

How do I fill the water tank?

Unplug the iron, set the steam button to dry ironing, and pour water into the filling hole. Use distilled or demineralized water if you have hard water.

How do I clean the iron (self-clean)?

Fill the tank to max, set temperature to max, heat until pilot light goes off then on, unplug, hold iron horizontally over sink, press self-clean button to flush out scale. Then dry iron an old cloth.

What type of water should I use?

Use distilled or demineralized water for hard water areas. Do not use chemically de-limed water or perfumed water.

Can I leave the iron unattended while plugged in?

No, never leave the iron unattended when connected to the mains. Always unplug it when not in use and place it upright on a stable surface.

USER MANUAL Vezuv FAKIR

Exterior view of a steam iron with visible brand and model details (no text or symbols on the device itself)

Line drawings of three different iron iron components (no text or symbols present)

Important safeguards.... 13

Important precautions....14

Suggestions before using the iron for the first time 15

Technical Specifications.... 14

Selecting the temperature 15

How to fill the water tank 15

Steam ironing 16

Spray 16

Shot of steam 16

Defects and repairs 17

Liability 19

Unauthorized use 19

Usage Area.... 19

CE Declaration of Conformity....20

Waste disposal 21

Dispatch....20

Thank you for purchasing Fakir VEZUV Steam Iron which has been designed and manufactured to give you many years of trouble-free service.

You may already be familiar with using a similar product, but do please take time to read these instructions – they have been written to ensure you get the very best from your purchase.

Important safeguards

When using your iron, basic safety precautions should always be followed, including the following:

Read all instructions before using

1. Use the iron only for its intended use.
2. To protect against the risk of electric shock, do not immerse the iron in water or other liquids.
3. The iron should always be turned to "min" before plugging or unplugging from the mains outlet. Never pull the cord to disconnect from the mains: instead, grasp plug and pull to disconnect.
4. Do not allow the cord to touch hot surfaces. Allow the iron to cool completely before putting away.
5. Always disconnect the iron from the electrical outlet when filling with water or emptying and when not in use
6. Do not operate the iron with a damaged cord or if the iron has been dropped or damaged. To avoid the risk of electric shock, do not disassemble the iron .take it to a qualified service agent for examination and repair. Incorrect re-assembly, can cause a risk of electric shock when the iron is used.
7. Close supervision is necessary for any appliance being used by or near children. Do not leave the iron unattended when connected to the mains or on an ironing board.
8. Burns can occur from torching hot metal parts, hot water or steam, use caution when you turn a steam iron upside down-there may be hot water in the reservoir.
9. If the iron is not operating normally, disconnect from the power supply. And contact the nearest authorized service agent.
10. Your iron is designed to rest on the heel. Do not leave the iron unattended when switched on. Do not place the iron on an unprotected surface even if it is on its heel rest.

Important precautions

To make good use of your appliance, please read these instructions carefully and look at the illustrations before using it.

1. Check that the voltage on the product rating plate coincides with your mains voltage.
2. The iron shall not be used if there are visible signs of damage or if the iron in leaking. The iron shall be sent to the manufacturer or his qualified service agent before further use.
3. Completely unwind the mains cable.
4. Always unplug the iron when not in use, even if only for a short period of time. Unplug it from the mains and leave it standing on its rear base.
5. Make sure that children can not touch the hot iron and that they can not pull on the mains wire.
6. Always unplug the iron before filling the water or when removing the excess water form it.
7. Never submerge the iron in water.
8. The iron shall be used on a stable ironing board.
9. The iron must be used and rested on a stable surface.
10. When placing the iron on its stand, ensure that the surface on which the stand is placed is stable.

Suggestions before using the iron for the first time

1. Certain parts of the iron have been lightly greased therefore the iron could give off a little smoke when plugged in for the first time. This will cease after a short while.
2. Before using the iron for the first time, remove the plastic protector from the base (if it has one) clean the base with a soft cloth.
3. Keep the base very smooth. Do not run it over metal objects (such as against the ironing board, buttons, zips, etc.)

4. Pure wool fibres (100% wool) can be ironed with the appliance in the steam position by preference, select a high steam position and use a dry ironing cloth.

5. Soleplate

6. Spray nozzle
7. Fill cover
8. Steam button
9. Spray&burst button
10. Power cord
11. Protect power
12. Lens
13. Temperature knob

Technical Specifications

2500 Watt

220-240 V

50/60 Hz

Usage Life: 7 Years

Selecting the temperature

1. Check the ironing instructions on the garment to be ironed.
2. If the garment does not have any ironing instructions but you know the kind of fabric in question, use the chart below.
3. Fabrics that have some kind of finish(polishing . wrinkles, contrasts....)can be ironed at the lowest temperatures.

4. If the fabric contains several kinds of fibres, always select the temperature applicable, if an article contains 60% polyester and 40% cotton, you must always choose the temperature corresponding to polyester and without steam.

5. First classify the articles to be ironed according to the most suitable ironing temperature : wool with wool, cotton with cotton, etc. as the iron heats up as fast as it cools , start by ironing the articles requiring the lowest temperature such as those made of synthetic fibres . Progress towards those that require the highest temperatures.

6. Turn the temperature control until it is in front of the appropriate signal according to the following:

• position for nylon and acetate
… position for wool ,silk or mixures
… position for cotton or linen (steam).

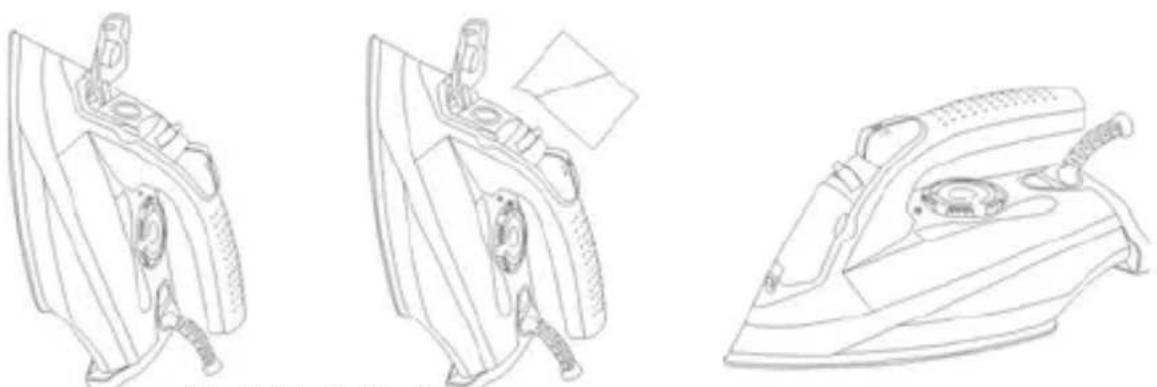

How to fill the water tank

1. Unplug the iron.
2. Set the steam button to dry ironing .(fig.1)
3. Fill the tank through the filling hole.(fig.2)
   -If you have hard water, it is advisable to use only distilled or demineralized water.
   -do not use chemically de-limed water or perfumed
4. Do not store the iron with water in the tank.

(Fig.1) (Fig. 2) (Fig. 3)

Steam ironing

1. Fill the iron as described in the section "how to fill the water tank".
2. Plug the iron into the mains.
3. Steam ironing is only possible when the highest temperatures shown on the temperature control are selected.

Otherwise, water may escape through the soleplate.

1. Wait until the pilot light goes out, which indicates that the selected temperature has been reached.
2. Turn the steam button to the required position.
3. When the ironing is finished and during breaks in ironing, place the iron in its upright position.
4. Disconnect the iron from the mains supply. Pour of any remaining water and leave the iron to cool off.

Spray

1. The spray can be used in any position, either in dry or steam ironing, as long as the water tank is filled with water.
2. Press the spray button for this function

NOTE!

For the best steam quality, do not use more than three successive bursts each time. Several pumping actions are needed to start this function.

Shot of steam

Shot of steam give extra steam for removing persistent wrinkles.

1. Place the temperature selector at the "max"(fig.3)position and wait until the pilot light goes out
2. Wait for a few seconds for the steam to penetrate the fibre before pressing again.

NOTE!

For the best steam quality, do not use more than three successive bursts each time. Several pumping actions are needed to start this function.

Excessive use of this feature will cause the iron to cool, ensure that the pilot light is out, before operating the shot of steam control.

Defects and repairs

Do not attempt to replace a defective mains lead. The appliance has to be returned to an authorized service centre for repair.

Using the self-clean button

The self-clean function must be used before using the appliance for the first time and then regularly to remove scale

1. Fill the tank to the maximum filling level.
2. Set the temperature control dial to the max position.
3. Plug the appliance in and switch on.
4. Allow the appliance to heat up until the heating light switches off and then on again.
5. Unplug the appliance and hold it horizontally over the sink.
6. Press the self-clean button.

Hot water and steam will come out of the vents. Impurities and scale will be washed away.

1. Move the iron backwards and forwards while this is happening.
2. Release the self-clean button.
3. Stand the appliance upright on its heel.
4. Plug the appliance in and switch on.
5. Iron an old cloth or towel to dry the soleplate.

Fault	Possible cause	Solution
Iron emits an odor or smoke	Iron gives off an odor when turned on for the first time.	Oils used during manufacture need to be burnt off allow ten minutes for odor to disappear.
Iron does not heat	The temperature dial did not set at the desired temperature.	The iron should be plugged into a 230 Volt, AC electrical outlet only. The temperature dial must be set at the desired temperature.
Iron does not steam	The water tank many be empty.	Turn the steam valve to “” and add water .Allow the iron to heat, and then set the steam dial to the steam setting.
Burst of steam feature does not work	The water tank can be empty and temperature button set to shouldn’t steam.	The water tank must be at least 1/4 full. Temperature must be set to steam position. Iron should be in the horizontal position. Prime pump briefly. Allow a short pause between shots. Be sure to fully depress the burst of steam button.
Spry mist feature does not work	The water tank must be at least 1/4 full.	Fill the iron as described in the section “how to fill the water tank”.
Iron is leaking	Temperature should be set to low level.	The variable steam dial must be set on“,until the iron is hot. The temperature setting is too low to produce steam. Shot of steam used too much, allow iron to re-heat.

Liability

Fakir Elektrikli Ev Aletleri Dış. Tic. A.Ş. will accept no liability for damages resulting from failure to comply with the operating instructions. Fakir Elektrikli Ev Aletleri Dış. Tic. A.Ş. cannot assume any liability in case the appliance is used for other purposes than its intended use or handled, repaired or serviced improperly.

Unauthorized use

The examples of unauthorized use listed here can result in malfunctions, damage to the appliance or personal injury:

This appliance is not designed to be used by persons (including children) with limited physical, sensory or mental capacities or by persons lacking in experience and/or knowledge, unless they are supervised by someone who is responsible for their safety or have received instructions on how to use the appliance. Children should be supervised to ensure that they do not play with the appliance. Children should be supervised to ensure that they do not play with the appliance. Electric appliances are not toys for children! Therefore, use and store the appliance away from the reach of children. Children do not recognize the danger involved with handling an electric appliance. Do not let the power cord dangle from the appliance.

Keep packaging films away from children - danger of suffocation!

Usage Area

This appliance is suitable for places; home. Do not use appliance for other than intended use and never use this appliance outdoors.

CE Declaration of Conformity

This appliance fulfills the requirements of the Appliance and Product Safety Law (GPSG) and the EU Directives 2004/108/EC “Electromagnetic Compatibility” and 2006/95/EC “Low-Voltage Directive.” The appliance bears the CE mark on the rating plate.

Waste disposal

If the service life of the device has ended, in particular if functional disturbances occur, make the worn-out device unusable by cutting through the power cable.

Dispose of the device according to the environmental regulations applicable in your country.

Electrical waste must not be disposed of together with household waste. Bring the worn-out device to a collection center. The packaging of the device consists of recycling-capable materials. Place these, sorted out according to material, in the collectors provided, so that recycling can be carried out on them.

For advice on recycling, refer to your local authority or your dealer.

Dispose of used dust bag and filters in domestic waste.

Dispatch:

This product is produced on behalf of Fakir Elektrikli Ev Aletleri Dış Ticaret A.Ş. by NINGBO KAIBO GROUP CO. LTD., The Northern Industrial Park of Zhouxiang Cixi 315324 Ningbo China, Tel: [phone]

Line drawings of three different iron iron components (no text or symbols)

Line drawings of three different types of steam iron components (no text or symbols present)

Line drawing of a mechanical device with a gear and handle (no text or symbols)

Line drawing of a steam iron with handle and plate (no text or symbols)
