Veronica - Iron FAKIR - Free user manual and instructions

Product Type	Steam Generator Iron
Brand	Fakir
Model	Veronica
Power	2000-2400 W
Voltage	220-240 V AC
Frequency	50/60 Hz
Steam Pressure	5 bar
Continuous Steam	140 g/min
Water Tank Capacity	2.0 L
Steam Cable Length	150 cm
Power Cable Length	200 cm
Weight	Approximately 4.5 kg
Thermostat Settings	Min to Max with fabric guide (Nylon, Silk, Wool, Cotton, Linen)
Self-Cleaning Function	Yes (recommended every 10 hours)
Vertical Steam Function	Yes
Steam Lock Button	Yes (for continuous steam)
Iron Ready Lamp	Yes
Steam Lamp	Yes
Safety Features	Auto shut-off not specified; safety warnings for burns, electric shock
Maintenance	Empty water tank after each use; self-cleaning; clean soleplate with damp cloth
Box Contents	Appliance, Water Scale Cup, User Manual, Warranty Certificate
Warranty	As per warranty certificate included
Intended Use	Household only

Frequently Asked Questions - Veronica FAKIR

How do I fill the water tank?

Open the water tank opening clamp by pulling it towards you, fill with water between the MIN and MAX lines, then close the clamp. Use tap water or a 1:1 mix of tap and purified water if water is hard.

How do I use the vertical steam function?

Set the thermostat to MAX, hold the iron vertically a few inches away from hanging clothes or curtains, and press the steam button. Do not direct steam at people or animals.

How often should I use the self-cleaning function?

It is recommended every 10 hours of use. Turn the thermostat to the Self Clean setting; the appliance will self-clean for 1 minute. Do not iron during this process.

What type of water should I use?

Normal tap water is suitable. If your water is very hard, mix tap water with purified water in a 1:1 ratio to prevent scale buildup.

Why is water leaking from the iron when I press the steam button?

Possible causes: thermostat set too low (below •••), water tank overfilled, or iron not on a flat surface. Adjust thermostat, empty excess water, or place on a level ironing board.

What should I do if no steam comes out?

Check water tank level; fill between MIN and MAX. Also ensure thermostat is set to a high enough setting (wool, cotton, or linen). If still no steam, the appliance may not be fully heated.

Can I leave water in the tank after use?

No, drain the water tank after each use to prevent scale buildup and corrosion. Allow the iron to cool completely before emptying.

How do I clean the soleplate?

Unplug and let the iron cool. Wipe the soleplate with a damp cloth. Do not use abrasive cleaners or immerse the iron in water.

What safety precautions should I follow?

Keep away from children under 8. Do not touch hot parts or direct steam at people. Avoid using with damaged cord. Unplug after use and let cool before storing.

Where can I get repairs or service?

Only authorized Fakir service centers should perform repairs. Do not attempt to disassemble the appliance yourself. Contact Fakir customer service for assistance.

USER MANUAL Veronica FAKIR

Black Fakir iron iron with visible branding and model number 2400N, no additional text or symbols on the device itself.

VERONICA

Simple line drawing of an open box with an upward arrow on the lid (no text or symbols)

WARNUNG!

On Operating Instructions....14

Meanings of the Symbols 14

Liability 14

EC Conformity declaration....14

Intended Use 15

Unauthorized Use....15

Security Warnings ....16

Unpacking....17

Box Contents....17

Technical Specifications ....18

Description of Components....18

First Use ....19

Filling the Water Tank....19

Usage 19

Ironing with Vertical Steam 20

Self Cleaning 20

After finishing the ironing 20

Maintenance and Cleaning....21

Troubleshooting 21

Recycling 22

Dispatch....22

Dear Customer,

We hope you'll enjoy your product and we thank you for choosing Fakir Hausgeräte, who has its signature on innovative technologies.

We hope you to get the best out of Fakir Veronica Steam Generator Iron, produced with high quality and technology.

On Operating Instructions

These operating instructions are intended to enable the safe and proper handling and operation of the appliance. Read these operating instructions carefully before using the appliance for your safety and others'. Keep this manual in a safe place for future use.

Meanings of the Symbols

In this manual, you will see the symbols below.

WARNING!!

Indicates notices which, if ignored, can result in risk of in jury or death.

CAUTION!

Indicates notices of risks that can result in damage to the appliance.

NOTE!

Emphasizes tips and other useful information in the operating manual.

Liability

In case of any damage that may occur as a result of use not in compliance with the instructions in this manual and the appliance is used in a place outside of its own area of use, and is repaired elsewhere other than the authorized services of Fakir does not assume any responsibility.

EC Conformity declaration

This device fully complies with the 2014/30/EU Electromagnetic Compatibility and 2014/35/EUVoltage Directives. The appliance bears the CE mark on the rating plate. Fakir reserves the right to change the designand equipment.

Intended Use

Product model is designed for household use. It is not suitable for business or industrial use. In case of any failure arising from otherwise use, our authorized services will provide out of warranty service.

Unauthorized Use

In cases of unauthorized use specified below, the appliance may be damaged or cause injuries;

This appliance shall not be used by individuals (including children) who have limited physical, cognitive or mental capacity or insufficient experience and/or information unless they are instructed in the ways to use the appliance by their legal guardian and being supervised. The children should be supervised to avoid them from playing with the appliance.

This appliance can be operated by children of 8 years and above, people with limited physical, auditory and cognitive skills or people with lack of experience and knowledge as long as they are under supervision or they are provided instructions regarding the operation of the appliance.

Keep small items of packaging and plastic bags away from children. There is a risk of choke!

In case they are not older than 8 years old or unsupervised, children should not clean or maintain the appliance.

Keep the appliance and its cable from the reach of children aged <8.

The children should be supervised to avoid them from playing with the appliance. The electrical appliances are not toys for children! Therefore keep the appliance away from the children. The children may not be aware of the dangers related to the utilization of the appliance. Do not let the power cord dangle from the appliance.

WARNING!!

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children should not play with this appliance.
• Cleaning and maintenance shall not be carried out by children without supervision.
• Keep the packing materials away from the children. Choking risk!
• Children younger than 3 years shall be kept away from the appliance if they are not supervised constantly.
• This appliance may be used by persons (including children) with limited physical, sensory or mental capabilities, or with limited experience and/or knowledge, only under the supervision of a person responsible for their safety, or in accordance with the instructions of that person.
  • Children shall be supervised to ensure that they do not play with the appliance.
  • This appliance shall not be used for play.
• Children older than 3 years and younger than 8 years may switch the appliance on and off only if they are under supervision or are informed of the safe use of the appliance and if they understand the hazards that may be caused by the appliance. In this respect, it is a prerequisite for the appliance to be in normal usage position or that it is installed properly.
• Children older than 3 years and younger than 8 years shall not plug the appliance to the electrical outlet, adjust the appliance, and do not perform any cleaning or maintenance operations.
• The appliance shall not be used without supervision.

Security Warnings

When using an electrical device, the following precautions should always be taken. In order to prevent fire, electric shock and personal injuries;

• DO NOT use the Steam Iron if the power cord or plug is damaged.
• The manufacturer is not responsible for damage caused by improper operating of the appliance.
• Improper or false use can damage the appliance or give harm to the user.

- Before connecting this appliance to the mains, make sure that your local voltage complies with the technical data of the appliance. Otherwise the appliance may overheat and be damaged.

- In order to prevent overloading, DO NOT operate another high power device at the same outlet.

- DO NOT use an extension cord with this product unless necessary. If an extension cord is being used, please be sure to use an extension cord that has the same or higher power than this product.

- In order to prevent burns, DO NOT touch hot parts, hot water, or steam.

• Need to be cautious when using this product due to steam extraction.
• Steam Generator Iron produces steam that can cause burns. Use the iron carefully especially, when using the vertical steam function. NEVER spray the steam onto any person or animals.
• If the appliance will be used near children, strict observance is required.
• DO NOT cover the Steam Generator Iron when in use. If it is covered, it can cause fire.
• Allow the appliance to cool down completely and empty the water tank before putting aside.
• Do not submerge the device or the network cable in water or any other liquid.
• Do not use the appliance near the sink or in sink.
• DO NOT place your appliance or it's parts near open flame sources, stoves, or other heating devices.
• Do not use the appliance with wet hands.
• Do not use the appliance outdoors.
• There are no parts inside the appliance that can be maintained by the user. Do not attempt to repair, disassemble or modify.

Warnings about hot surfaces.

Unpacking

Unpack the appliance and before starting to use it check for damages and malfunctions. If there is any malfunction or damage to the equipment, do not use the appliance and get in contact with Fakir Authorized Service.

Simple line drawing of an open box with an upward arrow on the lid (no text or symbols)

Repair works shall only be undertaken by Authorized Fakir Service.

Repairs that are inadequate or carried out by unauthorized personnel may pose harm to the user.

-Do not punch a hole or a tear on the section where the on/off button is.

WARNING!!

Never use a defective appliance.

Box Contents

1) Appliance
2) Water Scale Cup
3) User Manual
4) Warranty Certificate

Technical Specifications

220-240VAC 50/60Hz 2000-2400W

Steam Pressure : 5 Bar

Constant Steam Power : 140 g/min

Volume of the water tank : 2.0 lt

Steam Cable Length : 150 cm

Power Cable Length : 200 cm

NOTE!

The values provided with the appliance or its accompanying documents are laboratory readings in accordance with the respective standards. These values may differ depending on the use and ambient conditions.

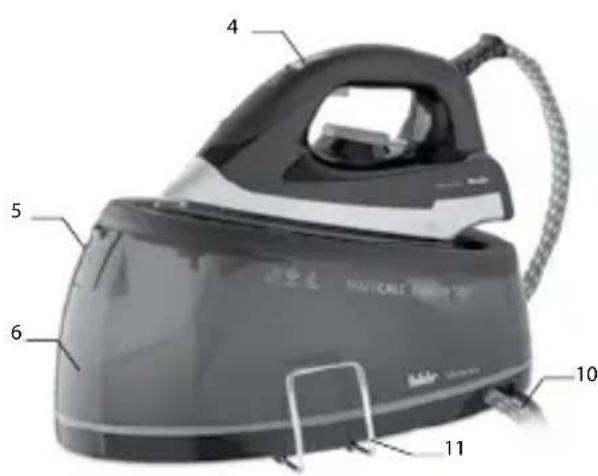

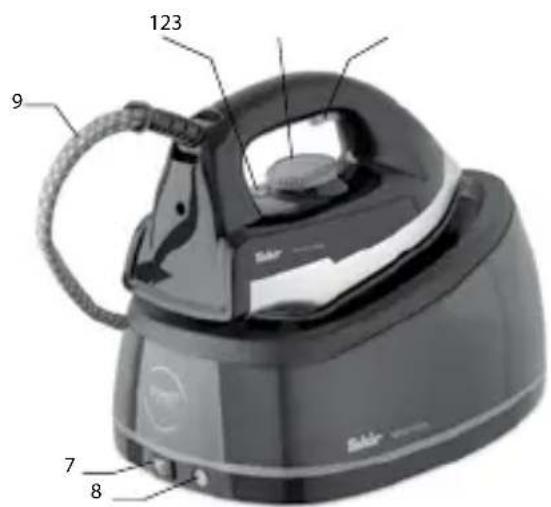

Description of Components

1) Iron Ready Lamp
2) Thermostat Control Button
3) Steam Button
4) Steam Lock Button
5) Water Tank Opening Clamp (for water inlet)
6) Water Tank
7) On and Off Button
8) Steam Lamp
9) Water Tank Connection Cable
10) Power Cable
11) Cable collection support

First Use

Make sure you understand all the components and features of the Veronica Steam Generator Iron. Always remove packaging materials and labels before first use. Some parts of the steam iron are lightly lubricated and therefore some smoke may be released when operating for the first time. This situation will pass after a short time. Remove the protective cover of the base plate and clean the base plate with a soft cloth. The Veronica Steam Generator Iron is designed for use with normal tap water. As minerals and other components in the regions where the water is descaled, which may cause corrosion of the Steam Boiler Iron, It is recommended to mix the tap water and pure water in a ratio of 1:1.

NOTE!

There may be water droplets inside the water tank or around the main body when installing the appliance. This situation is due to the tests carried out after the production of 100% of our appliances. The appliance has never been used; and has been manufactured to serve you for many years.

Filling the Water Tank

Before plugging in the appliance, open the water tank opening clamp by pulling it towards you and fill it with water, and pay attention to the MIN and MAX lines on the water tank. Close the clamp by pushing it forward.

NOTE!

Steam iron is designed for use with tap water, but if your water is very hard, it is recommended to use purified water. The water reservoir must be drained after each use.

Usage

• Place your appliance on a solid table, bench or ironing board.
• Adjust the thermostat control button by turning it according to the suggestions in the table below.

Thermostat Control Button Position	Type of Fabric Vapour
●	Nylon, silk, synthetic fiber fabrics	NO
● ●	Wool YES

EN

● ● ●	Cotton YES
MAX Linen YES

• Bring the On/Off button to (I) position. Steam lamp will light.
• Your iron is ready to use when the iron ready lamp is lit. Steam can exit by pressing the steam button.
• Turn the steam control button to the unlock position for continuous steam. Turn the steam control button back to the lock position in order to cut the steam.

NOTE!

When your appliance is operating, you can add water to the water tank, since the water tank does not contain pressurized water.

Ironing with Vertical Steam

Through this feature, you can remove wrinkles on clothes, beddings or curtains in a similar way to the appliances that iron on hangers. The high steam pressure of your appliance will provide strong steam exit while holding the iron vertically. For best results, use it on delicate or lightweight fabrics. Set the steam to MAX. mark to get maximum level of steam. You can iron steam by spraying a few inches on top of the hanging clothes or curtains.

WARNING!!

Do not directly come in contact with steam coming from the appliance.

Self Cleaning

We recommend you to use the self-cleaning function after every 10 hours of operation. Turn the thermostat control button to the Self Clean setting. Your appliance will self-clean in 1 minute.

WARNING!!

Do not iron while the appliance's self-cleaning function is activated.

After finishing the ironing

Set the thermostat control button to the minimum position. Remove the plug from the outlet. Lay the iron on the back side to the upright position.

Maintenance and Cleaning

Before cleaning the steam iron, the plug must be unplugged and it must fully cooled. Do not use corrosive cleaning agents.

Never submerse the iron in water or other liquids.

Fill the water tank with normal tap water, rinse and empty.

Clean the iron base with a damp piece of cloth.

Troubleshooting

Error Probable Cause	Cause Remedy
Water is leaking from the iron when the steam button is pressed.	Thermostat control button “.” Or it can be in the in “..” settings.	Set the thermostat control button to “...”.
	The water level in the water tank may be above the maximum line.	Empty the excessive water.
	The product may not be on a flat floor.	Place the appliance on a flat ground.
Descale is formed on the base.	Too much descale may have formed in the water tank.	Clean the appliance using the self-cleaning function.
Steam does not exit when the steam button is pressed.	Water tank may be empty.	Check the water tank and fill the water tank between the MIN and MAX line level.
	The thermostat adjustment button can be set in the low setting.	Choose a higher setting.
Sounds come from the water tank when the appliance is operated.	The appliance may not be heated yet. (sounds are caused by the expansion of the tank)	This is normal. It will stop in a few minutes.

Recycling

If your device comes to an end of its lifetime, cut the power cord to make sure it cannot be used.

Dispose of the appliance according to the environmental regulations applicable in your country.

Electrical waste must not be disposed of together with household waste. Dispose the device to the waste baskets designated for electrical waste. The packaging of the device consists of recycling-capable materials. Throw out them in suitable recycling bins.

This appliance is compatible with WEEE directive.

Dispatch

Carry the appliance in the original package or a similar, well-padded package to prevent damage to the appliance. Keep the original package.
