Thera - Iron FAKIR - Free user manual and instructions

Product Type	Steam Iron
Brand	Fakir
Model	Thera
Power Consumption	2600 W
Voltage	220-240 V ~ 50/60 Hz
Usage Life	7 Years
Steam Control	Adjustable steam knob with dry to max steam settings
Spray Function	Yes, with spray nozzle
Burst of Steam Function	Yes, for stubborn creases
Vertical Steam Function	Yes, for ironing hanging garments and curtains
Anti-Drip System	Yes, prevents water leakage at low temperatures
Self-Clean Function	Yes, flushes out impurities and flakes
Pilot Light	Yes, indicates heating status (on when heating, off when ready)
Temperature Control	Adjustable temperature dial for different fabrics
Recommended Water	Purified or distilled water to reduce calcium buildup
Cleaning Instructions	Wipe soleplate with damp cloth; use self-clean function regularly
Storage	Empty water tank, store horizontally on stable surface with cloth on soleplate
Safety Precautions	Do not immerse in water; unplug when filling; keep away from children
Parts Identification	Spray nozzle, water filling cover, steam knob, temperature knob, pilot light, cord, water tank, soleplate, self-clean button

Frequently Asked Questions - Thera FAKIR

Why does the iron emit an odor or smoke when first used?

This is normal. Oils used during manufacture need to be burned off. Allow the iron to operate at maximum temperature for about ten minutes until the odor disappears.

What type of water should I use?

It is recommended to use purified or distilled water with less calcium particles to minimize scale buildup. Do not use vinegar or other descalers in the water tank.

How do I use the self-clean function?

Fill the water tank, set temperature to max, wait for the pilot light to go off, then hold the iron over a sink and turn the steam knob to SELF CLEAN position. Steam and boiling water will flush out impurities. Release when tank is empty.

Why is the iron not producing steam?

Ensure the water tank is filled and the steam knob is set to a steam setting. The iron must be hot enough (pilot light off) and in horizontal position. If still no steam, check if anti-drip is active at low temp.

Why does the iron leak water?

The temperature may be too low. Set the steam knob to dry until the iron heats up. Also, do not use burst of steam too frequently; allow iron to reheat. Ensure the water tank cap is closed properly.

How should I store the iron?

Unplug and empty water tank. Let it cool completely. Store horizontally on a stable surface with a cloth protecting the soleplate. Do not wrap cord around hot iron.

Can I use the iron on silk or delicate fabrics?

Yes, but set to low temperature. Iron on the inner side to prevent shine. Do not spray water directly on silk to avoid staining.

Why does the burst of steam feature not work?

Ensure the water tank is at least 1/4 full and the temperature is set to steam position. The iron should be horizontal. Fully depress the burst button and allow a short pause between shots.

How do I clean the soleplate?

After the iron cools, wipe the soleplate with a damp cloth or non-abrasive cleaner. Use the self-clean function regularly to remove deposits.

What does the anti-drip system do?

When ironing for a long time, the soleplate temperature may drop. The anti-drip system automatically prevents water from leaking out of the soleplate by stopping steam production until the temperature rises again.

USER MANUAL Thera FAKIR

Exterior view of a steam iron with brand name 'Eukir' on the side (no additional signage or text visible)

THERA

D

Important safeguards....13

Important precautions....14

Product Description 15

Technical Specifications....15

Before first use 15

Operation....16

Cleaning and Maintenance....16

Self-clean function....17

Ironing Tips....17

Liability 19

Unauthorized use 19

Usage Area....19

CE Declaration of Conformity....20

Waste disposal 20

Dispatch....20

Thank you for purchasing Fakir THERA Steam Iron which has been designed and manufactured to give you many years of trouble-free service.

You may already be familiar with using a similar product, but do please take time to read these instructions – they have been written to ensure you get the very best from your purchase.

Important safeguards

Before using the electrical appliance, the following basic precautions should always be followed including the following:

1. Use the iron only for its intended use.
2. To protect against the risk of electric shock, do not immerse the iron in water or other liquids.
3. The iron should always be turned to "min" before plugging or unplugging from the mains outlet. Never pull the cord to disconnect from the mains: instead, grasp plug and pull to disconnect.
4. Do not allow the cord to touch hot surfaces. Allow the iron to cool completely before putting away.
5. Always disconnect the iron from the electrical outlet when filling with water or emptying and when not in use
6. Do not operate the iron with a damaged cord or if the iron has been dropped or damaged. To avoid the risk of electric shock, do not disassemble the iron .take it to a Fakir Authorized Service Agent for examination and repair. Incorrect re-assembly, can cause a risk of electric shock when the iron is used.
7. Close supervision is necessary for any appliance being used by or near children. Do not leave the iron unattended when connected to the mains or on an ironing board.
8. Burns can occur from torching hot metal parts, hot water or steam, use caution when you turn a steam iron upside down-there may be hot water in the reservoir.
9. If the iron is not operating normally, disconnect from the power supply. And contact the nearest Fakir Authorized Service Agent.
10. Your iron is designed to rest on the heel. Do not leave the iron unattended when switched on. Do not place the iron on an unprotected surface even if it is on its heel rest.

Important precautions

When using your iron, basic safety precautions should always be followed, including the following:

Read all instructions before using

1. Read all instructions and save it for future reference.
2. Before using check that the voltage of wall outlet corresponds to the one shown on the rating plate.
3. Burns may occur from touching hot metal parts, hot water, or steam. Use caution when you turn a steam iron upside down as there may be hot water in water tank.
4. If any part is damaged it must be replaced by the manufacturer or an or a qualified technician in order to avoid a hazard.
5. Don't operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner, Return the appliance to the nearest for examination, repair or electrical or mechanical adjustment.
6. Do not let cord hang over edge of table or hot surface.
7. The plug of power cord must be removed from outlet before water tank is filled with water.
8. Unplug from outlet when not in use, before filling water or cleaning.
9. Do not operate the iron for other than its intended use.
10. To protect against a risk of electric shock, do not immerse the iron in water or other liquids.
11. Close supervision is necessary for any appliance being used by or near children.
12. Do not leave iron unattended when connected into power supply or on an ironing board.
13. Do not use outdoors.

NOTE!

While assembling your product; you can realise that some water drop might be on the water tank and the product body. This is caused by our quality tests which confirm the 100 % workability of the product. The product did not be used before and it is produced to give you many years of trouble-free service.

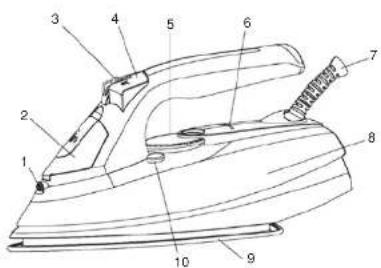

Product Description

1- Spray nozzle
2- Water filling cover
3- Steam knob
4- Spray and Burst button
5- Temperature knob
6- Pilot light
7- Power cord
8- Water tank
9- Soleplate
10- Self clean button

Technical Specifications

2600 Watt

220-240 V

50/60 Hz

Usage Life: 7 Years

Before first use

1. Remove any sticker, protective foil or storage cover from the soleplate.
2. Heat up the iron to maximum temperature and iron over a piece of damp cloth for several minutes on the purpose of removing any residue on the soleplate.

NOTE!

It is normal that strange odor comes out from the unit for the first use.

Operation

1. Hold the iron in a tilted position, then fill proper water into water tank. by measuring cup, you had better use purified water with less calcium particles and make sure not to exceed Max level on the tank.
2. Press down cover of water tank and you will hear a click if it is in the correct position.
3. Connect plug to outlet and turn temperature dial to your desired setting, which is depended on the fabric of garment. And indicator light will be illuminated. Refer to IRONING TIPS latter.
4. Make sure steam button is on dry position, then place the iron vertically.
5. Once soleplate temperature has reached the preset temperature, indicator light will be off, then set steam button to your desired steam output or dry position and begin ironing.
6. Press spraying water button a couple of times to moisten the laundry if necessary, before spraying make sure that there is enough water in water tank.
7. Steam shot function had better be used at max temperature, as it helps remove stubborn creases.
8. The iron has an anti-drip function: if ironing garments for long time, soleplate temperature will fall off, the iron will stop coming out steam automatically and no water droplets can come out from soleplate.
9. "Steam shot" can also be applied when holding the iron in a vertical position, so this is useful for removing creases from hung clothes, curtains, etc.

Cleaning and Maintenance

1. Disconnect power supply and empty the water left in water tank.
2. Reconnect into power supply and disconnect after indicator light goes off, make soleplate dry.
3. Let the iron completely cool down, then wipe flakes and any other deposits on the soleplate with a damp cloth or a non-abrasive (liquid) cleaner.
4. Clean the upper part of iron with a damp cloth.
5. Always store the emptied iron horizontally on a stable surface with a cloth protecting the soleplate.

Self-clean function

We should clean the unit regularly according to hardness of water and using frequency.

1. Fill water into the water tank and set the temperature selector to Max position
2. Connect into power supply and indicator light will be illuminated, make sure Steam button is in the Dry position, then place iron as fig.4

WARNING!

Never pour white vinegar or other liquid cleaners for eliminating calcium into water tank!

1. Once the light is off, hold the iron over the sink and turn steam button to SELF CLEAN position (Fig.3) with a little force. Steam and boiling water will come out of the soleplate while impurities and flakes will be flushed out.
2. Release the button as soon as water in the water tank has been used up.

Ironinig Tips

1- Always check first whether a label with ironing instructions is attached to the article. Follow these ironing instructions in any case.
2- The iron heats up quicker than cooling it down, therefore, you should start ironing the articles requiring the lowest temperature such as those made of synthetic fibre.
3- If the fabric consists of various kinds of fibres, you must always select the lowest ironing temperature to iron the composition of those fibres.
4- Silk and other fabrics that are likely to become shiny should be ironed on the inner side. To prevent staining do not spray water straight on silk or other delicate fabrics.
5- Velvet and other textures that rapidly become shiny should be ironed in one direction with light pressure applied. Always keep the iron moving at any moment.
6- Pure woollen fabrics (100% wool) may be ironed with the iron set a steam position. Preferably set steam button to the maximum position and use a dry p cloth as a mat.

NOTE!

When ironing woolen fabrics, shining of the fabric may occur. So it is suggested that you should turn the article inside out and iron the reverse side.

Fault	Possible cause	Solution
Iron emits an odor or smoke	Iron gives off an odor when turned on for the first time.	Oils used during manufacture need to be burnt off allow ten minutes for odor to disappear.
Iron does not heat	The temperature dial did not set at the desired temperature.	The iron should be plugged into a 230 Volt, AC electrical outlet only. The temperature dial must be set at the desired temperature.
Iron does not steam	The water tank many be empty.	Turn the steam valve to “” and add water .Allow the iron to heat, and then set the steam dial to the steam setting.
Burst of steam feature does not work	The water tank can be empty and temperature button set to shouldn’t steam.	The water tank must be at least 1/4 full. Temperature must be set to steam position. Iron should be in the horizontal position. Prime pump briefly. Allow a short pause between shots. Be sure to fully depress the burst of steam button.
Spry mist feature does not work	The water tank must be at least 1/4 full.	Fill the iron as described in the section “how to fill the water tank”.
Iron is leaking	Temperature should be set to low level.	The variable steam dial must be set on“,until the iron is hot. The temperature setting is too low to produce steam. Shot of steam used too much, allow iron to re-heat.

Liability

Fakir Elektrikli Ev Aletleri Dış. Tic. A.Ş. will accept no liability for damages resulting from failure to comply with the operating instructions. Fakir Elektrikli Ev Aletleri Dış. Tic. A.Ş. cannot assume any liability in case the appliance is used for other purposes than its intended use or handled, repaired or serviced improperly.

Unauthorized use

The examples of unauthorized use listed here can result in malfunctions, damage to the appliance or personal injury:

This appliance is not designed to be used by persons (including children) with limited physical, sensory or mental capacities or by persons lacking in experience and/or knowledge, unless they are supervised by someone who is responsible for their safety or have received instructions on how to use the appliance. Children should be supervised to ensure that they do not play with the appliance. Children should be supervised to ensure that they do not play with the appliance. Electric appliances are not toys for children! Therefore, use and store the appliance away from the reach of children. Children do not recognize the danger involved with handling an electric appliance. Do not let the power cord dangle from the appliance.

Keep packaging films away from children - danger of suffocation!

Usage Area

This appliance is suitable for places; home. Do not use appliance for other than intended use and never use this appliance outdoors.

CE Declaration of Conformity

This appliance fulfills the requirements of the Appliance and Product Safety Law (GPSG) and the EU Directives 2004/108/EC “Electromagnetic Compatibility” and 2006/95/EC “Low-Voltage Directive.” The appliance bears the CE mark on the rating plate.

Waste disposal

If the service life of the device has ended, in particular if functional disturbances occur, make the worn-out device unusable by cutting through the power cable.

Dispose of the device according to the environmental regulations applicable in your country.

Electrical waste must not be disposed of together with household waste. Bring the worn-out device to a collection center. The packaging of the device consists of recycling-capable materials. Place these, sorted out according to material, in the collectors provided, so that recycling can be carried out on them.

For advice on recycling, refer to your local authority or your dealer.

Dispose of used dust bag and filters in domestic waste.

Dispatch:

This product is produced on behalf of Fakir Elektrikli Ev Aletleri Dış Ticaret A.Ş. by NINGBO KAIBO GROUP CO. LTD., The Northern Industrial Park of Zhouxiang Cixi 315324 Ningbo China, Tel: [phone]
