Product Type	Wireless optical mouse
Model	RX-325
Interface	USB 2.4 GHz nano receiver
Resolution	600/1000 dpi (switchable)
Number of Buttons	3 + scroll wheel
Power Source	1 AA battery
Battery Life	1 year (typical)
Dimensions (L × W × H)	68 × 40 × 105 mm
Weight	84 g (without battery)
Operating Range	Up to 10 m
Supported Operating Systems	Windows XP/Vista/7/8
Driver Requirement	None (plug-and-play)
Design	Ergonomic, stylish
Wireless Technology	2.4 GHz
Receiver Storage	Inside mouse body
Package Contents	Mouse, nano receiver, AA battery, user manual, warranty card
Cleaning	Wipe with a dry, soft cloth
Safety Precautions	Avoid liquids and extreme temperatures

Frequently Asked Questions - RX-325 Sven

How do I install the battery in the mouse?

Open the battery compartment cover on the bottom of the mouse. Insert one AA battery observing polarity (see diagram inside). Close the cover securely.

Why is my mouse not working?

First, ensure the nano receiver is firmly plugged into a USB port and within 10 meters of the mouse. Check that the battery is installed correctly and has charge. Replace the battery if needed. If the issue persists, contact authorized service.

How do I switch between DPI resolutions?

Press the DPI resolution switch button (located on the bottom or side of the mouse) to toggle between 600 dpi and 1000 dpi. The movement speed will change accordingly.

Is the mouse compatible with Windows 10?

The official specifications list Windows XP/Vista/7/8. However, the mouse uses standard USB HID protocol and may work on Windows 10 as a plug-and-play device, though not guaranteed.

How do I connect the receiver to the mouse?

Remove the nano receiver from the USB port. Insert it into the receiver slot on the bottom of the mouse until it clicks. To use again, pull the receiver out and plug it into a USB port.

How long does the battery last?

Under normal usage, the AA battery lasts up to 1 year. When the battery is low, the mouse cursor may move in jerks; replace the battery promptly.

What should I do if my mouse cursor jumps or lags?

First, replace the battery as low power can cause erratic behavior. Ensure the receiver is not placed inside a metal enclosure (e.g., drawer) which can block signals. Keep distance within 10 meters.

Does the mouse require any software or drivers?

No, the mouse is plug-and-play for Windows XP/Vista/7/8. No additional drivers are needed. For other operating systems, compatibility may vary.

How do I clean the mouse?

Use a soft, dry cloth to wipe the exterior. Avoid using liquids, solvents, or abrasive cleaners. Do not clean the optical sensor with sharp objects.

Can I use the mouse on a glass or reflective surface?

The optical sensor may not work well on glass, mirrors, or glossy surfaces. Use a mouse pad or a matte surface for optimal tracking.

USER MANUAL RX-325 Sven

Black wired computer mouse with a small black device labeled 'SVEN' on the side (no visible text or symbols on the mouse itself)

Рис. 1. Вид сверху

Рис. 3. Ресивер

Line drawing of a computer keyboard with an arrow pointing to the right side (no text or symbols present)

Black wired computer mouse with a small black device labeled 'SVEN' on the side (no visible text or symbols on the mouse itself)

Line drawing of a computer keyboard with an arrow pointing to the right side (no text or symbols present)

Black wired computer mouse with a small black device labeled 'SVEN' on the side (no visible text or symbols on the mouse itself)

Congratulations on your purchase of the SVEN PC mouse!

Please read the following instructions carefully before connecting, operating or adjusting this product. Besides, please keep this Manual in a safe place for future reference.

COPYRIGHT

© 2015. SVEN PTE. LTD. Version 1.0 (V 1.0). This Manual and information contained in it are copyrighted. All rights reserved.

TRADEMARKS

All trademarks are the property of their legal holders.

NOTICE OF RESPONSIBILITY RESTRICTION

Despite the exerted efforts to make this Manual more exact, some discrepancies may occur. The information in this Manual is given on “as is” terms. The author and the publisher do not bear any liability to a person or an organization for loss or damage which has arisen from the information contained in this Manual.

CONTENTS

RUS 1

UKR 7

ENG 14

1. FEATURES 16
2. PACKAGE CONTENTS ...... 16
3. SYSTEM REQUIREMENTS ...... 16
4. DESCRIPTION 17
5. INSTALLATION ...... 17
6. TROUBLESHOOTING 20
7. TECHNICAL SPECIFICATIONS 20

Technical support is at www.sven.fi.

1. FEATURES

• Stylish ergonomic design
• Dpi resolution switch
• USB interface
• Battery long service life (1 year)
• Installation drivers for Windows XP/Vista/7/8 are not required
• Convenient for laptop operation

2. PACKAGE CONTENTS

• Optical mouse — 1 pc
• 2.4 GHz USB nano receiver — 1 pc
- AA battery — 1 pc
- User's Manual — 1 pc
- Warranty card — 1 pc

3. SYSTEM REQUIREMENTS

• Windows XP/Vista/7/8.
• Free USB port.

4. DESCRIPTION

① Scroll wheel
② Dpi resolution switch
③ Optical sensor
④ Battery compartment
⑤ Nano receiver
⑥ USB connector

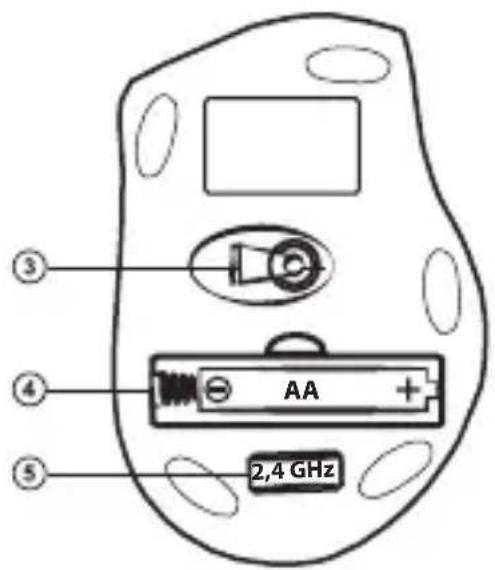

Fig. 2. Bottom view

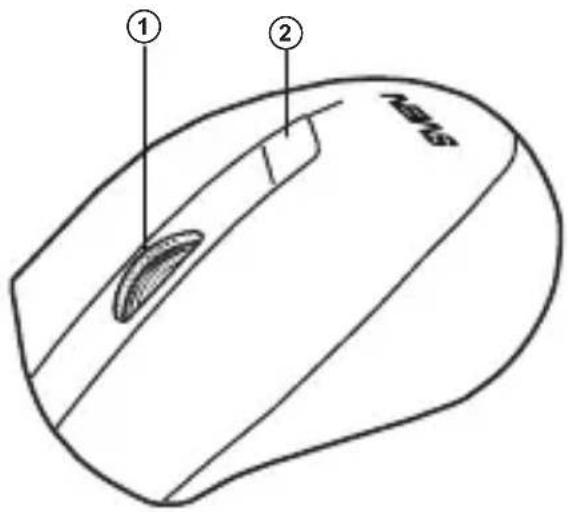

Fig. 1. Top view

Fig. 3. Nano receiver

• Open the cover of the mouse battery compartment ④, insert one AA battery into the battery compartment observing the polarity and close the cover of the battery compartment (see Fig. 4).
• Connect the included nano receiver ⑤ to a free PC USB port (Fig. 5).
• For mouse activation it isnecessary to press any button of the mouse or turn the scroll wheel. If the mouse has been connected correctly, it will be switched on automatically.

Improper installation of the battery can result in failure of the mouse!

Battery compartment cover

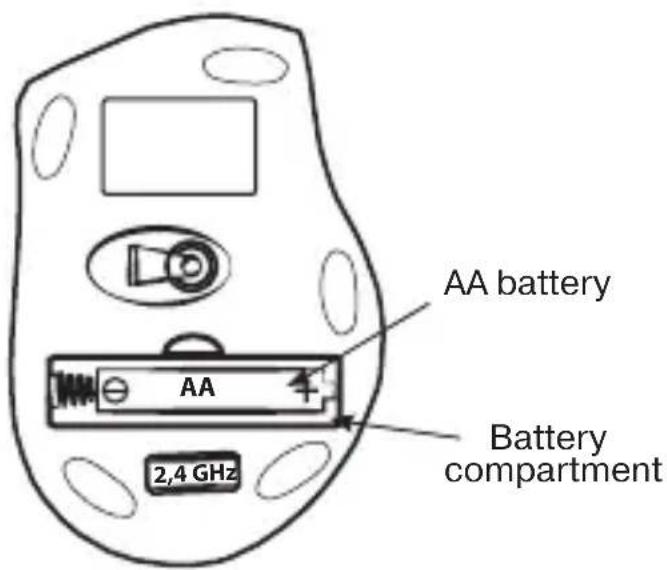

Fig. 4. Battery installation

Line drawing of a computer keyboard with an arrow pointing to the right side (no text or symbols present)

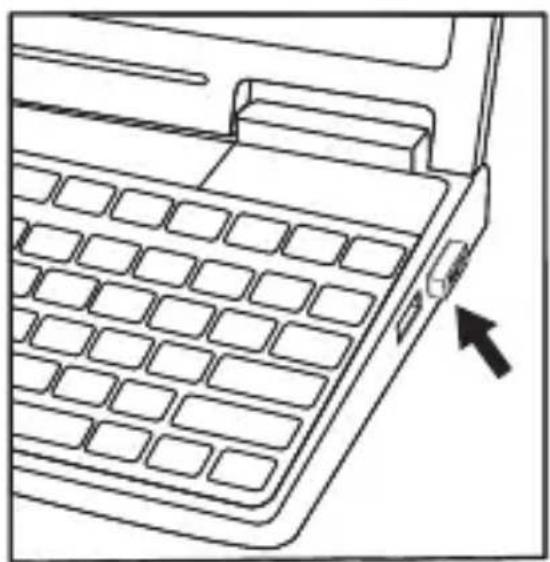

Fig. 5. Receiver connection

• After finishing your work, you can pull out the receiver ⑤ from the PC USB port and insert it into the mouse (Fig. 6). When using the receiver ⑤ again, pull it out from the mouse (Fig. 7) and connect it to the PC USB port again.
• Do not place the receiver into a confined metal space (table drawer, box, safe), as a metal screen does not transmit radio signals.
• If the battery is discharged, the mouse works in jerks. It means that the battery should be replaced with new one, as it is shown in Fig. 4.

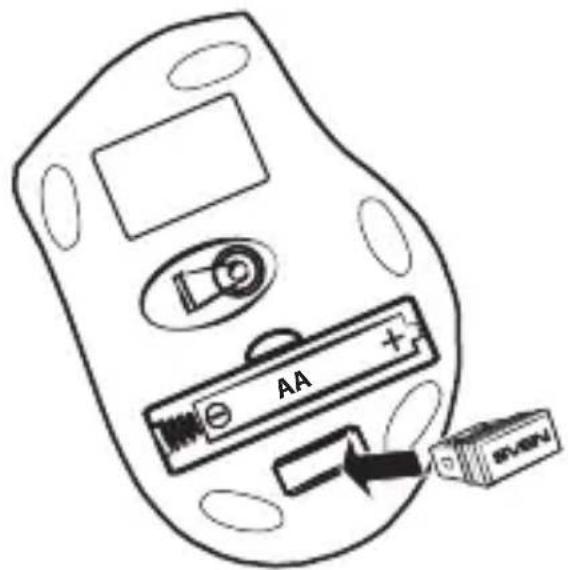

Fig. 6. Fitting the receiver into the mouse case

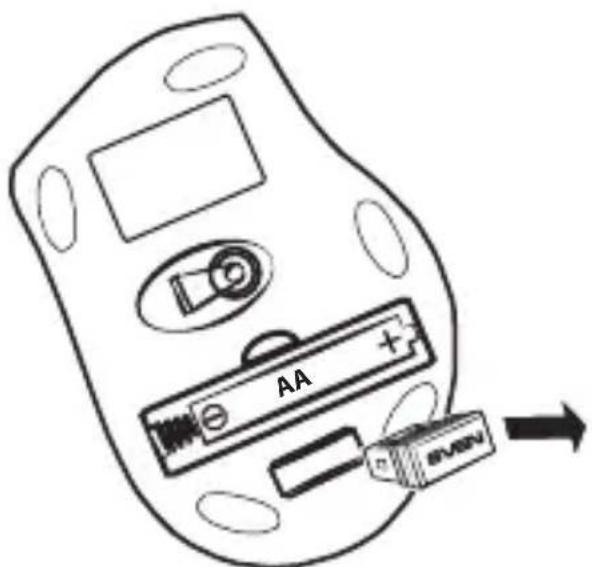

Fig. 7. Extraction of the receiver from the mouse case

6. TROUBLESHOOTING

Problem	Solution
The mouse does not work.	1. Make sure that the nano receiver has been inserted into the USB port and its distance to the mouse is less than 10 m.2. Check whether battery has been installed correctly.3. Check if battery is charged, replace the battery with a new one if necessary.4. Address nearest authorized service center.

7. TECHNICAL SPECIFICATIONS

Parameter	Value
OS compatibility	Windows XP/Vista/7/8
Mouse type	wireless 2.4 GHz
Resolution, dpi	600/1000
Quantity of buttons	3 + 1 (scroll wheel)
Interface	USB
Dimensions, mm	68 × 40 × 105
Weight, g	84

Notes:

• Technical specifications given in this table are supplemental information and cannot give occasion to claims.
• Technical specifications are subject to change without notice due to the improvement of SVEN production.

Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road, N° 02-02, Singapore, 427447. Produced under the control of Oy Sven Scandinavia Ltd. 15, Kotolah-dentie, Kotka, Finland, 48310. Made in China.

® Registered Trademark of Oy SVEN Scandinavia Ltd. Finland.
