RX-525 Silent Wireless - Computer Mouse Sven - Free user manual and instructions

Product Type	Computer Mouse
Model	RX-525 Silent Wireless
Brand	Sven
Connectivity	2.4 GHz Wireless with Nano Receiver
Silent Click	Yes, Low Noise Buttons
DPI Resolution	800 / 1200 / 1600 (Switchable)
Number of Buttons	3 (Left, Right, Scroll Wheel)
Scroll Wheel	Yes, 4D (Up/Down/Left/Right) or Standard
Power Source	1 x AA Battery
Battery Life	Up to 12 Months
Operating Range	Up to 10 meters
Dimensions (L x W x H)	10.5 x 6.5 x 3.5 cm
Weight (without battery)	60 g
Color	Black
Compatible Systems	Windows, macOS, Linux
Receiver Storage	Built-in compartment under the mouse
Maintenance	Clean with a soft dry cloth
Safety Precautions	Do not expose to liquids or extreme temperatures
Spare Parts	Battery, Receiver (optional)
Warranty	2 years

Frequently Asked Questions - RX-525 Silent Wireless Sven

How do I connect the RX-525 Silent Wireless mouse to my computer?

Insert the included nano receiver into a USB port on your computer. The mouse will automatically pair. If not working, remove and reinsert the battery, then try again.

How do I replace the battery?

Slide open the battery compartment cover on the bottom of the mouse. Remove the old AA battery and insert a new one with correct polarity. Close the cover.

Can I adjust the DPI sensitivity?

Yes, press the DPI button located behind the scroll wheel to cycle through 800, 1200, and 1600 DPI settings.

Is this mouse compatible with Mac?

Yes, the RX-525 works with Windows, macOS, and Linux operating systems. No drivers required.

What does 'silent' mean for this mouse?

The mouse features low-noise buttons that produce minimal clicking sound, making it suitable for quiet environments like offices or libraries.

How do I clean the mouse?

Use a soft, dry cloth to wipe the surface. Do not use liquid cleaners or submerge the mouse in water.

What is the wireless range of this mouse?

The mouse works reliably up to 10 meters (30 feet) from the receiver in open space.

My mouse cursor is lagging or not moving smoothly. What should I do?

First, check the battery level. If low, replace with a new AA battery. Also, ensure the receiver is directly plugged into the computer and not via a hub.

Where is the receiver stored when not in use?

The nano receiver fits into a built-in compartment inside the battery compartment for easy storage.

Does the mouse have an on/off switch?

Yes, there is a power switch on the bottom of the mouse to conserve battery life when not in use.

USER MANUAL RX-525 Silent Wireless Sven

Close-up of a black SVEN computer mouse with a small USB flash drive shown on the side (no text or symbols on the device itself)

RX-525

SILENT

WIRELESS

www.sven.fi

Line drawing of a device interior with buttons and a central component (no text or symbols)

Line drawing of a mobile phone keyboard with no text or symbols

Line drawing of a device casing with internal components and a button labeled '10.000' (no text or symbols beyond basic diagram)

Close-up of a black SVEN computer mouse with a small USB flash drive shown on the side (no text or symbols on the device itself)

Line drawing of a device casing with internal components and an arrow indicating direction (no text or symbols)

Line drawing of a computer keyboard with an arrow pointing to the right side (no text or symbols present)

Line drawing of a device casing with internal components and a button labeled 'E-2004' (no text or symbols beyond basic labels)

Close-up of a black SVEN computer mouse with a small USB flash drive shown on the side (no text or symbols on the device itself)

RX-525

SILENT

WIRELESS

www.sven.fi

Congratulations on your purchase of the SVEN PC mouse!

Please read the following instructions carefully before connecting, operating or adjusting this product. Besides, please keep this Manual in a safe place for future reference.

COPYRIGHT

© 2014. SVEN PTE. LTD. Version 1.0 (V 1.0).

This Manual and information contained in it are copyrighted. All rights reserved.

TRADEMARKS

All trademarks are the property of their legal holders.

NOTICE OF RESPONSIBILITY RESTRICTION

Despite the exerted efforts to make this Manual more exact, some discrepancies may occur. The information in this Manual is given on “as is” terms. The author and the publisher do not bear any liability to a person or an organization for loss or damage which has arisen from the information contained in this Manual.

CONTENTS

RUS 1

UKR 7

ENG 14

1. SPECIAL FEATURES ...... 16
2. PACKAGE CONTENTS ...... 16
3. SYSTEM REQUIREMENTS ...... 16
4. DESCRIPTION 17
5. INSTALLATION ...... 17
6. TROUBLESHOOTING 20
7. TECHNICAL SPECIFICATIONS 20

Technical support is on www.sven.fi

1. SPECIAL FEATURES

• Silent buttons
• Full-sized mouse
• BlueLED advanced optical technology
• Power saving wireless technology
  • Effective on most surfaces
  • High operating speed
• 2.4GHz USB nano receiver included (range – up to 10 m)
• Two additional Forward and Back navigation buttons
  • 800/1200/1600 dpi resolution switch
• Power on/off switch
• USB interface
• 2 AA type batteries
• Soft Touch coating
• No drivers required for Windows XP/Vista/7/8
• Natural shape of the mouse convenient for the hand

2. PACKAGE CONTENTS

• Optical mouse — 1 pc
• 2.4 GHz USB nano receiver — 1 pc
• AA type batteries — 2 pcs
- User's Manual — 1 pc
- Warranty card — 1 pc

3. SYSTEM REQUIREMENTS

• Windows XP/Vista/7/8.
• Free USB port.

User's Manual

RX-525 SILENT WIRELESS

4. DESCRIPTION

① Scroll wheel
② Resolution switch
③ Additional Forward and Back navigation buttons
④ Power on/off switch
⑤ Optical sensor
⑥ Battery compartment
⑦ Nano receiver
⑧ USB connector

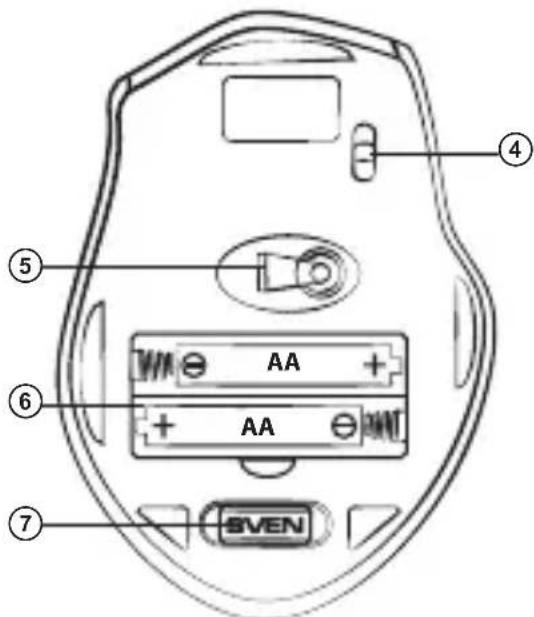

Fig. 2. Bottom view

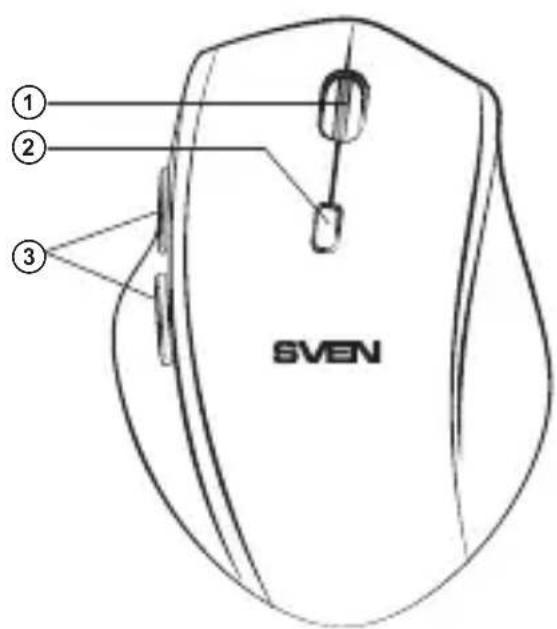

Fig. 1. Top view

Fig. 3. Nano receiver

5. INSTALLATION

• Open the cover of the mouse battery compartment ⑥, insert two AA type batteries into the battery compartment, matching the polarity, and close the cover of the battery compartment (see Fig. 4).
• Pull out the nano receiver ⑦ from the mouse (Fig. 5) and connect it to an available PC USB port without switching off the PC (Fig. 6).

- Turn on the mouse with the Power on/off switch ④. To activate the mouse, press any button of the mouse or turn the scroll wheel. If the mouse is connected correctly, it will turn on automatically.

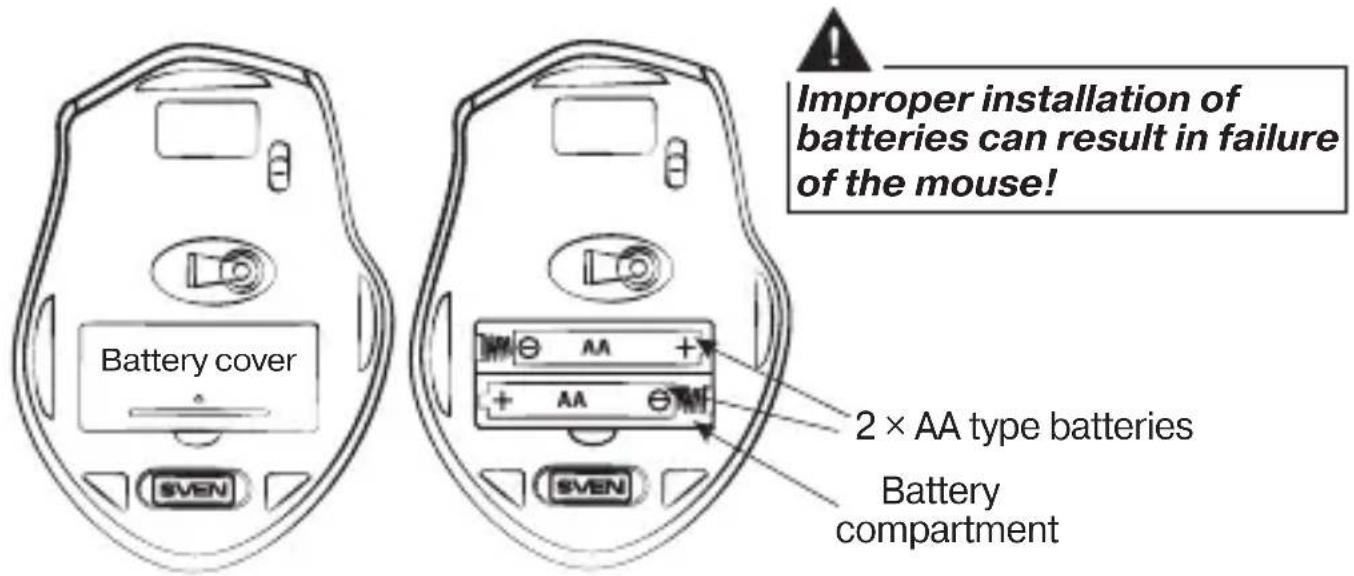

Fig. 4. Batteries installation

Line drawing of a device casing with internal components and an arrow indicating direction (no text or symbols)

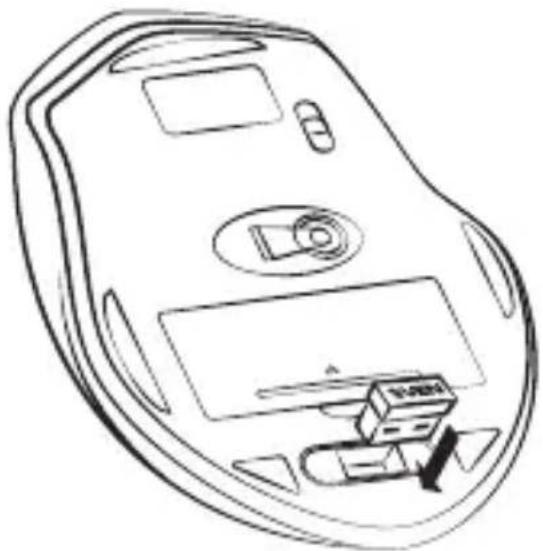

Fig. 5. Extraction of the receiver from the mouse case

Line drawing of a computer keyboard with an arrow pointing to the right side (no text or symbols present)

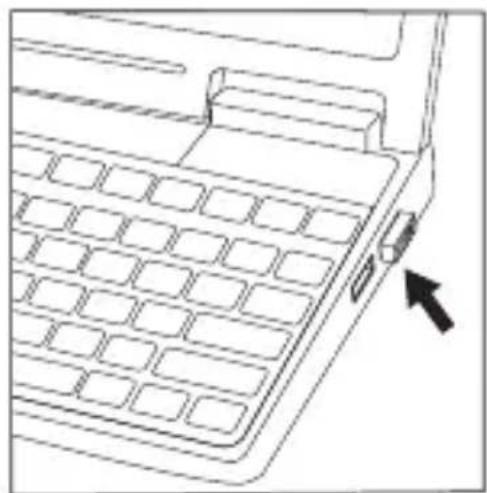

Fig. 6. Receiver connection

User's Manual

RX-525 SILENT WIRELESS

• After finishing your work, shift the Power on/off switch ④ back to the Off position. Then take the nano receiver out of the USB port and insert it back into the mouse. (Fig. 7).
• Do not place the receiver in a metal confined space (table drawer, box, safe), as a metal screen does not transmit radio signals.
• If the batteries run down, the mouse works in jerks. It means that the batteries should be replaced with new ones, as it is shown in Fig. 4. Always install only identical new batteries.

Line drawing of a device with a key inserted into the front panel (no text or symbols)

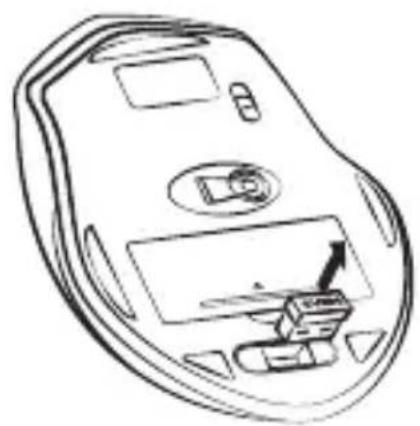

Fig. 7. Fitting the receiver into the mouse case

Important

This device meets the highest standards of energy conservation. Use the switch ④ on the bottom of the mouse to switch it on/off – it will help you extend the mouse battery life.

6. TROUBLESHOOTING

Problem	Solution
The mouse doesn’t work.	1. Make sure that the nano receiver has been inserted into the USB port and its distance to the mouse is less than 10 m.2. Check if the batteries have been installed correctly.3. Check if the batteries have run down, replace the batteries with new ones if necessary.4. Check the position of the switch. Shift it to the necessary position if needed.5. Address nearest authorized service center.

7. TECHNICAL SPECIFICATIONS

Parameter, measurement unit	Value
OS compatibility	Windows XP/Vista/7/8
Type of mouse	Wireless 2.4 GHz
Resolution, dpi	800/1200/1600
Q-ty of buttons	5 + 1 (scroll wheel)
Interface	USB
Operating range, m	10
Dimensions, mm	85 × 40 × 120
Weight, g	85

Notes:

• Technical specifications given in this table are supplemental information and cannot give occasion to claims.
• Technical specifications are subject to change without notice due to the improvement of SVEN production.

Manufacturer: SVEN PTE. LTD., 176 Joo Chiat Road, N° 02-02, Singapore, 427447. Produced under the control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie, Kotka, Finland, 48310. Made in China.

® Registered Trademark of Oy SVEN

Scandinavia Ltd. Finland.
