GX-990 - Computer Mouse Sven - Free user manual and instructions

Product Type	Wired Optical Mouse
Model	GX-990
Brand	Sven
Dimensions (L x W x H)	125 x 70 x 40 mm
Weight	100 g (with cable)
Cable Length	1.5 m
Interface	USB Type-A
Sensor Type	Optical
Resolution (DPI)	800 / 1200 / 1600 (switchable)
Number of Buttons	3 (left, right, scroll wheel with middle click)
Scrolling	Vertical scroll wheel
Power Source	USB bus powered (no batteries required)
Compatible Operating Systems	Windows, macOS, Linux
Main Functions	Cursor control, left/right click, scrolling, DPI adjustment
Cleaning	Wipe with a soft, dry cloth; do not use liquids or abrasives
Safety	Keep away from water and heat sources; unplug during cleaning
Spare Parts & Repairability	Not user-serviceable; contact support for repairs
General Information	Designed for everyday use; plug and play

Frequently Asked Questions - GX-990 Sven

How do I connect the GX-990 mouse to my computer?

Simply plug the USB cable into a free USB port on your computer. The mouse is plug and play and does not require any driver installation for basic functions.

How can I change the DPI sensitivity?

Press the DPI button located on the top of the mouse (usually behind the scroll wheel) to cycle through preset DPI levels (800, 1200, 1600). The current setting may be indicated by an LED color change.

What should I do if the mouse cursor does not move?

First, check that the USB cable is securely connected. Try a different USB port. If the issue persists, restart your computer. If still not working, the mouse may be defective; contact Sven support.

Is the GX-990 mouse compatible with Mac computers?

Yes, the GX-990 works with macOS as a standard HID device. Plug it in and it should be recognized automatically. Some advanced features (like DPI switching) will still function.

How do I clean the mouse?

Disconnect the mouse from the computer. Use a soft, lint-free cloth slightly dampened with water (if needed) to wipe the exterior. Do not use alcohol, solvents, or abrasive cleaners. Ensure the sensor lens is clean.

Can I use the mouse on a glass surface?

Optical mice generally work best on opaque, non-reflective surfaces. Glass surfaces may cause erratic cursor movement. Use a mouse pad for optimal performance.

What is the cable length?

The USB cable is approximately 1.5 meters long, which provides ample reach for most desktop setups.

How many buttons does the mouse have and what are their functions?

The mouse has 3 buttons: left button (primary click), right button (context menu), and scroll wheel (scroll up/down). The scroll wheel also acts as a middle button when pressed.

Does the mouse require batteries?

No, the GX-990 is a wired mouse and draws power directly from the USB port. No batteries are needed.

Where can I find the user manual?

The manual is available for free download in PDF format on the official Sven website or on notice-facile.com. Simply search for 'Sven GX-990 manual'.

USER MANUAL GX-990 Sven

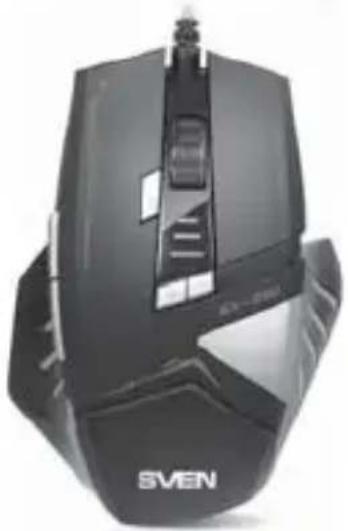

Black SVEN gaming mouse with visible branding and control buttons (no text-heavy elements)

Congratulations on your purchase of the Sven mouse!

Please read this Operation Manual before using the unit and retain this Operation Manual in a safe place for future reference.

COPYRIGHT

© 2014. SVEN PTE. LTD. Version 1.0 (V 1.0).

This Manual and information contained in it are copyrighted. All rights reserved.

TRADEMARKS

All trademarks are the property of their legal holders.

NOTICE OF RESPONSIBILITY RESTRICTION

Despite the exerted efforts to make this Manual more exact, some discrepancies may occur. The information of this Manual is given on “as is” terms. The author and the publisher do not bear any liability to a person or an organization for loss or damages which have arisen from the information contained in the given Manual.

SPECIAL FEATURES

• Stylish game design
• 7 + 1 buttons (scroll wheel)
• Two navigation buttons (Forward and Back)
• Triple click button
• DPI resolution buttons with indication
  • 2500 dpi maximum resolution
• Soft Touch coating
• Weighted construction
• Variable highlight of the mouse
• Software for additional settings (included)
• Installation drivers for Windows XP/Vista/7/8 are not required

SYSTEM REQUIREMENTS

• Windows XP/Vista/7/8.
• Free USB port.

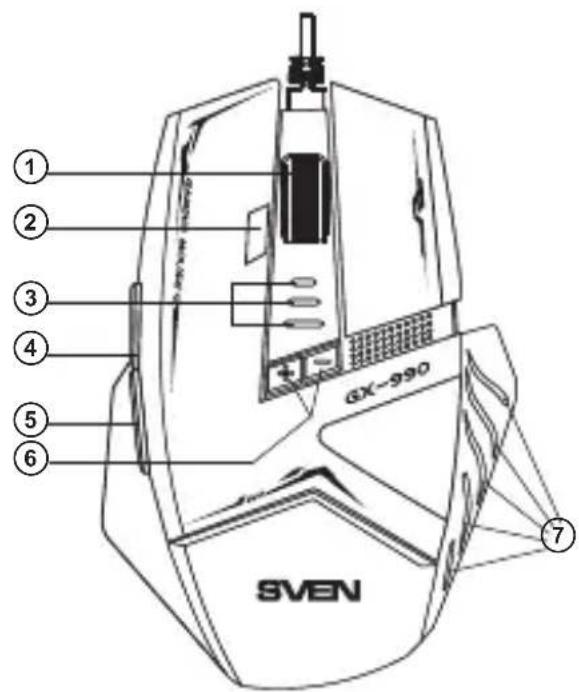

DESCRIPTION

① Scroll wheel
② Triple click button
③ DPI status indication

default:

no indicator – 1000 dpi, one indicator – 1500 dpi, two indicators – 2000 dpi, three indicators – 2500 dpi*

④ Move forward
⑤ Move backward
⑥ DPI resolution buttons
⑦ Transparent decorative insertions for highlighting*

Fig. 1. Top view

INSTALLATION

• Connect the mouse to an available USB port of your PC.
• The mouse is installed automatically after its connection to USB port.

TROUBLESHOOTING

Problem	Solution
The mouse is not working.	1. Disconnect the mouse from the PC and check connector pins for possible damage. If there is no external damage found and connector pins are OK, connect the mouse to the PC.2. Address your nearest authorized service center.

TECHNICAL SPECIFICATIONS

Parameter, measurement unit	Value
OS compatibility	Windows XP/Vista/7/8
Mouse type	optical
Resolution, dpi	1000/1500/2000/2500
Quantity of buttons	7 + 1 (scroll wheel)
Interface	USB
Conformity with	FCC, CE
Cable length, m	1.7
Dimensions, mm	121 × 85 × 40
Weight, g	180

Notes:

• Technical specifications given in this table are supplemental information and cannot give occasion to claims.
• Technical specifications are subject to change without notice due to the improvement of SVEN production.

Technical support is on www.sven.fi.

Gaming Optical Mouse

SVEN®

YOU WANT - WE CAN

Black SVEN gaming mouse with visible control buttons and branding (no text or symbols on the device itself)

Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road, N° 02-02, Singapore, 427447. Produced under the control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie, Kotka, Finland, 48310. Made in China.

® Registered Trademark of Oy SVEN Scandinavia Ltd. Finland.

GX-990

GAMING
