Product Type	Wired Optical Computer Mouse
Model	RX-160
Brand	Sven
Interface	USB 2.0
Sensor Type	Optical
Resolution	800/1200/1600 DPI (switchable)
Number of Buttons	3 (left, right, scroll wheel with middle click)
Scroll Wheel	Yes, 1-directional
Cable Length	1.5 m
Dimensions (L x W x H)	120 x 65 x 35 mm
Weight	100 g
Power Source	USB bus-powered (5V, 100 mA)
Operating Systems Supported	Windows XP/Vista/7/8/10/11, macOS, Linux
Plug and Play	Yes, no driver installation required
Main Functions	Left click, right click, scroll, DPI switching
Ergonomic Design	Standard symmetrical shape for right- and left-handed use
Cleaning Instructions	Wipe with a soft, dry cloth; do not use liquid cleaners
Safety Precautions	Keep away from liquids, excessive heat, and direct sunlight
Spare Parts and Reparability	No user-serviceable parts; contact authorized service center for repairs
Warranty	1 year limited warranty

Frequently Asked Questions - RX-160 Sven

Does the Sven RX-160 mouse require any driver installation?

How do I change the DPI sensitivity?

Is the mouse suitable for left-handed users?

What operating systems are compatible with the RX-160?

How long is the USB cable?

Can I use the mouse on a glass surface?

How do I clean the mouse?

Does the mouse have any lighting or RGB effects?

What is the expected lifespan of the switches?

What should I do if the mouse stops working?

USER MANUAL RX-160 Sven

Black computer mouse with 'SVEN' branding on the front face (no additional text or symbols visible)

RX-160

www.sven.fi

Black computer mouse with 'SVEN' branding on the front face (no additional text or symbols visible)

RX-160

www.sven.fi

Black computer mouse with 'SVEN' branding on the front face (no additional text or symbols visible)

RX-160

www.sven.fi

Congratulations on purchasing the SVEN mouse!

Please read this User's Manual before using the unit and retain this User's Manual in a safe place for future reference.

COPYRIGHT

© 2014. SVEN PTE. LTD. Version 1.0 (V 1.0).

This Manual and information contained in it are copyrighted. All rights reserved.

TRADEMARKS

All trademarks are the property of their legal holders.

NOTICE OF RESPONSIBILITY RESTRICTION

Despite the exerted efforts to make this Manual more exact, some discrepancies may occur. The information of this Manual is given on “as is” terms. The author and the publisher do not bear any liability to a person or an organization for loss or damages which have arisen from the information contained in the given Manual.

SPECIAL FEATURES

• Compact design, convenient for using the mouse with a laptop
  • High-precision optical technology
  • Effective on most surfaces
• Symmetric form
• Convenient scroll wheel
• USB interface
• Drivers installation not required for Windows XP/Vista/7/8
• Suitable for left-handers

SYSTEM REQUIREMENTS

• Windows XP/Vista/7/8.
• Free USB port.

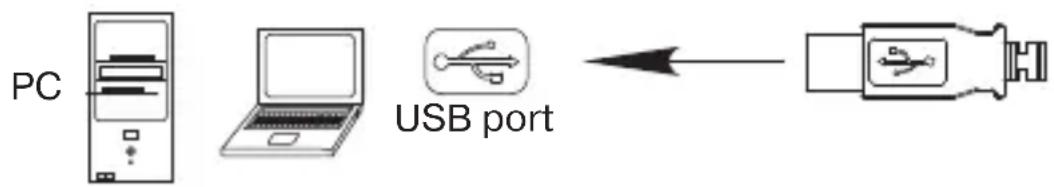

INSTALLATION

• Connect the mouse to an available USB-port of your PC.
• Installation of the mouse is automatic after its connection to a PC USB port.

Technical support: www.sven.fi

TROUBLESHOOTING

Problem	Solution
Mouse is not working.	1. Disconnect mouse from PC and check connector pins for possible damage. If there is no external damage found and connector pins are OK, connect mouse to PC.2. Address nearest authorized service center.

TECHNICAL SPECIFICATIONS

Parameter, measurement unit	Value
OS required	Windows XP/Vista/7/8
Type of mouse	Optical
Resolution, dpi	800
Q-ty of buttons	2 + 1 (scroll wheel)
Interface	USB
Conformity with	FCC, CE
Cable length, m	1.5

Notes:

• Technical specifications given in this table are supplemental information and can not give occasion to claims.
• Technical specifications are subject to change without notice due to improvement of SVEN production.

SVEN® YOU WANT - WE CAN

Модель: RX-160

Manufacturer: SVEN PTE. LTD., 176 Joo Chiat Road,

Nº 02-02, Singapore, 427447. Produced under the

control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie,

Kotka, Finland, 48310. Made in China.

® Registered Trademark of Oy SVEN

Scandinavia Ltd. Finland.

RX-160
