Viva H7 Xtreme - Tablet Allview - Free user manual and instructions

Product Type	Tablet
Brand	Allview
Model	Viva H7 Xtreme
Display Size	7 inches (estimated)
Internal Storage	8 GB (estimated)
Storage Expansion	MicroSD up to 64 GB
Battery Type	Lithium-polymer
Battery Capacity	3000 mAh (estimated)
Charging	DC 5V-5.2V, 1A via USB or included charger
Wi-Fi	802.11 b/g/n (estimated)
Bluetooth	Version 4.0 (estimated)
Sensors	Gravity sensor (accelerometer)
Operating System	Android 4.4 KitKat (estimated)
Processor	Quad-core 1.3 GHz (estimated)
Weight	Approx. 300 g (estimated)
Dimensions	Approx. 190 x 110 x 10 mm (estimated)
Headphone Jack	3.5 mm
USB Port	Micro USB
GPS	Sygic GPS navigation pre-installed (30-day trial)
Maintenance	Clean with soft dry cloth; avoid moisture and extreme temperatures
Safety	Use only approved charger; do not disassemble; contact service for repairs
Spare Parts / Repairability	Not user-serviceable; contact authorized service center

Frequently Asked Questions - Viva H7 Xtreme Allview

What is an APK file and how does it relate to this tablet?

An APK file (Android Package) is the installation format for Android apps. This tablet runs Android, so APK files can be installed directly on the device.

How can I install third-party applications?

You can download APK files from a PC and transfer them to the tablet, or use Google Play Store (if available) to download apps directly. Ensure "Unknown sources" is enabled in Security settings for non-Play Store apps.

Why does Wi-Fi disconnect when the screen is off?

To save battery, the tablet disables Wi-Fi after a period of inactivity. You can adjust the screen timeout or disable power saving in Wi-Fi settings. Wi-Fi will reconnect automatically when you wake the device.

Some downloaded apps don't work properly. Why?

APK files are often developed by third parties without full compatibility testing. Some apps may require specific hardware or Android version. If an app is not working, it may be incompatible with this device.

The tablet does not show a charging indicator. What should I do?

If the battery is extremely low, the indicator may not appear immediately. Connect the tablet to the charger (preferably the included DC adapter) and wait at least 30 minutes. If still no indicator, try a different charger or cable.

The gravity sensor (screen rotation) doesn't work in some apps.

This tablet supports gravity sensing (accelerometer), but not all applications are programmed to utilize it. The functionality depends on the app's support for screen rotation.

My tablet won't turn on. What could be the issue?

First, check if the battery is charged. Connect the charger and wait a few minutes. If still no response, try a reset by holding the power button for 10 seconds. If the issue persists, contact customer support.

There is no sound from the headphones.

Check that the volume is not set to zero and that the headphones are properly connected. Try a different pair of headphones to rule out a hardware issue.

How should I charge the tablet correctly?

Use only the provided charger (DC 5V/1A) or a compatible USB charger. Avoid charging from a computer's USB port if possible, as it may provide insufficient current. Do not use inferior chargers as they can damage the device.

Some video files won't play. How can I fix this?

This tablet supports common video formats, but some files may be encoded in a non-compatible format. Use a PC to convert the video to a compatible format (e.g., MP4 with H.264 codec) using free conversion software.

USER MANUAL Viva H7 Xtreme Allview

Front view of a black tablet device with a glossy screen and dark screen (no visible text or symbols)

User manual......3

Thank you for purchasing our product.

These operational guidelines for the user, to ensure you a quick and convenient to use, read the instructions carefully before use.

This player is a specialized top quality portable player product with a series of remarkable functions. There will be no separate notice in the case of any change in content of this text.

This company will continue to provide new functions for the development of the product, and there will be no separate change in the case of any change in the product's performance and functions. While this unit is used as a mobile hard disk, this company will not be held liable for the security of files saved in the disk.

If the actual setup and the application methods are not identical to those as set forth in this manual, please access to the latest product information of this company's website.

Basic Operations

Power on

In the shutdown state, long press Power button

Power off

In the power on state, long press the Power key 3 seconds then pop-up device options, select "Power off" for shut down.

Sleep

Under normal operating conditions, short press the power button, into hibernation. Now, the screen will close. Short press the power button again to resume the normal mode. You can set the device to enter sleep mode automatically after a desired time of non-operation.

Power reset

If you experience a slow operation of the device in normal use, you can shutdown and power on again to reset the operating system.

Screen time out

If you do not contact the player within the set time, and do no operate by the button, the screen will be automatically turned off.

In any state, short press Power button and for activation; Then skid the lock upwards to the green of spotted which will accomplish to access to the upper interface.

If it is necessary to deactivate the screen time out function, you can set the [Screen time out] option under [Display] function into "Never".

Using the Micro SD card

After this unit is connected with the computer, you will find two moving disks. The first one is the built-in memory disk for this unit and the other is the disk for the MicroSD card. If no card is inserted, the second disk can not be opened. This unit supports the extension of the MicroSD card from 128MB to 64GB.

Inserting and Pulling out the Micro SD card

Inserting:

Put the Micro SD card face up (side with words), and slightly force the card into the socket of the card, i.e. connecting the unit. Under this state, you can play the content in the Micro SD card.

Pulling:

Slightly push the Micro SD, and it will bounce by a section, and then you can take it out.

Caution:

Please perform inserting and pulling operation when power is off! Otherwise, it will lead to the loss or damage to the files within the unit! If no card is inserted, the computer will be unable to perform read and write operation for the disk notes of the later removable disk (Micro SD card).

Battery:

High capacity Polymer battery is used for this unit.

The duration available of the battery power depends on volume, types of playing files and operation of batteries. The player can be set up by the user as "user define power off time" or "display setup" to save batteries.

Charging:

This unit can be recharged by USB port, you can also use DC Charger:

- take out the DC charger, plug it into the wall outlet with AC 220V (output current 1A output voltage 5V\~5.2V), then plug in the charging jack into the device usb plug.

Warnings for charging:

A new battery may be empty and not charged before you get the device.

If the device is not used for long time, it is better to charge it to full capacity every 2 or 3 months during storage.

Power adapter is a key component of the portable player, which play a crucial

role in keeping the portable player's normal work and protecting your security when using the player, a long-term customer surveys and after-sales service Practice shows that the malfunction of the portable player, in many cases were caused by using inappropriate accessories, in particular the power adapter.

Using the substandard power adapter will shorten the life of the portable player by considerably, the voltage instability will seriously affected the normal work of the portable player and bring permanent damage on the player's performance and reliability. Using the substandard power adapter will also reduce the vocal quality of the players, shutdown the player when you use it. In addition, using the substandard power adapter will cause combustion and explosion which will disserve the safety of the consumers.

Return to main interface

In any interface, touch icon " " to access to main interface.

Return to upper interface or menu

In any interface, touch icon "←", click the " : " key to access to upper interface or menu. You can also click short press the " " key to accomplish it.

Points for Attention

1. Do not use the player in exceptionally cold or hot, dusty, damp or dry environments;
2. Do not allow the player to fall down while using it.
3. Please charge your battery when:

A. Battery power icon shows an empty icon;

B. The system automatically shuts down and the power is soon off when you switch on the unit once again;

C. There is no response if you operate on any key;

1. Please do not disconnect power abruptly when the player is being formatted or in the process of uploading or downloading. Otherwise it may lead to the error in the program;
2. When this unit is used as a mobile disk, the user shall store or export files in

the proper file management operation method. Any improper operation method may lead to the loss of files, for which this Company will be held no liable;

1. Please do not disassemble this unit by yourself. If there is any issue, please contact the dealer;
2. There will be no separate notice in the case of any change in the functions and performance of this product;

To avoid the problems that might occur with the service shops approved by Visual Fan Ltd. (because Visual Fan reserves the right to stop the collaboration with any service shop which was previously approved and mentioned in the warranty card on the date on which the product batch was sold on the market), before taking a product to the service shop, please check the updated list of approved service shops on Allview website at the section: “Support&Service – Approved service”.

We do not assume the responsibility in case the product is used other way than stated in the user guide. Our company reserves the right to bring modifications in the content of the user guide without making this fact public.

All the modifications will be listed on the company website (www.allviewmobile.com) in the section dedicated to the specific product which is subject to modifications. The content of this guide may vary from the one existing in electronic format within the product. In such case the latter one will be taken into consideration

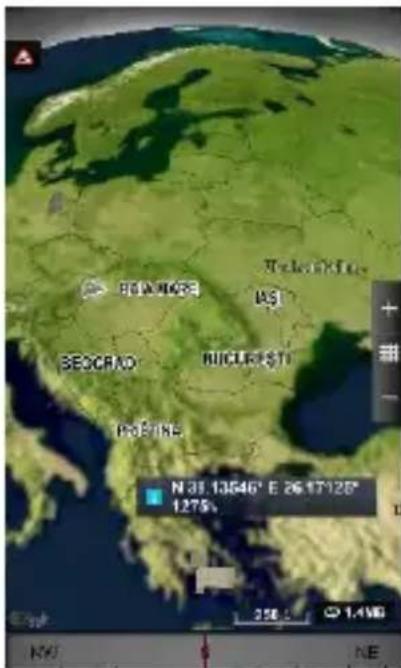

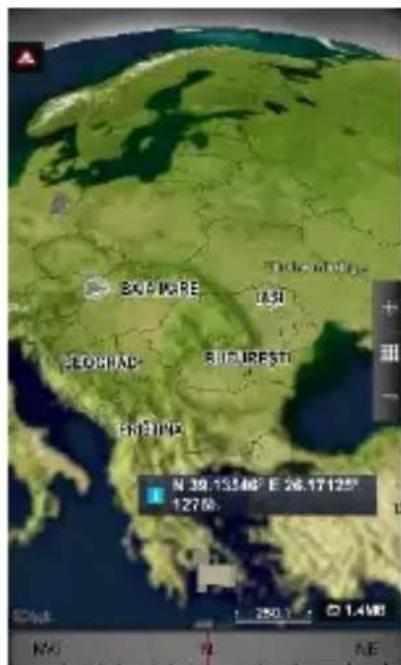

Activate your Sygic GPS Navigation

(optional)

The world's most popular offline GPS navigation app from Sygic is preinstalled on this device. Enjoy navigation in 90 countries around the globe for 30 days for free.

1. Click on Sygic icon and launch application.
2. The application will download necessary files.

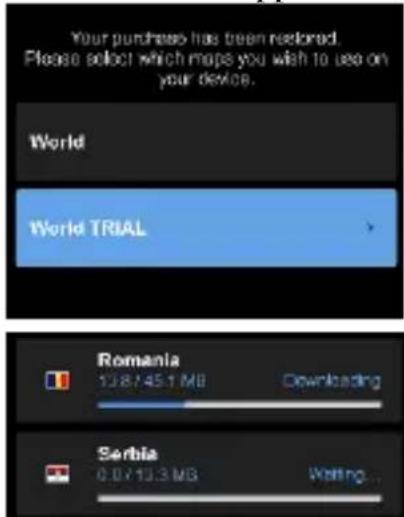

1. Select "Start Trial" button.

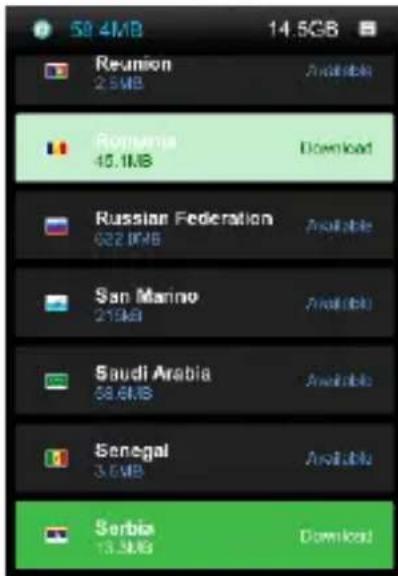

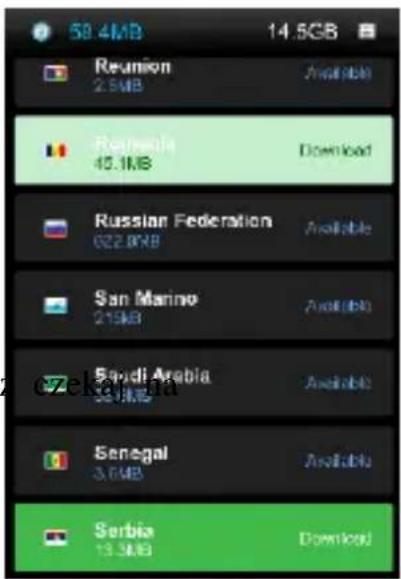

2. Choose one or more maps and click "Proceed" to download.

3. Please don't close the application and wait until the end of the download.

4. Select "Continue trial" to use Sygic GPS navigation for 30 days for free. Or purchase the full

lifetime license of the navigation. If you choose trial you can purchase full lifetime license later in “My Sygic” menu.

1. Select the navigation voice.

2. You can join to Sygic community by entering your email.

3. Enjoy all your journeys with Sygic GPS navigation!

For more information and support, please visit our website http://help.sygic.com/.

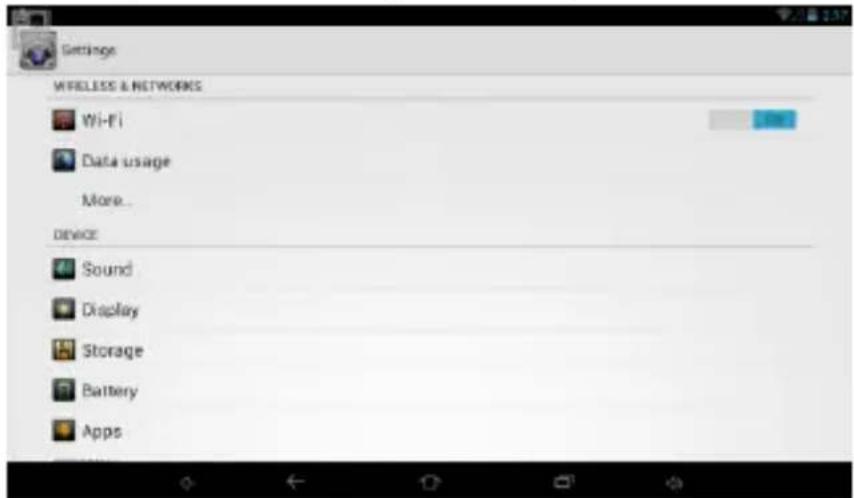

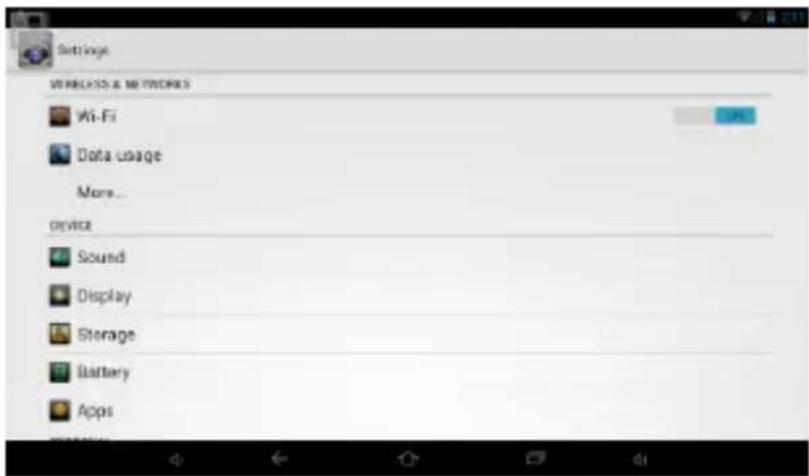

Settings

In the main menu, select the "Settings" option to be able to access the System Settings folder. Directly click can assess picture set options interface.

Description of functions:

1. WiFi

Wi-Fi: Open/close the wireless connection

2. Bluetooth

Wi-Fi: Open/close the bluetooth connection

3. Data usage

Display data usage

4. Sound setting

Volumes: set the notification, the media and the alarm clock volume.

Default notification: click to open notifications settings menu.

Touch sounds: if checked, the touch screen pressing will make a sound

5. Display settings

Brightness: adjust brightness of the screen.

Wallpaper: you can choose wallpaper from Gallery and Wallpaper

Sleep: Setting screensaver standby time.

When the device is in stand-by the Wi-Fi function will be deactivated to save

battery.

Font size: set the font size

6. Storage

Check the PMP memory and available storage.

7. Battery

Shows information about battery status and usage

8. Apps

Here you can view and manage the installed applications

9. Accounts and sync

Information and sync settings for your user accounts.

10. Location services

Contains settings for activation or deactivation of the localization options.

11. Security

Screen lock: set screen lock method: slide, pattern, PIN, password and so on many kinds of mechanisms.

Make passwords visible: if marked you may see the letters typed in the password box.

Unknown sources: allows you to install applications that do not come from Google Play Store.

12. Language & input

Set language and area, input method etc.

13. Backup & reset

Can backup, restore the machine settings and data

14. Date & time

Set the date, time, time zone and time display format

15. Accessibility

Options for screen rotation, text magnifier, password spelling etc.

16. Developer options

Settings and options for Android developers.

17. About device

Check the machine software version and other information.

Connect the computer

This machine can be connected to a PC through the USB cable, by which the data is copied or deleted. The specific procedure is as follows.

1. Connect the machine through the USB cable to the PC's USB port and you will get notification "USB already connected".
2. Click "USB already connected" notice options, and choose the "open USB storage devices", and you can manage the files from the memory of your machine.

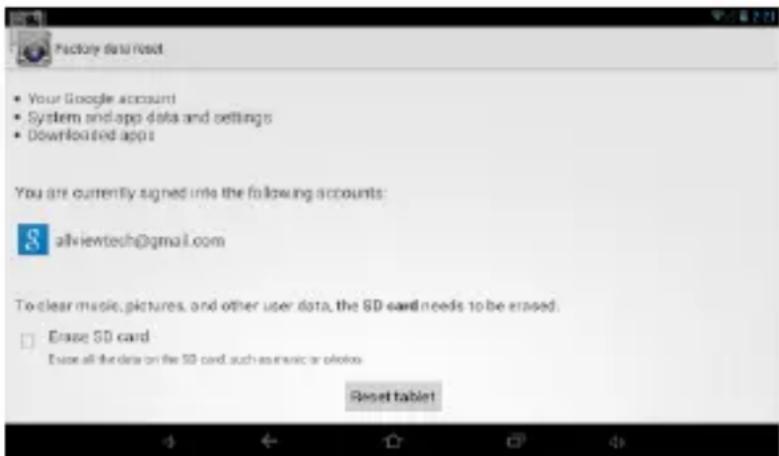

Factory data reset

If this machine is infected, or third party software installed to run this machine is unusual, but through the recovery factory Settings, remove the third party software, and restore the state out by default. Into this machine "Settings"-" privacy ", select "Factory data reset" item, confirmed, will remove all of the data

Common troubleshooting

1. What is the APK file? It and Android PMP have what relation?

A: APK is the abbreviation of Android Package. APK files can be installed and executed directly to Android system of the machine.

2. How to get the APK application

A: You can download via PC-side installation, you can also “Android market” online to download and install.

3. Why WIFI connection will interrupt

A: If set "screen time", when the player overtime in standby screen saver, WIFI function will be closed to save electricity purpose; When sensei player, WIFI function will be in about 5 seconds to resume automatic connection.

4. Why some download APK program not working properly

A: Download the APK software, mostly by the user to development, without the platform compatibility testing, and part of the hardware and software for Android system version has a special requirements, so there could be downloaded APK documents not compatible, not the normal operation of the phenomenon, the player itself quality problems.

5. Why does not the machine show charging state

A: When the battery is extremely low, need to use DC charger charging half an hour or more to show charging status

6. Why can't realize the gravity induction function

A: This machine support gravity feeling function, can be through the shaking to switch the screen machine did show, but some of the application does not support the gravity induction function, it can't realize the screen of switching function, this is the software support question, the functionality of the player.

7. Players can't boot

1) Check the battery no electricity
2) Connect the ac adapter after inspection again
3) If after charging still unable to boot, please contact our customer service

8. Can't Hear the voice in the headset

1) Please check the volume is set to 0
2) Please check whether the connection headphones

9. Player charging abnormalities

1) Please confirm that the use of the equipment complies with the charger of the player charger requirements
2) Such as connection USB charging, please do not connect to computers lead USB interface

10. Why some downloaded video cannot be played

This device is compatible with formats of video files from internet but due to the fact that video formats may vary there is a possibility not to be compatible with some of them. In these cases it is recommended to use the PC and some video conversion software to get to a compatible format.

DECLARATION OF CONFORMITY

Nr.1322 - 2.10.2014

We, SC VISUAL FAN SRL, importer located in Brasov, 61 Brazilor STR., 500313, registered at the Commerce Chamber Brasov no. J08/818/2002, CUI 14724950, assures, guarantee and declare on our own responsibility, in accordance with art.4 from HG nr. 1.022/2002 regarding the statute of the products and services that can jeopardize life, health, work security and environmental protection, that:

The product Viva H7 Xtreme tablet PC, ALLVIEW brand and the accessories that came with the product: 220V charger, headphones and battery don't jeopardize life, health, work security and environmental protection and they are according to:

• The Stipulations of HG nr.982/2007 witch transpose the essential requirements specified in Direction 2004/108/CE, regarding electromagnetically compatibility;
• The Direction regarding the low voltage equipment users assurance 73/32/CEE, modified by Direction 93/68/CEE (HG 457/2003) and tests EN

55013:2001+A1:2003+A2:2006, EN 55020:2007, EN 610000-3-2:2006, EN 61000-3-3:1995+A1:2001+A2:2005;

• The Direction regarding the radio and telecommunication equipments R&TTE 1999/5/CE (HG 88/303).
• The safety requirements of the European Directive 2001/95/EC and of EN standards 60065:2002/A12:2011 and EN 60950-1:2006/A12:2011, EN62209-1(2006), EN62311(2008) of the decibels level emitted by the sold devices.

The Product described upstairs in this Declaration and all the accessories are according to the next standards:

• Health EN 50360, EN 50361;
• Safety EN 6095-1;
• EMC EN 301 489-1-7/17;
• Radio spectrum EN 301511 EN 300328;

After the performed tests emerge that the samples comply with the upstairs specification, as the test results show. Documentation is stored on VISUAL FAN LTD - Brasov, 61 Brazilor STR.

Also available on web: http://allviewmobile.com

CE 0700

SAR: 1,648 W/kg

Cotuna Gheorghe

Director

Allview VIVA H7 Xtreme

12. Schedule power on/off

Ρυθμίσεις

Funkciók leírása:

1.WiFi

Opisy funkcji:

1. WiFi

DEKLARACJA ZGODNOŚCI WE

Nr.1322 - 2.10.2014

De luat in considerare

Rezolvarea problemelor uzuale

Allview Viva H7 Xtreme

Uputstva za korisnike

Predgovor

1. Selektirajte dugme "Start TRIAL".

2. Izaberite jednu ili više mapa i kliknite na „nastavak/proceed” radi update

3. Molimo da ne prekinite aplikaciju i da čekajte dok nije update završen.

4. Selektirajte “Nastavak pokušaj /Continue trial” radi upotrebe navigacije Sygic GPS vreme od 30 dana besplatno.

Podešavanja

Na glavnom meniju, odaberite opciju “Podešavanja” (“Settings”), kako biste pristupili sistemskom podešavanju. Direktnim klikom možete pristupiti podešenom interfejsu sa simbolima.

Opis funkcija:

1. WiFi

Wi-Fi: Otvaranje/zatvaranje bežične veze.

Wi-Fi podešavanja: dodirom na ikonicu " : " možete unositi napredni set WIFI pozicija.

2. Prikazivanje datuma

Najčešća pitanja i utvrđivanje kvarova

1. Šta je APK datoteka? Da li su ona i Android PMP povezani i na koji način?
