Product Type	Cordless Grass Trimmer
Brand	Cotech
Model	GT 18
Battery	LXC 18 V / 2 Ah Lithium-Ion
No-Load Speed	8000 min⁻¹
Operating Time	25–40 minutes
Cutting Diameter	230 mm
Strand Diameter	1.2 mm
Weight (incl. battery)	2 kg
Charger Input	230 V AC, 50 Hz, 75 W
Charger Output	18 V DC, 2.5 A
Charging Time	40 minutes
Sound Pressure Level	72 dB(A) (K=3 dB)
Sound Power Level	93 dB(A) (K=3 dB)
Vibration (Rear Handle)	6.531 m/s² (K=1.5 m/s²)
Vibration (Front Handle)	6.764 m/s² (K=1.5 m/s²)
Safety Features	Overload protection, overheating protection, low-voltage protection
Adjustable Handle	Telescopic shaft with locking knob
Trimmer Head Adjustment	5 angles (button) + 3 rotations (catch)
Included Accessories	Safety guard, edging wheel, front handle, battery charger (for models 18-4632 & 31-1325-1)

Frequently Asked Questions - GT 18 Cotech

How do I charge the battery?

Remove the battery from the trimmer and connect the charger to a wall socket. Insert the battery into the charger. The green LED will stay on and the red LED will flash once per second during charging. When fully charged, both LEDs will be steady green and red. Charging time is approximately 40 minutes.

How do I replace the trimmer line?

Open the trimmer head by twisting the bottom cover anticlockwise. Remove the spool and spring. Place the spring in the head with the wide end down. Thread the new line through the notches on the spool, leaving about 15 cm ends. Place the spool on the spring, thread ends through the holes in the head, and refit the cover by twisting clockwise. Finally, wind any excess line back onto the spool by turning anticlockwise until about 5–6 cm remains.

What should I do if the trimmer won't start?

Check that the battery is fully charged and correctly inserted. Ensure the safety switch is pressed before pulling the trigger. If the battery is too hot or cold, let it return to room temperature. Also check for any visible damage or blockages. If it still doesn't start, consult the troubleshooting guide in the manual.

Can I use the trimmer in wet conditions?

No, the grass trimmer must not be exposed to rain or moisture. It is not waterproof and using it in wet conditions increases the risk of electric shock or damage. Always operate in dry weather and avoid wet grass.

How do I adjust the trimmer head angle?

Hold the release button (part 4 on the manual) and move the trimmer head to one of the 5 fixed angle positions. Release the button when the desired angle is reached. For rotation, slide the spring-loaded catch (part 5) forward towards the head, twist the head to one of 3 fixed positions, then release the catch.

What safety gear should I wear?

Always wear safety glasses, sturdy footwear, long trousers, and gloves. Hearing protection is also recommended. Keep bystanders and pets at least 5 metres away while operating the trimmer.

How do I store the trimmer and battery?

Store the trimmer in a safe, dry place out of children's reach. Remove the battery for storage. Keep the battery at a temperature between 0–40°C. For long-term storage, recharge the battery fully at least every 6 months.

Why does the trimmer stop during use?

The trimmer may stop due to overload protection (e.g., when cutting thick grass) or overheating protection. In either case, release the trigger, wait a few seconds, and restart. If it doesn't restart, let the tool cool down completely. Also, the battery may have low voltage – recharge it.

Can I use metal cutting lines?

No, never attach metal cutting lines to this grass trimmer. Only use the recommended nylon line with a diameter of 1.2 mm. Metal lines could damage the trimmer and cause injury.

How do I clean and maintain the trimmer?

Always remove the battery before cleaning. Use a soft brush or cloth to clean the exterior – do not use water, solvents, or polish. Regularly remove grass and debris from the motor ventilation slits. Check the power trigger and safety switch for damage before each use.

USER MANUAL GT 18 Cotech

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Original instructions

Bruksanvisning i original

Postal 10 – 13 Market Place

Kingston Upon Thames

Surrey

KT1 1JZ

DEUTSCHLAND

Kundeservice

Please read the entire instruction manual before use and save it for future reference. We reserve the right for any errors in text or images and for making any necessary technical changes to this document. If you should have any questions concerning technical problems please contact our Customer Services.

Contents

Safety 4

General Safety Requirements – EN 60745-1....4

Specific Safety Instructions for Grass Trimmers 7

Grass trimmer symbol explanation....8

Product description 9

Assembly....10

Front handle 10

Safety guard 11

Edging wheel....11

Charging....11

Charging the battery 11

Overload protection and other safety features......12

Operating instructions 13

Setup....13

Switching the trimmer on....13

Care and maintenance....14

Changing the trimmer line 14

Troubleshooting guide....16

Disposal 16

Specifications 16

Grass Trimmer 16

Charger 16

Safety

General Safety Requirements – EN 60745-1

General safety instructions for power tools

Warning: Read all the instructions. Failure to adhere to the following instructions may lead to electric shocks, fires and/or serious injury.

SAVE THESE INSTRUCTIONS.

The term “power tools” in the warning text below refers to your handheld mains operated or battery operated tool.

1) Work area safety
a) Keep the work area clean and well illuminated. Cluttered and poorly lit areas invite accidents.
b) Do not use power tools in explosive environments, such as in the presence of flammable liquids, gases or dust. Power tools generate sparks that can easily ignite dust or fumes.
c) Keep children and other bystanders away from the area where you are using the power tool. Distractions can cause you to lose concentration and control of the tool.

2) Electrical safety

a) The power tool plug must fit correctly into the wall socket. Never modify the plug in any way. Never use an adaptor together with earthed power tools. Unmodified plugs and suitable wall sockets minimize the risk of electric shocks.
b) Avoid physical contact with earthed objects such as pipes, radiators, ovens and refrigerators. There is an increased risk of receiving an electrical shock if your body is earthed.
c) Do not expose the power tool to rain or other wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the mains lead. Never use the lead to carry the tool or pull the plug from a wall socket. Keep the lead away from heat, oil, sharp edges and moving parts. Damaged or tangled leads increase the risk of electric shock.
e) When using power tools outdoors, use an extension lead that is suitable for this purpose. The use of an extension lead designed for outdoor use decreases the risk of electric shocks.
f) If the use of the power tool in a wet environment is unavoidable, a wall socket equipped with a residual current device (RCD) should be used. Use of an RCD significantly reduces the risk of electric shock.

3) Personal safety

a) Pay attention to what you are doing and use common sense when using power tools. Never use power tools if you are tired or under the influence of drugs, alcohol or medication. One moment of inattention while using a power tool may result in a serious injury.

b) Wear protective clothing. Always wear safety glasses. Using protective clothing such as dust masks, non-slip safety shoes, helmets and ear defenders decreases the risk of injury.

c) Avoid accidental starts. Make sure that the power switch is set to OFF before plugging the power tool into a wall socket, fitting the battery or picking up/carrying the power tool. Carrying a power tool with your finger on the power switch/trigger or connecting the power tool to a wall socket when the power switch is set to ON is inviting an accident.

d) Remove all service tools/keys before switching on the power tool. A service tool left on a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This ensures better control over the power tool in unexpected situations.

f) Wear suitable clothing. Do not wear loose-fitting clothing or jewellery. Keep hair, clothes and gloves away from moving parts. Loose-fitting clothes, jewellery or long hair could become caught in moving parts.

g) If equipment for dust extraction or collecting is available make sure it is connected and used properly. Use of dust collection equipment can reduce dust related hazards.

4) Use and maintenance of the power tool

a) Do not force the power tool. Use a power tool suitable for the work you are about to perform. The proper power tool will perform the task better and safer if used at the correct feed rate.

b) Never use the power tool if the power switch does not switch the tool on and off properly. All power tools that cannot be controlled by the power switch are dangerous and must be repaired.

c) Unplug the lead from the wall socket or remove the battery before making any adjustments, changing accessories or storing the power tool. These precautions reduce the risk of the power tool starting unexpectedly.

d) Store power tools that are not being used out of children's reach. Do not allow people who are unfamiliar with the tool or these instructions to operate the tool. Power tools can be dangerous if they fall into the hands of inexperienced users.

e) Maintain power tools. Check for any incorrect settings, parts that catch, broken parts or anything else which may cause the power tool to malfunction. If something is damaged it must be repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp blades are less likely to bind and are easier to control.
g) Use the power tool, and any accessories in accordance with these instructions, take into consideration the working conditions and the work that is to be performed. Using the power tool for a purpose other than that for which it is intended could result in a dangerous situation.
5) The use and maintenance of cordless power tools
a) Only charge the battery using a charger recommended by the manufacturer. A charger suitable for one type of battery pack can pose a fire hazard if used for another type of battery pack.
b) Only use the cordless power tool with specially designated battery packs. Use of other battery packs may create a risk of injury and fire.
c) When the battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws or other small objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under extreme conditions or if the battery is mistreated, electrolyte may leak from the battery pack. Avoid contact with this liquid. If contact accidentally occurs, rinse your skin with water. If the electrolyte contacts your eyes, seek medical help. Electrolyte which has leaked from the battery pack can cause irritation or burns.
6) Service
a) Repairs and service should only be performed by qualified tradesmen, and only with original spare parts. This guarantees that the safety of the power tool is maintained.

Specific Safety Instructions for Grass Trimmers

- This grass trimmer is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the safe use of the grass trimmer by a person responsible for their safety.

- Never let children operate or play with the grass trimmer. Keep it out of reach of children.

- Wear sturdy footwear, long trousers, safety glasses and gloves.

- Keep anyone standing close by at a safe distance from the grass trimmer.

- Keep children and pets out of the work area. Stones and other debris can be ejected by the grass trimmer. Switch the grass trimmer off immediately should any onlookers, adults, children or pets, come within 5 metres.

- Only use the grass trimmer in good light conditions.

- If the grass trimmer has been subjected to any shocks or impacts it must be checked for damage. Any defect or damage must be repaired before the grass trimmer is used. Make sure the trimmer head is securely fastened on. If it is loose or damaged the grass trimmer must not be used.

• Always inspect the grass trimmer before use.

- The safety guard must always be fitted before the grass trimmer is used. The grass trimmer must not be used if the safety guard is damaged or missing.

- Before starting to use the grass trimmer, check the area to be trimmed for foreign objects such as stones or cables.

• Always hold the grass trimmer firmly. Hold it in both hands.

- Never attach metal cutting lines to this grass trimmer.

- Keep the ventilation openings of the trimmer head free from debris. Remove any grass or leaves.

- The line will continue to rotate after the motor has been turned off. Wait until the line has completely stopped before servicing.

- The grass trimmer must not be exposed to rain or moisture.

- Make sure that you are familiar with all the controls and settings before using the grass trimmer.

- Keep hands and feet away from the trimmer head and line at all times and especially when switching the motor on.

- Be careful when adjusting the trimmer line; do not switch the motor on until you are holding the grass trimmer in the correct way.

- Only use the grass trimmer with parts and accessories recommended by the manufacturer.

- Always remove the battery before inspecting, cleaning or adjusting the grass trimmer and when it is not in use.

- Keep proper footing and balance at all times.

- Avoid directing the trimmer head towards immovable objects when the trimmer head is spinning, as they could damage the grass trimmer.

- Do not attempt to stop the trimmer head with hands or feet, let it stop by itself.

- Avoid operating the grass trimmer on gravel paths, gravel covered yards or other places where stones could be ejected.

Grass trimmer symbol explanation

WARNING! Grass trimmers can be dangerous.

Icon of a person reading a book inside a circle (no text or symbols)

Read the instruction manual.

Prohibition sign showing raindrops falling from a cloud, enclosed in a circle (no text or symbols)

Do not expose the grass trimmer to rain or moisture.

Simple line drawing of a person's head wearing glasses inside a circle (no text or symbols)

Wear eye protection.

Keep all persons and animals at a safe distance from the grass trimmer.

Product description

18-4632, 31-1325-1 comes with a rechargeable 18 V battery pack and charger. 31-1326 comes without a battery pack or charger. It is the perfect complement to users already in possession of an 18 V LXC battery pack and charger.

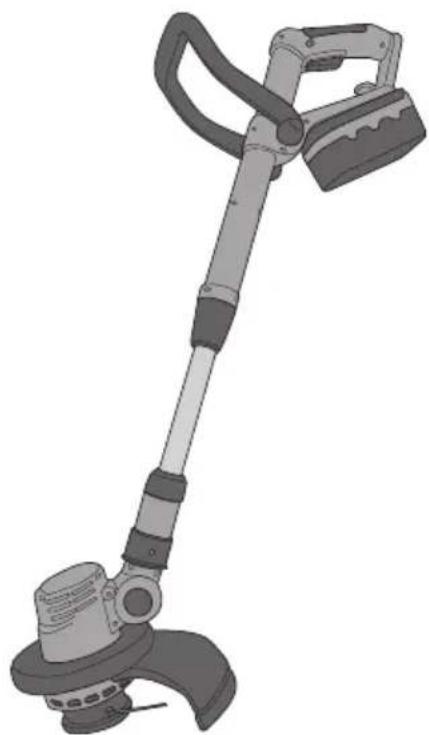

The picture shows the assembled grass trimmer, parts 2 and 3 are not attached when sold.

1. Trimmer head.
2. Edging wheel.
3. Safety guard.
4. Release button for adjusting the trimmer head angle to one of its 5 fixed positions.
5. Catch for twisting the trimmer head to one of its 3 fixed positions. Push the catch forward towards the trimmer head.
6. Telescopic handle.
7. Locking knob for adjusting the length of the telescopic shaft. Twist clockwise to unlock and anticlockwise to lock.
8. Adjustable front handle.
9. Battery holder for an LXC battery pack (battery only included with 18-4362 and 31-1325-1).
10. [⏻] Trigger.
11. Safety switch for preventing unintentional operation. Hold the button in before pulling the trigger.

Assembly

Note: Remove the battery from the grass trimmer if one is fitted.

Note: When sold, the grass trimmer shaft is contracted to enable it to fit into the box. The first time the telescopic shaft is extended, it passes a non-return pawl creating a new end-stop.

The shaft will then only be able to contract as far as the new end-stop.

Illustration of a handheld metal detector with adjustable arm and base (no text or symbols)

Illustration of a metal detector with adjustable arm and base (no text or symbols)

Retracted when sold Max retracted length once having

been extended

Front handle

Attach the front handle to the shaft. The handle can be mounted so that it leans forwards or backwards. Tighten the handle locking knob.

Mechanical device with lever and handle mechanism, no visible text or symbols

Safety guard

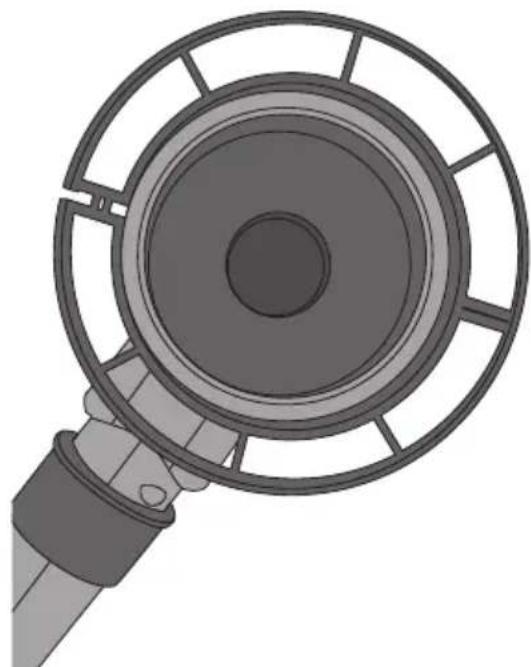

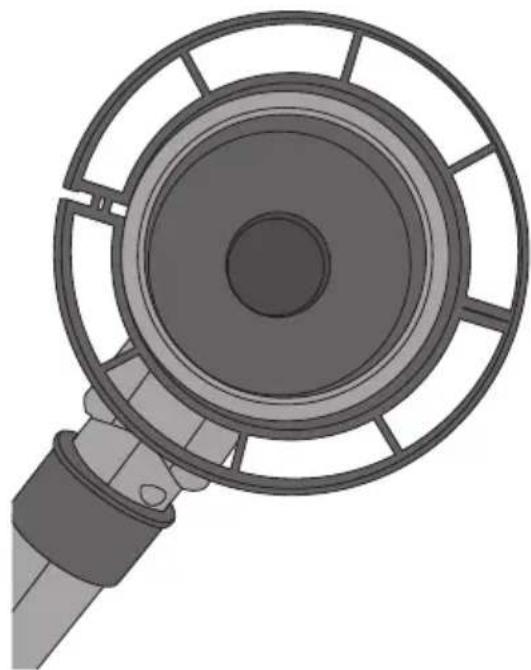

1. Push the safety guard (3) into the groove in the trimmer head (1).
2. Fasten the safety guard to the trimmer head using the included screw.

Note: Handle the guard carefully; it has a very sharp blade on it (indicated by the arrow).

Edging wheel

The grass trimmer comes with an edging wheel. It consists of two parts which click together to surround the trimmer head. It is used for trimming edges.

Mechanical component diagram showing a curved housing with a lever and a directional arrow indicating motion (no text or symbols)

Illustration of a mechanical device with a circular component and handle (no text or symbols)

Charging

Charging the battery

Temperature range for charging and storing the battery: 0–40 °C.

1. Remove the battery from the power tool by pressing the battery release button and sliding the battery out. If the battery feels very warm, as after hard use, allow it to cool properly before charging.
2. Connect the charger to a wall socket. The green LED will come on after a few seconds.
3. Insert the battery into the charger. Whilst the battery is charging, the green LED will shine steadily and the red LED will flash once per second. (Should the battery be fully charged when it is put into the charger, nothing will happen i.e. the green LED will keep shining steadily and the red LED will remain off).
4. When charging is complete, press the battery release catch and remove it from the charger.

Steady green light and red light off:

The charger is connected to the power supply but is not charging.

(Nothing happens if a fully-charged battery is connected to the charger)

Red light flashing once per second and steady green light:

Charging is in progress.

Steady green and red light:

The battery has been fully charged.

Red light flashing three times per second and steady green light:

Faulty battery.

Overload protection and other safety features

The machine/battery has a number of safety features that prevent damage to the machine and battery during use.

• During short high-load situations the overload protection may turn off the machine/battery. This protection resets automatically. Set the on/off switch to [1], wait a few seconds, ensure that there is no load and then restart the machine. The machine should now function normally again.
• During high-load for extended periods the overheating protection may turn off the machine/battery. The protection resets itself but the machine cannot be restarted until it has returned to normal operating temperature. Let the machine cool properly before trying to restart it. Adverse temperatures can occur in direct sunlight and should therefore be avoided.
• The battery has low-voltage protection which operates when the battery becomes discharged. The low-voltage protection turns off the machine automatically and the battery then needs to be recharged.

Operating instructions

Setup

1. Adjust the length of the telescopic shaft (6) to suit your height. Twist the locking knob (7) clockwise to release the shaft, adjust the length and then twist the locking knob anticlockwise to tighten.

Diagram of a mechanical lever with bidirectional arrows indicating motion (no text or symbols)

1. Adjust the angle of the trimmer head by holding in the button (4) and moving the head to one of the 5 settings. Release the button when the trimmer head is at the desired setting.

Mechanical component diagram showing a tool with directional arrows indicating motion (no text or symbols)

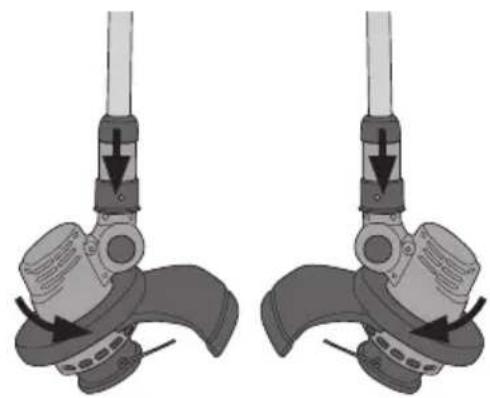

1. The trimmer head can be rotated and set to one of 3 fixed settings. Slide the spring-loaded catch (5) forward towards the trimmer head, twist the trimmer head into one of its fixed settings and then release the catch.

Illustration of two identical mechanical device components with lever and adjustment arrows (no text or symbols)

Switching the trimmer on

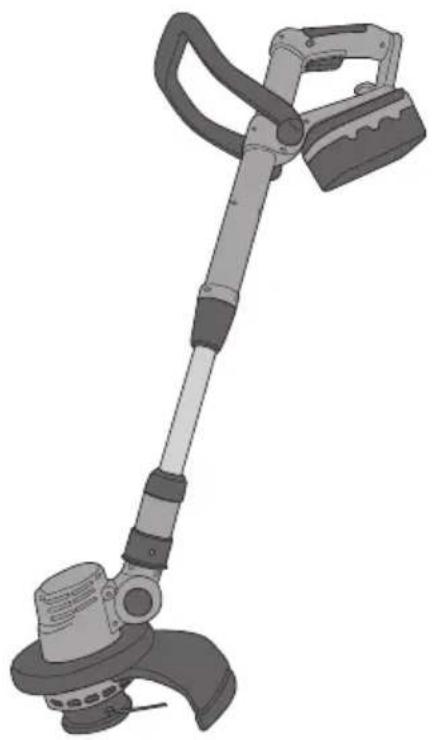

1. Hold down the safety switch (11) on the rear handle.
2. Start the trimmer by pressing in the power trigger (10).
3. Release the power trigger to stop the motor.

Care and maintenance

Note: Always remove the battery before cleaning, adjusting or transporting the tool.

Changing the trimmer line

Mechanical component diagram showing a rotating knob with directional arrow (no text or symbols)

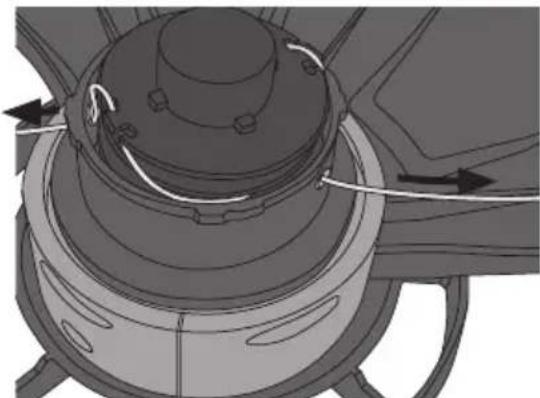

1. Open the trimmer head by twisting the bottom, "the cover", anticlockwise to remove it. The line spool can then be removed. Take care not to lose the spring located under the spool.

3D rendering of a mechanical component with circular top and flanged side (no text or symbols)

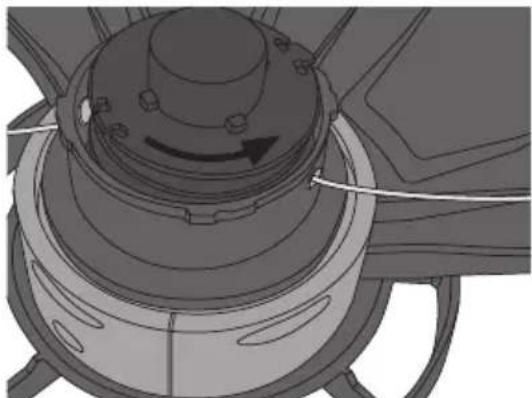

1. Take a new spool and line and make sure that the line passes through the notches in the spool and that the ends of the line stick out about 15 cm to make fitting easier.

Technical illustration of a mechanical assembly with a spring and housing (no text or symbols)

1. Place the spring in the trimmer head with the wider end at the bottom of the cylinder and the narrow end pointing up towards the spool.

Mechanical assembly diagram showing a coil inserted into a housing with a black arrow indicating direction (no text or symbols present)

1. Thread the ends of the line through the holes in the side of the trimmer head and place the spool on top of the spring in the trimmer head.

Mechanical assembly diagram showing a rotating component with directional arrows indicating motion (no text or symbols)

1. Pull gently on the ends of the line so that it comes out of the notches in the spool.

2. Refit the bottom cover, which has a bayonet fitting. Push it down whilst simultaneously twisting it clockwise until it won't turn any further.

Mechanical assembly diagram showing a rotating component with arrows indicating motion (no text or symbols)

1. If there is an unnecessary length of line protruding from the spool, turn the spool anticlockwise to wind the line back onto the spool until only about 5–6 cm of line sticks out.

Mechanical component diagram showing a rotating knob and housing (no text or symbols)

Note: Wear safety glasses and make sure that there are no bystanders nearby when starting the grass trimmer after new line has been fitted because any excess cut off line will fly out at high speed.

- Check regularly to ensure that no grass and twigs have built up around the spindle.

- Check before each use that the power trigger and safety switch are undamaged and work correctly.

- Clean the exterior of the trimmer with a soft brush or cloth, do not use water, solvents or polish.

- Regularly remove all dirt, especially from around the motor ventilation slits on the trimmer head.

- Store the grass trimmer in a safe, dry place out of the reach of children.

- Store the battery at a temperature of 0–40 °C.

- For long-term storage the battery should be fully charged at least every 6 months.

Troubleshooting guide

Problem Action
The tool does not start. • The	battery is discharged or incorrectly fitted.
Poor battery operating time. •	The battery is not fully charged.• The battery needs replacing.
The battery does not charge.	• The battery is not correctly inserted into the charger.• The battery or charger contacts are dirty.• The mains adaptor is not plugged in correctly.• Check to see if there is power at the wall socket.• The charger or its cable is damaged.• The mains adaptor is defective.• The battery needs replacing.

Disposal

This product should be disposed of in accordance with local regulations. If you are unsure what to do, contact your local authority.

Specifications

Grass Trimmer

Battery LXC 18 V/2 Ah lithium-ion battery

No-load speed 8000 min -1

Operating time 25–40 min

Cutting diameter 230 mm

Strand diameter 1.2 mm

Sound pressure LpA 72 dB (A), K: 3 dB

Sound power LwA 93 dB (A) K: 3 dB

Vibration Rear handle 6.531 m/s ^2 , K: 1.5 m/s ^2

Front handle 6.764 m/s², K: 1.5 m/s²

Weight (incl. battery) 2 kg

Charger

Input 230 V AC, 50 Hz, 75 W

Output 18 V DC

Charging current 2.5 A

Charging time 40 min

Grästrimmer GT18

Art.nr 18-4632 Modell DCGT102B-UK

31-1325-1 DCGT102B

31-1326 DCGT102

Icon of a person reading a book inside a circle (no text or symbols)

Prohibition sign showing raindrops falling from a cloud, enclosed in a circle (no text)

Simple line drawing of a person's head wearing glasses inside a circle (no text or symbols)

Illustration of a handheld metal detector with adjustable arm and base (no text or symbols)

Illustration of a handheld metal detector with adjustable arm and base (no text or symbols)

Mechanical device with lever and handle mechanism, no visible text or symbols

Skydd

Mechanical component diagram showing a curved housing with a lever and a directional arrow indicating motion (no text or symbols)

Illustration of a mechanical device with a circular component and handle (no text or symbols)

Laddning

Laddning av batteri

Diagram of a mechanical lever with bidirectional arrows indicating motion (no text or symbols)

Mechanical component diagram showing a lever mechanism with directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing two identical configurations of a device with lever and base components (no text or symbols)

Starta trimmern

Mechanical component diagram showing a rotating knob with directional arrow (no text or symbols)

3D rendering of a mechanical component with circular top and side holes, no text or symbols visible

Mechanical assembly diagram showing a spring-loaded housing with mounting brackets (no text or symbols)

Mechanical assembly diagram showing a motor or generator with a coiled cable and directional arrow (no text or symbols)

Mechanical assembly diagram showing a rotating component with directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a rotating component with directional arrows (no text or symbols)

Mechanical component diagram showing a rotating knob and housing (no text or symbols)

Generelle advarsler.

Icon of a person reading a book inside a circle (no text or symbols)

Prohibition sign showing raindrops falling from a cloud, enclosed in a circle (no text or symbols)

Utsett ikke gresstrimmeren for regn eller fuktighet.

Simple line drawing of a person's head wearing glasses (no text or symbols)

Bruk vernebriller.

Hold andre personer på trygg avstand fra maskinen.

Produktbeskrivelse

Illustration of a handheld metal detector with adjustable arm and base (no text or symbols)

Illustration of a handheld metal detector with adjustable arm and base (no text or symbols)

Mechanical device with lever and handle mechanism, no visible text or symbols

Beskyttelsesdeksel

Mechanical component diagram showing a curved housing with a lever and a directional arrow indicating motion (no text or symbols)

Illustration of a mechanical device with a circular component and handle (no text or symbols)

Lading

Lading av batteri

Diagram of a mechanical lever with bidirectional arrows indicating motion (no text or symbols)

Mechanical component diagram showing a tool with directional arrows indicating motion (no text or symbols)

Illustration of two identical mechanical components with arrows indicating motion or force direction (no text or symbols)

Start trimmeren

Mechanical component diagram showing a rotating shaft and housing with an arrow indicating rotation (no text or symbols)

3D rendering of a circular mechanical component with mounting holes and a central hub (no text or symbols)

Mechanical assembly diagram showing a spring-loaded component inside a housing (no text or symbols)

Mechanical assembly diagram showing a motor or engine component with a coiled spring and cable (no text or symbols visible)

Mechanical assembly diagram showing a rotating component with directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a rotating component with arrows indicating motion (no text or symbols)

Mechanical component diagram showing a rotating knob and housing (no text or symbols)

Spenning inn 230 V AC, 50 Hz, 75 W

Spenning ut 18 V DC

Icon of a person reading a book inside a circle (no text or symbols)

Lue käyttöohje.

Prohibition sign showing raindrops falling from a cloud above a diagonal line (no text or symbols)

Simple line drawing of a person's head wearing glasses inside a circle (no text or symbols)

Käytä suojalaseja.

Illustration of a handheld metal detector with adjustable arm and base (no text or symbols)

Illustration of a metal detector device with adjustable handle and base (no text or symbols)

Mechanical device with lever and handle mechanism, no visible text or symbols

Suoja

Mechanical component diagram showing a curved housing with a lever and a directional arrow indicating motion (no text or symbols)

Illustration of a mechanical device with a circular component and handle (no text or symbols)

Lataaminen

Akun lataaminen

Diagram of a mechanical lever with bidirectional arrows indicating motion (no text or symbols)

Illustration of a mechanical tool with directional arrows indicating motion (no text or symbols)

Diagram of two identical mechanical device components with arrows indicating motion or force direction (no text or symbols)

Mechanical component diagram showing a rotating shaft and housing with an arrow indicating rotation direction (no text or symbols)

3D rendering of a mechanical component with circular top and side features (no text or symbols)

Technical illustration of a mechanical assembly with a spring and housing (no text or symbols)

Mechanical assembly diagram showing a motor or generator with wiring and a directional arrow (no text or symbols)

Mechanical assembly diagram showing a rotating component with directional arrows indicating motion (no text or symbols present)

Mechanical assembly diagram showing a rotating component with arrows indicating motion (no text or symbols)

Mechanical component diagram showing a rotating knob and housing (no text or symbols)

Icon of a person reading a book inside a circle (no text or symbols)

Prohibition sign showing raindrops falling from a cloud above a diagonal line (no text or symbols)

Simple line drawing of a person wearing glasses inside a circle (no text or symbols)

Augenschutz tragen.

Illustration of a handheld metal detector with adjustable arm and base (no text or symbols)

Illustration of a metal detector device with adjustable handle and base (no text or symbols)

Mechanical device with lever and handle mechanism, no visible text or symbols

Schutzvorrichtung

Mechanical component diagram showing a curved housing with a lever and a directional arrow indicating motion (no text or symbols)

Illustration of a mechanical device with a circular component and handle (no text or symbols)

Laden

Laden des Akkus

Diagram of a mechanical device with bidirectional arrows indicating motion or force (no text or symbols)

Illustration of a mechanical tool with directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing two identical configurations of a lever mechanism with arrows indicating motion direction (no text or symbols present)

Den Trimmer starten

Mechanical component diagram showing a rotating knob with directional arrow (no text or symbols)

3D rendering of a mechanical component with circular top and side holes, no text or symbols visible

Mechanical assembly diagram showing a spring-loaded component inside a housing (no text or symbols)

Mechanical assembly diagram showing a motor or generator with a coiled spring and cable (no text or symbols visible)

Mechanical assembly diagram showing a rotating component with directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a rotating component with directional arrows (no text or symbols)

Mechanical component diagram showing a rotating shaft and housing (no text or symbols)

Declaration of Conformity

Declares that this product complies with the requirements of the following directives and standards

Machinery directive 2006/42/EC

EN 60745-1:2009

EN ISO 10517:2009

EN 786/A2:2009

EMC directive 2004/108/EC

EN 55014-1:2006

EN55014-2/A1:2001

EN61000-6-3:2007

Low voltage directive 2006/95/EC

EN 60335-1:2002+A11

+A1+A12+A2+A13

EN 62233:2008

EN60335-2-29:2004

Klas Balkow

President

Insjön, Sweden, 2014-11-07

CO TECH®

LXC

LITHIUM XROSS CONNECT

Product display of various blue-handled 18V LXC lithium 2.0 AH power tool designs arranged around a central battery case (no text or symbols on main objects)

18V LITHIUM SERIES
