USER MANUAL HY33PD-1 Cotech

Read the instruction manual carefully and make sure that you understand everything before you use the product, keep it for future reference.

Viktig information:

Please read the entire instruction manual before using and save it for future use.

We apologise for any text or photo errors and any changes of technical data.

If you have any questions concerning technical problems please contact our Customer Service Department (see address on reverse.)

Danger: This product is only meant to be used with trimmer line, never use a saw blade or other cutters as this will only increase the risk of accidents.

Warning! Children, animals and onlookers should keep at least 15 metres away from the grass trimmer when it is being used, turn it off immediately if anyone comes closer.

1. Explanation of product safety symbols

Other than the user, do not allow anyone to be near the trimmer when it is in use. Children, animals and onlookers should keep to a distance of at least 15 meters from the grass trimmer when it is in use.

2. Safe use of the trimmer

Note! Switch off the engine before all servicing, adjusting and cleaning of the grass trimmer.

1. Wear protective footwear, tight-fitting clothes and safety glasses/visor, ear defenders and a helmet.
2. Never use the grass trimmer if you are tired, sick, upset or under the influence of medication which causes drowsiness, alcohol or drugs.
3. Always be careful when handling fuel. Open the fuel tank carefully and release any pressure which might have built up in the tank. Wipe off any spilt fuel and move the grass trimmer at least 3 metres away from the refuelling place before starting it. Remove any sources of ignition, sparks, open flames, smoking, etc. from places where the fuel is mixed, used or stored. Do not smoke while fuelling or using the grass trimmer.
4. Do not permit anyone other than the operator to come close to the grass trimmer when it is being started or used. Children, pets and onlookers should keep at a distance of at least 15 metres from the grass trimmer when it is being used.
5. Always hold both handles of the grass trim - mer firmly with your fingers on one side of the handle and thumb on the other side, once the engine is running.
6. Keep all of you body parts away from the trim - mer line when the engine is running.
7. Make sure that the trimmer line is not in contact with anything before starting.
8. Only transport the grass trimmer with the engine switched off.
9. Always inspect the grass trimmer before starting, do not start it if there are worn, damaged or missing parts. Never use a grass trimmer which is damaged, incorrectly adjusted or not assembled correctly.
10. All service other than that mentioned in this instruction manual should be carried out by qualified personnel.
11. Switch off the grass trimmer before laying it on the ground.
12. Be extra vigilant when cutting small bushes or thick grass, it can get stuck in the trimmer head.

13. Keep the handles clean, dry and free from oil or fuel.

14. Only use the grass trimmer outdoors or in well ventilated locations. Never start it in a closed room or building. Exhaust fumes are dangerous to inhale, they contain carbon monoxide.

15. Avoid moving the trimmer head close to small objects which can be thrown about, check the area to be trimmed for small stones etc, before starting work.
16. Always stand below the trimmer if you are using it on a slope. NEVER use the trimmer on a slope if there is the slightest risk of you losing your footing, falling or sliding. Keep hold of both handles.
17. Keep the grass trimmer free from grass cuttings and other deposits, particularly the guard, trimmer head and engine.
18. The grass trimmer must only be used by adults who have read the instruction manual.
19. Only use two-stroke engine fuel with a mixture of 2.5% good quality two-stroke oil (40:1) intended for air-cooled two-stroke engines. Using petrol without oil mixed in will cause engine damage that is not covered by the guarantee.
20. Do not use the grass trimmer without the silencer or silencer cover.
21. Hold both handles of the grass trimmer firmly, with your fingers on one side of the handle and thumb on the other.
22. The silencer can become very hot, do not touch it with your hands or other parts of your body.
23. The trimmer head must not be raised during use, the trimmer line can injure the operator, work as close to the ground as possible.
24. The grass trimmer must not be used for any other purpose than for the trimming of lawns and gardens.
25. The grass trimmer must not be used if the guard is damaged or missing.
26. This product must not be altered or used for other tasks, the risk of accidents will increase and the guarantee will not be valid.
27. Do not use the grass trimmer close to flammable gases and liquids; this could cause a fire or an explosion.

3. Presentation

1. Trimmer head
2. Trimmer blade
3. Trimmer safety guard
4. Loop handle (with extra side handle)
   5.a Shaft handle upper
   5.b Shaft handle lower

5. Ignition switch

6. Fuel tank

7. Throttle lever
8. Start handle
9. Primer bulb
10. Spark plug
11. Air filter cover

12. Safety lever

13. Choke lever (push down to activate choke)

14. Spool removal spanner
15. Spark plug wrench
16. Shoulder strap
17. Locking knob, trimmer head
    19 Locking knob, shaft

4. Specifications

Model: HY33PD-1

Net weight (dry): 5.3 kilograms

Motor: Air-cooled two-stroke motor

Cylinder volume: 25 cm ^4

Cutting radius: 38 cm

Fuel: Mixture of petrol & oil ratio 40:1 (2.5%)

Ignition: Electronic

Maximum motor effect: 0.74 KW at 7,500 RPM

Rotational frequency: 7,000-8,500 RPM

Maximum rotational frequency: 8,500 RPM

Idle running rotational frequency: 3,500 RPM

Spark plug: TORCH L8RTC, Champion CJ7Y, NGK BPMR7A

Fuel tank capacity: 0.6 litres

Cutting line: Nylon line ∅ 2mm

Noise

LwA:

110 dB (A)

LpA:

88 dB (A)

Vibration

Idle:

10.5 m/s²

Full throttle:

10 m/s ^2

5. Assembly

The shafts (5a), (5b), the loop handle (4) and the trimmer safety guard must be assembled before use.

Joining the shafts (5a) and (5b)

1. Insert the lower shaft (5b) into the upper shaft (5a) until the ball-lock secures it in place.
2. Tighten the shaft locking knob.

Close-up of hands using a handheld tool to apply a small object (no visible text or symbols)

Figure 1

Close-up of hands holding a metallic tool or tool with a black handle (no visible text or symbols)

Figure 2

Assembly of secondary handle (4)

1. Loosen the screws and washers on the secondary handle.
2. Take hold of the secondary handle (4), (together with the enclosed side handle) on the upper shaft (5a) and attach with washers and screws. The side handle can be assembled either on the left or right side to adapt the trimmer to right or left-handed users.
3. Adjust the position of the secondary handle (160 - 200 mm in front of the throttle lever) and screw together.

Close-up of a hand using a tool to adjust a black mechanical component (no text or symbols visible)

Figure 3

Assembly of the trimmer guard (3)

Warning! The trimmer guard must be assembled correctly to protect the operator and to limit the length of the trimmer line. There is a cutter on the guard that cuts the line to the right length.

1. The trimmer head should be disassembled before assembling the trimmer guard (3).
2. Hold the trimmer head and use your hand or the enclosed key to loosen the trimmer head nut. See figure 4.
3. Remove the trimmer head from the spindle.
4. Slide the trimmer guard over the shaft and align the holes in the guard with holes in the bracket. See figure 5.
5. Pass the bolt through the trimmer guard from the side with the hexagonal countersink and assemble the washer and nut. See figure 6.
6. Reassemble the trimmer head on the spindle. See figure 7.

Close-up of hands holding a black mechanical component with a wire, no visible text or symbols

Figure 4

Close-up of a hand holding a tool with a metallic screw, partially visible against a dark background (no text or symbols)

Figure 5

Close-up of a hand using a microscope to apply a small object (no visible text or symbols)

Figure 6 Figure 7

Close-up of a mechanical component with a cylindrical head and threaded shaft (no visible text or symbols)

6. Fuel and lubrication

Warning! Petrol is highly flammable. Avoid smoking close to where fuel is handled, do not cause any sparks embers or naked flames either. Switch off the grass trimmer and let it cool before refuelling it. Refuel outdoors and always move at least 3 metres away from the refuelling site before starting the trimmer.

Mix petrol (unleaded 95 octane without added ethanol) with a good quality 2-stroke oil intended for air-cooled 2-stroke engines. Recommended mixture: Petrol/oil 40:1 (2.5 %).

• The engine is designed to be used with unleaded fuel.
• Use at least 87 octane fuel.
• Use unleaded fuel to protect the environment and your health.
• Bad quality fuel or oil can damage seals, fuel lines or the fuel tank.

6.1 Mixing the fuel

Note! Be precise with the mixture.

1. Measure out the petrol and oil precisely before mixing.
2. Pour a small amount of the petrol into a clean fuel can.
3. Pour in all of the oil and shake the fuel can.
4. Pour in the rest of the petrol and shake the fuel can for at least a minute. Certain oils do not mix well; therefore it is important that the fuel can be agitated to mix the oil and petrol. The engine will last longer if the fuel is well mixed, if the fuel is not mixed properly the mixture will be too lean and the engine may be damaged.
5. Label the fuel can clearly, to avoid the risk of misidentification.
6. Fuel containing oil is only intended for 2-stroke engines, pure petrol is for 4-stroke engines, it is therefore very important to label the fuel cans clearly.

Note! Do not mix too much fuel; it should be used within 90 days.

Warning!

Only use fuel containing oil for 2-stroke engines, using pure petrol without the addition of oil will soon cause engine damage which is not covered by the guarantee.

6.2 Refuelling the grass trimmer

1. Unscrew and remove the fuel cap.
2. Fill with fuel until the tank is roughly 80% full.
3. Replace and tighten the fuel cap then wipe up any spilt fuel on or around the grass trimmer.

Warning!

1. Refuel outdoors and on the ground.
2. Always move at least 3 metres away from the refuelling site before starting the trimmer.
3. Switch off the grass trimmer and let it cool before refuelling it. Only refuel when you are sure that the fuel can contains 2-stroke fuel!

7. Starting the engine

Note! Pull the starter handle straight out, if you pull at an angle the starter cord will rub on the sleeve and soon wear out. Keep hold of the starting handle after pulling it and allow it to return slowly. Never let go of the starting handle straight after pulling it, it could get tangled or break something on the trimmer.

Note! See section "Troubleshooting" if the trimmer doesn't start after several attempts.

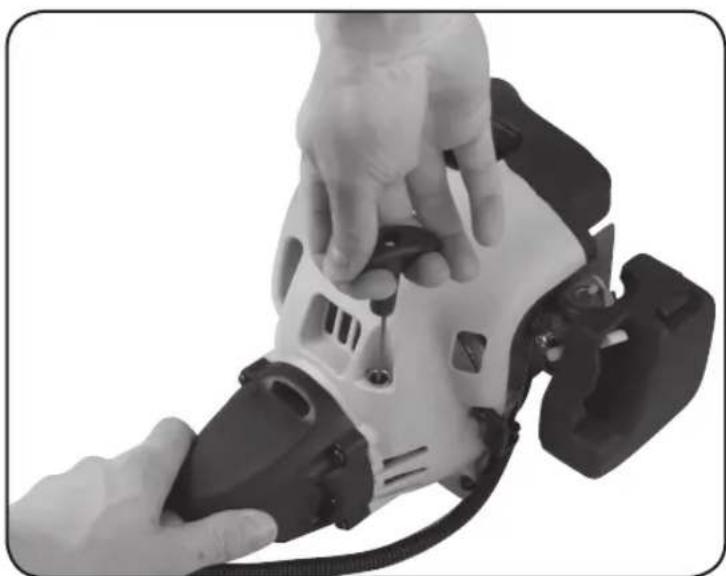

7.1 Starting the engine from cold

Cut the trimmer line to a length of 13 cm before starting to reduce the load while the trimmer warms up.

1. Place the grass trimmer on a level surface.
2. The spring switch (6) is always in the position '1' and does not need to be touched during ignition. See figure 9.
3. Turn the choke (9) down to the "COLD START" position. See figure 10.

4. Push in the primer bulb (10) 6 times. (the primer bulb is on the upper side of the carburettor.) See figure 11.

5. Take a steady grip of the back handle.

6. Pull on the start line until a resistance is felt (circa 100 mm). See figure 12, then jerk the start line quickly until the motor starts. This process can be repeated up to six times in quick succession.

7. When the motor has started, let it run idle for circa 10 seconds and then push the safety catch (13) and the throttle lever (8) so that the choke lever automatically returns to the 'Drive' position.

8. Before loading, let the motor run on 'no-load' for a while until it responds to throttle increase.

Close-up of hands adjusting a white and black ergonomic device component (no visible text or symbols)

Figure 12

Figure. 8

Close-up of a finger pressing down on a button labeled with an 'O' (no text or symbols visible)

Figure 9

Close-up of a black plastic mechanical component with visible internal structure and connectors (no text or symbols)

Figure 10

Close-up of a hand pressing a glossy liquid on a mechanical component (no visible text or symbols)

Figure 11

7.2 Starting a warm motor

1. Place the grass trimmer on a flat surface.
2. The spring switch (6) is always in the position '1' and does not need to be touched during ignition. See figure 9.
3. Turn the choke lever (9) down to the 'COLD START' position and then turn up the choke lever to its original position. See figure 13.
4. Take a steady grip of the back handle.
5. Pull on the start line until a resistance is felt (circa 100 mm). See figure 11, then jerk the start line quickly until the motor starts. This process can be repeated up to six times in quick succession.
6. If the motor does not start repeat all of the steps in 'Start of cold motor'.

7.3 Switching the engine off

Release the throttle and let the engine idle, turn the ignition switch (7) to "STOP". See figure 14.

Close-up of a mechanical component with two curved arrows indicating motion or direction (no text or symbols)

Figure 13

Close-up of a hand pressing down on a dark surface, no visible text or symbols

Figure 14

Helpful suggestions

Warning! Remove all objects such as cans, bottles and stones from the ground before starting to use the grass trimmer, otherwise they can be thrown about by the trimmer line and cause injury or damage the trimmer.

Switch off the grass trimmer at once and check it for damage if you notice that something is ejected or if the grass trimmer starts vibrating. Do not operate the grass trimmer if it has been damaged.

Note! Allow the engine to reach full speed before starting to cut the grass, never try to cut grass at low speed.

Warning! Never raise the trimmer head above knee-height when it is spinning.

Warning! Never use metal or plastic coated metal trimmer line, this could cause serious accidents.

8. Use

• Hold the grass trimmer in both hands.
• Depress the throttle and let the engine speed up.
• Hold the trimmer head parallel to the ground and swing the grass trimmer from side to side whilst walking slowly forwards, do not move forward so much if the going gets heavy. See fig. 15.
• Do not move the trimmer head towards you, always work away from yourself.

8.1 Trimming round trees and bushes

Lean the trimmer head forward slightly and start trimming from left to right whilst slowly walking around the tree. Be careful, so the trimmer line doesn't cut the bark of the tree or the plants you want to keep! If you trim grass close to fences, foundations, rocks etc, the trimmer line will soon wear out.

8.2 Preparing the ground (removing all vegetation)

• Angle the trimmer head approx. 30 degrees to the left (it is easier if you loosen the loop handle and adjust it). See fig. 16.
• Do not do this if there is the slightest risk of something being flung up and injuring people or animals standing within a radius of 30 metres.

Illustration of a person using a manual lever on a surface, with rocks and debris nearby (no text or symbols)

Fig. 15

Illustration of a person using a manual push tool on a wooden surface (no text or symbols)

Fig. 16

8.3 Adjusting the trimmer line

Adjust the trimmer line like this:

1. Run the engine at full speed whilst carrying out points 2-4.

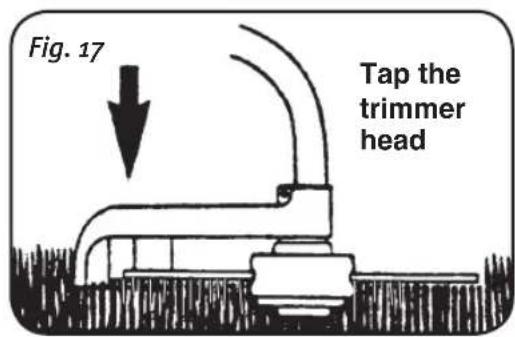

2. Tap the trimmer head on the ground and lift it up again. See fig. 17.
3. The line will be fed out automatically.
4. The line will be cut to the correct length by the cutter under the trimmer guard.
5. Switch off the engine and using something like a screwdriver, clean off any grass and debris from around the guard and trimmer head, otherwise it could impair the cooling of the drive shaft. See fig. 18.

Diagram of a mechanical device with a downward arrow indicating force or direction, labeled 'Fig. 18' (no text or symbols on the diagram itself)

9. Maintenance

Warning! Disconnect the sparkplug lead before carrying out any maintenance.

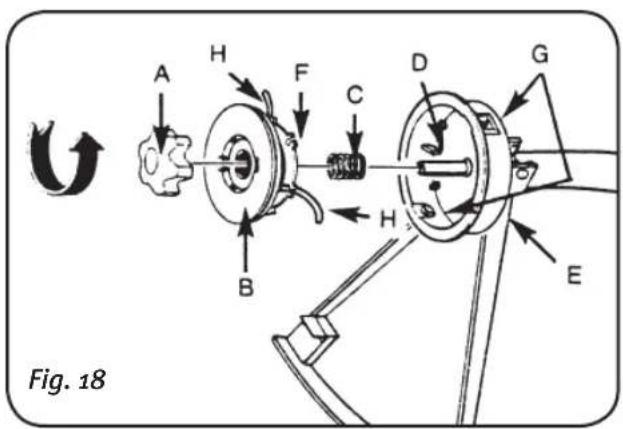

A. Locking cap

B. Spool

C. Spring

D. Spindle

E. Housing

F. Line slot

G. Line hole

H. Trimmer line

9.1 Changing the trimmer line

1. Turn the locking cap (A) anticlockwise and remove it (either by hand or using the spanner supplied).

2. Remove the spool (B) and the spring (C) from the spindle (D).

3. Remove the existing trimmer line (H).

4. First measure, then cut a 8.6 metre length of trimmer line ( 2 mm). Fold it in the middle so that you have two ends measuring 4.3 metres. Place the middle of the fold in one of the slots in the disc dividing the spool See fig.20.

Technical line drawing of a mechanical component with gears and a central hub (no text or symbols)

Illustration of a hand using a tool to adjust a circular component (no text or symbols visible)

Fig. 20 Fig. 21

1. Wind both ends of the line onto the spool, clockwise as shown in fig. 21. Hold the line in your fingers so that it is taught as it is wound on, stop when roughly 15 cm of the line ends remain.

2. Press the ends of the line into the slots on opposite sides of the spool as fig. 22 shows.

Fig. 22 Fig. 23

1. Push in the spring (C) on the bottom of the spool (if it is not already secure). Pull the ends of the line through the holes (G) in the side of the housing (E). See fig. 23.

2. Push the spool (B) into the housing whilst feeding the ends of the line through the holes (G).

3. Press down the spool (B), depressing the spring, tug the ends of the line, freeing them from the slots (F) in the spool.
4. Push the assembled trimmer head onto the spindle, screw on the locking cap (A) clockwise (only finger tight). (See fig. 25)
5. Cut the ends of the line so they are no longer than 13 cm.

Line drawing of a hand using a tool to measure a circular object (no text or symbols)

Fig. 24 Fig. 25

9.2 Air filter, inspection/cleaning

Never use the grass trimmer without an air filter, clean or replace the filter if it is damaged or dirty.

Clean the air filter like this:

1. Remove filter cover by pressing in the sides and lifting it off.
2. Remove the sponge dust cover filter.
3. Wash the filter with soap and water. Do not use petrol!
4. Squeeze out water from the sponge and allow to dry.
5. Replace the filter and remount the cover.
6. Make sure the cover is securely in place so that it cannot be shaken loose.

Close-up of a hand inserting a textured circular component into a black plastic housing (no text or symbols visible)

Fig. 26

9.3 Adjusting the carburettor

The carburettor has been factory adjusted for optimum power.

9.4 Spark plug

Type of spark plug: TORCH L8RTC, Champion CJ7Y, NGK BPMR7A

Recommended spark plug gap: 0.635 mm. Se fig. 27.

Tightening moment: 12 – 15 Nm.

Fig. 27

9.5 Sharpening the trimmer line cutter (on the trimmer guard)

1. Remove the cutter (E) from the trimmer guard (F). See fig. 28.
2. Hold the cutter in a vice, sharpen the blade with a flat file, sharpening in one direction only and making sure to maintain the original grinding angle.

Technical line drawing of a mechanical component with mounting holes and a base, labeled Fig. 28 (no text or symbols on the diagram itself)

Fig. 28

10. Storage

1. Clean the exterior of the grass trimmer, guard, trimmer head, spindle, the external parts of the engine, etc.
2. Transfer any fuel remaining in the fuel tank to a petrol can.
3. Start the engine when the fuel tank has been emptied.
4. Allow the engine to idle until it cuts out, to empty the carburettor of fuel.
5. Allow the engine to cool for 5 minutes.
6. Use a spark plug socket to remove the spark plug.
7. Pour one teaspoon of pure 2-stroke oil into the cylinder via the spark plug hole, pull the starter handle slowly a few times to distribute the oil evenly over the inside of the engine, replace the spark plug.
8. Store the grass trimmer in a dry and well ventilated place.

10.1 Using the trimmer after it has been stored

1. Use a spark plug socket to remove the spark plug.
2. Pull the starter handle quickly and smoothly a few times to get the surplus oil out of the cylinder.
3. Clean the spark plug electrodes or replace the spark plug with one having the correct plug gap.
4. Tighten the spark plug using a spark plug socket.
5. Fill the fuel tank.
6. Follow the instructions in section 6.1 "Starting the engine from cold"

10. Troubleshooting

Problem Cause Correction
The engine won't start or only runs at low speed.	Incorrect starting procedure.	Read the instruction manual.
	Dirt in the carburettor. Allow a	qualified technician to clean the carburettor.
	Faulty spark plug. Clean or change the spark plug.
	Clogged fuel filter. Change the fuel filter (inside the fuel tank).
The engine starts but with loss of power.	Wrong choke setting. Set the choke to “OPEN”.
	Dirty air filter. Clean or change the air filter.
	Dirt in the carburettor. Allow a qualified technician to clean the carburettor.
The engine doesn't respond to the throttle.	The engine is not warm enough.	Allow the engine to idle for a minute.
Loss of power under load. Incorrect spark plug. Clean and check the gap or change the spark plug.
The engine runs irregularly. Dirt in the carburettor. Allow a qualified technician to clean the carburettor.
The engine smokes a lot. Incorrect fuel mixture. Use petrol and 2-stroke oil in the ratio 40:1 (2.5%).

Note!

The grass trimmer conforms to current safety requirements. Repairs to the grass trimmer should always be carried out using original spare parts and by a qualified technician, failure to do so may result in injury.

12. Disposal

Follow local ordinances when disposing of this product. If you are unsure about how to dispose of this product contact your municipality.

Grästrimmer

Close-up of a hand holding a small black tool with a white circular object nearby (no text or symbols visible)

Bild 1

Close-up of hands holding a metallic cylindrical object with a black bracket (no visible text or symbols)

Bild 2

Close-up of a hand using a tool to adjust a black mechanical component (no text or symbols visible)

Bild 3

Montera trimmerskyddet (3)

Close-up of hands holding a black mechanical component with a wire, no visible text or symbols

Bild 4

Close-up of a hand holding a small mechanical component, possibly a tool or connector (no visible text or symbols)

Bild 5

Close-up of a hand using a microscope to adjust a small object (no visible text or symbols)

Bild 6 Bild 7

Close-up of a mechanical component with a cylindrical housing and threaded shaft (no visible text or symbols)

Close-up of a finger pressing a button on a dark surface (no visible text or symbols)

Bild 9

Close-up of a black plastic mechanical component with visible internal structure and connectors (no text or symbols)

Bild 10

Close-up of hands adjusting a white and black 3D-printed device with a strap (no visible text or symbols)

Bild 12

Close-up of a finger pressing a transparent droplet on a mechanical component (no visible text or symbols)

Bild 11

Close-up of a mechanical component with two white arrows indicating rotational motion (no text or symbols)

Bild 13

7.3 Stäng av motorn

Close-up of a hand pressing down on a dark surface, no visible text or symbols

Bild 14

Tänk på detta

Illustration of a person using a manual lever on a surface, with rocks and debris nearby (no text or symbols)

Bild. 15

Illustration of a person using a manual push tool on a wooden surface (no text or symbols)

Bild. 16

8.3 Mata ut tråd

Diagram of a mechanical device with a downward arrow indicating force or direction, labeled 'Bild. 18' (no other text or symbols)

9. Underhåll

Technical line drawing of a mechanical component with gears and a central hub (no text or symbols)

Bild 20

Illustration of hands using a tool to adjust a circular component (no text or symbols visible)

Bild 21

Line drawing of a hand using a tool to press or install a component (no text or symbols present)

Fig. 24 Fig. 25

9.2 Luftfilter, inspektion/rengöring

Close-up of a hand inserting a textured circular component into a black plastic housing (no text or symbols visible)

Fig. 26

Technical line drawing of a mechanical component with bolts and a bracket (no text or symbols)

10. Förvaring

Close-up of a hand using a pen to apply a small object on a white surface (no text or symbols visible)

Bilde 1

Close-up of hands holding a metallic tool or tool with a black handle (no visible text or symbols)

Bilde 2

Close-up of a hand using a tool to adjust or install a black mechanical component (no visible text or symbols)

Bilde 3

Montere dekselet (3)

Close-up of hands holding a black mechanical component with a wire, no visible text or symbols

Bilde 4

Close-up of a hand holding a mechanical component, possibly a tool or clamp, with no visible text or symbols.

Bilde 5

Close-up of a hand using a microscope to apply a small object (no visible text or symbols)

Bilde 6 Bilde 7

Close-up of a mechanical component with a cylindrical housing and threaded shaft (no visible text or symbols)

Close-up of a finger pressing a button on a dark surface (no visible text or symbols)

Bilde 9

Close-up of a black plastic mechanical component with a white plastic clip, no visible text or symbols

Bilde 10

Close-up of hands adjusting a white and black VR headset with a cable (no visible text or symbols)

Bilde 12

Close-up of a finger pressing a transparent glass on a dark surface (no text or symbols visible)

Bilde 11

Close-up of a mechanical component with two white arrows indicating rotational motion (no text or symbols)

Bild 13

Close-up of a hand pressing down on a dark surface, no visible text or symbols

Bild 14

Tenk på følgende

Illustration of a person using a manual lever on a surface, with rocks and debris nearby (no text or symbols)

Bilde 15

Illustration of a person using a manual push tool on a wooden surface (no text or symbols)

Bilde 16

8.3 Mate ut tråd

Mat ut trimmertråd på denne måten.

Technical line drawing of a mechanical component with gears and a central hub (no text or symbols)

Illustration of hands using a tool to adjust a circular component (no text or symbols visible)

Bilde 20 Bilde 21

Bilde 22 Bilde 23

Bilde 24 Bilde 25

Line drawing of a hand using a tool to press or install a component (no text or symbols present)

Close-up of a hand inserting a textured circular component into a black plastic housing (no text or symbols visible)

Bilde 25

9.4 Forgasserinnstilling

Forgasseren er fabrikkinnstilt for optimal effekt.

9.5 Tennplugg

Tennstifttype: TORCH L8RTC, Champion Cj7Y, NGK BPMR7A

Anbefalt elektrodeavstand for tennstiften: 0,635 mm.

Se bilde 27.

Tiltrekkingsmoment: 12-15 Nm.

Technical line drawing of a mechanical component with bolts and a curved base, labeled 'Bilde 28' (no text or symbols on the diagram itself)

10. Oppbevaring

Close-up of a hand using a pen to apply a small object on a white surface (no text or symbols visible)

Kuva 1

Close-up of hands holding a metallic tool or tool with a black handle (no visible text or symbols)

Kuva 2

Asenna kaarikahva (4)

Close-up of a hand using a tool to adjust a black mechanical component (no text or symbols visible)

Kuva 3

Close-up of hands holding a black mechanical component with a wire, no visible text or symbols

Kuva 4

Close-up of a hand holding a mechanical component, possibly a tool or connector (no visible text or symbols)

Kuva 5

Close-up of a hand using a microscope to adjust a small object (no visible text or symbols)

Kuva 6 Kuva 7

Close-up of a mechanical component with a cylindrical housing and threaded shaft (no visible text or symbols)

Close-up of hands adjusting a white and black ergonomic device component (no visible text or symbols)

Bild 12

Bild. 8

Close-up of a finger pressing down on a small electronic component (no visible text or symbols)

Bild 9

Close-up of a black plastic mechanical component with visible internal structure and mounting bracket (no text or symbols)

Bild 10

Close-up of a finger pressing a transparent droplet on a mechanical component (no text or symbols visible)

Bild 11

Close-up of a mechanical component with two white curved arrows indicating rotational motion (no text or symbols)

Kuva 13

Close-up of a hand pressing down on a dark surface, no visible text or symbols

Kuva 14

Ota huomioon

Illustration of a person using a manual lever on a surface, with no visible text or symbols

Bilde 15

Illustration of a person using a manual push tool on a wooden surface (no text or symbols)

Bilde 16

Technical line drawing of a mechanical component with gears and housing (no text or symbols)

Hand holding a circular mechanical component with a tool, no visible text or symbols

Kuva 20 Kuva 21

Kuva 22 Kuva 23

Line drawing of a person using a tool to interact with a device (no text or symbols present)

Kuva 24 Kuva 25

Close-up of a hand holding a textured circular component, partially enclosed in a black plastic housing (no visible text or symbols)

Kuva 26

Technical line drawing of a mechanical component with bolts and a bracket (no text or symbols)

Kuva 28

10. Säilytys

Declaration of Conformity

Clas Ohlson AB declares that the machines:

CO/TECH 30-9290/HY3315A

Grass Trimmer

Complies with the following Directive:

89/336/EEC amended by 93/68/EEC 98/37/EC

TÜV Rheinland Product Safety GmbH Am Grauen Stein - D - 51105 Köln has carried out EC type approval. The certificate no. 14700768001

Insjön, Sweden, May 2007

G.Karnberger

President

Clas Ohlson, 793 85 Insjön, Sweden

SVERIGE

KUNDTJÄNST Tel: [phone]

Fax: [phone]

E-post: [e-mail]

INTERNET www.clasohlson.se

BREV Clas Ohlson AB, 793 85 INSJÖN

NORGE

KUNDESENTER Tlf.: 23 21 40 00

Faks: 23 21 40 80

E-post: [e-mail]

INTERNETT www.clasohlson.no

POST Clas Ohlson AS, Postboks 485 Sentrum, 0105 OSLO

SUOMI

ASIAKASPALVELU Puh: 020 111 2222

Faksi: 020 111 2221

For consumer contact, please visit www.clasohlson.co.uk and click on customer service.

INTERNET www.clasohlson.co.uk
