Product Type	Steam Iron
Brand	Eldom
Model	DA27
Power Consumption	1600 W
Steam Output	25 g/min
Voltage	230 V ~ 50 Hz
Temperature Control	Adjustable dial with indicator light
Steam Control	Dry/steam selector and additional steam button
Self Cleaning Function	Yes
Spray Function	Yes
Dry Ironing	Yes
Steam Ironing	Yes (at high temperature)
Heel Rest	Yes
Soleplate Material	Metal (type not specified)
Safety Features	Do not immerse; unplug before filling; use on stable surface; do not leave unattended
Cleaning Instructions	Wipe with damp cloth; do not use abrasives
Storage	Store vertically, unplugged, cooled down, with empty water tank
Warranty	Household use only; control lamp not covered
Environmental	Made of recyclable materials

Frequently Asked Questions - DA27 Eldom

How do I fill the water tank?

Unplug the iron and set the dry/steam selector to '0'. Use a measuring cup to pour water into the water-fill hole. Fill only to the 'MAX' line; do not overfill.

What type of water should I use?

Use ordinary tap water or distilled water. Do not use mineral water, water with high lime content, or water intended for car batteries.

How do I use the self-clean function?

Fill the water tank to MAX, plug in and set temperature dial to MAX. Wait for the control lamp to go out, then unplug. Hold the iron horizontally over a sink, press the self-clean button for about a minute while shaking gently. After cooling, wipe the soleplate with a damp cloth.

Can I use steam at low temperature?

No, steam ironing is only possible at high temperature (MAX setting). For low temperatures, use dry ironing only.

Why does the control lamp turn on and off?

The control lamp indicates the temperature. It turns on when the iron is heating and turns off when the set temperature is reached. This cycling is normal.

How do I dry iron if the water tank is full?

Set the dry/steam selector to '0' (no steam). You can then iron at any temperature suitable for the fabric. The spray function can still be used.

How should I clean the iron?

Unplug and let it cool completely. Wipe the soleplate and body with a damp cloth, then a dry cloth. Do not use abrasive cleaners or sponges. Never immerse the iron in water.

What should I do if the iron is not producing steam?

Check that the water tank is filled to at least the 'MAX' line, the temperature dial is set to MAX, and the dry/steam selector is not at '0'. Also ensure the iron is hot enough (control lamp off).

Is it safe to leave the iron unattended?

No, never leave the iron unattended while plugged in. Always unplug after use and allow it to cool before storing.

How should I store the iron?

Store the iron in a vertical position on its heel rest, unplugged, cooled down, and with the water tank empty. Loosely wrap the cord around the heel rest to avoid damage.

USER MANUAL DA27 Eldom

Green and white steam iron with 'Smooth Finish 1000W' label, no visible text beyond branding

ŻELAZKO Z NAWILŻACZEM DA27

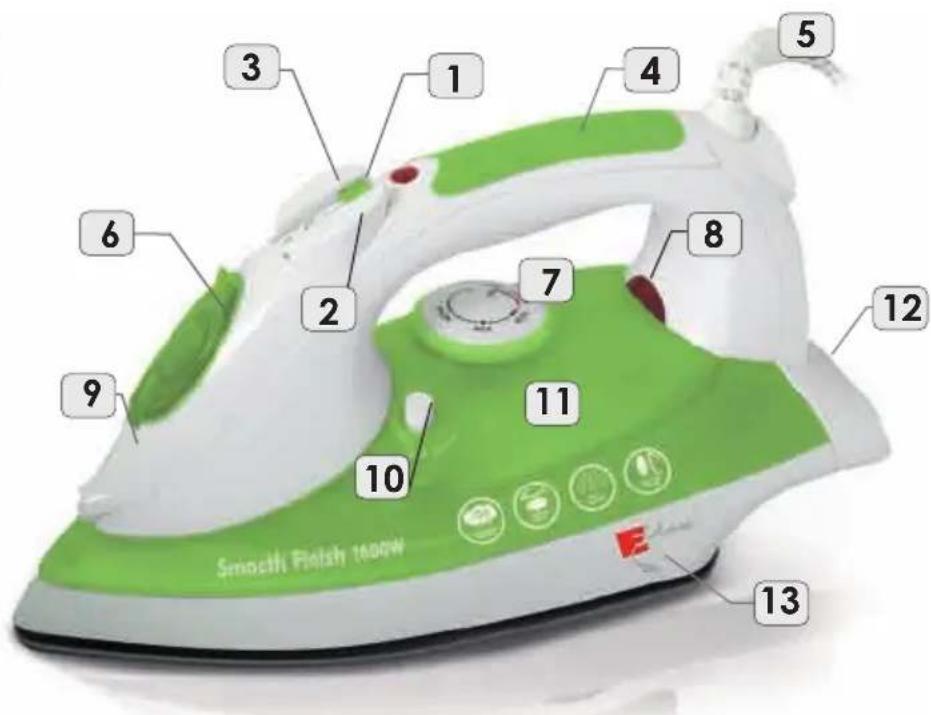

OPIS OGÓLNY

Close-up of a white oval object on a green background, no visible text or symbols

1. Dry/steam power selector
2. Steam button
3. Spray button
4. Handle
5. Cord
6. Water-fill
7. Temperature dial
8. Control lamp
9. Spay nozzle
10. Self clean button
11. Water tank
12. Heel rest
13. Soleplate

TECHNICAL DATA

• power: 1600 W
• steam power: 25g/min
• voltage: 230V\~50Hz

USING THE IRON

Before first use remove protectives attached to the soleplate (13) and unfold the cord (5) completely. During initial exploitation there may appear a harmless odour which has no influence upon the usage of the iron and quickly disappears.

Before connecting to the mains put the iron on the heel rest (12), turn the temperature dial to MIN setting and dry/steam power selector (1) to setting "0" (no steam). The temperature dial setting is marked by the control lamp (8).

After plugging in and temperature setting the light of the control lamp (8) comes on. It goes out when the chosen temperature is reached.

The ironing temperature should be adjusted to the fabric. If the type of fabric is unknown set for minimal temperature and gradually increase the temperature until a satisfying effect is reached.

DRY IRONING

Put the iron on the heel rest (12), turn dry/steam power selector (1) to setting "0". Before plugging in or operating turn the temperature dial to "0" setting.

STEAM IRONING

Steam ironing with additional steam function is only possible with high temperature. The highest temperature is marked on the temperature dial as "MAX". The steam power is regulated by dry/steam power selector (1).

Additional steam power is obtained by pressing steam button (2) and it facilitates ironing of exceptionally tough wrinkles.

NOTICE. Steam is hot and there is a danger of burning. The soleplate heats very quickly but it needs more time to cool down. It should not be touched.

FILING THE WATER TANK

Before filling the water tank make sure that the device is unplugged and that the dry/steam power selector (1) is set on "0".

Use room temperature ordinary tap water or distilled water for ironing. Never use mineral water or water containing too much lime or water destined for car batteries.

To fill the water tank use a special measuring cup, the shape of which is adjusted to water-fill hole. Do not fill the water tank straight from the tap! While pouring water into opening remember to stick to "MAX" level mark on the side of the water tank (11) and not to overfill.

SELF CLEAN

It is recommended to use the self clean function to prevent from any buildup in the iron. In order to do it, follow this instruction:

• fill the water tank until MAX line
• plug in and set the temperature dial (7) to "MAX"
• after the control lamp (8) goes out, unplug and hold horizontally e.g. over a sink
• press SELF CLEAN button (10) for about a minute and shake the iron
• after cooling down wipe the soleplate with moistened cloth to remove any dirt

Water and steam coming from the iron during self cleaning are hot and there is a danger of burning.

WATER SPRAY

After filing the water tank you may sprinkle water on ironing surfaces by pressing spray button (3).

PRACTICAL ADVICE

• use tap or distilled water
• the iron has the heel rest (12) to be comfortably and firmly put
• marking lower temperature with temperature dial does not result in immediate temperature reduction. Wait until the control light comes on again.
• while dry ironing the water tank may be empty. Check if the dry/steam power selector is set on "0". You may use any range of temperatures depending on the kind of fabric.

If the water tank is full you may use the spray function,

• the iron should be stored in vertical position, unplugged, cooled down and with no water
• dry iron at low temperatures

CLEANING AND MAINTENANCE

• before cleaning the appliance unplug it and wait until it cools down completely.
• the iron should not be immersed in water
• do not use abrasives or heavy duty wipes and sponges because they may destroy the appliance
• the iron and soleplate should be wiped with moistened cloth, and later with clean dry cloth.

SAFETY INSTRUCTIONS

• before first use familiarise with the whole instruction manual
• before plugging in make sure tally plate data are compliant to mains parameters
• plug the device in the socket with earthing
• before plugging in and unplugging position the temperature dial on "MIN"
• the appliance should be unplugged by pulling the plug not the cable
• before storing the iron wait until cools down completely and empty the water tank. For storing period you may wrap loosely the cord around the heel rest. Too tight wrapping may damage the cord.
• store in safe place, in vertical position to prevent the remaining water leaking from steam vents and damaging the soleplate
• keep the cord away from heat sources
• before filling the water tank unplug the iron
• do not leave without supervision when working
• contact with hot metal surfaces as well as the steam may result in burning. Be careful while ironing.
• the device should not be used by people (including children) with limited physical, sensory and mental abilities unless they are under supervision of a person responsible for their safety
• do not leave children without supervision near the iron
• do not use outdoors
• do not immerse the cord or the appliance in water
• unplug before cleaning
• use only in households
• serves only for ironing clothes
• do not place in horizontal position on ironing board while ironing
• do not use with damaged cord
• if the cord is damaged, to avoid danger, exchange it by authorised service providers
• any mending of the device should be held by authorised service providers. Any modernisations or using spare parts or other elements other than original is forbidden and dangerous.
• Eldom sp.z o.o. shall not be responsible for any damages occurring as a result of improper usage

ENVIRONMENTAL PROTECTION

• the device is made of materials which can be reused or recycled
• the device should be handled to a special point which deals with collecting and recycling of electric and electronic equipment

GUARANTEE

• the device is designed to be used in households
• not for professional use
• the control lamp is not subject to guarantee
• the guarantee expires when device is used improperly
  Detailed warranty description in the annex.
