Product Type	Steam Iron
Brand	Eldom
Model	Slide DA29C
Power Consumption	2400 W
Voltage	220-240 V ~ 50/60 Hz
Soleplate Material	Ceramic
Water Tank Capacity	300 ml
Steam Output	Up to 40 g/min
Steam Boost	150 g/min
Spray Function	Yes
Anti-Drip System	Yes
Self-Cleaning	Yes
Auto Shut-Off	Yes
Cord Length	2.5 m
Weight	1.3 kg
Dimensions (L x W x H)	28 x 12 x 15 cm
Color	White/Blue
Vertical Steam	Yes
Descaling Function	Yes
Spare Parts Available	Water tank cap, soleplate

Frequently Asked Questions - Slide DA29C Eldom

How do I descale the Eldom Slide DA29C iron?

To descale, fill the water tank with a mixture of vinegar and water (1:3) or use a commercial descaler. Set the iron to its highest steam setting and let it steam out the solution. Repeat with clean water to rinse.

What type of water should I use?

Use distilled or demineralized water to prevent mineral buildup. Tap water can be used but requires more frequent descaling.

How do I activate the self-cleaning function?

Fill the tank to max, set temperature to high, and unplug the iron. Hold it horizontally over a sink and press the self-clean button. Steam and debris will be expelled. Wait until the iron cools before storing.

Why is my iron leaking water?

Leaking may occur if the temperature is too low for steam production. Ensure the iron is hot enough. Also check that the anti-drip system is functioning and the water tank cap is tightly closed.

Can I use the iron vertically?

Yes, the Slide DA29C supports vertical steaming. Hold the iron upright and press the steam boost button to remove wrinkles from hanging garments or curtains.

How do I clean the soleplate?

Wait for the soleplate to cool. Wipe with a damp cloth. For stubborn residue, use a mixture of baking soda and water. Avoid abrasive cleaners to preserve the ceramic coating.

What does the auto shut-off feature do?

The iron automatically switches off if left unattended for a certain period (e.g., 30 seconds on the soleplate, 8 minutes upright). This prevents accidents and saves energy.

How long is the power cord?

The cord is 2.5 meters long, allowing comfortable reach to most outlets.

How do I store the iron safely?

Always unplug and let it cool completely. Empty the water tank. Store upright in a dry place. Do not wrap the cord tightly around the iron.

Where can I find spare parts?

Spare parts like the water tank cap or soleplate can be ordered from Eldom's official website or authorized service centers. Check your manual for part numbers.

USER MANUAL Slide DA29C Eldom

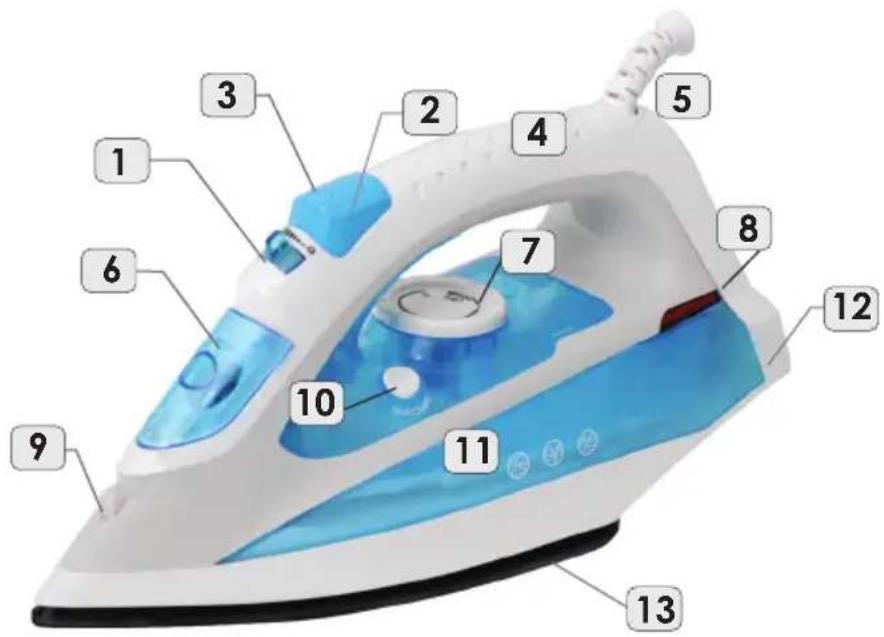

White and blue electric iron with 'eldom' branding, no visible text or symbols on body

Eldom Sp. z o.o.

UŻYTKOWANIE URZĄDZENIA

1. Dry/steam power selector
2. Steam button
3. Spray button
4. Handle
5. Cord
6. Water-fill
7. Temperature dial
8. Control lamp
9. Spray nozzle
10. Self clean button
11. Water tank
12. Heel rest
13. Soleplate

TECHNICAL DATA

• power: 2000 W
• voltage: 230V\~50Hz

USING THE IRON

Before first use unfold the cord (5) completely. During initial exploitation there may appear a harmless odour which has no influence upon the usage of the iron and quickly disappears.

Before connecting to the mains put the iron on the heel rest (12), turn the temperature dial to „0” setting and dry/steam power selector (1) to setting “0” (no steam).

After plugging in and temperature setting the light of the control lamp (8) comes on. It goes out when the chosen temperature is reached.

The ironing temperature should be adjusted to the fabric. If the type of fabric is unknown set for minimal temperature and gradually increase the temperature until a satisfying effect is reached.

DRY IRONING

Put the iron on the heel rest (12), turn dry/steam power selector (1) to setting "0". Before plugging in or operating turn the temperature dial to "0" setting.

STEAM IRONING

Steam ironing with additional steam function is only possible with high temperature. The highest temperature is marked on the temperature dial as "MAX". The steam power is regulated by dry/steam power selector (1).

Additional steam power is obtained by pressing steam button (2) and it facilitates ironing of exceptionally tough wrinkles.

NOTICE. Steam is hot and there is a danger of burning. The soleplate heats very quickly but it needs more time to cool down. It should not be touched.

FILING THE WATER TANK

Before filling the water tank make sure that the device is unplugged and that the dry/steam power selector (1) is set on "0".

Use room temperature ordinary tap water or distilled water for ironing. Never use mineral water or water containing too much lime or water destined for car batteries.

To fill the water tank use a special measuring cup, the shape of which is adjusted to water-fill hole. Do not fill the water tank straight from the tap! While pouring water into opening remember to stick to "MAX" level mark on the side of the water tank (11) and not to overfill.

ANTI-DRIP SYSTEM

The anti-drip system prevents from water spotting at low temperatures.

SELF CLEAN

It is recommended to use the self clean function to prevent from any buildup in the iron. In order to do it, follow this instruction:

• fill the water tank until MAX line
• plug in and set the temperature dial (7) to "MAX"
• after the control lamp (8) goes out, unplug and hold horizontally e.g. over a sink
• press SELF CLEAN button (10) for about a minute and shake the iron
• after cooling down wipe the soleplate with moistened cloth to remove any dirt

Water and steam coming from the iron during self cleaning are hot and there is a danger of burning.

WATER SPRAY

After filing the water tank you may sprinkle water on ironing surfaces by pressing spray button (3)

PRACTICAL ADVICE

• use tap or distilled water
• the iron has the heel rest (12) to be comfortably and firmly put
• marking lower temperature with temperature dial does not result in immediate temperature reduction. Wait until the control light comes on again.
• while dry ironing the water tank may be empty. Check if the dry/steam power selector is set on "0". You may use any range of temperatures depending on the kind of fabric.
  If the water tank is full you may use the spray function,
• the iron should be stored in vertical position, unplugged, cooled down and with no water
• dry iron at low temperatures

CLEANING AND MAINTENANCE

• before cleaning the appliance unplug it and wait until it cools down completely.
• the iron should not be immersed in water
• do not use abrasives or heavy duty wipes and sponges because they may destroy the appliance
• the iron and soleplate should be wiped with moistened cloth, and later with clean dry cloth.

SAFETY INSTRUCTIONS

• before first use familiarise with the whole instruction manual
• before plugging in make sure tally plate data are compliant to mains parameters
• plug the device in the socket with earthing
• before plugging in and unplugging position the temperature dial on "min"
• the appliance should be unplugged by pulling the plug not the cable
• before storing the iron wait until cools down completely and empty the water tank. For storing period you may wrap loosely the cord around the heel rest. Too tight wrapping may damage the cord.
• store in safe place, in vertical position to prevent the remaining water leaking from steam vents and damaging the soleplate
• keep the cord away from heat sources
• before filling the water tank unplug the iron
• do not leave without supervision when working
• contact with hot metal surfaces as well as the steam may result in burning. Be careful while ironing.
• the device should not be used by people (including children) with limited physical, sensory and mental abilities unless they are under supervision of a person responsible for their safety
• do not leave children without supervision near the iron
• do not use outdoors
• do not immerse the cord or the appliance in water
• unplug before cleaning
• use only in households
• serves only for ironing clothes
• do not place in horizontal position on ironing board while ironing
• do not use with damaged cord
• if the cord is damaged, to avoid danger, exchange it by authorised service providers
• any mending of the device should be held by authorised service providers. Any modernisations or using spare parts or other elements other than original is forbidden and dangerous.
• Eldom sp.z o.o. shall not be responsible for any damages occurring as a result of improper usage

ENVIRONMENTAL PROTECTION

- the device is made of materials which can be reused or recycled

- the device should be handled to a special point which deals with collecting and recycling of electric and electronic equipment

GUARANTEE

• the device is designed to be used in households
• not for professional use
• the control lamp is not subject to guarantee
• the guarantee expires when device is used improperly
  Detailed warranty description in the annex.

NÁVOD K OBSLUZE

NAPAŘOVACÍ ŽEHLIČKA DA29C

POPIS HLAVNÍCH ČÁSTÍ

TECHNICKÉ ÚDAJE

GEBRAUCH DES GERÄTES

POUŽÍVANIE SPOTREBIČA

ŽEHLENIE S POUŽITÍM PARY

A KÉSZÜLÉK HASZNÁLATA
