DA28C - Iron Eldom - Free user manual and instructions

Product Type	Iron
Brand	Eldom
Model	DA28C
Power	2400 W
Voltage	220-240 V ~ 50/60 Hz
Soleplate Material	Ceramic
Water Tank Capacity	300 ml
Steam Output	40 g/min continuous, 150 g/min shot
Functions	Dry ironing, Steam ironing, Spray, Vertical steam, Self-clean
Temperature Control	Adjustable thermostat with indicator lights
Cord Length	2.0 m
Weight	1.3 kg
Dimensions (L x W x H)	28 x 12 x 15 cm
Safety Features	Auto shut-off after 8 min vertical, 30 sec horizontal; overheat protection
Cleaning and Maintenance	Self-clean function, anti-calc system, easy descaling
Accessories	Measuring cup, user manual
Warranty	2 years
Repairability	Spare parts available (soleplate, handle, button, etc.)

Frequently Asked Questions - DA28C Eldom

How do I use the steam function on the Eldom DA28C iron?

Fill the water tank up to the MAX level, select the desired steam level using the steam control. For a steam burst, press the steam shot button. Ensure the soleplate is hot enough before using steam.

What does the auto shut-off feature do?

The iron automatically turns off if left unattended: after 8 minutes in the vertical position (on its heel) or after 30 seconds in the horizontal position (on the soleplate). This prevents accidents.

How do I clean and descale the iron?

Use the self-clean function: fill the tank, set steam to max, hold over a sink, press the self-clean button and shake gently. Repeat monthly or more often in hard water areas.

What type of water should I use?

Distilled or demineralized water is recommended to prevent scale buildup. Do not use scented or chemically treated water.

Can I use the iron without water?

Yes, the iron can be used for dry ironing. Set the steam control to 0 and adjust temperature as needed. Do not press the steam buttons without water.

Why does the iron leak water?

Leaking may occur if the soleplate is too cold, if the water tank is overfilled, or if the iron is used in a horizontal position with too much steam. Always set temperature to the correct fabric type.

How do I store the iron properly?

Empty the water tank, let the iron cool completely, and store it upright on its heel. Avoid coiling the cord tightly around the iron.

What fabrics can I iron with the Eldom DA28C?

All ironable fabrics: cotton, linen, silk, wool, synthetics. Use the temperature guide on the dial: low for synthetics, medium for silk/wool, high for cotton/linen.

How do I use the vertical steam function?

Hang the garment, set the iron to high temperature (cotton/linen), hold it vertically a few inches from the fabric, and press the steam shot button. Great for removing wrinkles from hanging clothes or curtains.

Where can I find spare parts for the Eldom DA28C?

Contact Eldom customer service or visit their official website. Common spare parts include soleplate, handle, buttons, and power cord. Use only original parts.

USER MANUAL DA28C Eldom

Electric iron with ceramic plate and eldom brand logo (no text-heavy elements)

DA28C

WSKAZÓWKI DOTYCZĄCE BEZPIECZEŃSTWA

SELF CLEAN

• before first use familiarise with the whole instruction manual
• before plugging in make sure tally plate data are compliant to mains parameters
• plug the device in the socket with earthing
• before plugging in and unplugging position the temperature dial on "0"
• the appliance should be unplugged by pulling the plug not the cable
• before storing the iron wait until cools down completely and empty the water tank. For storing period you may wrap loosely the cord around the heel rest. Too tight wrapping may damage the cord.
• store in safe place, in vertical position to prevent the remaining water leaking from steam vents and damaging the soleplate
• keep the cord away from heat sources
• before filling the water tank unplug the iron
• do not leave without supervision when working
• contact with hot metal surfaces as well as the steam may result in burning. Be careful while ironing.
• The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.
• do not leave children without supervision near the iron
• do not use outdoors
• do not immerse the cord or the appliance in water
• unplug before cleaning
• use only in households
• serves only for ironing clothes
• do not place in horizontal position on ironing board while ironing
• do not use with damaged cord

SAFETY INSTRUCTIONS

• if the cord is damaged, to avoid danger, exchange it by authorised service providers
• any mending of the device should be held by authorised service providers. Any modernisations or using spare parts or other elements other than original is forbidden and dangerous.
• Eldom sp.z o.o. shall not be responsible for any damages occurring as a result of improper usage

ENVIRONMENTAL PROTECTION

• the device is made of materials which can be reused or recycled
• the device should be handled to a special point which deals with collecting and recycling of electric and electronic equipment

GUARANTEE

• the device is designed to be used in households
• not for professional use
• the control lamp is not subject to guarantee
• the guarantee expires when device is used improperly
  Detailed warranty description in the annex.

INSTRUCTION MANUAL

STEAM IRON DA28C

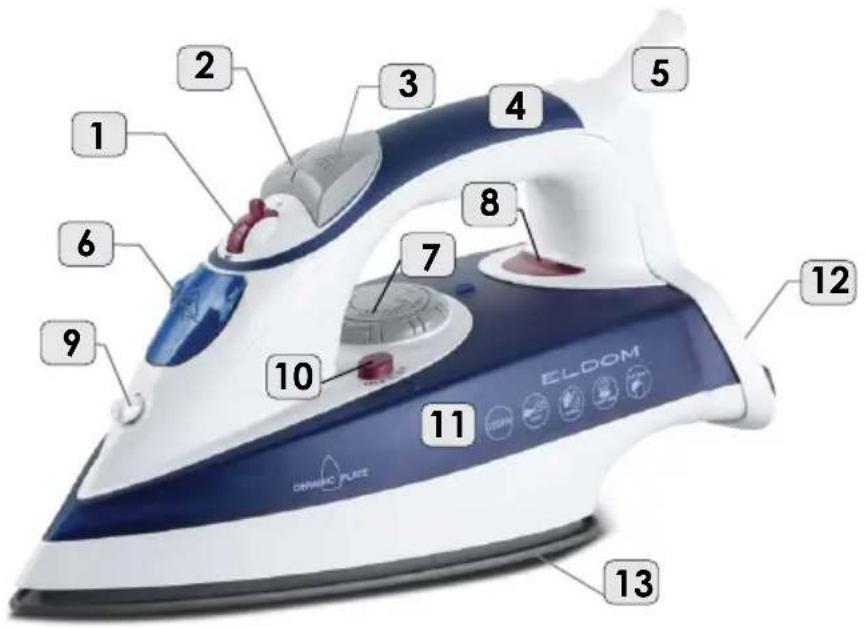

GENERAL DESRIPTION

1. Dry/steam power selector
2. Steam button
3. Spray button
4. Handle
5. Cord
6. Water-fill
7. Temperature dial
8. Control lamp
9. Spray nozzle
10. Self clean button
11. Water tank
12. Heel rest
13. Soleplate

TECHNICAL DATA

• power: 2200 W
• steam power: 25g/ min
• voltage: 230V\~50Hz

USING THE IRON

Before first use unfold the cord (5) completely. During initial exploitation there may appear a harmless odour which has no influence upon the usage of the iron and quickly disappears.

Before connecting to the mains put the iron on the heel rest (12), turn the temperature dial to „0“ setting and dry/steam power selector (1) to setting “0” (no steam). The temperature dial setting is marked by the control lamp (8).

After plugging in and temperature setting the light of the control lamp (8) comes on. It goes out when the chosen temperature is reached.

The ironing temperature should be adjusted to the fabric. If the type of fabric is unknown set for minimal temperature and gradually increase the temperature until a satisfying effect is reached.

DRY IRONING

Put the iron on the heel rest (12), turn dry/steam power selector (1) to setting "0". Before plugging in or operating turn the temperature dial to "0" setting.

STEAM IRONING

Steam ironing with additional steam function is only possible with high temperature. The highest temperature is marked on the temperature dial as "MAX". The steam power is regulated by dry/steam power selector (1).

Additional steam power is obtained by pressing steam button (2) and it facilitates ironing of exceptionally tough wrinkles.

NOTICE. Steam is hot and there is a danger of burning. The soleplate heats very quickly but it needs more time to cool down. It should not be touched.

FILING THE WATER TANK

Before filling the water tank make sure that the device is unplugged and that the dry/steam power selector (1) is set on "0".

Use room temperature ordinary tap water or distilled water for ironing. Never use mineral water or water containing too much lime or water destined for car batteries.

To fill the water tank use a special measuring cup, the shape of which is adjusted to water-fill hole. Do not fill the water tank straight from the tap! While pouring water into opening remember to stick to "MAX" level mark on the side of the water tank (11) and not to overfill.

ANTI-DRIP SYSTEM

The anti-drip system prevents from water spotting at low temperatures.

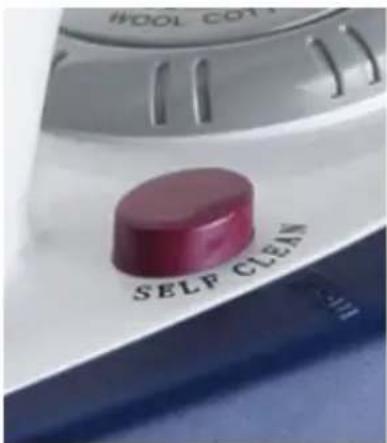

SELF CLEAN

It is recommended to use the self clean function to prevent from any buildup in the iron. In order to do it, follow this instruction:

• fill the water tank until MAX line
• plug in and set the temperature dial (7) to "MAX"
• after the control lamp (8) goes out, unplug and hold horizontally e.g. over a sink
• press SELF CLEAN button (10) for about a minute and shake the iron
• after cooling down wipe the soleplate with moistened cloth to remove any dirt

Water and steam coming from the iron during self cleaning are hot and there is a danger of burning.

WATER SPRAY

After filing the water tank you may sprinkle water on ironing surfaces by pressing spray button (3)

PRACTICAL ADVICE

• use tap or distilled water
• the iron has the heel rest (12) to be comfortably and firmly put
• marking lower temperature with temperature dial does not result in immediate temperature reduction. Wait until the control light comes on again.
• while dry ironing the water tank may be empty. Check if the dry/steam power selector is set on "0". You may use any range of temperatures depending on the kind of fabric.
  If the water tank is full you may use the spray function,
• the iron should be stored in vertical position, unplugged, cooled down and with no water
• dry iron at low temperatures

CLEANING AND MAINTENANCE

• before cleaning the appliance unplug it and wait until it cools down completely.
• the iron should not be immersed in water
• do not use abrasives or heavy duty wipes and sponges because they may destroy the appliance
• the iron and soleplate should be wiped with moistened cloth, and later with clean dry cloth.
