Product Type	Bluetooth Speaker
Brand	Marquant
Model	920-533
Speaker Type	Portable Wireless Speaker
Dimensions (W x H x D)	18 x 8 x 8 cm
Weight	0.5 kg
Power Supply	Built-in rechargeable battery, USB-C charging
Battery Capacity	1800 mAh
Playback Time	Up to 8 hours
Connectivity	Bluetooth 5.0, 3.5mm AUX input
Supported Audio Formats	MP3, WAV
Frequency Response	80 Hz - 20 kHz
Output Power	10W RMS
Water Resistance	IPX5
Controls	Buttons for power, volume, playback
Main Functions	Wireless music streaming, hands-free calling, FM radio
Maintenance	Clean with dry cloth, avoid liquids
Safety	Do not expose to extreme temperatures or water
Spare Parts / Reparability	Battery replacement possible by qualified technician
General Info	User manual available at notice-facile.com

Frequently Asked Questions - 920-533 Marquant

How do I connect the Marquant 920-533 speaker via Bluetooth?

Turn on the speaker by pressing the power button. Activate Bluetooth on your device and search for Marquant 920-533. Select it from the list to pair. The speaker will confirm with a tone.

How can I charge the speaker?

Use the included USB-C cable to connect the speaker to a USB power adapter (5V/1A recommended). The LED indicator will show charging status. A full charge takes about 3 hours.

What is the battery life of the Marquant 920-533?

The built-in battery provides up to 8 hours of playback at moderate volume. Actual battery life may vary based on volume level and audio content.

Is the speaker waterproof?

The Marquant 920-533 has an IPX5 rating, meaning it is protected against water splashes from any direction. It is not fully waterproof and should not be submerged.

How do I reset the speaker to factory settings?

With the speaker on, press and hold the Power and Volume Up buttons simultaneously for 5 seconds until the LED flashes red and blue. The speaker will power off and reset.

Can I use the speaker while it is charging?

Yes, you can use the speaker while it is connected to a power source. However, to preserve battery health, it is recommended to unplug once fully charged.

What should I do if there is no sound?

First, ensure the speaker is powered on and connected to your device via Bluetooth or AUX cable. Check that the volume is turned up on both the speaker and your device. If using Bluetooth, try re-pairing. If using AUX, ensure the cable is firmly inserted.

Can I pair two Marquant 920-533 speakers together?

This model does not support stereo pairing or multi-speaker connectivity. Each speaker operates independently. For larger sound coverage, consider using a single speaker in a central location.

Where can I download the user manual for the Marquant 920-533?

The user manual is available for free download at notice-facile.com. Search for 'Marquant 920-533' or use the direct link provided on the product page.

How should I clean the speaker?

Unplug the speaker and turn it off. Use a soft, dry cloth to gently wipe the exterior. Do not use any liquids, abrasive cleaners, or solvents, as they may damage the finish and affect performance.

USER MANUAL 920-533 Marquant

Black and white photo of a black suitcase with handle and side legs (no visible text or symbols)

SE Bruksanvisning för Bluetooth-högtalare
NO Bruksanvisning for Bluetooth-høyttaler
PL Instrukcja obsługi głośnika Bluetooth
EN Operating instructions for Bluetooth speaker

SE - Bruksanvisning i original

EN - Operating instructions (Translation of the original instructions)

Jula reserves the right to make changes. In the event of problems, please contact our service department.

www.jula.com

Tillverkare/ Produsent / Produenci/ Manufacturer

Jula AB, Box 363, 532 24 SKARA

Importör/ Importør/ Importer/ Importer

Care for the environment!

Must not be discarded with household waste! This product contains electrical or electronic components that should be recycled. Leave the product for recycling at the designated station e.g. the local authority's recycling station.

SÄKERHETSANVISNINGAR

Two electronic components: a U-shaped connector with green and red connectors and a coiled cable (no text or symbols visible)

Two electronic components: a green and red audio jack connected to a white cable, and a white cable tied with a cable (no text or symbols visible)

Two electronic components: a green audio jack and a red audio jack connected to a wire (no text or symbols visible)

Read the operating instructions carefully before use.

Save these instructions for future reference.

• Protect the appliance, power cord and battery from heat, sunlight, water, fire and sharp edges.
• Do not expose the appliance to splashing or dripping water, or other liquids.
• Do not place containers with water, burning candles or similar on the appliance.
• Check that there is at least 20 cm of free space around the appliance to ensure adequate ventilation.
• Do not install near sources of heat, e.g. radiators, cookers or other equipment that produces heat.
• Do not expose the product to rain or damp – risk of fire and/or electric shock.
• Never poke any metal objects into the appliance – risk of short circuiting.
• Do not use the appliance in extremely dry air – risk of static electricity.
• Do not attempt to repair the appliance. Never modify the product in any way. The manufacturer cannot accept liability for any damage caused by unauthorised modifications. Any repairs must be carried out by an authorised service centre or other qualified person.
• Do not use the product near water.
• Do not cover the vents on the product.
• Follow the manufacturer's instructions when installing.
• Only use accessories recommended by the manufacturer.
• Only use with the carriage, stand, bracket or table supplied, or as recommended by the manufacturer. Be careful when moving the product on a trolley – risk of tipping.
• None of the components in this product may be repaired by the user. Service must only be carried out by qualified personnel. Have the product serviced if the power cord and/or plug are damaged, if the product has been exposed to liquid, knocks and blows, or if it is not working properly.
• Do not try to open the product – risk of electric shock.

• Connect the power cord on the appliance to an easily accessible mains outlet.

• Place the power cord so that it cannot be stood on, or clenched.

• Make sure the appliance is not connected to the mains supply during thunder storms and when the product is not going to be used for a prolonged period.
• The appliance has double insulation (protective class II) and therefore does not need to be grounded.

Additional safety instructions

• The use of controllers, settings or procedures that are not described in these instructions may result in exposure to harmful radiation.
• Do not place the product on a soft, porous or fragile surface. The rubber feet may leave marks or stains on the surface. We recommend that a cloth, tray or the like is placed under the product.
• Clean with a dry cloth.

• NOTE: This equipment has been tested and complies with the limit values for class B digital appliances, according to part 15 of the FCC regulations. These limit values are designed to provide sufficient protection against harmful interference when installed in the home. The equipment generates, uses and can emit radio frequency energy, and if not installed and used according to the instructions could cause interference to radio communication. Interference can occur in separate installations. If the equipment produces harmful interference to radio or television reception (which can be checked by switching the equipment on and off), we recommend that users attempt to rectify interference in one of the following ways:

• Realign or move the receiver antenna.
  – Increase the gap between the equipment and the receiver.

• Connect the equipment to an output in another circuit than the one the receiver is connected to.

SYMBOLS

	Read the instructions carefully before use!
	Warning:
	Warning for uninsulated dangerous voltage inside the product's case, which may cause electric shock.
	Safety class II

TECHNICAL DATA

Power 20W RMS

Range 10 m

Protection rating IP20

Charging time 4-5 h

Operating time 3 h

Weight 7,8 kg

Dimensions W280 x D245 x H480 mm

Battery life 4-5 h

Battery technique Li-Ion

Safety class II

Battery capacity 2200 mAh

Sensitivity 64 dB

Impedance 4 Ω

Frequency range 85 Hz-20 kHz

DESCRIPTION

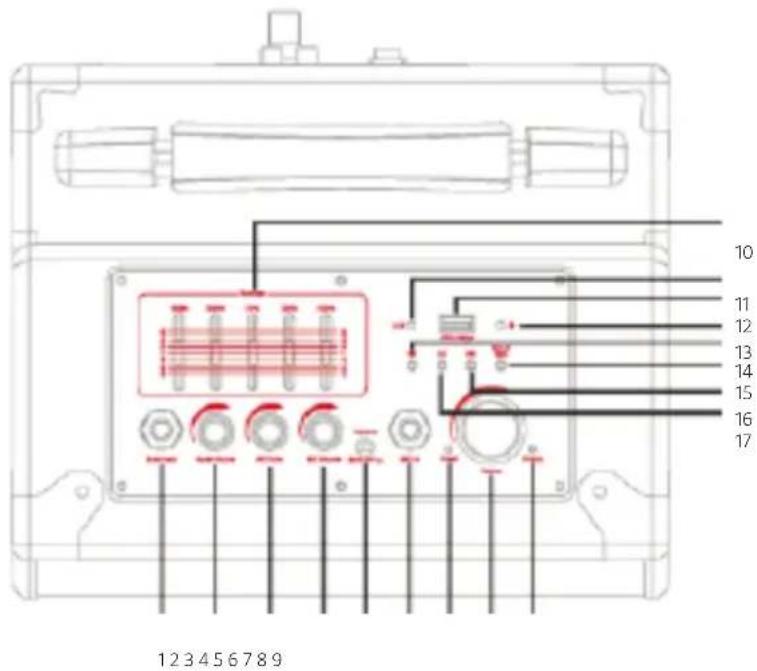

CONTROLS UPPER PANEL

1. Guitar input
2. Guitar volume
3. MIC Echo
4. MIC Volume
5. Karaoke
6. MIC In
7. Voltage lamp
8. Volume setting
9. Charging lamp
10. Equalizer
11. Status lamp for AUX mode
12. USB port
13. Bluetooth status lamp
14. Switch to previous song
15. Select input
16. ▶ Switch to next song
17. Play/Pause

CONTROLS REAR PANEL

1. AC switch
2. AC connection
3. Main power switch
4. AUDIO INPUT
5. DC connection

ACCESSORIES

Two electronic components: a green and red audio jack connected to a white USB cable, and a white cord with wires attached (no text or symbols visible)

AUX-cable Power cord

USE

NOTE: After about 30 minutes of inactivity, the speaker switches to standby mode to save the battery.

NOTE: The AC switch must be in the ON position to charge the battery.

1. Connect the power cord to the AC socket on the rear of the speaker.
2. Connect the power cord to a power outlet.
3. Turn the AC switch to the ON position.
4. The charging status light is blue during charging. Charging stops when the speaker is fully charged.

PAIRING

NOTE:

• If there are no paired devices within range when the Bluetooth mode is activated, pairing mode is activated automatically.

• If a paired device is within range, the speaker will be connected automatically to it.

• Start the speaker by turning the main power switch on the rear panel to ON.

• Press and hold the SELECT INPUT button on the top of the speaker until the Bluetooth status light starts to flash blue. A voice that says Pairing will be heard to indicate that the speaker is in pairing mode.
• Place the speaker and the Bluetooth device within 1 metre of each other during pairing.

• Activate searching for Bluetooth devices on the mobile phone or device to be paired with the speaker.

• iPhone: Go to SETTINGS > BLUETOOTH (check that Bluetooth is activated)

• Blackberry: Go to SETTINGS/OPTIONS> BLUETOOTH Activate BLUETOOTH
• Android: Go to SETTINGS > BLUETOOTH > MENU > Search for devices (check that Bluetooth is activated)

• Other mobile phones/devices: See the instructions for the device.

• When the Bluetooth device finds the speaker, select ER2536TA from the list of found devices.

• Enter the password 0000 (four zeros), if required. Press OK or YES to pair together the two devices.

• When pairing is completed, you will hear a voice that says Bluetooth is connected and the status lamp lights blue.

NOTE: If the speaker is to be connected to another device, it must first be disconnected from the device it is paired with. Select ER2536TA in the Bluetooth settings on the connected devices and select Disconnect or unpair. When pairing has been disconnected, repeat the pairing procedure with the second unit.

CONTROL

Guitar Input

Connect an electric guitar to the guitar input to use of the speaker as an amplifier.

Guitar Volume

Adjust the volume of the connected guitar

MIC Echo

Adjust the delay on the connected microphone (sold separately)

MIC Volume

Adjust the volume of the connected microphone (sold separately)

Karaoke

Press to activate the karaoke function. The Bluetooth or AUX signal is automatically adjusted to emphasize the vocal part when a microphone is connected.

MIC In

Connect a microphone (sold separately) to the MIC In socket.

Volume setting

• Turn the volume knob on top of the speaker to the left to lower the volume. Turn the knob to the right to increase the volume.
• The volume can also be controlled via the connected device's volume control.

Equalizer

Move the sliders up or down to adjust the bass and treble.

Select input

Press the SELECT INPUT button repeatedly to alternate between AUX IN and Bluetooth.

Switching On/Off

• If the speaker is fully charged, switch the speaker on or off using the main power switch at the rear.
• If the charger is connected, switch the speaker on or off using the AC switch at the rear.

CHARGING DEVICES

1. Connect the device to be charged to the speaker's USB port with a USB charging cable.
2. Charging starts automatically.
3. Check the charging status of the device on the charge status lamp.

MUSIC PLAYBACK

Via Bluetooth

NOTE:

• Check that speakers is connected to a Bluetooth device.
• When the connection is completed, the music can be controlled using the controls on the speaker or the connected device.

Play/Pause

Press the ▶ button to pause/resume playback in Bluetooth mode.

Change song

• Press the button to go to the next song in Bluetooth mode.
• Press the button to go to the previous song in Bluetooth mode.

Via the AUX cable

NOTE: When a device is connected to the AUDIO INPUT connector, the function of the buttons on the speaker is limited. Control music playback using the controls on the connected device.

1. Connect the AUX cable's red and white plugs to the white (L) and Red (R) AUDIO INPUT connections at the rear of the speaker.
2. Connect the green plug at the other end of the cable to the external device's headphone socket (smartphone, PDA or MP3 player).
3. Open a media player on the device and press PLAY to play the music.
4. Control music playback and volume using the controls on the connected device.

TROUBLESHOOTING

You can pair the Bluetooth device with the speaker but no music is heard.

• Check that the Bluetooth unit supports the profile A2DP.
• Increase the volume on the Bluetooth device.
• Disconnect the pairing and pair the devices again.

You cannot pair the Bluetooth device with the speaker.

• Place the speaker and the Bluetooth device within 1 metre of each other during pairing.
• Press and hold the SELECT INPUT button until the Bluetooth status lamp lights. A voice that says Pairing will be heard and the status lamp starts to flash blue.
• Check that Bluetooth is enabled on the device.
• Repeat pairing as instructed.
• Check that speaker is fully charged or that the power cord is connected.

Pairing mode on the speaker cannot be activated.

- Press and hold the SELECT INPUT button until the Bluetooth status lamp lights. The speaker is in pairing mode when a voice says Pairing and the status lamp starts to flash blue.

CE

EC DECLARATION OF CONFORMITY

EG FÖRSÄKRAN OM ÖVERENSSTÄMMELSE

EF SAMSVARSERKLÆRING

DEKLARACJA ZGODNOŚCI WE

Jula AB, Box 363, SE-532 24 SKARA, SWEDEN

Electromagnetic Compatibility 2004/108/EC

EN 55013:2013, EN 55020:2007+A11,

Radio and Telecommunications Terminal Equipment 1999/5/EC

EN 60065:2002+A1+A11+A2+A12, EN 62479:2010, 61000-3-2:2014, 61000-3-3:2013,

EN 301 489-1 V1.9.2, EN 301 489-17 V2.2.1, EN 300 328 V1.8.1

ERP Implementing Measure Regulation (EC) No 1275/2008

RoHS Directive 2011/65/EU

This product was CE marked in year -16

Name and address of the person

authorised to compile the technical file:

Johan Broberg

Box 363, SE-532 37 Skara, Sweden

Skara 2016-02-05

Mattias Lif

PRODUCT MANAGER
