000-139 - Loudspeaker Marquant - Free user manual and instructions

Product Type	Portable Bluetooth Speaker
Brand	Marquant
Model	000-139
Speaker Output	3 W
Sensitivity	80 dB
Impedance	4 Ω
Frequency Response	150 Hz - 18 kHz
Bluetooth Version	3.0+EDR
Wireless Range	10 m
Built-in Microphone	Yes
Handsfree Call Function	Yes
Battery Type	Built-in Li-Ion, 3.7 V / 400 mAh
Run Time	3 hours
Charging Time	1 hour
Interfaces	Bluetooth, AUX-in
Charging Cable	Micro-USB, 50 cm
Audio Cable	AUX, 50 cm
Protection Rating	IP67 (dustproof and waterproof)
Dimensions	H60 x ∅87 mm
Weight	171 g
Additional Features	Removable suction cup, snap hook
Waste Disposal	Must not be discarded with household waste; recycle at designated station

Frequently Asked Questions - 000-139 Marquant

How do I pair the speaker with my phone?

Turn on the speaker using the power switch. Activate Bluetooth on your phone and select 'Marquant 000-139' from the list. If prompted for a PIN, enter 0000. The speaker will automatically connect.

Can I use the speaker while it is charging?

Yes, you can use the speaker while it is charging. However, charging time may be longer if the speaker is in use.

Is the speaker truly waterproof?

Yes, the speaker has an IP67 rating, meaning it is dustproof and can be submerged in up to 1 meter of water for 30 minutes. Note that this protection does not apply when using the 3.5 mm AUX connection or micro-USB charging cable.

How do I answer a call using the speaker?

When a call comes in, press the Talk/Answer button to answer. Press it again to end the call. The built-in microphone allows handsfree conversation.

What is the battery life?

The built-in Li-Ion battery provides up to 3 hours of playtime on a full charge. Charging takes approximately 1 hour.

Can I connect a non-Bluetooth device?

Yes, you can connect any device with a 3.5 mm headphone jack using the included AUX audio cable. Simply plug it into the AUX input on the speaker.

How do I clean the speaker?

Wipe the speaker with a soft, dry cloth. Do not use any solvents or abrasive cleaners. Ensure the charging port and AUX input are dry before use.

What does the snap hook do?

The snap hook allows you to attach the speaker to a backpack, belt, or other gear for easy portability during outdoor activities like hiking or biking.

Why is my speaker not turning on?

Ensure the speaker is charged. Connect the micro-USB cable to a power source and charge for at least 30 minutes. If it still does not turn on, try resetting by pressing the power button for 10 seconds.

Can I use the speaker in the shower?

Yes, the IP67 rating makes it suitable for shower use, but ensure the charging port cover is tightly closed and avoid submerging the speaker during calls (microphone may be affected). Never use the AUX cable in wet conditions.

USER MANUAL 000-139 Marquant

Jula reserves the right to make changes. In the event of problems, please contact our service department.

www.jula.com

Tillverkare/ Produsent / Produenci/ Manufacturer

Jula AB, Box 363, 532 24 SKARA

Importör/ Importør/ Importer/ Importer

Date of production: 2016-08-30

© Jula AB

Värna om miljön!

Care for the environment!

Must not be discarded with household waste! This product contains electrical or electronic components that should be recycled. Leave the product for recycling at the designated station e.g. the local authority's recycling station.

1 SÄKERHETSANVISNINGAR

1 SAFETY INSTRUCTIONS

Read the operating instructions carefully before use.

Save them for future reference.

• Protect the appliance and the network cable from heat, sunlight, water and sharp edges.
• Never poke any metal objects in the appliance – risk of short circuiting.
• Do not use the appliance in extremely dry air – risk of static electricity.
• Do not expose the product to strong heat or naked flames.
  • The product can become warm when charging.
• Do not modify the product – the manufacturer cannot accept liability for any damage caused by unauthorised modifications.
• The product and aerials must not be placed or used together with other aerials or transmitters.

- Do not attempt to repair the appliance. Any repairs must be carried out by an authorised service centre or other qualified personnel.

2 TECHNICAL DATA

Speaker output	3 W
Sensitivity	80 dB
Impedance	4 Ω
Frequency response	150 Hz - 18 kHz
Bluetooth that supports	3.0+EDR
Wireless range	10 m
Built-in microphone	Yes
Handsfree call function	Yes
Battery (built-in Li-Ion)	3.7 V / 400 mAh
Run time	3 hours
Charging time	1 hour
Interface	Bluetooth, AUX-in
Charging cable (micro-USB)	50 cm
Audio cable (AUX)	50 cm
Protection rating*	IP67
Dimensions	H60x∅87 mm
Weight	171 g

* Does not apply when using 3.5 mm connection, micro-USB charging cable and microphone.

3 DESCRIPTION

Dustproof and waterproof Bluetooth speaker with removable suction cup and snap hook. The product is ideal to use when hiking, biking, camping and even in the shower. The built-in battery is charged with the supplied USB cable.

The speaker supports Bluetooth version 3.0, but this does not guarantee the compatibility of all functions on every unit with Bluetooth. Read the manual for the unit the music is played from for compatibility and functionality.

1. Power switch/pairing

2. Talk/answer

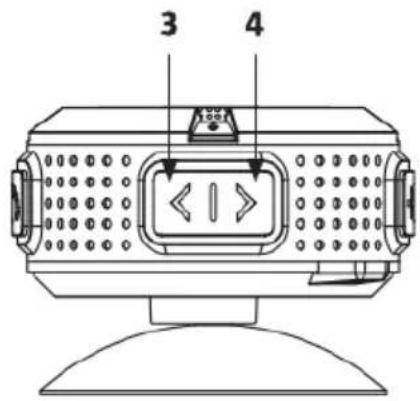

3. Previous

4. Next
5. Increase volume
6. Lower volume

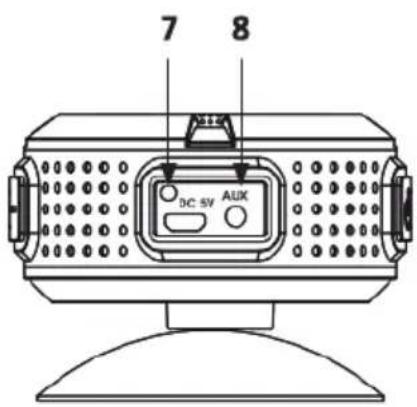

7. Charger connection
8. Audio input AUX

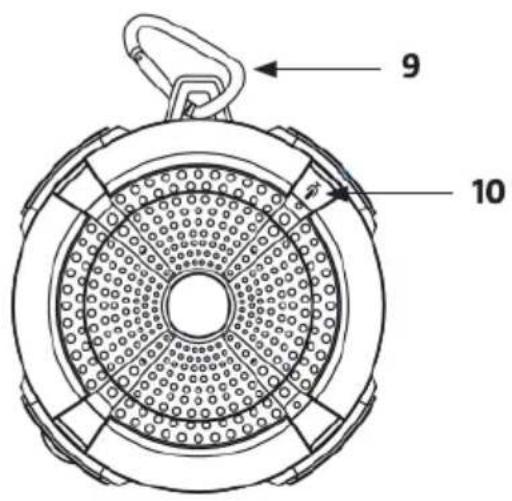

9. Snap hook
10. Microphone
