XCH-450S - Range hood Heinner - Free user manual and instructions

Product Type	Range Hood
Brand	Heinner
Model	XCH-450S
Installation Type	Built-in / Under Cabinet
Width	450 mm
Height	Standard (approx. 150-200 mm)
Depth	Approx. 350 mm
Weight	Approx. 5 kg
Power Supply	220-240 V ~ 50 Hz
Motor Power	Approx. 100 W
Max Airflow	Approx. 400 m³/h
Noise Level	≤ 60 dB(A)
Number of Speeds	3
Lighting	LED (2 x 1.5 W)
Filter Type	Aluminum Grease Filter
Control Type	Mechanical Push Buttons
Exhaust Duct Diameter	120 mm
Energy Class	A
Cleaning	Wipe with damp cloth; wash grease filter regularly
Safety Features	Overheat protection
Spare Parts Availability	Filters, bulbs, motor available from manufacturer
Warranty	2 years

Frequently Asked Questions - XCH-450S Heinner

How do I install the Heinner XCH-450S range hood?

Installation should be done by a qualified professional. Ensure proper electrical connection and ducting. Refer to the user manual for detailed steps and safety precautions.

How do I clean the grease filter?

The aluminum grease filter can be washed by hand with warm soapy water or in a dishwasher at low temperature. Allow it to dry completely before reinstalling.

What type of bulb does the hood use?

The XCH-450S uses LED bulbs (2 x 1.5 W). Replacement bulbs should be obtained from Heinner or an authorized dealer.

How often should I clean the filters?

For optimal performance, clean the grease filter every 2 months or more frequently if used heavily. The charcoal filter (if recirculating) should be replaced every 3-6 months.

Can the hood be used in recirculation mode?

Yes, the XCH-450S can be used in recirculation mode with a charcoal filter (not included). Ensure proper installation of the carbon filter.

What is the noise level of this range hood?

The noise level is approximately 60 dB(A) on maximum speed, which is comparable to normal conversation.

How do I reset the filter alarm?

After cleaning or replacing the filters, press and hold the speed button for 3 seconds to reset the filter indicator light (if applicable).

Is the ducting included with the hood?

The hood does not include ducting. You will need to purchase a suitable duct kit (120 mm diameter) separately.

What should I do if the hood stops working?

First, check the power supply and circuit breaker. If the issue persists, contact Heinner customer service for assistance. Do not attempt to repair yourself.

Does the hood come with a warranty?

Yes, the Heinner XCH-450S is covered by a 2-year warranty from the date of purchase. Keep your receipt for warranty service.

USER MANUAL XCH-450S Heinner

Technical line drawing of a mechanical component mounted on a brick wall (no text or symbols)

Metoda B

Technical line drawing of a mechanical device with two circular components and a central handle (no text or symbols)

A

Simple line drawing of a rectangular box with a circular hole and directional arrows, no text or symbols present.

C
PIC5

Technical line drawing of a device interior with two circular components and a red logo (no text or symbols)

B

Simple line drawing of a rectangular object with a circular hole and three vertical arrows pointing downward (no text or symbols)

D

V. UTILIZARE

1. Pozitia "0" – hota va fi oprita
2. Butoanele "low", "middle" and "high" vor actiona motorul sa functionze la viteza mica, medie si, respectiv, mare
3. Daca apasati o data butonul "light", lumina se va aprinde. Pentru a stinge lumina, mai apasati o data.

VI. CURATARE SI MENTENANTA

Diagram of a storage or ventilation system with directional arrows indicating flow or movement (no text or symbols)

Technical line drawing of a mechanical assembly with internal components and a magnified inset showing rotational flow (no text or symbols)

Copyright © 2013 Network One Distribution. All rights reserved.

http://www.heinner.com, http://www.nod.ro

White air conditioner unit with ventilation grille and cooling fins (no visible text or symbols)

Black overhead air conditioner unit with ventilation slots and mounting bracket (no text or symbols visible)

Brown industrial ventilation cover with ventilation slots and ventilation duct (no text or symbols visible)

• Traditional cooker hood
• Suction power: 326.4 m³/h
• Color: white/ black/ brown/ inox

Thank you for purchasing this product!

I. INTRODUCTION

Before using the appliance, please read carefully this instruction manual and keep it for future reference.

This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance.

In order to operate the unit correctly and safety, please read this instruction manual carefully before installation and usage.

II. CONTENT OF YOUR PACKAGE

▶ Traditional cooker hood
User manual
Warranty card

i

III. SAFETY PRECAUTIONS

If this product has arrived damaged please return for change or repair.

DO NOT INSTALL THIS APPLANCE IF YOU FOUND IT DANAGED.

Children should be supervised to ensure that they do not play with the appliance.

This appliance is designed for domestic use only.

Any installation work must be carried out by a qualified electrician or competent person.

There is a fire risk if cleaning is not carried out in accordance with the instructions.

Details concerning the method and frequency of cleaning are stated in the section.

"INSTALLATION AND MAINTENANCE".

Do not pull on the connection cord, but rather on the plug, to separate the appliance from the mains.

When cleaning the appliance, it must be off power first.

IV. INSTALLATION

INSTALLATION

Method A

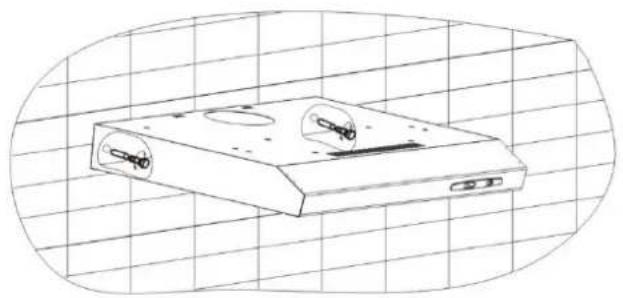

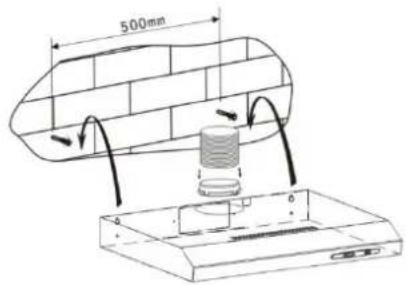

1. The cooker hoods should be placed at a distance of 65-75cm from the cooking surface for best effect.
2. To install onto the wall, drill 4 holes of ∅ 8mm on a suitable place according with the center distance of hole in the back of the cooker hood.
3. Insert the nut into the holes.
4. Insert the screws into the nuts and tight
5. Put up the cooker hood onto the fixed screws
6. Then use the attached accessories enclosed to turn the screws into the two holes of inside the hood, and then fix the screws to tighten the hood onto the wall.
7. Put the one way valve onto the cooker hood.

Pic 1

Pic 2

Technical line drawing of a mechanical housing or enclosure with mounting holes and internal components (no text or symbols)

Pic 3

Line drawing of a flatboard device with two circular ports and a handle, set against a grid background (no text or symbols)

Pic 4

Method B

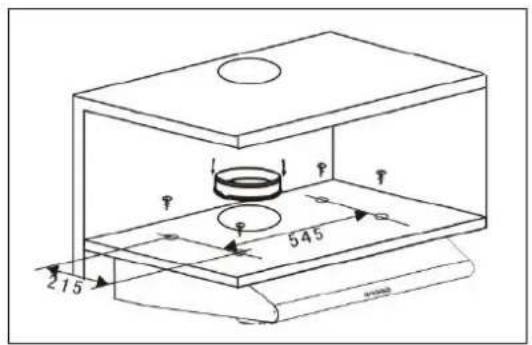

1) Drill 4 holes of ∅ 6mm at the bottom of the hanging Cup board.
2) Put the one way valve on the cooker hood, then install the cooker hood on the bottom of the cupboard, tighten the hood with enclosed 6 screws.
3) Install the adjusted board on the bottom of the hood in order to keep out the gap between hood back and cupboard.

Notice

There are 2 methods for ventilation, including 'horizontal ventilation' and 'vertical ventilation'. Please pay attention to the ventilation method when installation.

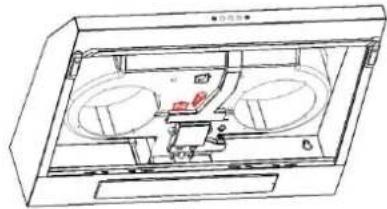

Horizontal ventilation: As shown in pic. 4A, please use the cover to seal the outlet on the top, then the air can be vented from back.

Vertical ventilation: As shown in pic 4B, please use the cover to seal the outlet on the back, then the air can be vented from top.

Simple line drawing of a rectangular electronic device with two circular arrows indicating upward motion, labeled 'A' at bottom (no text or symbols on the device itself)

Technical line drawing of a rectangular electronic device with a circular opening and labeled component B (no text or symbols beyond labels)

Pic 6

Diagram showing airflow or ventilation between two building walls, one with a pipe and arrow indicating direction (no text or symbols)

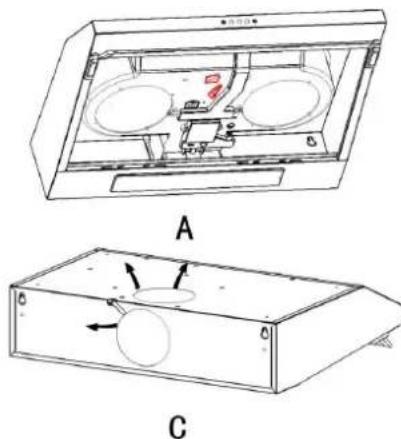

Air ventilation setting

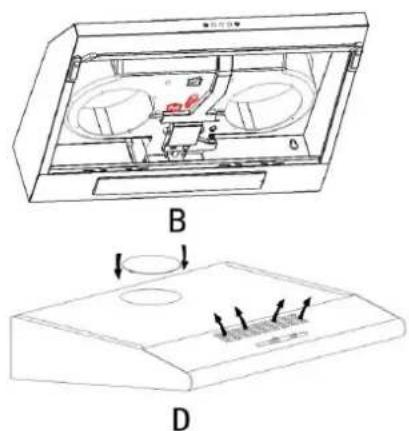

Outdoor air ventilation: Turn the adjuster to outdoor position (pic.5A), install the outlet, turn on the cooker hood, then the air will be vented from the outside outlet.

Indoor air ventilation: Turn the adjuster to indoor position (pic.5B), install the outlet cover, turn on the cooker hood, then the air can be vented from the inside outlet.

Technical line drawing of a device with two circular components and directional arrows, labeled A and C (no text or symbols present)

PIC5

V. OPERATION

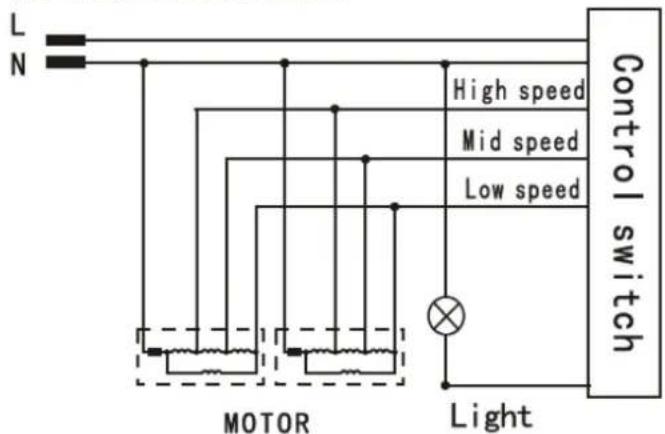

The switch is operated as below (see pic. 6):

1. Press "0", the motor will be off.
2. Press the button to "low", "middle" and "high", the motor will be turned on at "low", "middle" and "high" speed respectively.
3. Press "light", the light will be on. Press it again, the light will be off.

VI. CLEANING AND MAINTENANCE

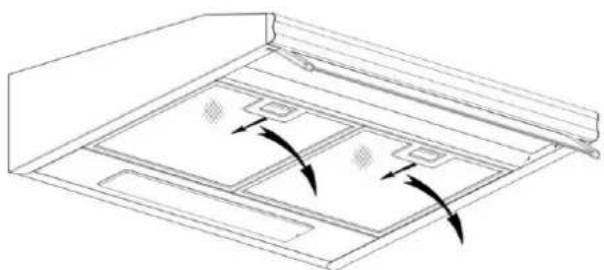

Changing and cleaning the filter

Technical line drawing of a mechanical or architectural component with internal channels and directional arrows indicating movement (no text or symbols)

1. Put the filter into the water of 40-50°C, put some detergent in, and leave it for 2-3 minutes. Then use the soft brush to clean it with proper strength, in order not to damage the filter.
2. The filter can be cleaned by dish washer. Put the filter into the dish washer and put some detergent in, then turn the temperature to 60^ C.

All the filters are made of metal. Please do not use any corrosive detergent when cleaning. Notice: Please unplug before cleaning.

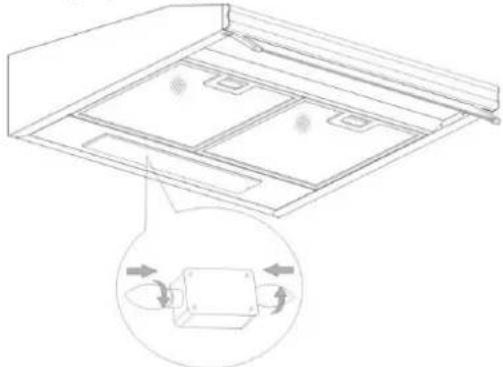

Changing the light

Technical line drawing of a mechanical assembly with internal components and a magnified inset showing internal flow direction (no text or symbols)

*Before changing the lights, make sure that the appliance is plugged off.
*Open the filter, see beside picture.
*Change the bulb with Max. 2W LED bulb.
*Replace the filter to the original position.

AC 220-240V/50Hz

Environment friendly disposal

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipment's to an appropriate waste disposal center.

HEINNER is a registered trademark of Network One Distribution SRL. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from NETWORK ONE DISTRIBUTION.

Copyright © 2013 Network One Distribution. All rights reserved.

www.heinner.com, http://www.nod.ro

This product is in conformity with norms and standards of European Community

Importer: Network One Distribution

Marcel Iancu Street, no 3-5, Bucharest, Romania

Tel: [phone], www.heinner.com, www.nod.ro

Product fiche
