USER MANUAL MW20X CENTURION

Exterior view of a Centurion microwave oven with digital display and control knobs (no text or symbols on main body)

WARNING

DANGER

Electric Shock Hazard

Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard

Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a qualified professional to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

IMPORTANT

Read all instructions before using the product and keep them for future reference.

• WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
• WARNING: It is hazardous for anyone other than a qualified professional to remove a cover which gives protection against exposure to microwave energy.
• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
  • Ensure the voltage rating on the type plate corresponds

to your mains voltage (type plate is located on the back of the product).

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Children shall not play with the appliance.

- Keep the appliance and its cord out of reach of children less than 8 years.

- Only use utensils suitable for use in microwave ovens.

- The oven should be cleaned regularly and any scraps of food should be removed.

- Read and follow the specific "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY" in this manual.

- When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

- If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

• Do not overcook food.

- Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.

- Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.

• Install or locate this oven only in accordance with the installation instructions provided.

• Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
  • This appliance is intended to be used in household.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not store or use this appliance outdoors.
• Do not use this oven near water, in a wet basement or near a swimming pool.
• The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to get hot during use. Keep cord away from heated surface, and do not cover any vents on the oven.
• Do not let cord hang over edge of table or counter.
• Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
• The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
• Microwave heating of beverages can result in delayed eruptive boiling; therefore take care when handling the container.
• The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not

play with the appliance.

• The appliances are not intended to be operated by means of an external timer or separate remote-control system.
• The appliances are not intended to be operated by means of an external timer or separate remote-control system.
• Steam cleaner is not to be used.
• Only use the temperature probe recommended for this oven (for ovens provided with a facility to use a temperature-sensing probe).
• The microwave oven must be operated with the decorative door open (for ovens with a decorative door).
• The rear surface of appliance shall be placed against a wall.
• The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

• Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
• Do not place any object between the oven front face and the door. Do not allow grime or cleaner residue to accumulate on sealing surfaces.
• WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a qualified professional.
• If the appliance is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

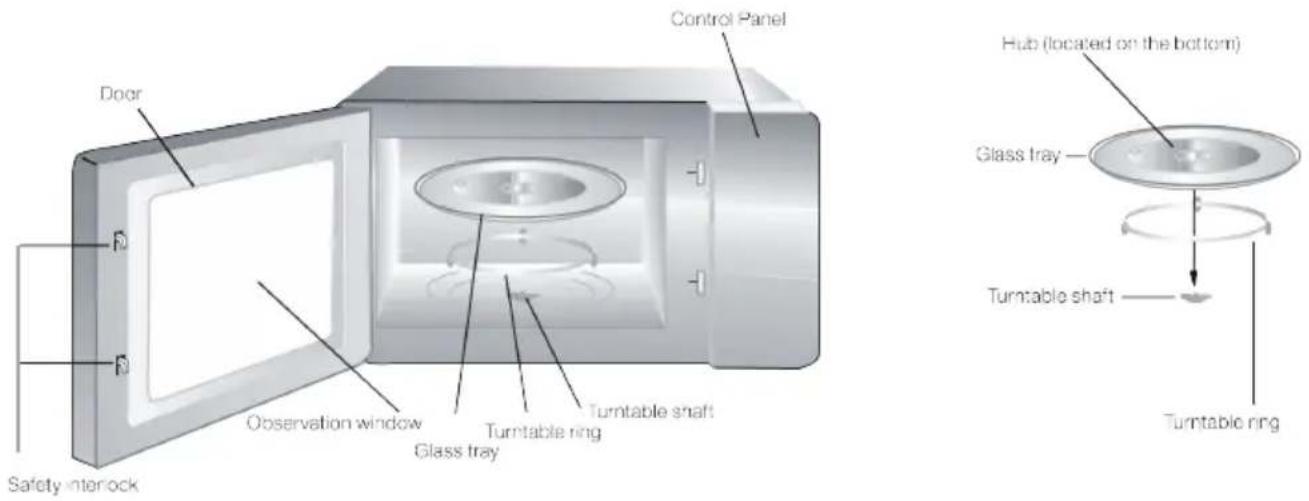

CHAPTER 1: PRODUCT COMPONENTS

Control Panel Door Observation window Glass tray Turntable ring Turntable shaft Safety interlock Hub (located on the bottom) Glass tray Turntable shaft Turntable ring

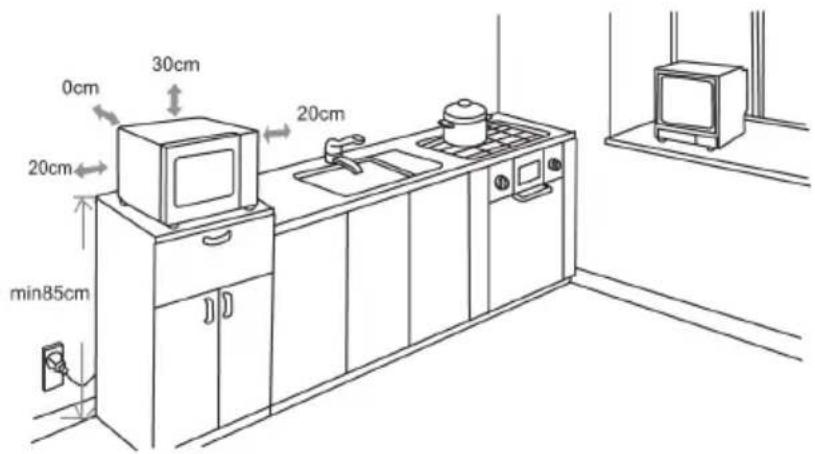

CHAPTER 2: INSTALLATION

1. Select a level surface that provides enough open space for the intake and outlet vents.

0cm 30cm 20cm 20cm min85cm 20cm

1. The minimum installation height is 85cm.
2. The rear surface of appliance shall be placed against a wall. Leave a minimum clearance of 30 ~cm above the oven, a minimum clearance of 20 ~cm is required between the oven and any adjacent walls.
3. Do not remove the legs from the bottom of the oven.
4. Blocking the intake and/or outlet openings can damage the oven.
5. Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.

CHAPTER 3: UTENSILS

UTENSILS THAT ARE OK TO USE

Aluminum foil Shielding only.	Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 2.5 cm away from oven walls.
Browning dish Follow manufacturer's instructions. The bottom of browning dish must be at east 5 mm above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Parchment paper Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Paper towels Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Plastic Microwave-safe only. Follow the manufacturer's instructions. Some plastic containers soften when the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat thermometers etc.).
Wax paper Use as cover to prevent splattering and retain moisture.

UTENSILS THAT ARE NOT OK TO USE

Aluminum tray, food carton with metal handles, metal or metaltrimmed utensils	May cause arcing. Transfer food into microwave-safe dish.
Metal twist ties and paper bags	May cause fire.
Plastic foam	May melt or contaminate the liquid inside when exposed to high temperature.
Wood	Will dry out and may split or crack.

There are two switches on the panel. In this manual the left switch will be called the digital switch, and the right switch will be called the multi-function switch.

WAITING STATE

In waiting states, the screen displays the current time or "0:00". The oven goes into waiting states when first plugged in and after it has finished cooking.

SETTING THE CLOCK

1. When the microwave oven is in waiting state turn the multi-function switch to Clock. The hour figure will flash.
2. Turn the digital switch to adjust the hour. The input time should be within 0-23.
3. Press Start/+30Sec to confirm. The minute figures will flash.
4. Turn the digital switch to adjust the minute figures. The input time should be within 0-59.
5. Press Start/+30Sec to finish clock setting. : (colon symbol) will flash.

NOTE: If you do not press Start/+30Sec to confirm a setting within 1 minute then the oven will go back to the previous status automatically.

MICROWAVE COOKING

1. Turn the multi-function to levels from 200W to 800W. It refers to the microwave power. Levels from P200 to P800 will be displayed on the screen (the power with a P before the number).
2. Turn the digital switch to adjust the cooking time. The input should be 0:05-95:00.
3. Press Start/+30Sec to start cooking. The buzzer will sound once.
4. When the cooking finishes, the screen will display the current time. If the time has not been set "0:00" is displayed.

SPEEDY COOKING

1. When the multi-function switch is pointing at a power level, 200W for example, turn the digital switch directly to choose the cooking time.

2. Press Start/+30Sec to start cooking. The time can be increased by pressing Start/+30Sec.

When the multi-function switch is pointing at Auto Menu, Weight Defrost, Time Defrost or Clock, cooking cannot be started by pressing Start/+30Sec. Time cannot be increased by pressing Start/+30Sec under the states of defrost by time, auto menu or defrost by weight.

DEFROST BY WEIGHT

1. When the multi-function switch is poiting at Weight Defrost the screen displays dEF1.
2. Turn the digital switch to select the food weight. The range of weight is 100 - 2000 grams.
3. Press Start/+30Sec to start defrosting.

DEFROST BY TIME

1. When the multi-function switch is poiting at Time Defrost the screen displays dEF2.
2. Turn the digital switch to select the defrost time. The range of time is 0:05-95:00 minutes.
3. Press Start/+30Sec to start defrosting. The defrost power is P200. This cannot be changed.

POWER ADJUSTMENT

During speedy cooking, the microwave power can be adjusted by turning the multi-function switch.

During microwave cooking, the microwave power can be adjusted from 200W to 800W.

During weight defrost, time defrost and auto menu cooking the power cannot be adjusted by turning the multi-function switch.

CHILD LOCK

LOCK: In waiting state, press "STOP" for 3 seconds. You will hear a long beep and the screen will display a lock symbol.

UNLOCKING: In locked state, press "STOP" for 3 seconds. You will hear a long beep denoting that the lock is released.

AUTO MENU

1. Turn the multi-function switch to Auto Menu to choose auto cooking. A-1 will flash on the screen.
2. Turn the digital switch to choose the menu you need. A-1 to A-8 will be displayed. Pizza, Chicken Pieces, Meat, Vegetable, Fish, Pasta, Soup, and Porridge will be selected in order.
3. Press Start/+30Sec to confirm the menu you choose.
4. Turn the digital switch to choose the food weight.
5. Press Start/+30Sec to start cooking.
6. The buzzer sounds five times after the cooking finishes.

MENU	WEIGHT (G)	DISPLAY	POWER
A-1 Pizza	200	200	100%
	400	400	100%
A-2 Chicken	200	200	100%
	400	400	100%
	600	600	100%
	800	800	100%
A-3 Meat	250	250	100%
	350	350	100%
	450	450	100%
A-4 Vegetables	200	200	100%
	300	300	100%
	400	400	100%
A-5 Fish	250	250	80%
	350	350	80%
	450	450	80%
A-6 Pasta	50 (cold water 450 ml)	50	80%
	100 (cold water 800 ml)	100	80%
A-7 Soup	200 ml	200	100%
	400 ml	400	100%
A-8 Porridge	550	550	100% / 50%
	1100	1100	100% / 50%

CHAPTER 5: CLEANING AND TROUBLE SHOOTING

CLEANING

Be sure to unplug the oven from the power supply before cleaning it.

1. Clean the inside of the oven with a slightly damp cloth.
2. Clean the accessories in soapy water.
3. The door frame, seal, and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
5. Cleaning tip for easier cleaning of the cavity walls: Place half a lemon in a bowl, add 300 ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

TROUBLE SHOOTING

• Microwave oven interferes with the TV reception:
Radio and Tv reception may be interfered when the microwave is on. It is similar to the interference of small electrical appliances. This is normal.

• Dim oven light:
  In low power cooking the oven light may become dim. This is normal.

• Steam accumulating on the door, hot air out of vents:

In cooking, steam may come out of the food. Most will get out from vents but some may accumulate on cool places like the oven door. This is normal.

- Oven cannot be started:

The power cord might not be plugged in correctly - plug it in. A fuse is blown - get oven repaired by the retailer. Trouble with the outlet - test the outlet with other appliances.

• The oven does not heat:

The door may not be closed completely - close the door.

• The glass turntable makes noises when the oven operates:

Dirty rollers rest at the oven bottom - clean the oven.

TECHNICAL SPECIFICATION

Rated voltage 230 V ~ 50 Hz
Rated input power (microwave) 1270 W
Rated output power (microwave) 800 W
Oven capacity 20 L
Turntable diameter 255 mm
External dimensions 440 x 355 x 258 mm
Net weight 10 kg
