VE130 - Kettle CENTURION - Free user manual and instructions

Product Type	Electric Kettle
Brand	Centurion
Model	VE130 (VE130W / VE130B)
Capacity	1.7 liters
Power Supply	220-240 V, ~50/60 Hz
Power Consumption	1850-2200 W
Boil-Dry Protection	Yes, automatic shut-off
Auto Shut-Off	Yes, after boiling
Water Gauge	Yes, transparent window
Lid Type	Hinged with handle
Filter	Removable, located in spout
Base	360-degree rotational power base
Cord Storage	Under base
Weight	Approximately 1 kg
Dimensions (H x W x D)	Approximately 25 x 15 x 22 cm
Power Cord Length	Approximately 0.75 m
Housing Material	Plastic and stainless steel
Color	Black or White (depending on variant)
Safety Features	Boil-dry protection, auto shut-off, cool-touch handle
Suitable For	Household and similar applications
Care Instructions	Wipe with damp cloth; descale regularly
Heating Element	Concealed

Frequently Asked Questions - VE130 CENTURION

How do I use the Centurion VE130 kettle for the first time?

Before first use, clean the kettle by boiling a full kettle of water twice. Discard the water after each boil. This removes any manufacturing residues.

What is the capacity of the kettle?

The kettle has a capacity of 1.7 liters. Always fill between the minimum (0.5 L) and maximum (1.7 L) marks to ensure proper operation.

Does the kettle have automatic shut-off?

Yes, the kettle automatically shuts off once the water has boiled. The switch also has a manual off position to stop boiling at any time.

How do I clean the kettle?

Unplug the kettle and allow it to cool. Wipe the exterior with a damp cloth. Do not immerse the kettle or cord in water. For the interior, descale regularly (see descaling question).

How do I descale the kettle?

Fill the kettle with 3 cups of white vinegar and the remainder with water. Let it stand overnight without boiling. Empty, then boil clean water twice to remove residue. Alternatively, use a commercial liquid descaler.

How do I clean the filter?

The filter is removable. Pull it out from the spout and clean it with a damp cloth. Reinsert it into the support dent. Clean at regular intervals to maintain performance.

What should I do if the kettle boils without water?

The boil-dry protection will automatically switch off the kettle. If this occurs, allow the kettle to cool completely before filling with cold water and using again.

Can I use the kettle with a different voltage?

No, the kettle is designed for 220-240 V only. Using it with a different voltage may damage the appliance and cause safety hazards. Check the voltage rating on the underside of the kettle and base.

Is the kettle safe for children?

The kettle is not a toy. Close supervision is required when used near children. The exterior can become hot; use the handle and avoid contact with steam. Children should not operate the appliance.

How do I store the kettle?

When not in use, store the kettle on the power base with the power cord wound around the cord storage under the base. Ensure the power supply is turned off and the kettle is cool.

USER MANUAL VE130 CENTURION

1. Nivåmätare

2. Pip

3. Handtag på locket

4. Handtag

5. Brytare

6. Bottenplatta

Tekniska specifikationer

Rymmer 1,7 liter

Stromforsorjning: 220-240 V

Effektforbrukning: 1850 - 2200W

MODEL: VE130W / VE130B

Technical Specifications

Capacity: 1,7 liter

Power Supply: 220-240 V

Power Consumption: 1850-2200W

Inden ibrugtagning

1 - Vannskala
2 - Tut
3 - Lokkhåndtak
4 - Håndtak
5 - Bryter
6 - Fot

Spesifikasjoner

Kapasitet: 1,7 liter

Strøm: 220-240 V

//Image text//

1. Vesimittari
2. Nokka
3. Kannen kahva
4. Kahva
5. Virtakytkin
6. Alust

Technical Specifications

Capacity: 1,7 liter

Power Supply: 220-240 V

Power Consumption: 1850-2200W

Read this booklet thoroughly before using and save it for future reference.

IMPORTANT SAFETY INSTRUCTIONS

1. Read all instructions before using.
2. Before connecting the kettle to the power supply, check that the voltage indicated on the appliance (underside the kettle & base) corresponds with the voltage in your home. If this is not the case, contact your dealer and do not use the kettle.
3. The attached base can not be used for other than intended use.
4. Do not operate the appliance without load to avoid damaging the heat elements.
5. Unplug from the outlet when not in use.
6. Do not let the cord hang over edge of table counter or touch hot surface.
7. Do not place on or near a hot gas or electric burner or in a heated oven.
8. Should you accidentally allow the kettle to operate without water, the boil-dry protection will automatically switch it off. If this should occur, allow the kettle to cool before filling with cold water and re-boiling.
9. Ensure that kettle is used on a firm and flat surface where the children can't touch, this can prevent from overturning the kettle to damage the person or kettle.
10. To protect against a fire, electric shock or personal injury, do not immerse cord, electric plugs or kettle in water or other liquids.
11. Always take care to pour boiling water slowly and carefully without tipping the kettle too fast.
12. Be careful when opening the lid for refilling when the kettle is hot.
13. Close supervision is necessary when any appliance is used by or near children.
14. Do not touch the hot surface. Use the handle or the button.
15. Extreme caution must be used when moving an appliance containing hot water.
16. The appliance is not a toy. Do not let the children play it.
17. The use of attachments that are not recommended by the appliance manufacturer may result in fire, electric shock or personal injury.
18. While boiling water, avoid to contact with steam from the spout when water is boiling or just after it has switched off. Do not be anxious to uncover the lid.
19. Unplug from outlet when not in use and before cleaning; Allow it to cool before putting on or taking off parts and before cleaning the appliance.
20. Always ensure the lid is closed and do not lift it while the water is boiling. Scalding may occur if the lid is removed during the brewing cycles.
21. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
22. Do not use the appliance for other than intended use.
23. The kettle can only use with the stand provided.
24. If the kettle is overfilled, boiling water may be ejected.
25. Do not use the kettle outdoors.
26. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.
27. Children should be supervised to ensure that they do not play with the appliance.
28. This appliance is intended to be used in household and similar applications such as:
    – staff kitchen areas in shops, offices and other working environments;
29. farm houses;
    – by clients in hotels, motels and other residential type environments;
30. bed and breakfast type environments.
31. Save these instructions.

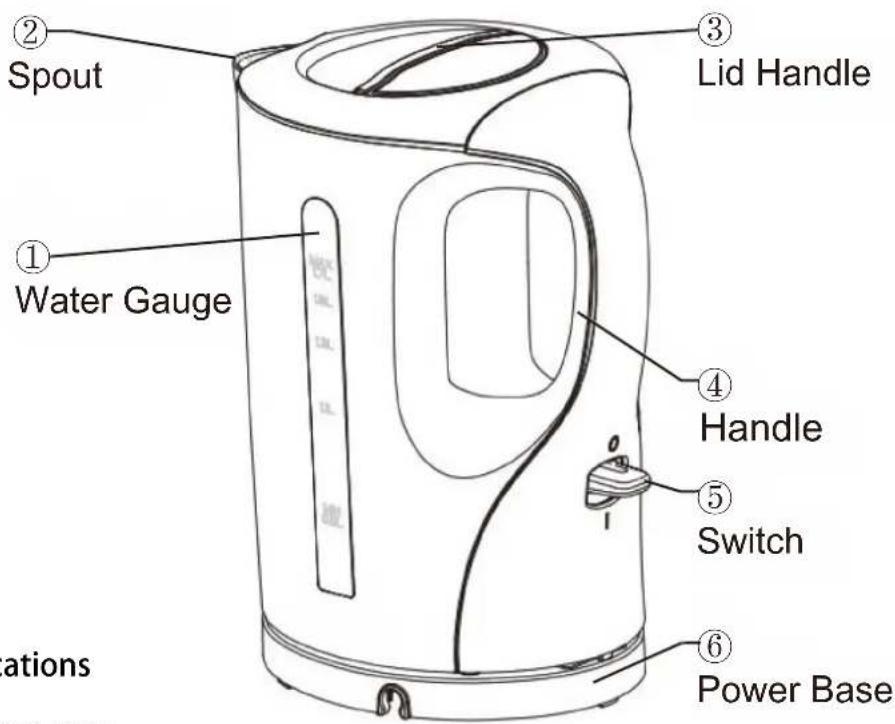

Know your kettle

Technical Specifications

Capacity: 1,7 liter

Power Supply: 220-240 V

Power Consumption: 1850-2200W

Before initial use

If you are using the kettle for the first time, it is recommended that you clean your kettle before use by boiling a full kettle of water twice and then discarding the water.

Operation

1. To fill water into the kettle, remove it from the power base and open the lid by turnup the lid handle, fill with the desired amount of water to the kettle. Always fill the kettle between the minimum (0.5L) and maximum (1.7L) marks. Too little water will result in the kettle switching off before the water has boiled.

NOTE: Do not fill the water over the maximum level, as water may spill out of the spout when boiling. Ensure that the lid is firmly in place before connecting the power cord to the outlet.

1. Position the kettle on the power base.

2. Connect the plug into a power outlet. Adown press the switch button to “ I ”below the handle. The indicating lights inside the switch button will light up. Then start to boil the water. The kettle will switch off automatically once the water has boiled and the light extinguishes. You can shut off the power by upwards pressing the button to “O” at any moment during boiling water.

NOTE: Ensure that switch is clear of obstructions and the lid is firmly closed. The kettle will not turn off if the switch is constrained or if the lid is left open.

1. Lift the kettle from the power base and then pour the water.

NOTE: Operate carefully when pouring the water from your kettle as boiling water may result in scald, besides, don't open the lid while the water in the kettle is hot.

1. The kettle will not re-boil until the switch is uplifted. Allow to cool for 15\~25 seconds before reopening to boil water. The kettle may be stored on the power base when not in use.

NOTE: Ensure power supply is turned off when kettle is not in use.

Boil-dry protect

Should you accidentally allow the kettle to operate without water, the boil-dry protection will automatically switch it off. If this should occur, allow the kettle to cool before filling with cold water and re-boiling.

Care and cleaning

Always disconnect the appliance from the power outlet before cleaning.

Never immerse the kettle or cord in water, or allow moisture to contact with these parts.

Removal of mineral deposits

Mineral deposits in tap water may cause the kettle interior to discolor. To remove this build-up, use Liquid Descaler, a simple to use non-toxic cleaner.

Alternatively:

1. Fill the kettle with 3 cups of white vinegar and the remainder with water and be allowed to stand overnight. Do not boil.

2. Empty the solution from the kettle. Any stains remaining inside the spout can be removed by rubbing with a damp cloth, fill the kettle with clean water, bring to boil and then discard the water. Repeat and the kettle will then be ready to use.

The outside of the kettle can be wiped over with a damp cloth.

Cleaning appearance of housing

Wipe the appearance of housing with a wild and damp cloth or cleaner, never use a poisonous cleaner.

Cleaning the filter

Remember to clean the filter with a wild and damp cloth at intervals. The filter can be detached for easier cleaning simply by pulling it out. To attach, insert the filter into the support dent.

CAUTION: Do not use chemical, steel, wooden or abrasive cleaners to clean the outside of the kettle.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Storage

When not in use or storage, the power cord may be wound around the cord storage under the bottom of kettle.

Environment friendly disposal

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipments to an appropriate waste disposal center.
