KE201 - Coffee machine CENTURION - Free user manual and instructions

Product Type	Coffee machine
Brand	Centurion
Model	KE201
Dimensions (W x D x H)	Approx. 25 x 20 x 35 cm
Weight	Approx. 2.5 kg
Power Supply	220-240 V, 50/60 Hz
Power Consumption	1000 W
Water Tank Capacity	1.2 L
Brewing Method	Drip coffee (filter)
Carafe Capacity	10 cups (approx. 1.25 L)
Carafe Type	Glass with pour spout and handle
Filter Type	Paper filter (#4 cone) or reusable basket
Anti-Drip Function	Yes (pause & serve)
Auto Shut-Off	Yes, after 2 hours
Warming Plate	Yes, keeps coffee warm
Controls	Single switch (on/off)
Indicator Light	Yes, power on/brew
Cleaning	Descale every 3 months; clean carafe and filter basket after each use
Safety Features	Auto shut-off, boil-dry protection
Spare Parts	Carafe, filter basket, water tank available; user replaceable
Repairability	Moderate; basic components accessible
Certifications	CE, RoHS
Included Accessories	Glass carafe, reusable filter, instruction manual

Frequently Asked Questions - KE201 CENTURION

How do I turn on the Centurion KE201?

Plug the machine into a power outlet and press the on/off switch. The indicator light will turn on, and the coffee will start brewing.

What type of coffee filter should I use?

You can use standard #4 cone paper filters or the included reusable filter basket. Make sure to place the filter correctly before adding coffee grounds.

How much coffee should I use for a full carafe?

For a full 10-cup carafe (approx. 1.25 L), use about 6 tablespoons (30 g) of medium-ground coffee. Adjust to taste.

Can I brew a smaller amount of coffee?

Yes, you can brew less than a full carafe. Use correspondingly less water and coffee. The machine works with any amount up to the maximum.

How does the anti-drip function work?

When you remove the carafe during brewing, a valve in the filter basket stops the drips. You can pour a cup without making a mess. Replace the carafe quickly to resume brewing.

How do I clean the coffee maker?

After each use, unplug and let cool. Remove the filter and discard grounds. Wash the carafe and filter basket with warm soapy water. Wipe the exterior with a damp cloth. Do not immerse the machine in water.

How often should I descale the KE201?

Descale every 3 months or more often if you have hard water. Use a descaling solution or a mixture of equal parts water and white vinegar. Run a brew cycle without coffee, then run 2 cycles with fresh water.

What should I do if the coffee is not hot enough?

Ensure the warming plate is on and not covered. Preheat the carafe with hot water. If problem persists, descale the machine as mineral buildup can affect temperature.

What if the machine stops brewing mid-cycle?

Check for power supply. If the carafe was removed for too long, the anti-drip valve may have stalled. Replace carafe and try again. Also ensure the water tank is filled and the filter basket is properly placed.

Where can I find replacement parts for the KE201?

Replacement parts like carafe, filter basket, and water tank are available from Centurion or authorized retailers. Refer to the manual for part numbers.

USER MANUAL KE201 CENTURION

Black and silver coffee maker with clear lid and handle, no visible text or symbols on the device itself.

INNAN DU ANVÄNDER BRYGGAREN

RENGÖRING

F∅R F∅RSTEGANGS BRUK

Før du trakter kaffe, må du kjøre gjennom kaffetrakteren med kun vann (uten kaffe og filterpapir).

RENGJ∅RINGSVEILEDNING:

English instructions

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons including the following:

1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against fire, electric shock and injury to persons, do not place cord, plugs, or appliance in water or other liquid.
4. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
5. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to an authorized service facility for examination, repair or adjustment.
6. The use of an accessory attachments not recommended by the appliance manufacturer may cause injuries.
7. Do not use outdoors. Household use only.
8. Do not let cord hang over edge of table or counter, or touch hot surfaces.
9. Do not place on or near a hot gas or electric burner, or in a heated oven.
10. To disconnect, turn any control to "off", then remove plug from wall outlet.
11. Do not use appliance for other than intended use.
12. Do not open the lid when operating. Scalding may occur if the lid is opened or removed during the brewing cycles.
13. Any other servicing should be performed by an authorized services representative.
14. This appliance is not intended for use by persons(including children)wtie reduced physical,sensory or mental capabihtes or lack of experience and knowledge,unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
15. Children should be supervised to ensure that they do not play with the appliance
16. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard

TECHNICAL INFORMATION

Model: KE-201

input voltage: 220-240V AC 50HZ

power: 800W

capacity: 1.2 L

CONSTRUCTION

Please check the construction drawing as follow :

1 · Water Tank Cover 2 · Water Spout 3 · Water Gauge 4 · main body 5 · Switch 6 · Power Plug 7 · Vacuum Flask 8 · Funnel 9 · Filter 10. Funnel cover 11 · Water Tank

BEFORE FIRST USE :

Before making coffee you should use the coffee maker once with water only (without coffee or filter paper).

First, take the power cord from the water tank.

Fill the flask with cold water, tip up the lid, pour water from the flask into the water tank, tip down the lid in original position.

Place the flask in original position.

Note that the lid should be tightened correctly.

Insert the plug into the socket.

Start the brewing process by pressing the on/off switch.

OPEARUION INSTRUCTION

1. Add necessary amount of coffee(approx 7g per cup) or Tea into a standard 1X4 Filter Paper or into the Filter. Turn the Filter Assembly to close position.

2. Open the water tank cover of coffee maker, Fill up the Water Container with required quantity of water, put on the Lid and place Vacuum flask into position.

3. Plug the power plug into the outlet, turn on the switch, the indicator lights, the appliance start working.

4. You can take out Vacuum flask, pour and serve when finish brewing (about later after the coffee stops dripping out.)

5. Always turn the coffee maker off and unplug the power cord from the outlet when the coffee maker is not in use.

Note: You can take out Vacuum flask, pour and serve at any time. The appliance will stop dripping automatically, but the time can not exceed 20 seconds

FUNCTIONAL DESCRIPTION

1. Anti-drip function: Consumer can take out the Vacuum flask during cooking and the Anti-drip Valve will function and no Coffee or Tea will drip out. Dripping will start again after located the Vacuum flask in position on the Heat insulate board. To prevent overflow from Filter, never take Vacuum flask away over 20 seconds. If needed, turn off the appliance after take off the Vacuum flask.
2. Auto Keep Warm: The power will be cut off automatically after the brewing complete and the Vacuum flask can keep the inside liquid warm availably.
3. Temperature Control device: When turn on the appliance without water or after it finish brewing water, the temperature will increase and the Temperature Control device will cut off the power automatically at the required temperature.
4. Fuse device: This appliance equipped with a second temperature protection. In case the Temperature Control device malfunction, the Fuse device will cut off the power. In this case, unplug the appliance at once.
5. Automatic cut off function: The Temperature Control device will startup and cut off the power thoroughly When the brewing finish. And then the indicator off. If you want to break out when brewing, just press down the "0" button and the indicator off. Press down the "I" button, the appliance will resume working and the indicator lights.

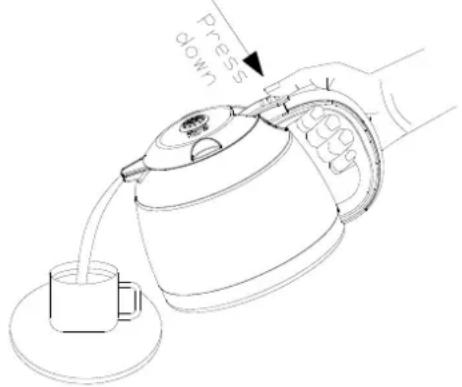

HOW TO USE THE VACUUM FLASK

Press down the button so that the liquid inside will pour out. See the picture below.

CLEANING INSTRUCTION

CAUTION: Be sure to unplug this appliance and cool down before cleaning. To proted against electrical shock, do not immerse cord, plug or unit in water or liquid. After each use, always make sure plug is first removed from wall outlier.

1. Clean the appliance after every time use.
2. Do not forget to remove the plug from the socket before cleaning the appliance.
3. Wipe outside with soft dry cloth when coffee maker is cold, never use metal polish.
4. The removable items should be washed in hot soapy water. Rinse them before fixing.
5. Wash the filter and jugs.
6. De-scaling the appliance about every 5 months so as to keep high efficiency. If the water in your living area is hard, the intervals must be shorter.
7. Put the coffee maker in a dry and not in hot place.

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you purchased the product.
