USER MANUAL ATHEN ATN252LI HOOVER
* Certain models only
This cleaner should only be used for normal domestic cleaning, as described in this user guide. Please ensure that this guide is fully understood before operating the appliance. Use only attachments recommended or supplied by Hoover.
Electrical Requirements
This Hoover appliance is supplied with a double insulated battery charger which is only suitable for insertion in a 230V (UK 240V) socket outlet. Ensure that the charger rating label matches your voltage supply.
SAFETY REMINDERS
- DO NOT let children play with the cleaner or its controls. DO NOT use your cleaner outdoors, on wet surfaces or for wet pickup. DO NOT pick up hard or sharp objects, matches, hot ashes, cigarette ends or other similar items. DO NOT spray with, or pick up flammable liquids such as cleaning fluids, petrol, etc, or their vapours, as they may cause an explosion or fire.
- DO NOT replace the NiMh batteries with non recharging batteries.
- DO NOT place the cleaner near a heat source (e.g. oven, heating appliance or radiator). DO NOT expose the batteries to a room temperature above 40°C. DO frequently clean the dust cup and filter assembly.
- DO plug in the charger after use to recharge the batteries. Occasionally fully discharge the batteries to obtain the maximum battery life. Do not use any other charger with this cleaner. DO NOT unplug the charger by pulling on the cable.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
The cleaner has been designed for normal domestic use only. If any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.
HOOVER SERVICE: To ensure the continued safe and efficient operation of this appliance we recommend that any servicing or repairs are only carried out by an authorised Hoover service engineer.

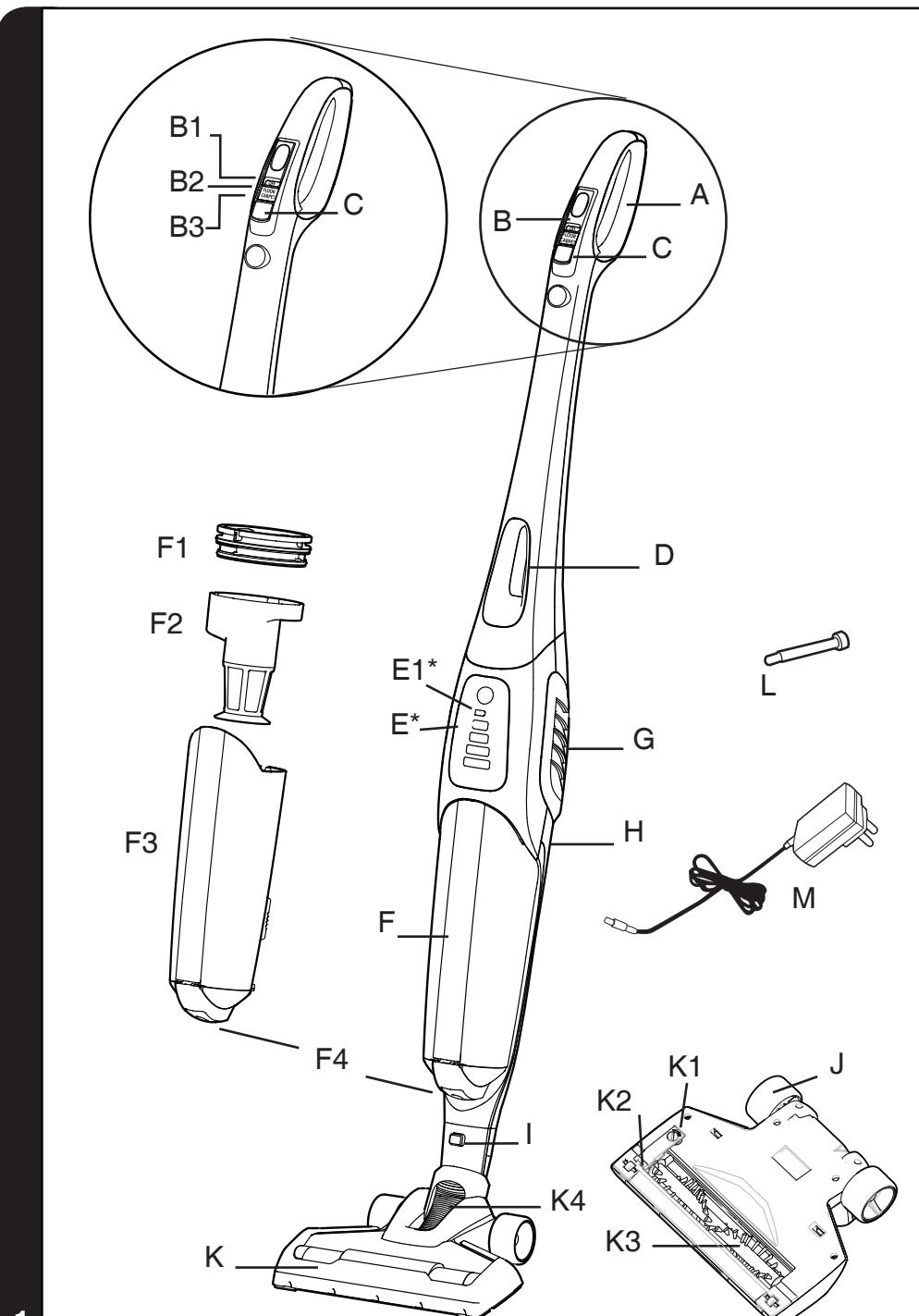

PRODUCT COMPONENTS
A. Ergonomic Handle B. On/Off Switch
B1. OFF Position B2. FLOOR Position B3. CARPET Position
C. Turbo Button
D. Carry Handle E. LED Display*
E1. LED Charging Indicator*
F. Dust Container
F1. Premotor filter F2. Shroud F3. Dust Bin F4. Dust Container Release Button
G. Exhaust Grill H. Main Body I. Nozzle Release Button J. Rear Wheels K. Nozzle
K1. Removable Agitator Cover K2. Front Wheels K3. Agitator K4. Flexible Hose
L. Locking Screw M. Charger
PREPARING YOUR CLEANER

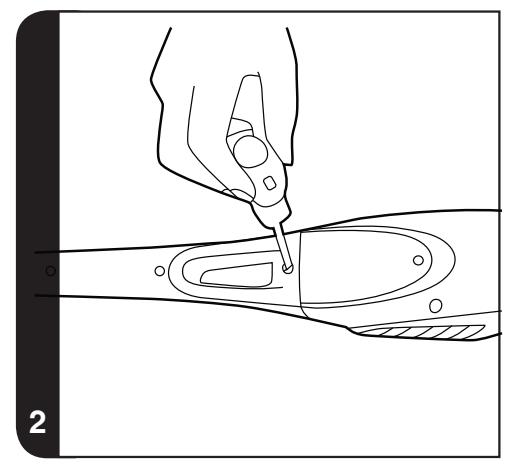

- Line up the ergonomic handle to the main body of the cleaner and fix in position with the supplied locking screw. [2]

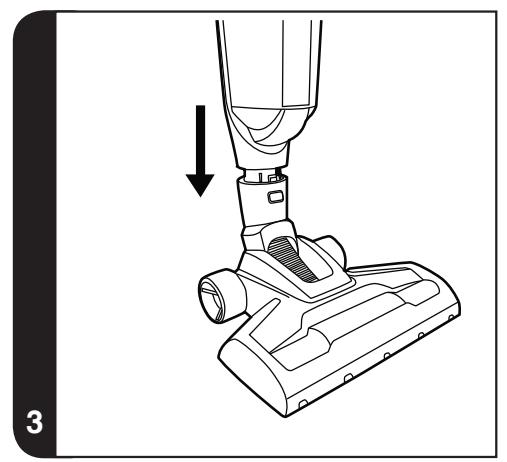

- Line up the nozzle with the main body and firmly push into the neck until it locks into place. [3]

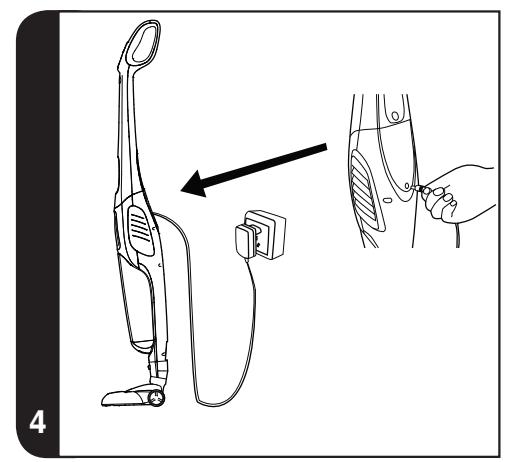

- Plug charger into the DC socket. For first use, charge your cleaner for 24 hours. [4]
- The charge indicator will flash when charging.
Note: To remove the nozzle, press the nozzle release button and pull it away from the main body.
Note: Use only the charger supplied with your cleaner to recharge.
Important: When charging the cleaner, the On/Off switch must be in the OFF position.
It is normal for the charger to become warm to the touch when charging.
If the operating time reduces after repeated use, let the cleaner run until it stops, then recharge for 24 hours. Repeat this monthly for best results.
Unplug the charger in the event of prolonged absence (holidays, etc.). Recharge the product again before use, as batteries may self-discharge over increased periods of storage.
USING YOUR CLEANER

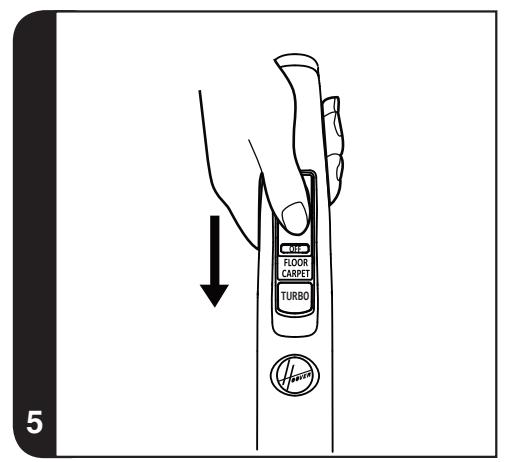

Turn the cleaner on by sliding the ON/OFF switch forwards to one of the following settings: [5]
FLOOR: ideal for hard floor surfaces. Normal power without power brush rotation. [B2] CARPET: ideal for carpets and rugs. Normal power with agitator. [B3] TURBO: press the Turbo button for full power on either floor or carpet mode. The agitator will rotate at maximum speed. [C]
DISPLAY LED*
This cleaner is equipped with an LED display. When the product is on, the display will report the following information:
BATTERY LEVEL INDICATOR*:
4 bars = 100% charge, 3 bars = 75% charge, 2 bars = 50% charge, 1 bar = 25% charge
When the batteries are empty, the last battery level indicator will flash for 20 seconds before the product switches off automatically.
TURBO: when the Turbo mode is activated on the ergonomic handle, the Turbo icon will light up in blue.
CHARGE INDICATOR: When the product is charging, the battery icon will flash every 2 seconds. When fully charged, the icon will stop flashing and remain lit while the charger is plugged in. The icon will switch off when the cleaner is in use.
CLEANER MAINTENANCE
Emptying the Dust Container

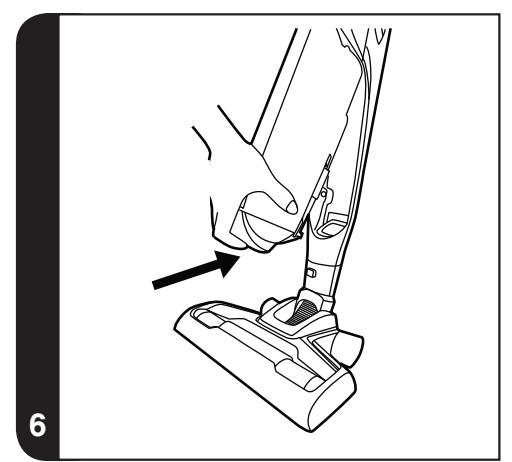

- Press the dust container release button and pull the dustbin forwards to remove it from the main body of the cleaner. [6]

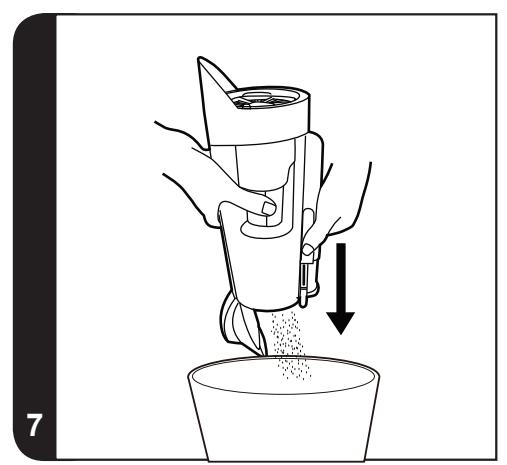

- Hold the unit over a bin and push the bin empty slider to empty the dust container. [7]

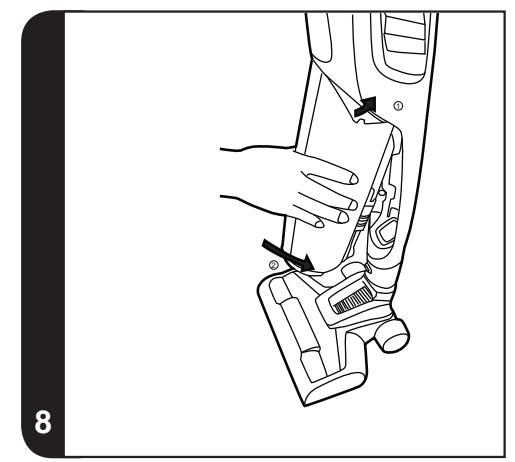

- Return the dust container to the cleaner main body. [8].
Cleaning the Filters
- Press the dust container release button and pull the dust bin forwards to remove it from the main body of the cleaner. [6]

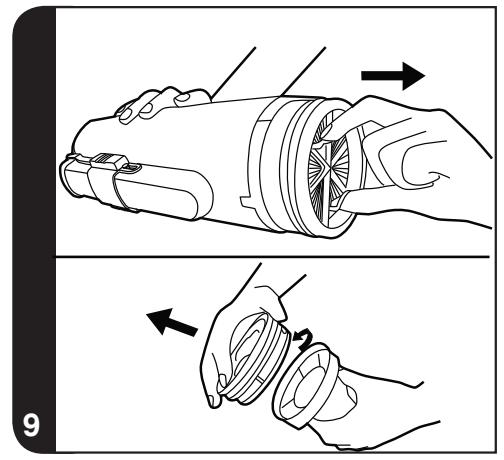

- Pull the filter and shroud assembly from the dust bin using the grips on the filter frame. [9]
- Twist the filter anticlockwise to remove it from the shroud. [9]

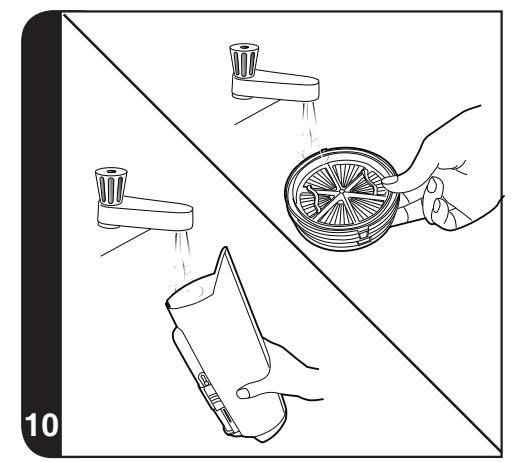

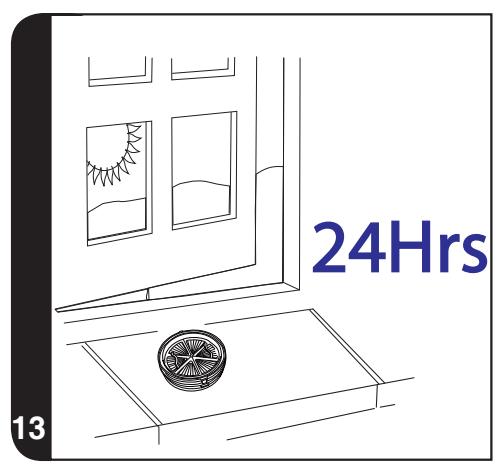

- Wash the filter in lukewarm water and leave to dry for 24 hours. Once thoroughly dry reassemble to the shroud and dustbin. [10]
- If required, wash the dustbin in lukewarm water. Ensure it is fully dry before returning to the main body of the cleaner. [13]
- Return the dust container to the cleaner main body. [8].
Note: Do not use hot water or detergents when cleaning the filters. In the unlikely event of the filters becoming damaged, fit a genuine Hoover replacement. Do not try and use the product without a filter fitted.
Important: For optimum performance, always keep your filter clean. We recommend that the filter should be washed once a month.
Changing the Agitator
IMPORTANT: Always switch off the cleaner before changing the agitator.

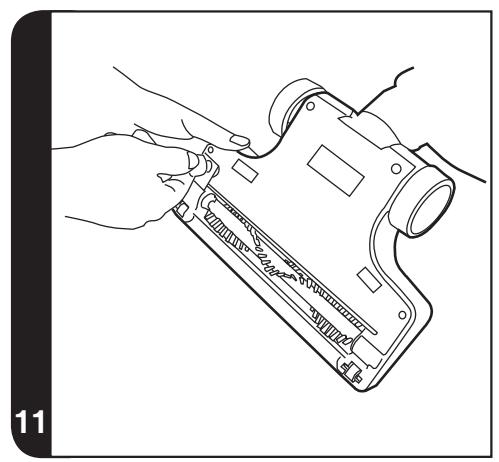

- Using a coin, turn the lock to the open position. [11]
- Remove the Agitator cover

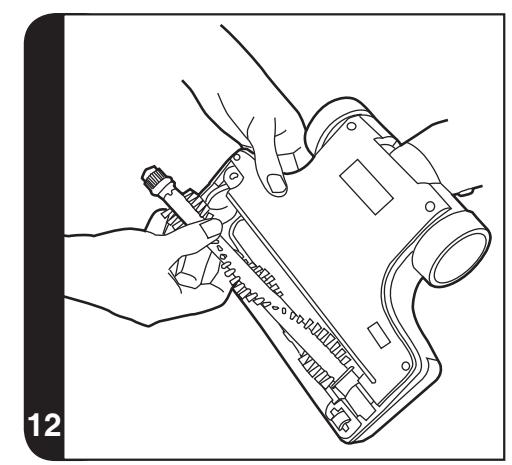

- Remove the old Agitator.
- Replace with the new Agitator. This can only fit in one direction. [12]
- Replace the Agitator cover and lock with a coin.
Battery Replacement
For reasons of safety the NiMh batteries in this cleaner are only replaceable by a Hoover Service engineer. When the batteries fail to maintain charge, please contact the Hoover Customer Service Centre to arrange a replacement.
End of Product Life Battery Disposal
If the cleaner is to be disposed of the batteries should be removed. Used batteries should be taken to a recycling station and not disposed of with household waste. To remove the batteries, please contact the Hoover Customer Centre or proceed according to the following instructions:
IMPORTANT: Always fully discharge the batteries before removal and ensure the charger is unplugged.
- Run the cleaner until the batteries are completely empty.
- Remove the ergonomic handle and the screws, in the main body to open the cleaner.
- Remove the motor battery housing and disconnect the cables.
- Remove the batteries from the housing.
Note: Should you experience any difficulties in dismantling the unit or for more detailed information about treatment, recovery and recycling of this product, please contact your local city office or your household waste disposal service.
TROUBLESHOOTING
Should you have any problem with your cleaner, follow this simple check list before calling the Hoover Customer Service Centre:
A. Cleaner does not switch on.
Check if the cleaner is charged.
B. Loss of suction or no suction
Empty the dust container and wash the filter.
Remove nozzle and check for any blockages in the ducts and hose.
Check that the dust container has been correctly fitted.
C. Fast Flashing indicator (2x per second)
Incorrect charger connected to product.
Use only charger provided with your cleaner.
D. Batteries cannot be charged.
This may be a result of very long storage periods (over half a year).
Contact Hoover customer service to arrange battery replacement.
If the problem persists, contact the Hoover customer service centre.
HOOVER SPARES AND CONSUMABLES
Always replace parts with genuine Hoover spares. These are available from your local Hoover dealer or direct from Hoover. When ordering parts, always quote your model number.
IMPORTANT: The battery in this cleaner is guaranteed for 6 months from purchase. After 6 months, the customer is liable for the cost of a new battery, which will be fitted free of charge by an authorized Hoover engineer.
Consumables
- Premotor HEPA Filter: S117-35601338
Spares
Agitator: Y29-35601339 Battery Pack 30V: 48006266 Charger: 48006269 Battery Pack 26.4V: 48006265 Charger: 48006268 Battery Pack 20.4V: 48006264 Charger: 48006267 Battery Pack 18V: 48006138 Charger: 48006258
The Environment:
This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product indicates that this product may not be treated as household waste. Instead, it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery, and recycling of this product, please contact your local city office, your household waste disposal service, or the shop where you purchased the product.
YOUR GUARANTEE
The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.
Subject to change without notice.
B. On/off switch
B1. OFF position B2. FLOOR position B3. CARPET position
C. Turbo button
D. Carrying handle E. LED display*
SAFETY REMINDERS
MAINTENANCE OF THE VACUUM CLEANER
Dust container
B. On/off button
NOTE: If you experience any difficulties in dismantling the unit or for more detailed information about treatment, recovery and recycling of this product, please contact your local office or your household waste disposal service.
TROUBLESHOOTING
HEPA filter for motor: S117-35601338
Spare parts
- Agitator: Y29 - 35601339
- Battery pack 30V: 48006266 Charger: 48006269
- Battery pack 26.4V: 48006265 Charger: 48006268
- Battery pack 20.4V: 48006264 Charger: 48006267
- Battery pack 18V: 48006138 Charger: 48006258
Million:
Please read the instructions carefully.
The Hoover appliance is designed to operate with original batteries and chargers, which are suitable for use with 230 V (240 V for the UK). Check the characteristics of the charger below; the models that are indicated on the label are the ones that match the characteristics of the appliance.
SAFETY WARNINGS
- DO NOT let children play with the appliance or its controls. DO NOT use the appliance to vacuum hot ashes, lit cigarettes, or wet surfaces. DO NOT vacuum sharp objects, pins, glass, or other sharp items. DO NOT use the appliance simultaneously with the vacuum cleaner's hose, or with a wet hand, or with bare feet, or with flammable liquids, as they may cause fire or injury.
- DO NOT replace NiMh batteries with non-rechargeable batteries. DO NOT place the appliance near heat sources (e.g., stoves, heaters, or radiators). DO NOT expose batteries to temperatures above 40°C. CLEAN the appliance and its filter regularly. PLACE the appliance on the charger after use to recharge the batteries. Periodically discharge the batteries fully and recharge them to maintain their maximum lifespan. DO NOT use any other charger with this product.
- DO NOT disconnect the charger by pulling the cord.
The appliance can be used by children aged 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
The electric vacuum cleaner is designed for household use only. The manufacturer accepts no liability for any damage caused by improper use or use other than that for which the appliance was intended, as described in the instructions.
HOOVER TECHNICAL SUPPORT: To ensure the safe and efficient operation of this appliance, we recommend that repairs and maintenance be carried out exclusively by Hoover authorized service engineers.
PRODUCT PARTS
A. Handle
B. On/off button
B. Power on/off button
B1. Parking position B2. Floor position B3. Carpet position
C. Turbo button
D. Handle
E. Indicator lights*
E1. Charging indicator*
F. Dust container
F1. Washable filter F2. Filter F3. Dust collector F4. Dust container release button
G. Air outlet grille H. Body I. Nozzle release button J. Rear wheels K. Nozzles
K1. Removable cover for rotating brush K2. Front wheels K3. Rotating brush K4. Side brushes
L. Lock M. Charging device
PREPARING YOUR VACUUM CLEANER
- Attach the handle to the main body of the vacuum cleaner in a straight line and secure it in place with the screws included in the kit. [2]
- Attach a nozzle to the hose and insert it firmly until it clicks into place. [3]
- The vacuum cleaner is powered by a rechargeable battery. It takes 24 hours to fully charge. [4] 4. The charge indicator will light up during charging.
Note: To remove the nozzle, press the nozzle release button and pull it out of the body.
Note: For charging, use only the charging device supplied with the vacuum cleaner.
Important! Before charging the appliance, the On/Off switch must be in the Off position.
It is perfectly normal if the charging device becomes warm during charging.
If the vacuum cleaner is used frequently, let it run until it stops completely, then charge it for 24 hours. Repeat this for best results.
Disconnect the charging device during prolonged absence (vacation, etc.). Recharge the vacuum cleaner before using it again, as the battery may self-discharge during storage.
OPERATING THE VACUUM CLEANER
Turn on the vacuum cleaner by sliding the On/Off switch to one of the following positions: [5]
- (FLOOR) For hard floors. Normal power, without rotating brush. [B2] CARPET: Ideal for carpets and rugs. Normal power with rotating brush. [B3] TURBO: Press the Turbo button to activate maximum power for deep cleaning of carpets. [C]
LED DISPLAY*
This vacuum cleaner is equipped with an LED display. When the vacuum cleaner is on, the display will show the following information:
BATTERY CHARGE LEVEL INDICATOR*:
4 bars = 100% charge. 3 bars = 75% charge. 2 bars = 50% charge. 1 bar = 25% charge.
When the batteries are completely discharged, the charge level indicator will flash for 20 seconds, then the vacuum cleaner will automatically turn off.
TURBO: When the turbo mode is activated, the Turbo indicator will light up blue.
CHARGE INDICATOR: When the charger is charging, the indicator will flash every 2 seconds. When fully charged, the indicator will stop flashing and remain lit as long as the charging device is connected. The indicator will sound when the charging process is complete.
VACUUM CLEANER MAINTENANCE
Emptying the dust container
- Press the dust cup release button and pull it out, then remove it from the vacuum cleaner body. [6] 2. Hold the device over a trash bin, press the slider on the bottom of the cup to empty the dust cup. [7]
- Insert the dust cup back into the main body of the vacuum cleaner. [8].
Cleaning the filters
- Press the dust cup release button and pull it forward to remove it from the vacuum cleaner body. [6]
- Remove the filter with the sponge assembly from the dust container using the handles on the filter frame. [9]
- Turn the filter counterclockwise to remove it. [9]
- Rinse the filter in warm water and let it dry for 24 hours. It is necessary to thoroughly dry and reinsert the filter into the dust container. [10]
- If necessary, rinse the container in warm water. Make sure it is completely dry before inserting it into the vacuum cleaner body. [13]
- Insert the dust cup back into the main body of the vacuum cleaner. [8].
Note: Do not use hot water or cleaning agents when washing the filter. Damage to the filter may occur. If this happens, replace the damaged filter with a new filter from the manufacturer. Use of the vacuum cleaner without a filter installed is prohibited.
Important! To ensure optimal performance, always keep the filter clean. We recommend washing the filter once a month.
WARNING! Never use the vacuum cleaner without the battery pack fully charged.
- Plug in the vacuum cleaner until the batteries are fully charged.
- Remove the ergonomic handles and screws from the main body to open the vacuum.
- Remove the motor housing, battery pack, and disconnect the cable.
- Remove the batteries from the housing.
Note: If you encounter any difficulties during disassembly of the vacuum, or for further information on recycling or disposal of this product, please contact your local municipal authority or your waste disposal service.
Troubleshooting
If you have any problems with the vacuum, please perform the checklist before calling the Hoover customer service center.
A. The vacuum does not turn on. Check the vacuum's power switch. B. The vacuum is not picking up or not picking up well. Check the filter for blockages. Remove any obstructions and check for any clogs in the hose or wand. Make sure the filter is installed correctly. C. The indicator light flashes (2 seconds) - the battery pack is not properly connected to the vacuum. Use only the battery pack supplied with the vacuum. D. The battery does not charge. It may be the result of a long storage period (more than a year). Contact the Hoover customer service center for battery replacement. If the problem persists, contact the Hoover customer service center.
SPARE PARTS AND CONSUMABLES FROM HOOVER
When replacing parts, use only genuine Hoover spare parts and consumables. They can be purchased from your local Hoover dealer or directly from Hoover. When ordering spare parts, always quote the model number of the vacuum.
WARNING! The battery in this product has a 6-month warranty from the date of purchase. After 6 months, if the customer purchases a new battery, free installation by a Hoover certified engineer is provided.
Consumables
- Motor filter: S117-35601338
Spare parts
BpaaouaJcS ￥29-35601339 KOMPJIeKTaKKymyIaTOPOB 30V: 48006266 KOMIIeKTaKkymyIaTOPOB26.4V: 48006265 KOMnIeKT aKKymyIaTOpOB 20.4V: 48006264 KOMPJIeKT aKKyMylrTOPOB 18V: 48006138
Okpykaouza cepa:
3TOr 3NekTpnpn6bp MapKnroBaH cornacHo Ebponecko dIpeKtBme 2002/96/EC no ytniHaaun 3Nektpnueckoro n 3NektpnHoro o6OpDobAHnra (WEEE). Co6nIoJa npaBnna ytniHaazum daHnHO 3NekTpnpn6bpa, Bbl NOMaete npedOTbPaNTb BO3MOxHbte OTPuAteNBhie nOcneDeCTBnI AN OkpykaaJeCpeBdI n 3DopOBBa YenOBeKa, KOtOpBe MOrN bIMetB MEcTo pInn HnepaBnHno yUToHuaZaum DaHNOy TcPOnCTBA. KLeMo HA daHOM UcTPOCTBE O3Haay, cTO erO HeB3a ytniHaiznpoBAt Aok k6bToBle OTXObJ. ETo Heo6XoImo DoCTABnB B COOTBETCTByuOu nnYHK TynHKT ytniHaZaum 3NekTpnuECKo I 3NekTpnoHHo O6OpDobAHnA.
YtIIN3aIy IOnJHn PIOBOUITbC B COOTBcTCTBm C MeCTHBIMn PnIpOoOxApaHNTeJIbHbIMn npabINAMn NO ytIN3aIy m OTXOB.ДЯ noluyehna 6oJe nOdpboHn INΦopMaIyn no yxOy,BOcTaHOBLeHnIO n nepepa60te DaHORo yctpoCTBa o6paTlTeCb K rOpOckMn BlaCTaR, B cIyK6y y tIN3aIy 6bITOBix OTXOB INB MArasIH, B KOTOPom Bbl pIno6peN daHHe oYcTpoCTBO.
BAWA TAPAHNTN
YcnoBnra rapaHTnnI dnaDaHnoro 3eKnTpuueckoro npnbopa onpeDelaOTcnaHIM npedCTaBteneM B cTpaHe, rTe 3OTnEKTponpnpOp noPdAn.Bolee nopnpOHyIO nHOFmauio 6 3nx YcNOBx BY MOKeTe nonyUHT y DInepa, npodabwero 3eKnTPponpOp. Pn npedeBbAeHNPi pteH3ni no yCNoBnAM daHbIX rapaHTnHbIX o83aTeNbCTB, doJXeH 6bT bpeCTaBnHe Yek nn KiBtANHua Na nopdaHnhToB tab
I3MeHeHnMOryT 6bITbBHeCHeHb 6e3 yBeDOMJIeHnA.
