Product Type	Drinks Cooler (dedicated for beverages)
Brand	Scandomestic
Model	Coca-Cola HighCube
Door Hinge	Reversible (left or right opening)
Temperature Control	Adjustable thermostat (settings 1-5)
Interior Light	Yes, with ON/OFF switch
Shelves	Adjustable shelves
Door Type	Tempered glass doors
Leveling Feet	Adjustable foot
Additional Space	Space for large bottles
Back Design	Flush back design
Installation Clearance	At least 10 cm from wall for air circulation
Defrosting	Manual defrost when frost > 3 mm
Cleaning	Interior with warm water and mild detergent; do not use abrasives
Power Failure Restart	Wait 3-5 minutes before restarting
Safety	Must be earthed; do not damage refrigerant circuit; keep ventilation clear
Intended Use	Domestic storage of drinks only
Warranty	12 months from date of purchase (original purchaser)
User Manual Pages	21 pages (PDF)

Frequently Asked Questions - Coca-Cola HighCube Scandomestic

Can I store food in the HighCube drinks cooler?

No, this appliance is designed exclusively for the storage of drinks. It is not suitable for food items.

How do I reverse the door hinge?

Remove the upper hinge screws, lift the door, transfer the blanking plug, swap the lower hinge and foot, then reattach the door and upper hinge. Refer to the manual diagrams for details.

What temperature setting should I use in summer?

In summer (ambient 15-25°C), set the thermostat to positions 4-5 to maintain proper cooling.

How often should I defrost the cooler?

Defrost when the frost layer exceeds 3 mm to avoid energy waste and inefficient operation.

What should I do during a power failure?

Keep the door closed as much as possible to conserve cold air. The unit will restart after power returns; wait 3-5 minutes before restarting.

How do I clean the interior?

Unplug the unit, wash the interior with warm water and a neutral detergent, then dry all surfaces thoroughly. Do not use abrasive cleaners.

The cooler is not cooling. What could be wrong?

Check power connection and fuse, ensure thermostat is set correctly (not too low), avoid overfilling, keep away from heat sources, and limit door openings.

Can I place heavy items on top of the cooler?

No, do not place items heavier than 20 kg on top, and avoid placing anything that could fall off when the door is opened.

What is the warranty period?

The cooler is warranted for 12 months from the date of purchase against defects in parts and manufacture, for domestic use only.

Why does my cooler make unusual noises?

Ensure the unit is on a level, firm surface and not touching other items. The sound of refrigerant flowing is normal when the compressor stops and starts.

USER MANUAL Coca-Cola HighCube Scandomestic

Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

To avoid contamination and depravity of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the of the appliance.
• Cleaning regularly surfaces that can come in contact with food and is accessible for drainage systems.
• Clean water tanks if they have not been used for 48 h. or more; Flush the water system connected to a water supply if water has not been drawn for 5 days or more.
• Store raw meat and fish in suitable containers in the refrigerator, so it is not in contact with, or can drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.
• One-, two- and three-star compartments are not suitable for the freezing of fresh food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to preventmould developing within the appliance

HighCube

A B C D E F G H

Technical diagram of an refrigerator with numbered parts for identification

Technical diagram of an refrigerator with numbered parts for identification

F∅R DU BRUGER APPARATET F∅RSTE GANG

Thank you for buying this HighCube. It has been designed and manufactured for many years of trouble-free service.

Operation is very simple, but please take a few minutes to read this booklet.

It contains important safety information, and tips to ensure you receive the best possible service from your HighCube.

This appliance is intended to be used exclusively for the storage of drinks.

WARNING: RISK OF ELECTRICAL SHOCK HAZARD

This unit must be earthed.

If the power cable is damaged, it must be replaced by a qualified engineer to avoid shock hazard. DO NOT ATTE MPT TO SERVICE THE ITEM YOURSELF.

Ensure that the appliance is properly earthed. Stop using the appliance immediately if electric shock is felt when touching the HighCube.

DISPOSAL OF OLD REFRIGERATORS

BE SURE TO MAKE ANY LOCKS UNUSABLE. IF POSSIBLE, REMOVE THE DOOR(S) AND DISCARD SEPARATELY.

WARNING - CHEMICAL HAZARD: DO NOT ALLOW CHILDREN TO PLAY WITH THE OLD APPLIANCE. CONTACT YOUR LOCAL AUTHORITY FOR PROPER DISPOSAL PROCEDURES.

Before disposing of an old appliance, please make sure it is switched off and safe. Unplug the appliance and break any locks in order to avoid children becoming trapped.

Please note: the cooling system contains gases and refrigerants which require specialist waste disposal. The valuable materials contained in a refrigerator can be recycled.

Contact your local waste disposal depot for proper disposal of an old appliance and contact your local authority or dealer if you have any questions.

Please ensure the pipework of your cooler is not damaged prior to disposal.

You can contribute to environmental awareness by insisting on an appropriate non-polluting method of disposal.

DISPOSAL OF PACKAGING

All the packaging materials with your HighCube may be disposed of without danger to the environment.

The cardboard may be broken or cut into smaller pieces and given to a waste paper disposal service. The wrapping foil is made of polyethylene. The polyethylene pads and stuffing contain no fluorochloric hydrocarbons. All these valuable materials may be taken to a waste collecting depot and used again after adequate recycling.

Consult your local authority for the name and address of the waste paper disposal services nearest to you.

SAFETY INSTRUCTIONS & WARNINGS

Before switching on your HighCube, read the information in this User Guide carefully. The User Guide contains important observations relating to the assembly, operation and maintenance of the appliance.

Please keep this booklet in a safe place for future reference. If you ever sell this unit, hand this User Guide to the new owner.

The manufacturer does not accept responsibility for any damages that may arise due to non-observation of these instructions.

- Do not use damaged appliances. If you are in any doubt, consult the supplier.

• Connection and installation of the unit is to be carried out in strict compliance with the relative instructions in this User Guide.
• For safety, the appliance must be properly earthed in accordance with specifications.
• Always remember to unplug the appliance before cleaning. Never unplug your HighCube by pulling on the power cable. Always grip plug firmly and pull straight out from the socket.
• All electrical repairs must be carried out by qualified engineers. Inadequate repairs may be dangerous.
• DANGER OF FERMENTATION: Keep alcoholic beverages in airtight bottles or containers and always store in an upright position.
• Do not damage any parts of the appliance which carry refrigerant by piercing, perforating, crushing, twisting or scraping. If the refrigerant comes into contact with the eyes, it may cause serious eye injury.
  • Do not obstruct or cover the ventilation aperture.
• Do not allow children to play with your HighCube, or to sit on it or hang onto the door.
• This appliance is not intended for used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

SPECIFICATIONS

• This appliance is designed as a cooler for drinks, NOT food stuffs.
  • It is intended strictly for domestic use.
  • The refrigerating circuit is leak-proof.

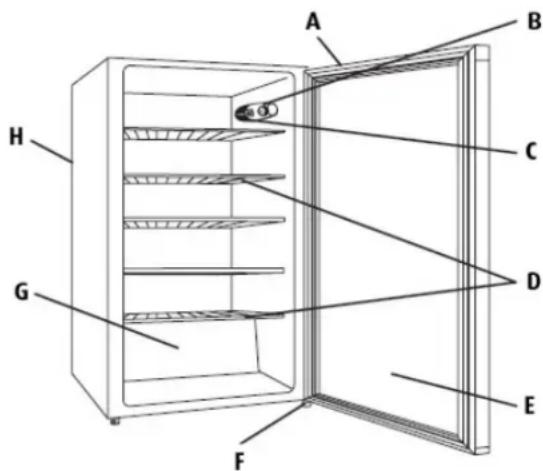

A B C D E F G H

A Reversible door
B Adjustable thermostat
C Interior lamp with ON/OFF switch
D Adjustable shelves
E Tempered glass doors
F Adjustable foot
G Additional space for large bottles
H flush back design

REVERSING THE DOOR HINGE

The door can be opened from left to right and vice versa. Should you wish to change the opening direction, please follow these instructions.

Note: all parts removed should be kept safely. You will require these for the reinstallation of the door.

• Remove the two screws (1) that hold the upper hinge (5)(right side) to the frame.
• Lift the door off and place on a padded surface to prevent scratching.
• Remove the blanking plug (8) from the hole in the upper left corner of the door and transfer it to the uncovered hole on the upper right corner. Press firmly to secure it.
• Remove the two screws (6) that hold the lower hinge (2)
• Remove the adjustable front left foot and transfer it to the other side.
• Remove the bolt pin(7) from the lower hinge (2) and reverse the direction of the lower hinge. Secure the lower hinge (2) to the left side of the lower frame with the two screws (6) Re-insert the bolt pin (7). Set the door into position, making sure it is seated comfortably onto the lower hinge (2).
• Holding the door closed, secure the upper hinge (5) into the top frame with the two screws (1). Check the door is level and tighten the screws firmly.

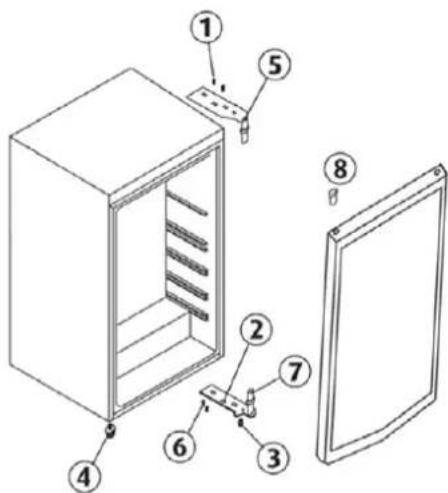

Fig 1 Position of components prior to reversal of the door hinge.

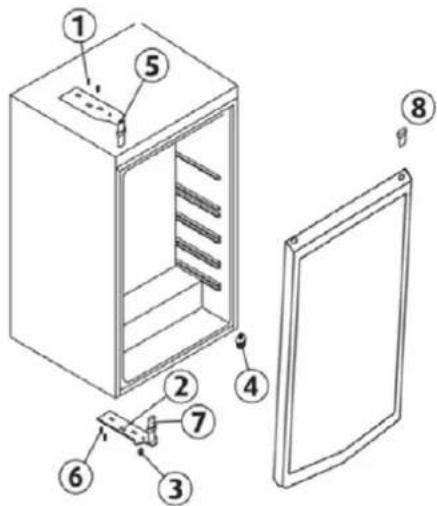

Fig 2 Position of components after reversal of the door hinge.

Technical diagram of a refrigerator with numbered parts for identification and assembly reference.

Technical diagram of an refrigerator with numbered parts for identification and assembly reference.

BEFORE USING FOR THE FIRST TIME

• The appliance may be placed with its rear panel at a distance of at least 10 cm away from the wall to allow air circulation.
• Your HighCube should be placed on flat and firm surface for quieter operation.
• Do not expose the appliance to direct sunlight or a heat source such as ovens, radiators, heaters, etc.
• Do not under any circumstances place heated beverages in your HighCube.
• Do not open the door more often than necessary to lessen the escape of cold air.
• For better air circulation, do not overfill the unit.
• Adjust the temperature regulator according to the amount of product and the ambient temperature.

BASIC OPERATION

Your HighCube must stand on an even surface. If the appliance is to be placed on carpet or delicate floors, support it with a wooden board underneath. Be aware that placing the appliance on carpet may mean that heat from the compressor may cause the carpet to fade. Be aware that humidity can cause water damage.

1. Clean the inner compartment.
2. Plug in your HighCube.
3. The first time you turn the unit on, set the thermostat, situated at the back of the unit, to the max. position "5".
4. After 20 minutes, adjust the temperature control setting to "3". This setting should be correct for home use.
5. To turn the unit off, disconnect the plug from the mains supply.

NOTE: If the unit is unplugged or power lost, you must wait 3 to 5 minutes before restarting. If you attempt to restart the unit before this delay, the unit will not start.

Tips for Refrigeration

Adjust the internal temperature according to the amount of product and the ambient temperature:

• Winter - Setting 1-2 (5°C-10°C)
• Spring and Autumn - Setting 2-4 (10°C-15°C)
• Summer - Setting 4-5 (15°C-25°C)

The inner temperature varies in different parts of the cooler. The back of the HighCube is coldest.

WARNING

If temperature selector is set to too low a setting, drinks become frozen. In extreme circumstances, glass bottles may even break. Always exercise caution when setting the temperature.

• Do not place heavy items (more than 20kg) on top of the HighCube.
• Do not place any items on top of the HighCube which may fall off when the door is opened.
  • After the appliance has been unplugged, leave for three minutes before plugging it in again.

When not in use

If the unit is not being used for long periods:

• Unplug your HighCube.
• Clean and dry the inside of the appliance. Leave the door slightly open to allow it to dry completely.
• A cooler which is unused without being cleaned may start to smell musty or develop mildew.

DEFROSTING AND CLEANING

Defrosting

- The surface of the evaporator ices up when the refrigerator is working. This is an entirely normal part of operation. If the frost layer is more than 3mm thick, the cooler must be defrosted and cleaned to avoid unnecessary energy consumption and inefficient operation.

1. Remove all items inside and unplug the unit.

2. After defrosting, reset the temperature selector to original position.

cleaning

1. Unplug your HighCube.
2. Wash the interior with warm water and neutral detergent.
3. Dry all surfaces thoroughly.

Note: Do not use abrasive cleaners!

To ensure efficient operation the back and bottom of the cooler should be cleaned thoroughly. Use mild soapy water to clean the door seal.

Moving your HighCube

• Unplug the appliance
• Remove all items inside
  Note: Never hold the appliance by the door.

Power Failure

- If a power cut occurs, do not open the door more often than necessary in order to conserve cold air.

TROUBLESHOOTING

Before returning your HighCube to the store, check the following points; you may be able to solve any problem yourself.

Not Cooling

• Check power cable is connected and fuse is intact.
- Wrong temperature selected. Adjust setting on controller to position shown (see page 10).
• HighCube is overfilled.
• Appliance exposed to direct sunlight or a heat source.
• Door is opened too often.

Unusual noises or noisy operation

• Appliance is not on a level, firm surface or may be touching other items.
• Note: It is normal to hear refrigerant flowing as the compressor stops and starts.

Outer surfaces are wet

• Water source or leak too near the appliance – dry surfaces thoroughly and move the appliance.

Inner surfaces are wet

• Door opened too often or kept open too often.
• Make sure that the door seals properly.

Warranty

This HighCube is guaranteed to be free from defects in parts and manufacture for 12 months from date of purchase, provided that the unit is used under the normal operating conditions shown within the manual. Your attention is drawn to the following:

• The Manufacturer will not accept any liability for damage or injury caused by improper use.
• The manufacturer will not be liable for any damage caused by moving the appliance; improper power supply; defective wiring or fuses; accident, alteration, abuse or misuse of the appliance; abnormal operating conditions; commercial or industrial use; fire; water damage; or customer misuse.
• This warranty is void if service on the unit is performed by any person other than an approved technician, or if the appliance is used for commercial purposes.

This warranty is available only to the original purchaser and is not transferable. Your normal consumer rights are not affected.

If service is required, DO NOT ATTEMPT TO REPAIR UNIT YOURSELF. Please return unit to store.

Proof of purchase will be required for any warranty claims. You must retain your original receipt.

If service under warranty is required, you will be required to produce this. Please also retain the original packaging should the unit need to be returned.

Please note: As part of our policy of continuous product improvement, the manufacturer reserves the right to amend specifications without notice.
