Product Type	Tumble dryer
Brand	Scandomestic
Model	TDH8WA3
Dimensions (HxWxD)	845 x 600 x 595 mm
Weight	44 kg
Power Supply	220-240 V~, 50 Hz
Rated Input Power	750 W
Rated Capacity	8.0 kg
Energy Efficiency Class	A+++
Refrigerant	R290 (130 g)
Noise Level	66 dB (standard cotton programme)
Programmes	Cotton Extra, Cotton Standard, Mix, Synthetics, Wool, Bed linen, Baby Care, Shirts, Outdoor, Time Dry, Refresh, My Cycle
Additional Functions	Anti-Crease, Delay Start (up to 12 h), Silence Dry, Intensity (dryness level), Hygiene (germ removal), Child Lock, UV (optional)
Lint Filter	Door lint filter (clean after every cycle)
Heat Exchanger	Clean with vacuum cleaner every 3 months
Water Container	Removable, empty after each use
Stacking	Yes, with optional stacking kit (professional installation required)
Safety Features	Child lock, door switch, overheat protection
Woolmark Approved	Yes (for machine washable wool)

Frequently Asked Questions - TDH8WA3 Scandomestic

How do I clean the lint filter?

Open the door, remove the door filter, open it and remove fluff. Clean with water if needed, dry thoroughly, and reinsert ensuring arrows align.

What should I do if the display shows 'FULL'?

The water container is full. Empty it by pulling out the container, pouring out condensate water, and reinstalling. Press Start/Pause to resume.

Can I stack this dryer on top of a washing machine?

Yes, but only with a compatible stacking kit. Installation must be done by a qualified professional to avoid hazards.

Why is the drying time too long?

Possible causes: lint filter or heat exchanger dirty, water container full, blocked air inlet, or high residual moisture in laundry. Clean filters and container, ensure proper installation.

How do I use the Child Lock?

While the dryer is running, press and hold Delay and Lamp buttons simultaneously for 3 seconds. The child lock icon will appear. Deactivate by repeating the same.

What does the 'Hygiene' function do?

It removes germs during drying for cleaner clothes. Select after choosing a programme. Use with caution for delicate fabrics.

Can I dry wool items in this dryer?

Yes, use the Wool programme. It is Woolmark approved for machine dryable wool. Follow garment label instructions.

What should I do if the dryer emits error codes like 'E33'?

Error codes indicate sensor or communication issues. Turn off and unplug the dryer, then contact an authorized service center. Do not attempt repairs yourself.

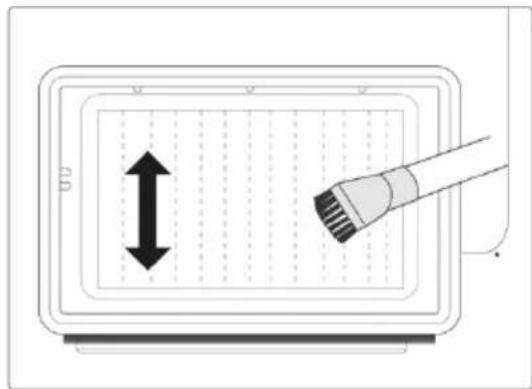

How often should I clean the heat exchanger?

Clean the heat exchanger every 3 months using a vacuum cleaner with a brush attachment. Do not touch with hands to avoid injury.

What is the 'My Cycle' function?

It lets you save your favorite programme. Select a programme and options, then press and hold Intensity for 3 seconds. Turn the programme knob to My Cycle to use.

USER MANUAL TDH8WA3 Scandomestic

tilbehør

Simple line drawing of a U-shaped pipe fitting with two ends (no text or symbols)

Installation

Simple line drawing of a washing machine with a cross symbol on the floor, no text or symbols present.

Diagram of a washing machine with a hand operating it, showing no text or symbols on the main components.

TÆND SLUK

Illustration showing two steps of a kitchen sink: one being lifted by hand, the other pouring liquid into a basin (no text or symbols)

Rengør filtrene

Technical illustration of a mechanical component with cross-sectional view and detail (no text or symbols)

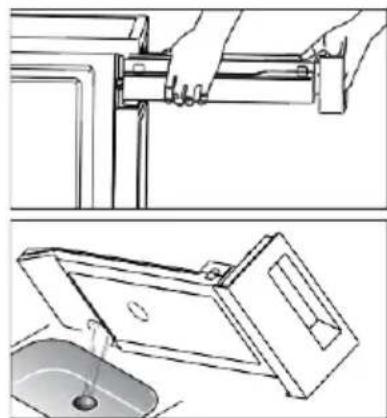

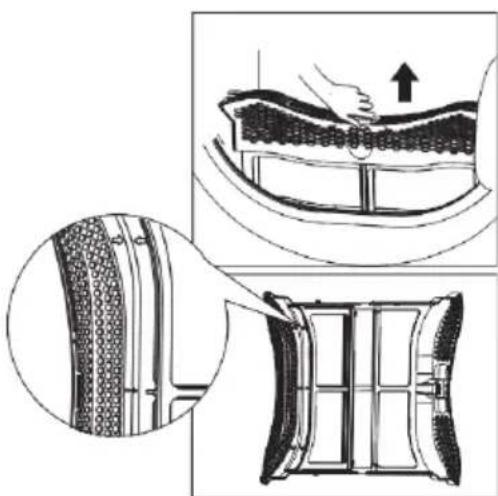

Rengør dørfilteret

Diagram showing a stylus interacting with a screen and ruler, with no visible text or symbols

Line drawing of a front-loading washing machine with a hand cleaning the door (no text or symbols)

Fejlfinding

- Read all instructions and explanations before use. Follow the instructions carefully.

- Keep the operation instructions handy for later use. If the appliance is sold or passed on then ensure that the new owner always receives these operation instructions.

Warning!

- To prevent any damages to your and others' life or property, you have to follow the safety notes.

Intended use

- This dryer is intended for drying typical amounts of household laundry, which have been washed with water. It has been designed solely for private use and is not suitable for commercial or shared use (i.e. by several families in an apartment building).

- Use this appliance only as described in this user manual.

• This appliance is for indoor use only.

- Any other use is deemed improper and may result in damage to property or even personal injury.

- The manufacturer accepts no liability for damage caused by improper use.

Safety Instructions

- The appliance corresponds to protection class I and may only be connected to a plug with a protective conductor that has been installed properly. When connecting the appliance to the mains, make sure that the mains voltage is correct. You can find more information about this on the rating plate.

- The electrical safety of this tumble dryer can only be guaranteed when correctly earthed. It is essential that this standard safety requirement is met. If in any doubt, please have the household wiring system tested by a qualified electrician. The manufacturer cannot be held liable for the consequences of an inadequate earthing system (e.g. electric shock).

Warning: Electric shock hazard

- Before connecting the tumble dryer, ensure that the connection parameter on the rating plate (fuse rating, voltage and frequency) match the mains electricity supply. If in any doubt, consult a qualified electrician.

- The electrical safety of this tumble dryer can only be guaranteed when correctly earthed. It is essential that this standard safety requirement is met. If in any doubt, please have the household wiring system tested by a qualified electrician. The manufacturer cannot be held liable for the consequences of an inadequate earthing system (e.g. electric shock).

- Do not pull the power cord forcefully. Please grasp the mains plug instead

- Do not plug/draw the mains plug with wet hands.

- Do not bend, clamp or damage the power cord and the power plug.

- If the power cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- Warning: The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility.

- Do not connect the appliance to the mains electricity

supply by an extension lead, multi-socket adapter or similar.

• The accessibility of the plug must always be ensured, in order to disconnect the tumble dryer from the mains.
• If the appliance appear high temperature abnormally, please draw the mail plug immediately.

Injury danger

• The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer, in such a way that a full opening of the tumble dryer door is restricted.
• Do not disassemble or install the dryer without any instruction or supervision.
• Do not stack this dryer on washing machine without stacking kits. (If you want to stack this dryer on a washing machine, please purchase the independent parts. Installation shall be done by the manufacturer, its service agent or similarly qualified persons to avoid any hazards.)
• Do not lean on the opened door of the dryer.
• Condensed water is not drinking water. It can cause health problems in both people and animals if consumed.

Damage danger

• Do not put more load than rated in this user manual. See the related chapter in the user manual.
• Do not operate the dryer without the lint filter.
• Do not dry the clothes before being spun.

• Do not expose the dryer directly under the sun.

• Do not install the dryer in humid and drenching environment.

• While cleaning and maintenance, please do remember to pull out the power plug and do not directly spray the dryer with water.
• The appliance should not be overturned during normal use or maintenance.

Explosion & Fire danger

• Please do not dry the clothes with any flammable substances such as kerosene or alcohol. Otherwise, there may be explosion.
• The tumble dryer is not to be used if industrial chemicals have been used for cleaning.
• Do not dry unwashed items in the tumble dryer.
• Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.
• Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.
• Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.

• Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as in a tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation creates heat. If the heat cannot escape, the items can become hot enough to catch fire. Piling, stacking or storing oil-affected items can prevent heat from escaping and so create a fire hazard.

• Remove all objects from pockets such as lighters and matches.

• If it is unavoidable that fabrics that contain vegetable or cooking oil or have been contaminated by hair care products be placed in a tumble dryer they should first be washed in hot water with extra detergent. This will reduce, but not eliminate, the hazard.
• WARNING: Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.
• Openings must not be obstructed.
• The lint trap has to be cleaned frequently.
• Lint must not to be allowed to accumulate around the tumble dryer.

Safety with children

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children without supervision.

• Children should be supervised to ensure that they do not play with the appliance.
• Children of less than 3 years should be kept away unless continuously supervised.
• Always close the door after use. In this way you will avoid the danger of:

1 Children climbing onto or into the dryer or hiding things in it.
2 Pets or other small animals climbing into it.

Correct Disposal of this product:

- This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Disposal of packaging material

- The packaging is designed to protect the appliance from damage during transportation. The packaging materials are environmentally friendly and should be recycled. Recycling the packaging can reduce the use of raw materials in the manufacturing process and the amount of waste in landfill sites.

Rated capacity: 8kg

Product Description

A Power cord

B Top board

C Water container

D Drum

E Door filter

F Control panel

G Door

H Air inlet

I Maintenance cover

purchased might differ. Please see

the product you purchased in kind prevail.

Accessories

The following parts are optional for specific models.

• Hose holder
  • Condenser drain hose

If your dryer has following parts, please install them following the instruction below.

Simple line drawing of a U-shaped pipe fitting with two ends (no text or symbols)

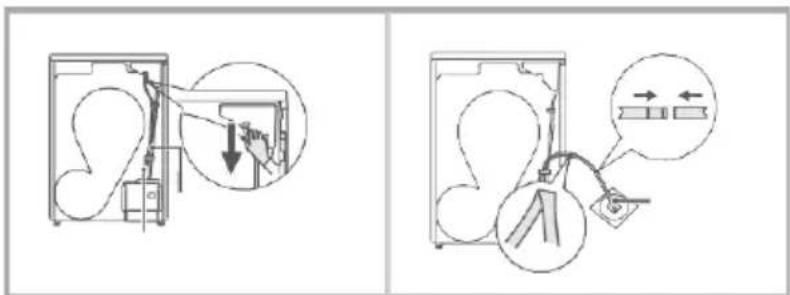

Installation

1 Pull out the upper drain hose

2 Put the external drain hose into the floor drain (be careful not to bend the external drain hose)

Transport

Move cautiously. Do not grasp any salient parts of machine. The machine door cannot be used as the handle for transport. If the dryer can't be transported erectly, the dryer can be tilted to right less than 30^irc .

Risk of injury and damage!

Improper handling of the appliance may result in injury.

• The appliance is very heavy. Never transport or carry the appliance alone; always with the assistance of another person.
• Remove all obstacles on the transport route and from the installation location, e.g. open doors and clear away objects lying on the floor.
• Do not use the open door as a handhold.
• Remove all package material before using the appliance.
• Before setting up the tumble dryer, check it for any externally visible damage. Do not install or use a damaged tumble dryer.
• Do not install the tumble dryer in a room where there is a risk of frost occurring.
• At temperatures around freezing point the tumble dryer may not be able to operate properly. There is a risk of damage if the condensed water is allowed to freeze in the pump and hoses.

Installation Position Warning

Simple line drawing of a washing machine with a cross symbol on the floor, no text or symbols present.

• Children can become entangled in the packaging film or swallow small parts and suffocate. Do not allow children to play with the packaging.
• The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer, in such a way that a full opening of the tumble dryer door is restricted.
• Do not restrict the floor clearance through deep pile carpets, strips of wood or similar. This might cause heat built-up which would interfere with the operation of the appliance.

1 It is recommended that, for your convenience, the machine is positioned close to your washing machine.

2 Do not stack this dryer on washing machine without stacking kits. (If you want to stack this dryer

on a washing machine, please purchase the independent parts. Installation shall be done by the manufacturer, its service agent or similarly qualified persons to avoid any hazards.)

3 The tumble dryer must be installed in a clean place, where dirt does not accumulate. Air must be able to circulate freely around the appliance. Do not obstruct the front air inlet or the air intake grilles at the back of the machine.
4 To keep vibration and noise within minimum level when the dryer is in use, it must be placed on a firm and level surface.
5 The feet must never be removed.

Level Adjusting

Once in its permanent operating position, check that the dryer is absolutely level with the aid of a spirit level. If it is not, adjust the feet by hand or using a tool.

Diagram of a washing machine with a hand operating it, showing no text or symbols on the main components.

Power Supply Connection

1 Make sure that the voltage of the power supply is the same as the electric specification.
2 Do not connect the dryer with the power connection board, a universal plug or socket, do not use multi-plug adapters and extension cables.

After Drying

Buzzer beep and "END" on display.

1 Open the door and take out laundry
2. Pull out the container
3 pour out condensate water
4. Clean the filter
5 Power off

Note!

If the socket with a switch is used, please press the switch to turn off the power directly.

Before each Drying

Note!

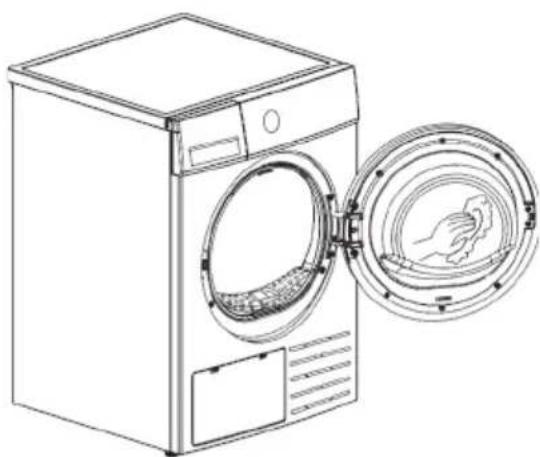

• Before first use, please use a soft fabric to clean the inside drum.
- Put some clean rags into the drum.
- Plug the power plug, press (On/Off).
- Select the (Refresh) Programme, press (Start/Pause) button.
- After finishing this programme, please follow the "cleaning and care" instructions (refer to page 20) to clean the lint filter. - During drying, the airflow and the pump will generate some noise which is entirely normal.

1 Before drying, thoroughly spin the laundry in washing machine. High spin speed shortens the drying time and saves energy.
2 For uniform drying result, sort the laundry according to fabric type and select the appropriate drying programme.
3 Before drying, please close zips, hooks and eyelets, button, tie fabric belts, etc.
4 Remove all objects from pockets such as lighters and matches.

5 Sew in or remove underwiring from bras.

6 Close duvet covers and pillow cases to prevent small items from being rolled up inside them.

7 Leave jackets open and undo any long zips so that textiles dry evenly.

8 Do not over dry the clothes, because over dried clothes can easily get creases.

9 Do not dry the articles containing rubber or similar elastic materials.

10 Keep the area around the tumble dryer clean. Coal dust or flour may cause an explosion.

11 The door shall be opened only after the programme of the tumble dryer is finished to avoid being scalded by hot steam or over heated drying machine.

12 Clean the lint filter and empty water container after each use to avoid extension of drying time and increase of energy consumption.

13 Do not dry clothes after dry-clean process.

The reference weight of dry clothes (each)

Sweater....(about 800g)

Jacket.... (about 800g cotton)

Jeans....(about 800g)

Towel quilt.... (about 900g cotton)

Single bedsheet.... (about 600g cotton)

Work clothes ....(about 1120g)

Sleepwear....(about 200g)

Long sleeve shirt.... (about 300g cotton)

Short sleeve shirt.... (about 180g cotton)

Short pants.... (about 70g cotton)

Socks.... (about 50g mixed-weave)

	Suitable for tumble drying
	Normal drying process: Drying in the tumbler is possible under normal load and temperature 80°C.
	Mild drying process: Caution is appropriate when tumble drying. Select mild process with reduced thermal action.
	Do not tumble dry: Articles unsuitable for drying in the tumbler.

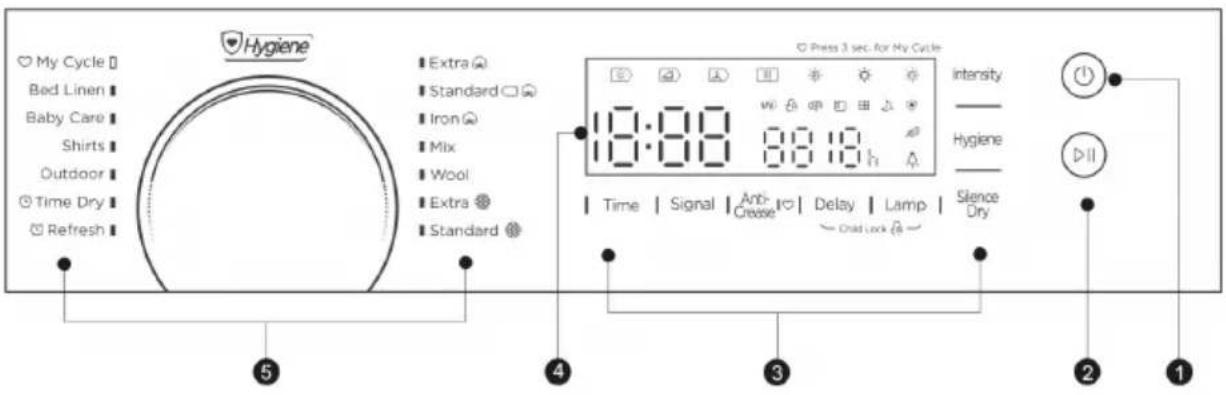

Control Panel

ON/OFF

Product is switched on or off.

Start/pause

Press the button to start or pause the drying cycle.

Option

These buttons are used for setting additional functions.

Display

The display shows the setting, estimated program time remaining and status messages of your dryer.

Program

Different drying cycles can be selected according to the users need and the type of laundry to be dried.

Option

Anti-Crease

At the end of the drying cycle, the anti-crease time is 60 minutes (default), 30 minutes or 90 minutes (selected). This function prevents the laundry from creases. The laundry can be removed during the anti-crease phase. Except (Wool) and (Refresh), all the other programmes have this function.

Delay

This function is used for delaying the start of the drying programme up to 12 hours. When the delayed programme starts, the time starts to countdown on the display.

1. Load your laundry and make sure the machine door is closed.
2. Press the (On/Off) button, then use the programme selector knob to select the desired programme.
3. Press the (Delay) button.
4. Repeatedly press the (Delay) button to select the desired delay time.
5. After the (Start/Pause) button is pressed, the dryer is at the running condition. The drying procedure will be automatically performed when the delay time is over.
6. If you press the (Start/Pause) button again, the delay function will be paused.
7. If you want to cancel the "Delay" function, please press the (On/Off) button.

Silence Dry

Rotate speed of the drum will drop down to reduce the noise of the dryer, but the drying time will extend.

Intensity

You can adjust the dryness level of the laundry by pressing the (Intensity) button.

1. The intensity function can be adjusted only before the programme starts.
2. Press the (Intensity) button repeatedly to adjust the drying grade.
3. Except the (Wool), (Time Dry), (Refresh) programme, all the other programmes can be adjusted with the (Intensity) function.

Time

When the (Time Dry) or (Refresh) programme is selected, the (Time) button can be used to adjust the drying time in 10 min. steps.

Lamp

The drum light will be on for 1 minutes when the button is pressed or 1 minute when the door is open.

Signal

Set the buzzer on or off. In default condition, the buzzer is on. When the buzzer is on:

1. The dryer will affirm pressed function button by a sound.
2. If the programme knob is rotated during the dryer is running, the buzzer will remind the user that this is an invalid operation.
3. When the drying programme is done, the buzzer will beep.

Hygiene

After selecting the program, you can choose the (Hygiene) function according to your needs. Press

(Hygiene) to select this function.

Press it again to cancel. After selecting the (Hygiene) function, germs are removed during the drying process, making the clothes cleaner and safer.

Use this function with caution for light, thin or delicate laundry.

Child Lock

1. This machine incorporates a special child safety lock, which can prevent children from carelessly pressing buttons or making the faulty operation.

2. When the drying cycle is running, press the (Delay) and (Lamp) buttons at the same time for 3 seconds to start child lock function.

3. When child lock function is set, the display will show Child lock icon and all button are deactivated, except (On/Off) and (Lamp) button.

4. To deactivate the child lock function, the (Delay) and (Lamp) buttons shall be pressed at the same time for 3 seconds.

My Cycle

Used to define and save your favourite program, which is used frequently.

1. Select the desired programme and other drying functions.

2. Press and hold the (Intensity) for 3 seconds until the beep sounds and the desired programme has been saved.

3. Turn the programme selector to the (My Cycle) position, then you can start your favourite programme. If you want to change the (My Cycle) settings, repeat the steps (1) and (2).

	Child lock
18:88	Remaining Time indicator/Error message
	Cycle phase status (drying,iron dry reached,cool down,cupboard dry reached)
	Clean filters (warning)
	Empty water container (warning)
	Intensity (dry level) (more dry,regular dry,less dry)
	Lamp
	Signal
	Silence Dry
	Hygiene
	Anti-crease
UV	UV

Wool care

The wool drying cycle of this machine has been approved by The Woolmark Company for the drying of machine dryable wool products provided that the products are dried according to the instructions on the garment label and those issued by the manufacturer of this tumble dryer.

Programs

Program selector

• When the LED display screen brightens up, rotate the program knob to select the desired program.
• Select the (Time), (Anti - Crease), (Delay), (Silence Dry), (Hygiene) or (Intensity) functions for additional options.
• Press the (Start/Pause) button.
• Press the (On/Off) button after the program has completed.

Program start

The drum will rotate after the programme starts. The cycle phase LED in the display will light up and the remaining programme time will be displayed.

Program end

1. The drum will stop rotating after the programme ends. The display will show "End" and related LED will illuminate. The dryer will start (Anti-Crease) function if user doesn't remove the load.

After the load is removed, press (On/Off) to switch off if the display is on. Drying is complete, please unplug.

1. Deal with the problems according to "Trouble Shooting" section, if there is an unexpected stop during the drying procedure or the dryer shows an Error Code

Drying Program Table

Programme		Max Load	Application/Properties	Delay	Time
Cotton	Extra	8.0kg	For single or multi-layer cotton laundry to be dried completely for direct storage.	Y	N
	Standard
	Iron		For single layer cotton laundry to remain damp for ironing.
Mix		3.5kg	For mixed fabrics from cotton and synthetics.	Y	N
Synthetics	Extra	3.5kg	For thick or multi-layer synthetic fabrics to be dried completely .	Y	N
	Standard		To dry thin synthetic textiles, which are not ironed, such as easy care shirts, baby cloths or socks.
Wool		1.0 kg	Gentle drying for machine washable woolitems. The final moisture content will depend on the load size and the moisture content after spinning.	Y	N
My Cycle	-	-	Define and save your favourite programme.	Y	-
Bed linen		4.0 kg	To dry bed linen, bed sheets or other large items.	Y	N
Baby Care		1.0 kg	To dry small amount of baby clothing.
Shirts		1.0 kg	For easy care laundry, such as shirts and blouses equipped with anti-crease functionality to minimize the ironing effort. Place clothes loosely in the dryer. Once dried, remove quickly and hang it on a clothes hanger.
Outdoor		3.0 kg	To dry sportswear and thin fabrics from polyester, which are not ironed.	Y	N
Time	Time Dry	3.0 kg	To dry individual items or complete the drying process of multi-layer fabrics with different drying behavior, such as jackets, pillows or voluminous items. Min 10 min. to max. 150 min.(in 10 min.steps)	Y	Y
	Refresh	1.0kg	To refresh clothes or to remove odors. Min. 20 min to max. 220 min.(in 10 min. steps)

Note for Test Institutes:

Test programme in accordance with Regulation 392/2012/EU for energy labelling, measured in accordance with EN 61121 and suitable for drying normal cotton load at rated load capacity.

Consumption Data

Program	Capacity	Spin Speed / Residual Humidity	Drying Time	Energy Consumption
Cotton Standard	8 kg	1000rpm / 60%	180 min	1.43 kWh
Cotton Standard	4.0 kg	1000rpm / 60%	120 min	0.81 kWh
Synthetic Standard	3.5 kg	800rpm / 40%	75 min	0.55 kWh

Note!

- Thick or multi-layered fabrics, e.g. jackets etc., are not easy to dry. You had better choose Cotton Extra programme.

• As uneven material, thick and multi-layered clothes are not easy to dry, it is better to choose the appropriate time drying programme to completely dry them if some parts of the clothes are still damp after programme finishes.
  • All data are measured in accordance with EN 61121.
• The actual consumption may differ from the values given in the table, depending on the amount of the laundry, type of fabric, residual moisture and any additional functions selected.

Cleaning and Care

1 Empty the water container
2 Pull out and hold the water container with two hands.
3 Tilt the water container, pour out the condensate water into the basin.
4 Install the water container.

Warning

• Empty the water container after each use. Once the water container is filled completely, the programme will be paused and the "Full" icon will light. After the container is emptied, the dryer can be restarted by pressing (Start/Pause) button.
• Do not drink the condensate water.
• Do not use the dryer without the water container.

Clean the filters

This dryer has a primary door lint filter.

Make sure you clean the door filter after each cycle.

Note!

To ensure the double-layer filter can be closed smoothly, the arrows at both ends need to be aligned, and the middle slot and the rib need to be aligned.

Clean the door filter

1 Open the door.
2. Take out the door filter.
3 Open the filter and remove the fluff on the filter. You can clean it in running water.
4 Dry the door filter thoroughly before installing it back.

Technical illustration showing two steps of a mechanical assembly: top view with hand holding a bracket, bottom view with open lid and drain (no text or symbols)

Technical illustration showing a mechanical component with cross-section and side views, no visible text or symbols

Note!

• Take notice of the correct orientation before to insert the door filter.

Clean the heat exchanger Warning!

Do not touch the heat exchanger with your hand, which may cause an injury.

- As necessary, approx. once every 3 months, remove the fluff from the heat exchanger using a vacuum cleaner with a dusting brush attached.

- Clean the heat exchanger without applying any pressure. Otherwise the heat exchanger could be damaged. The dryer will not dry if the cooling fins are damaged or bent.

Diagram showing a device with a stylus and a vertical double-headed arrow, no text or symbols present

Clean Tumble dryer

Warning!

- Disconnect the power cord before cleaning!

- Clean the dryer with a wet cloth which is only damped by clean water.

- Do not use solvents, abrasive cleaners, glass cleaners or all-purpose cleaners. These could damage plastic surfaces and other parts.

- Please wear gloves when cleaning.

• Prepare a wet cloth damped by clean water.

- Clean the door, especially the inside window.

- Clean the sealing around the door opening.

- Clean the humidity sensor inside the drum.

• Take out all the filters, clean the sealing and air flow openings.

• Before starting the dryer, dry all parts with a soft cloth.

Line drawing of a front-loading washing machine with a hand cleaning the door (no text or symbols)

Trouble Shooting

Many malfunctions and faults that might occur in daily operation can be easily remedied. Time and money will be saved because a service call won't be needed. The following guide may help you to find the reason for a malfunction and correct it.

Error codes

Display	Reason	Solutions
FULL	Container is full	Empty water container
	Water pump failure or water level sensor failure	Pull out the plug from the socket.Please contact your local service center if the problem occurs.
“E33”	Temperature sensor error
“E64”	PCB communication error
“E82”	PCB communication error

Warning

• Only authorised technicians can carry out repairs.
• If the LED displays other prompt and the dryer does not work, please call the service .

Note!

Before you call the service, please check if you have dealt with the problems yourself consulting the user instructions.

Problem	Solution
Display is not on	Check if the power supply works.Check if the mains plug is inserted.Check the selected programme.Press the (On/Off) button.
“Full” is lighting	Empty water container.If the light still remains on, please call the service.
“Filter” is lighting	Clean the lint filter.
Dryer does not start	Connect the tumble dryer to the mains.Turn on the tumble dryer.Check the the door is closed.Check the programme is set.Press the (Start/Pause) button.
Degree of dryness was not reached or drying time too long	Clean lint filter and heat exchanger.Empty the water container.Check the drain hose.Check installation place is appropriate.Keep the air inlet clean.Use higher drying intensity level programme or time programme.
There are humming noises	The compressor is operating. These noises are quite normal and do not indicate a fault.
The dryer switches off at the end of the programme	The dryer switches off automatically for energy saving. This is not an error but a normal function.

Warning

If you cannot deal with the problems by yourself and need help:

• Press the (On/Off) button.
• Pull out the mains plug and call the service.

Technical Specifications

Dimension (HxWxD) 845 x 600 x 595mm

Ambient temperature....+2°C \~ +35°C

Rated input power 750W

Rated voltage 220-240V\~

Rated frequency....50Hz

Rerfrigerant.... R290

Weight of product....44 kg

Rated capacity.... 8.0 kg

GWP 3

COeq....0,00t

Quantity of refrigerant.... 130 g

• The rated capacity is the maximum capacity, make sure that the dry clothes which are loaded to the appliance do not exceed the rated capacity.
• Do not install the tumble dryer in a room when there is a risk of frost occurring. At temperatures around freezing point the tumble dryer may not be able to operate properly.
• There is a risk of damage if the condensate water is allowed to freeze in the pump, hoses and / or condensate water container.

Product Fiches

Rated Capacity....8kg

Energy efficiency class....A+++

Weighted annual energy consumption (AEc) 1* 176,1 kWh / year

Automatic or non-automatic....Automatic

EU Ecolabel....N/A

Energy consumption of the standard cotton programme

Weighted energy consumption of the standard cotton programme at full and partial load....1.07 kWh

Energy consumption of the standard cotton programme at full load....1.43 kWh

Energy consumption of the standard cotton programme at partial load 0.81 kWh

Power consumption of the off-mode (Po)....0.5 W

Power consumption of the left-on mode (PI)....0.8 W

Duration of the left-on mode 10 min

Programme time of the 'standard cotton programme'

Weighted programme time of the standard cotton programme at full and partial load 145 min

Programme time of the standard cotton programme at full load 180 min

Programme time of the standard cotton programme at partial load 120 min

Condensation efficiency class A (most efficient) to G (least efficient) ...... B

Average condensation efficiency of the standard cotton programme at full load 81%

Average condensation efficiency of the standard cotton programme at partial load 81%

Weighted condensation efficiency for the standard cotton programme at full and partial load 81%

Sound power level for the standard cotton programme at full load 66 dB

Remarks

Energy consumption per year, based on 160 drying cycles of the standard cotton programme at full and partial load, and the consumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used

The 'standard cotton programme' used at full and partial load is the standard drying programme to which the information in the label and the fiche relates, that this programme is suitable for drying normal wet cotton laundry and that it is the most efficient programme in terms of energy consumption for cotton

Säkerhets instruktioner

Tillbehör

Simple line drawing of a U-shaped pipe fitting with two ends (no text or symbols)

Installation

Installationsposition Varning

Simple line drawing of a washing machine with a cross symbol on the floor, no text or symbols present.

Diagram of a washing machine with a hand operating the button (no text or symbols present)

Handduksquilt (ca 900g bomull)

Enkellakan ....(ca 600 g bomull)

PÅ AV

Two-step diagram showing hand positioning and cleaning process of a mechanical component (no text or symbols)

Technical illustration showing a mechanical assembly with cross-section and detail views (no text or symbols)

Diagram showing a device with a brush and a vertical double-headed arrow on the screen (no text or symbols)

Line drawing of a front-loading washing machine with a hand cleaning the door (no text or symbols)

Felsökning
