Product Type	Vented Tumble Dryer
Brand	Scandomestic
Model	TRK 3020
Capacity	7 kg
Dimensions (H x W x D)	85 x 60 x 60 cm
Weight	35 kg
Power Supply	230 V ~ 50 Hz
Power Consumption	2000 W
Energy Efficiency Class	C
Drying Programs	Cotton, Synthetics, Delicates, Mix, Timed Drying
Temperature Settings	High, Low
Display Type	LED
Door Type	Reversible, Chrome Glass
Lint Filter	Removable, Washable
Water Tank (for condenser models)	N/A (Vented)
Delay Start	Up to 24 hours
Child Lock	Yes
Anti-Crease Function	Yes
Noise Level	65 dB
Venting Hose Diameter	100 mm
Included Accessories	Venting hose, user manual
Repairability Index	7.5 / 10
Spare Parts Availability	5 years after end of production
Certifications	CE, WEEE

Frequently Asked Questions - TRK 3020 Scandomestic

How do I clean the lint filter on my Scandomestic TRK 3020 dryer?

Open the door and pull out the lint filter located at the bottom of the door opening. Remove lint by hand or with a soft brush. Rinse the filter under running water if needed, then dry it completely before reinserting. Clean the filter after every cycle for optimal drying performance.

What should I do if the dryer does not start?

Check that the appliance is plugged in and the door is fully closed. Ensure the child lock is not activated. Also verify that the program selector is not in the 'Off' position. If the problem persists, consult the troubleshooting section of the manual.

Can I install the TRK 3020 in a bathroom or unheated space?

The dryer can be installed in an unheated space, but avoid temperatures below 5°C. It should not be installed in a bathroom or where it may be exposed to water splashes. Ensure adequate ventilation for venting.

What is the maximum load capacity for cotton programs?

For cotton programs, the maximum load is 7 kg (dry laundry). Do not overload, as it reduces drying efficiency and may cause damage.

How do I reverse the door of the dryer?

The door is reversible. Loosen the screws on the hinge side, remove the door, and refit it on the opposite side using the pre-drilled holes. Refer to the instruction manual for detailed steps. Always unplug the appliance before starting.

Why does the dryer stop mid-cycle?

Possible reasons: the lint filter is clogged, the vent hose is blocked, or the overheat protection activated. Clean the filter and vent, then restart. If it stops repeatedly, contact customer service.

How do I set the delay start feature?

Select your drying program and press the 'Delay Start' button repeatedly to set the desired delay (up to 24 hours). The display shows the remaining time before the cycle starts. Press 'Start/Pause' to confirm.

Can I dry sneakers or rubber items in this dryer?

It is not recommended to dry items with rubber components (e.g., sneakers, mats) as high heat can damage them. Use a low temperature program only if the care label permits. Air drying is safer.

How often should I clean the moisture sensor?

Clean the moisture sensor (two metal strips near the lint filter) every two months. Use a soft cloth with mild detergent, then wipe dry. A dirty sensor can cause over-drying or under-drying.

Where can I purchase spare parts for the TRK 3020?

Spare parts are available from authorized Scandomestic dealers and online spare parts stores. Use the model number TRK 3020 when ordering. Common parts include filters, belts, and heating elements.

USER MANUAL TRK 3020 Scandomestic

Line drawing of hands operating a mechanical lever or bracket (no text or symbols present)

Illustration of a kitchen appliance with a sink and a door, no text or symbols visible

Illustration showing hands installing a door panel and opening a window with a sink (no text or symbols)

Rens filteret

Pure mechanical diagram showing curved and straight components without any text, numbers, or symbols

Rengør filterbasen

Vask luftkondensator

1 Til/Fra

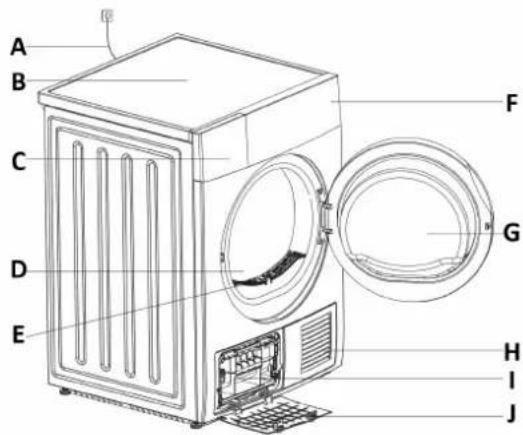

A - Strømledning
B - Top cover
C – Kondensvandbeholder
D - Tromle
E - Fnugfilter
F - Kontrol panel
G - Dør
H - Luftindtag
I - Filter base
J- Vedligeholdelse dæksel

Tilbehør

• To prevent any damages to your and others' life or property, you have to follow the safety notes.
• This product belongs to Category electrical appliances, and only for drying textiles which have been washed with water in the household. Please pay attention to the safety of power use during the operation!
• The power source with reliable earthing must be used. Its earth wire must be buried under the ground and shall not be connected with the public utilities such as city water pipe or gas pipe etc. The earth wire and null wire shall be distinguished and shall not be connected together.
• The power wire shall be met IEC and must be able to withstand the current above 16A. To ensure your and your family's safety, please make improvement immediately if any power use at your home does not meet the above-mentioned requirements.
• Do not put more load than recommended. Obey the maximum load volume. See the related chapter in the user manual.
• That the tumble dryer is not to be used if industrial chemicals have been used for cleaning.
• Do not dry unwashed items in the tumble dryer.
• Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.
• Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.
• Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
• The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged.
• The lint trap has to be cleaned frequently.
• The lint must not to be allowed to accumulate around the tumble dryer.
• Adequate ventilation has to be provided to avoid the back flow of gases into the room from appliance burning other fuels, including open fires.
• The exhaust air must not be discharged into a flue which is used for exhausting fumes from appliance burning gas or other fuels.
• The appliance must not be install behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer. In such a way that a full opening of the tumble dryer door is restricted.
• Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as in a tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation creates heat. If the heat cannot escape, the items can become hot enough to catch fire. Piling, stacking or storing oil-affected items can prevent heat from escaping and so create a fire hazard.
• If it is unavoidable that fabrics that contain vegetable or cooking oil or have been contaminated by hair care products be placed in a tumble dryer they should first be washed in hot water with extra detergent—this will reduce, but not eliminate, the hazard.
• The appliance should not be overturned during normal use or maintenance.
• Remove all objects from pockets such as lighters and matches.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way

and understand the hazards involved. Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children without supervision. (This warning is only for EUROPEAN market)
• The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.(This warning is not for EUROPEAN market)
• If the power cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  • This appliance is for indoor use only.
• The openings must not be obstructed by a carpet.
  • Children of less than 3 years should be kept away unless continuously supervised.
• If the appliance appear high temperature abnormally, please draw the mail plug immediately.
• Warning: The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility.
• Remove all packages before using the appliance. Otherwise, serious damage may result.

Correct Disposal of this product:

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use

the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling

Electric shock hazard

• Do not draw the power cord forcefully to pull out the mains plug.
• Please do not plug/draw the mains plug with wet hands.
• Do not damage the power cord and the power plug.

Injury danger

• Do not disassemble and install the dryer under no instruction or supervision.
• Do not stack this dryer on washing machine without stacking kits.(if want stacking on washing machine, please purchase the independent parts and it must be installed by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.)
  • Do not lean on the opened door of the dryer.
• Do not put any pyrotoxin on the dryer, such as the candle, electric cooker.

Damage danger

• Do not dry over the rated capacity.
• Do not operate the dryer without the filter door and filter base.
  • Do not dry the clothes before being spun.
• Do not expose the dryer directly under the sun, and indoor use only.
• Do not install the dryer in humid and drenching environment.

- While cleaning and maintenance, please do remember to pull out the power plug and do not directly wash the dryer with water.

Explosion danger

Please do not dry the clothes with some flammable substances such as coal oil, alcohol or there will be explosion

Transport

Move cautiously. Do not grasp any salient parts of machine. The machine door can not be used as the handle for delivery. If the dryer can't be transported erectly, the dryer could be slant to right less than 30°.

Installation Position

1. It is recommended that, for your convenience, the machine is positioned close to your washing machine.
2. The tumble dryer must be installed in a clean place, where dirt does not build up. Air must be able to circulate freely all round the appliance. Do not obstruct the front air inlet or the air intake grilles at the back of the machine.
3. To keep vibration and noise to a minimum when the dryer is in use, it should be placed on a firm and level surface.
4. The feet must never be removed. Do not restrict the floor clearance through deep pile carpets, strips of wood or similar. This might cause heat built-up which would interfere with the operation of the appliance.

Level Adjusting

Once in its permanent operating position, check that the dryer is absolutely level with the aid of a spirit level. If it is not, adjust the feet with a tool.

Power Supply Connection

1. Make sure that the voltage of the power supply is the same as the electric specification of the dryer.
2. Do not connect the dryer with the power connection board, the universal plug or socket

Before Each Drying

Note: Leave it to stand for 2 hours after transporting. Before first use, please use the soft fabric to clean the inside drum.

1. Put some clean rags into the drum.
2. Plug the power, press (On/Off).
3. Select the (Refresh) Programme, press (Start/Pause) button.
4. After finishing this programme, please follow the "Cleaning And Care" to clean the filter door.

During drying, the compressor and the water pump generate some noise which is entirely normal.

1. Before drying, thoroughly spin the laundry in washing machine. High spin speed can reduce the drying time and save energy consumption.
2. For uniform drying result, sort the laundry according to fabric type and drying programme.
3. Before drying, please close zips, hooks and eyelets, button up, tie fabric belts, etc.
4. Do not over dry the clothes, because over dried clothes can easily get creases.

5. Do not dry the articles containing rubber or similar elastic materials.

6. The door can be opened only after the programme of the drying machine finishes to prevent human skin from being scalded by hot steam or over heated drying machine.

7. Clean the lint filter and empty container after each use to avoid extension of drying time and energy consumption.

8. Do not dry these clothes after dry-clean process.

9. Please choose the related programme when deal with wool material clothes, to make the cloth more fresh and fluffy.

The reference weight of dry clothes (each)

Mixed-fabric clothes .... (about 800g)

Jacket.... (about 800g cotton)

Jeans....(about 800g)

Towel quilt.... (about 900g cotton)

Single bedsheet.... (about 600g cotton)

Work clothes ....(about 1120g)

Sleepwear....(about 200g)

Long sleeve shirt.... (about 300g cotton)

Short sleeve shirt.... (about 180g cotton)

Short pants.... (about 70g cotton)

Socks....(about 50g mixed-weave)

Note!

• Never overload.
• Not for textile with dropping water. The dryer could be damaged, even fire

Symbols

Please pay attention to use the drying machine if the materials of your clothes can not be dried by it or contain the symbols as follows

Dry	Normal	Not tumble dry normal	Do not dry
Line dry / hang to dry	Drip dry	Dry flat	In the shade
Dry clean	Do not dry clean	Dry clean normal cycle with any solvent	Dry clean normal cycle petroleum solvent only

Cleaning and Care

Empty the water container

1. Hold and pull out the water container with two hands.
2. Tilt the water container, pour out the condensate water into basin.
3. Install the water container.

Warning!

- Empty the water container after each use, the programme will be paused and the warning icon for the water container will light if is it full during the drying process. After dryer can be restarted by pressing

Line drawing of hands operating a mechanical component (no text or symbols)

Simple line drawing of a washing machine with a sink and lid, no text or symbols present.

• Do not drink the condensate water.
  • Do not use the dryer without the water container.

Clean the scrap threads

1. Open the door.

2. Take out the filter door.

3. Clean the filter door; wipe off the scrap threads accumulated on the filter door.

4. Reinstall the filter door.

Clean filter base

1. Open the cover.

2. Unscrew both locking levers towards each other.

3. Clean the filter base completely.

4. Re-insert the filter base!

5. Screw both locking levers.

6. Close the cover until it locks into position

A - Lock Iver

B - Cover

C - Filter base

Pure mechanical diagram showing curved and straight components without any text, numbers, or symbols

Note!

• The fluff accumulated on the filter will block the air circulation, which will cause the extension of drying time and energy consumption.
• Do disconnect the power cord before cleaning!
• Do not operate the dryer without the filter!
• Clean the filter after each use to prevent lint accumulation inside the dryer.

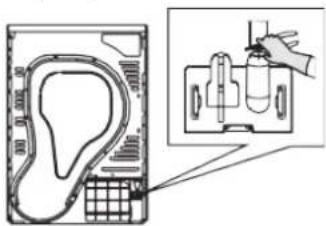

Clean heat exchanger

• As necessary, approx. once every 2 months, remove the fluff from the heat exchanger using the spange or saft brush.
• When doing this, please use gloves.

Wash air condenser

Leave the dryer to cool down.

Residual water may escape, place an absorbent cloth under the maintenance cover.

• Unlock the maintenance cover.
  • Completely open maintenance cover.
• Screw both locking levers towards each other.
• Pool out the air con dense r.
• Clean the air con denser completely, drain thoroughly.
• Clean the seals.
• Re-insert the air con denser, handle at the button!
• Unscrew both locking levers.
• Cloth the maintenance cover until it locks into position. Please clean the air condenser approx, once every 3 months it frequently used.
• Do not damage the air con denser!

Warning!

Clean with water only; do not use hard/sharp-edged objects! Do not operate the dryer without the air condenser!

During drying, water may collect between the window and the seal, but this does not affect the function of your dryer!

Trouble shooting

Display	Reason	Solutions
"Full" LED on permanently	Container is full	Empty container
	Water pump failure or water level sensor failure	Please contact your local service center if the problem persists
Child Lock + 9h	Temperature sensor error
Child Lock + 6h	Humidity sensor error
Child Lock + 3h	Heating problem

Warning!

• Only authorised technicians can carry out repairs.
• Before you call service, please check if you have dealt with the fault yourself or if you have followed the user instructions.
• A technician will charge you for advice, even during the warranty period.

Maintenance

Problem Solution
Working state LED not on	The mains plug is in serte d.Check the programme selected.Check fuse in the house.
Full" LED on permanently	Empty condensation container.If failure, check hose for condensation outlet.
Dryer does not start	Check the start button has selected.Check the the door has closed.Check the programme has set.
Water is running out	Align dryer horizontally.Clear air condenser and door seals.
Door is open by itself	Press door until it" clicks" into position.Check the clothes is over load .
Humidity in the room is increase significantly	Ventilate room adequately.Clean the cool grille.Ensure that the air condenser has been in serte d.
Degree of dryness was not reached or drying time too long	Clean lint filter and wash condenser.Empty container.Check water outlet.Dryer installation too restricted.Clean the moisture sensors.Use next higher drying programme or usingTimer programme .

Warning!

It you cannot deal with the fault by yourself and need help:

• Press the [On/Off] button.
• Pull out the mains plug and call the service.

Product Fiches

Model....TRK 3020

Rated capacity.... 8 kg

Dryer type ....Condenser

Energy efficiency class ....A++

Weighted annual energy consumption (AEc).* 235.3 kWh/year

Automatic or non-automatic ....Automatic

Energy consumption of the standard cotton program ....

Weighted energy consump. of the st. cotton prog. at full and partial load

Energy consumption of the standard cotton program at full load ... 1,98 kWh

Energy consumption of the standard cotton program at partial load 1.08 kWh

Power consumption of the off-mode (Po)....0,01 W

Power consumption of the left-on mode (PI) 0,8 W

Duration of the left-on mode....10 min

Program time of the standard cotton program ....

Weighted program time of the standard cotton program at full and partial load 142min

Program time of the standard cotton program at full load .....185 min

Program time of the standard cotton program at partial load ....110 min

Condensation efficiency class A (most efficient) to G (least efficient)... B

Average condensation efficiency of the standard cotton program at full load....81%

Average condensation efficiency of the st. cotton program at partial load 81%

Weighted condensation efficiency for the st. cotton program at full and partial load....81%

Sound power level for the standard cotton program at full load 69dB(A)

Remarks

* Energy consumption per year, based on 160 drying cycles of the standard cotton programme at full and partial load, and the consumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used

The 'standard cotton programme' used at full and partial load is the standard drying programme to which the information in the label and the fiche relates, that this programme is suitable for drying normal wet cotton laundry and that it is the most efficient programme in terms of energy consumption for cotton

Technical specifications

Dimensions, HxWxD.... 845 x 595 x 622 mm

Ambient temperature....+5°C\~+35°C

Rated input power 850W

Rated voltage....220-240V\~

Rated frequency....50Hz

Refrigerant R134a

Weight of product 51kg

Rated capacity....8 kg

GWP 1430

CO2 - eq 0,422T

Amount of refrigerant....295g

Contains fluorinated greenhouse gases covered by the Kyoto Protocol. Hermetically sealed.

Note!

• The rated capacity is the maximum capacity, make sure that the dry clothes which are loaded to the appliance do not exceed the rated capacity each time.
• Do not install the tumble dryer in a room when there is a risk of frost occurring. At temperatures around freezing point the tumble dryer may not be able to operate properly.
• There is a risk of damage if the condensate water is allowed to freeze in the pump, hoses and / or condensate water container.

Control panel

1 On/Off

Produet is switched on or off.

2 Start/Pause

Press the button to start or pause the drying cycle.

3 Working state LED

4 Function LED

3h, 6h, 9h, 12h, Child lock, Filter, Full and Anti-Crease

5 Specialty function

These buttons are used for setting additional functions (Delay, Anti-Crease, Childlock).

6 programmes

Different Dryer cycle can be selected according to the user's needs to make the clothes have more effective drying result.

OPERATIONS

Programme selector

Press the "On/Off" button. When the LED display screen brightens up, rotate the programme knob to select the desired programme.

Select the "Delay" or "Anti-Crease" functions for additional option.

Press the "Start/Pause" key.

Programme start

The drum will keep rotating after the programme starts, the state light in the display area will flash in sequence, the remaining time displayed will change automatically.

Programme end

The drum will stop running after the programme ends, the working state LED will stay light and buzzer will ring. The "Filter" and "Full" LED will remind user to clean the filters and container. The dryer will start "Anti-crease" function if user doesn't remove the load in time. Please press "On/Off" key to cut off power and pull the plug out.

Deal with the problems according to "Malfunction display and solutions", if there is a unexpected stop during the drying procedure and the dryer show information.

Other Functions

"Delay" function

This function is used for delaying clothes drying time within 24 hours. The delay time means the programme will start after x hours. When the delay programme starts, the time starts to decrease on the display and the delay icon blinks.

Steps in details:

1 Load your laundry and make sure the machine door is closed.

2 Press the "On/Off" button, then to turn the programme selector knob and select a desired programme. You can select the "Anti-Crease" functions according to your need.

4 To press the "Delay" key.

5 Continue to press the "Delay" to select the delay time.

6 After the "Start/Pause" key is pushed, the Dryer is at the run condition. The drying procedure will be automatically performed when the delay time is over.

7 If you push the "Start/Pause" button again, the delay function will be paused. If you want to cancel the "Delay" function, please press the "On/Off" button.

"Anti-Crease" function

At the end of the drying cycle, the anti-crease phase time is 30 minutes "default" or 120 minutes "selected".

This function prevents the laundry from creases. The laundry can be removed during the anti-crease phase. Except "Cool", "Refresh", all the other programmes have this function.

"Child Lock" function

1 This machine incorporates a special child safety lock, which can prevent children from carelessly pressing keys or making the faulty operation.

2 When the dryer is at the operation state, press the "Anti-Crease" and "Delay" buttons at the same time for over 3 seconds to start child lock function. When child lock function is set, the display will show Child lock icon and no key can effect to the dryer except "On/Off" button. Under the start state of the child lock, the "Anti-Crease" and "Delay" buttons shall be pressed at the same time for over 3 seconds to release the "child lock" function.

Product description

A - Power cord

B - Top board

C - Container

D - Drum

E - Filter door

F - Control panel

G - Door

H - Air inlet

I - Filter base

J - Maintenance cover

Accessories

The following parts are optional for specific models.

- Hose holder

• Condenser drain hose

If your dryer has following parts, please install them following the instruction below.

Installation of hose holder and drain hose.

Use pliers tp remove the drain hose from the hose connector.

Insert the external drainage hose.

Put the hose holder on the washing basin or any other sink.

Drying Programmes table

Program		Weight (max)		Application/Properties
		7 kg	8 kg
Auto	Auto	5 kg		To dry unknown material clothes automatically
Cotton	For cuttons and coloureds made of cotton or linned
	Ekstra	7 kg	8 kg	To dry cotton pieces of clothing. Drying level: extra dry
	Stand-ard	7 kg	8 kg	To dry cotton pieces of clothing. Drying level: cupboard dry
	Iron	7 kg	8 kg	To dry cotton pieces of clothing. Drying level: application to iron
Jeans	Jeans	6 kg		To dry jeans or leisure clothes that are spun at high speeds in the washing machine
Mixed	Mixed	3,5 kg		If you can not determine what the clothing's material is. Please choose Mix
Sports	Sports	3 kg		To dry spotswear, thin fabrics, polyester, which are not ironed.
Delicate	Deli-cate	1 kg		To dry delicate laundry that is suitable for drying or laundry which is advised to be hand-washed at a lower temperature

Baby Care	Baby Care	1 kg	T odry small amount of baby clothing
Synthetics	For non-iron washing made of synthetic and blended fabrics, cotton.
	Extra	3,5 kg	To dry thick or multi-layered synthetic fabrics. Drying level: extra dry
	Stand-ard	3,5 kg	To dry thin synthetic fabrics which are not ironed, such as easy care shirts, table linen, baby clothes and socks
Cool	Cool	-	To air clothes without blowing hot air from in 10 min
Refresh	Re-fresh	-	For refreshing or gently cleaning textiles with commercially available dry cleaning products.
Rapid 45'	Rapid 45'	0,6 kg	To dry at most 3 shirts in 45 min
Warm 60'	Warm 60'	-	To warm clothes with hot air in 60 min
Warm 30'	Warm 30'	-	To warm clothes with hot air in 30 min

• This symbol means the energy efficiency test programme "standard cotton programme", which is accordance with the applicable EN 61121 standard and most suitable to dry normal cotton load at rated load capacity.
• Thick or multi-layered fabrics, e.g. bedlinen, jeans, jackets etc, are not easy to dry. You'd better choose Cotton Extra programme.
• As the uneven material, thick and multi-layered clothes are not easy to dry, it is better to choose the appropriate time drying programme to dry them if some parts of the clothes still damp after programme finished.

Sicherheitshinweise

Warnung!

Line drawing of a hand operating a mechanical lever or bracket (no text or symbols present)

Simple line drawing of a kitchen appliance with a sink and lid, no text or symbols present.

Warnung!

Pure mechanical diagram showing curved and straight components without any text, numbers, or symbols

Hinweis!

A - Netzkabel

B - Obere Abdeckung

Line drawing of a hand holding a mechanical component, no text or symbols present

Illustration of a kitchen sink with a door handle and a paper sheet on top (no text or symbols visible)

Rengör filterluckan

Pure mechanical diagram showing curved and straight components without any text, numbers, or symbols

Rengör filterunderlaget

Obs!

1 På / Av

3h, 6h, 9h, 12h, Child lock, Filter, Full and Anti-Creas

5 Specialitets funktion
