TC-SM 254-2B - Saw EINHELL - Free user manual and instructions

Product Type	Sliding Compound Miter Saw
Brand	Einhell
Model	TC-SM 254-2B
Power Supply	230V / 50Hz
Power Consumption	1800 W
Idle Speed	5000 rpm
Blade Diameter	254 mm
Bore Size	30 mm
Cutting Capacity at 90°	305 x 64 mm
Cutting Capacity at 45°	210 x 64 mm
Bevel Capacity	-45° to +45° (dual bevel)
Miter Capacity	-45° to +45°
Laser Guide	Yes, adjustable
Electric Brake	Yes
Dust Extraction Connection	36 mm
Weight	18.5 kg
Dimensions (L x W x H)	760 x 520 x 480 mm
Table Extensions	Included (material supports)
Clamping Device	Included
Spindle Lock	Yes
Soft Start	Yes
Overload Protection	Yes
Safety Guard	Transparent, auto-return
Maintenance	Clean sawdust, lubricate pivots, check blade sharpness
Spare Parts Availability	Via Einhell website or service centers

Frequently Asked Questions - TC-SM 254-2B EINHELL

What is the blade size for the Einhell TC-SM 254-2B?

The saw uses a 254 mm (10 inch) blade with a 30 mm bore. Always use a blade rated for at least 5000 rpm.

How do I adjust the bevel angle on this saw?

Loosen the bevel lock lever at the rear, tilt the saw head to the desired angle (up to 45° left or right), then retighten the lever. The scale shows the angle.

Can I use the laser guide for precise cuts?

Yes, the laser guide projects a cutting line on the workpiece. You can adjust its position using the screws on the laser housing if it is misaligned.

What is the maximum cutting width at 90°?

At 90°, the saw can cut up to 305 mm wide and 64 mm high. With the sliding feature, you can cut wider boards by pulling the saw forward.

How to change the saw blade?

Unplug the saw. Press the spindle lock to prevent rotation, then use the included wrench to loosen the arbor bolt (clockwise). Remove the bolt, outer flange, old blade, install new blade with teeth facing forward, reassemble.

Does this saw have an electric brake?

Yes, the TC-SM 254-2B features an electric brake that stops the blade within a few seconds after releasing the trigger for added safety.

What should I do if the saw does not start?

Check if the power cord is plugged in, the overload protection has not tripped (reset button), and that the safety lock-off switch is properly depressed. Also verify the blade guard is closed.

How do I connect a dust extractor?

The saw has a 36 mm dust port on the rear. Connect a vacuum hose using an adapter if necessary. A dust bag is also included for basic collection.

Is the saw suitable for cutting aluminum?

Yes, but use a carbide-tipped blade designed for non-ferrous metal. Lubricate the cut with wax or cutting fluid. Always wear appropriate PPE.

Where can I find spare parts?

Spare parts are available from Einhell authorized service centers or online via the Einhell website. Have your model number (TC-SM 254-2B) ready.

USER MANUAL TC-SM 254-2B EINHELL

Mechanical assembly diagram showing a cutting machine with labeled parts (34 and 36), no readable text or symbols beyond labels

Mechanical assembly diagram showing a mechanical component with labeled parts (29 and 6), no readable text or symbols beyond labels.

Mechanical assembly diagram showing a mechanical component with labeled part '30' (no readable text or symbols beyond label)

Mechanical setup with a cutting machine and workbench, labeled with number 10 (no visible text or symbols on the device itself)

Mechanical cutting machine setup with labeled parts (no text or symbols on the device itself)

Mechanical assembly diagram showing a cutting tool with labeled parts (34 and 8), no readable text or symbols beyond labels

Mechanical cutting tool with visible blade and central hub, mounted on a workbench (no text or symbols)

Mechanical tool with cutaway view showing a cutting machine and workpiece (no text or symbols visible)

Close-up of a mechanical assembly with gears and a hand holding a tool (no visible text or symbols)

Close-up of a hand operating a power tool with labeled parts (23 and 24), no readable text or symbols beyond labels.

D

Leistung Laser: .... ≤ 1 mW

Gefahr!

Geräusch

6.8 Transport (Abb. 1-4)

Danger! Read the operating instructions to reduce the risk of inquiry.

Caution! Wear ear-muffs. The impact of noise can cause damage to hearing.

Caution! Wear a breathing mask. Dust which is injurious to health can be generated when working on wood and other materials. Never use the device to work on any materials containing asbestos!

Caution! Wear safety goggles. Sparks generated during working or splinters, chips and dust emitted by the device can cause loss of sight.

Caution! Risk of injury! Do not reach into the running saw blade.

Warning!

To make miter cuts (inclined saw head or rotary table with angle adjustment), the adjustable stop rail must be fixed at the outer position.

For 45^ miter cuts to the left, the left stop rail must be moved outwards and fixed in position.

GB

Danger!

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

1. Safety regulations

The corresponding safety information can be found in the enclosed booklet.

Warning!

Read all the safety information, instructions, illustrations and technical data provided on or with this power tool. Failure to adhere to the following instructions may result in electric shock, fi re and/or serious injury.

Keep all the safety information and instructions in a safe place for future use.

Special information about the laser Caution! Laser radiation Do not look directly into the beam Laser class 2

• Never look directly into the laser path.
- Never direct the laser beam at reflecting surfaces or persons or animals. Even a low output laser beam can inflict injury on the eye.
- Caution: It is vital to follow the work procedures described in these instructions. Using the equipment in any other way may result in hazardous exposure to laser radiation.
• Never open the laser module.
- When the crosscut saw is not going to be used for an extended period of time, the batteries should be removed.
• It is prohibited to carry out any modifications

to the laser to increase its power.
- The manufacturer cannot accept any liability for damage due to non-observance of the safety information.

2. Layout and items supplied

2.1 Layout (Fig. 1-17)

1. Handle
2. ON/OFF switch
3. Release button
4. Machine head
5. Saw shaft lock
6. Adjustable blade guard
7. Saw blade
8. Clamping device
9. Battery
10. Workpiece support
11. Fixed stop rail
12. Table insert
13. Hexagon key
14. Locking screw
15. Pointer
16. Scale
17. Turntable
18. Fixed saw table
19. Scale
20. Pointer
21. Locking screw
22. Sawdust bag

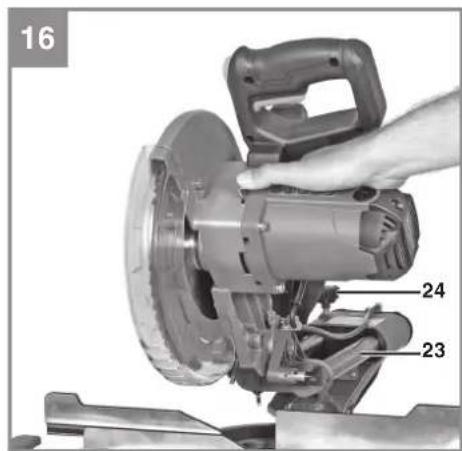

23. Drag guide
24. Locking screw for drag guide
25. Fastening bolt
26. Table width extension
27. Screw for cutting depth limiter
28. Stop for cutting depth limiter
29. Adjusting screw
30. Adjusting screw

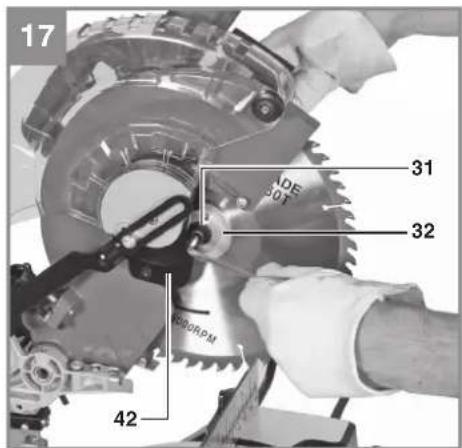

31. Flange bolt
32. Outer fl ange
33. Lever
34. Movable stop rail
35. Laser
36. Locking screw for stop rail
37. ON/OFF switch for laser
38. Transport handle
39. Laser battery case
40. Battery compartment cover
41. Screw
42. Cover plate
43. Locking screw
44. Additional saw blade

GB

2.2 Items supplied

Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

• Open the packaging and take out the equipment with care.
• Remove the packaging material and any packaging and/or transportation braces (if available).
• Check to see if all items are supplied.
• Inspect the equipment and accessories for transport damage.
• If possible, please keep the packaging until the end of the guarantee period.

Danger!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating!

• Drag, crosscut and miter saw
- Clamping device
• 2 x workpiece support
- Sawdust bag
- Hexagon key
• Table width extension (2x)
- Locking screw (2x)
• Additional saw blade
• Original operating instructions
- Safetyinstructions

3. Proper use

The drag, crosscut and miter saw is designed for cross-cutting wood and wood-type materials which are appropriate for the machine's size. The saw is not designed for cutting fi rewood.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the

machine is used in commercial, trade or industrial businesses or for equivalent purposes.

The equipment is to be operated only with suitable saw blades. It is prohibited to use any type of cutting-off wheel.

To use the equipment properly you must also observe the safety information, the assembly instructions and the operating instructions to be found in this manual.

All persons who use and service the equipment have to be acquainted with these operating instructions and must be informed about the equipment's potential hazards. It is also imperative to observe the accident prevention regulations in force in your area. The same applies for the general rules of health and safety at work.

The manufacturer will not be liable for any changes made to the equipment nor for any damage resulting from such changes. Even when the equipment is used as prescribed it is still impossible to eliminate certain residual risk factors. The following hazards may arise in connection with the machine's construction and design:

• Contact with the saw blade in the uncovered saw zone.
• Reaching into the running saw blade (cut injuries).
• Kick-back of workpieces and parts of workpieces.
  • Saw blade fracturing.
• Catapulting of faulty carbide tips from the saw blade.
• Damage to hearing if ear-muffs are not used as necessary.
• Harmful emissions of wood dust when used in closed rooms.

4. Technical data

AC motor: 230-240 V \~ 50 Hz
Power: 1900 W S1
Idle speed n_0 : 5000 min ^-1
Carbide saw blade: ......ø 254 x ø 30 x 2.4 mm
Number of teeth: 48
Swiveling range: -45°/0°/+45°
Miter cut to the left: 0° to 45°
Saw width at 90°: 230 x 70 mm
max. saw width at 90°: 310 mm
Saw width at 45°: 210 x 70 mm

GB

Saw width at 2 x 45° (double miter cut left): 210 x 40 mm

Protection class:

Weight: approx. 13 kg

Laser class: 2

Wavelength of laser: 650 nm

Laser output: ≤ 1 mW

Danger!

Noise

The noise emission values were measured in accordance with EN 62841.

L_pA sound pressure level ..... 95.4 dB (A)

K_pA uncertainty 3 dB (A)

L_WA sound power level 108,4 dB (A)

K_WA uncertainty 3 dB (A)

Wear ear-muff s.

The impact of noise can cause damage to hearing.

The stated noise emission values were measured in accordance with a set of standardized criteria and can be used to compare one power tool with another.

The stated noise emission values can also be used to make an initial assessment of exposure.

Warning:

The noise emission levels may vary from the level specified during actual use, depending on the way in which the power tool is used, especially the type of workpiece it is used for.

Keep the noise emissions and vibrations to a minimum.

• Only use appliances which are in perfect working order.
  • Service and clean the appliance regularly.
  • Adapt your working style to suit the appliance.
  • Do not overload the appliance.
• Have the appliance serviced whenever necessary.
• Switch the appliance off when it is not in use.

Caution!

Residual risks

Even if you use this electric power tool in accordance with instructions, certain residual risks cannot be rules out. The following hazards may arise in connection with the

equipment's construction and layout:

1. Lung damage if no suitable protective dust mask is used.
2. Damage to hearing if no suitable ear protection is used.
3. Health damage caused by hand-arm vibrations if the equipment is used over a prolonged period or is not properly guided and maintained.

5. Before starting the equipment

Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data.

Warning!

Always pull the power plug before making adjustments to the equipment.

5.1 General information

• The equipment must be set up where it can stand securely, i.e. it should be bolted to a workbench, a universal base frame or similar.
• All covers and safety devices have to be properly fitted before the equipment is switched on.
  It must be possible for the blade to run freely.
• When working with wood that has been processed before, watch out for foreign bodies such as nails or screws, etc.
  Before you actuate the On/Off switch, make sure that the saw blade is correctly fitted and that the equipment's moving parts run smoothly.

5.2 Assembling the saw (Fig. 1-5)

• To adjust the turntable (17), loosen the locking screw (14) by approx. 2 turns and push the lever (33) to release the turntable (17).
• Turn the turntable (17) and scale pointer (15) to the desired angular setting on the dial (16) and lock into place with the locking screw (14). The saw has locking positions at angles of -45°, -30°, -22.5°, -15°, 0°, 15°, 22.5°, 30° and 45°, at which the turntable (17) audibly clicks into position.
• To release the saw from its position at the bottom, pull the fastening bolt (25) out of the motor mounting while pressing down lightly on the machine head (4). Turn the fastening bolt (25) through 90° before releasing it, so that the saw remains unlocked.
  • Swing the machine head (4) up until the re-

GB

lease lever (3) latches into place.

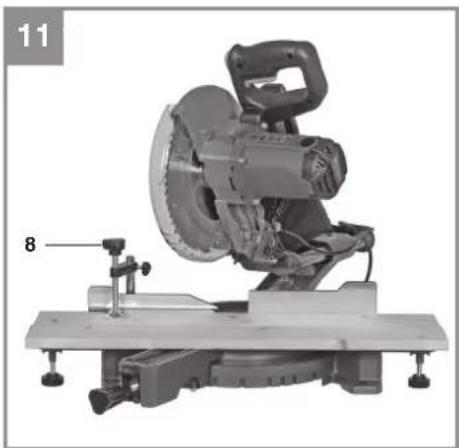

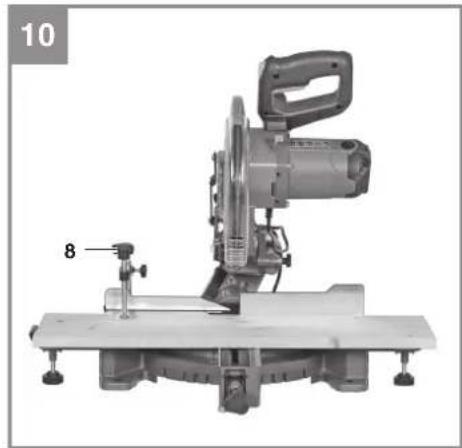

• The clamping device (8) can be fitted on the left or right of the fixed saw table (18).
• Mount the workpiece support (10) on the fixed saw table (18).
• Mount the second workpiece support (10) on the opposite side of the saw
• When the locking screw (21) is loosened, you can tilt the machine head (4) to the left by up to 45°.
• Fit the table width extension (26) onto the workpiece support (10).
• Fasten the table width extension with the locking screw (43).

5.3 Precision adjustment of the stop for crosscut 90° (Fig. 1, 6-9)

• Fasten the turntable (17) in 0° position.
- Undo the locking screw (21) and move the machine head (4) all the way to the right using the handle (1).

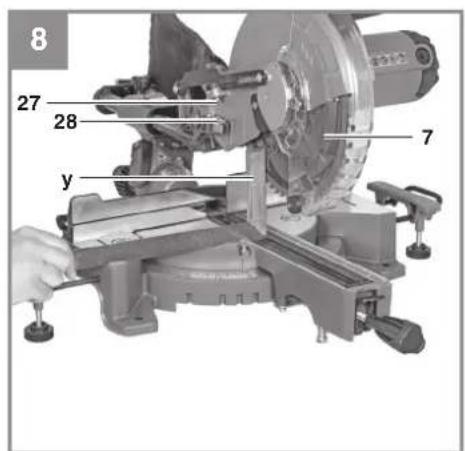

- Place the 90° angular stop (y) between the blade (7) and the turntable (17).

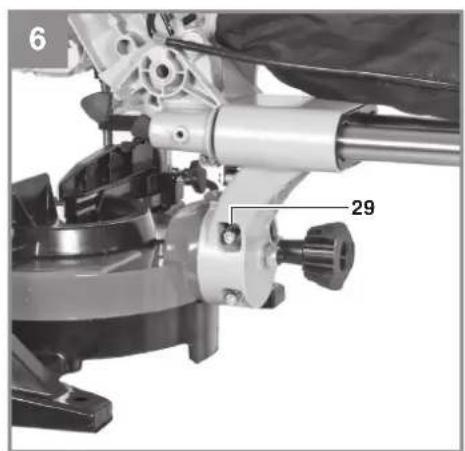

- Adjust the adjustment screw (29) until the angle between the blade (7) and the turntable (17) equals 90°.
- Finally check the position of the pointer (20) on the scale (19). If necessary, undo the pointer (20) with a Philips screwdriver, set it to the 0^ position on the scale (19) and retighten the retainer screw.
• No stop angle included.

5.4 Precision adjustment of the stop for miter cut 45° (Fig. 1, 6-9)

• Fasten the turntable (17) in 0° position.
- Undo the locking screw (21) and move the machine head (4) all the way to the left using the handle (1), until it coincides at 45°.

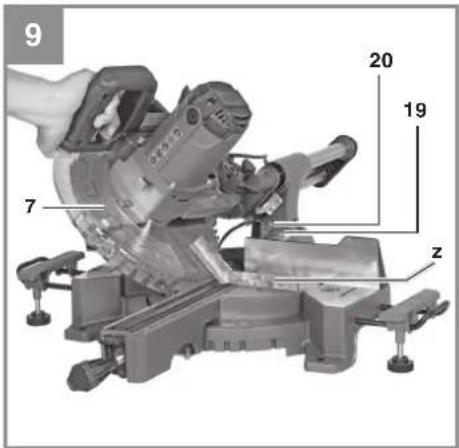

- Place the 45° stop angle (z) between the blade (7) and the turntable (17).

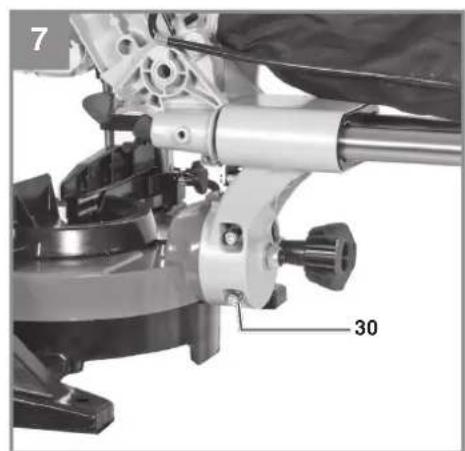

- Adjust the adjustment screw (30) so that the angle between the blade (7) and the turntable (17) equals exactly 45°.
• No stop angle included.

5.5 Adjusting the miter angle on the machine head (Fig. 4, 14)

• Loosen the locking screw (21).
• Hold the machine head (4) by the handle (1).
- The machine head can now be tilted continuously to the left.
• Angles to the left: 0-45°
• Re-tighten the locking screw (21).

5.6 Adjusting the movable stop rail (Fig. 1, 5)

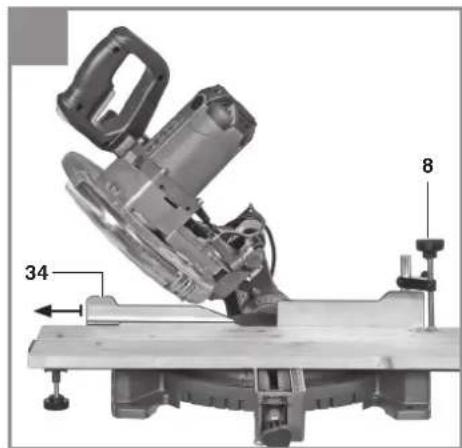

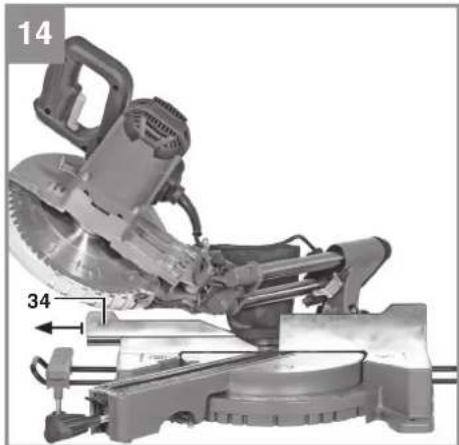

• Caution! This saw is equipped with a removable stop rail (34) which is screwed to the fixed stop rail (11).
• To make angle and miter cuts, the movable stop rail must be adjusted to prevent collision with the saw blade.
• For miter and angle cuts to the left, the left stop rail must be moved outwards. Undo the locking screw on the movable stop rail and pull the rail back so far that a collision with the saw blade can be ruled out. Prior to every cut, retighten the locking screws of the stop rail.

6. Operation

6.1 Cross cut 90° and turntable 0° (Fig. 1-4, 10)

For cutting widths up to approx. 100 mm it is possible to fix the saw's drag function with the locking screw for drag guide (24) in rear position. If the cutting width exceeds 100 mm, you must ensure that the locking screw for drag guide (24) is slackened and that the machine head (4) can be moved.

• Move the machine head (4) to its upper position.
• Use the handle (1) to push back the machine head (4) and fix it in this position if required (dependent on the cutting width).
• Place the piece of wood to be cut at the stop rail (11) and on the turntable (17).
• Lock the material with the clamping device (8) on the fixed saw table (18) to prevent the material from moving during the cutting operation.
• Push down the release lever (3) to release the machine head (4).
• Press the ON/OFF switch (2) to start the motor.
• With the drag guide (23) fixed in place: Use the handle (1) to move the machine head (4) steadily and with light pressure downwards until the saw blade (7) has completely cut through the workpiece.
• With the drag guide (23) not fixed in place: Pull the machine head (4) all the way to the front and then use the handle to move it downwards steadily and with light pressure. Now push the machine head (4) slowly and steadily to the very back until the saw blade (7) has completely cut through the workpiece.
• When the cutting operation is completed, move the machine head (4) back to its upper

GB

(home) position and release the ON/OFF button (2).

Important. The integral resetting springs will automatically lift the machine head. Do not simply let go of the handle (1) after cutting, but allow the machine head (4) to rise slowly, applying slight counter pressure as it does so.

6.2 Cross cut 90° and turntable 0° - 45° (Fig. 1-4, 11)

The crosscut saw can be used to make crosscuts of 0^ -45° to the left and 0^ -45° to the right in relation to the stop rail.

• Release the turntable (17) by slackening the locking screw (14).
• Turn the turntable (17) and scale pointer (15) to the desired angular setting on the dial (16) and lock into place with the locking screw (14). The saw has locking positions at angles of -45°, -30°, -22.5°, -15°, 0°, 15°, 22.5°, 30° and 45°, at which the turntable (17) audibly clicks into position.
• Retighten the locking screw (14) to secure the turntable (17) in place.
  • Cut as described under section 6.1.

6.3 Miter cut 0°-45° and turntable 0° (Fig. 1-4, 12)

The crosscut saw can be used to make miter cuts of 0^ - 45^ in relation to the work face.

• If required, dismantle the clamping device (8) or mount on the opposite side of the fixed saw table (18).
• Move the machine head (4) to its upper position.
  • Fasten the turntable (17) in 0° position.
• Adjust the miter angle on the machine head and the stop rail as described under points 5.5 and 5.6.
  • Cut as described under section 6.1.

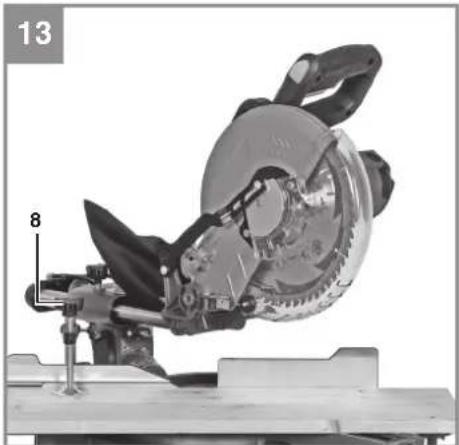

6.4 Miter cut 0°-45° and turntable 0°-45° (Fig. 1-4,13-14)

The crosscut saw can be used to make miter cuts to the left of 0-45° in relation to the work surface, with simultaneous setting of the turntable of 0-45° to the left or 0-45° to the right in relation to the stop rail (double miter cut).

• If required, dismantle the clamping device (8) or mount on the opposite side of the fixed saw table (18).
• Move the machine head (4) to its upper position.
  • Release the turntable (17) by slackening the

locking screw (14).

• Use the handle (1) to adjust the turntable (17) to the angle required (in this connection see also section 6.2).
• Retighten the locking screw (14) to secure the turntable in place.
• Adjust the miter angle on the machine head and the stop rail as described under points 5.5 and 5.6.
  • Cut as described under section 6.1.

6.5 Limiting the cutting depth (Fig. 4)

• The cutting depth can be infinitely adjusted using the screw (27). Turn the screw (27) in or out to set the required cutting depth and then retighten the knurled nut on the screw (27).
• Check the setting by completing a test cut.

6.6 Sawdust bag (Fig. 3)

The saw is equipped with a debris bag (22) for sawdust and chips.

The debris bag (22) can be emptied by means of a zipper at the bottom (1).

6.7 Changing the saw blade (Fig. 1, 15-17)

Danger! Take the plug out of the socket to prevent the machine starting up unintentionally.

Caution! Wear gloves to avoid getting cut when changing the saw blade.

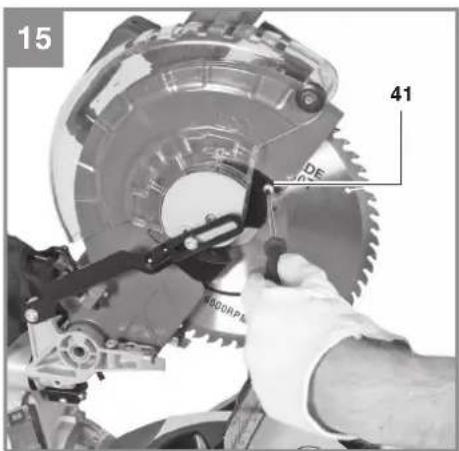

• Using a hexagon head screwdriver, undo the screw (41) on the machine head.
• Push up the cover plate (42) to gain access to the flange bolt.
• Press the saw shaft lock (5) with one hand while positioning the hexagon key (13) on the flange bolt (31) with the other hand.
• Firmly press on the saw shaft lock (5) and slowly rotate the flange bolt (31) in the clockwise direction. The saw shaft lock (5) engages after no more than one rotation.
• Now, using a little more force, slacken the flange screw (31) in the clockwise direction.
• Turn the flange screw (31) completely out and remove the external flange (32).
  Take the blade (7) off the inner flange and pull down and out.
• Carefully clean the flange screw (31), outer flange (32) and inner flange.
• Fit and fasten the new saw blade (7) in reverse order.
• Push the cover plate (42) back into its starting position and secure it with the screw (41).
• Important! The cutting angle of the teeth, in other words the direction of rotation of the saw blade (7), must coincide with the direc-

GB

tion of the arrow on the housing.

• Check to make sure that all safety devices are properly mounted and in good working condition before you begin working with the saw again.
• Important! Every time that you change the saw blade, check to see that it spins freely in the table insert (12) in both perpendicular and 45° angle settings.
• Important! Changing and aligning the saw blade (7) must be carried out correctly.

6.8 Transport (Fig. 1-4)

• Retighten the locking screw (14) to secure the turntable (17) in place.
• Activate the release lever (3), press the machine head (4) downwards and secure with the safety pin (25). The saw is now locked in its bottom position.
  Fix the saw's drag function with the locking screw for drag guide (24) in rear position.
• Carry the equipment by the fixed saw table (18).
• To set up the equipment again, proceed as described in section 5.2.

6.9 Operating the laser (Fig. 3/4)

Switching on: Move the On/Off switch (37) to the "I" position to switch on the laser (35). A laser line is projected onto the material you wish to process, providing an exact guide for the cut.

Switching off: Move the On/Off switch (37) to the "0" position.

Setting the laser: If necessary, slacken the screws to adjust the laser. Retighten the screws after you have made the adjustment. Important! Never look directly into the laser beam!

Replacing the battery: Ensure that the laser (35) is switched off. Remove the battery compartment cover (40). Remove the old batteries and replace with new ones (2 x 1.5 Volt R03, LR 03 Micro, AAA). Ensure correct polarity when inserting the new batteries. Close the battery compartment again.

6.10 Battery disposal

The batteries must be removed from the laser before it is disposed of.

Batteries are not allowed to be disposed of with normal household refuse.

Batteries should be taken to a suitable collection center for proper disposal. If you do not know where such a collection center is located, you should ask in your local council offices.

7. Replacing the power cable

Danger!

If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.

8. Cleaning, maintenance and ordering of spare parts

Danger!

Always pull out the mains power plug before starting any cleaning work.

8.1 Cleaning

• Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
  • We recommend that you clean the device immediately each time you have finished using it.
• Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device. The ingress of water into an electric tool increases the risk of an electric shock.

8.2 Carbon brushes

In case of excessive sparking, have the carbon brushes checked only by a qualified electrician. Important! The carbon brushes should not be replaced by anyone but a qualified electrician.

8.3 Maintenance

There are no parts inside the equipment which require additional maintenance.

GB

8.4 Ordering spare parts and accessories

Please provide the following information when ordering spare parts:

• Type of unit
  • Article number of the unit
  • ID number of the unit
• Spare part number of the required spare part For our latest prices and information please go to www.Einhell-Service.com

Tip! For good results we recommend high-quality accessories from !kwb www.kwb.eu [e-mail]

9. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offices.

10. Storage

Store the equipment and accessories out of children's reach in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30^ . Store the electric tool in its original packaging.

GB

For EU countries only

Never place any electric power tools in your household refuse.

To comply with European Directive 2012/19/EU concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the return request:

As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any accessories or aids without electrical components supplied with the old equipment.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the Einhell Germany AG.

Subject to technical changes

• The product meets the requirements of EN 61000-3-11 and is subject to special connection conditions. This means that use of the product at any freely selectable connection point is not allowed.
• Given unfavorable conditions in the power supply the product can cause the voltage to fluctuate temporarily.
• The product is intended solely for use at connection points that a) do not exceed a maximum permitted mains system impedance of Z sys = 0,25 + j 0,25 Ω, or b) have a continuous current-carrying capacity of the mains of at least 100 A per phase.
• As the user, you are required to ensure, in consultation with your electric power company if necessary, that the connection point at which you wish to operate the product meets one of the two requirements, a) or b), named above.

GB

Service information

We have competent service partners in all countries named on the guarantee certificate whose contact details can also be found on the guarantee certificate. These partners will help you with all service requests such as repairs, spare and wearing part orders or the purchase of consumables.

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Category Example
Wear parts* Carbon brushes
Consumables* Saw blade
Missing parts

* Not necessarily included in the scope of delivery!

In the effect of defects or faults, please register the problem on the internet at www.Einhell-Service.com. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:

• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.

GB

Warranty certifi cate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. You can also contact us by telephone using the service number shown. Please note the following terms under which guarantee claims can be made:

1. These guarantee terms apply to consumers only, i.e. natural persons intending to use this product neither for their commercial activities nor for any other self-employed activities. These warranty terms regulate additional warranty services, which the manufacturer mentioned below promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory guarantee claims are not affected by this guarantee. Our guarantee is free of charge to you.
2. The warranty services cover only defects due to material or manufacturing faults on a product which you have bought from the manufacturer mentioned below and are limited to either the rectification of said defects on the product or the replacement of the product, whichever we prefer. Please note that our devices are not designed for use in commercial, trade or professional applications. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.

3. The following are not covered by our guarantee:

4. Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by exposing the device to abnormal environmental conditions or by lack of care and maintenance.

5. Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for example by dropping it).

6. Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.

7. The guarantee is valid for a period of 24 months starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies if an on-site service is used.

8. To make a claim under the guarantee, please register the defective device at: www.Einhell-Service.com. Please keep your bill of purchase or other proof of purchase for the new device. Devices that are returned without proof of purchase or without a rating plate shall not be covered by the guarantee, because appropriate identification will not be possible. If the defect is covered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement.

Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.

Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions.

CZ

6.8 Transport (obr. 1-4)

6.8 Transport (obr. 1-4)

Negotovost K_WA 3 dB (A)

6.8 Transport (sl. 1-4)

X 2006/42/EC
Annex IV
Notified Body:
Reg. No.:
□2000/14/EC_2005/88/EC
Annex V
Annex VI
Noise: measured L_wA = dB (A) ; guaranteed L_wA = dB (A)
P = kW; L/∅ = cm
Notified Body:
□2012/46/EU_(EU)2016/1628
Emission No.:

Standard references: EN 62841-1; EN 62841-3-9; EN 60825-1; EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-11

Subject to change without notice

Archive-File/Record: NAPR025028

Documents registrar: Korbinian Wasmeler

Wiesenweg 22, D-94405 Landau/Isar

* BG Drag, crosscut and mier saw - F Stee an onlet radate - / S Jega a trauone per troncature e tagi obitssu. DKN Skner, kap. og geringass - S Drag, kap. og geringassg. CZ Kuporats a pokosova pla s prozudem - SK Tiesanska, kaopovaca a pokosova pla - NL Treve, skort- en versteluzag. E Sierra de inaction, oscolanie e para cariar ingletes - FIN Veio-, kalkasir- ja jinsaha - SLO Doro#a zaga, celina Zaga in zenerina Zaga - / VHorv-, fesko- es senkalo fures - NO Forstrisju pagak, de relezzi je imitar la colj. - SG Ola#orotovo ka pr ovoi kofting konlje - P Sierra de trapa, cohe transversel e mele-sequidite - RHNH Bu#ra knutze plne za pronazivanje lenoo rezanje - RS Bu#ra knutze bastera za perezivanje i koso rezanje - PL Pia ukosna - TN Gye konse - RUS Protipsivaeksa torpousa y ucorazana nima - EE Nurga je järksamissag - U Skerszagta, sagharizadas zags un imokzigli - TM Kamniotusis tomtamasia phemal plaunents puoka - NG Ipraykar na prahe i nolaionici copa a ortamaica ce paotma nima - SG Ola#orotovo ka pr ovoi kofting konlje - TG Gye konse - UKR Darpucha, torapinalua, aprora nima

EH 01/2021 (01)
