USER MANUAL HEM-DL1470BK Heinner

ESPRESSOR CU DISPOZITIV DE SPUMARE

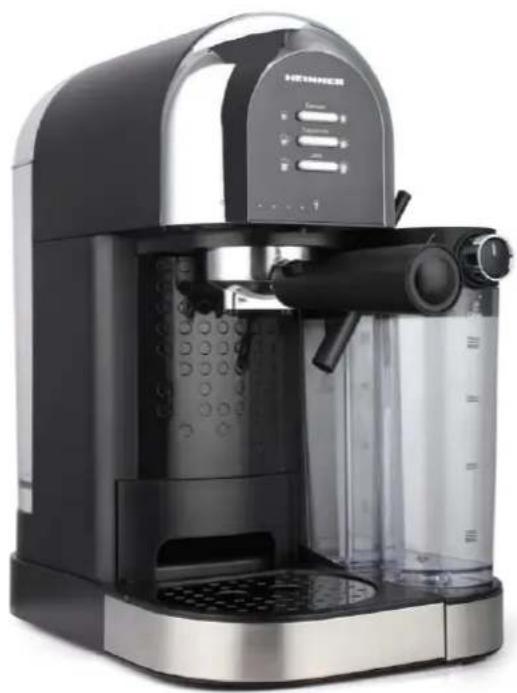

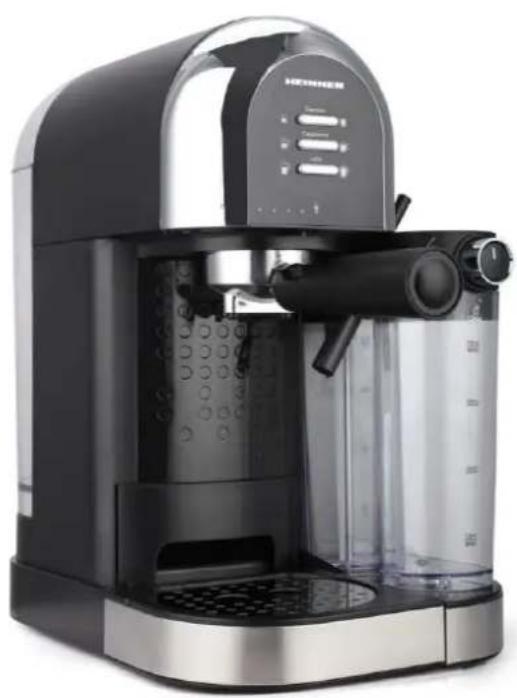

Model: HEM-DL1470BK

Exterior view of a modern KENNIEER coffee maker with digital control panel (no visible text or symbols)

Two simple line drawings of objects: a bowl and a dumbbell (no text or symbols)

Illustration of a large rock next to a perforated bowl with 'MAX' label (no other text or symbols)

Illustration of a large rock next to a perforated metal container with a 'MAX' label (no text or symbols on the rock itself)

Simple line drawing of a mechanical device with a handle and lever, showing a downward arrow indicating motion (no text or symbols)

Simple line drawing of a mechanical component with a rotating arrow indicating rotation (no text or symbols)

Illustration of hands pouring dark liquid from a small container into a bowl (no text or symbols)

Illustration of a hand using a dropper to measure a small container with liquid, no text or symbols present

Illustration of a hand using a tool to measure a small object, with no visible text or symbols.

MONTAREA PORTFILTRULUI

Line drawing of a portable electronic device with ports and control panel (no text or symbols)

Line drawing of a mechanical device with a handle and internal components (no text or symbols)

Line drawing of a portable radio with control panel and buttons (no text or symbols)

Diagram of a mechanical device with a cylindrical component and a rectangular base, showing internal components and directional arrows (no text or symbols)

Pornirea aparatului

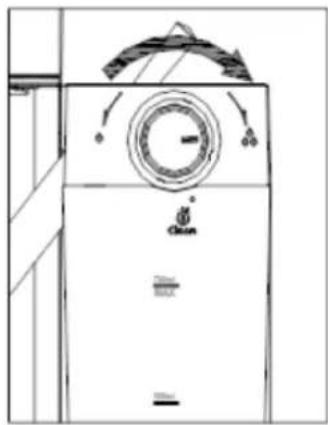

PREPARAREA UNUI ESPRESSO

Line drawing of a refrigerator front panel with control knob and fan (no text or symbols)

Mai multă spumă

Line drawing of a refrigerator front panel with control knob and fan (no text or symbols)

Mai puțină spumă

Line drawing of a refrigerator front panel with alarm clock and door (no text or symbols)

Line drawing of a washing machine with control panel and fan (no text or symbols)

Mai multă spumă

Line drawing of a refrigerator front panel with control dial and buttons (no text or symbols)

Mai puțină spumă

Line drawing of a refrigerator front panel with control panel and door (no text or symbols)

Technical line drawings of a coffee maker and its mechanical clamp assembly (no text or symbols)

CURĂȚAREA CAPULUI DE PREPARARE, A PORTFILTRULUI ȘI A FILTRULUI

Line drawing of a mechanical device with no visible text or symbols

Exterior view of a modern Kevlar brand espresso machine (no visible text or symbols)

• Espresso maker with frothing device
  • 20 bar pressure pump
• 6 typed of hot drinks

Thank you for purchasing this product!

I. INTRODUCTION

Before using the appliance, please read carefully this instruction manual and keep it for future reference.

This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance.

In order to operate the unit correctly and safety, please read this instruction manual carefully before installation and usage.

II. CONTENT OF YOUR PACKAGE

Espresso maker with frothing device
User manual
Warranty card

WARNINGS ON HOW TO USE THE ESPRESSO MAKER:

1. Please note it is very important to use thick grinded coffee (especially used for espresso makers) and not typical coffee powder. If it is used coffee powder, the coffee will block the funnel and the process of releasing the pressure will be affected and it may cause some problems, such as "spraying out" the residues and noisy sound when removing the funnel. Also, the taste of the beverage will not be the best one.
2. After the appliance stops pouring the coffee, please do not remove immediately the funnel and wait for a couple of seconds (around one minute) until the whole pressure inside is released, otherwise the coffee powder residue will be "sprayed out" in a violent way that can be very disturbing. The effect of explosion will occur.
3. Make sure that the funnel is correctly installed, otherwise the pressure will be released during operation. The effect of explosion will be the same as above-mentioned.

III. SAFETY MEASURES

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock and/or injury to persons, including the following:

1. Read all instructions.
2. Make sure that your outlet voltage corresponds to the voltage stated on the rating label of the coffee maker.
3. To protect against fire, electric shock and injury to persons do not immerse cord, plug or unit in water or other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cooling before putting on or taking off parts, and before cleaning the appliance.
6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to an authorized service facility for examination, repair or adjustment.
7. The use of accessory not recommended by the appliance manufacturer may result in fire, electric shock or injury to persons.
8. To disconnect, turn any control to the off position then remove plug from wall outlet.
9. Do not touch any hot surfaces, use handles or knobs.
10. Do not use outdoors or for commercial purposes.
11. Do not let cord hang over edge of table or counter, or touch hot surface.
12. Use on a hard, flat level surface only, to avoid interruption of airflow underneath the appliance.
13. Always be sure to place the water reservoir tightly back in the unit with its lid closed and fill with water on or above the minimum before turning appliance on.
14. Do not remove the porta-filter while brewing coffee. Please make sure the three lights are on before you remove the porta-filter to make additional coffee. Caution should also be taken while removing the porta-filter since the metal parts will be hot. Please make sure to hold it by the handle and to use the filter retention clip to dispose the grounds. Caution should be taken when moving unit with hot liquids.
15. Do not remove the water reservoir until unit is turned off.
16. This appliance is not intended to be operated by means of an external timer or separate remote-control system.

17. The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

18. Keep the appliance and its cord out of reach of children less than 8 years.

19. Before removing any of the parts and accessories, make sure the three lights are on, press the power button to the off position "O" and unplug the appliance.
20. Do not remove the porta-filter at any time during the brewing process.
21. Use caution when removing the porta-filter. The metal parts may still be very hot. Also, there may be hot water floating on the top of the filter. Hold it only by its handle and dispose of the brewed coffee ground by using the filter retention clip.
22. If coffee does not drip, the filter is blocked. Turn off the appliance and allow it to cool down. The blockage may be caused by the coffee being too finely ground. See the "PROBLEMS AND CAUSES" section.
23. WHEN CLEANING THE FROTHED MILK DISPENSING TUBE: Place a large cup under the tube. Fill the milk reservoir with water and place it back on the unit. Turn the Froth Control

Knob clockwise to the clean position then press and hold the latte/clean button for 3

seconds and release to activate the clean function. Let the unit dispense the water through the tube for approximately 30 seconds and then press the Latte/Clean Button once to stop the process.

1. Do not place on or near a hot gas or electric burner, or in a heated oven.

2. Do not use appliance for other than intended use.

3. Do not leave the appliance on unattended.

4. This appliance is intended to be used in household only.

5. Never submerge the appliance in water or other liquids! Danger of electric shock!

6. Save these instructions.

Caution! Pressure

In order to avoid possible burns to body parts and/or other injury from hot steam and water or damages to the unit, never remove the water reservoir or the porta-filter while your espresso/cappuccino maker is brewing coffee or frothing. Make sure the three lights are on before you can remove the porta-filter to make additional cups of coffee. If you need to add more water or milk to the reservoirs, please make sure the three lights are on and ensure to switch off the unit by pressing the red button on the side of the unit to the off position "O".

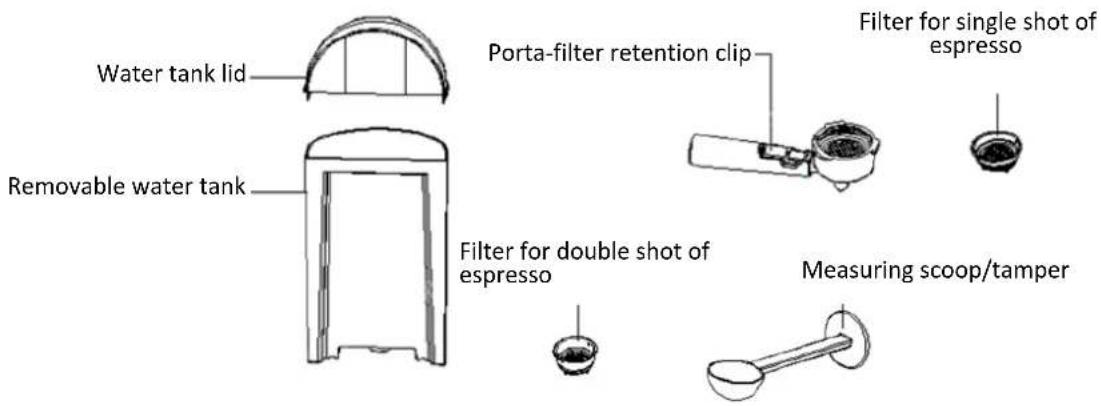

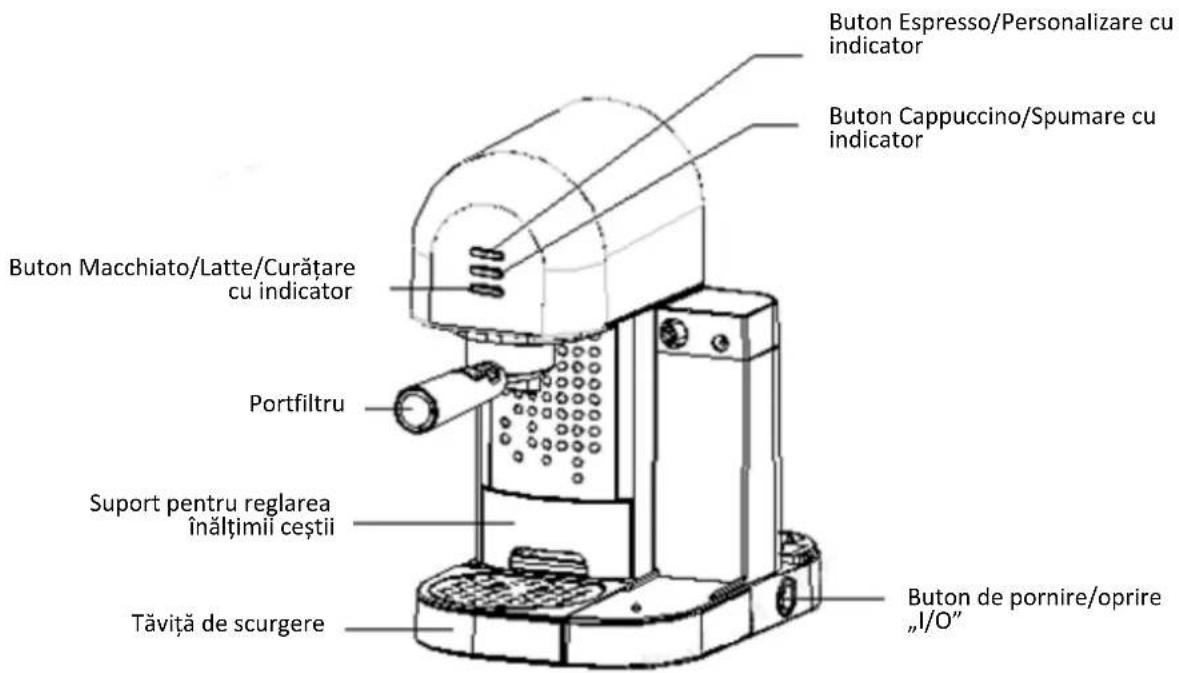

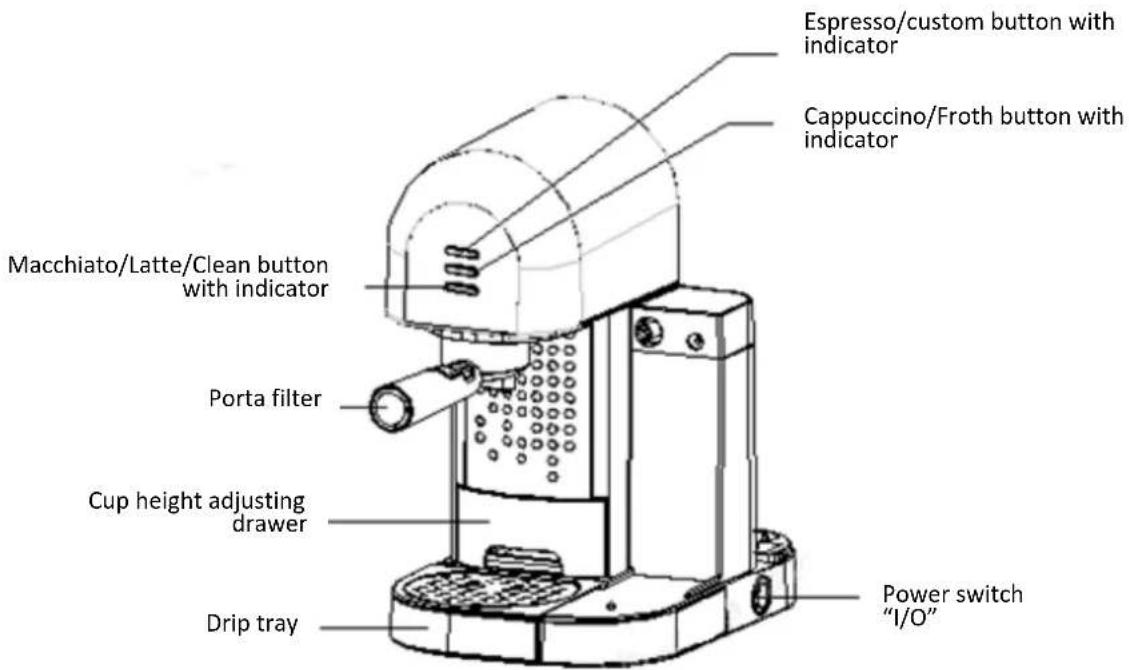

IV. PRODUCT DESCRIPTION

Water tank lid Removable water tank Porta-filter retention clip Filter for single shot of espresso Filter for double shot of espresso Measuring scoop/tamper

Espresso/custom button with indicator Cappuccino/Froth button with indicator Macchiato/Latte/Clean button with indicator Porta filter Cup height adjusting drawer Drip tray Power switch "I/O"

Frothed tube lever Milk reservoir lid Frothed milk dispensing tube Removable/clear milk reservoir

V. USING INSTRUCTION

Cleaning and priming the unit prior to first use.

Please refer to the "Description of the Appliance" section to familiarize with the product and identify all parts.

1. Please make sure the unit is off "O" by pressing the power button located on the side of the unit. Make sure it is unplugged from the electrical outlet.
2. Remove stickers and labels from the unit.
3. First remove and then wash the water reservoir, the milk reservoir, the porta-filter, the three filters and measuring scoop in a mixture of mild detergent and water. Rinse each thoroughly and place them back into the unit.
4. Refer to the instructions on "PLACING THE PORTA-FILTER" section before placing or removing the porta-filter and filter from the unit.
5. To clean the inside of the appliance, follow the steps listed on the "PREPARING CAPPUCCINO" section using water in both reservoirs and no coffee in the filter. Do not immerse the appliance in water or attempt to reach any of its internal parts.
   NOTE: In order for your unit to work properly time after time, clean it after every use.

IMPORTANT – PRIME THE UNIT

To prime unit, run the steam cycle for 90 seconds by following the steps below:

1. Fill water reservoir between the "Min" and "Max" levels.
2. Fill the milk reservoir with water between the "Min" and "Max" levels.
3. Select one of the filters and place it on the porta-filter. Place the porta-filter in the unit ensuring it is properly locked and place a cup under it. Also, make sure the tip of the frothed milk dispensing tube is inside the cup.
4. Plug the appliance into the appropriate outlet.
5. Turn the power button on "I".
6. The three control panel lights will start blinking. Once these lights become solid, press the cappuccino button twice.
7. Once this process is completed, the three control panels will turn on solid.
   Now your unit has been primed and is ready to be used.

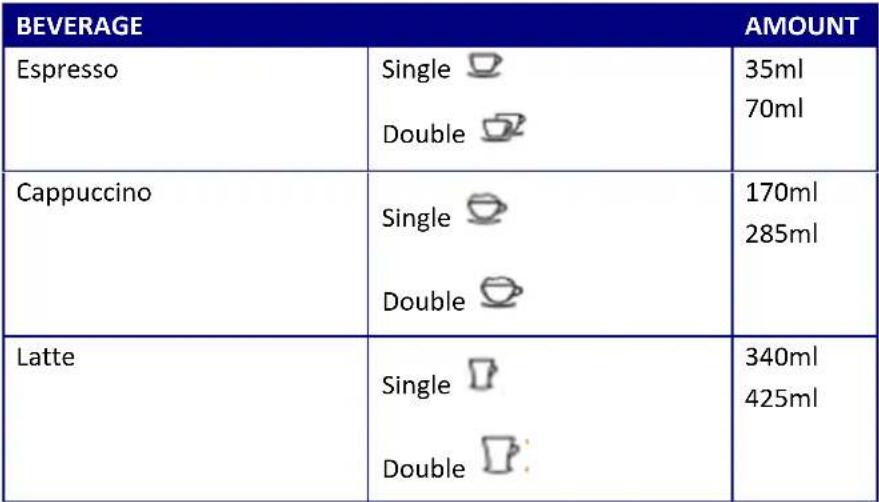

SELECTING THE RIGHT CUP

Before preparing your beverage, please make sure to select the right cup size according to the following table:

The coffee should be freshly ground and dark roasted. You may want to try a French or Italian roast ground for espresso. Pre-ground coffee will only retain its flavor for 7 – 8 days, provided it is stored in an airtight container and in a cool, dark area. Do not store in a refrigerator or freezer. Whole beans are recommended to be ground just before use. Coffee beans stored in an airtight container will keep its flavor for up to 4 weeks.

THE GRIND

This is a vital step in the espresso making process if you are grinding your own coffee and takes practice. The coffee must be of a fine grind. The correct grind should look like salt. If the grind is too fine, the water will not flow through the coffee even under pressure. These grinds look like powder and feel like flour when rubbed between fingers.

If the grind is too coarse, the water flows through the coffee too fast, preventing a full-flavored extraction. Be sure to use a quality grinder for uniform consistency.

OPERATING INSTRUCTIONS

FILLING THE WATER RESERVOIR

a. Fill the reservoir with water, you may either use a jar to fill it up or remove it from the unit or then fill it up under the tap. If you have removed it from the unit to fill up with water, please make sure to place it back tightly in its place. Fill the reservoir with the desired amount of water ensuring it ranges within the "MIN" and "MAX" markings on the tank. Never use warm or hot water to fill the water reservoir.

b. Close the water reservoir lid and place it back in the unit ensuring it fits tightly.

FILLING THE MILK RESERVOIR

If you plan to prepare cappuccino or latte, remove the milk reservoir from the unit and open the lid then pour the quantity of cold milk you estimate you will need between the "MIN" and "MAX" levels. When done, place the milk reservoir back in the unit ensuring it fits tightly. Note: You can use the type of milk of your preference, i.e. whole milk, low fat milk, organic or soy milk.

CHOOSE THE FILTER

Select the filter to be used as follows:

A. FOR A SINGLE SHOT- use the filter for a single shot of espresso if using ground coffee.

Illustration of a dark rock next to a glass bowl with a label 'MAX' (no text or symbols on the rock itself)

B. FOR A DOUBLE SHOT OR TWO SINGLE SHOTS - use filter for a double shot.

Illustration of a large rock next to a container with a labeled 'MAX' (no text or symbols on the rock itself)

NOTE: The pod filter included with your unit has been designed to work only with 45mm pods.

INSERTING THE FILTER

a. To insert the selected filter in the porta-filter, make sure to align the notch on the filter with the groove inside the porta-filter.

Simple line drawing of a mechanical device with a handle and lever, showing a downward arrow indicating motion (no text or symbols)

b. Turn the filter to the left or right to lock in place. This will help secure the filter in the porta-filter.

Simple line drawing of a mechanical component with a rotating arrow indicating rotation (no text or symbols)

NOTE: To remove and clean the filter, turn filter to the left or right to align the filter notch with the grive inside the porta-filter.

WARNING: Make sure the filter has cooked before attempting to remove the filter.

FILLING WITH COFFEE

Place selected filter on porta-filter as follows:

FOR GROUND COFFEE:

a. Fill the filter with fresh, fine ground espresso coffee (do not overfill).

Note: the ground coffee amount can't exceed the MAX mark.

b. Tamp and compress firmly and evenly ground coffee.

c. Clean any excess coffee from the rim to ensure proper fit under brew head.

Illustration of hands pouring dark liquid from a small container into a larger vessel (no text or symbols)

Illustration of a hand using a dropper to measure a small container with liquid, no text or symbols present

Illustration of a hand using a dropper to measure a small container with an arrow indicating rotation (no text or symbols)

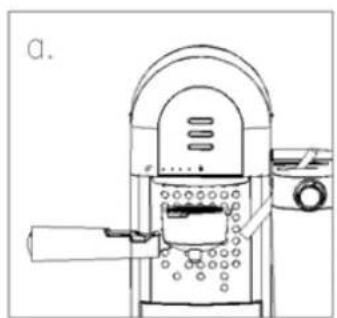

PLACE THE PORTA-FILTER

a. Position porta-filter underneath the brew head, attach porta-filter by first moving retainer clip back.
b. Position handle so that the handle lines up with the open lock icon “” on the unit and fits into the groove.
c. Then, slowly turn it to the right until the retention clip is aligned with the closed lock symbol "🔒 on the unit.

Line drawing of a portable electronic device with ports and control panel (no text or symbols)

Line drawing of a mechanical device with a handle and internal components (no text or symbols)

Line drawing of a portable radio with control panel and buttons (no text or symbols)

Note: The frothing tube is very hot, please take care.

PLACING THE CUP(S)

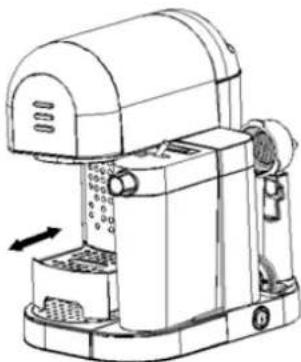

a. Pull out the height adjustment tray if you are using a small "demitasse" cup to brew espresso.
b. Keep the height adjustment tray inside its compartment if you are using a larger cup to brew cappuccino.
c. Keep the height adjustment tray inside its compartment if you are using a larger cup to brew latte.

CAUTION: When brewing cappuccino or latte, please make sure to adjust the frothing tube lever in order to position the froth milk dispensing tube inside the cup to be used. And you can clean it by rotating it out, then fix it in.

Diagram of a mechanical device with a cylindrical shaft and internal components, showing motion direction (no text or symbols)

Turning the unit ON

a. Make sure unit is plugged in.
b. Turn unit on "I".

The three control panel lights will start blinking during heating and until the water reaches the perfect temperature. Once these lights become solid, the unit is ready to use.

SELECT THE FUNCTION

PREPARING ESPRESSO

a. Press the Espresso Button once to brew one single shot.
b. Press the Espresso Button twice to brew a double shot.
c. Press and hold the Espresso Button for 3 seconds to customize the brewing to your preference. When done, press the Espresso Button once again to stop it.

The unit will start brewing the espresso according to your selection. The unit will turn off automatically and the lights will become solid indicating that the cycle has been completed. Your delicious espresso is ready to be enjoyed.

NOTE: To brew less coffee than the preset serving, press the function button to stop the brewing process when the amount of coffee desired is reached.

PREPARING CAPPUCCINO

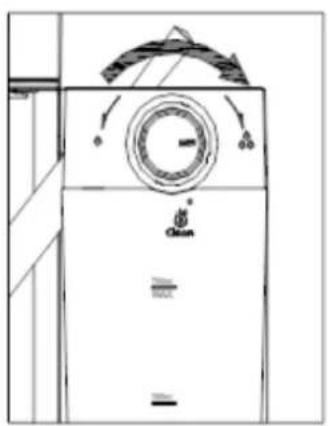

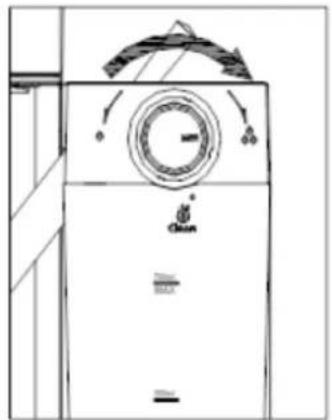

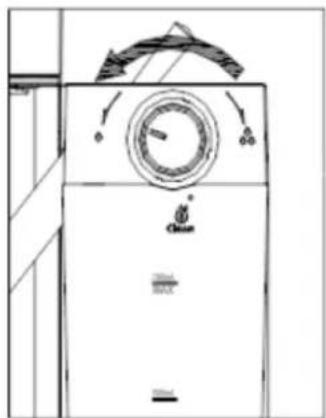

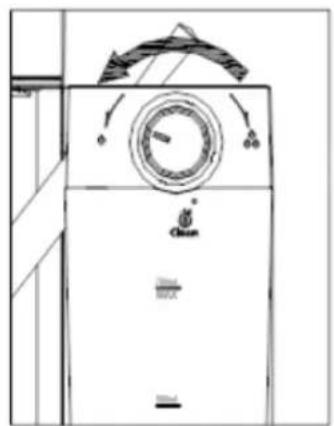

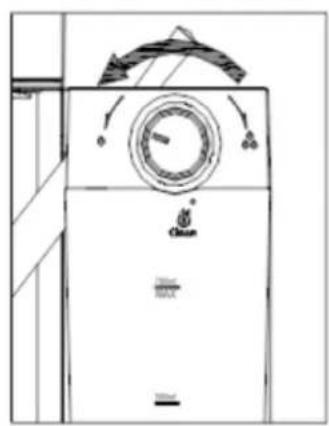

Before brewing cappuccino, turn the froth control knob to middle position, you can adjust the quantity of frothed milk according to your preference by turning the Froth Control knob to the right "for more froth and to the left " for less froth.

Normal froth

Line drawing of a refrigerator with labeled doors and front panel (no text or symbols beyond basic labels)

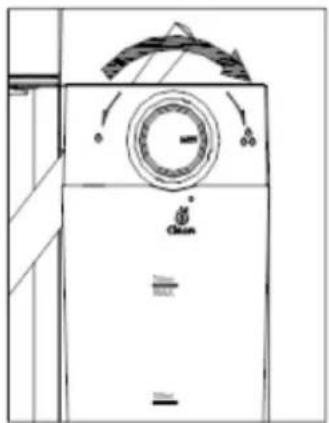

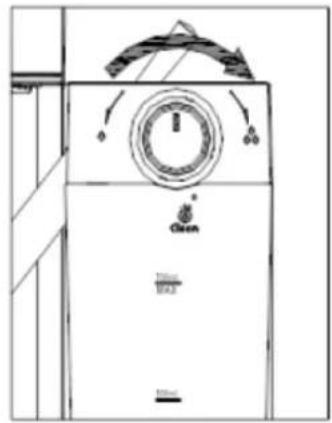

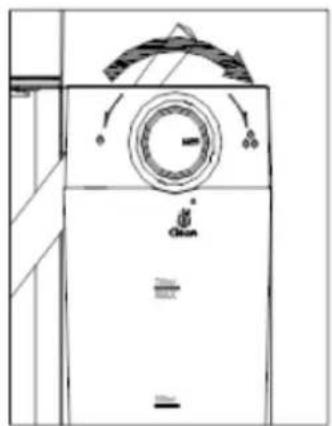

More froth

Line drawing of a refrigerator front panel with control knob and fan (no text or symbols)

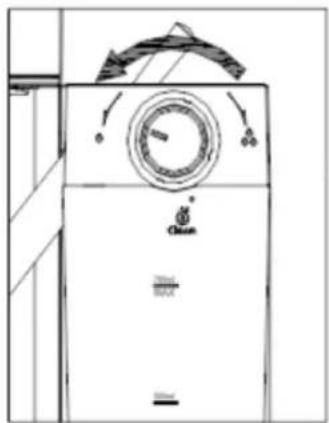

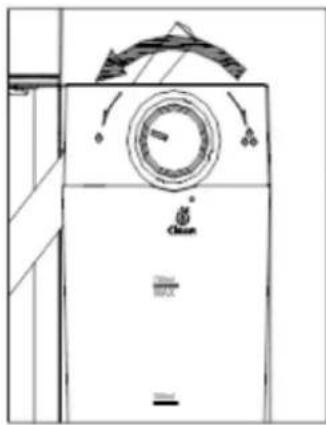

Less froth

Line drawing of a refrigerator front panel with alarm clock and door (no text or symbols)

Note: The froth intensity can be adjusted during the brewing cycle.

a. Press the Cappuccino Button once to brew a small cup of cappuccino.
b. Press the Cappuccino Button twice to brew a large cup of cappuccino.

The unit will start brewing the cappuccino according to your selection. Your delicious cappuccino is ready to be enjoyed.

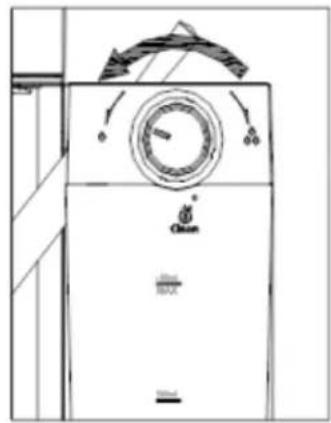

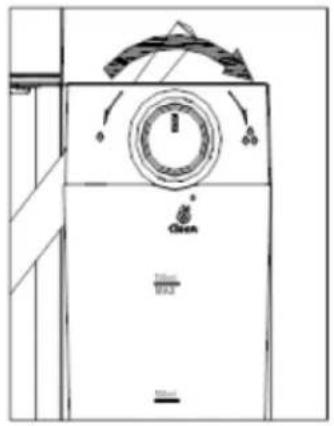

PREPARING LATTE

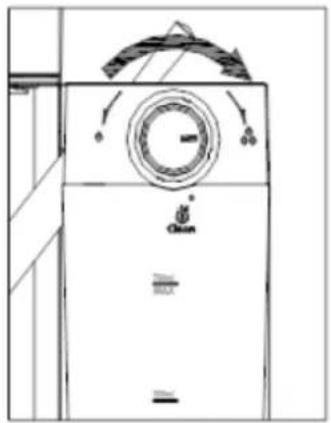

Prior to preparing your latte, adjust the quantity of frothed milk according to your preference by turning the Froth Control Knob to the right “ ” for more froth and to the left “ ” for less froth.

Normal froth

Line drawing of a washing machine with control panel and fan (no text or symbols)

More froth

Technical line drawing of a mechanical device with no visible text or symbols

Less froth

Line drawing of a refrigerator front panel with control buttons and a dial (no text or symbols)

a. Press the Latte Button once to brew a small cup of latte. b. Press the Latte Button twice to brew a large cup of latte.

PREPARING FROTH MILK

The unit also allows you to prepare froth milk only. Press and hold the Cappuccino Button for 3 seconds if you wish to add more foam to your beverage or to prepare froth milk for any other beverage, e.g. macchiatto, hot chocolate, Tea latte, etc. When done, press the Cappuccino Button once again to stop it.

AFTER PREPARING YOUR BEVERAGES WITH MILK

Once you are done preparing your beverage with milk, you can either store the unit's milk reservoir directly in the refrigerator (ready to be used for the next time) or dispose of the leftover milk.

If there is no any operation within 15 minutes, the unit will enter sleep mode, you can press any button to wake up the unit.

ESPRESSO

A unique method of coffee brewing in which hot water is forced through finely ground coffee. Popular in Europe, it is a far richer and more full-bodied brew than regular drip coffee. Because of its richness, espresso is usually served in 44 to 59 ml (1.5 to 2 oz.) portions, in demitasse cups.

CAPPUCCINO

A drink made with about 1/3 espresso, 1/3 steamed milk, and 1/3 frothed milk.

LATTE

A drink made with about 1/4 espresso and 3/4 steamed milk.

Please read ALL of the instructions, cautions, notes and warnings included in this instruction manual carefully before you begin to use this appliance. When this unit is used, some parts and accessories get hot and need to cool down. Proper care and maintenance will ensure the long life of the Automatic Espresso, Cappuccino, and Latte Maker and its trouble-free operation. Save these instructions and refer to them often for cleaning and care tips.

DESCALING

With the milk reservoir placed in position, the appliance will remind the user to perform descaling in a way of six indicators quickly flashing alternately. At that time, the user shall fill the water tank with 600ml clean water and dedicated descale, then press Espresso and Latte buttons simultaneously and then the appliance enters into descaling condition automatically, then the six indicators slowly flash alternately, after working for about half a hour, the six indicators quickly flash alternately, and then the user shall empty the water tank and refill it with 600ml clean water, after it, press Espresso and Latte buttons simultaneously again and the appliance continues to perform descaling, at that time, the six indicators slowly flas alternately, after working for about half a hour, the appliance stops working and goes back to the standby condition.

NOTE:

1) You can press any functional buttons to perform the corresponding function when the appliance reminds you to perform descaling. And the appliance will continue to remind you to perform descaling after finish performing the corresponding function.
2) The descaling process can be stopped at any time by pressing any button, then the appliance will continue to remind the user to perform descaling. And the appliance will enter into normal standby mode only after finish the whole descaling process.

CORRECT USE OF GROUND COFFEE FOR ESPRESSO MAKERS

Do not use sugar roasted ground coffee or sugar roasted coffee beans as these will clog the filter and damage the appliance. If sugar roasted coffee is accidentally used, stop using the unit and bring it to the closest service center for maintenance. We recommend descaling the machine periodically to keep it in good working condition. Contact our service centers to learn about this process.

VI. CLEANING

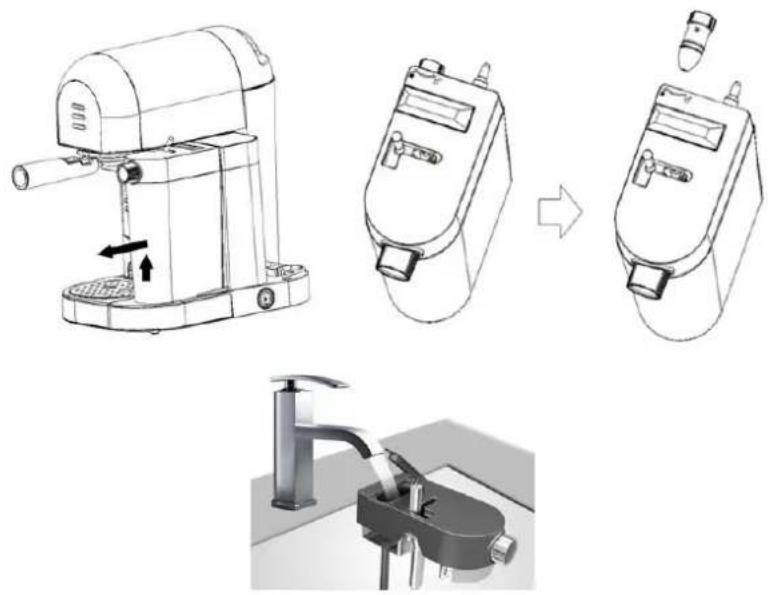

CLEANING THE MILK RESERVOIR AND FROTHING TUBE

Even though you can store the milk reservoir with left over milk in the refrigerator, it is important to clean the reservoir and frothing tube regularly to avoid clogging and building residues. In order to clean the milk reservoir, please follow the instructions listed below:

1. Remove the milk reservoir from the unit
2. Remove the lid of the reservoir.
3. The steam tube connector can be detached by rotating, you can clean it by tap water. After cleaning, please fix it into milk reservoir lid by rotating.
4. When cleaning milk reservoir, you can open silicon sheet (don't pull it out), wash it by tap water. After cleaning, place back the silicon sheet.
5. Pour any milk left and rinse and wash the milk reservoir and its lid thoroughly with warm soapy water. Rinse and dry well. Do not use abrasive cleaners and scouring pads, as they will scratch the finish. The milk reservoir is also dishwasher safe (top rack). Do not place the lid of the milk reservoir on the dishwasher.

6. Place a large empty cup under the frothing tube.

7. Turn the Froth Control Knob clockwise to the clean position then press and hold the latte/clean button for 3 seconds and release to activate the clean function. The unit will start releasing steam through the frothing tube, let it run for a few seconds until you don't see any milk in cup. When done press the Latte/ clean button once to stop the process.

8. Dispose any water left on the milk reservoir and place it back in the unit. Note: For disassembling the milk reservoir, you should raise it up a little, then pull it out.

Technical line drawings of a coffee maker with mechanical components, showing assembly and mounting (no text or symbols)

CLEANING THE BREW HEAD, THE PORTA-FILTER AND FILTER

1. Switch the power button on the side of the unit to the off position "O" and unplug the power cord from the electrical outlet.
2. Some of the metal parts might still be hot. Do not touch them with your hands until they have cooled.
3. Remove the porta-filter and discard the coffee grounds or used pod. Wash both the porta-filter and filter with warm soapy water and rinse them well. Do not wash the porta-filter and filters in the dishwasher.
4. Wipe lower part of the brew head in the unit with a damp cloth or paper towel to remove any coffee grounds that might have been left.
5. Place the porta-filter (without any filter) back in the brew head in the unit.
6. Place an empty large cup under the porta-filter.
7. Press the espresso button once and let the unit brew with water only until it stops automatically.

CLEANING THE WATER RESERVOIR

Discard the remaining water by removing the reservoir and turning it upside down over the sink. It is recommended to empty the water reservoir between uses. Wash the water reservoir with soapy water, rinse it well and wipe it dry. The water reservoir is also dishwasher safe.

CLEANING THE UNIT

1. Wipe housing with a soft wet cloth. Do not use abrasive cleaners or scouring pads, as they will scratch the finish.
2. Do not store the porta-filter in the brew head. This can adversely affect the seal between the brew head and the porta-filter while brewing espresso. You can store the porta-filter and filter as below figure.

Line drawing of a coffee maker with handle and spout, showing mechanical components and no text or symbols

CAUTION: Do not immerse appliance in water.

DELIMING

Mineral deposits built-up in the unit will affect the operation of the appliance. Your appliance must be delimed when you begin to notice an increase in the time required to brew espresso, or when there is excessive steaming. Also, you may notice a build-up of white deposits on the surface of the brew head.

The frequency of cleaning depends upon the hardness of the water used. The following table gives the suggested cleaning intervals.

SUGGESTED CLEANING INTERVALS
Type of water	Cleaning frequency
Soft water (Filtered water)	Every 80 Brew cycles
Hard water (Tap water)	Every 40 Brew cycles

TO DELIME THE WATER RESERVOIR:

1. Fill the reservoir with fresh, undiluted white household vinegar.
2. Allow appliance to sit overnight with the vinegar solution in the water reservoir.
3. Discard vinegar by removing the reservoir and turning it upside down over the sink.
4. Rinse the water reservoir thoroughly with tap water by filling tank half full with water and then pouring the water back out into the sink, repeating this step twice.

TO DELIME INTERNAL PARTS:

1. Make sure you delime the inside of the water reservoir first by following the "Deliming" steps above.
2. Make sure to switch the power button to the "O" position and the power cord is disconnected from the electrical outlet. Fill the reservoir with white vinegar above the minimum level into reservoir.
3. Insert the porta-filter (with filter and no coffee) and place jar/carafe or regular cup on top of the drip tray and under the porta-filter.
4. Plug the power cord into the electrical outlet.
5. Press the power button to switch the unit on "I", once the six control panel lights turn solid blue, press the Espresso Button twice. The vinegar will start flowing through the unit and it will stop automatically.
6. Place a pitcher or large cup (with at least 325ml/11-ounce capacity) under the tube.
   Fill the milk reservoir with water and place it back on the unit. Turn the Froth control
   knob clockwise to the clean position ⏻, then press and hold Latte Button for 3s to activate the clean function. Let the unit dispense the water through the tube for approximately 30 seconds and then press Latte Button once to stop the process.
7. Repeat steps 1-6 as necessary using only tap water to rinse any remaining traces of vinegar out of the machine.

Manual descaling mode

After the unit working for 500 cycles, it will enter descaling alarming, Cappuccino and Latte indicator blink in turn. If you don't descale in time, waterway system may block.

Note: If you want to descale before 500 cycles, you can descale manually as following steps.

Operation

1. Ensure the power switch is at the position of "O", and the power cord is unplugged. Fill 400ml white vinegar and 600ml water into the water tank. Assemble the milk tank into the unit, turn frothing control knob clockwise to clean position.
2. Press the power switch to "I" position, Cappuccino and Latte indicator blink in turn. Press Espresso button and Latte button at the same time, the unit will enter descaling mode automatically. 6 indicators blink by turning a circle anticlockwise, the frothed milk dispensing tube will flow out hot water and steam, after 40 mins, the unit will enter standby mode, 6 indicators illuminate.
3. Discard the residual descaling solution, and clean the water tank, fill appropriate amount pure water, brew two cups of Espresso continuously, then brew two cups of Latte continuously, the cleaning finished. 6 indicators illuminate, the unit recover to standby mode, after the unit working for 500 cycles again, the unit will remind descaling again.
   Note: Under descaling reminding status, you still can operate the unit normally, and after operation, it will return to descaling reminding status.

VII. TROUBLESHOOTING

PROBLEM	CAUSES	SOLUTIONS
Coffee does not come out.	No water in reservoir.Coffee grind is too fine.Too much coffee in the filter.Appliance was not turned on or plugged in.Coffee has been tamped/compressed too much.	Add waterGrind medium ground coffee.Fill filter with less coffee.Plug unit into electrical outlet and turn it on.Refill filter basket with coffee, do not tamp too much.
Coffee comes out around the edge of the porta-filter.	Porta-filter not rotated to full lock position.Coffee grounds around the filter basket rim.Too much coffee in the filter.	Rotate filter holder to full lock position.Wipe off rimFill with less coffee.
Milk is not foamy after frothing or it is not coming out of the frothing tube	Ran out of steamMilk is not cold enough.Frothing tube is blocked.	Ensure there is enough water in the reservoir.Chill milk and frothing pitcher prior to making cappuccino.Follow the instructions to clean the milk reservoirs &frothing tube.
Coffee comes out too quickly	Ground coffee is too coarse.Not enough coffee in filter.	Use a finer grind.Use more coffee.
Coffee is too weak.	Using small filter for double shot of espressoGround coffee is too coarse.	Use large filter for double shot of espressoUse a finer grind.

Environment friendly disposal

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipment's to an appropriate waste disposal center.

HEINNER is a registered trademark of Network One Distribution SRL. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from NETWORK ONE DISTRIBUTION.

Copyright © 2013 Network One Distribution. All rights reserved.

www.heinner.com, http://www.nod.ro

http://www.heinner.com, http://www.nod.ro

This product is in conformity with norms and standards of European Community.

HEINNER

МАШИНА ЗА ЕСПРЕСО С УСТРОЙСТВО ЗА РАЗПЕНВАНЕ

Модел: НЕМ-DL1470BK

Exterior view of a modern Kevens Super microwave oven with digital display and control buttons (no visible text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Illustration showing a dark irregular object and a bowl with a labeled 'MAX' (no text or symbols on the objects themselves)

Illustration of a large rock next to a container with a label 'MAX' (no text or symbols on the rock itself)

Diagram of a mechanical device with a handle and lever, showing a downward arrow indicating motion (no text or symbols present)

Simple line drawing of a mechanical component with a rotating arrow indicating rotation (no text or symbols)

Illustration of hands pouring dark liquid into a small cup (no text or symbols)

Illustration of a hand using a spoon to measure a small container with liquid, no text or symbols present

Illustration of a hand using a dropper to measure a small container with a pointer (no text or symbols)

Line drawing of a portable electronic device with a handle and control panel (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a portable radio with control panel and buttons (no text or symbols)

Diagram of a mechanical device with a cylindrical component and an arrow indicating rotation (no text or symbols)

Включване на уреда

Line drawing of a refrigerator front panel with control knob and door (no text or symbols)

Повече пяна

Line drawing of a refrigerator front panel with control knob and fan (no text or symbols)

По-малко пяна

Line drawing of a refrigerator front panel with alarm clock and control buttons (no text or symbols)

Line drawing of a washing machine front panel with control knob and fan (no text or symbols)

Повече пяна

Line drawing of a refrigerator front panel with control knob and side buttons (no text or symbols)

По-малко пяна

Line drawing of a refrigerator front panel with alarm clock and door (no text or symbols)

Illustration of a coffee maker with three views: front view, side view, and close-up of the base (no text or symbols)

Line drawing of a coffee maker with control panel and side-mounted buttons (no text or symbols)

Exterior view of a modern KENNIEB coffee maker with digital control panel (no visible text or symbols)

Illustration of a large rock next to a glass bowl with a label 'MAX', showing an arrow pointing to it (no text or symbols on the objects themselves)

Illustration of a large rock next to a metal container with a 'MAX' label (no text or symbols on the rock itself)

Simple line drawing of a mechanical device with a handle and lever, showing a downward arrow indicating motion (no text or symbols)

Simple line drawing of a mechanical component with a rotating arrow indicating rotation (no text or symbols)

Illustration of hands pouring dark liquid into a small container (no text or symbols)

Illustration of a hand using a dropper to measure a small container with liquid, no text or symbols present

Illustration of a hand using a tool to measure a small object, with no visible text or symbols.

A SZÜRÖTARTÓ FELSZERELÉSE

Line drawing of a portable electric stove with cooling unit and side arm (no text or symbols)

Line drawing of a mechanical device with a handle and internal components (no text or symbols)

Line drawing of a portable radio with control panel and buttons (no text or symbols)

Diagram of a mechanical device with a shaft and lever assembly, showing motion direction (no text or symbols)

Line drawing of a refrigerator with front panel and side door (no text or symbols)

Több hab

Technical line drawing of a mechanical device with no visible text or symbols

Kevesebb hab

Line drawing of a refrigerator front panel with circular dial and control buttons (no text or symbols)

Technical diagram of a washing machine with labeled components including fan, dial, and control buttons

Több hab

Line drawing of a refrigerator front panel with control dial and fan (no text or symbols)

Kevesebb hab

Line drawing of a refrigerator front panel with control knob and fan (no text or symbols)

Illustration of a coffee maker with mechanical components and a close-up view of the lever mechanism (no text or symbols)

Line drawing of a coffee maker machine with no visible text or symbols
