USER MANUAL GZ-30BW Guzzanti

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY

POZORNE SI PREČÍTAJTE A ODLOŽTE PRE POUŽITIE V BUDÚCNOSTI

DÔLEŽITÉ UPOZORNENIA

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

IMPORTANT SAFETY INSTRUCTIONS

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE INTRODUCTION

IMPORTANT NOTICES

When using an electrical appliance, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury, including the following:

1. Read all instructions before using.
2. Remove all packing material and carefully check your cooler box to ensure it is in good condition and that there is no damage to the ice maker or power cord and plug.
3. Ensure the voltage is compliant with the voltage range stated on the rating label, and ensure the earthing of the socket is in good condition.

4. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

5. Do not connect or disconnect the electric plug when your hands are wet.

6. Place the cooler box on a dry and horizontal surface.

7. To ensure proper ventilation for the cooler box, make sure the cooler box is at least 15cm away on either side so as to allow correct ventilation on the appliance. Do not place the cooler box near an oven, radiator, or other source of heat.

8. Never put the cooler box under the sunlight.

9. The cooler box must be installed in an area protected from the elements, such wind, rain, water spray or drips.

10. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

11. Metal sheet or other electric objects are not allowed to be inserted into the appliance to avoid fire and short circuit.

12. To protect against risk of electric shock, do not pour water on cord, plug and ventilation, immerse the appliance in water or any other liquid.

13. Unplug the appliance after using or before cleaning.

14. Please keep the instruction manual.

15. Warning: Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

16. When not in use, turn the switch to "OFF" and pull off the plug.

17. WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

18. 1. WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

19. This refrigerating appliance is not intended to be used as a built-in appliance.

20. This refrigerating appliance is not suitable for freezing foodstuffs.

SPECIFICATIONS

No. Descriptions Specification
1 Product specification General
2 Volume GZ-26: 25 L	GZ-30: 30 L
3 Refrigeration mode Semiconductor chip cooling
4 Rated power GZ-26: 55 W	GZ-30: 65W
5 Max overall dimensions(W×D×H) GZ-26: W449 x D287.5 x H393(mm)GZ-30: W449 x D287.5 x H444(mm)
6 Packing dimensions(L×W×H) GZ-26: 465 x 336 x 405(mm)GZ-30: 465 x 336 x 445(mm)
7 Net weight GZ-26: 4.9kg	GZ-30: 5.1kg
8 Gross weight GZ-26: 5.8kg	GZ-30: 6.0kg
9 PU insulation	√
10 Food grade inner	√
11 Portable handle design	√
12 Removable flip design	√

PARTS & FEATURE

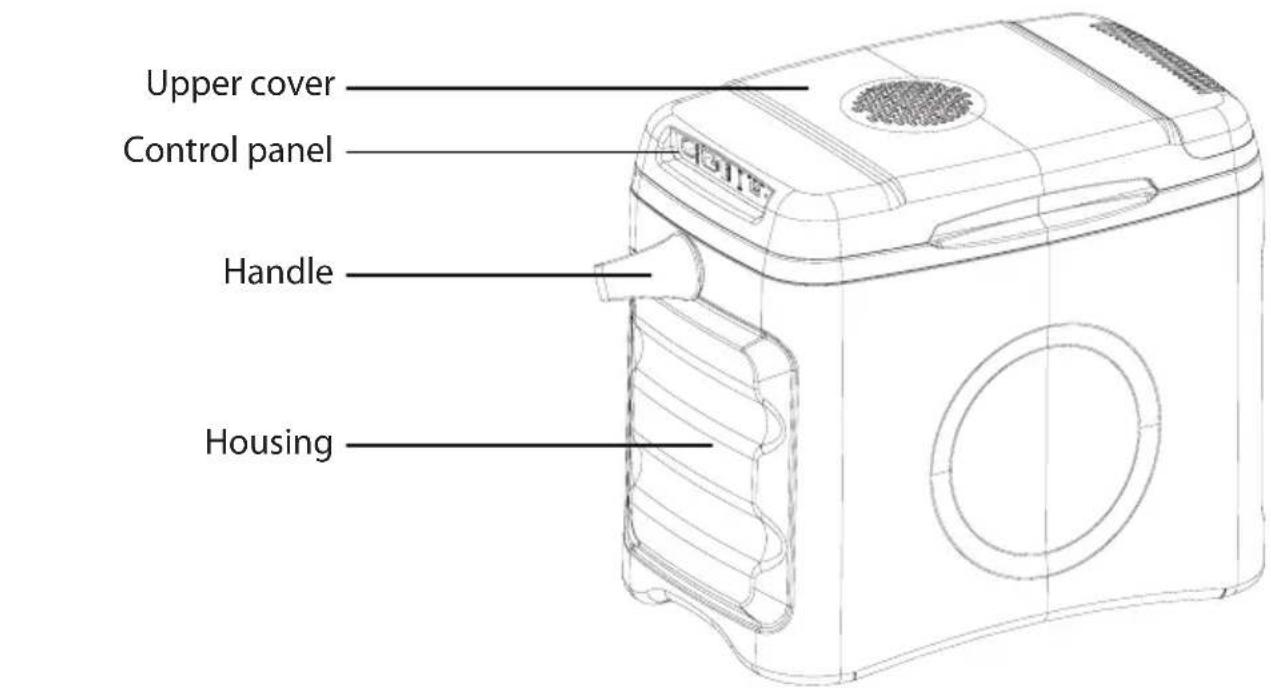

Upper cover Control panel Handle Housing

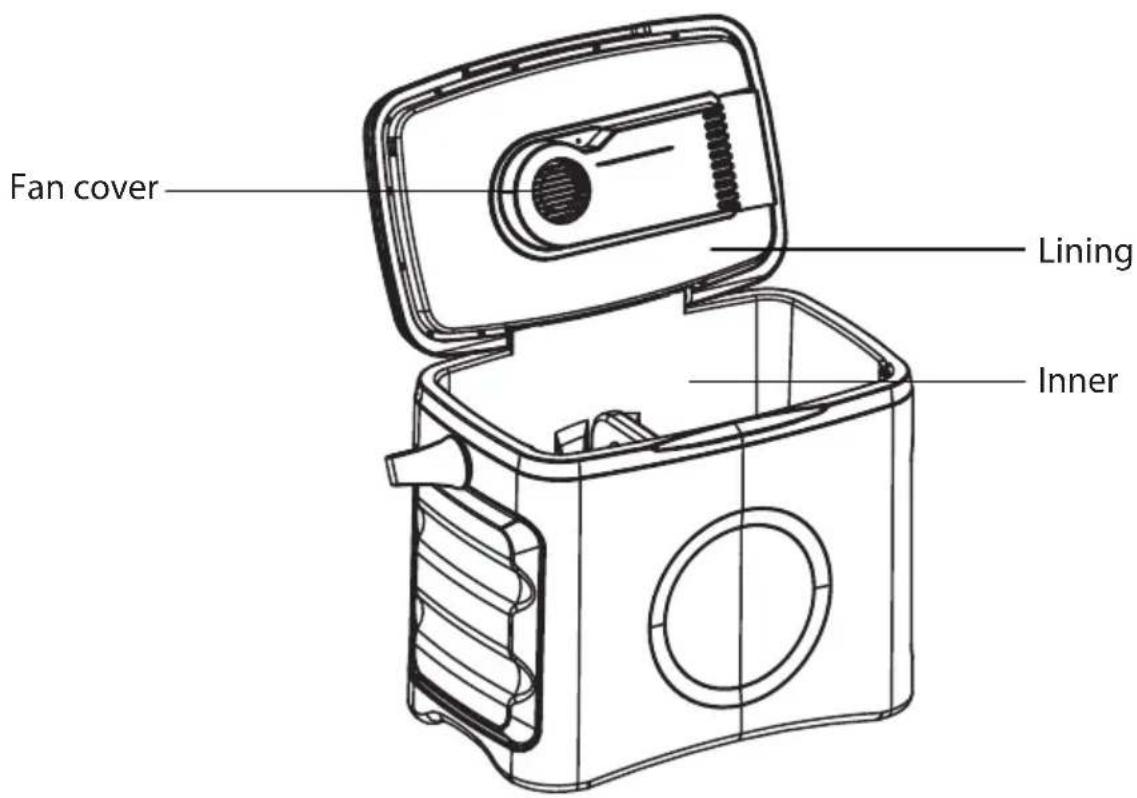

Fan cover Lining Inner

A. FUNCTIONS

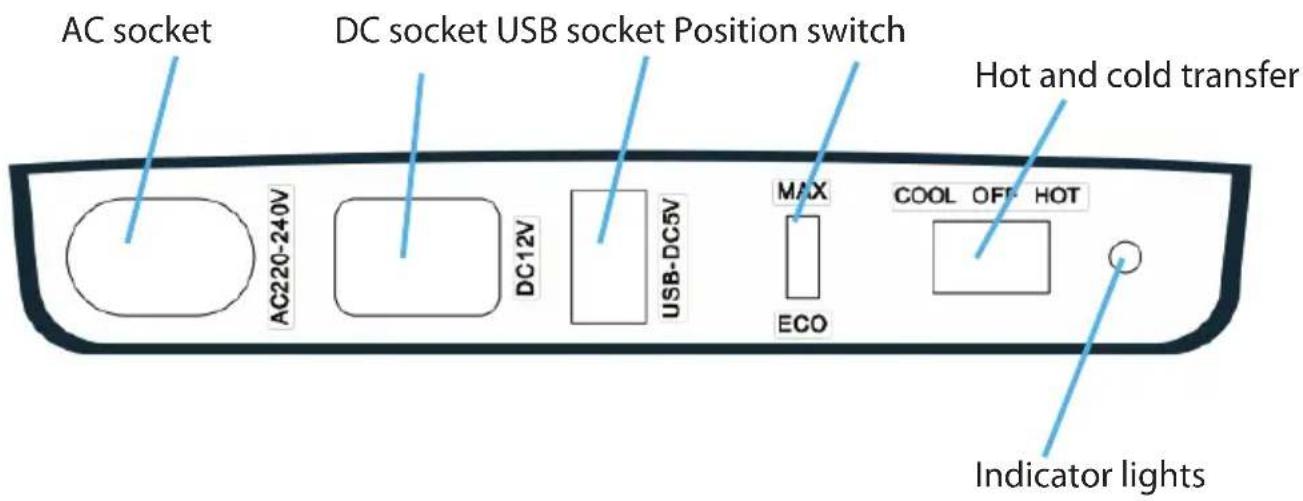

AC socket DC socket USB socket Position switch AC220-240V DC12V USB-DC5V MAX ECO COOL OFF HOT Hot and cold transfer Indicator lights

1. AC socket is connected with household power supply.
2. DC socket is connected with safe low voltag DC12V. If the voltage is too low or too high, the machine will stop automatically to protect the automobile battery. It is recommended that the minimum input voltage is higher than 10.7V and the maximum input voltage is lower than 15V.
3. USB socket is connected with 5V safe low voltage.
4. There are two modes of cooling and heating under the three kinds of power supply. After the power is plugged in, the switch is turned to cool, the cooler box starts to cool, the indicator light is green, and the switch is turned to hot, the cooler box starts heating, and the indicator light is red.
5. When using AC socket, Max and Eco these two positions can be adjusted.

A The ambient temperature is relatively high, it is recommended to apply "Max gear" for rapid cooling.
B In case of refrigeration to a relatively low temperature, or in case of heat preservation, it is recommended to apply "Eco" for heat preservation, so that food or articles need to be kept from being too cold and energy saving can be achieved simultaneously.
C If you're outdoors, I recommend you use the "USB" voltage, DC5V Safe Low voltage.

1. If your machine is working for a long time, it is recommended that you use MAX cooling to the target temperature and use ECO mode for insulation to save energy.

B. PERFORMANCE

1. Whole machine power: MAX position power of 65 W (GZ-30), 55 W (GZ-26).
2. Under the environment of 25.5 ^ ± 0.5 ^ , the temperature difference in lower parts of the box can reach more than 20 ^ at “Max” position.
   In "Eco" position, the temperature difference in lower parts of the box can reach more than 10 °C.
3. Under the environment of 25.5 ^ ± 0.5 ^ , the heating temperature in lower parts of the box can be maintained at 55 ^ ± 5 ^ . In Eco position, the temperature in lower part of the box can be maintained at about 30 ^ .
4. The portable power source with capacity of 10000mAh can be used for 3-4 hours.

OPERATION

1. Take the product out of the package and place it on a horizontal surface.
2. Before the first use, open the upper cover and place in a ventilated place for 1-2 hours.
3. Please use the standard power cord, cigarette lighter or USB cord.

MAINTENANCE

Caution: The plug must be removed before cleaning to avoid electric shock.

1. Do not use corrosive acid or alkaline solution for cleaning, such as diluent, volatile oil, alcohol, decontamination powder, etc. the plastic and coating parts will change color and deteriorate.
2. Do not wash the machine body directly with water to avoid machine failure.
3. Always clean the dirt around the interior of the cavity to avoid peculiar smell.

COMMON USAGE PROBLEMS AND SOLUTIONS

Common problem Failure cause Suggested solutions
The machine does not start after the power cord is plugged in and the switch is turned on.	1. The voltage is too low.2. No electricity.	1. Shut down the machine and restart it when the voltage is stable.2. Call the service hotline.
When plugged in and switched on, it can be cooled and heated, but the fan doesn't turn.	Cooling fan failure. Replace the fan.
The temperature inside the box increases under the refrigeration mode.	Internal cooling chip installed in reverse.	Call the service hotline.
When plugged in and switched on, the fan rotates, but does not cool or heat.	Refrigeration chip fault. Call the service hotline.
Does not work when using the cigarette lighting machine.	Light the cigarette and insert it backwards.	Insert the plug as required.
Plug in the switch can work normally, the indicator light is not on.	Control panel indicator light is out of order.	Call the service hotline.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

This symbol on products or original documents means that used electric or electronic products must not be added to ordinary municipal waste. For proper disposal, renewal and recycling hand over these appliances to determined collection points. Alternatively, in some European Union states or other European countries you may return your appliances to the local retailer when buying an equivalent new appliance. Correct disposal of this product helps save valuable natural resources and prevents potential negative effects on the environment and human health, which could result from improper waste disposal. Ask your local authorities or collection facility for more details. In accordance with national regulations penalties may be imposed for the incorrect disposal of this type of waste.

For business entities in European Union states

If you want to dispose of electric or electronic appliances, ask your retailer or supplier for the necessary information.

Disposal in other countries outside the European Union.

This symbol is valid in the European Union. If you wish to dispose of this product, request the necessary information about the correct disposal method from the local council or from your retailer.
