GZ-25A - Cooler Guzzanti - Free user manual and instructions

Type	Thermoelectric Cooler and Warmer
Capacity	25 L
Dimensions (W x H x D)	413 x 390 x 305 mm
Power Supply	AC 220-240V 50 Hz and DC 12V
Cooling Performance	Up to 18°C below ambient temperature
Heating Performance	Up to 50°C (thermostat controlled)
Digital Temperature Display	Yes, shows inside temperature
Control	Cool/Hot switch and energy adjustment knob
Handle	Ergonomic locking handle
Insulation	High quality, maintains temperature after power disconnection
Portability	Lightweight, can be carried by hand or on back
Technology	Semiconductor, no compressor or cryogen
Applications	Car, camping, BBQ, pool side, home, office
Cooling Time (unfrozen)	Approximately 2-3 hours
Heating Time (cold food)	More than 2 hours to heat
Safety Features	Keep ventilation clear; do not switch modes abruptly; do not rinse with water; avoid exposure to rain
Accessories Included	AC and DC power cables

Frequently Asked Questions - GZ-25A Guzzanti

How do I switch between cooling and heating modes?

First turn the switch to OFF for at least 30 minutes, then select COLD or HOT position.

Can I heat cold food with this device?

The device is designed to keep hot food warm, not to heat cold food. If necessary, it can take more than 2 hours to warm cold food.

What power sources can the cooler use?

It works with AC 220-240V 50 Hz (indoor socket) and DC 12V (car cigarette lighter).

How long does it take to cool drinks?

For pre-chilled drinks, cooling takes about 2-3 hours to reach optimal temperature.

Is the cooler portable?

Yes, it is lightweight and has an ergonomic locking handle for easy carrying.

Can I use this cooler indoors?

Yes, with the AC power adapter you can use it indoors, e.g., in a bedroom, office, or hotel room.

What temperature range does the cooler achieve?

Cooling: up to 18°C below ambient temperature. Heating: up to 50°C (thermostat controlled).

How do I clean the cooler?

Do not rinse with water. Use a damp cloth to wipe the interior and exterior. Ensure the unit is unplugged and the switch is OFF.

What does the LED display show?

It shows the current inside temperature of the cooler.

Why must I wait 30 minutes before switching modes?

Sudden switching can damage the semiconductor. Waiting 30 minutes after turning OFF allows internal components to stabilize.

USER MANUAL GZ-25A Guzzanti

Black and white plastic container with lid, no visible text or symbols

Návod k obsluze Návod na obsluhu Instrukcja obsługi Használati útmutató Navodila za uporabo Gebrauchsanleitung Instruction manual

CHARAKTERISTIKA NAŠICH PRODUKTŮ

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

CHARACTERISTICS OF OUR PRODUCTS

Thermoelectric Cooler and Warmer is popular with drivers and field operators. It can bring you cool drinks in hot summer and warm food in winters with cold wind blowing. No matter in outdoor hiking traveling by car or in traffic jam, you can enjoy plenty of drinks and foods at a proper temperature.

This model may be carried on your back or in hand for its lightweight. Matching with AC or DC transformer attached, it can be used indoors, especially for students to store cool and hot drinks and foods in their own room. If it is placed in hotel, office or sitting room, its graceful design, beautiful appearance, luxury style and extraordinary applicable function, will bring you a sense of case and comfort when you are holding a cup of cold drink in your hand after work.

It integrates dual functions of cooling and heating by employing semiconductor, without compressor or cryogen. It has advantages of being free from pollution, small volume, lightweight, portability, long service life and lowest power consumption.

WORK PERFORMANCE

To obtain optimized cooling effect, we suggest putting in per-chilled foods and drinks. It will take 2 or 3 hours for cooling the unfrozen foods or drinks.

The cooler and warmer is not designed to heat cold food but to preserve hot foods at a warm temperature. If necessary, it can heat the foods with more than 2 hours. If it's applied properly following the direction, the temperature of foods can be kept for hours.

OPERATION GUIDE

1. First make sure the switch on the lid of the cooler and warmer is in OFF state.

1. There are two options: For DC power and AC power

Option 1: Insert the plug of the DC cable into the cigarette lighter in the car. (For DC power)

Option 2: Insert the plug of AC cable into AC socket indoor. (For AC power)

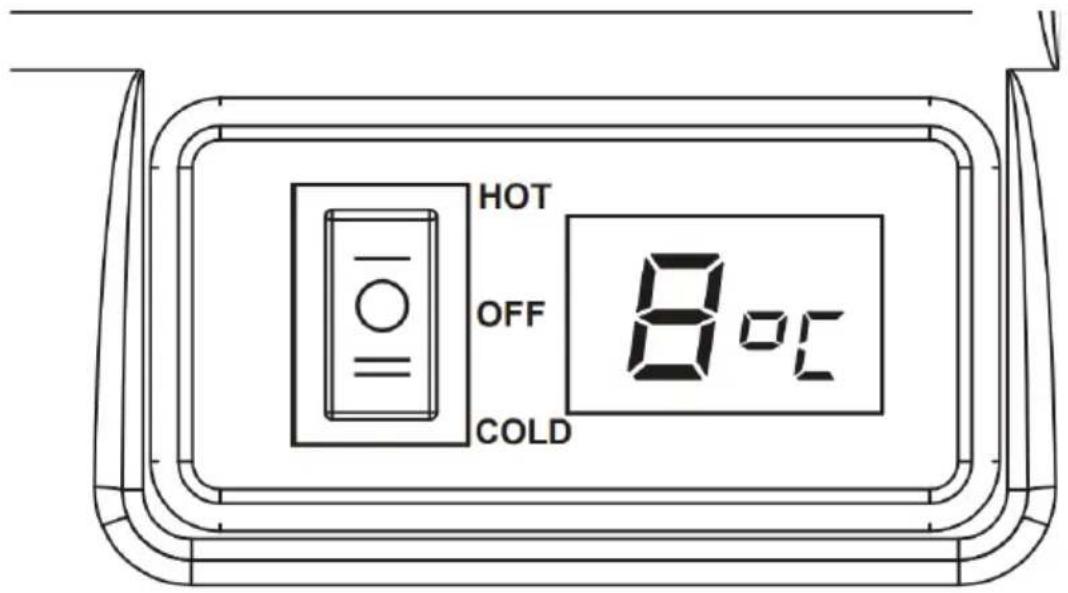

1. Cooling mode: To press the button at the position of COLD.
2. Heating mode: To press the button at the position of HOT.
3. You can see inside temperature of the cooler box from the LED display.

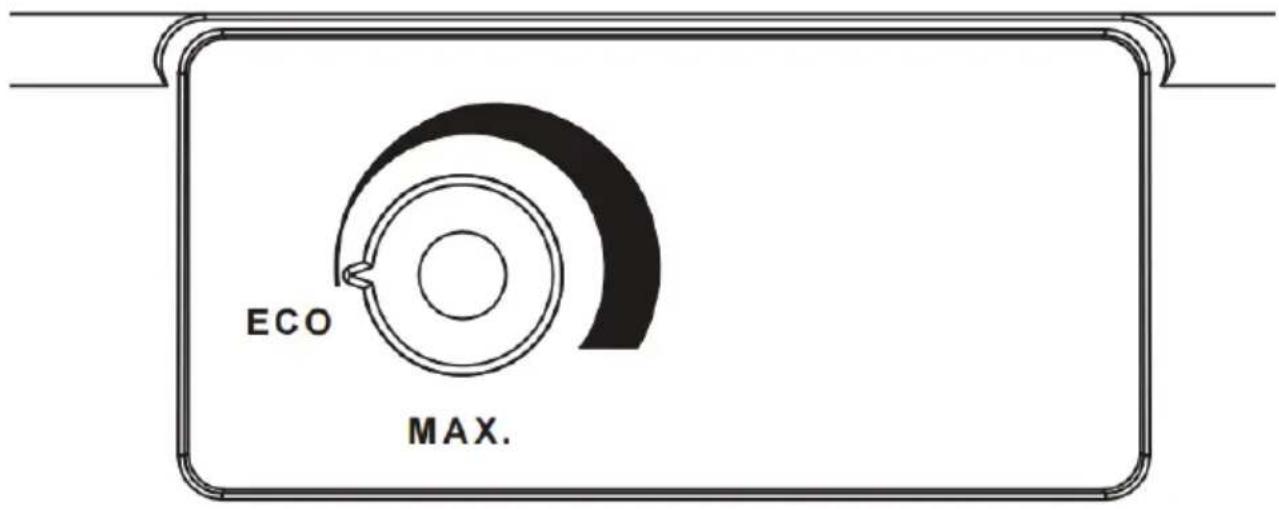

4. You can adjust the Energy consumption and cooling performance from knob on the rear of cooler box.

SPECIFICATION

1. Cooling and warming food and beverages
2. Suitable for the car, camping, BBQ's, pool side or at home.
3. 25 L family size
4. Digital temperature indicator
5. Cooling up to 18^ C below ambient temperature
6. Heating up to 50°C by thermostat
7. Ergonomic locking handle
8. High quality insulation keeps food and drinks cold and hot, long after disconnecting power
9. Dimensions: W 413 x H 390 x D 305 mm
10. AC 220V-240V 50 Hz and DC12 V

WARNING AND NOTICE

For the proper operation, Please read below-stated carefully before using the appliance, misuse of the appliance will cause the deaths and in injuries of person and the appliance broken.

1. Prevent the fans from being stuck. The fans being stuck will heat the engine and cause fire. The towel, cloths and the like shall not be put on it.
2. Please confirm the sockets heating and broken, even fire.
3. Keep the appliance away from the flammable items and dampness to prevent the explosive and fire.
4. Don't break up to refit the appliance.
5. Don't switch the function of cool/warm abruptly. Switch the function after 30 minutes of being on OFF.
6. Don't rinse it with water.
7. Prevent the appliance from being upside down.
8. Please don't drop or shock it
9. The appliance shall not be exposed to rain.
10. Children should be supervised to ensure that they do not play with the appliance.
11. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
12. Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
13. Do not use electrical appliances inside the food storage compartments of the appliance, unless they are not of the type recommended by the manufacturer.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

This symbol on products or original documents means that used electric or electronic products must not be added to ordinary municipal waste. For proper disposal, renewal and recycling hand over these appliances to determined collection points. Alternatively, in some European Union states or other European countries you may return your appliances to the local retailer when buying an equivalent new appliance. Correct disposal of this product helps save valuable natural resources and prevents potential negative effects on the environment and human health, which could result from improper waste disposal. Ask your local authorities or collection facility for more details. In accordance with national regulations penalties may be imposed for the incorrect disposal of this type of waste.

For business entities in European Union states

If you want to dispose of electric or electronic appliances, ask your retailer or supplier for the necessary information.

Disposal in other countries outside the European Union.

This symbol is valid in the European Union. If you wish to dispose of this product, request the necessary information about the correct disposal method from the local council or from your retailer.
