Product Type	Convector Heater
Model	TK 2080 DR
Brand	ECG
Power Settings	750W, 1250W, 2000W (3 levels)
Rated Voltage	220–240 V ~ 50-60 Hz
Power Input	1800–2000 W
Remote Control	1× CR2032 lithium battery (included)
Noise Level	≤ 45 dB
Temperature Range	5 °C to 37 °C (41 °F to 99 °F)
Fan Function	Yes (Turbo mode)
Timer	1–24 hours, auto shut-off
Tempering Mode	Yes (maintains temperature above 5 °C)
Overheat Protection	Yes (thermal fuse, displays "- -")
Display	Digital with ambient and set temperature
Assembly Required	Yes (attach stands with included screws)
Cleaning	Wipe with damp cloth, no abrasives
Safety Features	Overheat protection, thermal cut-out
Suitable For	Well insulated spaces or occasional use

Frequently Asked Questions - TK 2080 DR ECG

How do I assemble the convector?

Turn the convector upside down, fit the two stands so the holes align, and secure with the included screws. Then turn it upright.

How do I set the timer?

Press the timer button repeatedly until the desired time (1-24 hours) appears. The timer starts after about 5 seconds. To deactivate, press until the timer indicator disappears.

How do I clean the heater?

Unplug and let cool completely. Wipe the outer surface with a damp cloth and polish with a dry cloth. Do not use detergents or abrasive cleaners, and prevent water from entering the device.

What does the overheat symbol ''- -'' on the display mean?

It indicates overheating. The control unit shuts off the heating elements. Once the device cools, it will return to its original mode automatically.

How do I insert the battery in the remote control?

Remove the cover on the back, insert the CR2032 battery (included) into the holder with correct polarity, then reattach the cover.

What is the tempering mode?

When selected (star icon), the heater maintains a minimum temperature of 5°C. If ambient temperature drops below 5°C, it heats at 2000W until 9°C is reached.

Can I use the heater in a bathroom?

No. The manual warns not to use it near a bathtub, shower, or pool, or in wet environments. Risk of electric shock.

How do I switch between Celsius and Fahrenheit?

Press the °C/°F button repeatedly to toggle between the two scales.

What power modes are available?

There are three heating power modes: 750W, 1250W, and 2000W. You can cycle through them using the mode button.

How should I store the heater when not in use?

Store in a clean, dry place protected from dust. It is best to keep it in the original packaging.

USER MANUAL TK 2080 DR ECG

White electric heater with digital display and black base mount (no visible text or symbols)

English

Deutsch

Čeština

Eesti keel

Hrvatski

Bosanski

Latviešu valoda

Lietuvių kalba

Magyar

TK 2080 DR

CONVECTOR HEATER

INSTRUCTION MANUAL

This product is only suitable for well insulated spaces or occasional use.

KONVEKTIONSHEIZUNG

BEDIENUNGSANLEITUNG

English

Description

1. Main switch
2. Thermal sensor
3. Air inlet
4. The stands
5. Hot air vent
6. Control panel with display
7. Handles

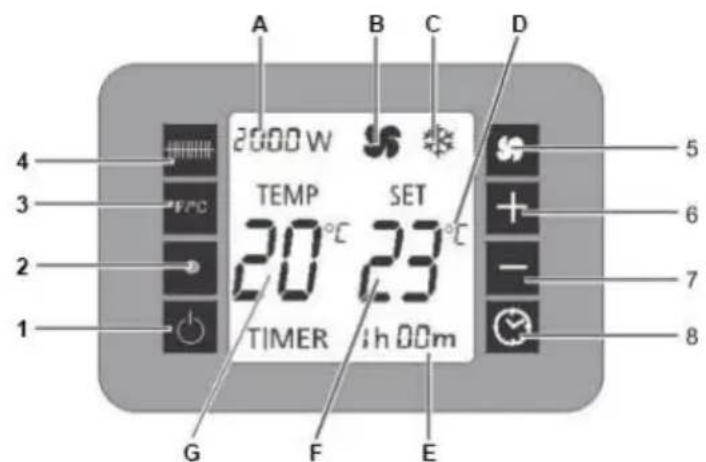

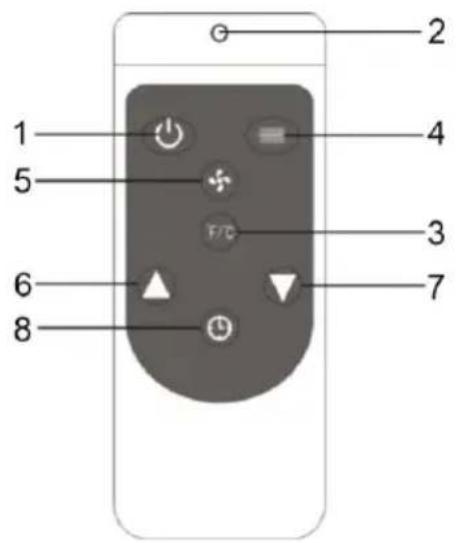

Control panel / remote control

1. Switching the device off/on
2. Remote control sensor
3. °C/F switch button
4. Button to switch the operating mode (power)
5. Fan button
6. Button +
7. Button -
8. Timer button

Display

A. Information about the set power

B. Running fan icon
C. Tempering
D. Display of the set °C/F scale
E. Countdown time when setting the timer
F. Display of temperature setting
G. Display of ambient temperature

Deutsch

Read carefully and save for future use!

Warning: The safety measures and instructions, contained in this manual, do not include all conditions and situations possible. The user must understand that common sense, caution and care are factors that cannot be integrated into any product. Therefore, these factors shall be ensured by the user/s using and operating this appliance. We are not liable for damages caused during shipping, by incorrect use, voltage fluctuation or the modification or adjustment of any part of the appliance.

To protect against a risk of fire or electric shock, basic precautions shall be taken while using electrical appliances, including the following:

1. Make sure the voltage in your outlet corresponds to the voltage provided on the appliance label and that the socket is properly grounded. The outlet must be installed in accordance with applicable electrical codes according to EN.
2. Do not operate the heat convector without the base properly attached.
3. Never use the device if the power cord or any other part of the device is damaged. All repairs, including cord replacements, must be carried out at a professional service centre! Do not remove the protective covers from the appliance; there is a risk of electric shock!
4. Protect the device from a direct contact with water and other liquids to prevent an injury by electric shock.
5. Do not use the convector outside or in wet environment and do not touch the power cable or the device with wet hands. Risk of electric shock.
6. Be cautious when using the convector near children!
7. Ensure that the device is placed on a flat and stable surface. This equipment must not be placed on furniture or mounted on the wall.
8. Do not use the convector close to flammable objects or underneath them, e.g. curtains. The temperature of the surfaces near the

convector (1 m) may be higher than usual while it is in operation.

Place the convector to ensure sufficient air circulation.

1. Do not place the convector on a high pile carpet.
2. Do not place the convector in front of or directly under an electric socket.
3. Do not cover the heat convector! In case of covering it there is a risk of overheating and fire.
4. The convector must not be connected to the electrical outlet via a timer or connected to a remote switching power circuit, as in the case of remote switching on of the covered or incorrectly placed convector there is a risk of fire.
5. Do not use the convector close to a bathtub, shower or a pool and do not place in locations where is a danger of it falling into a bathtub or another container with water!
6. If the device emits an abnormal smell or smoke, immediately unplug it and have it checked by a service centre.
7. Do not switch off the device by pulling on the power cord. Always turn off the main switch of the convector first!
8. Always disconnect the power supply before handling, carrying or maintaining the device.
9. Do not leave a convector with inserted power cord unsupervised. Disconnect the cord from the electrical outlet prior to any maintenance. Do not unplug the device by pulling the power cord. Unplug the power cord from the outlet by grasping the plug.
10. Do not allow the power cord to touch hot surfaces or run the cord over sharp edges.
11. Do not use the convector in places where flammable materials are stored (paint, gasoline, solvent etc.) or where there is a risk of flammable fumes appearing.
12. Do not put your fingers or other objects into the openings of the heat convector.

13. Do not cover the output openings with a towel, for example, or when drying any laundry.

14. Use the convector only according to the instructions provided in this manual. The manufacturer is not liable for damages caused by the improper use.

15. This appliance is specified for household use. Do not use outdoors Do not use it in dusty environments. Keep it dry.
16. This heater is designed for rooms where the ambient temperature is above 0^ C.

17. This appliance can be used by children aged 8 years and older and people with lower physical or mental abilities or lack of experience and knowledge, if they are supervised or have been instructed to use the product in a safe manner and understand the potential dangers. Children shall not play with the appliance. User cleaning and maintenance must not be performed by unsupervised children. Children under 8 years old must keep away from the appliance and its power supply.

18. Children under 3 years of age may not be near the device unless constantly supervised.

19. Children aged 3 to 8 years can turn the appliance on and off only if it is properly placed and installed in its correct working position when they are under supervision or have been instructed on the use of the appliance in a safe way and understand the potential dangers. Children aged 3 to 8 years are not allowed to plug the appliance, set controls, clean it or perform user maintenance.

WARNING: Some parts of the appliance may be ve hot during operation and can cause burns. It is necessary to exercise caution in the presence of children or persons with physical or mental impairments.

WARNING: This heater is not equipped with a device for measuring the room temperature. Do not use the heater in small rooms occupied by individuals that are not capable of leaving the room without assistance, unless proper supervision is available.

WARNING: Use the device always only in the upright position (base on the bottom, controls at the top). Any other position is dangerous.

Do not immerse in water!

The surfaces marked in this way become hot during use. Risk of burns!

DO NOT COVER! Danger of fire.

DANGER for children: Children may not play with the packaging material. Do not let children play with the plastic bags. Risk of suffocation.

Installation requirements

Place the radiator on a flat surface that provides sufficient free space for proper venting. There must be a distance of at least 1 m between the device and surrounding objects. The heater must not be operated without the bases fitted.

CONVECTOR ASSEMBLY

Prior to any manipulation with the device always disconnect the power supply to prevent injury by electric shock.

Make sure the package contains all parts necessary for assembling the convector. Contact your vendor if this is not the case. Package contents:

• Convector 1 pc
• Stand 2 pcs
  • Fixing screws for pedestals 4 pcs
• Operating manual 1 pc

The base must be attached to the convector before first use.

1. Turn the convector upside down.
2. Fit the two bases on the underside of the convector so that the holes in the bases line up with the holes in the convector body.
3. Attach using the included screws.
4. Once assembled, turn the convector back to its normal working position and you can start using it.

Technical illustration of a mechanical component with a tool and circular holes (no text or symbols)

OPERATING INSTRUCTIONS

Inserting battery in the remote control:

1. Remove the cover of the battery compartment on the back of the remote control.
2. Insert in the holder in the cover the battery CR2032 (included), pay attention to proper polarity of the battery.
3. Insert the cover with the battery back in the remote control.

Note: When first switched on or switched on after a long period of inactivity, the heaters may emit odor or smoke. This is normal and it will fade away in a short while.

After plugging it to the outlet, turn on the heating first with the main switch 0/I and then with the switch on the control panel or the remote control.

You cannot change the setting or the temperature without switching on both switches.

Display and controls

1. Display

The first time you switch it on (or after a long power disconnection), all segments and symbols of the display are displayed for 6 seconds, and then the display enters normal mode. The ambient temperature is displayed in the range of -9 to 37 °C, the set temperature is in the range of 5 to 37 °C or 41 to 99 °F. The temperature can be set between 5 °C and 37 °C with a tolerance of ±1 °C.

2. Switch button ⏻

When you connect the appliance to the power supply and turn on both switches, the display shows the current temperature of the room and the current set temperature. Wait about 6 seconds and then you can freely change any values on the display using the buttons, see below.

3. The button to switch the temperature scale °C/°F

Pressing this button repeatedly switches the temperature display between the Celsius and Fahrenheit scale.

4. Operating mode button

Press this button repeatedly to switch between power modes:

750W > 1250W > 2000W > tempering (the display shows a star) > 750W > etc...

5. Fan button (Turbo)

Press the button repeatedly to turn the fan on or off. When the fan mode is active, the fan indicator is lit up.

6. Button +

Press the + temperature setting button to increase the temperature between 5 - 37 °C (750 W / 1250 W / 2000 W modes only). In the tempering mode the temperature is set firmly to 5 °C and cannot be changed.

7. Button - ▼

By pressing the button - temperature setting you can lower the temperature, the minimum value is 5 °C (only in 750 W / 1250 W / 2000 W modes).

8. Timer button 🕒

The appliance is equipped with a timer, which allows you to set the desired time of heating in the range 1 to 24 hours. After this time period expires, the appliance automatically shuts off. Press the timer button repeatedly, until the required time period appears (e.g. 1h 00m). If you want to deactivate the timer, press the timer button repeatedly until the time indicator disappears from the display.

Note: You can set only whole hours with the timer, the countdown displays hours and minutes. To set the timer, you must first set the temperature and power and let the connector run.

The timer starts after about 5 seconds.

Operation modes and functions of the appliance

1. Modes 750W, 1250W, 2000W:

The heating power is set to 750 W, 1250 W or 2000 W. The display shows the appropriate icon (750W, 1250W or 2000W). Heating switches on when the ambient temperature drops 1 °C under the set temperature and switches off once the set ambient temperature is reached.

2. Tempering mode

When you select this mode a star symbol lights up. If the ambient temperature is below 5 °C, the 2000 W heater is switched on and the "2000 W" icon lights up. When the ambient temperature reaches 9°C, the heaters will switch off, the power icons will turn off and only the tempering mode icon and ambient temperature information will remain lit.

3. Fan:

You can turn on/off the fan in the 750W, 1250W and 2000W modes. The fan cannot be used in tempering mode.

4. Audio signals:

You can hear an audio signal every time you press a button, confirming the press of the button.

5. Temperature sensor:

The heating is equipped with thermal fuse. When overheating occurs, the control unit shuts off the heating elements and the symbol “- -” appears on the display of ambient temperature. After normal operation resumes, the appliance returns to its original operating mode.

6. Turning off the convector:

First switch off the convector using the button on the display (or the controller) and the main 0/I switch, then pull the cable out of the mains socket!

Any handling of the device can only be performed if the switches are off and it is disconnected from the electrical outlet!

CLEANING

• Before cleaning always unplug the power cable from the outlet and let it cool entirely.
• Clean the out surface with a damp cloth and polish it with dry cloth. Do not use detergents or abrasive cleaners and prevent water from entering the device.
• If you do not plan to use the device for a longer period of time, you should store it in a clean and dry place protected from dust. It is best to store the appliance in the original package to prevent dust from entering the device.

TECHNICAL SPECIFICATIONS

3 power levels 750/1250/2000 W

Nominal voltage: 220–240 V\~ 50-60 Hz

Power input: 1800-2000 W

Remote controller: 1× Lithium battery 3 V CR2032 (included)

Noise level: ≤ 45dB

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard – deliver to scrapyard. Packing foil, PE bags, plastic elements – throw into plastic recycling containers.

DISPOSAL OF THE PRODUCT AT THE END OF LIFE

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product. Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with the requirements of the EU directives on electromagnetic compatibility and electrical safety and the issue of heavy metals in electrical and electronic equipment. It also meets the relevant energy performance requirements.

08/05

The operating manual is available on internet at www.ecg-electro.eu.

Changes of text and technical parameters reserved.

English Information sheet for portable	heaters
Type: ECG TK 2080 DR
Item Brand Value Unit
Heat output
Nominal heat output P	nom	2	kW
Minimum heat output (indicative) P	min	0.75 kW
Maximum continuous heat output P	maxc	2	kW
Auxiliary electricity consumption
At nominal heat output el	max	2	kW
At minimum heat output el	min	0.75 kW
In standby mode el	SB	0.001 kW
Type of heat input, for electric storage local space heaters only (select one)
Manual heat charge control, with integrated thermostat NO
Manual heat charge control with room and/or outdoor temperature feedback NO
Electronic heat charge control with room and/or outdoor temperature feedback			NO
Fan assisted heat output			NO
Type of heat output/room temperature control (select one)
Single stage heat output and no room temperature control			NO
Two or more manual stages, no room temperature control			NO
With mechanic thermostat room temperature control			NO
With electronic room temperature control			NO
Electronic room temperature control plus day timer			YES
Electronic room temperature control plus week timer			NO
Other control options (multiple selections possible)
Room temperature control, with presence detection			NO
Room temperature control, with open window detection			NO
With distance control option			NO
With adaptive start control			NO
With working time limitation			YES
With black bulb sensor			YES

GB

K+B Progres, a.s.

U Expertu 91

250 69 Klíčany

tel.: +420,272,122,111

e-mail: [e-mail]

SICHERHEITSHINWEISE

Technical illustration of a mechanical assembly with a tool and circular components (no text or symbols)

GEBRAUCHSHINWEISE

Do not immerse in water! – Neponořovat do vody!

Technical illustration of a mechanical component with a screwdriver and circular holes (no text or symbols)

POKYNY K POUŽÍVÁNÍ

Technical illustration of a mechanical clamp or bracket assembly with a screwdriver inserted (no text or symbols visible)

KASUTUSJUHEND

Patarei sisestamine kaugjuhtimispulti:

Technical line drawing of a mechanical component with a tool and circular holes (no text or symbols)

UPUTE ZA UPORABU

Stavite baterije u daljinski upravljač:

1. Skinite poklopac pretinca za baterije na poleđini daljinskog upravljača.
2. Umetnite bateriju CR2032 (isporučena u pakiranju) u držač na poklopcu, vodeći računa o ispravnom polaritetu baterije.
3. Gurnite poklopac baterije natrag u daljinski upravljač.

3 razine snage 750/1250/2000 W

Nazivni napon: 220–240 V\~ 50-60 Hz

Snaga: 1800-2000 W

Daljinski upravljač: 1 × litijeva baterija 3 V CR2032 (uključena)

Buka: ≤ 45 dB

OPORABA I ZBRINJAVANJE OTPADA

Papirni otpad i kartonsku ambalažu predajte u reciklažna dvorišta. Foliju za pakiranje, vrećice od polietilena i plastične dijelove odložite u kontejnere za plastiku.

ODLAGANJE PROIZVODA NAKON ISTEKA RADNOG VIJEKA

Technical illustration of a mechanical clamp or bracket assembly with circular holes and a tool (no text or symbols)

LIETOŠANAS INSTRUKCIJAS

Technical illustration of a mechanical component with a screwdriver and circular holes (no text or symbols)

NAUDOJIMO INSTRUKCIJOS

Technical illustration of a mechanical clamp or bracket assembly with circular holes, no text or symbols present

HASZNÁLATI ÚTMUTATÓ

250 69 Klíčany, Czech Rep. e-post: [e-mail]

Hrvatski

K+B Progres, a.s.

U Expertu 91 tel.: [phone]

250 69 Klíčany, Czech Rep. e-mail: [e-mail]

Bosanski

K+B Progres, a.s.

U Expertu 91 tel.: [phone]

250 69 Klíčany, Czech Rep. e-mail: [e-mail]

Latviešu valoda

K+B Progres, a.s.

U Expertu 91 tel.: [phone]

250 69 Klíčany, Czech Rep. e-pasts: [e-mail]

Lietuvių kalba

K+B Progres, a.s.

U Expertu 91 tel.: [phone]

250 69 Kličany, Czech Rep. el. paštas: [e-mail]

Magyar

K+B Progres, a.s.

U Expertu 91 tel.: [phone]

250 69 Klíčany, Czech Rep. e-mail: [e-mail]

■ The manufacturer takes no responsibility for printing errors contained in the product's user's manual. ■ Der Importeur haftet nicht für Druckfehler in der Bedienungsanleitung des Produkts. ■ Výrobce neruči za tiskové chyby obsažené v návodu k použití výrobku. ■ Tootja ei vastuta toote kasutusjuhendis leiduvate trúkivigade cest. ■ Proizvođač ne snosi odgovornost za tiskarske greške u uputama. ■ Ražotájs neuznemas atbildibu par drukas klúdám icerices rokasgrámatá. ■ Gamintojas neapsima atsakomybės dėl spausdinimo klaidų, pasitaikančių gamínio naudotojo vadove. ■ A gyártó nem felel a termék használati útmutatójában fellelhető nyomdahibákért.
