Product Type	Ceramic fan heater (portable electric heater)
Model	ECG HH 3010
Power Supply	220–240 V ~ 50 Hz
Maximum Power	3000 W
Power Levels	1500 W (half) and 3000 W (high)
Heating Element	Ceramic
Fan	Built-in (can be used without heating for cooling)
Thermostat Control	Continuous adjustable thermostat
Safety Features	Thermal fuse (overheat protection); safety cut-out switch
Installation Type	Free-standing (on flat surface)
Minimum Distance to Objects	At least 1 m
Protection Class	IPX0 (not splashproof)
Controls	Main switch + function selector (Off, fan only, half power, high power); temperature dial; power indicator
Housing Material	Plastic and metal
Cleaning	Wipe with damp cloth; do not use abrasive cleaners
Maintenance	Unplug before cleaning; all repairs by professional service
Storage	Store in clean, dry place when not in use
Intended Use	Well-insulated spaces or occasional use; indoor only
Warranty	According to local regulations (contact manufacturer for details)

Frequently Asked Questions - HH 3010 ECG

What is the maximum power output of the ECG HH 3010?

The maximum power output is 3000 W (high setting), with a half-power setting of 1500 W.

Can I use the heater without the fan?

No, the fan is built-in and runs whenever the heater is on. However, you can use the fan without heating by selecting the fan-only function (position 'cooling').

How do I set the desired temperature?

Turn the temperature control dial clockwise to increase the set temperature. The heater will automatically maintain the room temperature by cycling on/off. For faster heating, set to maximum and then adjust down once the desired temperature is reached.

What should I do if the heater shuts off unexpectedly?

This is likely due to the overheating protection. Unplug the heater, wait about 15 minutes for it to cool, then plug it back in. If it happens frequently, ensure the ventilation holes are not covered and the thermostat is set correctly.

Is it safe to leave the heater unattended?

It is not recommended to leave the heater unattended. Always unplug the power cord when not in use. The heater has an overheat protection, but caution is advised.

Can I use the heater in a bathroom?

No, the heater is not splashproof and should not be used near water (bathtub, shower, pool). Risk of electric shock.

How do I clean the heater?

Unplug and allow to cool completely. Wipe the exterior with a damp cloth. Do not use abrasive cleaners or immerse in water.

What are the power levels?

Two power levels: half power (1500 W) and high power (3000 W). The fan-only function uses negligible power.

Does the heater have a timer?

No, the ECG HH 3010 does not have a timer. It features a continuous thermostat for temperature control but no programmable timer.

What is the recommended placement?

Place on a flat, stable surface (not on high-pile carpet). Keep at least 1 meter away from walls, furniture, curtains, and other objects. Do not place directly under a power outlet.

USER MANUAL HH 3010 ECG

Black ECG electric heating fan with visible grille and cooling fins (no text or symbols)

English

Deutsch

Čeština

Eesti keel

Hrvatski

Bosanski

Latviešu valoda

Lietuvių kalba

Magyar

HH 2010

HH 3010

CERAMIC HEATER WITH FAN

INSTRUCTION MANUAL

This product is only suitable for well insulated spaces or occasional use.

English

1. Body with ceramic heating element and fan

2. Base

3. Screw for angle adjustment

4. Controlpanel

5. Handle

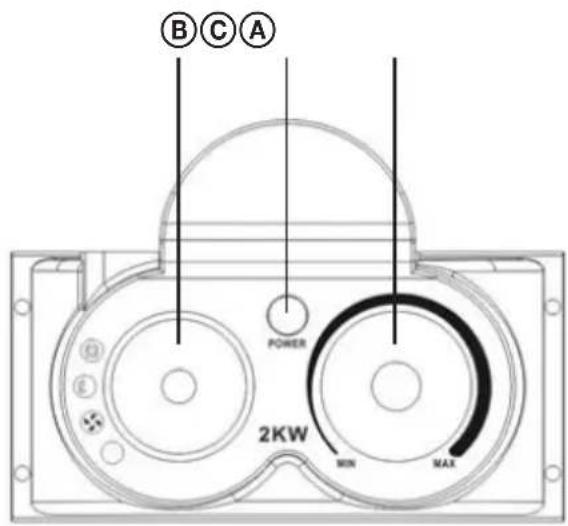

A. Temperature control

B. Main switch + function selector O - off position

- fan function without heating (cooling)

- half power

- high power

C. POWER indicator

Deutsch

Read carefully and save for future use!

Warning: The safety measures and instructions, contained in this manual, do not include all conditions and situations possible. The user must understand that common sense, caution and care are factors that cannot be integrated into any product. Therefore, these factors shall be ensured by the user/s using and operating this appliance. We are not liable for damages caused during shipping, by incorrect use, voltage fluctuation or the modification or adjustment of any part of the appliance.

To protect against a risk of fire or electric shock, basic precautions shall be taken while using electrical appliances, including the following:

1. Make sure the voltage in your outlet corresponds to the voltage provided on the appliance label and that the socket is properly grounded. The outlet must be installed in accordance with applicable electrical codes according to EN.
2. Do not use the device without a properly attached base.
3. Never use the device if the power cord or any other part of the device is damaged. All repairs, including cord replacements, must be carried out at a professional service centre! Do not remove the protective covers from the appliance; there is a risk of electric shock!
4. Protect the device from a direct contact with water and other liquids to prevent an injury by electric shock.
5. Do not use the device outdoors or in a humid environment, and do not touch the power cord or the appliance with wet hands. Risk of electric shock.
6. Close supervision is necessary for operating the device near children!

7. Ensure that the device is placed on a flat and stable surface. This equipment must not be placed on furniture or mounted on the wall.

8. Do not use the device near flammable objects or underneath them, e.g. close to drapes. The temperature of the surfaces near the device (1 m) may be higher than usual while it is in operation. Place the device so as to ensure sufficient air circulation.

9. Do not place the device on a high pile carpet.
10. Do not place the device in front of or right under an electrical outlet.
11. Never cover the device! In case of covering it there is a risk of overheating and fire.
12. The device must not be connected to power supply via a timer or connected to a remotely switched power circuit because there is a risk of fire in the event of remote switching on a covered or improperly placed device.
13. Do not use the device close to a bathtub, shower or a pool and do not place in locations where is a danger of it falling into a bathtub or another container with water!
14. If the device emits an abnormal smell or smoke, immediately unplug it and have it checked by a service centre.
15. Do not switch off the device by pulling on the power cord. Always turn off the main switch of the device first!
16. Always disconnect the power supply before handling, carrying or maintaining the device.
17. Do not leave the device with plugged in cable unattended. Disconnect the cord from the electrical outlet prior to any maintenance. Do not unplug the device by pulling the power cord. Unplug the power cord from the outlet by grasping the plug.
18. Do not allow the power cord to touch hot surfaces or run the cord over sharp edges.
19. Do not use the device in places where flammable materials are stored (paint, gasoline, solvent etc.) or where there is a risk of flammable fumes appearing.

20. Do not insert fingers or other objects in the openings of the device.

21. Do not cover the output openings with a towel, for example, or when drying any laundry.

22. Use this appliance only in accordance with the instructions in this manual. The manufacturer is not liable for damages caused by the improper use.
23. This appliance is specified for household use. Do not use outdoors Do not use it in dusty environments. Keep it dry.
24. This heater is designed for rooms where the ambient temperature is above 0^ C.

25. This appliance can be used by children aged 8 years and older and people with lower physical or mental abilities or lack of experience and knowledge, if they are supervised or have been instructed to use the product in a safe manner and understand the potential dangers. Children shall not play with the appliance. User cleaning and maintenance must not be performed by unsupervised children. Children under 8 years old must keep away from the appliance and its power supply.

26. Children under 3 years of age may not be near the device unless constantly supervised.

27. Children aged 3 to 8 years can turn the appliance on and off only if it is properly placed and installed in its correct working position when they are under supervision or have been instructed on the use of the appliance in a safe way and understand the potential dangers. Children aged 3 to 8 years are not allowed to plug the appliance, set controls, clean it or perform user maintenance.

WARNING: Some parts of the appliance may be ve hot during operation and can cause burns. It is necessary to exercise caution in the presence of children or persons with physical or mental impairments.

WARNING: This heater is not equipped with a device for measuring the room temperature. Do not use the heater in small rooms occupied by

individuals that are not capable of leaving the room without assistance, unless proper supervision is available.

WARNING: Use the device always only in the upright position (base on the bottom, controls at the top). Any other position is dangerous.

Do not immerse in water! – Do not immerse in water!

The surfaces marked in this way become hot during use. Risk of burns!

DO NOT COVER! Danger of fire.

DANGER for children: Children may not play with the packaging material. Do not let children play with the plastic bags. Risk of suffocation.

Installation requirements

Place the radiator on a flat surface that provides sufficient free space for proper venting. There must be a distance of at least 1 m between the device and surrounding objects. The heater must not be operated without the bases fitted.

USING THE APPLIANCE

Note: When first switched on or switched on after a long period of inactivity, the heaters may emit odor or smoke. This is normal and it will fade away in a short while.

This device uses convection heating technology with temperature control. It is equipped with the function TURBO (use of heating together with a fan) Thermostat control (A) is used to regulate temperature. Turn the power control to set the required level:

Switch the unit on with the B control and select the desired function (fan without heating, low or high power).

To heat the room faster, we recommend setting the thermostat to maximum and the dial to high power. Once you reach the desired temperature, turn the thermostat counter-clockwise until the thermostat shuts off. This sets the temperature that the device will automatically maintain until you switch it off.

Any manipulation of the device can only be performed if it is switched off with the main switch and disconnected from the electrical outlet.

Turning the appliance off

First, set the thermostat control to position „MIN" and switch to position "0". Then always unplug the power cord from the outlet!

Any handling of the device can only be performed if the switches are off and it is disconnected from the electrical outlet.

Protection against overheating

The internal thermal fuse protects the heater from overheating and automatically shuts it off. In this case, the operating indicator turns off.

If the device shuts itself off, disconnect it from the electrical outlet. The device is ready to use again after it cools (in about 15 minutes). Plug the power cable back into the socket.

If the situation repeats, first check that the thermostat controller is set correctly and that the ventilation holes are not covered.

CLEANING AND MAINTENANCE

Always pull the power cord out of the outlet before cleaning and wait for it to cool down completely. Clean the outer surface of the device with a damp cloth. Do not use sharp or abrasive agents to clean the device, otherwise the surface can become damaged.

You can put the device in storage only after proper switching off the main switch, disconnection from the outlet and after complete cooling.

STORAGE OF THE DEVICE

If you do not plan to use the device for a longer period of time, you should store it in a clean and dry place protected from dust.

TECHNICAL DATA

HH 2010

Max. input power: 2000 W

2 power levels: 1000 W and 2000 W

Built-in fan

Continuous thermostat regulation

Safety cut out switch

Free-standing

Nominal voltage: 220–240 V\~ 50 Hz

Nominal input power: 2000 W

HH 3010

Max. input power: 3000 W

2 power levels: 1500 W and 3000 W

Built-in fan

Continuous thermostat regulation

Safety cut out switch

Free-standing

Nominal voltage: 220–240 V\~ 50 Hz

Nominal input power: 3000 W

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard – deliver to scrapyard. Packing foil, PE bags, plastic elements – throw into plastic recycling containers.

DISPOSAL OF THE PRODUCT AT THE END OF LIFE

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product. Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directives on electromagnetic compatibility and electrical safety.

The instruction manual is available at the website www.ecg.cz. Changes of text and technical parameters reserved.

08/05

English Information sheet for portable	heaters
Type: ECG HH 2010 (YXC-02R)
Item Brand Value Unit
Heat output
Nominal heat output P	nom	2.0 kW
Minimum heat output (indicative) P	min	1.0 kW
Maximum continuous heat output P	maxc	2.0 kW
Auxiliary electricity consumption
At nominal heat output el	max	1.980 kW
At minimum heat output el	min	0.960 kW
In standby mode el	SB	N/A kW
Type of heat input, for electric storage local space heaters only (select one)
Manual heat charge control, with integrated thermostat NO
Manual heat charge control with room and/or outdoor temperature feedback NO
Electronic heat charge control with room and/or outdoor temperature feedback			NO
Fan assisted heat output			NO
Type of heat output/room temperature control (select one)
Single stage heat output and no room temperature control			NO
Two or more manual stages, no room temperature control			NO
With mechanic thermostat room temperature control			YES
With electronic room temperature control			NO
Electronic room temperature control plus day timer			NO
Electronic room temperature control plus week timer			NO
Other control options (multiple selections possible)
Room temperature control, with presence detection			NO
Room temperature control, with open window detection			NO
With distance control option			NO
With adaptive start control			NO
With working time limitation			NO
With black bulb sensor			NO

GB

K+B Progres, a.s.

U Expertu 91

250 69 Klíčany

tel.: +420,272,122,111

e-mail: [e-mail]

English Information sheet for portable	heaters
Type: ECG HH 3010 (YXC-03R)
Item Brand Value Unit
Heat output
Nominal heat output P	nom	3.0 kW
Minimum heat output (indicative) P	min	1.5 kW
Maximum continuous heat output P	max c	3.0 kW
Auxiliary electricity consumption
At nominal heat output el	max	2.975 kW
At minimum heat output el	min	1.445 kW
In standby mode el	SB	N/A kW
Type of heat input, for electric storage local space heaters only (select one)
Manual heat charge control, with integrated thermostat NO
Manual heat charge control with room and/or outdoor temperature feedback NO
Electronic heat charge control with room and/or outdoor temperature feedback			NO
Fan assisted heat output			NO
Type of heat output/room temperature control (select one)
Single stage heat output and no room temperature control			NO
Two or more manual stages, no room temperature control			NO
With mechanic thermostat room temperature control			YES
With electronic room temperature control			NO
Electronic room temperature control plus day timer			NO
Electronic room temperature control plus week timer			NO
Other control options (multiple selections possible)
Room temperature control, with presence detection			NO
Room temperature control, with open window detection			NO
With distance control option			NO
With adaptive start control			NO
With working time limitation			NO
With black bulb sensor			NO

K+B Progres, a.s.

U Expertu 91

250 69 Klíčany

tel.: +420,272,122,111

e-mail: [e-mail]

SICHERHEITSHINWEISE

Do not immerse in water! – Neponořovat do vody!

2 razine snage: 1000 W i 2000 W

Ugrađeni ventilator

Kontinuirano podesivi termostat

Toplinski osigurač

Slobodno stojeći

Nazivni napon: 220–240 V\~ 50 Hz

Nazivna snaga: 2000 W

HH 3010

2 razine snage: 1500 W i 3000 W

Ugrađeni ventilator

Kontinuirano podesivi termostat

Toplinski osigurač

Slobodno stojeći

Nazivni napon: 220–240 V\~ 50 Hz

Nazivna snaga: 3000 W

OPORABA I ZBRINJAVANJE OTPADA

Papirni otpad i kartonsku ambalažu predajte u reciklažna dvorišta. Foliju za pakiranje, vrećice od polietilena i plastične dijelove odložite u kontejnere za plastiku.

ODLAGANJE PROIZVODA NAKON ISTEKA RADNOG VIJEKA

250 69 Klíčany, Czech Rep. e-post: [e-mail]

Hrvatski

K+B Progres, a.s.

U Expertu 91 tel.: [phone]

250 69 Kličany, Czech Rep. e-mail: [e-mail]

Bosanski

K+B Progres, a.s.

U Expertu 91 tel.: [phone]

250 69 Klíčany, Czech Rep. e-mail: [e-mail]

Latviešu valoda

K+B Progres, a.s.

U Expertu 91 tel.: [phone]

250 69 Klíčany, Czech Rep. e-pasts: [e-mail]

Lietuvių kalba

K+B Progres, a.s.

U Expertu 91 tel.: [phone]

250 69 Kličany, Czech Rep. el. paštas: [e-mail]

Magyar

K+B Progres, a.s.

U Expertu 91 tel.: [phone]

250 69 Klíčany, Czech Rep. e-mail: [e-mail]

■ The manufacturer takes no responsibility for printing errors contained in the product's user's manual. ■ Der Importeur haftet nicht für Druckfehler in der Bedienungsanleitung des Produkts. ■ Výrobce neruči za tiskové chyby obsažené v návodu k použití výrobku. ■ Tootja ei vastuta toote kasutusjuhendis leiduvate trúkivigade cest. ■ Proizvođač ne snosi odgovornost za tiskarske greške u uputama. ■ Ražotájs neuznemas atbildibu par drukas klúdám ierices rokasgrämatá. ■ Gamintojas neapsíima atsakomybės dėl spausdinimo klaidų, pasitaikančių gaminio naudotojo vadove. ■ A gyártó nem felel a termék használati útmutatójában fellelhető nyomdahibákért.
