MT4520BC - Microwaves Concept - Free user manual and instructions

Type	Microwave oven
Brand	Concept
Model	MT4520BC
Voltage	230 V ~ 50 Hz
Input Power	1050 W
Microwave Power Output	700 W
Microwave Frequency	2450 MHz
External Dimensions (W x D x H)	440 x 323 x 259 mm
Internal Capacity	20 L
Weight	10.05 kg
Turntable Diameter	255 mm
Sound Level	< 63 dB(A)
Control Type	Sensor buttons (touch)
Main Functions	Microwave, grill, combined heating, defrost by weight/time, auto menu (8 programs), timer, clock, quick start (+30s)
Child Lock	Yes (hold Stop button)
ECO Mode	Yes (display off function)
Display	LED digital display
Installation Type	Free-standing (not built-in)

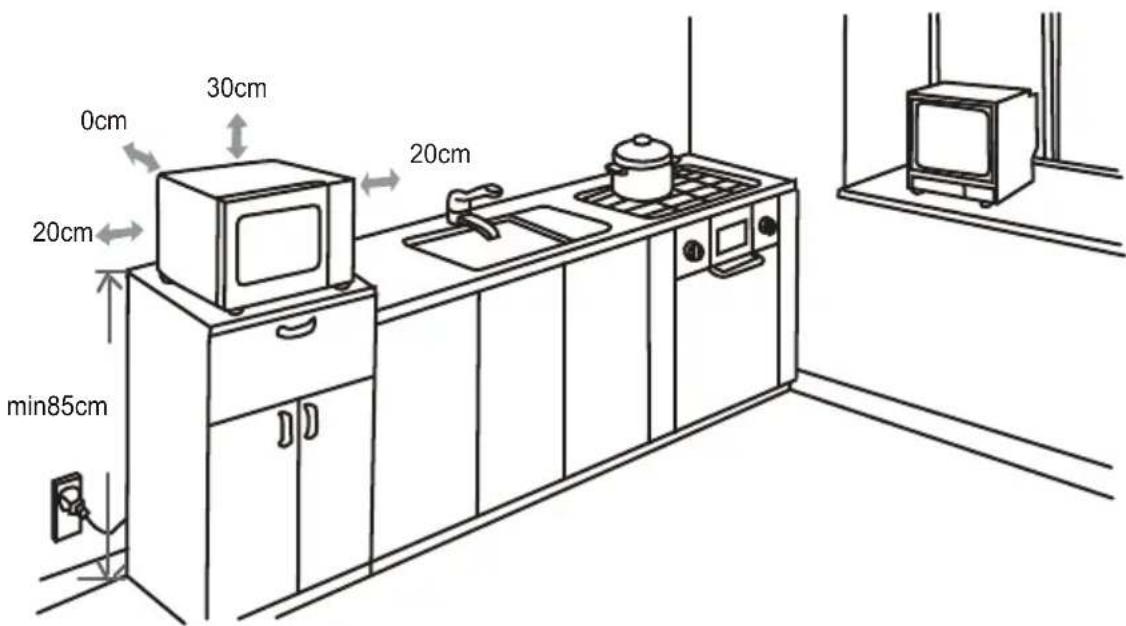

Minimum Clearances	30 cm above, 20 cm sides, rear against wall; 85 cm minimum height for placement
Cleaning	Wipe with damp cloth; use mild detergent; do not use abrasive cleaners or steam cleaners
Safety Features	Door safety interlocks, grounding protection, child lock, auto off after program end
Suitable Cookware	Microwave-safe glass, ceramic, plastic (labeled), oven bags, paper towels
Unsuitable Cookware	Metal, aluminum foil, recycled paper, wood, polystyrene foam
Warranty	Subject to terms; modifications by unauthorized persons void warranty

Frequently Asked Questions - MT4520BC Concept

How do I set the clock on the Concept MT4520BC microwave?

Press the Timer/Clock button once when the microwave is idle. The display shows '0:00' with hour digits flashing. Use + or - to set the hour (0-23), then press the button to confirm. Set minutes (0-59) similarly and press to complete.

What is the maximum cooking time for the microwave?

The maximum time that can be set for microwave cooking, defrost by time, or kitchen timer is 95 minutes. For quick start, each press of the Start/+30s button adds 30 seconds up to 95 minutes.

Can I use metal cookware in this microwave?

No, metal and aluminum foil should not be used as they can cause sparking and fire. Only use microwave-safe dishes such as glass, ceramic, and plastic labeled for microwave use.

How do I activate the child lock?

When the microwave is idle, press and hold the Stop button for 3 seconds. You will hear a beep, then two beeps, and the child lock icon appears. To unlock, press and hold the Stop button again until a long beep sounds.

What should I do if the microwave does not start?

Check that the power cord is properly plugged in, the door is fully closed, and the plug is not damaged. If the problem persists, try a different outlet. If the fuse is blown, replace it. If the circuit breaker trips, reset it. Contact an authorized service center if needed.

How do I clean the microwave?

Unplug the microwave and let it cool. Wipe the interior and exterior with a damp cloth. Use mild detergent if needed. Do not use steel wool, abrasive cleaners, or steam cleaners. For odors, place a bowl of water with lemon juice inside and heat for 5 minutes.

What is the ECO function?

The ECO function turns off the display when the microwave is idle to save energy. Press the Stop button to activate; press any button to wake the display. The display also turns on when the door is opened.

Can I use the microwave without the turntable?

No, the glass turntable and roller wheel must always be used during cooking to ensure even heating. Do not operate the microwave without them properly installed.

How do I defrost food by weight?

Press the Defrost by weight button once. 'dEF1' appears. Use + or - to set the weight (100-2000 g). Press Start to begin. The microwave automatically sets the time based on weight.

What does the 'A-1' to 'A-8' auto menu do?

These are pre-programmed cooking modes for common foods: auto heating, vegetables, fish, meat, pasta, potatoes, pizza, and soup. Press Auto repeatedly to select the desired menu (A-1 to A-8), then set the weight and press start.

USER MANUAL MT4520BC Concept

Thank you for purchasing the Concept product. We want you to be satisfied with everything we make every day you use it.

Please read the instructions carefully before initial use. You should retain them for a future reference. Ensure that anyone using the warming drawer is familiarized with the instructions.

TABLE OF CONTENTS

Technical specifications

Important safety information

Product description

Control panel description

Individual functions

User manual

Basic functions

Suitable/unsuitable cookware for microwave heating

Advanced functions

Cleaning and maintenance

Installation of the appliance

Radio interference

Trouble shooting

Environmental protection

Technical specifications
Voltage 230 V ~ 50 Hz
Input power 1 050 W
Microwave energy output 700 W
Wave frequency 2 450 MHz
External dimensions (W x D x H) 440 x 323 x 259 mm
Internal volume 20 l
Weight 10,05 kg
Turntable plate diameter 255 mm
Sound performance level < 63 dB(A)

The manufacturer reserves the right to make potential technical changes, typographical errors and any differences in the representation without prior notice.

Follow the instructions for positioning the appliance. Pay special attention to the distance from flammable materials such as curtains, drapes, blankets, paper, clothing, etc.!

IMPORTANT SAFETY INFORMATION

• Use the unit only as described in this operating manual.
• This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses; bed and breakfast type environments.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.
• Cleaning and user maintenance stall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. surface of a storage cabinet can get hot.
• Remove all the covering and marketing materials from the unit before the first use.
  • Make sure the mains voltage matches the value marked on the rating plate.
• Do not leave the unit unattended during operation.
• Make sure to place the unit on a stable heat-resistant surface, out of the reach of other heat sources. This surface shall have a sufficient load capacity to hold the unit with its contents.
• Do not cover the unit's openings. There is a risk of overheating.
• Do not remove the feet.
• Only use dishes designed for microwave ovens (non-metal, no metal prints or decorations). Plastic containers or packages can become heat-deformed or ignite, so watch them during preparation.
• Do not store anything inside the unit.
• Never touch the hot surface. Use the handles and buttons.
• Use potholders to handle hot accessories.
• Follow the building-in instructions for the unit. Make sure there is a safe distance between the unit and flammable materials, such as furniture, curtains, lace, blankets, paper, clothing etc.!

- Keep the unit clean. Do not let any objects enter the unit through the grille. Contaminants may short out the unit, causing dam-age or fire.

• These could cause a fire.

- Never pull the cord to disconnect the plug from the wall outlet; hold the plug instead.

- The appliance is not intended for and should not be accessible to children or people with reduced capabilities.

• Take extra care when using the unit near children.

- Do not use the appliance as a toy.

- Make sure the power cord does not hang over the working area, to prevent children from reaching it.

- The stovetop is intended for interior use only; do not expose it to moisture. Otherwise, a risk of electrical shock may occur.

- Use manufacturer-recommended accessories only.

- Never use the appliance if the supply cord or plug is damaged.

- Immediately refer to an authorised service centre for repair.

- Never pull the supply cord or use it to carry the unit.

- Keep the stovetop away from any other heat sources such as radiators, ovens etc. Do not expose the unit to direct sunlight or moisture.

- Never operate the appliance with wet hands.

- Turn off the unit and disconnect the plug from the mains outlet in case of any failure.

- Do not touch the moving parts during operation of the unit.

- The appliance is intended for domestic use only, not for commercial use.

- The unit is designed solely for cooking, heating or defrosting food.

- Do not use the unit to fry food. Hot oil can damage parts of the unit, or cause skin burns.

- Do not use the unit if the door or packing is damaged. Have the unit repaired in an authorised service centre.

- For the purpose of protection from microwave radiation no unauthorised person is allowed to perform any servicing or repair, e.g. removing the cover that protects against microwave radiation.

- Do not use the unit for preparing or heating food in sealed vessels, as they may explode.

- Do not try to repair the appliance; instead, refer to an authorised service centre.

- Do not attempt to operate this oven with the door open as this may result in harmful exposure to microwave energy. Do not attempt to break or tamper with security locks.

• If the appliance is not kept in good condition or is dirty, it may degrade the surface and affect the life of the appliance or lead directly to dangerous situations.
  • The appliance must not be cleaned with a steam cleaner.
• To avoid overheating, the appliance must not be installed in a cabinet behind a decorative door.
  • The appliance is intended for free-standing use.
• The rear wall of the appliance must be placed towards the wall.

Failure to follow the manufacturer's instructions may lead to refusal of warranty repair.

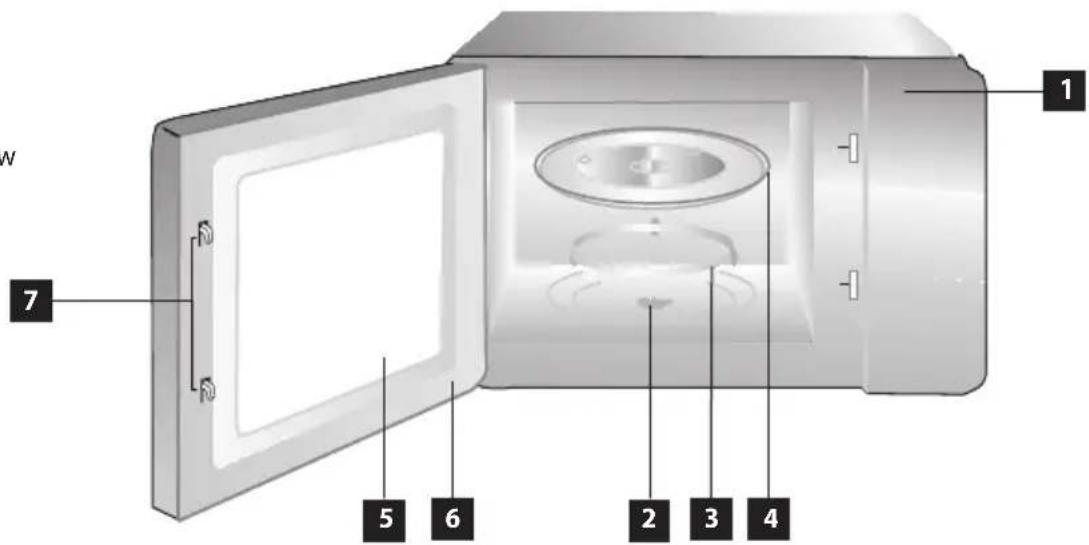

PRODUCT DESCRIPTION

1 Control panel
2 Pin of plate drive
3 Roller wheel
4 Glass plate
5 Oven door window
6 Door
7 Security lock

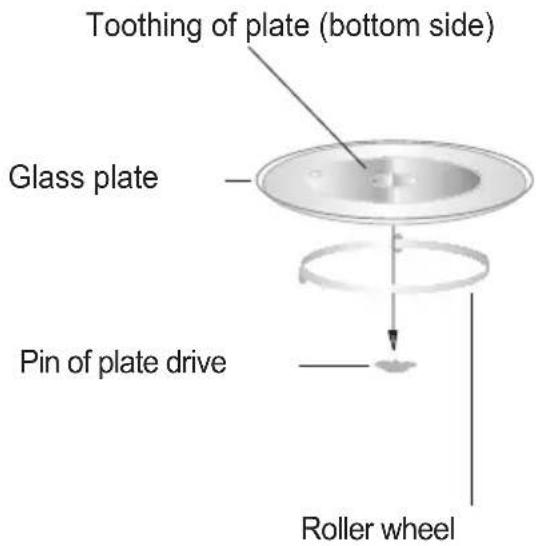

Installation of turntable plate

1. Never place the glass plate upside down. Nothing should prevent the glass plate from turning.
2. The turntable plate and roller wheel assembly must always be used during cooking.
3. All meals and food containers must always be placed on a glass plate.
4. If the glass plate or roller wheel breaks, contact the nearest authorized service centre.

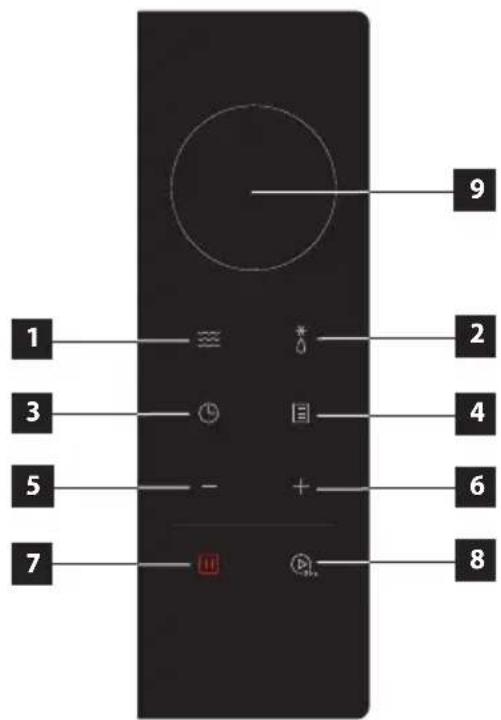

DESCRIPTION OF CONTROL PANEL AND ITS FUNCTIONS

1 Sensor button (SB) Microwave heating / Grill / Combined heating
2 SB Defrost by weight / Defrost by time
3 SB Timer / Clock
4 SB AUTO mode
5 SB Decrease / Step down in the menu
6 SB Increase / Step up in the menu
7 SB Stop / Clear / ECO
8 SB Start / +30 seconds / Confirm
9 Display

Time setting

As soon as you connect the microwave to the mains, "0:00" will appear on the display, the buzzer will beep once.

1. When the microwave is idle, press the ☐ button once to select the clock function, the display will show "0:00" and the hour digits will start flashing.

2. Press + or - to set the hour, the entered values should be in the range of 0 - 23.

3. Press the button to confirm the hour.

4. Press + or - to set the minutes, the entered values should be in the range of 0 - 59.

5. Press the button to complete the time setting.

Note:

• The clock will not work unless it is set after connecting to the mains
- If no operation is performed within 1 minute while setting the clock, the oven will automatically return to the previous state.

Kitchen timer

1. Press twice, "00:00" will appear on the oven display.
2. Press + or - to set the timer. The default value is "0:30" (Maximum time can be set up to 95 minutes.)
3. Press the button to confirm the setting. The display then shows the countdown.
4. When the time expires, the buzzer sounds 5 times. If the clock is set (24-hour mode), the current time will appear on the display.
5. While the kitchen timer is running, opening or closing the door has no effect on the timer and the countdown continues. Press ☐ to cancel the alarm and return to standby mode.

Note: The clock time cannot be displayed during the countdown.

Microwave heating

1. When the microwave is idle, press , once, "P100" will appear on the display.
2. Press again to select microwave power "P100", "P80", "P50", "P30" or "P10".
3. Press + or – to adjust the cooking time. The default value is "0:30". Maximum time can be set up to 95 minutes.
4. When the oven door is closed, press the button to start cooking, the I symbol will start flashing on the display.
5. If no time is set after selecting microwave heating, press the button directly. If the oven door is opened on the ,button is pressed during heating, cooking will be paused, the remaining time until the end of cooking will remain on the display. After closing the oven door, press the button to continue the microwave heating program.
6. When the cooking time has elapsed, the sound of the end of cooking sounds and "END" appears on the display.

Table for selecting microwave power:

Microwave power 100	% 80 % 50 %	30 % 10 %
Sign on the display	P100	P80	P50	P30	P10

Quick start

1. When the microwave is idle, press 📋, to start cooking at 100% power, each additional press will increase the cooking time by 30 seconds to 95 minutes.
2. In microwave heating or defrosting by time, each press of the seconds. button can increase the cooking time by 30

Defrost by weight

1. Press once, "dEF1" will appear on the oven display.

2. Press + or - to select the weight of the food from 100 to 2000 g.

3. Press the button to start defrosting.

4. If the oven door is opened or the ☐, button is pressed during heating, cooking will be paused, the remaining time until the end of cooking will remain on the display. After closing the oven door, press the button to continue the microwave heating program.

5. When the defrosting time has elapsed, the sound of the end of cooking sounds and "END" appears on the display.

Defrost by time

1. Press once, "dEF2" will appear on the oven display.

2. Press + or - to adjust the defrosting time. The default value is "0:30". Maximum time can be set up to 95 minutes.

3. Press the button to start defrosting.

4. If the oven door is opened or the ☐, button is pressed during heating, cooking will be paused, the remaining time until the end of cooking will remain on the display. After closing the oven door, press the button to continue the microwave heating program.

5. When the defrosting time has elapsed, the sound of the end of cooking sounds and "END" appears on the display.

Auto menu

1. When the microwave is idle, press repeatedly to select from "A-1" to "A-8".

2. Press + or – to select the weight of the food. The default value is always the minimum possible weight for the given automatic mode.

3. Press to confirm the selection. The auto pre-set type remains lit on the display.

4. When the desired value is set and the oven door is closed, press the button, the countdown time will be displayed and the auto menu logo and microwave heating logo will be displayed.

5. If the oven door is opened or the ☐, button is pressed during heating, cooking will be paused, the remaining time until the end of cooking will remain on the display. After closing the oven door, press the button to continue the microwave heating program.

6. When the defrosting time has elapsed, the sound of the end of cooking sounds and "END" appears on the display.

Table for Auto menu

Izvēlne Svars Displeja rādījums
A-1Automatic heating	200 g 200
	400 g 400
	600 g 600
A-2Vegetables	200 g 200
	300 g 300
	400 g 400
A-3Fish	250 g 250
	350 g 350
	450 g 450
A-4Meat	250 g 250
	350 g 350
	450 g 450
A-5Pasta	50 g (with 450 ml of cold water) 50
	100 g (with 800 ml of cold water) 100
A-6Potatoes	200 g 200
	400 g 400
	600 g 600
A-7Pizza	200 g 200
	400 g 400
A-8Soup	200 ml 200
	400 ml 400

Child lock function

Locking: When the microwave is idle, hold down the button for a long time, one beep will sound, in the next three seconds two beeps will sound to indicate the entry into the child lock state. The time is displayed if it is set, otherwise [ : ] and the child lock icon will appear on the display.

Unlocking: In the locked state, hold down the ☐, button for a long time, a long beep will sound and in the next 3 seconds another 2 beeps will sound indicating the release of the lock. Either "0:00" or the current time, if previously set, lights up on the display. The child lock icon disappears.

ECO function (display off function)

Display off: When the microwave is idle, press the ☐, button, a beep will sound and the display goes out.

Display on: With the display off, press any button. The LED display shows the current time or "0:00" again. The display also switches on when the door is opened and closed.

Installation

1. Remove all the covering and marketing materials from the unit before the first use. Do not remove the plastic foil on the inner side of the door.
2. Check the appliance and power cord for damage regularly. Never switch on a damaged appliance. There can be none of the following: door askew or damaged, door sealing damaged, broken or damaged hinges or damaged safety closing system.
3. Make sure to place the unit on a stable heat-resistant surface, out of the reach of other heat sources. This surface shall have a sufficient load capacity to hold the unit with its contents.
4. Do not switch the unit on without a properly mounted rolling wheel and rotating glass tray.
5. The supply cable plug has to be easily accessible so that it can be disconnected quickly, if need be.

NOTE

Prior to using a new unit, wipe the surface and the inside with a wet cloth for hygienic reasons. Wash all the removable parts in warm water with detergent.

WARNING!

Open the door slowly and carefully. When opening the door during operation, or after preparation, a large volume of steam is released, and condensed hot water may drip from the lower door edge. There is a risk of scalding.

Microwave oven cooking principles

Place the food evenly. Place thicker areas at the edges.

Watch the cooking time. Cook for the shortest of the prescribed times, and if necessary, for longer.

Overcooked food can ignite.

Cover the food when cooking. Covers prevent spattering and enable more even heating.

Turn around pieces of food such as chicken or hamburger when cooking. Big pieces, such as roast meat, must be turned more than once.

Move meatballs and similar food from the edge towards the centre and vice versa halfway through the cooking time.

Selection of dishes

Ideal dishes for microwave ovens are transparent, for microwaves. They allow the energy to penetrate the cover and food. Microwaves can't penetrate metal, which is why metal or metal-decorated dishes should not be used.

When cooking in a microwave oven, do not use containers/packaging made of recycled paper, as they may contain small metal particles that can cause sparking and subsequent ignition due to microwave radiation.

We recommend circular or oval dishes rather than square or rectangular ones, as the food in the corners tends to be overcooked.

If you are unsure of the suitability of your dishes for heating in a microwave, perform the following test:

1. Fill the microwave-safe container with 1 cup of cold water (250 ml). Put it in the microwave together with the empty dishes in question.

2. Cook at maximum power for 1 minute.

3. When done, touch the dishes carefully. If the empty dishes are warm, do not use them for microwave cooking.

Do not exceed 1 minute of cooking.

Dishes SUITABLE for heating food in a microwave oven

Dishes Description
Kneading bowl	Follow the manufacturer's instructions. The bottom of the kneading bowl must be at least 5 mm above the turntable plate. Improper use may cause the plate to break.
Ceramic dishes	Only intended for microwave use. Follow the manufacturer's instructions. Do not use cracked or battered dishes.
Glasses	Always remove the lid. Use only for heating the food, not boiling. Most glasses are not heat resistant and can break.
Glass dishes	Only heat resistant glass dishes. Make sure there is no metal rim on the dishes. Do not use cracked or battered dishes.
Oven bags	PFollow the manufacturer's instructions. Do not close the bags with a metal clip. Make holes in the bag to allow excess steam to escape.

Paper plates and cups	Use only for short-term cooking/heating. Do not leave the oven unattended during cooking.
Paper towels	Used to cover food for reheating and to absorb fat. Use only under supervision for short-term cooking.
Baking paper Used as a cover to prevent splashing or as a wrap for steam cooking.
Plastic dishes	Only intended for microwave use. Follow the manufacturer's instructions. The dishes should be labelled “Microwave Safe”. Some plastic containers soften when the food inside heats up. “Cooking bags” and tightly sealed plastic bags should be cut, punctured or otherwise altered as described on the packaging.
Plastic cover	POnly intended for microwave use. Used to cover food during cooking to maintain moisture. Do not allow the plastic cover to touch food.
Thermometers Microwave	only (meat and candy thermometers).
VoWax paper Used as a cover to prevent splashing or as a wrap for steam cooking.

Dishes NOT SUITABLE for heating food in a microwave oven

Dishes Description
Aluminium tray May cause sparking. Put the food in the dishes designed for microwave use.
Food box with metal handle	May cause sparking. Put the food in the dishes designed for microwave use.
Metal clips, twisted metal cords	Metal prevents microwave energy from heating food. A metal rim may cause sparking.
Metal clips, twisted metal cords	May cause sparking, which may lead to fire in the oven.
Paper bags May cause fire in the oven.
Plastic foam, polystyrene	Upon exposure to high temperature, the plastic foam may melt or contaminate the liquid inside.
Wood When used in a microwave oven, the wood dries out and may split or crack.

WARNING!

If you remove the food before the preset time expires, or you aren't using the oven, always reset the current program.

CLEANING AND MAINTENANCE

Clean the unit after each use to prevent the accumulation of grease, burned-on remnants of food, and unpleasant smells.

Turn the unit off, unplug the power cord from the wall outlet, and let the unit cool before cleaning and after use.

Do not immerse the power cord, plug, or appliance into water or any other liquid.

Wash the replaceable parts in tepid water with detergent and rinse in clean water.

Clean the inner and outer surfaces and door sealing with a wet cloth. You can use a liquid cleaning agent. Do not use sponges, steel wool, abrasive cleaners or solvents (gasoline, thinners, etc.). You might damage the protective layer.

You can remove odors from the inside by pouring lemon juice and the skin from a lemon into a microwave bowl filled with water, and leaving the bowl for 5 minutes in the oven while operating. Dry the inside with a soft cloth afterwards. If you need to replace the inner light bulb, contact the distributor.

If you do not keep the unit clean, the surfaces can be damaged, which may lead to a shorter service life and dangerous situations.

Installation

1. To install the appliance, select a flat surface that provides enough free space for ventilation openings.

• The minimum height for installation of the appliance is 85 cm.
- The rear of the appliance must be placed against the wall. Leave a minimum distance of 30 ~cm above the top surface of the oven, a minimum distance of 20 ~cm is required between the oven and adjacent walls.
- Do not remove the feet from the bottom of the oven.
- Blocking the ventilation openings can damage the oven.

1. Plug the oven into a standard household socket. Make sure the voltage and frequency are the same as the voltage and frequency on the rating plate.

Warning: Do not install the oven on a hob or other heat-producing appliance. Installation near or above the heat source could damage the oven and void the warranty.

Freely accessible walls of the appliance may become hot during normal operation.

GROUNDING INSTRUCTIONS

This appliance has to be grounded. It is equipped with a supply cable with a grounding conductor and grounding plug. It must be connected to a socket that is correctly installed and grounded. In the case of a short circuit this grounding reduces the risk of electric shock. It is recommended to connect the unit to a separate electric circuit. The use of high voltage is dangerous, and any damage to the oven can cause a fire or other emergency.

WARNING!

Incorrect use of the protective conductor can cause the risk of electric shock.

Note: If you have any questions concerning the grounding or electrical connection, contact a qualified electrician or servicing technician. Neither the manufacturer nor the distributor is responsible for injury or damage caused by incorrect electric connection. The conductors in the supply cable are colored as follows:

Green and yellow - protective/grounding conductor Blue - medium conductor Brown/black - phase conductor

If an extension cord is required, use only a 3-wire extension cord.

The microwave oven is equipped with a short power cord to reduce the risk of tangling or tripping over a longer cord.

• When using a long cord set or extension cord, the following must be observed:
• The ratings of the electrical cords should be at least as large as the electrical ratings of the appliance.
• The extension cord must be a 3-wire cord with a grounding conductor.
• The long power cord should not hang over a worktop or table where children could pull on it or trip over it unintentionally.

RECEIVER SIGNAL INTERFERENCE

Operation of the appliance can cause interference with the signal of your radio receiver, TV receiver, or similar appliances. This interference may be reduced or eliminated by taking the following measures:

1. Clean the door and sealing surfaces of the oven.
2. Readjust the receiver antenna of the radio or TV.
3. Place the unit further from the receiver.
4. Plug the unit in a different socket to make sure other appliances are connected to different circuits.

TROUBLE SHOOTING

Problem Cause Solution
The appliance does not work.	The plug has been inserted into the socket incorrectly or insufficiently.	Check the plug connection.
	The socket is not supplied with electricity.	Check to make sure voltage is present, e.g. by using another appliance.
	The oven door is not closed properly.	Check the door. Remove all impurities and foreign objects.
Turning of the tray is noisy.	Dirty wheels of the turning mechanism.	Clean the wheels with a damp cloth.
The oven cannot be started	The power cord is not properly connected to the mains	Unplug the power cord from the electrical outlet and plug it in again after 10 seconds
	Electrical fuse blown or circuit breaker tripped	Replace the fuse or turn on the circuit breaker. Contact an authorized service centre
The oven does not heat The door is not closed sufficiently		Close the door again and check that it is closed

Common phenomena
The microwave oven affects the TV reception	Radio and TV reception may be affected by the operation of the microwave oven. This is similar to the interference that occurs, for example, during the operation of blenders, vacuum cleaners and hair dryers. This is a normal phenomenon.
Light fades in the oven	At low microwave heating power, the light inside may fade slightly. This is a normal phenomenon.
Accumulation of steam on the door, hot air from the vents	During heating, a large amount of steam may be released from the food. Most of the steam is vented through vents, but some of it condenses in colder places such as the oven door
The oven was accidentally started without food inside	It is forbidden to start the oven without food inside. It is very dangerous, the oven may overheat

ENVIRONMENTAL PROTECTION

• Prefer recycling of packaging materials and old appliances.
  • Package materials may be disposed of as sorted waste.
• Dispose the plastic bags made of polyethylene (PE) of as sorted waste.

Appliance recycling at the end of its service life:

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE). The symbol on the product or its packaging indicates that this product may not be treated as household waste. It is necessary to take it to a container park for the recycling of electrical and electronic equipment. By ensuring the correct disposal of this appliance you will help prevent potential negative consequences for the environment and human health, which could otherwise result from inappropriate disposal of this product. Disposal must be performed in accordance to the regulations for waste disposal. For more detailed information about recycling of this appliance see the authorized local office or service for household waste disposal or the shop, where you purchased the appliance.

CONCEPT POLSKA sp. z o.o.
