USER MANUAL MTV-3017 Concept

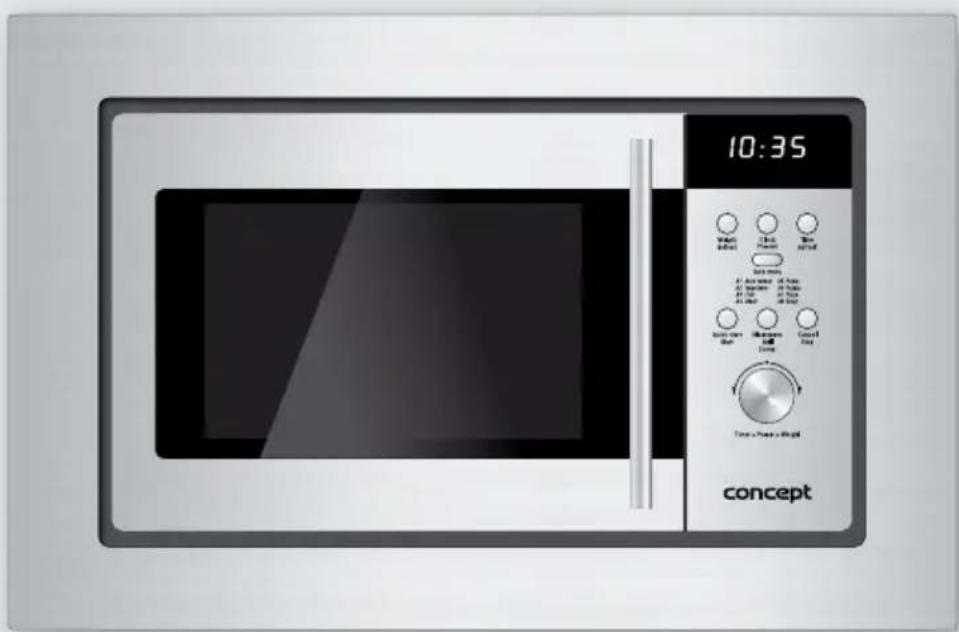

Built-in microwave oven

MTV3017

PODĚKOVÁNÍ

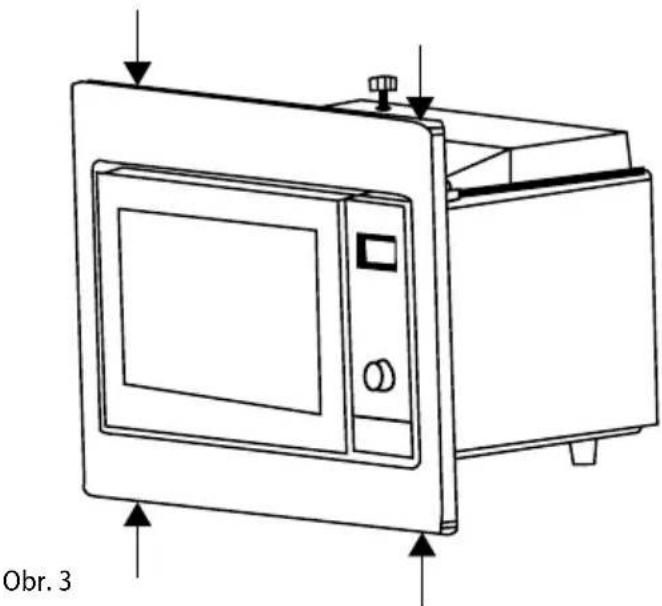

Line drawing of a microwave oven with control panel and side-mounted dish (no text or symbols)

Obr. 2

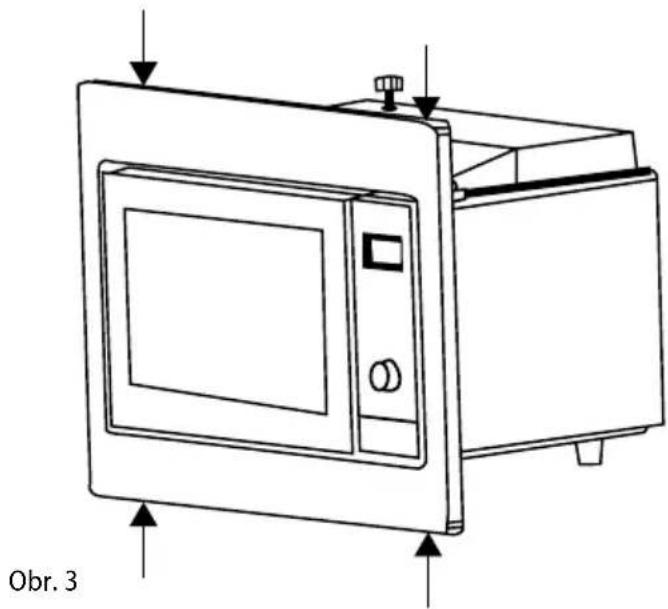

Line drawing of a microwave oven with control panel and door, labeled 'Obr. 3' (no text or symbols on the device itself)

Line drawing of a laboratory oven with a vent and internal waveform display (no text or symbols)

Obr. 4

ŘEŠENÍ POTÍŽÍ

Line drawing of a microwave oven with control panel and side-mounted dish (no text or symbols)

Obr. 2

Line drawing of a microwave oven with control panel and door, labeled 'Obr. 3' (no text or symbols on the device itself)

Line drawing of a simple oven with a vent and internal waveform display (no text or symbols)

Obr. 4

RIEŠENIE ŤAŽKOSTÍ

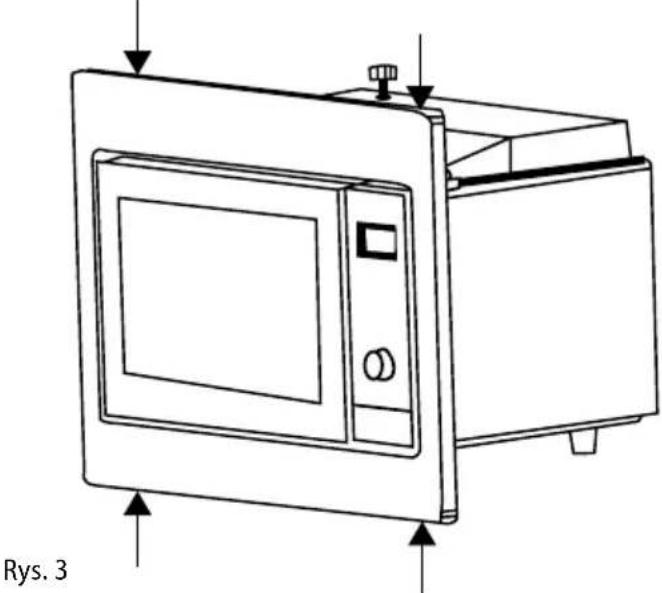

Line drawing of a microwave oven with control panel and side-mounted dish (no text or symbols)

Rys. 2

Line drawing of a microwave oven with control panel and door (no text or symbols)

Line drawing of a laboratory oven with a control panel and internal diagram showing waveform or signal (no text or symbols)

Rys. 4

ROZWIĄZYWANIE PROBLEMÓW

Thank you for purchasing a Concept product. We hope you will be satisfied with our product throughout its service life.

Please study the entire Operating Manual carefully before you start using the product. Keep the manual in a safe place for future reference. Make sure other people using the product are familiar with these instructions.

TECHNICAL PARAMETERS
Voltage	230 V ~ 50 Hz
Power input	1150 W
Microwave power	700 W
Microwave frequency	2450 MHz
Grill power	1000 W
External dimensions	595 mm (w) x 382 mm (h) x 320 mm (d)
Internal dimensions	280 mm (w) x 195 mm (h) x 280 mm (d)
Internal capacity of the oven	17 l
Tray diameter	245 mm
Weight	16,1 kg
Noise level	< 63 dB(A)

IMPORTANT SAFETY PRECAUTIONS:

• Use the unit only as described in this operating manual.
- Remove all the packaging and marketing materials from the unit before use.
• Make sure the mains voltage corresponds to the values on the rating plate. Use grounded wall outlets only.
• Do not leave the unit unattended during operation.
- Place the unit only on a stable and heat-resistant surface, out of reach of other heat sources. This surface should have a sufficient load capacity to carry the unit with its content.
• Do not cover the unit. There is a risk of overheating.
• Do not remove the feet.
- Do not put anything on the unit.
- Only use dishes designed for microwave ovens (non-metallic, with no metal print and decorations). Plastic vessels and paper wrappings could be deformed or ignited by the heat, so watch them carefully during cooking.
• Do not store anything inside the oven.
- Do not move a unit that is switched on or has hot contents in it.
- Do not touch hot surfaces. Use the handles and buttons. Use potholders to handle hot accessories.
- Keep the unit a safe distance from other appliances; at least 8 cm on the sides and back and 30 cm above the unit. Make sure there is a safe distance between the unit and flammable materials, such as furniture, curtains, lace, blankets, paper, clothing etc.
- Keep the unit clean. Do not let foreign objects get into the holes of the grilles. This could cause a short circuit, damage to the unit or fire.
• Do not put oversized food or metal objects inside the oven. These could cause a fire.
- When disconnecting the unit from the wall outlet, never pull the power cord. Grasp the plug and disconnect it by pulling.

• Do not allow children or unskilled people to handle the unit. Use the unit out of the reach of these individuals.

- Persons with limited movement capabilities, reduced sensory perception, insufficient mental capacity or those who are unaware of the proper handling should use the product only under the supervision of a responsible person familiar with its operation.

• Take extra care when using the unit near children.

- Don't let anyone use the unit as a toy.

• Make sure the power cord does not hang over the working area and children cannot reach it.

• Do not use the product outdoors or on wet surfaces. Electric shock hazard!

• Use only accessories recommended by the manufacturer.

- Never use an appliance with a damaged power cord or plug. Contact an authorised service centre immediately to have defective components repaired or replaced.

- Do not pull or move the product by grasping the power cord.

- Keep the unit away from heat sources, such as radiators, ovens etc. Do not expose the unit to direct sunlight or moisture.

• Do not touch the unit with wet or damp hands.

• Turn off the product and disconnect the plug from the mains outlet in case of any failure.

• Do not touch the moving parts during the operation of the unit.

- The unit is suitable for domestic use only. It is not designed for commercial operation.

• The unit is only designed for the cooking, heating and defrosting of meals and food.

- Do not immerse the power cord, plug or appliance into water or any other liquid.

- Check the appliance and power cord for damage regularly. Do not switch on a damaged unit.

• Turn the unit off and let it cool down for at least 30 minutes before cleaning and after use.

- WARNING! A large volume of steam may be released when you open the door. Be careful. There is a risk of scalding!

- If you see smoke, switch off the unit and unplug the power cord from the wall outlet. Keep the door closed to prevent the possible spreading of fire.

- Do not use the unit without food in it. Otherwise it could be damaged.

- When preparing or heating food or drink for babies, mix it well and check the temperature to prevent scalding.

- Microwave heating may cause delayed boiling, so be careful when handling heated liquid.

- Do not use the unit for heating eggs in the shells or whole boiled eggs; these could explode even after the end of heating.

• Foods with skin or jackets (sausages, potatoes, fruit etc.) should be punctured several times before heating.

• Do not use the unit for frying meals. Hot oil could damage parts of the unit or cause burns to the skin.

- Do not use the unit when the door or packing is damaged. Have it repaired in an authorised service centre.

- Because of microwave radiation it is dangerous for unauthorised persons to perform any servicing or repairs, e.g. removing of the cover that protects against the microwave irradiation.

- Do not use the unit for preparing or heating food in sealed vessels, as they may explode.

- This type of appliance is not designed for kitchen furniture fittings.

• Do not repair the appliance yourselves. Contact an authorised service centre.

Failure to follow the manufacturer's instructions may lead to refusal of warranty repair.

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

2. Children should be supervised to ensure that they do not play with the appliance.

GROUNDING INSTRUCTIONS

This appliance has to be grounded. It is equipped with a supply cable with a grounding conductor and grounding plug. It must be connected to a socket that is correctly installed and grounded. In the case of a short circuit this grounding reduces the risk of electric shock. It is recommended to connect the unit to a separate electric circuit. The use of high voltage is dangerous, and any damage to the oven can cause a fire or other emergency.

WARNING!

Incorrect use of the protective conductor can cause the risk of electric shock.

Note: If you have any questions concerning the grounding or electrical connection, contact a qualified electrician or servicing technician. Neither the manufacturer nor the distributor is responsible for injury or damage caused by incorrect electric connection. The conductors in the supply cable are colored as follows:

Green and yellow = ground

Blue = neutral

Brown = live

RADIO INTERFERENCE

Operation of the unit can cause interference with your radio, TV or similar appliances. This can be reduced or eliminated by taking the following measures:

1. Clean the door and sealing surfaces of the oven.
2. Readjust the receiver antenna of the radio or TV.
3. Change the position of the unit in relation to the receiver.

4. Place the unit further from the receiver.

5. Plug the unit in a different socket to make sure other appliances are connected to different circuits.

PRODUCT DESCRIPTION

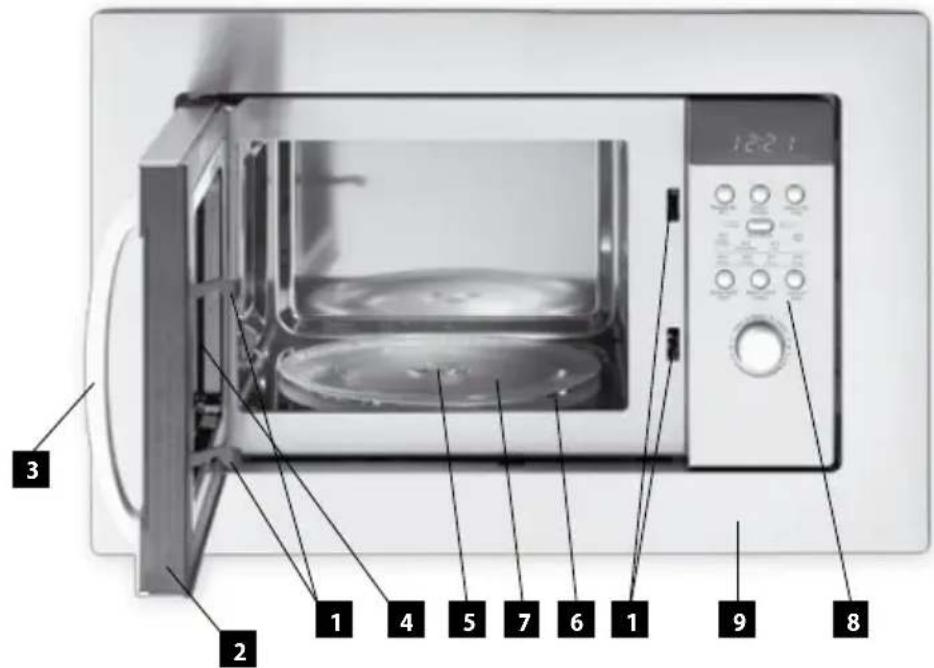

1. Safety closing system
2. Door
3. Door holder
4. Door window
5. Tray drive pin
6. Rolling wheel
7. Rotating glass tray
8. Control panel
9. Integrated frame

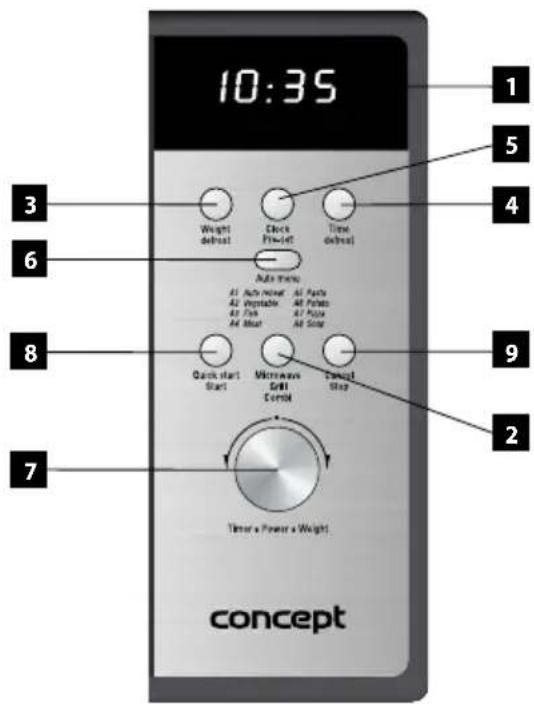

DESCRIPTION OF THE CONTROL PANEL

1. Display
2. Cooking type button (MICROWAVE/GRILL/COMBI)
3. Defrost button by weight (WEIGHT DEFROST)
4. Defrost button by time (TIME DEFROST)
5. Delayed start and clock setting button (CLOCK/PRE-SET)
6. Preset program selection button (AUTO MENU)
7. Time, weight and power settings button (TIMER/POWER/WEIGHT)
8. ON and confirmation button (QUICK START/START)
9. OFF and reset button (CANCEL/STOP)

OPERATING INSTRUCTIONS

Installation

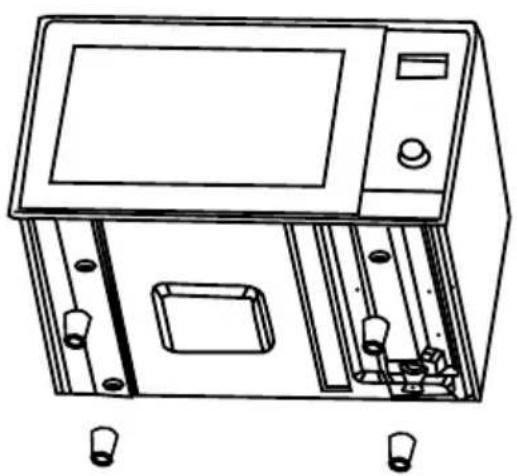

1. Remove all the packaging and marketing materials from the unit before the first use. Do not remove the plastic foil on the inner side of the door.
2. Check the appliance and power cord for damage regularly. Do not switch on a damaged unit. There can be none of the following: door askew or damaged, door sealing damaged, broken or damaged hinges or damaged safety closing system.
3. Place the unit only on a stable and heat-resistant surface, out of reach of other heat sources. This surface shall have sufficient load capacity to hold the unit with its contents.

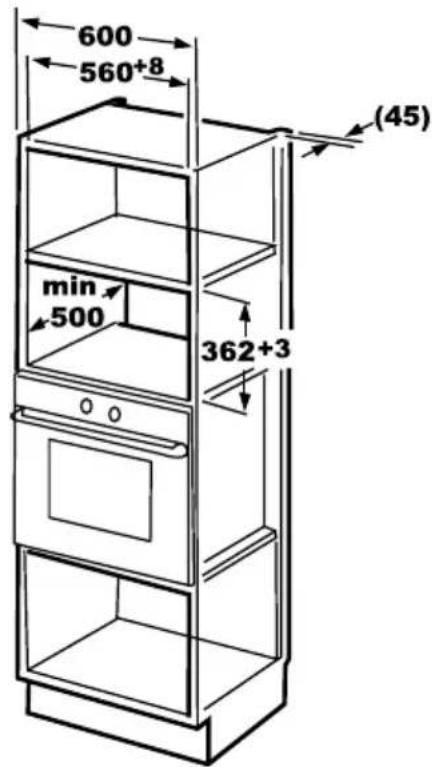

4. Follow the installation instructions for the unit. Make sure there is a safe distance between the unit and flammable materials, such as furniture, curtains, lace, blankets, paper, clothing etc.!

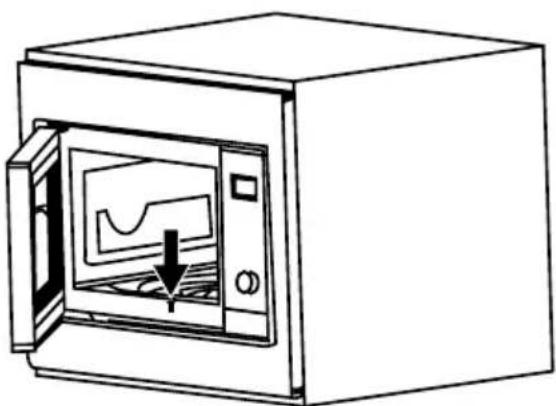

5. Do not switch the unit on without a properly mounted rolling wheel and rotating glass tray.
6. The supply cable plug has to be easily accessible so that it can be disconnected quickly, if need be.

NOTE

Prior to using a new unit, wipe the surface and the inside with a wet cloth for hygienic reasons. Wash all the removable parts in warm water with detergent.

WARNING!

Open the door slowly and carefully. When opening the door during operation, or after preparation, a large volume of steam is released, and condensed hot water may drip from the lower door edge. There is a risk of scalding.

Microwave oven cooking principles

Place the food evenly. Place thicker sections at the edges.

Watch the heating time. Heat for the shortest of the prescribed times, and if necessary, make it longer. Overheated food can ignite.

Cover the food when heating. Covers prevent spattering and enable more even heating.

Turn around pieces of food such as chicken or hamburger while heating. Big pieces, such as roast meat, must be turned more than once.

Move meatballs and similar food from the edge towards the center and vice versa halfway through heating.

Selection of dishes

Ideal dishes for microwave ovens are transparent, for microwaves. They allow the energy to travel through the cover and the food. Microwaves can't penetrate metal, which is why metal or metal-decorated dishes shall not be used.

Do not use products made of recycled paper in the microwave oven, as these can contain small metal parts that may cause sparks or fire.

We recommend circular or oval dishes more than square or rectangular ones, as the food in the corners tends to be overheated.

List of selected dishes

Type of dishes Cooking in a microwave oven

Heat-resistant glassware Yes

Non-heat-resistant glassware No

Heat-resistant earthenware Yes

Plastic plates suitable for the microwave oven Yes

Kitchen paper Yes

Metallic dish No

Metallic tray No

Aluminium foil and wrappings of MT foil No

Wooden dishes No

Time setting

1. Push the CLOCK/PRE-SET button.

2. Set the hour by turning the TIMER/POWER/WEIGHT button.

3. Push the CLOCK/PRE-SET button.

4. Set the minutes by turning the TIMER/POWER/WEIGHT button.

5. To confirm, push the CLOCK/PRE-SET button. The symbol ":" will blink.

Microwave cooking, grill and combined mode

1. Place the food in the oven and close the door.

2. Note: When using the grill or combined mode, use the grilling stand and put the grilled food on it. At about midway through the set time you will hear a beeping sound. Turn the food over to make it roast evenly from both sides.

3. Push the MICROWAVE/GRILL/COMBI button. Set the required cooking function by turning the TIMER/POWER/WEIGHT button (microwave, grill, combined), see table:

Displayed function	Microwave cooking	Grill
P100	100%	0%
P80	80% 0%
P50	50% 0%
P10	10% 0%
G	0%	100%

Displayed function Microwave cooking Grill
C-1 55 % 45 %
C-2 36 % 64 %

1. To confirm, push the MICROWAVE/GRILL/COMBI button.
2. Set the cooking time from 5 seconds to 95 minutes by turning the TIMER/POWER/WEIGHT button.
3. You will turn the unit on by pushing the QUICK START/START button.
4. If you need to interrupt the cooking, e.g. to mix the food, push the CANCEL/STOP button and open the door. After you close the door, push the QUICK START/START button again, and the cooking will resume.

Note: If you open the door during operation, the heating will stop automatically. After you close the door, push the QUICK START/START button again, and the cooking will resume.

1. If you need to stop the current program before the preset time expires, push the CANCEL/STOP button. By pushing the button again, you will reset the program and the time will be displayed.
2. After the heating stops, the unit will turn off.
3. Open the door and remove the food.

WARNING!

If you remove the food before the preset time expires, or you aren't using the oven, always reset the current program.

Delayed ON function

1. Select the required heating or defrost program, and set the power and time, or weight of the food. 3 cooking and defrost or 2 cooking stages can be selected.

2. Do not run the program!

1. Push the CLOCK/PRE-SET button.
2. Set the hour of starting by turning the TIMER/POWER/WEIGHT button.
3. Push the CLOCK/PRE-SET button.
4. Set the minutes of starting by turning the TIMER/POWER/WEIGHT button.
5. To confirm, push the CLOCK/PRE-SET button. The symbol ":" will blink.
6. Push the CLOCK/PRE-SET button.
7. Set the required hour of starting the program by turning the TIMER/POWER/WEIGHT button.
8. Push the CLOCK/PRE-SET button.
9. Set the required minutes of starting the program by turning the TIMER/POWER/WEIGHT button.
10. You will start the countdown by pushing the QUICK START/START button.

Note: Before starting the program the time of day must be set. Before you start a program, always make sure there is food in the oven. This function can't be used for defrosting. Fast ON function

1. By pushing the QUICK START/START button you turn the unit on for 1 minute with 100 % power.
2. By repeated pushing of the QUICK START/START button you may prolong the time of cooking up to 95 minutes.
3. After the heating stops, the unit will turn off.
4. Open the door and remove the food.

Defrost by weight function

1. Place the food in the oven and close the door.
2. Activate the defrost by weight function by pushing the WEIGHT DEFROST button. DEF1 will be displayed.
3. Set the approximate weight of the food by turning the TIMER/POWER/WEIGHT button.

4. You will turn the unit on by pushing the QUICK START/START button.

5. At about midway through the defrosting time turn the food over, and resume the program by pushing the QUICK START/START button.

6. After the defrosting stops, the unit will turn off.
7. Open the door and remove the food.

Defrost by time function

1. Place the food in the oven and close the door.
2. Activate the defrost by time function by pushing the TIME DEFROST button. DEF2 will be displayed.
3. Set the defrost time from 5 seconds to 95 minutes by turning the TIMER/POWER/WEIGHT button.

4. You will turn the unit on by pushing the QUICK START/START button.

5. At about midway through the defrost time turn the food over, and resume the program by pushing the QUICK START/START button.

6. After the defrosting stops, the unit will turn off.

7. Open the door and remove the food.

Multistage cooking function

Cooking certain types of food requires several stages (e.g. long, moderate cooking with a short, intensive finish, or defrost and subsequent cooking).

a) 2 or 3 stages of cooking

1. Place the food in the oven and close the door.
2. Push the MICROWAVE/GRILL/COMBI button. P100 will be displayed.
3. Select the required program and cooking time (see the section Microwave cooking, grill and combined mode).

4. Do not run the program!

1. Push the MICROWAVE/GRILL/COMBI button. P100 will be displayed.
2. Select the required program and cooking time (see the section Microwave cooking, grill and combined mode).

3. In case you need another cooking stage, repeat steps 5 and 6.

4. You will turn the unit on by pushing the QUICK START/START button.

Note: If you need to prolong the time during cooking, push the QUICK START/START button as necessary. If you need to stop the current program before the preset time expires, push the CANCEL/STOP button. By pushing the button again, you will reset the program and the time will be displayed.

1. After the heating stops, the unit will turn off.

2. Open the door and remove the food.

b) Defrost + cooking

1. Place the food in the oven and close the door.
2. Select the defrost function by time or weight, and set the required time or approximate weight of the food (see the sections above).

3. Do not run the program!

1. Push the MICROWAVE/GRILL/COMBI button. P100 will be displayed.
2. Select the required program and cooking time (see section Microwave cooking, grill and combined mode).

3. If you need another cooking stage, repeat steps 4 and 5.

4. You will turn the unit on by pushing the QUICK START/START button.

Note: If you need to prolong the time during cooking, push the QUICK START/START button as necessary. If you need to stop the current program before the preset time expires, push the CANCEL/STOP button. By pushing the button again, you will reset the program and the time will be displayed.

1. After the heating stops, the unit will turn off.

2. Open the door and remove the food.

Preset programs

The unit offers a total of 8 preset programs.

Program Number Function Approximate weight
A-1Auto Reheat	Heating 200, 400, 600 g
A-2Vegetable	Cooking vegetables 200, 300, 400 g
A-3Fish	Cooking fish 250, 350, 450 g
A-4Meat	Cooking meat 250, 350, 450 g
A-5Pasta	Cooking pasta 50 g (+ 450 ml water), 100 g (+ 800 ml water)
A-6Potato	Cooking potatoes 200, 400, 600 g
A-7Pizza	Preparing pizza 200, 400 g
A-8Soup	Cooking soup 200, 400 ml

1. Place the food in the oven and close the door.
2. Push the AUTO MENU button.
3. Set the required program A-1 to A-8 by turning the TIMER/POWER/WEIGHT button.
4. Push the AUTO MENU button to confirm.
5. Set the approximate weight of the food by turning the TIMER/POWER/WEIGHT button.
6. You will turn the unit on by pushing the QUICK START/START button.
7. After the heating stops, the unit will turn off.
8. Open the door and remove the food.

Child lock

1. You may activate the child lock by holding the CANCEL/STOP button. You will hear a beeping sound. The control panel buttons are now blocked.
2. You may deactivate the child lock by repeated holding of the CANCEL/STOP button.

CLEANING AND MAINTENANCE

Clean the unit after each use to prevent the accumulation of grease, burned-on remnants of food, and unpleasant smells.

Turn the unit off, unplug the power cord from the wall outlet, and let the unit cool before cleaning and after use.

Do not immerse the power cord, plug, or appliance into water or any other liquid.

Wash the replaceable parts in tepid water with detergent and rinse in clean water.

Clean the inner and outer surfaces and door sealing with a wet cloth. You can use a liquid cleaning agent. Do not use sponges, steel wool, abrasive cleaners or solvents (gasoline, thinners, etc.). You might damage the protective layer.

You can remove odors from the inside by pouring lemon juice and the skin from a lemon into a microwave bowl

filled with water, and leaving the bowl for 5 minutes in the oven while operating. Dry the inside with a soft cloth afterwards.

If you need to replace the inner light bulb, contact the distributor.

If you do not keep the unit clean, the surfaces can be damaged, which may lead to a shorter service life and dangerous situations.

ASSEMBLY AND INSTALLATION

The unit is designed to be in-built in kitchen set.

The supply cable shall be accessible after the installation!

List of parts

A Brace bolt 1 piece

B Assembly screws 4 pieces

C End piece safety screw 1 piece

D Safety screw cover 1 piece

E Long feet 4 pieces

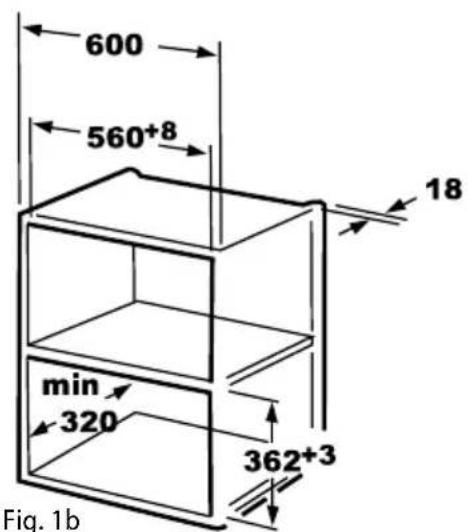

Dimensions of the box

For the dimensions for

installation of the unit see

Fig. 1a (upper box) and

Fig. 1b (lower box).

Fig. 1a Fig. 1b

WARNING!

Install the unit at a maximum height of 85 cm.

The in-built box should not have a back side, for cooling and ventilation purposes.

Keep the minimum dimension of the ventilation hole in the back upper part in the whole width. If there is another box placed above the unit, the ventilation should be arranged for this as well. A so-called ventilation chimney will be created.

Installation

1. Remove tray and wheel.
2. Turn the unit on the side or back, and using a screwdriver replace the feet with high ones (Fig. 2).

Line drawing of a microwave oven with control panel and side-mounted dish (no text or symbols)

Fig. 2

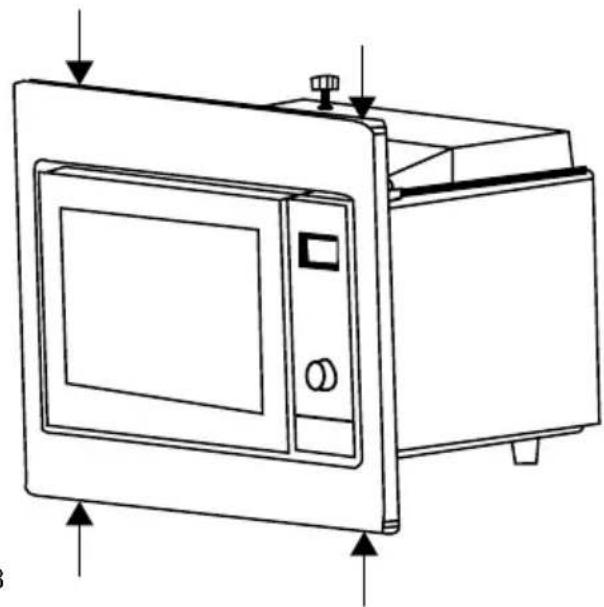

Line drawing of a microwave oven with control panel and door (no text or symbols)

Fig. 3

1. Screw the brace bolt A into the upper cover.
2. Mount the frame and fix it using 4 assembly screws (B) - see arrows on Fig. 3).
3. Put the complete set on the edge of the built-in box, and unscrew the brace bolt against upper plate of the box to make about a 1 mm gap.
4. Place the supply cable as necessary in the box to prevent jamming or breaking.
5. Shift the complete set in the box. Open the door, and fix the set against moving out by screwing the safety screw © in the hole on the lower side of the frame (Fig. 4). Cover the screw (E).

Line drawing of a simple oven with a side panel showing internal waveform and a downward arrow (no text or symbols)

Fig. 4

TROUBLESHOOTING

Problem Cause Solution
The unit does not work.	Plug inserted into the mains outlet incorrectly or insufficiently.	Check the plug connection.
	The mains outlet is not live. Check for voltage, e.g. by connecting another appliance.
	The oven door is not closed properly.	Check the door. Remove possible dirt or foreign objects.
Turning of the tray is noisy. Fouled wheels. Clean the wheels of the turning mechanism.

REPAIR & MAINTENANCE

Any extensive maintenance or repair that requires access to the inner parts of the product must be performed by an expert service centre.

ENVIRONMENTAL PROTECTION

• Packaging materials and obsolete appliances should be recycled.
• The transport box may be disposed of as sorted waste.
• Polyethylene bags shall be handed over for recycling.

Appliance recycling at the end of its service life:

A symbol on the product or its packaging indicates that this product should not go into household waste. It must be taken to the collection point of an electric and electronic equipment recycling facility. By making sure this product is disposed of properly, you will help prevent the negative effects on the environment and human health that would otherwise result from inappropriate disposal of this product. You can learn

more about recycling this product from your local authorities, a household waste disposal service or in the shop where you bought this product.

Jindřich Valenta - ELKO Valenta Czech Republic, Vysokomýtská 1800, 565 01 Choceň, Tel. [phone], Fax: [phone], www.my-concept.cz

Elko Valenta Slovakia s. r. o., Kasárenská 396/14, 911 05 Trenčín

Tel.: [phone], Fax: [phone], www.my-concept.sk

Elko Valenta Polska Sp. Z. o. o., Ostrowskiego 30, 53-238 Wrocław

Tel.: [phone], Fax: [phone], www.my-concept.pl
