OPK3560BC - Range hood Concept - Free user manual and instructions

Product Type	Chimney range hood, wall-mounted
Brand	Concept
Model	OPK3560BC
Dimensions (H x W x D)	660 mm x 600 mm x 500 mm
Height Adjustable	Chimney extends from 692 mm to 1032 mm (upper), 422 mm to 762 mm (lower)
Weight	10 kg
Voltage / Frequency	220–240 V ~ 50 Hz
Total Power Input	104 W
Motor Power Input	100 W
Lighting	2 x 2 W LED
Number of Speed Levels	3
Maximum Airflow (Exhaust)	537.3 m³/h
Noise Level (Max)	≤61 dB
Outlet Diameter	150 mm (flexible duct)
Fat Filters	2 metal filters, washable (dishwasher safe up to 60°C)
Carbon Filters	2 required for recirculation mode (purchased separately)
Modes	Exhaust (ventilation) or recirculation
Minimum Installation Height (Electric Cooktop)	650 mm
Minimum Installation Height (Gas Cooktop)	750 mm
Power Cord	Grounded plug, must remain accessible after installation
Control Panel	Mechanical buttons: On/Off, 3 speeds, light On/Off

Frequently Asked Questions - OPK3560BC Concept

What is the minimum installation height above the cooktop?

The hood must be installed at least 650 mm above electric cooktops and at least 750 mm above gas cooktops.

How do I clean the metal fat filters?

Remove the filters as shown in the manual (Fig. 1). Soak them in warm water with detergent, scrub gently, rinse, and dry. They are also dishwasher safe at temperatures below 60°C. Avoid aggressive detergents to prevent blackening.

How often should the carbon filter be replaced?

Under normal use, replace the carbon filter every 2-3 months. Replace more frequently if you fry often. Carbon filters cannot be washed and must be purchased separately.

Can I use the hood in recirculation mode?

Yes, if you cannot vent outside. Install two carbon filters (not included) to absorb odors. The cleaned air returns to the room through openings in the upper chimney cover. Note that airflow may decrease in this mode.

What should I do if the motor stops working?

The thermal overload protection may have triggered. Improve room ventilation, open doors/windows, or increase the distance between the hood and cooktop. If the problem persists, contact the service center.

Why is the hood vibrating?

Possible causes: damaged motor blades, loose motor mounting, or the hood itself is not fixed securely. Contact the service center or tighten the mounting screws.

How do I set up the hood for exhaust mode?

Connect the flexible outlet duct (Ø150 mm) to the hood's outlet and route it to a ventilation shaft or outside. If a carbon filter is installed, remove it. Press speed buttons (1-3) to select power level.

What is the recommended cleaning frequency for the exterior?

Wipe the outside with a damp cloth, soft brush, or fine sponge regularly. Avoid abrasive cleaners, acidic substances (lemon juice, vinegar), and steam jets. Dry thoroughly.

Is the hood suitable for use over a gas stove?

Yes, but maintain a minimum distance of 750 mm from the gas cooktop. Ensure gas flames do not exceed the diameter of cookware and never leave open flames unattended under the hood.

What electrical requirements are needed for installation?

The hood requires a 220-240 V ~ 50 Hz grounded outlet. Do not use extension cords or multiple sockets. The plug must remain accessible after installation. Only a qualified professional should modify the electrical connection.

USER MANUAL OPK3560BC Concept

concept OPK3560bc

ENLVPLSKCZ

PODĚKOVÁNÍ

1 2 3 concept

POPIS OVLÁDACÍHO PANELU

Illustration of a hand using a handheld device to press or interact with a screen (no text or symbols visible)

Obr. 1

Technical line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Simple line drawing of a conical shape with a dashed top edge (no text or symbols)

Simple line drawing of a rectangular frame with vertical supports and a horizontal bar (no text or symbols)

Simple line drawing of a conical shape with a top and bottom rectangular sections (no text or symbols)

Obr. 7

Demontáž

1 2 concept 3

POPIS OVLÁDACIEHO PANELU

Illustration of a hand holding a tablet device with a finger pointing at it, showing a download arrow (no text or symbols present)

obr. 1

Two 3D geometric shapes with dashed centerlines, no text or symbols present

Technical diagram showing 3D views of a ceiling structure with labeled components and an inset close-up of the top panel.

obr. 7

Demontáž

1 2 concept 3

OPIS PANELU STEROWANIA

Illustration of a hand holding a tablet device with a finger pointing at it, showing a download arrow (no text or symbols present)

Rys. 1

Two 3D geometric shapes with dashed centerlines, no text or symbols present

Technical diagram showing 3D and 2D views of a ceiling structure with component details and assembly steps

Rys. 7

Demontaż

1 2 3 concept

VADĪBAS PANELA APRAKSTS

Hand inserting a tablet into a device, showing a download icon (no text or symbols)

att. 1

Two technical line drawings of a conical mechanical component with dashed centerlines (no text or symbols)

Pareizi Nepareizi

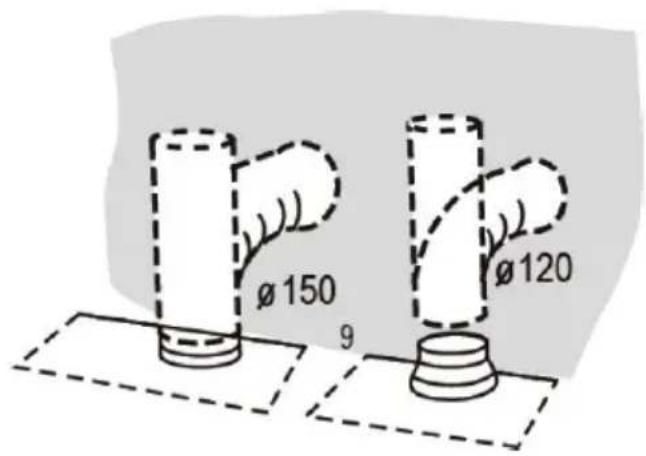

Ø150 9 Ø120

att. 5 att. 6

Technical line drawing of a mechanical assembly with a magnified inset showing a component detail (no text or symbols)

Technical line drawing of a chimney with mounting base and side panel (no text or symbols)

Simple line drawing of a conical shape with a dashed top edge (no text or symbols)

Simple line drawing of a rectangular frame with two vertical supports and a central horizontal bar (no text or symbols)

Simple line drawing of a conical exhaust chimney (no text or symbols)

att. 7

Demontāža

Thank you for purchasing the Concept product. We want you to be satisfied with everything we make every day you use it.

Please read the instructions carefully before initial use. You should retain them for future reference. Ensure that anyone using this product is familiar with the instructions.

TABLE OF CONTENTS

Technical specifications

Important safety information

Product description

Control panel description

User manual

Cleaning and maintenance

Installation of the appliance

Troubleshooting

Service centre

Environmental protection

TECHNICAL SPECIFICATIONS
Voltage 220–240 V ~ 50 Hz
Total power input 104 W
Motor power input 100 W
Type Chimney type
Assembly Wall mounting
Height 660 mm
Width 600 mm
Depth 500 mm
Diameter of flexible outlet duct 150 mm
Extracted air output stages 3
Capacity of extracted air 537.3 m	^3/h
Fat filters 2
Required number of carbon filters for recirculation 2
Mode	Ventilation/recirculation
Lightning	2 x 2 W
Weight	10 kg
Noise level of ventilation/recirculation	≤61 dB

The manufacturer reserves the right to make potential technical changes, typographical errors and any differences in the representation without prior notice.

IMPORTANT SAFETY INFORMATION

Upon delivery of fume hood

• Immediately after delivery, check the package for any damage during shipping.
• Caution! Caution! Some edges of this appliance that are hidden after installation are sharp! Be careful not to get cut when handling an uninstalled unit.
• Do not install the appliance if it has been damaged. Contact the store where you purchased it immediately.
• Remove all the packaging and marketing materials before first use.
• Keep the packaging materials away from children or dispose of them properly.

During installation

• Do not use the appliance in any other way than as described in this manual.
• Only use it as a household appliance and for removal of fumes arising from cooking of food or for recirculation and absorption of smells arising from cooking of food.
  • This appliance can be used in households and similar places like:

- Kitchen cabinets in shops, offices and other workplaces.

- Appliances used in agriculture.

- Appliances used by guests in hotels and other areas in a hotel environment.

- Appliances used in a Bed and Breakfast environment.

• Do not touch the appliance with wet hands.
• Do not allow children or unauthorized people to handle the appliance, use it out of their reach.
  • Children should not play with the appliance.
• Pay extra attention if the appliance is used near children.
• Do not allow the appliance to be used as a toy.
• This appliance can be used by children aged 8 years and over. Persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, should be supervised or familiarized with the instructions for use of the appliance in a safe way and have been made aware of the risks involved.
• If a malfunction occurs, turn off the appliance and unplug it from the wall outlet.
• When disconnecting the unit from the wall outlet, never pull the power cord, grasp the plug end and disconnect it by removing it from the receptacle.
• Do not immerse the power cord or the plug in water or any other liquid.
• Check the appliance and the power cord for damage regularly.

• Do not switch on the appliance if it has been damaged.
  • Unless the appliance is in operation, ensure that all its controls are switched off.

• Do not manipulate with an open flame (e.g. singeing) under the appliance. If you remove a cooking vessel from a gas burner, reduce its flame to minimum or turn it off!

• Caution! Risk of fire! Care must be taken to ensure that the diameter of the gas burners on the gas cooker or the cooking plate corresponds to that of cooking utensils used. If cooking vessels with a diameter lower than recommended are used, the flame could start to burn around the cooking vessel resulting in a risk of melting plastic handles.
• While deep frying or frying of food, observe this food all the time. In the case of oil overheating, there is a risk of fire!
• Ensure that the flames do not get too close to the appliance.
• Observe intervals for replacement and cleaning of filters (at least every 2-3 months). Failure to observe these requirements results in a risk of fire due to fat accumulating in the filters!
• All the respective current standards and official regulations must be observed relating to the removal of the extracted air.
• A ventilation duct diameter for the removal of the extracted air should be approximately the same or larger than that of the hood's flexible outlet duct.
• Extracted air should not be led to a chimney intended for discharge of flue gases and combustion products or a shaft serving for ventilation of rooms where fireplaces are situated.
• When the appliance and fireplaces are in operation simultaneously, vacuum in the room should not be higher than 4 Pa (0.04 mbar).
• Do not use any accessories other than those recommended by the manufacturer.
• Do not use accessories with damaged surface treatment or if it has been worn out or has other defects.
• Do not use any corrosive cleaning agent for cleaning. Maintenance and cleaning on a regular basis extend the lifetime of the appliance.
• Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

Possible defects

• Only qualified service technicians should repair or perform maintenance to this appliance.
• During the repairs the appliance must be disconnected from the power. Switch off the circuit breaker or remove the plug from the wall outlet.
• When disconnecting the unit from the wall outlet, never pull the power cord, grasp the plug end and disconnect it by removing it from the receptacle.
• If the power cord is damaged, contact the authorised service centre.

If you fail to follow these instructions, any possible repair cannot be recognized as a warranty repair.

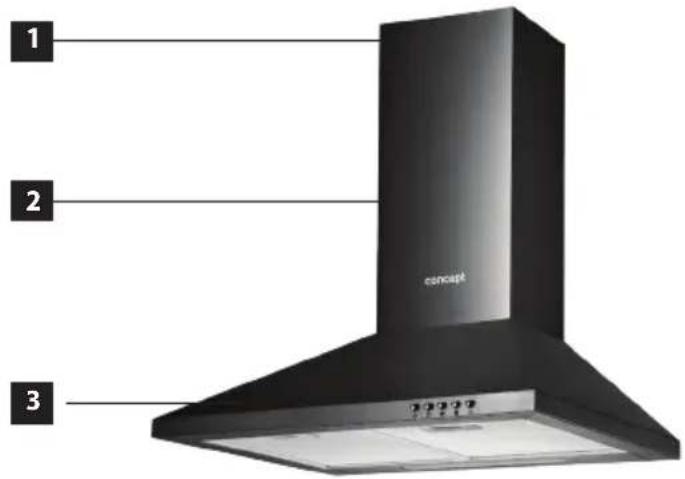

PRODUCT DESCRIPTION

1 Upper chimney cover
2 Lower chimney cover
3 Appliance body

1 2 3 concept

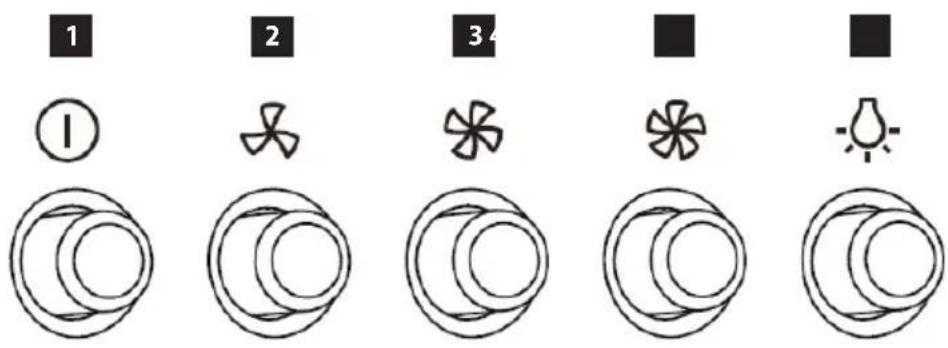

CONTROL PANEL DESCRIPTION

1 Appliance On/Off button
2 Button of the 1th power level
3 Button of the 2nd power level
4 Button of the 3rd power level
5 Lighting On/Off button

1 2 3 ① ## ## #

USER MANUAL

Before first use

Before first use you should wipe the outside and inside of the appliance with a damp cloth for hygiene reasons.

Ventilation mode

The extracted air is discharged through the flexible outlet duct to the ventilation shaft out of the room. If the appliance is equipped with a carbon filter, remove it (see chapter Cleaning and Maintenance).

1. Press the button (1), (2) or (3) to switch the appliance to the desired power level.
2. Press the button (5) to switch the appliance lighting on/off.
3. Press the button (1) to turn the appliance off.

Recirculation mode

If there is no possibility of discharging the extracted air out of the room, you can use the recirculation mode. In this case, the extracted air is filtered through the metal fat filters and the carbon filter An active carbon in this filter absorbs the smell. Air, free from the smell, flows back into the room through openings situated in the upper chimney cover. When the recirculation mode is used, it is necessary to purchase and install the appropriate carbon filters (see chapter Cleaning and Maintenance).

Note:

When the recirculation mode is used (carbon filter installed), the extracted air output can drop.

CLEANING AND MAINTENANCE

1. Disconnect the power cord from the wall outlet or switch off the circuit breaker of the appliance before cleaning and maintenance.
2. To clean the appliance outside, use a damp cloth, a soft brush or a fine sponge, and then wipe it dry.
3. Do not use coarse abrasive cleaning agents or sharp metal scrapers for cleaning of the appliance as this could result in surface scoring.
4. Do not use steam jets to clean the appliance!
5. Never leave aggressive or acidic substances (lemon juice, vinegar) on enamelled or stainless parts of the appliance.

Cleaning and replacement of filters

Metal fat filters

When the appliance is in common use, the metal fat filters should be checked or cleaned every month. In case of more frequent frying or deep frying, shorten this interval.

Do not use the appliance without the metal fat filters properly installed!

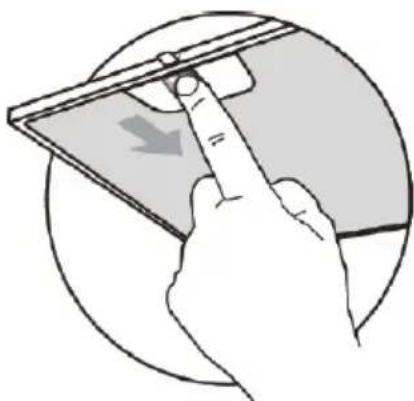

1. Remove the metal filters as shown in Fig. 1.
2. We recommend to soak the metal filters in warm water with a detergent, then to clean with a soft brush, rinse with clean water and allow to dry. The filters are also dishwasher safe using a program below 60 °C. In this case, it is necessary to avoid the use of aggressive detergents –the aluminum filters can blacken under the influence of the chemical reaction.
3. Reinstall dried out filters.

Illustration of a hand using a smartphone to press a device, showing a finger pointing at the screen (no text or symbols present)

Fig. 1

Carbon filter (to be purchased)

This filter is only used for the recirculation mode.

The filter contains an active carbon absorbing the smell being discharged. The active carbon will be saturated after some time, hence the absorption capacity will be shortened. This filter cannot be washed or cleaned in any other way.

When the appliance is in common use, the carbon filter should be replaced every 2-3 months. In case of more frequent frying or deep frying, shorten this interval.

1. Remove the metal filters as shown in Fig. 1.
2. The carbon filters are situated on both sides of the motor. Turn the filters, until they are secured (see Fig. 2).
3. To replace the carbon filter, proceed in reverse order.

Closed Opened ClosedOpened

Fig. 2

INSTALLATION OF THE APPLIANCE

Caution!

Risk of electric shock! Before installation, disconnect the power cord from the wall outlet. Otherwise there is a risk of death or electric shock.

• Defects caused by improper installation are not covered by the warranty.
  • Installation is the responsibility of the customer not the manufacturer.
• The manufacturer bears no responsibility for damage caused to people, animals or property due to incorrect installation.
• All guards must be placed firmly in their appropriate place in a way they cannot be removed without using special tools.

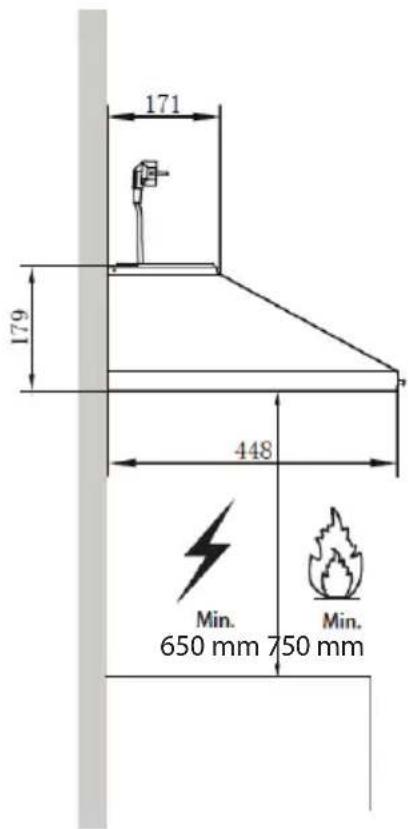

  • Install the appliance at least 650 mm over electric cookers or electric cooking plates and at least 750 mm over gas cookers or gas cooking plates.
• Extracted air should not be led to a chimney intended for discharge of flue gases and combustion products on a shaft serving for ventilation of rooms where fireplaces are situated.
• Any bend of the ventilation pipe should be ≥ 120^ .
  • The room must be well ventilated during cooking.

Connection to the mains

• Make sure the mains voltage and current protection correspond to the values on the rating plate of the appliance.
- Only use grounded sockets.
- Do not use multiple sockets, plugs and extension cords.
- The plug of the power cord on the appliance must be freely accessible even after the installation.

• Changes in a connection may only be performed by a qualified professional.

- Electrical safety of the appliance can be guaranteed only if the protective terminal of the appliance is connected to the protective conductor of the mains.

- The manufacturer bears no responsibility for damage to persons or property as a result of missing or bad protective connection.

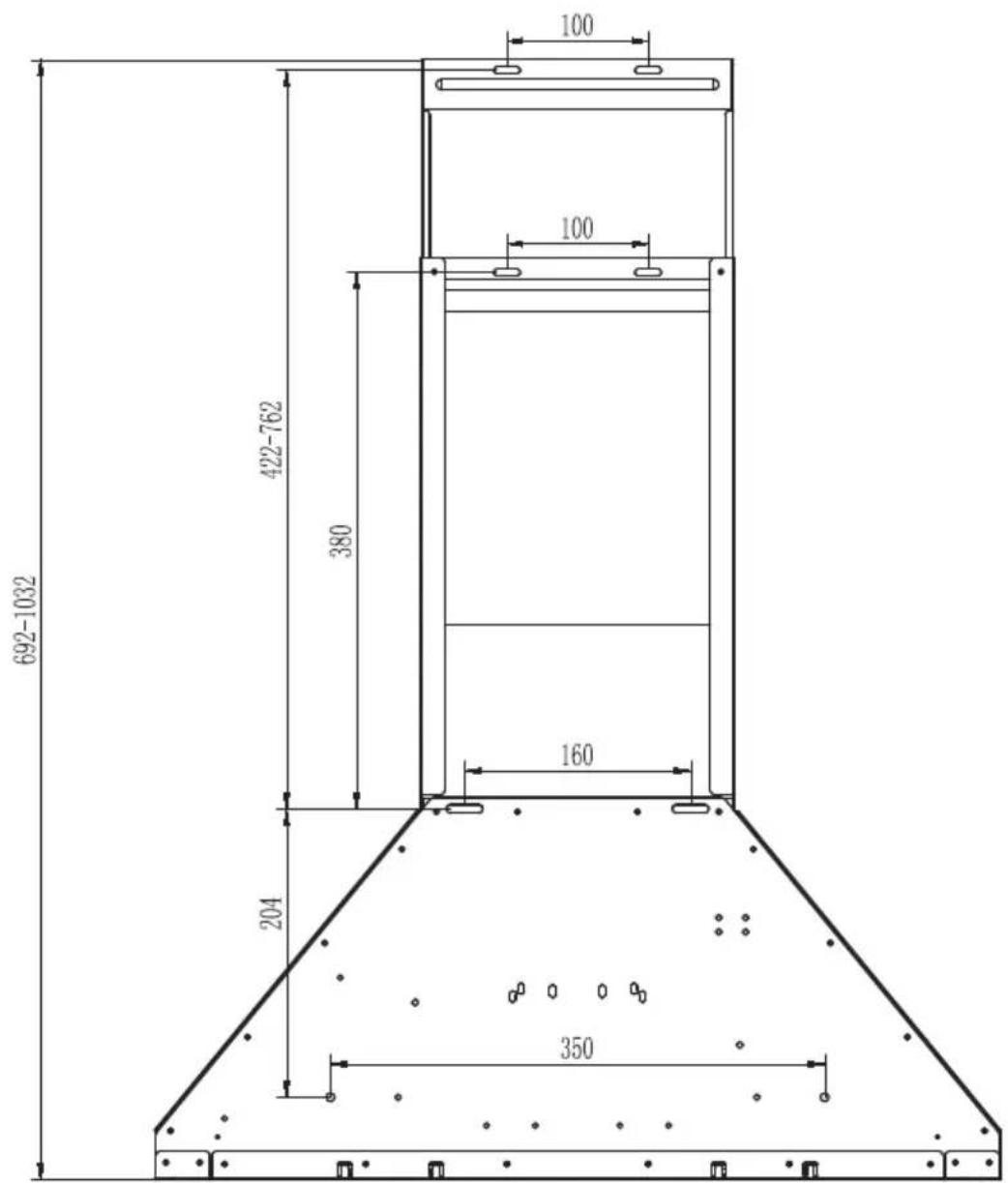

Appliance dimensions

692-1032 422-762 380 100 100 160 204 350

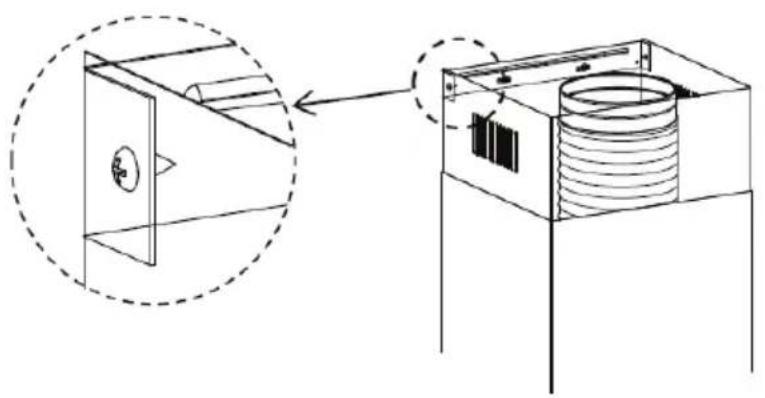

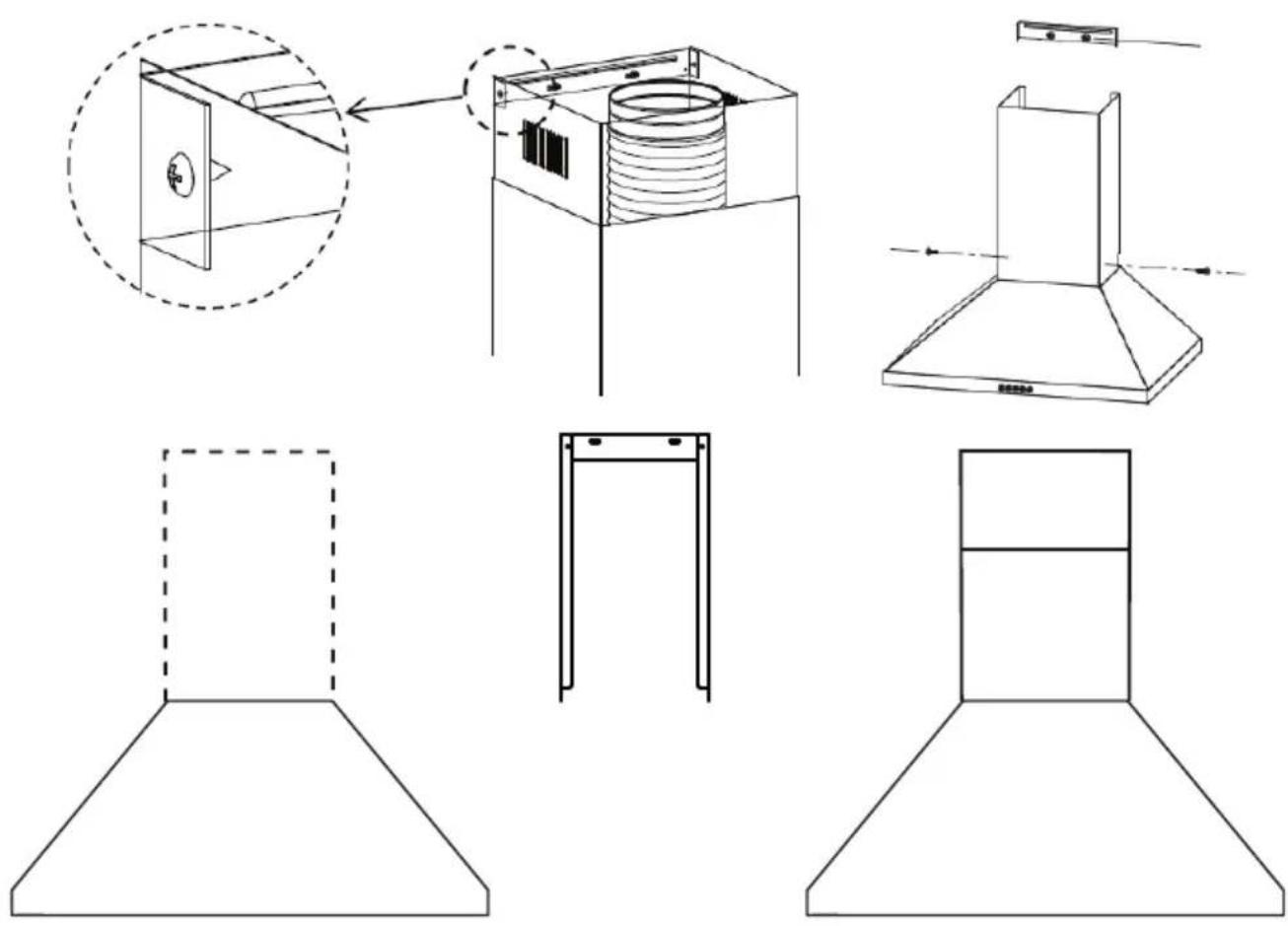

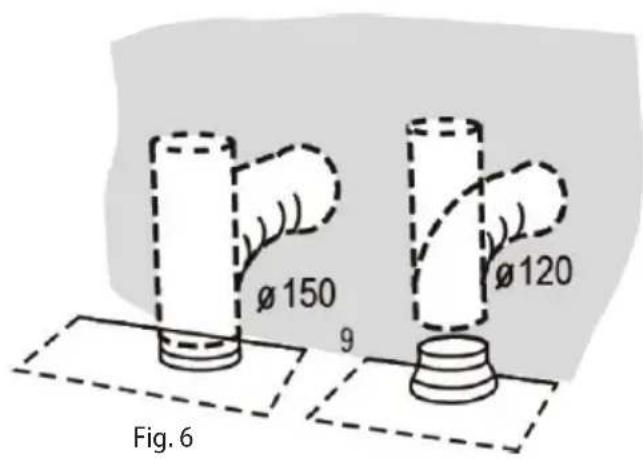

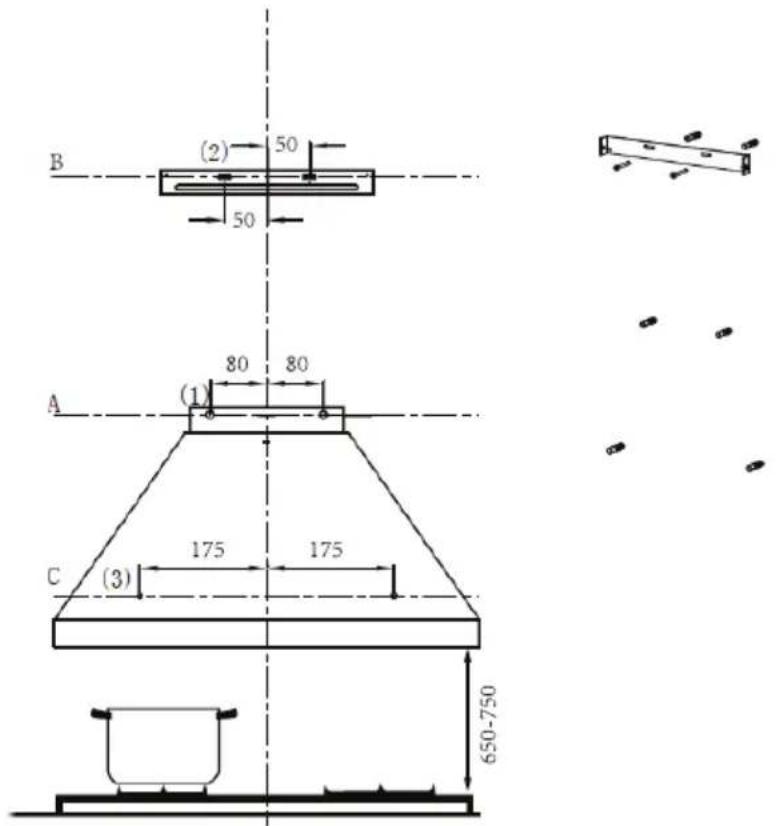

When installing the appliance, follow these steps:

1. Remove all the packaging and marketing materials before first use.
2. Mark the required installation height (650 mm for electric and 750 mm for gas cooking plates) on the wall behind the cooker or the cooking plate (Fig. 3).
3. Draw a vertical line to mark the centre of the cooking plate (of the cooker).
4. Drill holes and attach the hood according to Fig. 4.
5. Make sure that the bracket is in the horizontal position in order to prevent grease (fat) from being accumulated on one side after the hood has been hung (Fig. 5).
6. After the hood has been hung, install the flexible outlet duct to the outlet opening (Fig. 6). Use a reducer fitting 150/120 mm in diameter, if required. Insert the second part of the flexible duct in the opening prepared in the wall.
7. Place the lower part as well as the upper part of the chimney on the hood hung (Fig. 4). Lift the upper part up to the required height and mark holes on the wall for attachment of the upper chimney part bracket. Subsequently remove the lower as well as the upper chimney part.
8. Drill holes and attach the upper chimney part bracket as shown in Fig. 4.
9. Place the lower as well as the upper chimney part. Lift the upper part up to the required height and attach the upper chimney part to the upper chimney part holder as shown in Fig. 7.
10. Plug the power cord into the wall outlet.

171 179 448 Min. 650 mm 750 mm Min.

Fig. 3

B (2) 50 50 A (1) 80 80 C (3) 175 175 650-750

Fig. 4

Correct Incorrect

Fig. 5

Ø150 Ø120 9 Fig. 6

Technical diagram showing installation of a ceiling structure with zoomed-in detail and side views

Fig. 7

Disassembling

If you disassemble the appliance, it is important to follow the steps in the correct order:

1. First, unplug the power cord from the mains (pull the plug out or switch off the circuit breaker).
2. Subsequently disassemble individual parts of the hood in reverse order of the appliance installation.

TROUBLESHOOTING

Defect description Possible cause Solution
Lamps illuminate but the motor stands idle	The motor blades are blocked. Contact the service centre.
	The motor or its essential parts are damaged.	Contact the service centre.
	The plug inserted incorrectly or insufficiently in the wall outlet.	Check connection of the plug.
	The wall outlet is not energized.	Check that the wall outlet is energized, e.g. by connecting another appliance.
Lamps do not illuminate and the motor stands idle	The plug inserted incorrectly or insufficiently in the wall outlet.	Check connection of the plug.
	The wall outlet is not energized.	Check that the wall outlet is energized, e.g. by connecting another appliance.
Fat drops from the metal fat filters	Heavily fouled filters. Risk of fire!	Immediately clean or replace the metal fat filters.
The appliance vibrates when the appliance is on	The motor blades are damaged. Contact the service centre.
	The motor is not fixed fast.	Contact the service centre or fix the motor fast.
	The hood is not fixed fast. Fix the hood fast.
Insufficient exhaust of the extracted air	Distance between the hood and the cooking plate is too long.	Reduce distance between the hood and the cooking plate.
	Strong draught, too many doors or windows opened.	Close some doors or windows.
The motor stopped working	The thermal overload protection against the motor overheating triggered.	Improve the room ventilation, open doors or windows or check distance between the hood and the cooking plate. If required, increase distance between the hood and the cooking plate.
The hood is not levelled	The hood is not levelled or the bracket screws are not tightened properly.	Check the hood for being levelled or tighten holding screws and level the hood.

SERVICE CENTRE

Extensive maintenance or repair, which requires access to internal parts of the product, has to be performed by a qualified specialist or the service centre.

ENVIRONMENTAL PROTECTION

• Prefer recycling of packaging materials and old appliances.
• Packaging materials may be disposed of as sorted waste.
• Dispose the plastic bags made of polyethylene (PE) of as sorted waste.

Recycling of the appliance at the end of its lifespan:

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The symbol on the product or its packaging indicates that this product may not be treated as household waste. It is necessary to take it to a container park for the recycling of electrical and electronic equipment. By ensuring the correct disposal of this appliance you will help prevent potential negative consequences to the environment and human health, which could otherwise result from inappropriate disposal of this product. Disposal must be performed in accordance to the regulations for waste disposal. For more detailed information about recycling of this appliance see the authorized local office or service for household waste disposal or the shop, where you purchased the appliance.

CONCEPT POLSKA sp. z o.o.
