OPV3560 - Range hood Concept - Free user manual and instructions

Product Type	Range Hood
Brand	Concept
Model	OPV3560
Color	Stainless Steel
Installation Type	Chimney (Wall-mounted)
Width	60 cm (23.6 inches)
Height (max)	100 cm (39.4 inches)
Depth	50 cm (19.7 inches)
Weight	12 kg
Power Supply	220-240 V, 50/60 Hz
Rated Power	200 W (motor)
Number of Fan Speeds	3
Max Airflow	650 m³/h
Noise Level (max)	65 dB(A)
Grease Filter Type	Aluminum mesh, washable
Grease Filter Quantity	2
Lighting	2 x 3 W LED
Energy Efficiency Class	A+
Control Type	Push buttons
Extraction Mode	Ducted or recirculating (with carbon filter)
Carbon Filter (optional)	Model: CF3560
Duct Diameter	150 mm (6 inches)
Includes	Hood, mounting kit, instructions
Warranty	2 years

Frequently Asked Questions - OPV3560 Concept

How to install the Concept OPV3560 range hood?

Installation should be performed by a qualified professional. Ensure the hood is securely mounted to a solid wall at least 65 cm above electric hob or 75 cm above gas hob. Connect the ducting (150mm) for extraction or install carbon filters for recirculation mode.

How to clean the grease filters?

Remove the aluminum mesh filters and wash them in warm soapy water or in the dishwasher (low temperature cycle). Ensure they are completely dry before reinstalling. Clean every 2-3 months depending on usage.

How to replace the carbon filter?

If using recirculation mode, replace the carbon filter every 3-6 months. Locate the filter inside the hood (usually behind the grease filters), slide it out, and insert a new one (model CF3560).

Why is the hood not working?

Check the power cord is plugged in and circuit breaker is on. If the remote control is not responding, replace batteries. For persistent issues, contact customer service.

Can the hood be used without ducting?

Yes, it can be used in recirculation mode by installing carbon filters (not included). The air is filtered and recirculated back into the kitchen.

What is the noise level of the hood?

Noise level varies by speed: approx. 48 dB at low speed, 56 dB at medium, and 65 dB at high speed.

How to change the LED lights?

The LED lights are integrated and non-replaceable. If they fail, please contact a qualified technician or Concept support.

What is the maximum extraction capacity?

The maximum extraction capacity is 650 m³/h, suitable for kitchens up to 20 m².

Does the hood come with a remote control?

No, the Concept OPV3560 is controlled via push buttons on the front panel. No remote control is included.

How to reset the filter cleaning indicator?

After cleaning or replacing filters, press and hold the speed button for 5 seconds until the indicator light turns off.

USER MANUAL OPV3560 Concept

Three conceptual air conditioning units with black and white panels, displayed against a neutral gray background (no text or symbols visible)

OPV3560 / OPV3560bc / OPV3560wh

PODĚKOVÁNÍ

POPIS OVLÁDACÍHO PANELU

Interior view of a modern industrial machine with labeled components (no readable text or symbols beyond labels)

NÁVOD K OBSLUZE

Illustration of a hand pressing a tablet with a downward arrow (no text or symbols)

Obr. 1

Technical line drawing of a mechanical housing assembly with mounting brackets and internal components (no text or symbols)

Technical line drawing of a mechanical housing or enclosure with mounting base and internal components (no text or symbols)

Pure technical line drawing of a mechanical assembly with no text or symbols

Simple line drawing of a mechanical component with a central cross-section (no text or symbols)

POPIS OVLÁDACIEHO PANELU

Interior view of a modern industrial machine with labeled components (1 and 2), showing no visible text or symbols on the device itself.

NÁVOD NA OBSLUHU

Pred prvým použitím

Illustration of a hand holding a tablet device with a finger pointing at it, showing a download arrow (no text or symbols present)

obr. 1

Technical line drawing of a mechanical assembly with a cylindrical component mounted on a base plate (no text or symbols)

Pure mechanical assembly diagram showing two stacked plates with a central bracket and alignment markers (no text or symbols)

Simple line drawing of a rectangular block with a vertical dashed line and a small protrusion at the top (no text or symbols)

správne nesprávne

obr. 6

obr. 7

Demontáž

OPIS PANELU STEROWANIA

Interior view of a modern laptop with labeled components (no readable text or symbols beyond labels)

INSTRUKCJA OBSŁUGI

Illustration of a hand inserting a device into a tablet (no text or symbols visible)

Rys. 1

Technical line drawing of a mechanical housing assembly with mounting holes and internal components (no text or symbols)

Technical line drawing of a mechanical housing or enclosure with mounting base and internal components (no text or symbols)

Pure technical line drawing of a mechanical assembly with no text or symbols

Simple line drawing of a mechanical component with no text or symbols

VADĪBAS PANELA APRAKSTS

Interior view of a modern office or lab equipment with two labeled components (1 and 2), showing no visible text or symbols on the main surfaces.

LIETOŠANAS INSTRUKCIJA

Hand holding a tablet device with a downward arrow, enclosed in a circular frame (no text or symbols)

1. att.

Technical line drawing of a mechanical housing or enclosure with mounting base and internal components (no text or symbols)

Pure technical line drawing of a mechanical assembly with no text or symbols

Simple line drawing of a rectangular object with a vertical axis and a small box on top (no text or symbols)

pareizi
6. att
nepareizi

TRAUCĚJUMU NOVĚRŠANA

Thank you for purchasing the Concept product. We want you to be satisfied with everything we make every day you use it.

Please read the instructions carefully before initial use. You should retain them for future reference. Ensure that anyone using this product is familiar with the instructions.

TABLE OF CONTENTS

Technical specifications

Important safety information

Product description

Control panel description

User manual

Cleaning and maintenance

Installation of the appliance

Dimensions

Troubleshooting

Service centre

Environmental protection

TECHNICAL SPECIFICATIONS
Voltage 220-240 V, 50/60 Hz
Total power input 69 W
Motor power input 65 W
Type Telescopic
Assembly into cabinet
Height 195 mm
Width 595 mm
Depth - body + moulding 280 + 36 mm
Diameter of flexible outlet duct 150 mm
Extracted air output stages 2
Capacity of extracted air 300 m	^3/h
Fat filters 2
Required number of carbon filters for recirculation 2
Mode	Ventilation/recirculation
Lightning	2 x 2 W
Weight 6.3 kg
Noise level of ventilation/recirculation	64 dB

The manufacturer reserves the right to make potential technical changes, typographical errors and any differences in the representation without prior notice.

IMPORTANT SAFETY INFORMATION

Upon delivery of fume hood

• Immediately after delivery, check the package for any damage during shipping.
• Caution! Caution! Some edges of this appliance that are hidden after installation are sharp! Be careful not to get cut when handling an uninstalled unit.
• Do not install the appliance if it has been damaged. Contact the store where you purchased it immediately.
• Remove all the packaging and marketing materials before first use.
• Keep the packaging materials away from children or dispose of them properly.

During installation

• Do not use the appliance in any other way than as described in this manual.
• Only use it as a household appliance and for removal of fumes arising from cooking of food or for recirculation and absorption of smells arising from cooking of food.
  • This appliance can be used in households and similar places like:

- Kitchen cabinets in shops, offices and other workplaces.

- Appliances used in agriculture.

- Appliances used by guests in hotels and other areas in a hotel environment.

- Appliances used in a Bed and Breakfast environment.

• Do not touch the appliance with wet hands.
• Do not allow children or unauthorized people to handle the appliance, use it out of their reach.
  • Children should not play with the appliance.
• Pay extra attention if the appliance is used near children.
• Do not allow the appliance to be used as a toy.
• This appliance can be used by children aged 8 years and over. Persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, should be supervised or familiarized with the instructions for use of the appliance in a safe way and have been made aware of the risks involved.
• If a malfunction occurs, turn off the appliance and unplug it from the wall outlet.
• When disconnecting the unit from the wall outlet, never pull the power cord, grasp the plug end and disconnect it by removing it from the receptacle.
• Do not immerse the power cord or the plug in water or any other liquid.
• Check the appliance and the power cord for damage regularly.

• Do not switch on the appliance if it has been damaged.

• Unless the appliance is in operation, ensure that all its controls are switched off.

• Do not manipulate with an open flame (e.g. singeing) under the appliance. If you remove a cooking vessel from a gas burner, reduce its flame to minimum or turn it off!
• Caution! Risk of fire! Care must be taken to ensure that the diameter of the gas burners on the gas cooker or the cooking plate corresponds to that of cooking utensils used. If cooking vessels with a diameter lower than recommended are used, the flame could start to burn around the cooking vessel resulting in a risk of melting plastic handles.
• While deep frying or frying of food, observe this food all the time. In the case of oil overheating, there is a risk of fire!
• Ensure that the flames do not get too close to the appliance.
• Observe intervals for replacement and cleaning of filters (at least every 2-3 months). Failure to observe these requirements results in a risk of fire due to fat accumulating in the filters!
• All the respective current standards and official regulations must be observed relating to the removal of the extracted air.

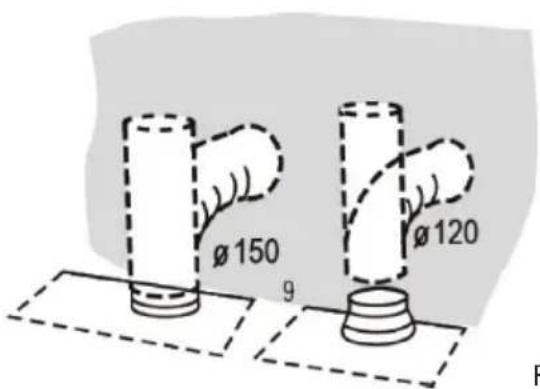

• A ventilation duct diameter for the removal of the extracted air should be approximately the same or larger than that of the hood's flexible outlet duct.
• Extracted air should not be led to a chimney intended for discharge of flue gases and combustion products or a shaft serving for ventilation of rooms where fireplaces are situated.
• When the appliance and fireplaces are in operation simultaneously, vacuum in the room should not be higher than 4 Pa (0.04 mbar).
• Do not use any accessories other than those recommended by the manufacturer.
• Do not use accessories with damaged surface treatment or if it has been worn out or has other defects.
• Do not use any corrosive cleaning agent for cleaning. Maintenance and cleaning on a regular basis extend the lifetime of the appliance.
• Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

Possible defects

• Only qualified service technicians should repair or perform maintenance to this appliance.
• During the repairs the appliance must be disconnected from the power. Switch off the circuit breaker or remove the plug from the wall outlet.
• When disconnecting the unit from the wall outlet, never pull the power cord, grasp the plug end and disconnect it by removing it from the receptacle.
• If the power cord is damaged, contact the authorised service centre.

If you fail to follow these instructions, any possible repair cannot be recognized as a warranty repair.

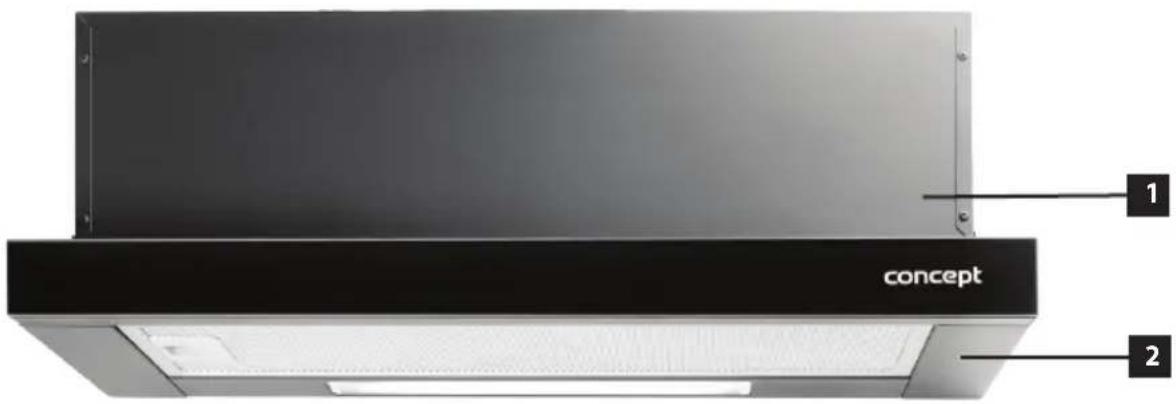

PRODUCT DESCRIPTION

1 Appliance body
2 Slide-out front of the appliance

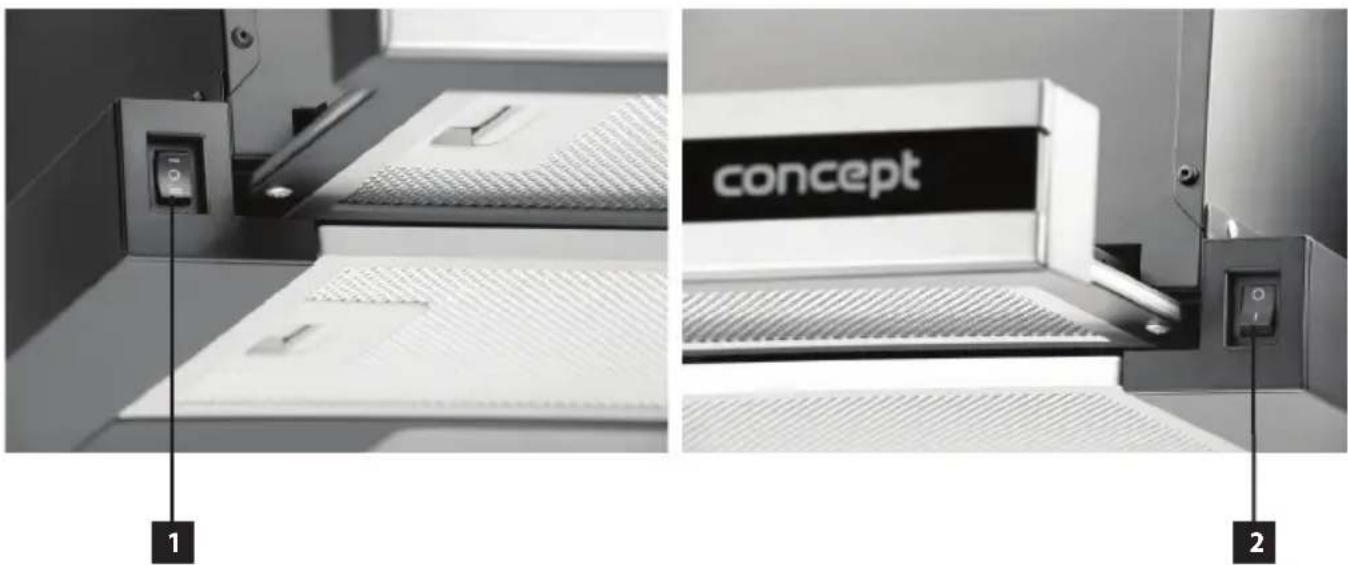

CONTROL PANEL DESCRIPTION

1 Extracted air output switch
2 Lightning on/off switch

Interior view of a modern industrial machine with labeled components (no readable text or symbols beyond labels)

USER MANUAL

Before first use

Before first use you should wipe the outside and inside of the appliance with a damp cloth for hygiene reasons.

Turning the lights on/off

1. To turn the lights on, set the switch (1) to "I".
2. To turn the lights off, set the switch (1) to "0".

Ventilation mode

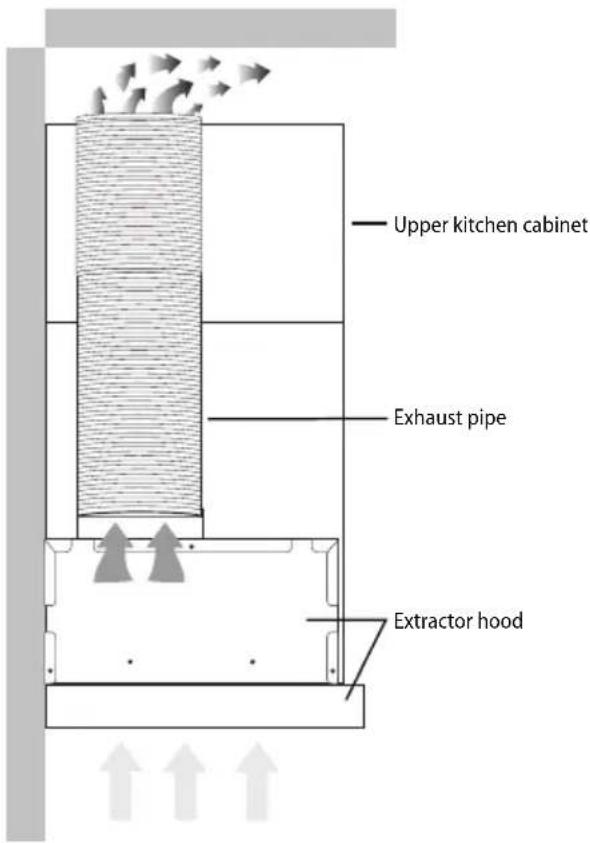

The extracted air is discharged through the flexible outlet duct to the ventilation shaft out of the room. If the appliance is equipped with a carbon filter, remove it (see chapter Cleaning and Maintenance).

1. Slide the front of the appliance to extend the air suction capacity.
2. Use the switch (2) to select the extracted air output to "I" or "II".
3. To switch off the appliance, set the switch (2) to "0".

Recirculation mode

If there is no possibility of discharging the extracted air out of the room, you can use the recirculation mode. In this case, the extracted air is filtered through the metal filters and the carbon filter. An active carbon in this filter absorbs the smell. Air, free from odours, flows back into the room through openings situated in the front cover of the appliance's body. When the recirculation mode is used, it is necessary to purchase and install the appropriate carbon filters (see chapter Cleaning and Maintenance).

Note:

When the recirculation mode is used (carbon filter installed), the extracted air output can drop.

CLEANING AND MAINTENANCE

• Disconnect the power cord from the wall outlet or switch off the circuit breaker of the appliance before cleaning and maintenance.
  • To clean the appliance outside, use a damp cloth, a soft brush or a fine sponge, and then wipe it dry.
• Do not use coarse abrasive cleaning agents or sharp metal scrapers for cleaning of the appliance as this could result in surface scoring.
• Do not use steam jets to clean the appliance!
• Never leave aggressive or acidic substances (lemon juice, vinegar) on enamelled or stainless parts of the appliance.

Cleaning and replacement of filters

Metal fat filters

When the appliance is in common use, the metal fat filters should be checked or cleaned every month. In case of more frequent frying or deep frying, shorten this interval.

Do not use the appliance without the metal fat filters properly installed!

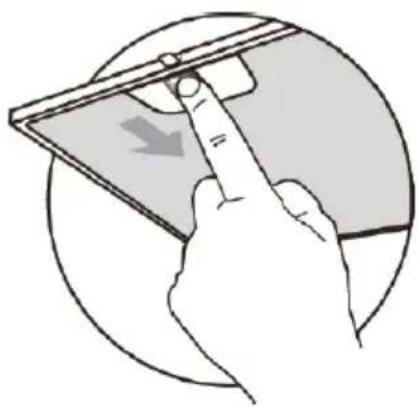

1. Remove the metal filters as shown in Fig. 1.
2. We recommend to soak the metal filters in warm water with a detergent, then to clean with a soft brush, rinse with clean water and allow to dry. The filters are also dishwasher safe using a program below 60 °C. In this case, it is necessary to avoid the use of aggressive detergents –the aluminum filters can blacken under the influence of the chemical reaction.
3. Attach the dried filters back.

Illustration of a hand using a handheld device to press or interact with a screen (no text or symbols visible)

Fig. 1

Carbon filter (to be purchased)

This filter is only used for the recirculation mode.

The filter contains an active carbon absorbing the smell being discharged. The active carbon will be saturated after some time, hence the absorption capacity will be shortened. This filter cannot be washed or cleaned in any other way.

When the appliance is in common use, the carbon filter should be replaced every 2-3 months. In case of more frequent frying or deep frying, shorten this interval.

1. Remove the metal filters as shown in Fig. 1.
2. The carbon filters are situated on both sides of the motor. Turn the filters, until they are secured (see Fig. 2).
3. To replace the carbon filter, proceed in reverse order.

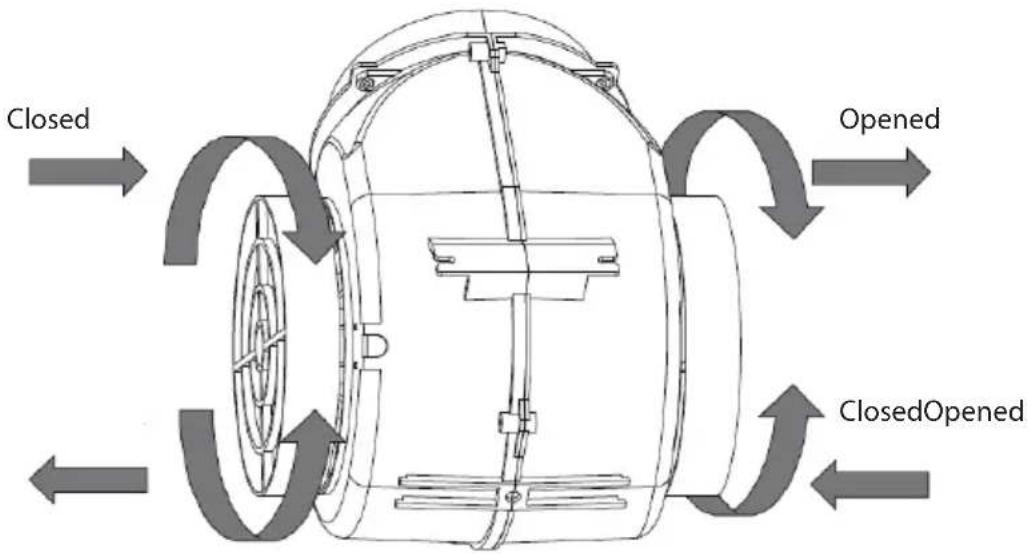

Fig. 2

INSTALLATION OF THE APPLIANCE

Caution!

Risk of electric shock! Before installation, disconnect the power cord from the wall outlet. Otherwise there is a risk of death or electric shock.

• Defects caused by improper installation are not covered by the warranty.
  • Installation is the responsibility of the customer not the manufacturer.
• The manufacturer bears no responsibility for damage caused to people, animals or property due to incorrect installation.
• All guards must be placed firmly in their appropriate place in a way they cannot be removed without using special tools.

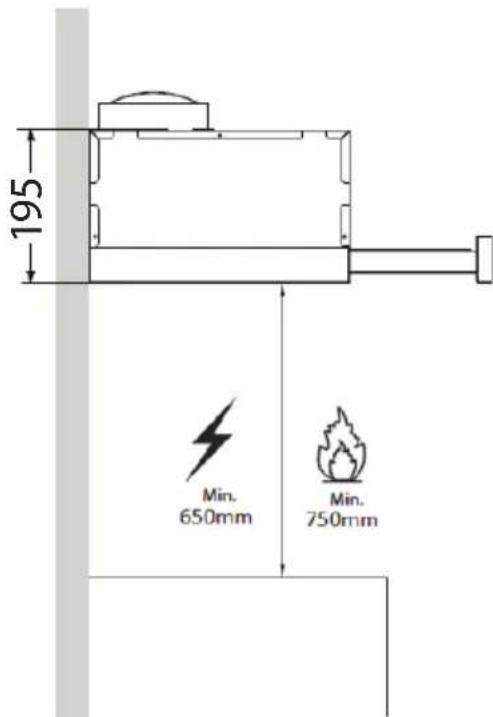

• Install the appliance at least 650 mm over electric cookers or electric cooking plates and at least 750 mm over gas cookers or gas cooking plates.
• Extracted air should not be led to a chimney intended for discharge of flue gases and combustion products or a shaft serving for ventilation of rooms where fireplaces are situated.

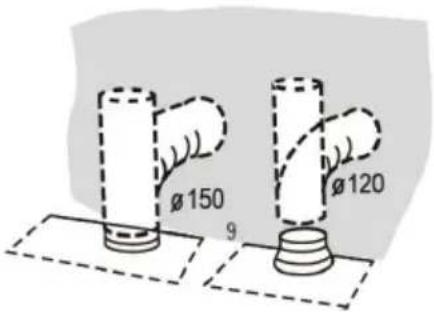

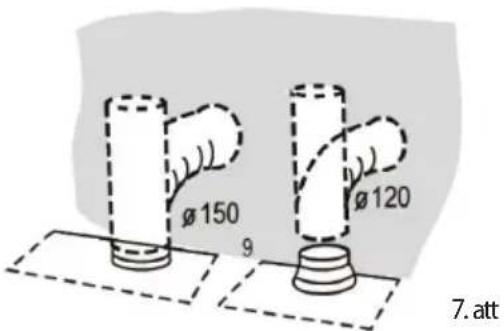

• A bend of the ventilation pipe should be ≥ 120^ .
  • The room must be well ventilated during cooking.

Connection to the mains

• Make sure the mains voltage and current protection correspond to the values on the rating plate of the appliance.
- Only use grounded sockets.
- Do not use multiple sockets, plugs and extension cords.
• The plug of the power cord on the appliance must be freely accessible even after the installation.
• Changes in a connection may only be performed by a qualified professional.
- Electrical safety of the appliance can be guaranteed only if the protective terminal of the appliance is connected to the protective conductor of the mains.
- The manufacturer bears no responsibility for damage to persons or property as a result of missing or bad protective connection.

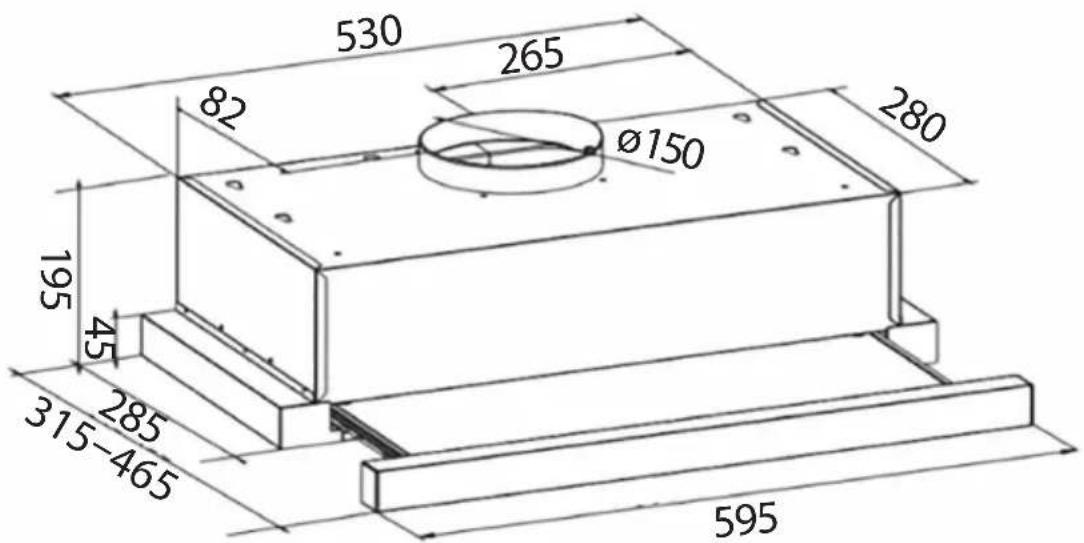

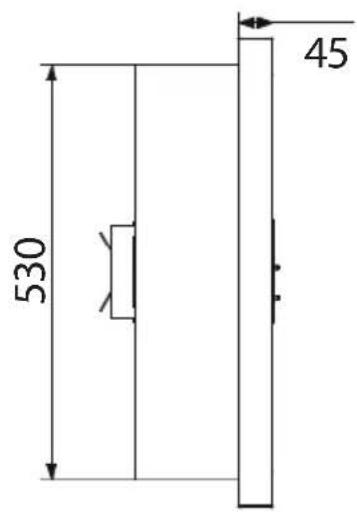

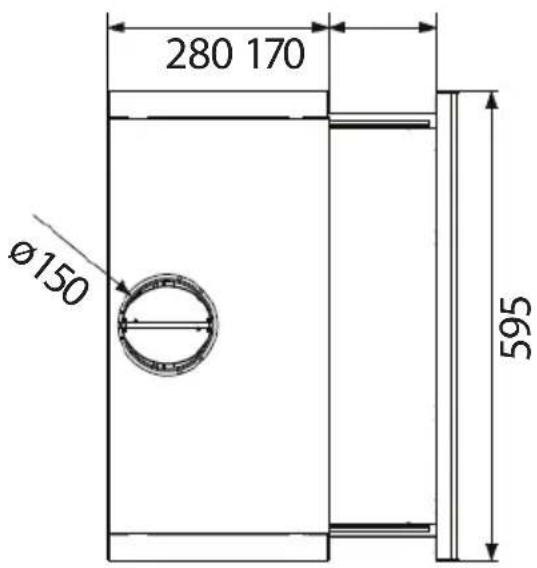

DIMENSIONS

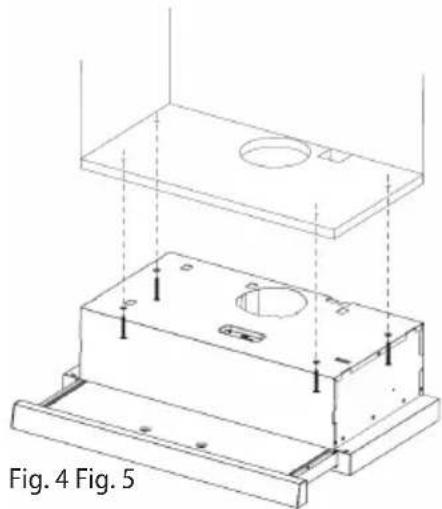

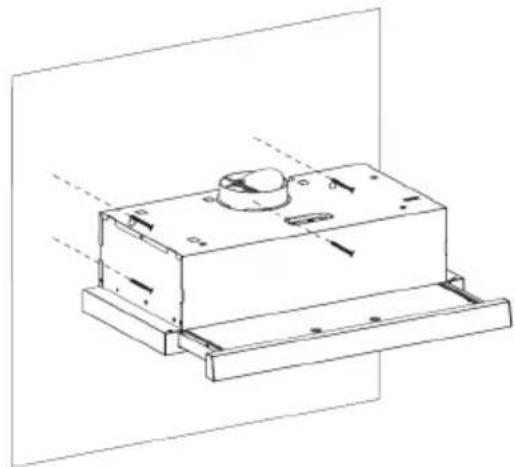

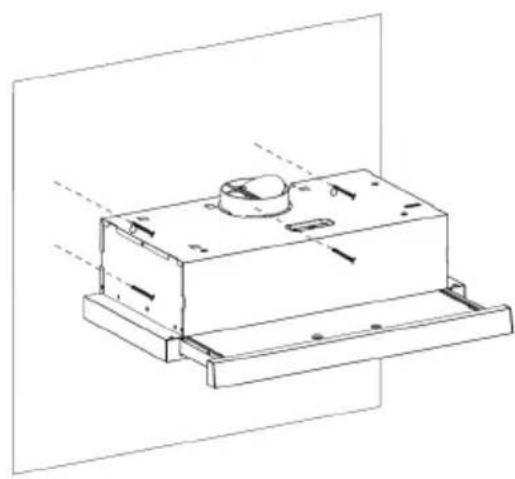

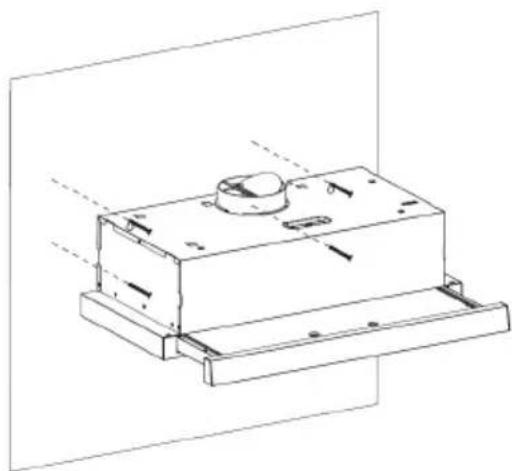

When installing the appliance, follow these steps:

1. Remove all the packaging and marketing materials before first use.
2. Mark the required installation height (650 mm for electric and 750 mm for gas cooking plates) on the wall behind the cooker or the cooking plate (Fig. 3).
3. Draw a vertical line to mark the centre of the cooking plate (of the cooker).
4. Drill the holes and attach the hood to the top cabinet according to Fig. 4, or to the wall according to Fig. 5.
5. Make sure that the hood is in the horizontal position in order to prevent grease (fat) from accumulating on one side of the appliance (Fig. 6).
6. After the hood has been hung, install the flexible outlet duct to the outlet opening (Fig. 7). Use a reducer fitting 150/120 mm in diameter, if required. Insert the second part of the flexible duct in the opening prepared in the wall.
7. Plug the power cord into the wall outlet.

Fig. 3

Technical line drawing of a mechanical housing assembly (Fig. 4 Fig. 5), showing internal components and mounting brackets without any text or symbols.

Technical line drawing of a mechanical housing or enclosure with mounting base and internal components (no text or symbols)

Pure technical line drawing of a mechanical assembly with no text or symbols

Simple line drawing of a mechanical component with no text or symbols

correct incorrect
Fig. 6

Fig. 7

Disassembling

If you disassemble the appliance, it is important to follow the steps in the correct order:

1. First, unplug the power cord from the mains (pull the plug out or switch off the circuit breaker).
2. Subsequently disassemble individual parts of the hood in reverse order of the appliance installation.

TROUBLESHOOTING

Defect description Possible cause Solution
Lamps illuminate but the motor stands idle	The motor blades are blocked. Contact the service centre.
	The motor or its essential parts are damaged.	Contact the service centre.
	The plug inserted incorrectly or insufficiently in the wall outlet.	Check connection of the plug.
	The wall outlet is not energized.	Check that the wall outlet is energized, e.g. by connecting another appliance.
Lamps do not illuminate and the motor stands idle	The plug inserted incorrectly or insufficiently in the wall outlet.	Check connection of the plug.
	The wall outlet is not energized.	Check that the wall outlet is energized, e.g. by connecting another appliance.
Fat drops from the metal fat filters	Heavily fouled filters. Risk of fire!	Immediately clean or replace the metal fat filters.
The appliance vibrates when it is on	The motor blades are damaged. Contact the service centre.
	The motor is not fixed fast.	Contact the service centre or fix the motor fast.
	The hood is not fixed fast. Fix the hood fast.
Insufficient exhaust of the extracted air	Distance between the hood and the cooking plate is too long.	Reduce distance between the hood and the cooking plate.
	Strong draught, too many doors or windows opened.	Close some doors or windows.
The motor stopped working	The thermal overload protection against the motor overheating triggered.	Improve the room ventilation, open doors or windows or check distance between the hood and the cooking plate. If required, increase distance between the hood and the cooking plate.
The hood is not levelled	The hood is not levelled or the bracket screws are not tightened properly.	Check the hood for being levelled or tighten holding screws and level the hood.

Changing the bulb

Lightning inside the appliance is provided by 2 x 2W LED bulb.

To replace the bulb, proceed as follows:

1. Disconnect the appliance from the mains or switch off the circuit breaker.
2. Remove the metal filters (see Cleaning and Replacing Filters) and replace the bulb of the same type and values.
3. When installing a new light bulb, use a cloth or paper towel to hold the bulb.
4. Install the metal filter back in place.

SERVICE CENTRE

Extensive maintenance or repair, which requires access to internal parts of the product, has to be performed by a qualified specialist or the service centre.

ENVIRONMENTAL PROTECTION

• Prefer recycling of packaging materials and old appliances.
• Packaging materials may be disposed of as sorted waste.
• Dispose the plastic bags made of polyethylene (PE) of as sorted waste.

Recycling of the appliance at the end of its lifespan:

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The symbol on the product or its packaging indicates that this product may not be treated as household waste. It is necessary to take it to a container park for the recycling of electrical and electronic equipment. By ensuring the correct disposal of this appliance you will help prevent potential negative consequences to the environment and human health, which could otherwise result from inappropriate disposal of this product. Disposal must be performed in accordance to the regulations for waste disposal. For more detailed information about recycling of this appliance see the authorized local office or service for household waste disposal or the shop, where you purchased the appliance.

concept

CONCEPT POLSKA sp. z o.o.

Ostrowskiego 30, 53-238 Wroclaw

Tel.: [phone]

www.my-concept.pl

LV

Verners VT Ltd.

Piedrujas iela 5a, Riga, Latvia

Tel. [phone]

e-pasts: [e-mail], www.verners.lv
