Product Type	Integrated Range Hood
Brand	Concept
Model	OPI7060BC
Height	317 mm
Width	598 mm
Depth	290 mm
Weight	10.4 kg
Voltage	220–240 V ~ 50 Hz
Total Power Input	78 W
Motor Power	70 W
Lighting	LED 2 x 2 W
Number of Speeds	3 + Boost
Maximum Extraction Capacity	635 m³/h
Noise Level	≤ 62 dB
Type of Fat Filter	Metal (1 piece)
Carbon Filter Required	2 pieces (for recirculation mode)
Modes	Ventilation / Recirculation
Control	Remote control + Hand gesture sensor
Timer	Yes (10 minutes)
Duct Diameter	150 mm
Minimum Installation Height	450 mm (electric) / 500 mm (gas)

Frequently Asked Questions - OPI7060BC Concept

How do I turn on the hood and change the speed?

Swipe your hand horizontally from left to right over the sensor, or press button 2 on the remote control. To change to a higher speed, repeat the same gesture or press button 2 again. To switch off, swipe from right to left or press button 1. The speed levels are indicated by LED colors: green (level 1), blue (level 2), pink (level 3), red (Boost).

How to clean the metal grease filters?

Remove the metal filters as shown in Fig. 1. Soak them in warm water with detergent, clean with a soft brush, rinse, and dry. They are also dishwasher safe at programs below 60 °C. Avoid aggressive detergents as they may blacken the aluminum. Clean at least every 2-3 months, or more often if you fry frequently.

When should I replace the carbon filter?

The carbon filter is only used in recirculation mode. It cannot be washed. Replace it every 2-3 months under normal use, or more often if you fry frequently. To replace, remove the metal filters, then turn the carbon filters on both sides of the motor until they are secured (Fig. 2).

What is the Boost function?

The Boost function is the 4th extraction speed level, indicated by a red LED. It automatically switches back to speed level 3 after 5 minutes to prevent excessive noise and energy use.

How to set the timer?

With the fan running (speed > 0), press the Timer button (No. 6) on the remote control. The countdown starts at 10 minutes. After 10 minutes, the hood turns off automatically. Press the Timer button again to deactivate it early.

What do the LED colors mean?

The LED color indicates the current extraction speed: green = level 1, blue = level 2, pink = level 3, red = Boost (level 4).

Can I use the hood in recirculation mode?

Yes. In recirculation mode, air passes through the metal grease filter and a carbon filter (sold separately) before returning to the room. Ensure the filtered air is directed back into the room. You must install two carbon filters (see manual). Note that extraction capacity may decrease in recirculation mode.

What should I do if the motor does not work?

First check if the plug is properly inserted and the wall outlet is energized (try another device). If the motor blades are blocked or the motor is damaged, contact the service centre. Do not attempt to repair yourself.

What is the minimum installation height?

The hood must be installed at least 450 mm above electric cooktops and at least 500 mm above gas cooktops. Install the appliance securely using the provided brackets.

How to install the flexible duct?

After hanging the hood, attach the flexible outlet duct (diameter 150 mm) to the outlet opening. Use a reducer fitting (120 mm) if needed. Insert the other end of the duct into the prepared wall opening. Ensure bends in the duct are ≥120° for optimal airflow.

USER MANUAL OPI7060BC Concept

Range hood integrated

PODĚKOVÁNÍ

POPIS DÁLKOVÉHO OVLÁDÁNÍ

Illustration of a hand interacting with a tablet device, showing a finger pointing at the screen (no text or symbols present)

Obr. 1

Obr.4

Technical diagram of a mechanical assembly with spring-loaded components and directional arrows indicating motion (no text or symbols)

Obr. 8

Demontáž

POPIS DIAL'KOVÉHO OVLÁDANIA

Hand holding a tablet device with a finger pointing at it, showing a download arrow (no text or symbols present)

obr. 1

Technical illustration of a mechanical assembly with spring-loaded components and directional arrows indicating motion (no text or symbols)

Obr. 8

Demontáž

OPIS ZDALNE STEROWANIE

Illustration of a hand holding a tablet device with a finger pointing at it, showing a download arrow (no text or symbols present)

Rys. 1

Technical diagram showing mechanical assembly with coiled spring and housing, no text or symbols present

Rys. 8

Demontaż

TÄLVADĪBAS PULTS APRAKSTS

Illustration of a hand holding a tablet device with a downward arrow, enclosed in a circular frame (no text or symbols)

att. 1

Technical diagram of a mechanical assembly with spring-loaded components and directional arrows indicating motion (no text or symbols)

att. 8

Demontāža

Thank you for purchasing the Concept product. We want you to be satisfied with everything we make every day you use it.

Please read the instructions carefully before initial use. You should retain them for future reference. Ensure that anyone using this product is familiar with the instructions.

TABLE OF CONTENTS

Technical specifications

Important safety information

Product description

Control panel description

User manual

Cleaning and maintenance

Installation of the appliance

Troubleshooting

Service centre

Environmental protection

TECHNICAL SPECIFICATIONS
Voltage 220–240 V ~ 50 Hz
Total power input 78 W
Motor power input 70 W
Type Integrated
Assembly Into cabinet
Height 317 mm
Width 598 mm
Depth 290 mm
Diameter of flexible outlet duct 150 mm
Extracted air output stages 3 + Boost
Capacity of extracted air 635 m	^3/h
Fat filters 1
Required number of carbon filters for recirculation 2
Mode Ventilation/recirculation
Lightning	LED 2 x 2 W
Weight	10,4kg
Noise level of ventilation/recirculation	≤62 dB

The manufacturer reserves the right to make potential technical changes, typographical errors and any differences in the representation without prior notice.

IMPORTANT SAFETY INFORMATION

Upon delivery of fume hood

• Immediately after delivery, check the package for any damage during shipping.
• Caution! Caution! Some edges of this appliance that are hidden after installation are sharp! Be careful not to get cut when handling an uninstalled unit.
• Do not install the appliance if it has been damaged. Contact the store where you purchased it immediately.
• Remove all the packaging and marketing materials before first use.
• Keep the packaging materials away from children or dispose of them properly.

During installation

• Do not use the appliance in any other way than as described in this manual.
• Only use it as a household appliance and for removal of fumes arising from cooking of food or for recirculation and absorption of smells arising from cooking of food.
  • This appliance can be used in households and similar places like:

- Kitchen cabinets in shops, offices and other workplaces.

- Appliances used in agriculture.

- Appliances used by guests in hotels and other areas in a hotel environment.

- Appliances used in a Bed and Breakfast environment.

• Do not touch the appliance with wet hands.
• Do not allow children or unauthorized people to handle the appliance, use it out of their reach.
  • Children should not play with the appliance.
• Pay extra attention if the appliance is used near children.
• Do not allow the appliance to be used as a toy.
• This appliance can be used by children aged 8 years and over. Persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, should be supervised or familiarized with the instructions for use of the appliance in a safe way and have been made aware of the risks involved.
• If a malfunction occurs, turn off the appliance and unplug it from the wall outlet.
• When disconnecting the unit from the wall outlet, never pull the power cord, grasp the plug end and disconnect it by removing it from the receptacle.
• Do not immerse the power cord or the plug in water or any other liquid.
• Check the appliance and the power cord for damage regularly.

• Do not switch on the appliance if it has been damaged.
  • Unless the appliance is in operation, ensure that all its controls are switched off.

• Do not manipulate with an open flame (e.g. singeing) under the appliance. If you remove a cooking vessel from a gas burner, reduce its flame to minimum or turn it off!

• Caution! Risk of fire! Care must be taken to ensure that the diameter of the gas burners on the gas cooker or the cooking plate corresponds to that of cooking utensils used. If cooking vessels with a diameter lower than recommended are used, the flame could start to burn around the cooking vessel resulting in a risk of melting plastic handles.
• While deep frying or frying of food, observe this food all the time. In the case of oil overheating, there is a risk of fire!
• Ensure that the flames do not get too close to the appliance.
• Observe intervals for replacement and cleaning of filters (at least every 2-3 months). Failure to observe these requirements results in a risk of fire due to fat accumulating in the filters!
• All the respective current standards and official regulations must be observed relating to the removal of the extracted air.
• A ventilation duct diameter for the removal of the extracted air should be approximately the same or larger than that of the hood's flexible outlet duct.
• Extracted air should not be led to a chimney intended for discharge of flue gases and combustion products or a shaft serving for ventilation of rooms where fireplaces are situated.
• When the appliance and fireplaces are in operation simultaneously, vacuum in the room should not be higher than 4 Pa (0.04 mbar).
• Do not use any accessories other than those recommended by the manufacturer.
• Do not use accessories with damaged surface treatment or if it has been worn out or has other defects.
• Do not use any corrosive cleaning agent for cleaning. Maintenance and cleaning on a regular basis extend the lifetime of the appliance.
• Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

Possible defects

• Only qualified service technicians should repair or perform maintenance to this appliance.
• During the repairs the appliance must be disconnected from the power. Switch off the circuit breaker or remove the plug from the wall outlet.
• When disconnecting the unit from the wall outlet, never pull the power cord, grasp the plug end and disconnect it by removing it from the receptacle.
• If the power cord is damaged, contact the authorised service centre.

If you fail to follow these instructions, any possible repair cannot be recognized as a warranty repair.

PRODUCT DESCRIPTION

1 Appliance body
2 Lighting

DESCRIPTION OF THE REMOTE CONTROL

1 Button to switch off the hood or to reduce the power level
2 Button for switching on the hood or increasing the power level
3 Lighting on / off button
4 Button for changing the light intensity
5 Button for changing the light intensity.
6 Timer on / off button.

USER MANUAL

Before first use

Before first use you should wipe the outside and inside of the appliance with a damp cloth for hygiene reasons.

Ventilation mode

The hood is equipped with coloured LEDs that indicate which air extraction speed level you have set:

Level 1 – LED light is green

Level 2 – LED light is blue

Level 3 – LED light is pink

Level 4 (Boost function) - LED light is red

1. To switch on the appliance, swipe your hand horizontally from left to right, or press button 2 on the remote control. Do the same to change the extraction speed level to a higher one.
2. To switch off the appliance, swipe your hand horizontally from right to left, or press button 1 on the remote control. Do the same to change the extraction speed level to a lower one.
3. To turn the light on or off, hold your hand under the sensor for 2 seconds. You can also press button 3 on the remote control.

Note: Boost function (4th extraction speed level) automatically switches to extraction speed level 3 after 5 minutes.

Timer

The Timer function can only be set if the extraction speed level is higher than 0 (fan running).

1. To start the timer, press the Timer button (No. 6) on the remote control. The countdown is set to 10 minutes. After this period, the hood automatically switches off.
2. The Timer function can be deactivated at any time by pressing the Timer button (No. 6) on the remote control again.
3. Switching off the air extraction automatically deactivates the timer.

Recirculation mode

If it isn't possible to extract exhaust air from the room, recirculation mode can be used. In this case, the exhaust air is filtered through a metal grease filter and a carbon filter. The activated carbon in this filter helps reduce unpleasant odors. The air then enters the room through openings in the top cover of the chimney. For hoods built into the cabinet,

it is important that the filtered air is directed back into the room, otherwise the hood will not work properly.

When using the recirculation mode, a suitable carbon filter must be purchased and installed (see chapter Cleaning and maintenance)

Note: When using the recirculation mode (mounting a carbon filter), the extract air output may decrease.

CLEANING AND MAINTENANCE

1. Disconnect the power cord from the wall outlet or switch off the circuit breaker of the appliance before cleaning and maintenance.
2. To clean the appliance outside, use a damp cloth, a soft brush or a fine sponge, and then wipe it dry.
3. Do not use coarse abrasive cleaning agents or sharp metal scrapers for cleaning of the appliance as this could result in surface scoring.
4. Do not use steam jets to clean the appliance!
5. Never leave aggressive or acidic substances (lemon juice, vinegar) on enamelled or stainless parts of the appliance.

Cleaning and replacement of filters

Metal fat filters

When the appliance is in common use, the metal fat filters should be checked or cleaned every month. In case of more frequent frying or deep frying, shorten this interval.

Do not use the appliance without the metal fat filters properly installed!

1. Remove the metal filters as shown in Fig. 1.
2. We recommend to soak the metal filters in warm water with a detergent, then to clean with a soft brush, rinse with clean water and allow to dry. The filters are also dishwasher safe using a program below 60 °C. In this case, it is necessary to avoid the use of aggressive detergents –the aluminum filters can blacken under the influence of the chemical reaction.
3. Reinstall dried out filters.

Illustration of a hand pointing at a device with a downward arrow, enclosed in a circular frame (no text or symbols)

Fig. 1

Carbon filter (to be purchased)

This filter is only used for the recirculation mode.

The filter contains an active carbon absorbing the smell being discharged. The active carbon will be saturated after some time, hence the absorption capacity will be shortened. This filter cannot be washed or cleaned in any other way. When the appliance is in common use, the carbon filter should be replaced every 2-3 months. In case of more frequent frying or deep frying, shorten this interval.

1. Remove the metal filters as shown in Fig. 1.

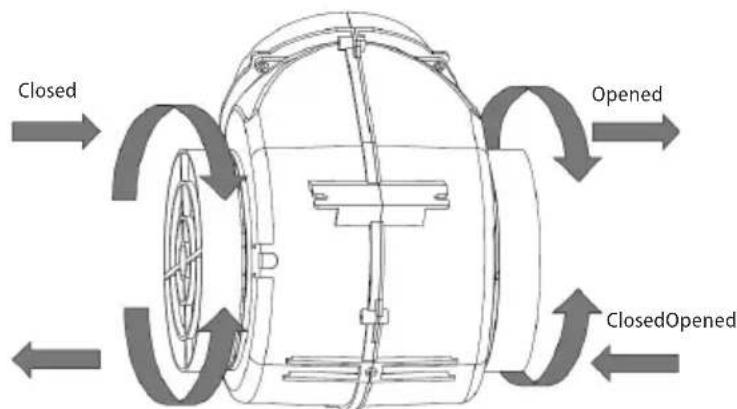

2. The carbon filters are situated on both sides of the motor. Turn the filters, until they are secured (see Fig. 2).
3. To replace the carbon filter, proceed in reverse order.

Fig. 2

INSTALLATION OF THE APPLIANCE

Caution!

Risk of electric shock! Before installation, disconnect the power cord from the wall outlet. Otherwise there is a risk of death or electric shock.

• Defects caused by improper installation are not covered by the warranty.
  • Installation is the responsibility of the customer not the manufacturer.
• The manufacturer bears no responsibility for damage caused to people, animals or property due to incorrect installation.
• All guards must be placed firmly in their appropriate place in a way they cannot be removed without using special tools.
  • Install the appliance at least 450 mm over electric cookers or electric cooking plates and at least 500 mm over gas cookers or gas cooking plates.
• Extracted air should not be led to a chimney intended for discharge of flue gases and combustion products or a shaft serving for ventilation of rooms where fireplaces are situated.

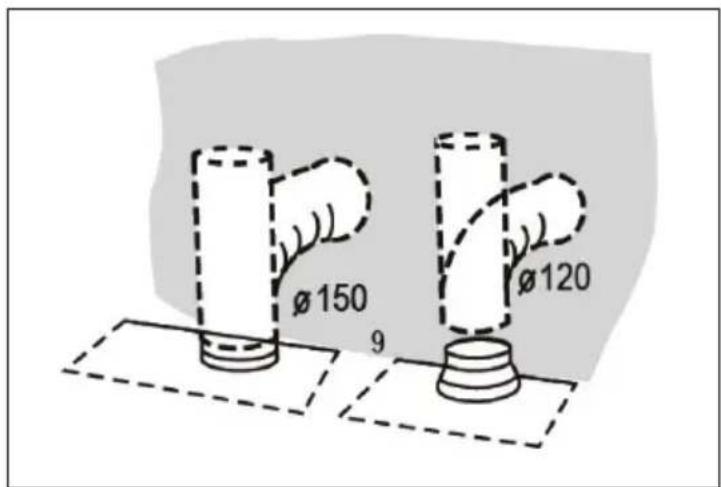

• Any bend of the ventilation pipe should be ≥ 120^ .
  • The room must be well ventilated during cooking.

Connection to the mains

• Make sure the mains voltage and current protection correspond to the values on the rating plate of the appliance.
- Only use grounded sockets.
- Do not use multiple sockets, plugs and extension cords.
- The plug of the power cord on the appliance must be freely accessible even after the installation.
• Changes in a connection may only be performed by a qualified professional.
- Electrical safety of the appliance can be guaranteed only if the protective terminal of the appliance is connected to the protective conductor of the mains.
- The manufacturer bears no responsibility for damage to persons or property as a result of missing or bad protective connection.

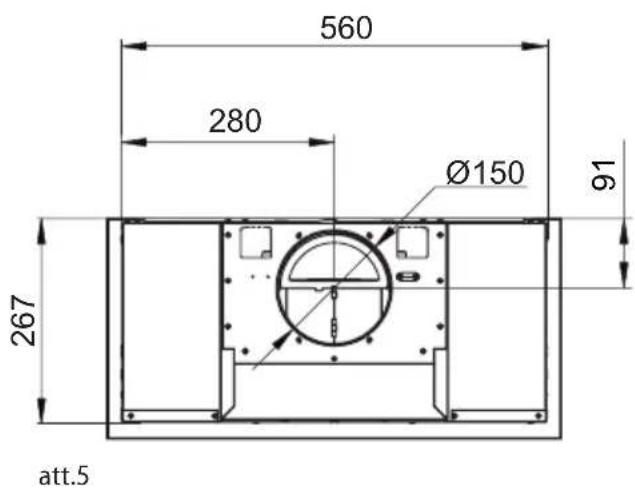

Appliance dimensions

When installing the appliance, follow these steps:

1. Remove all the packaging and marketing materials before first use.
2. Mark the required installation height (450 mm for electric and 500 mm for gas cooking plates) on the wall behind the cooker or the cooking plate (Fig. 3).

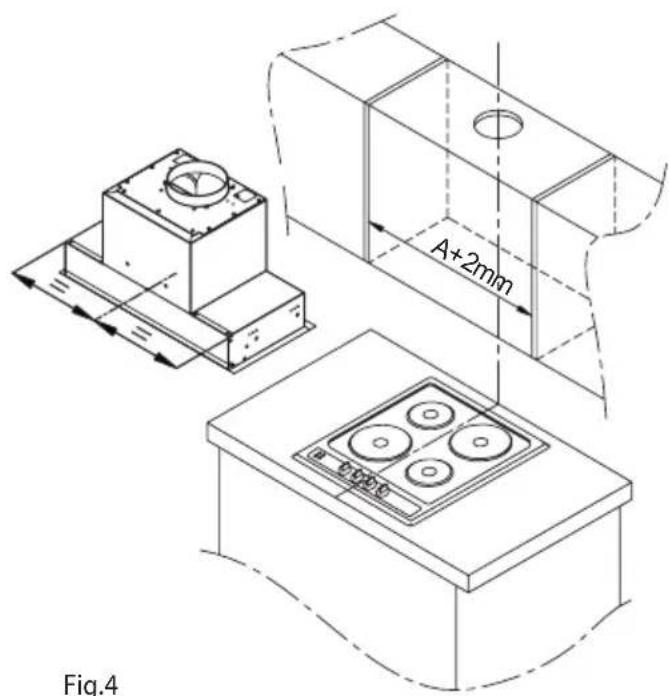

3. Drill holes and attach the hood according to Fig. 4. - 6.

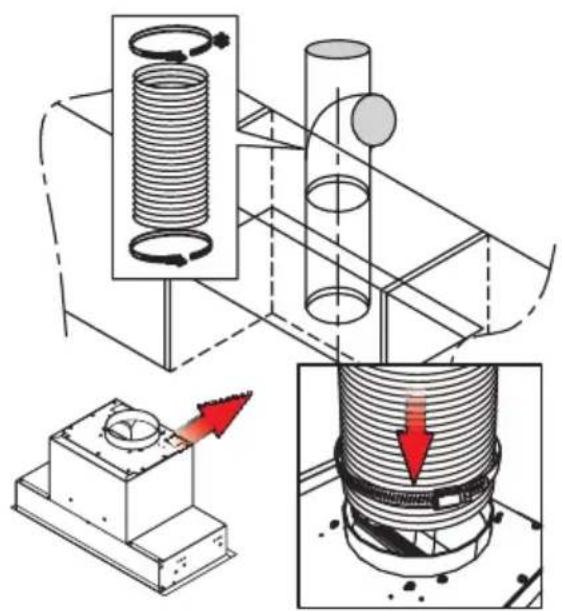

4. After the hood has been hung, install the flexible outlet duct to the outlet opening (Fig. 7). Use a reducer fitting 150/120 mm in diameter, if required. Insert the second part of the flexible duct in the opening prepared in the wall (Fig. 8).
5. Plug the power cord into the wall outlet.

Fig.4

Fig. 8

Disassembling

If you disassemble the appliance, it is important to follow the steps in the correct order:

1. First, unplug the power cord from the mains (pull the plug out or switch off the circuit breaker).
2. Subsequently disassemble individual parts of the hood in reverse order of the appliance installation.

TROUBLESHOOTING

Defect description Possible cause Solution
Lamps illuminate but the motor stands idle	The motor blades are blocked. Contact the service centre.
	The motor or its essential parts are damaged.	Contact the service centre.
	The plug inserted incorrectly or insufficiently in the wall outlet.	Check connection of the plug.
	The wall outlet is not energized.	Check that the wall outlet is energized, e.g. by connecting another appliance.
Lamps do not illuminate and the motor stands idle	The plug inserted incorrectly or insufficiently in the wall outlet.	Check connection of the plug.
	The wall outlet is not energized.	Check that the wall outlet is energized, e.g. by connecting another appliance.
Fat drops from the metal fat filters	Heavily fouled filters. Risk of fire!	Immediately clean or replace the metal fat filters.
The appliance vibrates when the appliance is on	The motor blades are damaged. Contact the service centre.
	The motor is not fixed fast.	Contact the service centre or fix the motor fast.
	The hood is not fixed fast. Fix the hood fast.
Insufficient exhaust of the extracted air	Distance between the hood and the cooking plate is too long.	Reduce distance between the hood and the cooking plate.
	Strong draught, too many doors or windows opened.	Close some doors or windows.
The motor stopped working	The thermal overload protection against the motor overheating triggered.	Improve the room ventilation, open doors or windows or check distance between the hood and the cooking plate. If required, increase distance between the hood and the cooking plate.
The hood is not levelled	The hood is not levelled or the bracket screws are not tightened properly.	Check the hood for being levelled or tighten holding screws and level the hood.

SERVICE CENTRE

Extensive maintenance or repair, which requires access to internal parts of the product, has to be performed by a qualified specialist or the service centre.

ENVIRONMENTAL PROTECTION

• Prefer recycling of packaging materials and old appliances.
• Packaging materials may be disposed of as sorted waste.
• Dispose the plastic bags made of polyethylene (PE) of as sorted waste.

Recycling of the appliance at the end of its lifespan:

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The symbol on the product or its packaging indicates that this product may not be treated as household waste. It is necessary to take it to a container park for the recycling of electrical and electronic equipment. By ensuring the correct disposal of this appliance you will help prevent potential negative consequences to the environment and human health, which could otherwise result from inappropriate disposal of this product. Disposal must be performed in accordance to the regulations for waste disposal. For more detailed information about recycling of this appliance see the authorized local office or service for household waste disposal or the shop, where you purchased the appliance.

CONCEPT POLSKA sp. z o.o.
