OPO5890 - Range hood Concept - Free user manual and instructions

Product Type	Under-cabinet range hood
Brand	Concept
Model	OPO5890
Width	60 cm (23.6 inches)
Depth	50 cm (19.7 inches)
Height (without chimney)	12 cm (4.7 inches)
Weight	12 kg (26.5 lbs)
Power Supply	220-240 V ~ 50 Hz
Motor Power	200 W
Total Power (with lighting)	220 W
Maximum Extraction Rate	650 m³/h (free outlet)
Noise Level (max speed)	55 dB(A)
Number of Speeds	3 + intensive boost
Lighting	2 x 3W LED spotlights
Controls	Touch-sensitive panel
Filter Type	Aluminum grease filter + activated charcoal filter (optional)
Ducting	150 mm diameter, recirculation or ducted
Installation	Under cabinet or wall-mounted
Safety Features	Auto shut-off timer, thermal protection
Spare Parts Available	Grease filters, charcoal filters, LED bulbs, motor

Frequently Asked Questions - OPO5890 Concept

What is the recommended installation height above a gas cooktop?

The recommended height is between 65 and 75 cm (25.6-29.5 inches) above a gas cooktop to ensure optimal extraction and safety.

How often should the grease filter be cleaned?

Clean the grease filter every 2-3 months depending on usage. You can wash it in warm water with mild detergent or in a dishwasher on a low temperature cycle.

Can the hood be used in recirculation mode?

Yes, the OPO5890 supports recirculation mode with an optional activated charcoal filter. This filter captures odors and must be replaced every 3-6 months.

What is the warranty period?

Concept typically offers a 2-year warranty for this model. However, check your local retailer for specific terms.

How do I reset the filter saturation indicator?

Press and hold the speed decrease button for 3 seconds until the indicator turns off. Refer to the manual for exact instructions.

Is the hood compatible with a ductless installation?

Yes, it can be installed ductless. You need to purchase a charcoal filter separately and ensure proper recirculation setup.

What size duct does the hood require?

The hood uses a 150 mm diameter duct (6 inches) for connection to external venting or ceiling outlet.

How do I replace the LED bulbs?

LED bulbs are integrated and should be replaced by a qualified technician. Contact Concept support for assistance.

What is the maximum noise level on intensive boost?

On intensive boost mode, the noise level may reach up to 65 dB(A). Normal operation at max speed is 55 dB(A).

Are spare parts still available for this model?

Yes, spare parts such as grease filters, charcoal filters, LED modules, and motors are available through Concept authorized service centers.

USER MANUAL OPO5890 Concept

PODĚKOVÁNÍ

POPIS OVLÁDACÍHO PANELU

POPIS JEDNOTLIVÝCH TLAČÍTEK OVLÁDACÍHO PANELU

Tlačítko minus (−)

Diagram of a kitchen air conditioner unit with hand holding a tray, showing internal airflow arrows (no text or symbols)

Diagram showing three steps of a solar panel installation, with no text or symbols present.

INSTALACE SPOTŘEBIČE

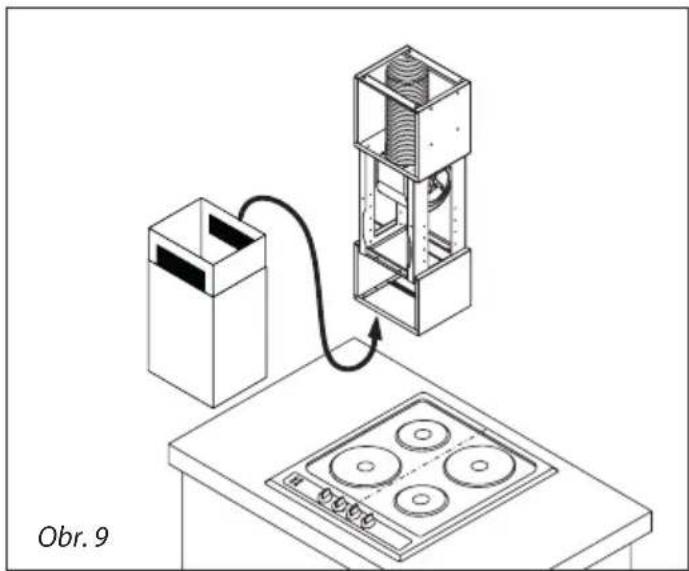

POZOR!

Technical diagram showing a coiled spring assembly and its internal structure, with no visible text or symbols.

Diagram of a mechanical device with a box connected to a vertical cylindrical component, showing wiring and components (no text or symbols)

Technical diagram showing a device assembly with a box, circuit board, and control panel (no text or symbols)

Technical line drawing of a mechanical device with a hand operating it, no visible text or symbols

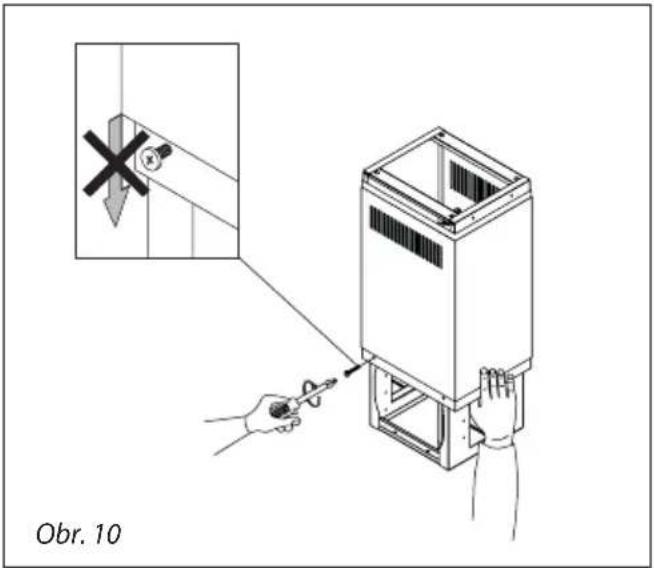

Demontáž

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

POPIS OVLÁDACIEHO PANELU

1 Tlačidlo mínus (-)
2 Tlačidlo plus (+)
3 Displej
4 Tlačidlo pre nastavenie oneskoreného vypnutia
5 Tlačidlo zapnutia/vypnutia osvetlenia

POPIS JEDNOTLIVÝCH TLAČIDIEL OVLÁDACIEHO PANELU

Tlačidlo mínus (–)

Diagram showing three steps of a solar panel installation, with no text or symbols present.

INŠTALÁCIA PRÍSTROJA

POZOR!

Technical diagram showing a device assembly with a box, circuit board, and control panel (no text or symbols)

Technical line drawing of a mechanical device with a hand operating it, no visible text or symbols

Demontáž

Symbol of a trash bin crossed with no visible text or labels

OPIS PANELU STEROWANIA

OPIS POSZCZEGÓLNYCH PRZYCISKÓW NA PANELU STEROWANIA

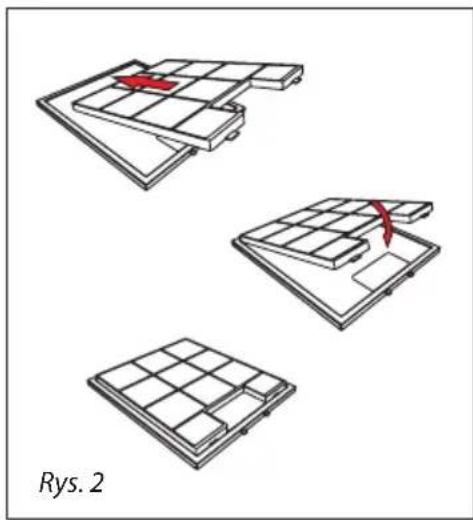

Przycisk minus (−)

Diagram of a kitchen air conditioner unit with hand holding a tray, showing internal airflow paths (no text or symbols)

Three-step diagram showing a solar panel installation process with grid layout and red arrows indicating steps (no text or symbols)

Technical diagram of a mechanical assembly with a central component and supporting base (no text or symbols)

Technical line drawing of a mechanical assembly with a hand operating a tool, no text or symbols present

Demontaż

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

VADĪBAS PANELA APRAKSTS

ATSEVIŠKU VADĪBAS PANELA TAUSTIŅU APRAKSTS

Mīnusa (−) taustiņš

Technical diagram showing assembly of a device with a top-mounted box and base, labeled '11. Att.' (no text or symbols on the diagram itself)

Demontāža

TRAUCĚJUMU NOVĚRŠANA

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Thank you for purchasing the Concept product. We want you to be satisfied with everything we make every day you use it.

Please read the instructions carefully before initial use. You should retain them for future reference. Ensure that anyone using this product is familiarized with the instructions.

TABLE OF CONTENTS

Technical specifications

Important safety information

Product description

Control panel description

Description of individual buttons of the control panel

User manual

Cleaning and maintenance

Installation of the appliance

Troubleshooting

Environmental protection

TECHNICAL SPECIFICATIONS

Technical specifications
Voltage 220–240 V ~ 50 Hz
Total power input 283.4 W
Motor power input 275 W
Type Island
Assembly Ceiling
Height 475 mm
Width 900 mm
Depth 450 mm
Diameter of flexible outlet duct 150 mm
Extracted air output stages 4
Capacity of extracted air 765 m	^3/h
Fat filters 3
Required number of carbon filters for recirculation 3
Mode	Ventilation/recirculation
LED lamp	4 x 2.1 W
Weight	24.4 kg
Noise level of ventilation/recirculation	≤65 dB (A)

The manufacturer reserves the right to make potential technical changes, typographical errors and any differences in the representation without prior notice.

IMPORTANT SAFETY INFORMATION

Upon delivery of fume hood

• Immediately after delivery, check the package for any damage during shipping.
• Caution! Caution! Some edges of this appliance that are hidden after installation are sharp! Be careful not to get cut when handling an uninstalled unit.
• Do not install the appliance if it has been damaged. Contact the store where you purchased it immediately.
• Remove all the packaging and marketing materials before first use.
• Keep the packaging materials away from children or dispose of them properly.

During installation

• Do not use the appliance in any way other than as described in this manual.

• Only use it as a household appliance and for removal of fumes arising from cooking of food or for recirculation and absorption of smells arising from cooking of food.
  • This appliance can be used in households and similar places like:

• Kitchen cabinets in shops, offices and other workplaces.

• Appliances used in agriculture.
• Appliances used by guests in hotels and other areas in a hotel environment.

• Appliances used in a Bed and Breakfast environment.

• Do not touch the appliance with wet hands.

• Do not allow children or unauthorized people to handle the appliance, use it out of their reach.
  • Children should not play with the appliance.
• Pay extra attention if the appliance is used near children.
• Do not allow the appliance to be used as a toy.
• This appliance can be used by children aged 8 years and over. Persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, should be supervised or familiarized with the instructions for use of the appliance in a safe way and have been made aware of the risks involved.
• If a malfunction occurs, turn off the appliance and unplug it from the wall outlet.

- When disconnecting the unit from the wall outlet, never pull the power cord, grasp the plug end and disconnect it by removing it from the receptacle.

- Do not immerse the power cord or the plug in water or any other liquid.

- Check the appliance and the power cord for damage regularly.

- Do not switch on the appliance if it has been damaged.

- Unless the appliance is in operation, ensure that all its controls are switched off.

- Do not manipulate with an open flame (e.g. singeing) under the appliance. If you remove a cooking vessel from a gas burner, reduce its flame to minimum or turn it off!

- Caution! Risk of fire! Care must be taken to ensure that the diameter of the gas burners on the gas cooker or the cooking plate corresponds to that of cooking utensils used. If cooking vessels with a diameter lower than recommended are used, the flame could start to burn around the cooking vessel resulting in a risk of melting plastic handles.

- While deep frying or frying of food, observe this food all the time. In the case of oil overheating, there is a risk of fire!

- Ensure that the flames do not get too close to the appliance.

- Observe intervals for replacement and cleaning of filters (at least every 2-3 months). Failure to observe these requirements results in a risk of fire due to fat accumulating in the filters!

- All the respective current standards and official regulations must be observed relating to the removal of the extracted air.

- A ventilation duct diameter for the removal of the extracted air should be approximately the same or larger than that of the hood's flexible outlet duct.

- Extracted air should not be led to a chimney intended for discharge of flue gases and combustion products or a shaft serving for ventilation of rooms where fireplaces are situated.

- When the appliance and fireplaces are in operation simultaneously, vacuum in the room should not be higher than 4 Pa (0.04 mbar).

- Do not use any accessories other than those recommended by the manufacturer.

- Do not use accessories with damaged surface treatment or if it has been worn out or has other defects.

- Do not use any corrosive cleaning agents for cleaning. Maintenance and cleaning on a regular basis extend the lifetime of the appliance.

• Children should not clean and maintain the appliance unless they are at least 8 years old and under supervision.

Possible defects

• Only qualified service technicians should repair or perform maintenance to this appliance.
• During the repairs the appliance must be disconnected from the power. Switch off the circuit breaker or remove the plug from the wall outlet.
• When disconnecting the unit from the wall outlet, never pull the power cord, grasp the plug end and disconnect it by removing it from the receptacle.
• If the power cord is damaged, contact the authorised service centre.

If you fail to follow these instructions, any possible repair cannot be recognized as a warranty repair.

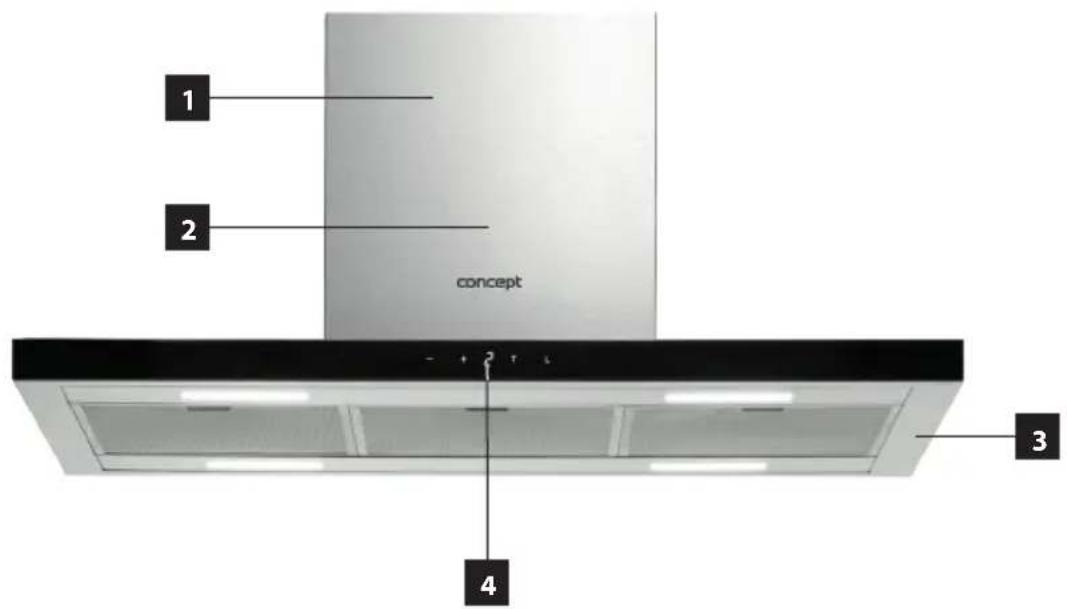

PRODUCT DESCRIPTION

1 Upper chimney cover
2 Lower chimney cover
3 Appliance body
4 Control panel

CONTROL PANEL DESCRIPTION

1 Minus (-) button
2 Plus (+) button
3 Display
4 Set button for delayed shutdown
5 Lighting On/Off button

DESCRIPTION OF CONTROL PANEL BUTTONS

Minus button (-)

• When the appliance is in operation, press the button to reduce the air output.
• When the button is being pressed, the display shows the currently selected output level (1-4).
• If the output level is 1, press the minus (-) button to switch off the appliance.
• You can decrease the extracted air output only when the appliance is switched on.

Plus button (+)

• When the appliance is off, press the button to switch it on.
• When the appliance is in operation, press the button to increase the exhaust air output.
• When the button is being pressed, the display shows the currently selected output level (1-4).
• You can increase the extracted air output only when the appliance is switched on.

Display

• The display shows the extracted air exhaust output.

Set button for delayed shutdown

- Press the button to activate / deactivate the delayed shutdown function.

Lighting On/Off button

- Push the button to switch on/off the appliance lighting.

USER'S MANUAL

Before first use

Before first use you should wipe the outside and inside of the appliance with a damp cloth for hygiene reasons.

Ventilation mode

The extracted air is discharged through the flexible outlet duct to the ventilation shaft out of the room. If the appliance is equipped with a carbon filter, remove it (see chapter Cleaning and maintenance).

1. Push button (2) to switch on the appliance.
2. Using buttons (1) and (2) select the required value of the extracted air exhaust output.
3. The display (3) shows the output value (1-4).
4. To turn the appliance off, press and hold the button (1) until a small dot or 0 (if the lightning is on) appears on the display.

Note:

The appliance is equipped with so-called boost function. This means that if the maximum air output level (4) is selected and the output does not get reduced within 5 minutes of operation, the air output will be automatically reduced to stage 3. This time is fixed and cannot be changed.

Recirculation mode

If there is no possibility of discharging the extracted air out of the room, you can use the recirculation mode. In this case, the extracted air is filtered through the metal fat filters and the carbon filter. An active carbon in this filter absorbs the smell. Air, free from the smell, flows back into the room through openings situated in the upper chimney cover. When the recirculation mode is used, it is necessary to purchase and install the appropriate carbon filters (see chapter Cleaning and maintenance).

1. Push button (2) to switch on the appliance.
2. Using buttons (1) and (2) select the required value of the extracted air exhaust output.
3. The display (3) shows the output value (1-4).
4. To turn the appliance off, press and hold the button (1) until a small dot or 0 (if the lightning is on) appears on the display.

Note:

When the recirculation mode is used (carbon filter installed), the extracted air output can drop.

Delayed shutdown function

1. Press (+) to switch on the appliance and select the desired air output level (1-4).
2. Press the (T) button to activate the delayed shutdown function. After the button is pressed, "0" symbol will be flashing on the display.
3. Press the (-) or (+) button to set the desired time of delayed shutdown, which can be set to 10 - 90 minutes. The delayed shutdown time is displayed in minutes, 1 = 10 minutes, 2 = 20 minutes, etc. Press the (T) button to confirm the set delayed shutdown time. The display will be showing the set air output level and the dot at the bottom right next to the selected air output level will be flashing.
4. When the set time of the delayed shutdown runs out, the appliance switches off automatically. If the lighting is on, the lighting remains on even after the delayed shutdown.

Note:

• If you do not confirm the settings for the delayed shutdown within 10 seconds after activating the function, the settings will be deleted, and the delayed shutdown function will be deactivated.
• If you press the (T) button during the ongoing delayed shutdown countdown, or if the appliance is switched off by pressing the (-) button before the delayed shutdown time is reached, the delayed shutdown function will be deactivated.

CLEANING AND MAINTENANCE

• Disconnect the power cord from the wall outlet or switch off the circuit breaker of the appliance before cleaning and maintenance.
  • To clean the appliance outside, use a damp cloth, a soft brush or a fine sponge, and then wipe it dry.
• Do not use coarse abrasive cleaning agents or sharp metal scrapers for cleaning of the appliance as this could result in surface scoring.
• Do not use steam jets to clean the appliance!
• Never leave aggressive or acidic substances (lemon juice, vinegar) on enamelled or stainless parts of the appliance.

Cleaning and replacement of filters

Metal fat filters

When the appliance is in common use, the metal fat filters should be checked or cleaned every month.

In case of more frequent frying or deep frying, shorten this interval.

Do not use the appliance without the metal fat filters properly installed!

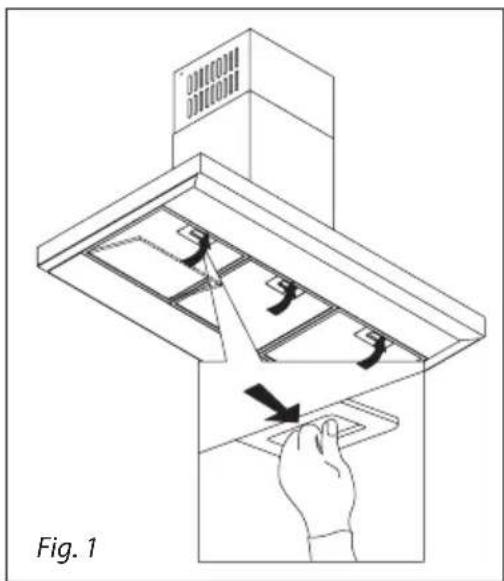

1. Remove the metal filters as shown in Fig. 1.
2. We recommend to soak the metal filters in warm water with a detergent, then to clean with a soft brush, rinse with clean water and allow to dry. The filters are also dishwasher safe using a program below 60 °C. In this case, it is necessary to avoid the use of aggressive detergents –the aluminum filters can blacken under the influence of the chemical reaction.
3. Reinstall dried out filters.

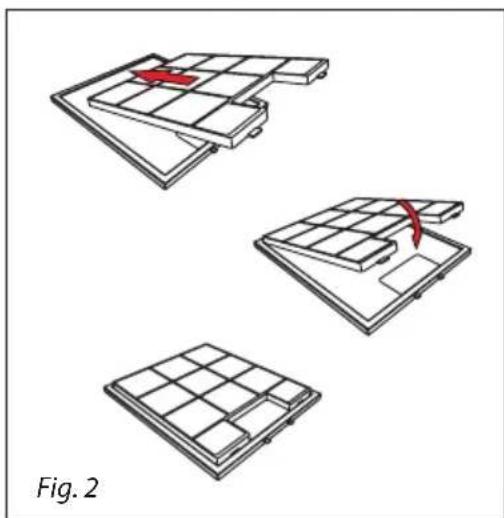

Carbon filter (to be purchased)

This filter is only used for the recirculation mode.

The filter contains an active carbon absorbing the smell being discharged. The active carbon will be saturated after some time, hence the absorption capacity will be shortened. This filter cannot be washed or cleaned in any other way.

When the appliance is in common use, the carbon filter should be replaced every 2-3 months. In case of more frequent frying or deep frying, shorten this interval.

1. Remove the metal filters as shown in Fig. 1.
2. Place the carbon filters in the metal grease filters (see Figure 2) and place them back.
3. To replace the carbon filter, proceed in reverse order.

Diagram of a kitchen air conditioner unit with airflow arrows and a hand interacting with the tray (no text or symbols)

Diagram showing three steps of a solar panel installation, with one step highlighted by a red arrow and the other by a red arrow (no text or symbols present)

INSTALLATION OF THE APPLIANCE

Caution!

Risk of electric shock! Before installation, disconnect the power cord from the wall outlet. Otherwise there is a risk of death or electric shock.

- Defects caused by improper installation are not covered by the warranty.

• Installation is the responsibility of the customer not the manufacturer.
- The manufacturer bears no responsibility for damage caused to people, animals or property due to incorrect installation.
- All guards must be placed firmly in their appropriate place in a way they cannot be removed without using special tools.
- Install the appliance at least 550 mm over electric cookers or electric cooking plates and at least 650 mm over gas cookers or gas cooking plates.
- Extracted air should not be led to a chimney intended for discharge of flue gases and combustion products or a shaft serving for ventilation of rooms where fireplaces are situated.
- Any bend of the ventilation pipe should be ≥ 120^ .
• The room must be well ventilated during cooking.

Connection to the mains

• Make sure the mains voltage and current protection correspond to the values on the rating plate of the appliance.
• Only use grounded sockets.
• Do not use multiple sockets, plugs and extension cords.
• The plug of the power cord on the appliance must be freely accessible even after the installation.
  • Changes in a connection may only be performed by a qualified professional.
• Electrical safety of the appliance can be guaranteed only if the protective terminal of the appliance is connected to the protective conductor of the mains.
• The manufacturer bears no responsibility for damage to persons or property as a result of missing or bad protective connection.

When installing the appliance, follow these steps:

1. Remove all the packaging and marketing materials before first use.

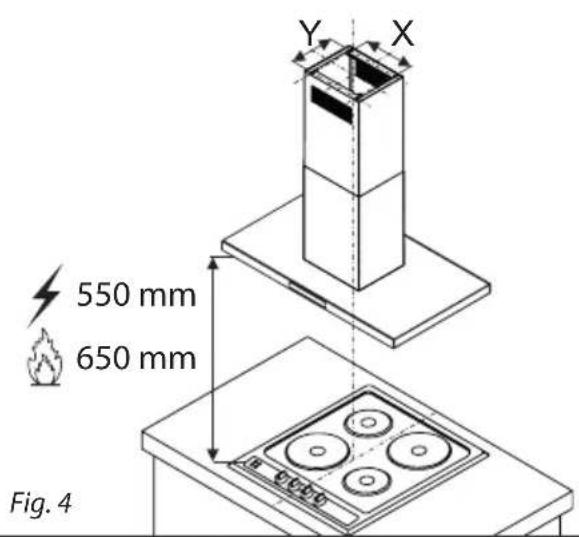

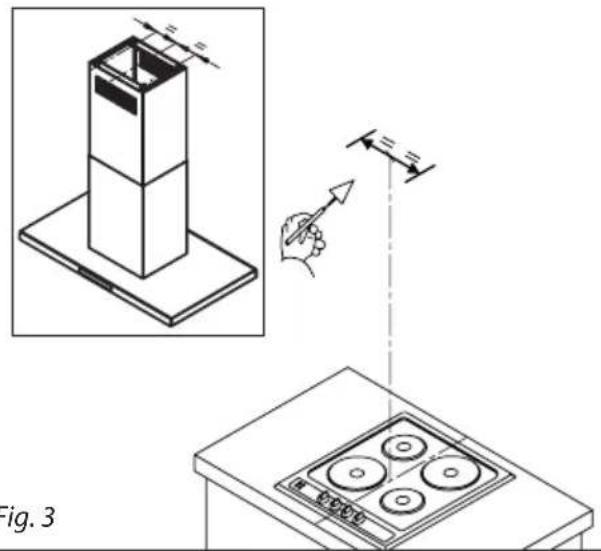

2. Mark the position of the centre of the cooking hob on the ceiling above the hob (Figure 3). Prior to installation itself, ensure there will be enough space vertically between the hood and the cooker hob, when the hood will be hanging in its place (at least 550 mm from the electric hob or 650 mm from the gas hob), (Figure 4).

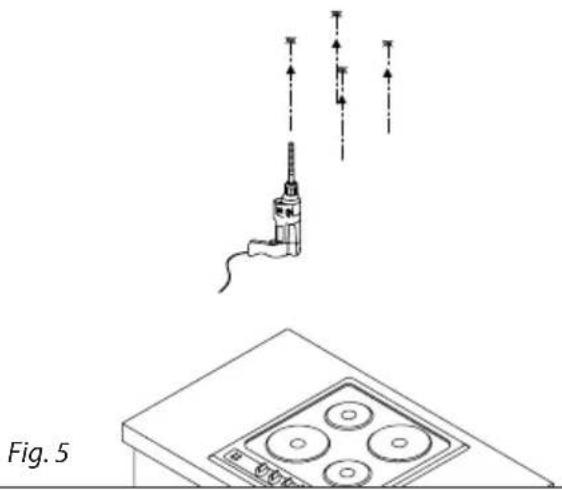

3. Mark and drill the holes for mounting the cooker hood holder for attaching on the ceiling (Figure 4 and Figure 5).

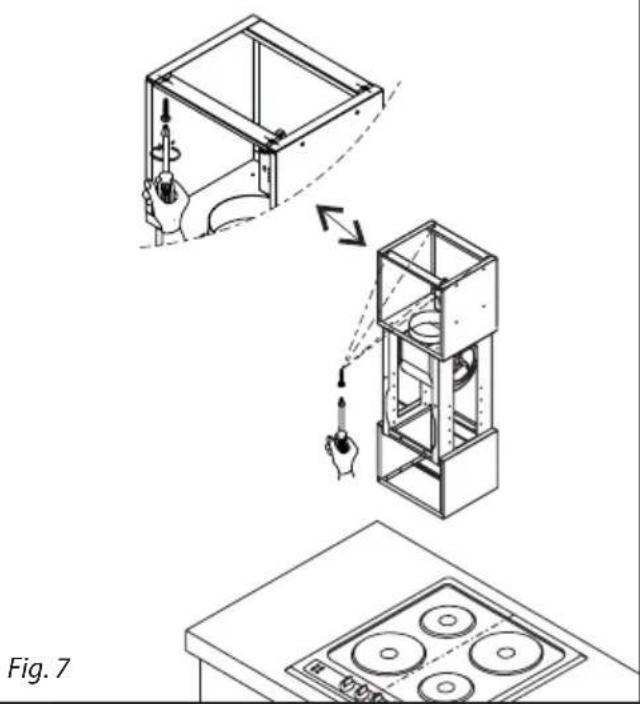

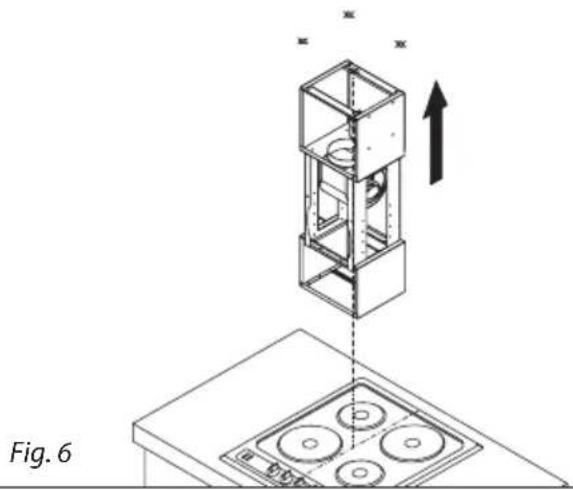

4. Use wall dowels and screws to fasten the holder to the drilled holes in the ceiling (Figure 6 and Figure 7).
   Note: Wall dowels and screws are not included in the package.

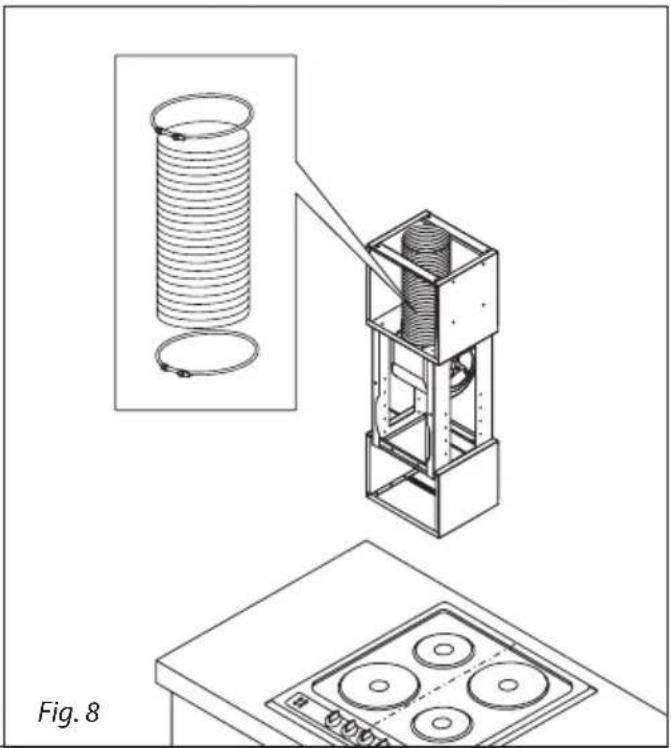

5. When the hood is attached, install the flexible outlet duct to the outlet opening (Figure 8). Use a reducer fitting 150/120 mm in diameter, if required. Insert the other end of the flexible duct in the opening prepared in the ceiling.

Note: Flexible duct (piping) is not included.

1. Put the upper and lower chimney cover onto the mounted cooker hood holder (Figure 9).

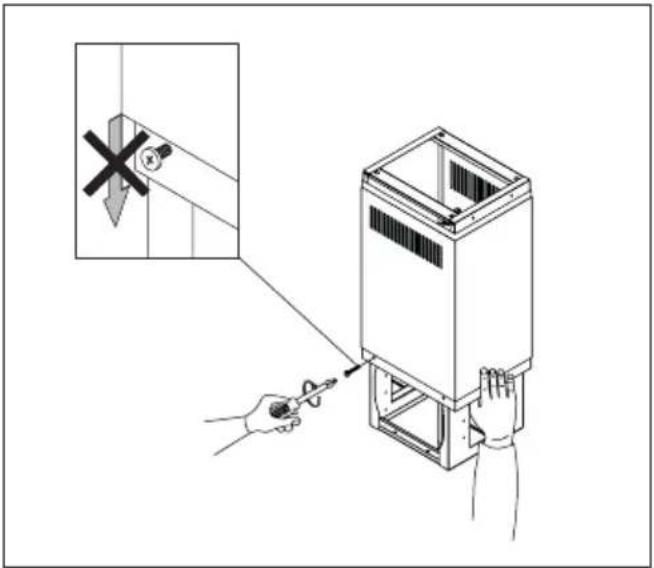

2. Attach the upper chimney cover to the holder, but do not fully fasten the screws, leave them slightly loose so that the lower chimney cover does not slide down and it can lean against the screws (Figure 10).

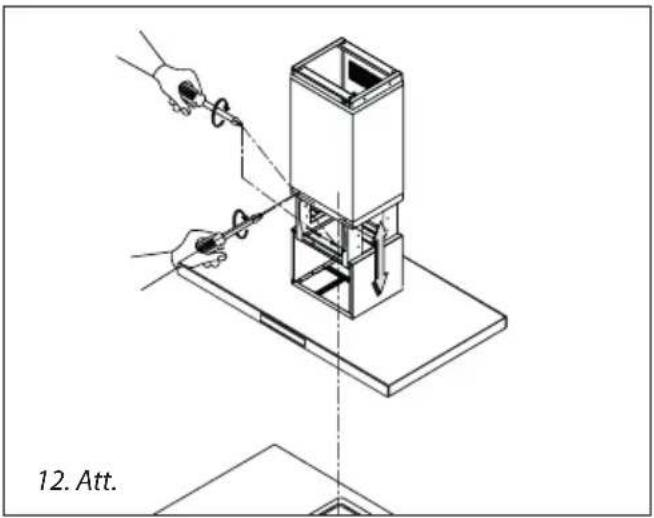

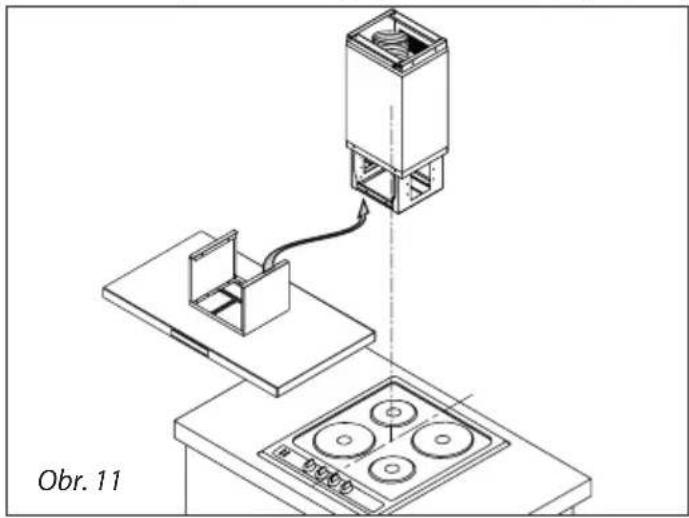

3. Attach the cooker hood body to the holder on the ceiling (Figure 11 and Figure 12).

4. Plug all the connectors into the distribution box.

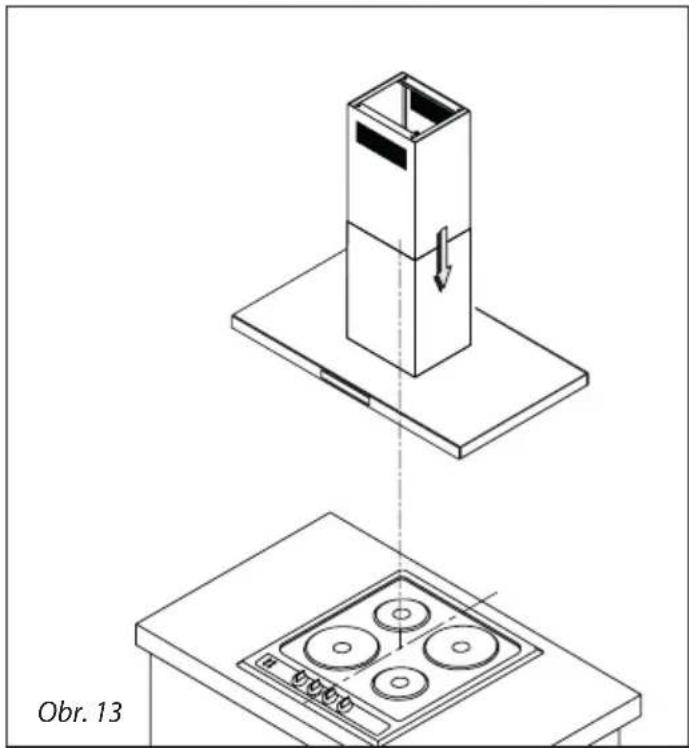

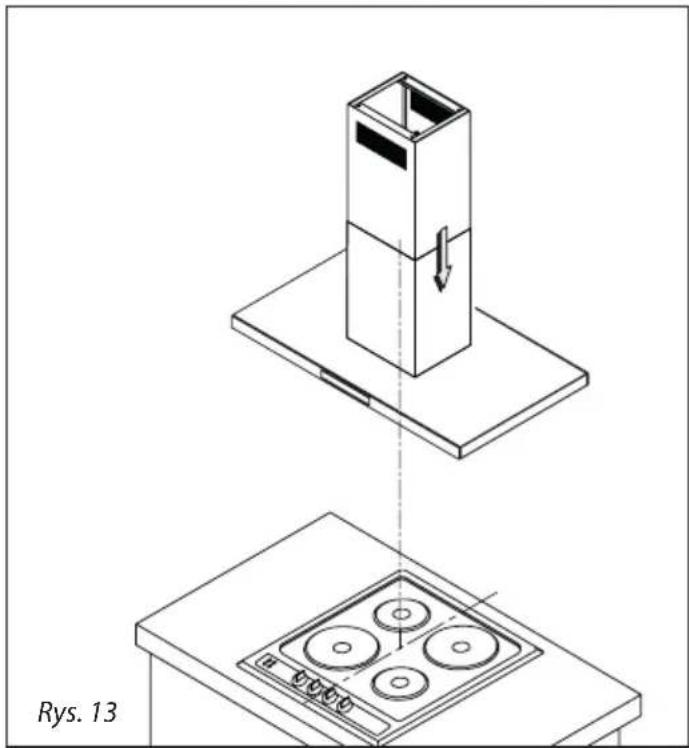

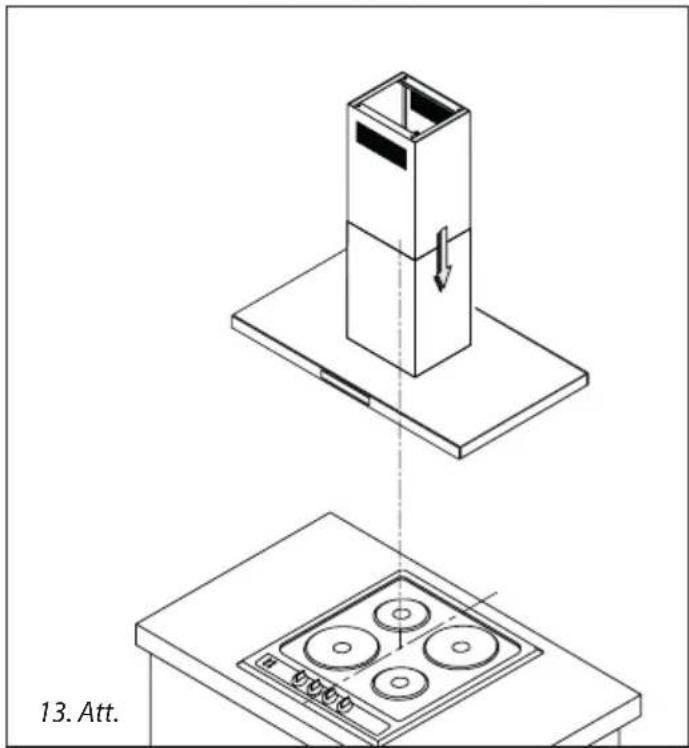

5. Plug the power cord into the wall outlet. Fasten the screws on the upper chimney cover and lower the lower chimney cover fully (Figure 13).

Diagram showing a hand operating a power tool above a cooking pot with four circular panes, labeled Fig. 5 (no text or symbols on the diagram itself)

Technical diagram of a mechanical assembly with a vertical stack and an upward arrow, labeled Fig. 6 (no text or symbols on the diagram itself)

Technical illustration showing a hand operating a box to lift a cylindrical device, with no visible text or symbols.

Technical illustration of a coiled spring assembly with a vertical tower structure, showing internal components and a labeled diagram (Fig. 8)

Diagram of a mechanical device with a box connected to a vertical cylindrical component, labeled Fig. 9 (no text or symbols on the diagram itself)

Isometric technical diagram showing a device assembly with a box, circuit board, and fan base (no text or symbols)

Technical line drawing of a mechanical assembly with a hand operating a tool, no visible text or symbols

Technical illustration of a mechanical assembly with a cylindrical component and a four-circled fan on a base, showing no text or symbols.

Disassembling

If you disassemble the appliance, it is important to follow the steps in the correct order:

1. First, unplug the power cord from the mains (pull the plug out or switch off the circuit breaker).
2. Subsequently disassemble individual parts of the hood in reverse order of the appliance installation.

TROUBLESHOOTING

Defect description Possible cause Solution
Lamps illuminate but the motor stands idle	The motor blades are blocked. Contact the service centre.
	The motor or its essential parts are damaged.	Contact the service centre.
	The plug inserted incorrectly or insufficiently in the wall outlet.	Check connection of the plug.
	The wall outlet is not energized.	Check that the wall outlet is energized, e.g. by connecting another appliance.
Lamps do not illuminate and the motor stands idle	The plug inserted incorrectly or insufficiently in the wall outlet.	Check connection of the plug.
	The wall outlet is not energized.	Check that the wall outlet is energized, e.g. by connecting another appliance.
Fat drops from the metal fat filters	Heavily fouled filters.Risk of fire!	Immediately clean or replace the metal fat filters.
The appliance vibrates when the appliance is on	The motor blades are damaged. Contact the service centre.
	The motor is not fixed fast.	Contact the service centre or fix the motor fast.
	The hood is not fixed fast. Fix the hood fast.
Insufficient exhaust of the extracted air	Distance between the hood and the cooking plate is too long.	Reduce distance between the hood and the cooking plate.
	Strong draught, too many doors or windows opened.	Close some doors or windows.
The motor stopped working	The thermal overload protection against the motor overheating triggered.	Improve the room ventilation, open doors or windows or check distance between the hood and the cooking plate. If required, increase distance between the hood and the cooking plate.

Lightning replacement

When replacing, keep on mid the lighting must be replaced with lighting of the same type and the same parameters.

To replace the lightning, proceed as follows:

1. Disconnect the appliance from the mains or switch off the circuit breaker.
2. Remove the metal filters (see chapters Cleaning and Filter Replacement) and remove the bottom cover by unscrewing two screws.
3. Disconnect the LED lightning terminal.
4. Replace the lighting with a new one of the same type.
5. Install the bottom cover in the opposite way to removing it.
6. Put the metal filters back and connect the appliance to the mains or switch on the appropriate circuit breaker.

	Max Power	Voltage LED	light picture
LED light 2.1	W DC 12 V

SERVICE CENTRE

Extensive maintenance or repair, which requires access to internal parts of the product, has to be performed by a qualified specialist or the service centre.

ENVIRONMENTAL PROTECTION

• Prefer recycling of packaging materials and old appliances.
• Packaging materials may be disposed of as sorted waste.
• Dispose the plastic bags made of polyethylene (PE) of as sorted waste.

Recycling of the appliance at the end of its lifespan:

Symbol of a trash bin crossed with no visible text or labels

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The symbol on the product or its packaging indicates that this product may not be treated as household waste. It is necessary to take it to a container park for the recycling of electrical and electronic equipment. By ensuring the correct disposal of this appliance you will help prevent potential negative consequences to the environment and human health, which could otherwise result from inappropriate disposal of this product. Disposal must be performed in accordance to the regulations for waste disposal. For more detailed information about recycling of this appliance see the authorized local office or service for household waste disposal or the shop, where you purchased the appliance.

concept

CONCEPT POLSKA sp. z o.o.
