IAN 279239 - Uncategorized Livarno Lux - Free user manual and instructions

Product Type	Energy-saving under cabinet light
Model Numbers	14102104L, 14102106L
Dimensions (L × W × H)	575 × 84 × 28 mm
Operating Voltage	230-240 V ~ 50 Hz
Bulb Type	T5 fluorescent tube
Bulb Wattage	13 W
Protection Class	II
Protection Type	IP20
Max. Number of Connectable Lights	10 lights of same type
Distance Between Connected Lights	15 cm minimum, 21 cm maximum
Minimum Distance to Illuminated Materials	0.2 m (fire safety)
Mounting Hole Spacing	500 mm
Drill Hole Diameter	approx. 6 mm
Drill Hole Depth	approx. 30 mm
Screw Projection	approx. 1.3 mm
Maintenance and Cleaning	Use dry, lint-free cloth; never immerse in water
Disposal	Separate collection for electronic waste; fluorescent lamps contain mercury (Hg)
Warranty	36 months from date of purchase
Certification	CE compliant
Manufacturer/Service	59929 Brilon, Germany

Frequently Asked Questions - IAN 279239 Livarno Lux

How do I install the under cabinet light?

Mark the mounting holes 500 mm apart, drill 6 mm holes to 30 mm depth, insert dowels and screws leaving about 1.3 mm protruding. Attach the light using the appropriate mounting holes, then connect the power cable and plug into a mains socket.

Can I connect multiple lights together?

Yes, you can connect up to 10 lights of the same model (14102104L or 14102106L) using the original connecting cable. Ensure the distance between lights is between 15 cm and 21 cm. Connect all lights with the connecting cable before plugging the power cable into the socket.

How do I change the bulb?

First, disconnect the light from the mains by pulling the plug. Allow the light to cool completely. Remove the clips on both sides of the protective glass cover, slide out the cover, rotate the old bulb 90 degrees and pull it out. Insert a new T5 fluorescent tube (230-240 V, max. 13 W) and rotate 90 degrees to lock. Replace the glass cover and secure with clips.

What safety precautions should I take?

Always check for damage before use. Never use with a damaged cable or bulb. Keep the light at least 0.2 m from illuminated materials to avoid fire. Do not operate with a dimmer. Allow the light to cool before touching. Replace broken protective glass immediately. Never immerse in water.

How do I clean the light?

Unplug the light and allow it to cool completely. Use a dry, lint-free cloth only. Never use water, solvents, or benzene. Do not immerse the light in any liquid.

What type of bulb does this light use?

It uses a T5 fluorescent tube bulb with a maximum power of 13 W and an operating voltage of 230-240 V ~ 50 Hz.

What is the warranty period?

The product comes with a 36-month warranty from the date of purchase. It covers material and manufacturing defects but excludes wear parts like bulbs and damage from improper handling.

How do I dispose of the light?

Do not dispose of it with household waste. Fluorescent lamps contain mercury (Hg) and must be taken to a recycling collection point for electrical and electronic appliances. Packaging materials can be recycled at local facilities.

Can I use this light outdoors?

No, this light is designed for interior use only, in dry and enclosed spaces. It is not suitable for outdoor or damp environments.

What tools are needed for installation?

You will need a pencil, screwdriver, electric drill with a 6 mm drill bit, spirit level, and the included dowels and screws.

USER MANUAL IAN 279239 Livarno Lux

Close-up of a ceiling light fixture mounted on a structural beam (no text or symbols visible)

Close-up of a mechanical component with a curved arrow indicating a motion or force, no visible text or symbols.

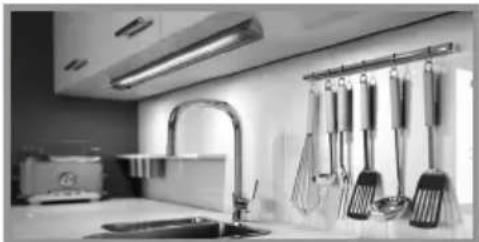

Interior kitchen scene with stainless steel kitchen utensils, a curved sink, and overhead lighting (no visible text or symbols)

ENERGY-SAVING UNDER CABINET LIGHT

PT

Operation and Safety Notes

DE AT CH

ENERGIESPAR-UNTERBAULEUCHTE

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DE AT CH

GB Operation and Safety Notes Page 13

Included items Page 14

Description of parts....Page 15

Technical information......Page 15

Safety Page 15

Safety advice......Page 15

Preparation......Page 16

Required tools and materials......Page 16

Preparations for use......Page 16

Fitting the light Page 16

Connecting several lights together....Page 17

Switching On/Off......Page 17

Directing the light Page 17

Changing the bulbs....Page 17

Maintenance and Cleaning......Page 18

Disposal Page 18

Information......Page 18

Guarantee Page 18

Declaration of Conformity....Page 18

Manufacturer / Service Page 18

List of pictograms used:
	Read the instructions! Caution! Risk of ele	hock!
	Volt (AC)		If a protective glass cover breaks have it replaced immediately at the service centre or by an electrician.
	Hertz (mains frequency)		Risk of fire! Install the light so that it is at least 0.2 m from any illuminated materials.
	Watt (effective power) Safe working
	Safety class II Caution! Danger of burns!
	Observe the warning and safety instructions!		Dispose of packaging and device in an environmentally-friendly way!

Energy-Saving Under Cabinet Light

- Introduction

Congratulations on your new product. You have selected a high quality product. Please read carefully and completely

through these operating instructions. Fold out the page with the illustrations. These instructions form part of the product and contain important information about bringing the product into use and its handling. Always observe all the safety advice. Check that the correct mains voltage is available and that all the parts have been properly assembled before bringing into use. Should you have any questions or be uncertain as to how to operate the device, please get in touch with your dealer or service point. Please keep these instructions in a safe place and hand them on to a third party if necessary.

• Proper use

This light is suitable only for interior use, in dry and enclosed spaces. The light should be positioned

within reach so that the switch can be operated conveniently. The light can be fitted to all normally inflammable surfaces. Any use other than that described above or modification to the lamp is not permitted and may lead to damage to people or property. Moreover, there is the risk of injury or loss of life and that the lamp may develop technical faults such as short circuit or fire or give an electric shock. This lamp is intended for use only in a domestic environment.

Included items

Check that all the items and accessories are present and that the lamp is in perfect condition immediately after unpacking.

1 Energy-saving under-cupboard light, Model 14102104L or 14102106L

1 T5 fluorescent tube, 13 W

1 Power cable

1 Connection cable

2 Dowels

2 Screws

1 Operating instructions

• Description of parts

1 Light connector socket
2 ON/OFF switch
3 Light body
4 Mounting holes for wall attachment
5 Connecting socket
6 Protective head guard
7 Connecting cable
8 Mounting holes for underside attachment
9 Pivoting strip light
10 Protective glass cover
11 Bulb (fluorescent tube type)
12 Clip
13 Power cable

• Technical information

Operational voltage: 230-240V\~50Hz

Bulb: T5 fluorescent tube type

bulb, 13 W

Nominal output: 1 x 13 W

Dimensions: (L x W x H)

575 × 84 × 28 mm

Protection class: II/

Protection type: IP20

● Safety

Safety advice

The right to claim under the guarantee shall be rendered invalid in respect of damage caused by the non-observance of these operating instructions. No liability is accepted for consequent damage. No liability is accepted for damage to property or persons caused by improper handling or non-observance of the safety advice.

To avoid danger to life from electric shock

Before connecting it to the mains, always check the light, the power cable as well as the connecting cable if need be for any damage.
Never use the light if you see any damage.

CAUTION! Damaged power cables and connecting cables are a danger to life as you could suffer an electric shock.

Before assembly, ensure that the mains voltage available corresponds to the operating voltage necessary of the light (230-240 V\~).

■ Never let the lamp come into contact with water or other liquids.

■ Never open or insert anything into electrical fittings or equipment. Doing this sort of thing can lead to a serious danger to life from electric shock.

■ Touch only the insulated part of the plug when connecting to or disconnecting from the mains supply.

If the external flexible cable of this lamp is damaged, it may only be replaced by a special cable or a cable that is only available from the manufacturer or his service representative.

■ Only connect the under-cabinet light to the mains current using the original power cable.

- Only connect original under-cabinet lights of the same type (Model 14102104L or 14102106L) with each other. Only use the original connecting cable supplied to do so.

Connect the under-cabinet lights that are linked up together to one socket only. Make sure that you only connect a maximum of 10 linked-up under-cabinet lights of the same type to one socket. Otherwise this might overload the connections and cables.

■ Make sure that all under-cabinet lights are linked up via connecting cables before inserting the power cable into the socket.

To avoid danger of fire and injury

RISK OF INJURY! Check every bulb and lampshade for damage immediately upon unpacking. Do not operate the light with a defective bulb or glass cover. If they are, contact the service point for a replacement.
RISK OF INJURY FROM BURNS! Ensure the lamp has been switched off and allowed to cool before you touch it. In this way you will avoid the danger of burns. Light bulbs develop a great deal of heat.
Do not touch bulb components or bulbs as they can reach temperatures > 60 °C during operation.
- Allow the light to cool down completely before replacing a defective bulb.
- Replace defective bulbs immediately. Before replacing the bulb always remove the mains plug from the socket.
If a protective glass cover breaks have it replaced immediately at the service centre or by an electrician.
Do not operate this light with a dimmer or an electronic switch. It is not suitable for this mode of operation.
FIRE HAZARD! Fit the light so that it is at least 0.2 m away from the material illuminated. Fire can

result from the development of too much heat.

■ Never leave the light operating unattended.
- Do not allow any objects to cover the light. Fire can result from the development of too much heat.
- Do not allow the lamp or the packaging materials to lie around unattended. Plastic film or bags, Styrofoam etc. can turn into dangerous toys for children.

Working safely

Use a 230–240 volt T5 fluorescent tube type bulb with a maximum power output of 13 watt.
■ Fit the light in such a way to ensure it is protected from damp and dirt.
■ Make careful preparations for the assembly and take sufficient time. Clearly lay out all

components and any additional tools or materials that might be required so that they are readily to hand.

- Remain alert at all times and always watch what you are doing. Always proceed with caution and do not assemble the lamp if you cannot concentrate or feel unwell.

● Preparation

- Required tools and materials

The tools and materials mentioned are not included in the delivery. The details and values given are non-binding and for guidance only.

The nature of the material depends on the individual circumstances on site.

• Pencil / Marking tool
• Screwdriver
• Electric drill
• Drill
• Spirit level

● Preparations for use

- Fitting the light

1. Measure up the wall or mounting surface for drilling the holes. Use a spirit level to improve accuracy.
2. Mark the two mounting holes a distance of 500 mm apart.
3. Now drill the mounting holes (ø approx. 6 mm, depth approx. 30 mm). Make sure that you do not damage any electrical cables during this operation.
4. Insert the supplied dowels into the drilled holes. Insert the supplied screws into the dowels and tighten them. Let them project a distance of about 1.3 mm from the wall or mounting surface.
5. Attach the light using the appropriate mounting holes 4 or 8 to the screws.
6. When securing the light using the mounting holes 8, the light housing 3 must also be pushed all the way to the left, swing the light

strip 9 forward and tighten the mounting screws.

1. Insert the light connector plug of the mains lead 13 into the light connector socket 1.
2. Insert the mains plug of the mains lead 13 into a convenient mains socket. Your light is now ready for operation.

- Connecting several lights together

CAUTION! Make sure that all under-cabinet lights are linked together by means of the connecting cables 7 before inserting the power cable 13 into the socket.

Note: Make sure that you only connect a maximum of 10 linked-up under-cabinet lights of the same type to one socket.

☐ Install up to 10 lights of the same model next to each other. To do so, follow steps 1–5 of the section called "Mounting the lights".

Note: Make sure that the distance between the lights is not more than 21 cm.

Note: Make sure that the distance between the lights is not less than 15 cm.

☐ Remove the protective head guard 6.
☐ Insert the connecting cable 7 into the connecting socket 5 of the light.
☐ Insert the second connection of the connecting cable 7 into the socket 1 of the other light.
☐ Insert the connection of the power cable 13 into the socket 1 of the outer, left-hand light.
☐ Insert the mains plug 13 into the socket. Your light is now ready to use.

- Switching On/Off

☐ Switch the ON / OFF switch 2 to turn the light on or off.

- Directing the light

□ Never change the direction of the light while it is switched on.

CAUTION! DANGER OF BURNS! Do not touch bulb components or bulbs as they can reach temperatures > 60 °C during operation.

☐ Allow the light to cool down completely.
☐ Turn the strip light 9 into the desired direction.

- Changing the bulbs

CAUTION! DANGER OF ELECTRIC

SHOCK! To replace the bulb 11, first of all disconnect the light from the mains circuit. To do this pull the mains plug on the mains lead 13 out of the socket.

☐ Allow the lamp to cool down completely.
☐ Use a clean, lint-free cloth when changing light bulbs 11.
☐ Remove the clips 12 attached at the right and left of the safety glass pane.
☐ Pull the protective glass cover 10 out of the guides on both sides. Place the protective glass cover carefully to one side.
☐ Rotate the bulb 11 14 turn and pull it out of the fitting.
☐ Use a 230-240 volt T5 fluorescent tube type bulb with a maximum power output of 13 watt.
☐ Insert a new bulb carefully into the fitting and turn it through 14 turn to fix it in place. Check that it is correctly seated.
Shift the protecting glass disk 10 (smooth page should indicate outward) again into the guide rail.
☐ Secure the clips 12 at the right and left of the safety glass pane.
☐ Turn the strip light 9 into the desired direction.

CAUTION! Make sure that all under-cabinet lights are linked together by means of the connecting cables 7 before inserting the power cable 13 into the socket.

☐ Insert the mains plug on the mains lead 13 back into the socket. Your light is now ready for operation.

● Maintenance and Cleaning

CAUTION! DANGER OF ELECTRIC

SHOCK! To do this pull the mains plug on the mains lead 13 out of the socket.

• Do not use solvents, benzene or similar substances. They could damage the light.
  ☐ Allow the lamp to cool down completely.

CAUTION! DANGER OF ELECTRIC

SHOCK! For reasons of electrical safety, the light must never be cleaned with water or other fluids or be immersed in water. When cleaning, only use a dry, lint-free cloth.

☐ Do not use any solvents, petrol or similar. This would cause damage to the light.

- Disposal

The packaging and ancillary packing consist entirely of environmentally-friendly materials. They can be disposed of at your local recycling facility.

The symbol of the wheelie bin with the line through it means that, in the European Union, the product has to be disposed

of in a separate refuse collection. This applies to the product and to all components bearing this symbol. Products marked in this way may not be disposed of along with normal domestic waste but have to be handed in at a recycling collection point for electrical and electronic appliances. Recycling helps to reduce the consumption of raw materials and to ease the burden on the environment.

Fluorescent lamps are hazardous waste!

They may contain small quantities of harmful substances, e.g. mercury (Hg). Do not dispose of them with normal domestic waste but hand them in to a recycling collection point for electrical and electronic appliances.

Information

Guarantee

You receive a 36 month warranty on this product, valid from the date of purchase.

The device has been carefully produced under strict quality control.

Within the warranty period we shall rectify without charge all material and manufacturing defects. In the event of a defect arising during the warranty period, please send the device to the listed Service Centre address, making reference to the following article number: 14102104L or 14102106L.

Wear parts (such as bulbs) and damage caused by improper handling, non-observance of the operating instructions or unauthorised interference are excluded from the warranty.

The performance of services under the warranty does not extend or renew the warranty period.

- Declaration of Conformity CE

This product fulfils the requirements of the applicable European and national directives. Conformity has been demonstrated. The relevant declarations and documents are held by the manufacturer.

Manufacturer / Service

When inquiring about your product, please have your receipt and product number (e.g. IAN 12345) ready as your proof of purchase.

59929 Brilon (Germany)
