Archer VR600b - Router TP-LINK - Free user manual and instructions

Product Type	Wireless DSL Modem Router
Brand	TP-Link
Model	Archer VR600b
Interfaces	1 DSL port, 4 RJ-45 LAN ports, 1 RJ-45 WAN port
Wireless Standards	802.11b/g/n/ac
Frequency Band	2.4 GHz and 5 GHz
Maximum Wireless Data Rate	Up to 1200 Mbps (300 Mbps on 2.4 GHz + 867 Mbps on 5 GHz)
Hardware Connection	Connect phone cable from phone jack to DSL splitter, then to modem router; power with provided adapter
Configuration	Via web browser at http://tplinkmodem.net or 192.168.1.1
Wireless Security	WPA/WPA2 encryption, WPS support
Management App	TP-Link Tether (iOS and Android)
Operation Mode	DSL Modem Router mode and Wireless Router mode (selectable)
Factory Reset	Press and hold RESET button for about 10 seconds until LEDs change
Safety Instructions	Keep away from water, fire, humidity; do not disassemble; use only provided power adapter
Compliance	CE, EAC
Package Contents	Router, power adapter, phone cable, Ethernet cable, Quick Installation Guide

Frequently Asked Questions - Archer VR600b TP-LINK

What should I do if the login page does not appear?

Ensure your computer is set to obtain an IP address automatically. Type http://tplinkmodem.net correctly in the browser. Try a different browser or reboot the router. Disable and re-enable the network adapter.

What can I do if the LED status is not correct?

Check all cable connections. Restore factory defaults. Remove the DSL splitter and connect directly. Contact your ISP to verify the DSL line status. If issues persist, contact TP-Link support.

How do I access the internet if I cannot connect?

Verify telephone and Ethernet cables are properly connected. Log in to the web management page and check that VPI/VCI (or VLAN ID), connection type, and account details are correct. Restore factory defaults and reconfigure.

What if I forget my web management password?

Reset the router to factory defaults by pressing and holding the RESET button. After reset, create a new password or use the default username/password (admin/admin for some models).

How do I reset the router to factory settings?

With the router powered on, press and hold the RESET button until the LEDs change significantly (about 10 seconds). Alternatively, log in to the web management page and go to System Tools > Factory Defaults.

Where can I find the wireless network name and password?

The default SSID and wireless password are printed on the product label at the bottom of the router. If changed, log in to the web interface to view or reset them.

Can I use this router as a wireless router without DSL?

Yes, if you already have a modem or Ethernet internet connection, you can switch to Wireless Router mode. Go to Advanced > Operation Mode and select Wireless Router Mode, then connect the modem to the WAN port.

How do I manage the router with the Tether app?

Download the TP-Link Tether app from the Apple App Store or Google Play. Connect your phone to the router's Wi-Fi, then open the app to access settings like Parental Controls, device blocking, and wireless configuration.

What should I do if the Tether app is not supported?

Check the app description on the store to confirm compatibility. If not supported, use the web management interface by typing tplinkmodem.net in a browser.

How do I connect the hardware for DSL service?

Connect a phone cable from the phone jack to the DSL splitter (if provided), then from the splitter to the DSL port on the router. Attach the power adapter and wait for the Power and DSL LEDs to become stable.

USER MANUAL Archer VR600b TP-LINK

Wireless DSL Modem Router

EAC

For technical support, replacement services, the user guide and other information, please visit https://www.tp-link.com/support. © 2023 TP-Link 7106510382 REV1A.1

images may differ from actual products.

CONTENTS

1 / English
6 / Čeština
11 / Казақша
16 / Polski
21 / Русский язык
26 / Slovenčina
31 / Srpski jezik
36 / Українська мова

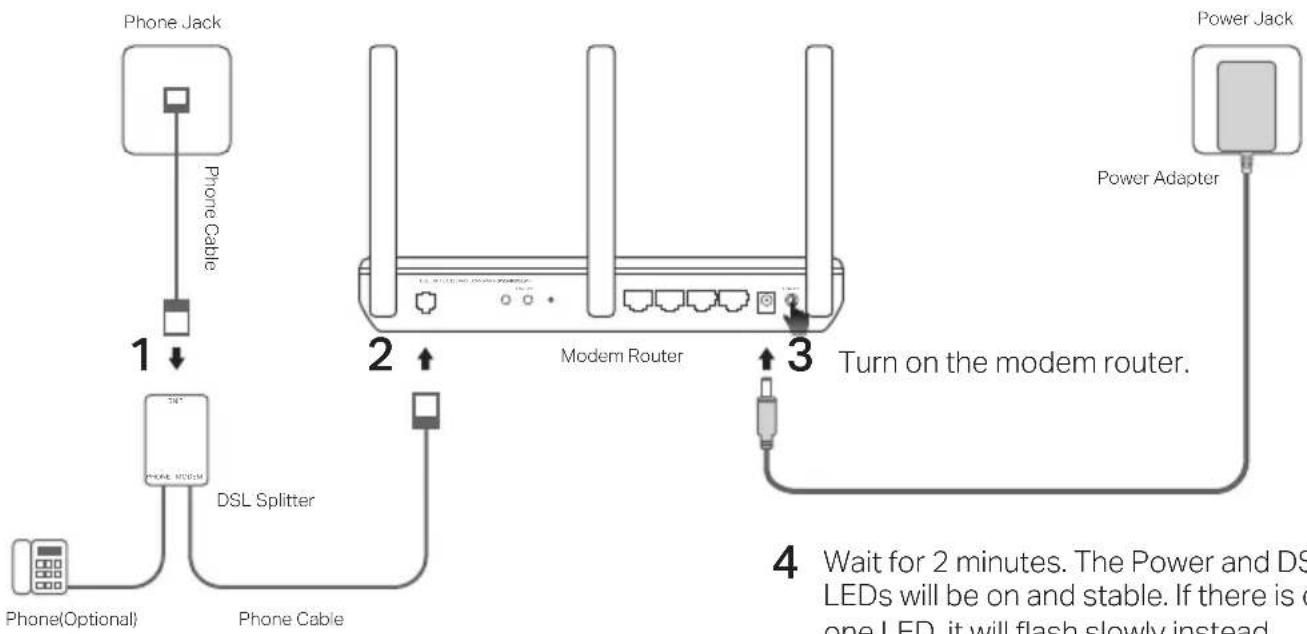

Connect the Hardware

If you don't need the phone service, just directly connect the modem router to the phone jack with the provided phone cable, then follow steps 3 and 4 to complete the hardware connection.

* Image may differ from actual product.

4 Wait for 2 minutes. The Power and DSL LEDs will be on and stable. If there is only one LED, it will flash slowly instead.

Note: If the LED status is different, please refer to FAQ > Q2.

Configure via Web Browser

1 Connect your computer to the modem router via a wired or wireless connection.

Wired

Connect your computer to the LAN (or 1/2/3/4) port using an Ethernet cable.

Wireless

Connect wirelessly by using the SSID (network name) and Wireless Password printed on the product label at the bottom of the modem router.

2 Configure the modem router via a web browser.

A Launch a web browser and type in http://tplinkmodem.net or 192.168.1.1. Note: If the login page does not appear, please refer to FAQ > Q1.

B Create a password for future login attempts, or use admin for both username and password for some routers.

C Go to Quick Setup or Quick Start page and follow the step-by-step instructions to complete the initial configuration.

Now you can enjoy your internet.

Already Have a Modem?

If you already have a modem or your internet comes directly from an Ethernet wall outlet, you can switch to Wireless Router mode. Follow the steps below and set up.

1 Connect your computer to the router (LAN 1/2/3 port) via a wired or wireless connection. Note: The SSIDs (network names) and wireless password are printed on the product label.

2 Configure the modem router via a web browser.

A Launch a web browser and type in http://tplinkmodem.net or 192.168.1.1. Note: If the login page does not appear, please refer to FAQ > Q1.

B Create a password for future login attempts, or use admin for both username and password for some routers.

C Go to Advanced > Operation Mode page and switch to Wireless Router Mode, wait until the restart finished.

Note: Skip this step if your model does not support the operation mode function. Your model will automatically match the network type after being connected in step 3.

3 Connect the modem to the router's WAN port via an Ethernet cable.

4 Go to Basic > Internet to finish the setup.

Now you can enjoy your internet. For more advanced settings, refer to the User Guide on TP-Link's official website at www.tp-link.com.

English

Tether App

The TP-Link Tether app provides a simple, intuitive way to access and manage your router. You can block unwelcome devices, set up Parental Controls, configure your wireless settings and more.

Scan the QR code to download the TP-Link Tether app from the Apple App Store or Google Play.

Note: Tether is not supported by some routers. Please check the app description before downloading.

FAQ (Frequently Asked Questions)

Q1. What can I do if the login page does not appear?

A1. If the computer is set to a static or fixed IP address, change the settings to obtain an IP address automatically from the modem router.

A2. Verify http://tplinkmodem.net is correctly entered in the web browser and press Enter.

A3. Use another web browser and try again.

A4. Reboot your modem router and try again.

A5. Disable and enable the active network adapter.

Q2. What can I do if the LED status is not correct?

A1. Check your cables and make sure they are all plugged in correctly, including the telephone lines and power adapter.

A2. Restore your modem router to its factory default settings.

A3. Remove the DSL splitter, directly connect the modem router to the phone jack and then reconfigure the modem router by following the instructions in this Quick Installation Guide.

A4. Contact your ISP to verify if the DSL line is in good status.

A5. If you have tried all the suggestions above and the problem still exists, contact our Technical Support.

Q3. What can I do if I cannot access the internet?

A1. Make sure the telephone and Ethernet cables are plugged in correctly.
A2. Try to log in to the web management page of the modem router using the default address at http://tplinkmodem.net. If you can, try the following answers. If you cannot, change your computer to obtain an IP address automatically from the modem router.
A3. Consult your ISP and make sure all the VPI/VCI (or VLAN ID), Connection Type, account username and password are correct. If they are not, replace them with the correct settings and try again.
A4. Restore the modem router to its factory default settings and reconfigure the modem router by following the instructions in this Quick Installation Guide.
A5. If you have tried all the suggestions above and the problem still exists, contact our Technical Support.

Q4. What can I do if I forget my password?

• Web management page password:

A. Refer to FAQ > Q5 to reset the router, and then create a password for future login attempts, or use admin for both username and password for some routers.

- Wireless network password:

A1. The default Wireless Password/PIN is printed on the product label of the modem router.
A2. If the default wireless password has been changed, log in to the web management page of the router to retrieve or reset your wireless password.

Q5. How do I restore the modem router to its factory default settings?

A1. With the modem router powered on, press and hold down the RESET button of the modem router until there is an obvious change of LEDs, and then release the button.
A2. Log in to the web management page of the modem router and go to the system management page to restore the modem router.

Čeština

Připojte hardware

Note: The SSIDs (network names) and wireless password are printed on the product label.

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
• Do not use damaged charger or USB cable to charge the device.
• Do not use any other chargers than those recommended.
• Do not use the device where wireless devices are not allowed.
• Adapter shall be installed near the equipment and shall be easily accessible.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

Čeština

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863.

The original EU declaration of conformity may be found at https://www.tp-link.com/en/ce.

Polski:

https://www.tp-link.com/en/ce.

Srpski jezik

TP-Link ovim izjavljuje da je ovaj uređaj u saglasnosti sa osnovnim zahtevima i ostalim relevantnim merama direktiva 2014/53/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863.

Originalnu EU izjavu o saobraznosti možete pronaći na https://www.tp-link.com/en/ce.

Русский язык

https://www.tp-link.com/en/ce.
