USER MANUAL ZXL636ITX ZANUSSI

natural_image Pure technical line drawing of a mechanical component with no text or symbols
Safety information14
Installation16
Description of the appliance19
Operating the appliance19
Helpful hints and tips20
Care and cleaning21
What to do if...21
Technical data22
Environment concerns23

Subject to change without notice

ZANUSSI ZXL636ITX - 1

Safety information

Warning! These instructions are only valid in the countries whose symbols appear on this booklet's cover.
For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

General safety

Warning! Persons (including children) with reduced physical sensory, mental capabilities or lack of experience and knowledge must not use the appliance. They must have supervision or instruction for the operation of the appliance by a person responsible for their safety.
The appliance is not intended to be operated with external timer or separated remote-control system.

Child safety

  • Only adults can use this appliance. Children must get supervision to make sure that they do not play with the appliance.
  • Keep all packaging away from children. There is a risk of suffocation and physical injury.
  • Keep children away from the appliance during and after the operation.

Use

  • Remove all packaging, stickers and layers from the appliance before first use. Do not remove the rating plate. It can invalidate the guarantee.
  • Set the cooking zones to the "off" position after each use.
  • Burners and accessible part become hot during and after use. Do not put cutlery or saucepan lids on the

cooking surface. Cookware and its contents can tip over. There is the risk of burns.

  • Too hot fats and oils can ignite very quickly. There is the risk of fire.
  • Do not leave the appliance unattended during operation.
  • Always monitor the appliance during operation.
  • Do not let the liquids overflow into the holes of the top of the hob
  • Do not use the hob without cookware.
  • The appliance is only for domestic use. Do not use the appliance for commercial and industrial use.
  • Only use the appliance for domestic cooking tasks. This is to prevent physical injury to persons or prevent damage to property.
  • Use only cookware with bottom diameter applicable to the dimensions of burners. There is a risk of overheat and rupture of the glass plate (if applicable).
  • Do not use pan with diameter smaller than burner size - flames will heat up the pan handle.
  • Pots must not enter the control zone.
  • Do not use the appliance as a work surface or storage surface.
  • Do not use unstable cookware to prevent from tilt and accident.
  • Do not put flammable products or items that are wet with flammable products, and/or fusible objects (made of plastic or aluminium) and/or fabrics in, near or on the appliance. There is the risk of explosion or fire.
  • Use only the accessories supplied with appliance.
  • Be careful when you connect the appliance to the near sockets. Do not let electricity bonds touch the appliance or hot cookware. Do not let electricity bonds tangle.

Information on acrylamides

Important! According to the newest scientific knowledge, if you brown food (specially the one which contains starch), acrylamides can pose a health risk. Thus, we recommend that you cook at the lowest temperatures and do not brown food too much.

Installation

  • You must read these. The manufacturer is not responsible for any injury to persons and pets or damage to property caused by failure to obey these requirements.
  • To prevent the risks of structural damage or physical injury, installation, connection of the appliance to the power supply and gas system, setting up and maintenance must only be done by qualified personnel in compliance with standards and local regulation force.
  • Make sure that the appliance is not damaged because of transport. Do not connect a damaged appliance. If it is necessary, speak to the supplier.
  • Only use built-in appliances after you assemble the appliance into correct built-in units and work surfaces that obey the standards.
  • Do not install the hob over a domestic appliances if these do not allow it.
    • Install the appliance only on worktop with flat surface.
  • Do not change the specifications or modify this product. There is the risk of injury and damage to the appliance.
  • Fully obey the laws, ordinances, directives and standards in force in the country where you use the appliance (safety regulations, recycling regulations, electrical safety rules etc.)
  • Keep the minimum distances to other appliances and units.
  • Install anti-shock protection, for example install the drawers only with a protective panel directly below the appliance.
  • Prevent damage of the cut surfaces of the worktop against moisture with a correct sealant.
  • Seal the appliance to the worktop with no space left with a correct sealant.
  • Prevent damage of the bottom of the appliance from steam and moisture, e.g. from a dishwasher or oven.
  • Do not install the appliance adjacent to doors and below windows. If not, hot cookware can be hit off the hob when you open the doors or windows.

  • Before maintenance, switch off the appliance and disconnect the appliance from the power supply.

  • Before installation, make sure that the local supply conditions (gas type and pressure) agree with the adjustment of appliance. The adjustment conditions for the appliance are on the rating plate, which you can find in the accessory bag.
  • This appliance is not connected to a combustion products evacuation device. It must be installed and connected in accordance with current installation regulations. Particular attention must be given to the relevant requirements regarding ventilation.
  • The use of a gas cooking appliance cause heat and moisture in the room in which it is installed. Make sure that the ventilation in kitchen is good: keep natural ventilation holes open or install a mechanical ventilation device (mechanical extractor hood).
  • More ventilation (for example opening of a window or increasing the level of mechanical ventilation where present) is necessary when you intensive operate the appliance for a long time.
  • Carefully obey the instructions for electrical connections. There is the risk of injury from electrical current.
  • The electrical mains terminal is live.
  • Make electrical mains terminal free of voltage.
    • Install correctly to give anti-shock protection.
  • Loose and incorrect mains plug and socket connections can make the terminal become too hot.
  • A qualified electrician must install the clamping connections correctly.
  • Use a strain relief clamp on cable.
  • Use the correct mains connection cable and replace the damaged mains cable with applicable cable. Speak to your local Service Force Centre.
  • The appliance must have the electrical installation which lets you disconnect the appliance from the mains at all poles with a contact opening width of minimum 3 mm.
  • You must have correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), ground leakage trips and contactors.

Disposal of the appliance

- To prevent the risk of physical injury or damage - Disconnect the appliance from the power supply.

  • Cut off the mains cable where it connects with the appliance and discard it.
  • Flat the external gas pipes if there are fitted.

Installation

ZANUSSI ZXL636ITX - Installation - 1

Warning! The following instructions about

installation, connection and maintenance must be carried out by qualified personnel in compliance with standards and local regulations in force.

Gas Connection

Choose fixed connections or use a flexible pipe in stainless steel in compliance with the regulation in force. If you use flexible metallic pipes, be careful they do not come in touch with mobile parts or they are not squeezed. Also be careful when the hob is put together with an oven.

Important! Make sure that the gas supply pressure of the appliance obeys the recommended values. The adjustable connection is fixed to the comprehensive ramp by means of a threaded nut G 1/2". Screw the parts without force, adjust the connection in the necessary direction and tighten everything.

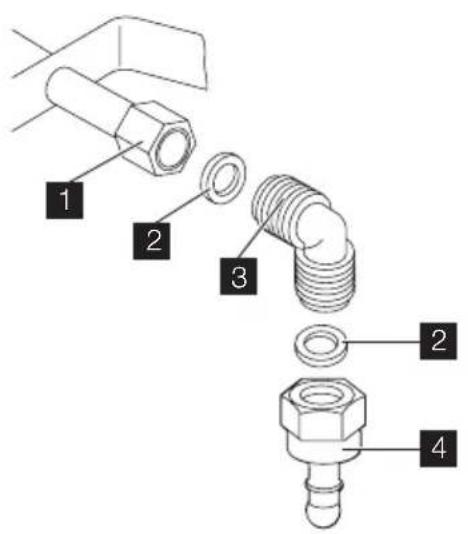

1 2 3 2 4

1 End of shaft with nut
2 Washer (additional washer is only for Slovenia and Turkey)
3 Elbow
4 Rubber pipe holder for liquid gas (only for Slovenia and Turkey)

Rigid connection:

Carry out connection by using metal rigid pipes (copper with mechanical end).

- Speak to your local authorised facilities for disposal of your appliance.

"Flexible" connection with mechanical end:

  • Natural gas : connection carry out with a flexible pipe with mechanical end which is screwed directly on the elbow finishing the slope of the appliance.
  • Butane / Propane : use a flexible tube, equipped with it's collars if it is worth visiting over all it's length and if the appliance runs only on butane. If the appliance runs on Propane, use a flexible pipe with suitable metal end.

Flexible nonmetal pipes connection:

If it is possible to easily control the connection in its full area, you can use a flexible pipe. Tightly attach the flexible pipe by clamps.

Liquid gas : use the rubber pipe holder. Always engage the gasket. Then continue with the gas connection. The flexible pipe is prepared for apply when:

  • it can not get hot more than room temperature, higher than 30^ C ;
  • it is no longer than 1500 mm;
  • it shows no throttles;
  • it is not subject to traction or torsion;
  • it does not get in touch with cutting edges or corners;
  • it can be easily examined in order to check its condition.

The control of preservation of the flexible pipe consists in checking that:

  • it does not show cracks, cuts, marks of burnings on the two ends and on its full length;
  • the material is not hardened, but shows its correct elasticity;
    – the fastening clamps are not rusted;
    -expired term is not due.

If one or more defects are visible, do not repair the pipe, but replace it.

Important! When installation is complete, make sure that the seal of each pipe fitting is correct. Use a soapy solution, not a flame!

Injectors replacement

  1. Remove the pan supports.
  2. Remove the caps and crowns of the burner.
  3. With a socket spanner 7 remove the injectors and replace them with the ones which are necessary for the type of gas you use (see table in Technical Data section).
  4. Assemble the parts, follow the same procedure backwards.
  5. Replace the rating label (it is near the gas supply pipe) with the one for the new type of gas supply. You can find this label in the package of the injectors supplied with the appliance.
    If the supply gas pressure is changeable or different from the necessary pressure, you must fit an applicable pressure adjuster on the gas supply pipe.

Adjustment of minimum level

To adjust the minimum level of the burners:

  1. Light the burner.
  2. Turn the knob on the minimum position.
  3. Remove the control knob.
  4. With a thin screwdriver, adjust the bypass screw position. If you change from natural gas 20 mbar to liquid gas, fully tighten the adjustment screw in. If you change from liquid gas to natural gas 20 mbar, undo the by-pass screw approximately 1/4 of a turn.

ZANUSSI ZXL636ITX - Adjustment of minimum level - 1

natural_image Technical line drawing of a mechanical component with a cylindrical shaft and circular features (no text or symbols)

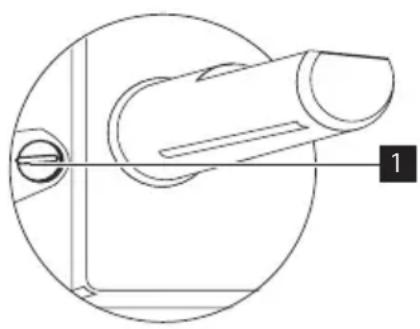

1 Minimum adjustment screw

  1. Make sure the flame does not go out when you quickly turn the knob from the maximum position to the minimum position.

Electrical connection

  • Ground the appliance according to safety precautions.
  • Make sure that the rated voltage and type of power on the rating plate agree with the voltage and the power of the local power supply.
  • This appliance is supplied with a mains cable. It has to be supply with a correct plug, able to support the load marked on the identification plate. The plug has to be fitted in a correct socket.
  • Any electrical component must be installed or replaced by the Service Force Centre technician or qualified service personnel.
  • Always use a correctly installed shockproof socket.
  • Make sure that there is an access to the mains plug after installation.
  • Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
  • The appliance must not be connected with an extension cable, an adapter or a multiple connection (risk of fire). Check that the ground connection is in conformity with the standard and regulations force.
  • The power cable must be placed in such a way that it does not touch any hot part.
  • Connect the appliance to the mains with a device that lets to disconnect the appliance from the mains at all poles with a contact opening width of minimum 3 mm, eg. automatic line protecting cut-out, earth leakage trips or fuse.
  • None of a parts of the connection cable can not get a temperature 90°C. The blue neutral cable must be connected to the terminal block label with "N". The brown (or black) phase cable (fitted in the terminal block contact marked with "L") must always be connected to the live phase.

Replacement of the connection cable

To replace the connection cable use only H05V2V2-F T90 type. Make sure that the cable section is applicable to the voltage and the working temperature. The yellow/green earth wire must be approximately 2 cm. longer than the brown (or black) phase wire.

Building In

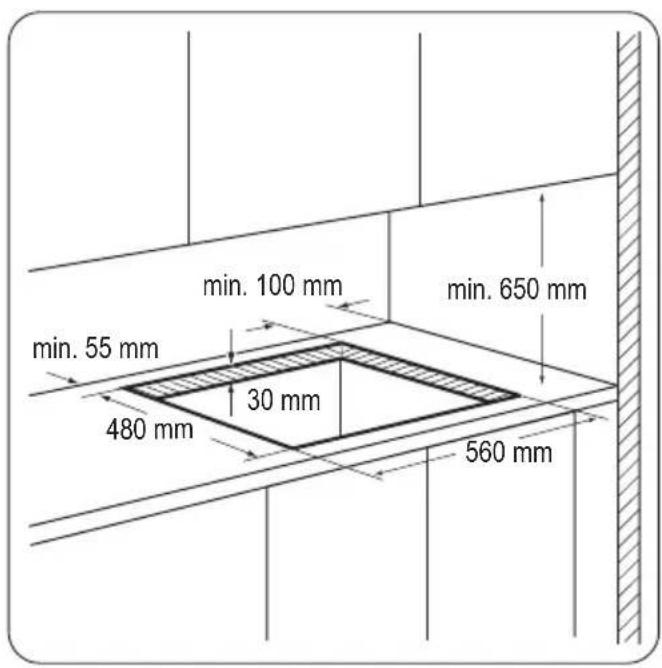

min. 100 mm min. 650 mm min. 55 mm 30 mm 480 mm 560 mm

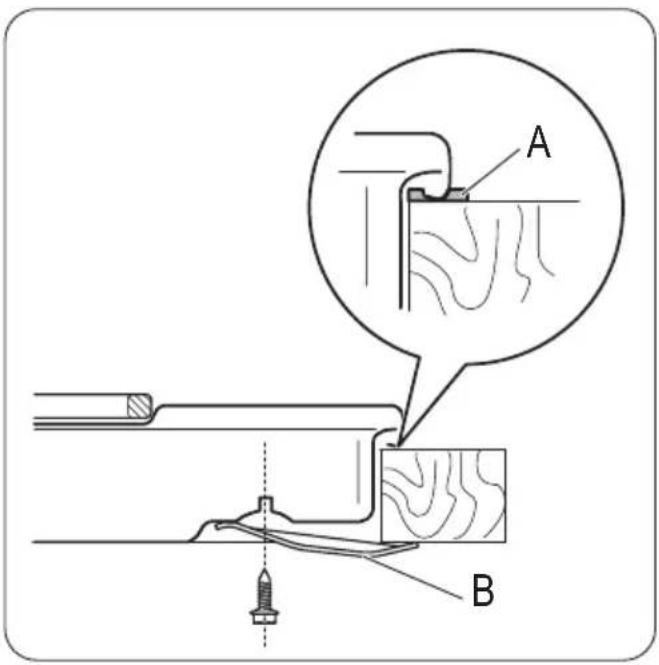

A - supplied seal

A B

B - supplied brackets

Possibilities for insertion

Kitchen unit with door

The panel installed below the hob must be easy to remove and let an easy access in case a technical assistance intervention is necessary.

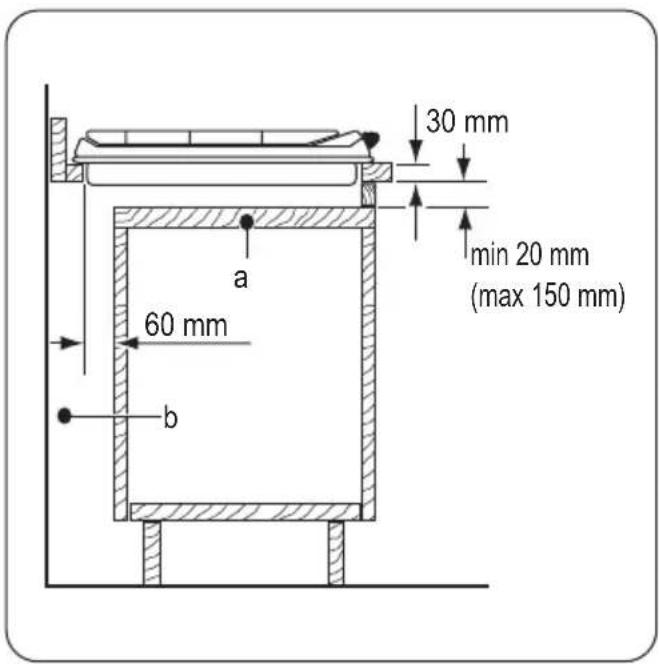

30 mm min 20 mm (max 150 mm) 60 mm a b

a) Removable panel
b) Space for connections

Kitchen unit with oven

The hob recess dimensions must obey the indication and must be equipped with brackets to let a continuous supply of air for safety reasons. The electrical connection of the hob and the oven must be installed separately. It also lets the oven to be easily taken off the unit.

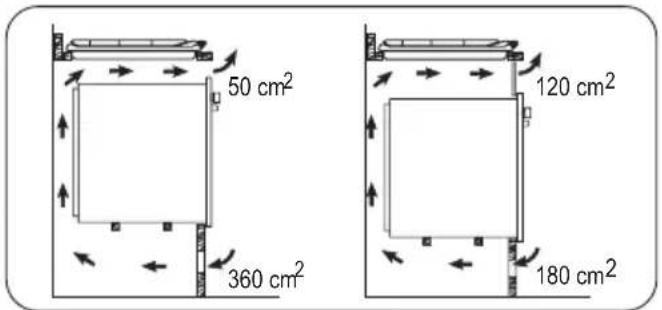

50 cm² 360 cm² 120 cm² 180 cm²

MANUFACTURER:

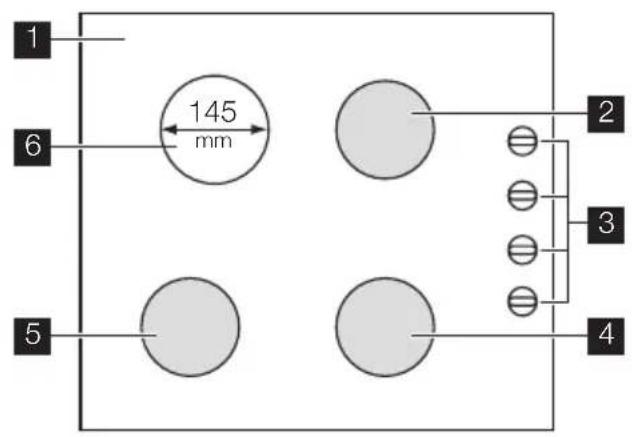

Cooking surface layout

1 6 145 mm 2 3 5 4

1 Hob top
2 Semi-rapid burner
3 Control knobs
4 Auxiliary burner
5 Rapid burner
6 Electric cooking zone 1500 W

Control knobs

Symbol Description
no gas supply / off position
ignition position / maximum gas supply
minimum gas supply

Electric cooking zones control knobs

Symbol Function
0 off position
1 minimum heat
6 maximum heat

Operating the appliance

Ignition of the burner

Warning! Be very careful when you use open fire in kitchen environment. Manufacturer decline any responsibility in case misuse of the flame

i Always light the burner before you put cookware.

To light the burner:

  1. Turn the control knob counterclockwise to the maximum position ( ☆ ⚠ and push it down.

  2. Keep the control knob pushed for approximately 5 seconds; this will let thermocouple to warm up. If not, the gas supply will be interrupted.

  3. Adjust the flame after it is regular.

If after some tries the burner does not light, check if the crown and its cap are in correct positions.

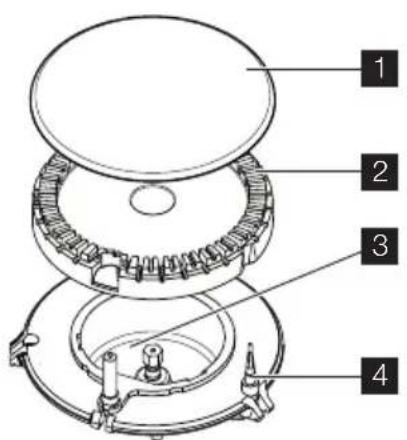

1 2 3 4

1 Burner cap
2 Burner crown
3 ignition candle
4 Thermocouple

Warning! If the burner does not light after 15 seconds, release the control knob, turn it into off position and try to light the burner again after minimum 1 minute.

Important! In the absence of electricity You can ignite the burner without electrical device; in this case approach the burner with a flame, push the relevant knob down and turn it counter-clockwise to maximum gas release position.

If the burner accidentally goes out, turn the control knob to the off position and try to light the burner again after minimum 1 minute.
When switching on the mains, after installation or a power cut, it is quite normal for the spark generator to be activated automatically.

Turning the burner off

To put the flame out, turn the knob to the symbol

Warning! Always turn the flame down or switch it off before removing the pans off the burner.

Operating electric zones

To switch on and increase the heat setting turn the knob counterclockwise. To decrease the heat setting turn the knob clockwise. To switch off turn the knob to the 0.

Before first use

Set the maximum position and run the hob for 10 minutes, to burn off any residues of manufacturing. After that run

Helpful hints and tips

Energy savings

  • If possible, always put the lids on the pans.
  • When the liquid starts to boil, turn down the flame to barely simmer the liquid.

Warning! Use pots and pans with bottom applicable to the dimension of burner.

Do not use cooking vessels on the hotplate that overlap its edges.

Burner Diameters of cookware

Rapid 180 mm - 260 mm

hob at minimum position for 20 minutes. During this period an odour and smoke can be emitted. This is normal. Make sure the airflow is sufficient.

Rapid hot plate

A red dot in the middle of the plate shows a rapid hot plate. A rapid hot plate heats up faster than usual plates.

The red dot is painted on the surface and can come off after some time. It does not have an effect on the performance of the appliance.

The rapid hot plate can smoke and make an odour when you use it for the first time. The smoke and an odour will go off after a while.

Examples of cooking applications

Heat setting:Use to:
1 Keeping warm
2 Gentle simmering
3 Simmering
4 Frying / browning
5 Bringing to the boil
6 Bringing to the boil / quick frying / deep-frying

Burner Diameters of cookware

Semi-rapid 120 mm - 180 mm

Auxiliary 80 mm - 180 mm

Warning! Pots must not enter the control zone.

Make sure pots do not protrude over the edges of the cooktop and that they are centrally positioned on the rings in order to obtain lower gas consumption.

Do not place unstable or deformed pots on the rings.

Care and cleaning

Warning! Switch the appliance off and let it cool down before you clean it. Disconnect the appliance from the electrical supply, before carrying out any cleaning or maintenance work.
Warning! For safety reasons, do not clean the appliance with steam cleaners or high-pressure cleaners.
Warning! Do not use abrasive cleaners, steel wool pads or acids, they can cause damage to the appliance.

  • You can remove the pan supports to easily clean the hob.
  • To clean the enamelled parts, cap and crown, wash it with warm soapy water.
  • Stainless steel parts wash with water, and then dry with a soft cloth.
  • The pan supports are not dishwasher proof; they must be washed by hand.
  • When you wash the pan supports by hand, take care when you dry them as the enamelling process occasionally leaves rough edges. If necessary, remove stubborn stains using a paste cleaner.
  • Make sure you position the pan supports correctly after cleaning.

  • To make burners work correctly, make sure that the arms of the pan supports are in the centre of the burner.

  • Be very careful when you replace the pan supports to prevent the hob top from damage.

After cleaning, dry the appliance with a soft cloth.

The stainless steel can become tarnished if it is too much heated. Refer to this you must not cook with potstones, earthenware pans or cast iron plates. Do not use aluminium foil to prevent damage the top during operation.

Stainless steel parts wash with water, and then dry with a soft cloth.

Removing the dirt:

  1. – Remove immediately: melting plastic, plastic foil, and food containing sugar.

- Stop the appliance and let it cool down before you clean: limescale rings, water rings, fat stains, shiny metallic discolorations. Use a special cleaner applicable for surface of hob.

  1. Clean the appliance with a damp cloth and some detergent.
  2. At the end rub the appliance dry with a clean cloth.

Periodic maintenance

Periodically speak your local Service Force Centre to check the conditions of the gas supply pipe and the pressure adjuster, if fitted.

What to do if...

Problem Possible causeRemedy
There is no spark when lighting the gas· There is no electrical supply · Make sure that the unit is connected and the electrical supply is switched on.· Examine the house electrical installation fuse.
· Burner cap and crown are placeduneven· Make sure that the burner cap and crown are in correct positions.
The flame is blow out immediately after ignition· Thermocouple is not heated sufficient· After lightning the flame, keep the knob pushed for approximately 5 seconds.
The gas ring burns unevenly · Burnercrown is blocked with food residues· Make sure that the injector is not blocked and the burner crown is clear of food particles.

If there is a fault, first try to find a solution to the problem yourself. If you cannot find a solution to the problem yourself, speak your dealer or the local Service Force Centre.

If you operated the appliance incorrectly, or the installation was not carried out by a registered engineer, the visit from the customer service technician or dealer may not take place free of charge, even during the warranty period.

Technical data

Hob dimensions

Width: 580 mm
Height: 510 mm

Hob recess dimensions

Width: 560 mm
Height: 480 mm

Heat input

Rapid burner: 3,0 kW
Semi-rapid burner: 2,0 kW
Auxiliary burner: 1,0 kW
Electric zone: 1,5 kW
TOTAL GAS POWER: G20 (2H) 20 mbar = 6,0kWG30/G31 (3B/P) 30/30mbar = 418 g/h

These data are necessary to help you quickly and correctly. These data are available on the identification plate from the injectors kit.

  • Model description ......
  • Product number (PNC) ....
  • Serial Number (S.N.) ....

Use the original spare parts only. They are available at Service Force Centre and authorized spare parts shops.

TOTAL ELECTRIC POW-ER:1,5 kW
Electric supply: 230 V ~ 50 Hz
Category: II2H3B/P
Gas supply: G20 (2H) 20 mbar
Appliance class: 3

By-pass diameters

Burner ∅ By-pass in 1/100 mm.
Auxiliary 28
Semi-rapid 32
Rapid 42

Gas burners

BURNERNORMAL POWERREDUCED POWERNORMAL POWER
kWkWNATURAL GAS G20 (2H) 20 mbarLPG (Butane/Propane) 30 mbar
inj. 1/100 mm m^3/h inj. 1/100 mmg/h G30
Auxiliary burner1,00,33700,0955072
BURNER NORMAL POW-ERREDUCED POWERNORMAL POWER
NATURAL GASG20 (2H) 20 mbarLPG(Butane/Propane) 30 mbar
kW kW inj. 1/100mmm3/h inj. 1/100mmg/hG30
Semi-rapid burner2,0 0,45 96 0,190 71 144
Rapid burner 3,0 (natural gas)2,8 (LPG)0,75 119 0,286 86 202

Environment concerns

The symbol ☒ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed

information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Packaging material

The packaging materials are friendly to the environment and can be recycled. The plastic components are identified by marking: >PE<,>PS<, etc. Discard the packaging materials as household waste at the waste disposal facilities in your municipality.

Índice

natural_image Technical line drawing of a mechanical component with a cylindrical shaft and circular base, no text or symbols present
natural_image Technical line drawing of a mechanical component with circular base and cylindrical shaft (no text or symbols)
natural_image Technical line drawing of a mechanical component with a cylindrical shaft and circular base (no text or symbols)

1 Skrutka nastavenia minima

natural_image Technical line drawing of a mechanical component with a lever and circular base (no text or symbols)

1 Tornillo de ajuste mínimo

natural_image Technical line drawing of a mechanical component with circular base and cylindrical shaft (no text or symbols)

www.zanussi.com/shop

ZANUSSI ZXL636ITX - Tornillo de ajuste mínimo - 1

ZANUSSI ZXL636ITX - Tornillo de ajuste mínimo - 2

ZANUSSI ZXL636ITX - Tornillo de ajuste mínimo - 3

ZANUSSI ZXL636ITX - Tornillo de ajuste mínimo - 4

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : ZANUSSI

Model : ZXL636ITX

Category : Cooker
