PP6BR - Hi-Fi System BLAUPUNKT - Free user manual and instructions

Product Type	Hi-Fi System
Brand	Blaupunkt
Model	PP6BR
Dimensions (W x H x D)	Approx. 400 x 250 x 300 mm
Weight	Approx. 5 kg
Power Supply	AC 220-240 V, 50/60 Hz
Power Consumption	60 W (max)
Standby Power Consumption	< 1 W
Radio Tuner	FM with RDS
Disc Playback	CD, CD-R/RW, MP3-CD
USB Playback	Yes (MP3)
Bluetooth	Yes, version 4.2
Audio Output Power	2 x 15 W RMS
Speaker System	2.0 stereo
Controls	Buttons on unit and remote control
Display	LED screen
Additional Functions	Clock, alarm timer, equalizer presets
Maintenance	Wipe with dry cloth; avoid liquids
Safety	Class II; do not expose to water or heat
Spare Parts & Repairability	Repair by qualified personnel only; use original parts

Frequently Asked Questions - PP6BR BLAUPUNKT

How do I set the clock on my Blaupunkt PP6BR?

Press the CLOCK button on the remote or unit. Use the + and - buttons to set hour and minute. Confirm with CLOCK again.

Why is there no sound from the speakers?

Check that the volume is not at minimum. Ensure the correct source is selected (e.g., CD, FM, Bluetooth). Verify speaker connections if detachable.

How can I tune FM radio stations?

Press FM source. Use SEEK to auto-scan or TUNE +/- to manually adjust. Press MEMORY to save a station.

Can I play music from a USB flash drive?

Yes, insert a USB drive with MP3 files into the USB port. Select USB source. Use PLAY/PAUSE and SKIP to navigate.

How do I pair my phone via Bluetooth?

Press BLUETOOTH source. On your phone, search for devices and select 'Blaupunkt PP6BR'. If prompted, enter PIN 0000 or confirm pairing.

The CD does not play or skips. What should I do?

Ensure the disc is clean and not scratched. Try a different CD. Check if the disc is correctly placed (label up). Clean the laser lens with a CD lens cleaner.

How do I reset the system to factory settings?

Unplug the unit for 10 minutes, then plug back in. Alternatively, press and hold the POWER button for 5 seconds while the unit is on.

What is the maximum USB drive size supported?

The system supports USB drives up to 32 GB formatted in FAT32.

How often should I clean the unit?

Clean the exterior with a soft, dry cloth as needed. Do not use chemical cleaners. Avoid dust accumulation by covering when not in use.

The remote control is not working. What can I do?

Replace the batteries with new ones (CR2025 or similar). Ensure no obstructions between remote and sensor. Point the remote directly at the unit.

USER MANUAL PP6BR BLAUPUNKT

Enjoy it.

Portable radio with clock and USB/microSD playback

IMPORTANT SAFETY INSTRUCTIONS

The marking plate is located at the bottom of the apparatus.

Important Safety Instructions

Caution:

To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel.

Explanation of Graphical Symbols:

The lightning flash within an equilateral triangle is intended to alert you to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute an electric shock to a person or persons.

The exclamation point within an equilateral triangle is intended to alert you to the presence of important operating and

To achieve the utmost in enjoyment and performance, and in order to become familiar with its features, please read this manual carefully before attempting to operate this product. This will assure you years of trouble free performance and listening pleasure.

Important Notes

• This safety and operating instruction should be retained for future reference. • The apparatus should not be exposed to dripping or splashing or placed in a humid atmosphere such as a bathroom. Do not install the product in the following areas: - Places exposed to direct sunlight or close to radiators. On top of other stereo equipment that radiate too much heat. ○ Blocking ventilation or in a dusty area. - Areas where there is constant vibration. ○ Humid or moist places. • Do not place near candles or other naked flames. • Operate the product only as instructed in this manual. • Before turning on the power for the first time, make sure the power adaptor is properly connected. • Plug-in the USB stick directly or use an USB-extension cable which is not longer than 25 cm.

For safety reasons, do not remove any covers or attempt to gain access to the inside of the product. Refer any servicing to qualified personnel.

Do not attempt to remove any screws, or open the casing of the unit; there are no user serviceable parts inside. Refer all servicing to qualified service personnel.

SAFETY INSTRUCTIONS

1. Read Instructions - All the safety and operating instructions must be read before

the product is operated.

1. Retain Instructions - The safety and operating instructions should be kept with the product for future reference.
2. Heed warnings - All warnings on the product and in the operating instructions should be adhered to.
3. Follow instructions - All operating and users' instructions should be followed.
4. Installation - Install in accordance with the manufacturer's instructions.
5. Power sources - This product should be operated only from the type of power source indicated by the marking adjacent to the power cord entry. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.
6. Grounding or polarization - the product is not required to be grounded. Ensure that the plug is fully inserted into the wall outlet or extension cord receptacle to prevent blade or pin exposure. Some versions of the product are equipped with a power cord fitted with a polarized alternating line plug (a plug having one blade wider than the other). This plug will fit onto the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug. When using an extension power-supply cord or a power-supply cord other than that supplied with the appliance, it should be fitted with the appropriate molded plugs and carry safety approval appropriate to the country of use.
7. Power cord protection - Power-supply cords should be routed so that they are not likely to be walked on, kinked or pinched by items placed on or against them, paying particular attention to cords from plugs, receptacles and the point where they exit from the product.
8. Overloading - Do not overload wall outlets, extension cords, or multiple sockets, as this can result in a risk of fire or electric shock.
9. Ventilation - The product must be properly ventilated. Do not place the product on a bed, sofa, or other similar surface. Do not cover the product with any items such as tablecloths, newspapers, etc.
10. Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products, including amplifiers that produce heat. No naked flame sources, such as lighted candles, should be placed on the apparatus.
11. Water and moisture - To reduce the risk of fire or electric shock, do not expose the product to train, dripping, splashing or excessive moisture such as in a sauna or bathroom. Do not use this product near water, for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool (or similar).
12. Object and Liquid Entry - Never push objects of any kind into this product through openings, as they may touch dangerous voltage points or short-circuit parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. Do not place any object containing liquid on top of the product.
13. Cleaning - Unplug the product from the wall outlet before cleaning. Dust in the woofer may be cleaned with a dry cloth. If you wish to use an aerosol cleaning spray, do not spray directly on the cabinet; spray onto the cloth. Be careful not to damage the drive units.
14. Attachments - Do not use attachments not recommended by the product manufacturer, as they may cause hazards.
15. Accessories - Do not place this product on an unstable cart, stand, tripod, bracket or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. Any mounting of the product should follow the manufacturer's instructions and should use a mounting accessory recommended by the manufacturer.

damage to the product. Use only with a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. Any mounting of the product should follow the manufacturer's instructions and should use a mounting accessory recommended by the manufacturer.

1. Moving the product - A product and cart combination should be moved with care. Quick stops, excessive force and uneven surfaces may cause the product and cart combination to overturn.
2. Unused periods - The power cord of the appliance should be unplugged from the outlet during lightning storms or when the apparatus is left unused for a long period of time.
3. Servicing - Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
4. Please remove the power plug from the main power source or wall power source when not in use. When plugged in to a power source, the system is in standby mode, so the power is not entirely cut off.
5. Replacement parts - When replacement parts are required, ensure that the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
6. Mains fuses - For continued protection against fire hazard, use fuses only of the correct type and rating.
7. Do not turn up the volume while listening to a section with very low level inputs or no audio signals. If you do, the speaker may be damaged when a peak level section is suddenly played.
8. The only means of completely disconnecting the product from the power supply is by removing the power cord from the wall outlet or the product. The wall outlet or the power cord entry to the product must remain freely accessible at all times while the product is in use.
9. Try to install the product near a wall socket or extension cord and shall be easily accessible.
10. The highest environmental temperature suitable for this product is 35°C.
11. ESD hints - If the product maybe reset or not reset to operation of control due to electrostatic discharge, just switch off and reconnect again, or move the product to another location.

28. Battery

1. The batteries must not be exposed to excessive heat such as sunshine, fire or the like.
2. The batteries should be drawn to the environmental aspects of battery disposal.
3. Battery usage CAUTION - to prevent battery leakage which may result in body injuries, property damage, or damage to the apparatus:

- Install all batteries correctly, + and - as marked on the apparatus.

- Do not mix batteries (old and new or carbon and alkaline, etc.)

- Remove batteries when the unit is not used for a long time.

WARNING

This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

1. Never use the device unsupervised! Switch off the device whenever you are not using it, even if this only for a short while.
2. The appliance is not intended to be operated by means of an external timer or separate remote control system.
3. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
4. Before operating this system, check the voltage of this system to see if it is identical to the voltage of your local power supply.
5. The unit should not be impeded by covering the ventilation opening with items such as newspaper, table-cloths, curtains etc. Make sure that there are at least 20 cm of space above and at least 5 cm of space on each side of the unit.
6. The apparatus must not be exposed to dripping or splashing, and objects filled with liquids, such as vases, must not be placed on the apparatus.
7. To prevent fire or shock hazard, do not expose this equipment to hot places, rain, moisture, or dust.
8. Do not locate this unit near any water sources, e.g., taps, bathtubs, washing machines, or swimming pools. Ensure that you place the unit on a dry, stable surface.
9. Do not place this unit close to a strong magnetic field.
10. Do not place the unit on an amplifier or receiver.
11. Do not place this unit in a damp area, as the moisture will affect the life of electric components.
12. If the system is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lens inside the player. If this occurs, the system will not operate properly. Please leave the system turned on for about an hour until the moisture evaporates.
13. Do not attempt to clean the unit with chemical solvents, as this might damage the finish. Wipe with a clean, dry, or slightly damp cloth.
14. When removing the power plug from the wall outlet, always pull directly on the plug, never pull on the cord.
15. Depending on the electromagnetic waves used by a television broadcast, if a TV is turned on near this unit while it is also on, lines might appear on the TV screen.
16. Neither this unit nor the TV is malfunctioning. If you see such lines, keep this unit well away from the TV set.
17. The mains plug is used as the disconnect device; the disconnect device must remain readily operable.
18. To prevent possible hearing damage, do not listen at high volume levels for long periods.

NOTICE

CE

Conformity

Hereby, Blaupunkt Competence Center 2N-Everpol Sp. z o.o., declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity can be obtained from the product page at www.blaupunkt.com.

Responsible party: 2N-Everpol Sp. z o.o, Puławska 403A, 02-801 Warsaw, Poland, Phone: [phone], E-mail: [e-mail]

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product, it means that the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed of with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environment and human health.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer), and polyethylene (bags, protective foam sheet). Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries, and old equipment.

Recording and playback of material might require consent. See Copyright Act 1956 and The Performer's Protection Acts 1958 to 1972.

Control locations

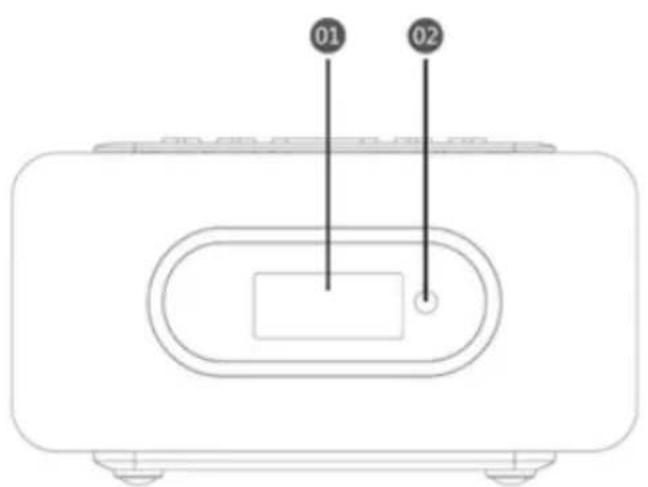

0 1— Display. 0 2— Remote control sensor.

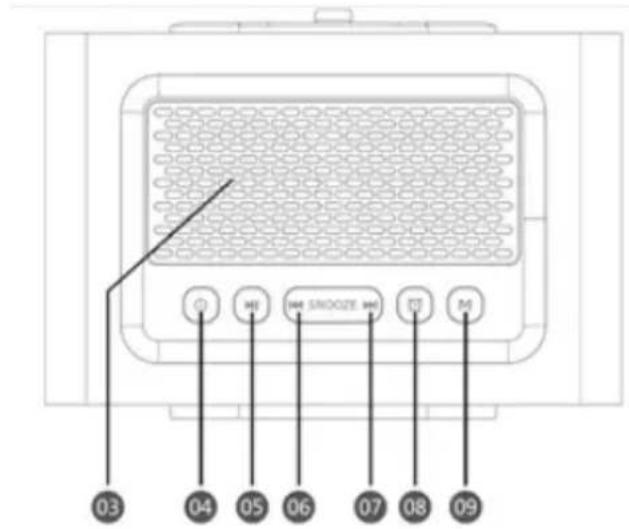

03—Speaker. 04—Power button.

05—Play/Pause key for play/pause and mute function operation.

06—Previous/volume – button for previous track selection and volume adjustment.

07—Next/volume + button for next track selection and volume adjustment.

08—Clock button.

09—Mode button to switch the play mode between USB/microSD/FM/AUX IN mode.

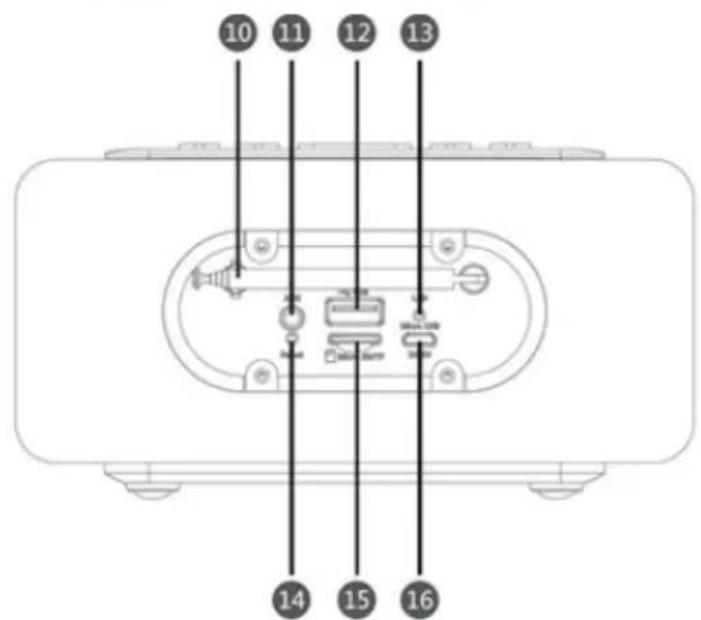

10—FM antenna. 11—AUX IN jack.

12—USB port. 13—Power LED indicator.

14—System reset. 15—microSD slot.

16—DC5V power jack.

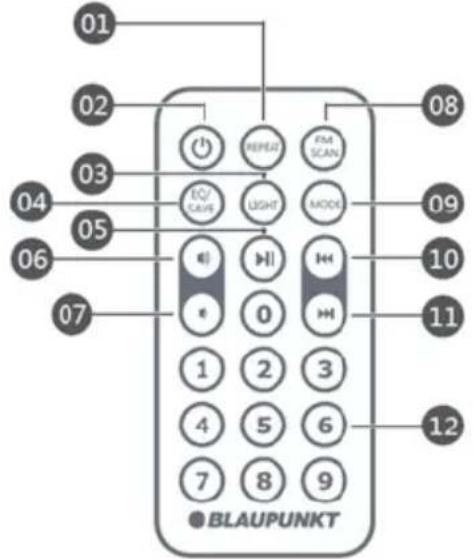

Remote control

01—Repeat button (Repeat all, random and repeat one).

02—Power ON/OFF button.

03—Light button for display backlight brightness adjustment.

04—EQ selection button (only for USB/microSD card playback mode)

05—Play/Pause button. 06—Volume+.

07—Volume -.

08—FM auto scan button. 09—Mode button for play source selection.

10—Previous button. 11—Next button.

12—Digits button (0~9).

Notes:

a. Before you use the remote control, please make sure the CR2025 battery has been installed inside properly according to the polarity indication. b. Please remove the power insulation sheet before using the remote control. c. Please dispose of the exhausted battery in an environmentally friendly method. Please reference your local government's requirements for details. d. The best operation distance for the remote control is within 5 meters without any obstruction. Please aim at the remote control sensor on the unit's front panel for operation.

Unit installation and power setting

DC power: Using the supplied USB power cable, connect with the DC adapter; and connect the other terminal of the USB cable to the micro USB DC power jack on the back panel of the unit. Then plug the DC adapter into your household power source. The red LED power indication will light up after the power connection is successful.

Press the power button for 2 seconds on the front panel of the unit to power on/off the unit. Press the power button on the remote control to standby on/off the unit. The display will light up after power on, and then you can start other operations.

Battery charging: The unit will start charging after connection with DC power, and the power LED on the rear panel will turn green when fully charged. You can check the battery power status by looking at the battery icon on the right top corner of the display. The unit will turn off automatically in case of exhausted battery power. Please arrange re-charging for playing.

Unit power on and standby: Press the power button for 2 seconds on the top panel of the unit to power on/off the unit. Short press the power button on the top panel or remote control can standby on/off the unit (clock time interface on display without sound output). The display will light up after power on, and then you can start other operations.

Notes:

a. The supplied USB power cable includes a universal USB connector and a micro USB connector. The universal USB connector is for DC adapter connection, and the micro USB connector is for DC power USB jack connection. b. Only the supplied power adapter or same rating spec adapter is allowed to use for power operation. c. When you press off power by the power button on the top panel, then the unit cannot power on by remote control due to the power being cut off completely. Please press the power button on the top panel to power on the unit again. d. The unit can play audio during charging; we suggest to power off (display off) the unit for charging in case of fully charging the battery at once.

Display back-light adjustment (dimmer)

Press the "LIGHT" button on the remote control to adjust the display backlight brightness between high, middle, and low levels.

Volume adjustment: Press and hold the previous & next buttons on the top panel to increase or decrease the volume level at high speed. If you short press the previous & next buttons, the volume output level will adjust step by step. If you hold the button for 3 seconds without further operation, the previous & next buttons will resume their function for last/next track selection.

Time operation

Clock time: Power on the unit, then short press the power button again to enter the clock time interface. Short press the mode button 3 times continuously to start the setting, and the hour's digits will flash on the display. Press the previous/next button to adjust the hour. Press the clock button to skip to minute's setting, or press the clock button again to return to hour's setting if needed. Press the previous/next button to adjust the minute, and short press the power button to complete the clock setting.

Alarm operation: Power on the unit, then short press the power button again to enter the clock time interface. Short press the mode button once to start the alarm 1 setting, and the alarm 1 icon (bell with digit 1) will light up. Press the previous/next button to adjust the hour. Press the clock button to skip to minute's setting, or press the clock button again to return to hour's setting if needed. Press the previous/next button to adjust the minute. Press the clock button to skip to alarm source selection, then press the previous/next button to switch the alarm source between beep/USB/microSD/radio/play. Short press the play/pause button and power button again to confirm and complete the alarm setting. For alarm 2 setting, press the mode button twice to start the setting program. The rest of the operation is the same as alarm 1.

Tips:

a. The clock and alarm will work if there is available battery power or DC power connection. We suggest connecting DC power for long-term use. b. When the alarm activates, pressing any button except the previous/next button can cancel the alarm sound, and it will wake up again at the same time the next day. The duration of the alarm voice is 5 minutes and it turns off automatically if there is no further operation. c. When the alarm activates, short press the snooze button to enter snooze mode. The alarm will wake up again in another 5 minutes. Pressing any other button can cancel the snooze. d. Short press the clock button on the top panel once to turn off or on alarm 1; short press it twice to turn off or on alarm 2; long press it to turn off or on both alarm 1 and alarm 2 at once. e. When selecting USB/microSD/radio as the alarm source, short press the play/pause button to preview the alarm track or preset radio station, short press the previous/next button to switch the previewed alarm track and preset station, and press the play/pause button to return to the alarm setting operation. f. When selecting play as the alarm source, the unit can wake up and automatically play the radio/USB/microSD when the time is reached. Short press the play/pause button to switch the wake-up source between play-radio/play-USB/play-microSD. The unit will play for 120 minutes and turn off automatically. g. Please make sure the USB/microSD device with music is properly plugged into the unit when selecting USB/microSD as the alarm source. h. The alarm works in power-off mode (display off).

Sleep: When the unit is in standby mode (clock time interface), short press the play/pause button to activate the sleep setting, short press the previous/next button to adjust the sleep time between off/15/30/45/60/75/90/120, and short press the play/pause button again to confirm the selection. In audio playing mode (radio/USB/microSD/Bluetooth/aux in), the sound will automatically turn off after the selected sleep time arrives. If you return to standby mode and short press the play/pause button again, you can check the remaining sleep minutes.

FM radio operation

The unit has an external antenna that allows you to listen to FM radio stations. Before listening to the radio, please fully extend the antenna and try to move the unit next to a window to get a better radio signal.

Power on the unit, press the "M" key on the top panel of the unit or press the "MODE" button on the remote control to enter radio mode.

1. Auto tune and preset: Short press the "FM SCAN" button, or press and hold the "PLAY/PAUSE" button on the remote control and top panel of the unit for 3 seconds, and the unit will scan and save available stations automatically. The unit can save up to 60 preset stations.
2. Auto scan: Press and hold the "Previous" and "Next" buttons on the top panel or remote control to auto scan available stations in upward or downward frequency.
3. Station manual memory: When you get a favorite station by auto scan, short press the "SAVE" button on the remote control to save the current station. Short press the "REPEAT" key on the remote control, then press the volume – and volume + buttons on the remote control to change the radio frequency by 0.1 MHz steps. Press the "SAVE" button to save the current station manually. If you remain inactive for 10 seconds, the volume knob will resume its volume control function.
4. Remove weak signal preset station: If you find a weak signal or dislike a radio station while picking up preset stations by pressing the "next" and "previous" buttons, long press the "0" digit button on the remote control to remove the current preset station. The subsequent preset station numbers will move forward accordingly.
5. Get a specific station: To get a specific frequency station, you can input the frequency directly using the digit buttons on the remote control. For example, if you want to listen to the radio frequency at "104.3 MHz", just key in 1-0-4-3 using the digit buttons on the remote control. The unit will then skip to and play the defined station.
6. Preset station picking up: Short press the "Previous" or "Next" button on the remote control or front panel to pick up the preset station. Alternatively, input the preset station number using the digit buttons on the remote control. For example, if you want to listen to preset station number 12, just key in 1-2 on the remote control, and the related station will be played.

USB and microSD card playback operation

Before starting the MP3 playback function, make sure the USB and microSD card have been inserted into the USB or microSD port on the unit's rear panel. Also, the MP3 music must have been copied and stored inside the device. The unit supports devices up to 32GB capacity.

1. Press the "MODE" or "M" button to enter USB or microSD card playback mode. The unit will automatically detect and start playing the music after showing the total number of tracks.
2. Short press the "Previous" or "Next" button to select the previous or next track. Press and hold the "Previous" or "Next" button on the remote control to fast-forward or fast-rewind the current playing track.

track.

1. Key in the related number using the digit buttons on the remote control to quickly pick up and play the track.
2. Short press the "REPEAT" button on the remote control to switch the play mode between repeat all, repeat one, and random. Press and hold the Play/Pause button on the front panel of the unit for 3 seconds to get the same operation.
3. If you want to repeat play a specific section of a track, press and hold the "REPEAT" button for 3 seconds until "P—A" shows on the display to select the start point. Then press and hold the "REPEAT" button for 3 seconds until the display shows "P--b" to select the end point. The unit will then repeat play the selected section. Press and hold the "REPEAT" button until "P---E" shows on the display to cancel and quit the specific repeat function.
4. During MP3 playback, briefly pressing the EQ button on the remote control cycles through the equalizer presets: NORMAL, ROCK, POP, CLASS, JAZZ, and BASS.

Notes:

a. Using an extension cable for USB connection is not recommended, as it may affect audio signal transfer and cause noise. b. The unit can only detect and play music when a USB drive or microSD card is installed.

AUX IN/MP3 Link operation

Use the supplied 3.5mm stereo-to-3.5mm audio cable to connect the AUX IN jack on the rear panel of the unit to another player (e.g., MP3 player). The unit will automatically enter AUX IN playback mode. Select and play music from your player, and the sound will be output through the radio.

Please note that the main controls are on your player. In AUX IN mode, the radio can only adjust volume and play/pause functions.

Specifications:

Power source: DC IN 5V/600mA; 3.7V/1800mA (battery power)

RMS output power: 2 x 2.5W RMS.

FM frequency range: 87.5~108.0MHz.

USB rated output: 150 mA.

Power consumption: 9.5W.

Standby power consumption: < 0.5W.

Factory defaults:

System time: 00:00,

Time format: 24 hours.

Sleep: OFF.

Alarm duration: 5 minutes.

Volume: 15.

(The specification may be revised without prior notice.)

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

RISK OF ELECTRIC SHOCK DO NOT OPEN

Important safety instructions

Caution:

To reduce the risk of electric shock, do not remove the cover or the back of the device. There are no user-serviceable parts inside. Maintenance and repair should be performed only by qualified service personnel.

Explanation of graphical symbols:

The lightning flash with arrowhead symbol within an equilateral triangle alerts the user to the presence of uninsulated dangerous voltage within the device's enclosure that may be of sufficient magnitude to cause electric shock.

The exclamation point within an equilateral triangle alerts the user to the presence of important operating and maintenance instructions in the documentation accompanying the device.

Competence Centre Audio

2N-Everpol Sp. z o.o.

ul. Puławska 403A

02-801 Warsaw, Poland

phone: [phone]

e-mail: [e-mail]

www.blaupunkt.com

In case of questions or problems

please contact our service.

Tel. [phone]

E-mail: [e-mail]

All rights reserved. All brand names are registered trademarks of their

respective owners. Specifications are subject to change without prior notice.
