USER MANUAL DEH-1100MPB PIONEER

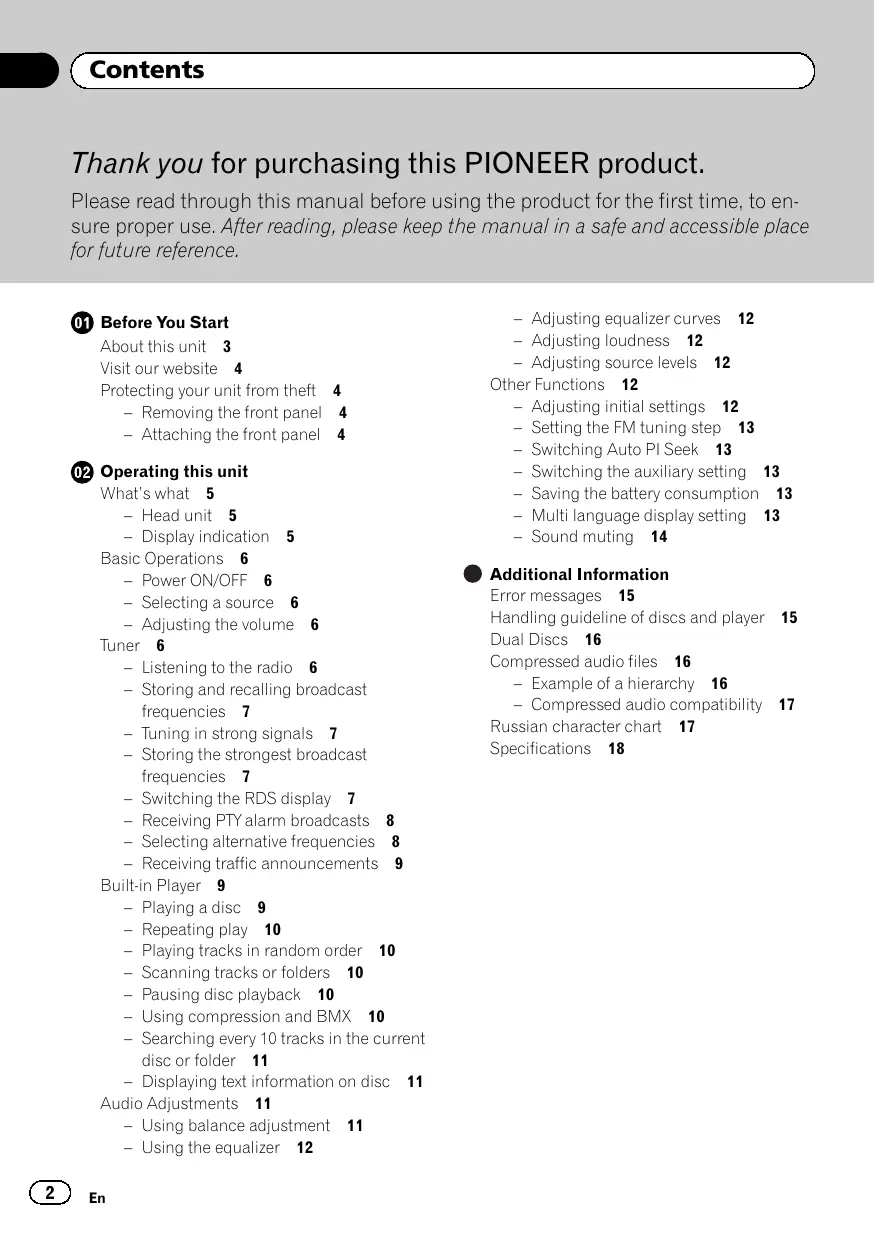

_) ( Contents Thank you for purchasing this PIONEER product. Please read through this manual before using the product for the first time, to en- sure proper use. After reading, please keep the manual in a safe and accessible place for future reference. @® Before You Start About this unit _3 Visit our website 4 Protecting your unit from theft 4 — Removing the front panel 4 — Attaching the front panel 4 @ operating this unit What's what 5 — Head unit 5 — Display indication 5 Basic Operations 6 — Power ON/OFF 6 — Selecting a source 6 — Adjusting the volume 6 Tuner 6 — Listening tothe radio 6 — Storing and recalling broadcast frequencies 7 — Tuning in strong signals 7 — Storing the strongest broadcast frequencies 7 — Switching the RDS display 7 — Receiving PTY alarm broadcasts 8 — Selecting alternative frequencies 8 — Receiving traffic announcements 9 Built-in Player 9 — Playingadisc 9 — Repeating play 10 — Playing tracks in random order 10 — Scanning tracks or folders 10 — Pausing disc playback 10 — Using compression and BMX 10 — Searching every 10 tracks in the current disc or folder 11 — Displaying text information on disc 11 Audio Adjustments 11 — Using balance adjustment 11 — Using the equalizer 12 — Adjusting equalizer curves 12 — Adjusting loudness 12 — Adjusting source levels 12 Other Functions 12 — Adjusting initial settings 12 — Setting the FM tuning step 13 — Switching Auto PISeek 13 — Switching the auxiliary setting 13 — Saving the battery consumption 13 — Multi language display setting 13 Sound muting 14 @ Additional Information Error messages 15 Handling guideline of discs and player 15 Dual Discs 16 Compressed audio files 16 — Example of a hierarchy 16 — Compressed audio compatibility 17 Russian character chart 17 Specifications 18

(Before You Start If you want to dispose this product, do not mix itwith general household waste. There is a se- parate collection system for used electronic products in accordance with legislation that re- quires proper treatment, recovery and recy- cling. Private households in the member states of the EU, in Switzerland and Norway may return their used electronic products free of charge to desig- nated collection facilities or to a retailer (if you purchase à similar new one). For countries not mentioned above, please con- tact your local authorities for the correct method of disposal By doing so you will ensure that your disposed product undergoes the necessary treatment, re- covery and recycling and thus prevent potential negative effects on the environment and human health. About this unit The tuner frequencies on this unit are allo- cated for use in Western Europe, Asia, the Middle East, Africa and Oceania. Use in other areas may result in poor reception, The RDS radio data system) function operates only in areas with FM stations broadcasting RDS sig- nals. FIN CAUTION + Do not allow this unit to come into contact with liquids. Electrical shock could result. Also, damage to this unit, smoke, and over- heating could result from contact with liquids.

+ “CLASS 1 LASER PRODUCT"

This product contains à laser diode of higher class than 1. To ensure continued safety, do not remove any covers or attempt to gain ac- cess to the inside of the product. Refer all ser- vicing to qualified personnel. + The Pioneer CarStereo-Pass is for use only in Germany. + Keep this manual handy as a reference for op- erating procedures and précautions. + Always keep the volume low enough so that you can hear sounds from outside the vehicle. + Protect this unit from moisture. +_Ifthe battery is disconnected or discharged, the preset memory will be erased and must be reprogrammedi + Should this product fail to operate properly, contact your dealer or nearest authorized Pioneer Service Station. About WMA

The Windows MediaT" logo printed on the box indicates that this unit can play back WMA data. Windows Media and the Windows logo are tra- demarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. +_ This unit may not operate correctly depend- ing on the application used to encode WMA files.

01] {Before You Start About MP3 Supply of this product only conveys a license for private, non-commercial use and does not convey a license nor impiy any right to use his product in any commercial (Le. revenue- generating) real time broadcasting (terrestrial. satellite, cable and/or any other media), broad- casting/streaming via internet, intranets and/ or other networks or in other electronic con- tent distribution systems, such as pay-audio or audio-on-demand applications. An indepen- dent license for such use is required. For de- tails, please visit http/Aw.mpälicensing.com. (=) Visit our website Visit us at the following site: http://www.pioneer.co.uk + Register your product. We will keep the de- tails of your purchase on file to help you refer to this information in the event of an insurance claim such as loss or theft. + _ We offer the latest information about Pioneer Corporation on our website. (=) Protecting your unit from theft The front panel can be detached to deter theft. O Important + Handle gently when removing or attaching the front panel Avoid subjecting the front panel to excessive shock Keep the front panel out of direct sunlight and high temperatures. Before detaching, be sure to remove the AUX cable from the front panel. Otherwise, this unit, connected device or vehicle interior may be damaged

Removing the front panel 1 Press DETACH to release the front panel. 2 Grab the front panel and remove. 3 Putthe front panel into the provided protective case for safe keeping. Attaching the front panel 1 Slide the front panel to the left until it dlicks. Front panel and the head unit are jointed on the left side. Make sure that the front panel has been jointed to the head unit 2 Press the right side of the front panel until it is firmly seated. =_Ifyou can't attach the front panel to the head unit successfully, try again. Front panel may be damaged if you attach the front panel forcediy.

(Operating this unit What's what Head unit @ FUNCTION button Press to recall the function menu when op- erating a source @ AUDIO button Press to select various sound quality con- trols © A/v/4/» buttons Press to perform manual seek tuning, fast forward, reverse and track search controls. Also used for controlling functions. @ Disc loading slot Insert a disc to play. @ EJECT button Press to eject a CD from your built-in CD player. @ DISPLAY button Press to select different displays. Press and hold to scroll through the text in- formation @ TA button Press to turn TA function on or off. Press and hold to turn AF function on or off. © DETACH button Press to remove the front panel from the head unit © AUX input jack (3.5 mm stereo jack) Use to connect an auxiliary device. 4 1to 6 buttons Press for preset tuning 4 SOURCE button, VOLUME This unit is turned on by selecting a source. Press to cycle through all the available sources. Press and hold to recall the initial setting menu when the sources are off Rotate it to increase or decrease the volume. 4 EQ button Press to select various equalizer curves. Press and hold to turn loudness on or off. @ BAND button Press to select among MW/LW and two FM bands and cancel the control mode of func- tions Display indication pariraun) Bi] Je Do oo © Main display section Shows the various information such as band, play time, and other setting + Tuner Band and frequency are displayed. + RDS Program service name, PTY information and other literal information are dis- played + Builtin CD Player Elapsed playback time and literal infor- mation are displayed @ Preset number/track number indicator Shows the track number or preset number. Section

+_ Ha track number 100 or more is selected æ on the left of the track number indica- tor will light. © AFindicator Appears when AF (alternative frequencies search) function is on. © TPindicator Appears when a TP station is tuned in © TAindicator Appears when TA (traffic announcement standby) function is on. © MP3/WMA indicator Shows the type of the currently playing disc. @ RPTindicator Shows when repeat play is turned on © LOUDindicator Appears when loudness is on © ® (stereo) indicator Appears when the selected frequency is being broadcast in stereo. ® LOCindicator Appears when local seek tuning is on.[=) Basic Operations Power ON/OFF Turning the unit on © Press SOURCE to turn the unit on. Turning the unit off © Press SOURCE and hold until the unit turns off. Selecting a source You can select a source you want to listen to. Œ à © Press SOURCE to select a source. Press SOURCE repeatediy to switch between the following sources. Tuner—Built-in CD player—AUX 5 Notes + _Inthe following cases, the sound source will not change — When there is no disc in the unit — When AUX (auxiliary input) is set to off refer to page 13). + AUX:is set to on by default. Turn off the AUX when not in use (refer to Switching the auxili ary setting on page 13) + When this unit's bluewhite lead is connected to the vehicle's auto-antenna relay control terminal, the vehicle's antenna extends when this unit's source is turned on. Te retract the antenna, turn the source off Adijusting the volume © Turn VOLUME to adjust the sound level. Tuner Listening to the radio 1 Press SOURCE to select the tuner. 2 Press BAND to select a band. Press BAND until the desired band (F1, F2 for FM or MW/LW) is displayed 3 To perform manual tuning, briefly press «or». 4 To perform seek tuning, press and hold <or» for about one second and release. The tuner will scan the frequencies until a broadcast strong enough for good reception is found. = You can cancel seek tuning by briefly pressing «or».

(Operating this unit = While pressing and holding 4 or. you can skip stations. Seek tuning starts as soon as you release « or > Storing and recalling broadcast frequencies © When you find a frequency that you want to store in memory, press one of pre- set tuning buttons 1 to 6 and hold until the preset number stops flashing. Memorized radio station frequency can be re- called by pressing the preset tuning button. = Upto 12 FM stations, 6 for each of the two FM bands, and 6 MW/LW stations can be stored in memory = Press A or Y to recall radio station frequen- cies Tuning in strong signals Local seek tuning lets you tune in only those radio stations with sufficiently strong signals for good reception 1 Press FUNCTION to select LOCAL.

2. Press A or Y to turn local seek tuning

on or off. 3 Press «or» to set the sensitivity.

The LOCAL 4 setting allows reception of only the strongest stations, while lower settings let you receive progressively weaker stations. Storing the strongest broadcast frequencies BSM (best stations memon)) lets you automa- tically store the six strongest broadcast fre- quencies under preset tuning buttons 1 to 6. Once stored you can tune in to those frequen- cies with the touch of button + Storing broadcast frequencies with BSM may replace broadcast frequencies you have saved using buttons 1 to 6. 1 Press FUNCTION to select BSM. 2 Press À to turn BSM on. The six strongest broadcast frequencies are stored in the order of their signal strength "To cancel the storage process, press w Switching the RDS display RDS (radio data system) contains inaudible in- formation that helps search for the radio sta- tions. + RDS service may not be provided by all sta- tions. + RDS functions such as AF and TA are only active when your radio is tuned to an RDS station © Press DISPLAY. Press DISPLAY repeatedly to switch between the following settings Program service name—PTY information— Frequency = PTY information and the frequency appear on the display for eight seconds. PTY list News AFFAIRS Current affairs INFO General information and advice SPORT Sports WEATHER Weather reports/meteorological infor mation FINANCE Stock market reports, commerce, trading, etc. POP MUS Popular music ROCK MUS Contemporary modern music EASY MUS Easy listening music OTHMUS Non-categorized music: JAZZ Jar COUNTRY Country music: NATMUS National music OLDIES Oldies, golclen oldies FOLK MUS Folk music Section

LCLASS Light classical music CLASSIC Classical music EDUCATE Educational programs DRAMA Radio plays and serials CULTURE National or regional culture SCIENCE Nature, science and technology VARIED Light entertainment CHILDREN Children's SOCIAL Social affairs RELIGION Religious affairs or services PHONEIN Phonein TOURING Travel programs; not for traffic an- nouncements LEISURE Hobbies and recreational activities DOCUMENT Documentaries Receiving PTY alarm broadcasts When the emergency PTY code broadcasts the unit receives it automatically (ALARM ap- pears). When the broadcasting ends, the sys- tem returns to the previous source. + An emergency announcement can be can- celed by pressing TA. You can also cancel an emergency an- nouncement by pressing SOURCE, BAND, AY, 40» Selecting alternative frequencies When the tuner cannot get a good reception, the unit automatically searches for a different station in the same network. © Press and hold TA repeatedly to turn AF {alternative frequency search) on or off. = _ You can also turn the AF function on or off in the menu that appears with the pressing of FUNCTION. 72 Notes + Only RDS stations are tuned in during seek tuning or BSM when AF is on. When you recall a preset station, the tuner may update the preset station with a new fre- quency from the station's AF list. (This is only available when using presets on the F1 or F2 bands.) No preset number appears on the dis- Œ # play if the RDS data for the station received differs from that for the originally stored sta- tion + Sound may be temporarily interrupted by an other program during an AF frequency search +_AF can be turned on or off independentiy for each FM band Using PI Seek IFthe tuner cannot find a suitable station, or reception status becomes bad, the unit auto- matically searches for a different station with the same programming. During the search, PI SEEK is displayed and the output is muted. Using Auto PI Seek for preset stations When preset stations cannot be recalled, as when travelling long distances, the unit can be set to perform PI Seek during preset recall. + The default setting for Auto PI Seek is off. See Switching Auto PI Seek on page 13 Limiting stations to regional programming When AF is used, the regional function limits the selection of stations broadcasting regional programs 1 Press FUNCTION to select REG. 2 Press A or Y to turn the regional func- tion on or off. 72 Notes Regional programming and regional networks are organized differently depending on the country (Le. they may change according to the hour, state or broadcast area) The preset number may disappear from the display if the tuner tunes in à regional station which differs from the originally set station + The regional function can be turned on or off independentiy for each FM band

(Operating this unit Receiving traffic announcements TA (traffic announcement standby) lets you re- ceive traffic announcements automatically, no matter what source you are listening to. TA can be activated for both a TP station (a sta- tion that broadcasts traffic information) or an enhanced other network's TP station (a station carrying information which cross-references TP stations). 1 Tune in a TP or enhanced other net- work's TP station. TP indicator lights. 2 Press TA to turn traffic announcement standby on. = To turn traffic announcements standby off, press TA again 3 Use VOLUME to adjust the TA volume when a traffic announcement begins. The newly set volume is stored in memory and recalled for subsequent traffic announce- ments. 4 Press TA while a traffic announcement is being received to cancel the announce- ment. The tuner returns to the original source but re- mains in the standby mode until TA is pressed again = _ You can also turn the TA function on or off in the menu that appears with the pressing of FUNCTION FA Notes + _ The system switches back to the original source following traffic announcement recep- tion + Only TP and enhanced other networks TP sta- tions are tuned in during seek tuning or BSM when TA is on.(s) Built-in Player Playing a disc 1 _ Insert a CD (CD-ROM) into the disc load- ing slot. Playback will automatically start = Be sure to turn up the label side of a disc. =_After a CD (CD-ROM) has been inserted, press SOURCE to select the built-in CD player = _ You can eject a CD (CD-ROM) by pressing EJECT. 2 Press 4 or Y to select a folder when playing a compressed audio. = You cannot select a folder that does not have a compressed audio file recorded in it. = To return to folder 01 (ROOT), press and hold BAND. However if folder 01 (ROOT) contains no files, playback commences with folder 02. 3 To perform fast forward or reverse, press and hold < or ». = _ If you select ROUGH, pressing and holding 4 or» enables you to search every 10 tracks in the current disc (folder). (Refer to Searching every 10 tracks in the current disc or folder on page 11.) 4 To skip back or forward to another track, press < or». Notes + Read the precautions for discs and player on page 15. +_lfan error message such as ERROR-11 is dis- played, refer to Error messages on page 15. + _ There is sometimes a delay between starting up disc playback and the sound being issued When being read, FRMTREAD is displayed + When playing CD-EXTRA or MIXED-MODE CDs, compressed audio and CD-DA can be switched by pressing BAND. +_ If you have switched between compressed audio and CD-DA, playback starts at the first track on the disc: Section

+ The built-in CD player can play back com- pressed audio recorded on CD-ROM. (Please see the following section for files that can be played back. Refer to page 16.) + When playing back VBR (variable bit rate) re corded files, elapsed play time may not be dis- played correct. + When playing compressed audio, there is no sound on fast forward or reverse. Repeating play Repeat play plays the same track/folder within the selected repeat play range: 1 Press FUNCTION to select RPT. 2 Press < or to select the repeat range. DSC - Repeat all tracks TRK - Repeat the current track FLD - Repeat the current folder =_ If you select another folder during repeat play, the repeat play range changes to disc repeat. = When playing CD, performing track search or fast fonward/reverse cancels the repeat play auto matically, = When playing compressed audio, performing track search or fast forward/reverse during TRK {track repeat) changes the repeat play range to folder repeat. = When FLD (folder repeat) is selected, it is not possible to play back a subfolder of that folder. = To return lo the normal display, press BAND. Playing tracks in random order Tracks in a selected repeat range are played in random order. 1 Select the repeat range. Refer to Repeating play on this page 2 Press FUNCTION to select RDM. 3 Press À or Y to turn random play on or off. When random play is on, RDM appears in the display. AD en If you turn random play on during folder re- peat, FRDM appears in the display. = To return to the normal display, press BAND. Scanning tracks or folders Scan play searches the song within the se- lected repeat range: 1 Select the repeat range. Refer to Repeating play on this page. 2 Press FUNCTION to select SCAN. 3 Press A to turn scan play on. SCAN appears in the display. The first 10 sec- onds of each track is played. = Ifyou turn scan play on during FLD, FSCN ap pears in the display

4. When you find the desired track press

Y to turn scan play off. = _lfthe display has automatically returned to the playback display, select SCAN again by press ing FUNCTION = After scanning of a disc (folder) is finished normal playback of the tracks begins: Pausing disc playback Pause lets you temporarily stop playback of the disc 1 Press FUNCTION to select PAUSE. 2 Press 4 or Y to turn pause on or off. = Toretum to the normal display, press BAND. Using compression and BMX Using the COMP (compression) and BMX functions let you adjust the sound playback quality of this unit 1 Press FUNCTION to select COMP OFF.

(Operating this unit 2 Press A or Y to select your favorite set- ting.

= Toretur to the normal display, press BAND. Searching every 10 tracks in the current disc or folder You can switch the search method between fast forward/reverse and searching every 10 tracks. Selecting ROUGH enables you to search every 10 tracks. 1 Press FUNCTION to select FF/REV. = _Ifthe search method ROUGH has been pre viousiy selected, ROUGH will be displayed 2 Press » to select ROUGH. + FF/REV - Fast forward and reverse + ROUGH - Searching every 10 tracks = To select FF/REV, press 4 3 Press BAND to return to the playback display. 4 Press and hold < or » to search every 10 tracks on a disc (folder). = _lfthe rest of track numbers less than 10, press and hold 4 or æ recalls the first (last) one. Displaying text information on disc © Press DISPLAY. Press DISPLAY repeatediy to switch between the following settings: For CD TEXT discs Play time—DISC TTL (disc title) —ART NAME (disc artist name)—TRK TTL (track title) — ART NAME (track artist name) For WMA/MP3 Play time—FOLDER (folder name)—FILE (file name)—TRK TTL (track title)—ART NAME (ar- tist name)—ALBM TTL (album title) — COMMENT (comment) —Bit rate For WAV Play time—FOLDER (folder name)—FILE (file name)—Sampling frequency 72 Notes +_ You can scroll to the left of the title by pressing and holding DISPLAY. +_ Audio CD that contains certain information such as text and/or number is CD TEXT. + _lfspecific information has not been recorded on a disc, NO XXXX will be displayed (8.9) NO TTL) + When playing back VBR (variable bit rate)-re- corded WMA files, the average bit rate value is displayed + When playing back VBR (variable bit rate)-re- corded MP3 files, VBR is displayed instead of bit rate value + Depending on the version of iTunes used to write MP3 files onto a disc, comment informa- tion may not be correctiy displayed — iTunes is à trademark of Apple Inc. regis- tered in the U.S. and other countries. + The sampling frequency shown in the display may be abbreviated. (=] Audio Adjustments Using balance adjustment Fader/balance setting creates an ideal listen- ing environment in all occupied seats. 1 Press AUDIO to select FAD. 2 Press A or Y to adjust front/rear speak- er balance. FAD F15 to FAD R15 is displayed = FADOis the proper setting when only two speakers are used. 3 Press «or» to adjust left/right speaker balance. BAL L15 to BAL R15 is displayed = Toretum to the normal display, press BAND. Section

Using the equalizer There are six stored equalizer settings such as DYNAMIC, VOCAL. NATURAL, CUSTOM, FLAT and POWERFUL that can easily be re- called at any time. + CUSTOM is an adjusted equalizer curve that you create. + When FLAT is selected no supplement or correction is made to the sound © Press EQ to select the equalizer. Press EQ repeatedly to switch between the fol- lowing equalizers:

DYNAMIC—VOCAL—NATURAL—CUSTOM

—FLAT—POWERFUL Adjusting equalizer curves You can adjust the currently selected equalizer curve setting as desired. Adjusted equalizer curve settings are memorized in CUSTOM. Adjusting bass/mid/treble You can adjust the bass/mid/treble level 1 Press AUDIO to select BASS/MID/ TREBLE. 2 Press A or Y to adjust the level. +6 to 6 is displayed as the level is increased or decreased = Toretum to the normal display, press BAND. Adjusting loudness Loudness compensates for deficiencies in the low- and high-sound ranges at low volume 1 Press AUDIO to select LOUD. 2 Press A or Y to turn loudness on or off. = _ You can also turn loudness on or off by press- ing and holding EQ. 3 Press «or to select a desired level. LOW (low)—HI (high) = To return lo the normal display, press BAND. GD en Adjusting source levels SLA (source level adjustment) lets you adjust the volume level of each source to prevent ra- dical changes in volume when switching be- tween sources. + Settings are based on the FM volume level, which remains unchanged +_ The MW/LW volume level can also be ad- justed with source level adjustments. 1 Compare the FM volume level with the level of the source you wish to adjust. 2 Press AUDIO to select SLA. 3 Press A or Y to adjust the source vo- lume. SLA +4 to SLA -4 is displayed as the source volume is increased or decreased. = To return to the normal display, press BAND (=) Other Functions Adijusting initial settings Using the initial settings, you can customize various system settings to achieve optimal per- formance from this unit 1 Press SOURCE and hold until the unit turns off.

2. Press SOURCE and hold until function

name appears in the display. 3 Press FUNCTION to select one of the in- itial settings. Press FUNCTION repeatedly to switch be- tween the following settings: FM (FM tuning step)—A-PI (auto PI Seek)— AUX (auxiliary input—SAVE (power save)— TITLE (multi language) Use the following instructions to operate each particular setting “To cancel initial settings, press BAND. = You can also cancel initial settings by holding down SOURCE until the unit turns off.

(Operating this unit Setting the FM tuning step Normally the FM tuning step employed by seek tuning is 50 kHz. When AF or TA is on, the tuning step automatically changes to 100 kHz. It may be preferable to set the tuning step to 50 kHz when AF is on + The tuning step remains at 50 kHz during manual tuning 1 Press FUNCTION to select FM. Refer to Adjusting initial settings on the pre- vious page. 2 Press «or» to select the FM tuning step. Press 4 to select 50 (50 kHz). Press » to se- lect 100 (100 kHz). Switching Auto PI Seek The unit can automatically search for a differ- ent station with the same programming, even during preset recall. 1 Press FUNCTION to select A-PI. Refer to Adjusting initial settings on the pre- vious page. 2 Press A or Y to turn the Auto PI seek on or off. Switching the auxiliary setting Itis possible to use auxiliary device with this unit, Activate the auxiliary setting when using auxiliary device connected to this unit 1 Press FUNCTION to select AUX. Refer to Adjusting initial settings on the pre- vious page. 2 Press A or Y to turn the auxiliary set- ting on or off. Using the AUX source © Insert the stereo mini plug into the input jack on this unit. Selecting AUX as the source © Press SOURCE to select AUX as the source. Saving the battery consumption Switching this function on enables you to save the consumption of battery power. + Operations other than turning on the source are not allowed when this function is on (] Important Ifthe battery in your vehicle is disconnected, the Power Save mode is canceled, Turn on Power Save again once the battery has been recon- nected. If the ignition switch in your vehicle dossn't have an ACC (accessory) position, it is possible depending on the connection method that when Power Save is off, the unit will draw power from the battery 1 Press FUNCTION to select SAVE. Refer to Adjusting initial settings on the pre- vious page. 2 Press À or Y to turn the power save on or off. Multi language display setting Text information such as title name, artist name or comment can be recorded on à com- pressed audio disc This unit can display them even if they are em- bedded in a European language or Russian. +_Ifthe embedded language and the selected language setting are not the same, text in- formation may not be displayed properly. + Some characters may not be displayed properly 1 Press FUNCTION to select TITLE. Refer to Adjusting initial settings on the pre- vious page. Section

2 Press «or» to select the language. EUR (European language)—RUS (Russian lan- guage) Sound muting Sound from this unit is muted automatically in the following cases: + _ When a call is made or received using a cellular telephone connected to this unit + When the voice guidance is output from a Pioneer navigation unit connected to this unit. The sound is turned off, MUTE is displayed and no audio adjustments, except volume con- trol, are possible, Operation returns to normal when the phone connection or the voice gui- dance is ended. (s)

Appendix (Additional Information Error messages When you contact your dealer or your nearest Pioneer Service Center, be sure to have the error message recorded Message Cause Action ERROR-11, 12, Dirty disc Clean disc. 17,30 ERROR-11,12, Scratched disc Replace disc. 17,30 ERROR-10, 11, 12, 15, 17, 30, Electrical or me. chanical Turn the ignition switch OFF and A0 back ON, or switch to a different source, then back to the CD player ERROR-15 Theinserted disc Replace disc. does not contain any data ERROR-22,23 The CD format cannot be played back Replace disc. NOAUDIO Theinserted disc does not contain any files that can be played back Replace disc. PROTECT All the files on the inserted disc are secured by DRM Replace disc. SKIPPED The inserted disc contains WMA files that are pro tected by DRM Replace disc. (O} Handling guideline of discs and player + Use only discs featuring either of following two logos. cit DIGITAL AUDIO compacr + Use only conventional, fully cireular discs. Do not use shaped discs. + Use 12-cm or 8-cm CD. Do not use an adapter when playing 8-cm CDs. + Do not insert anything other than a CD into the CD loading slot +_ Do not use cracked, chipped, warped, or otherwise damaged discs as they may da- mage the player. Unfinalized CD-R/CD-RW disc playback is not possible +_ Do not touch the recorded surface of the discs. + Store discs in their cases when not in use. + Avoid leaving discs in excessively hot envir- onments including under direct sunlight +_ Do not attach labels, write on or apply che- micals to the surface of the discs +_ To clean a CD, wipe the disc with a soft cloth outward from the center. + Condensation may temporarily impair the player's performance. Leave it to adjust to the warmer temperature for about one hour. Also, wipe any dump discs with a soft cloth Playback of discs may not be possible be- cause of disc characteristics, disc format, recorded application, playback environ- ment, storage conditions, and so on. us!Buz En 5)

+_ Text information may not be correctly dis- played depending on the recorded environ- ment. + _ Road shocks may interrupt disc playback. + Read the precautions for discs before using them. (®) Dual Discs + Dual Discs are two-sided discs that have a recordable CD for audio on one side and a recordable DVD for video on the other. + Since the CD side of Dual Discs is not phy- sically compatible with the general CD standard, it may not be possible to play the CD side with this unit + Frequent loading and ejecting of a Dual Disc may result in scratches on the disc. Serious scratches can lead to playback pro- blems on this unit. In some cases, a Dual Disc may become stuck in the disc loading slot and will not eject, To prevent this, we recommend you refrain from using Dual Disc with this unit + _ Please refer to the information from the disc manufacturer for more detailed infor- mation about Dual Discs. (=) Compressed audio files + Depending on the version of Windows Mediaï" Player used to encode WMA files, album names and other text information may not be correctiy displayed. There may be a slight delay when starting playback of WMA files encoded with image data. ISO 9660 Level 1 and 2 compliant. Romeo and Joliet file systems are both compatible with this player. Multi-session playback is possible. Compressed audio files are not compatible with packet write data transfer.

+ Oniy 82 characters from beginning can be displayed as a file name (including the file extension) or a folder name + Regardless of the length of blank section between the songs of original recording, compressed audio discs play with a short pause between songs. + Russian text to be displayed on this unit should be encoded with the following char- acter sets: — Unicode (UTF-8, UTF-16) — Character sets other than Unicode that are used in Windows environment and are set to Russian in the multi-language setting Example of a hierarchy C= Folder JF Compressed audio file n © 1 @

Level Level2 Level3 Level4 +_ This unit assigns folder numbers. The user cannot assign folder numbers: «_ Folder selection sequence or other opera- tion may be altered depending on the en- coding or writing software. + Folder hierarchy is allowed up to eight tiers. However, a practical hierarchy of folder is less than two tiers. + Up to 99 folders on a disc can be played back

Appendix _ (Addi ional Information Spec General Power source Grounding system Max. current consumption Dimensions (W x H x D}: DIN Chassis Nose Chassis Nose Weight Audio Maximum power output Continuous power output Load impedance Preout max output level Tone controls: Bass Frequency Gain Mid Frequency Gain Treble Frequency Gain CD player System Usable discs Signato-noise ratio Number of channels WMA decoding format MP3 decoding format WAV signal format FM tuner Frequency range Usable sensitivity Signal-to-noise ratio GS) en ations

14.4 V DC (10.8 V to 15.1 V

87.5 MHz to 108.0 MHz

72 dB (IEC-A network) MW tuner Frequency range Usable sensitivity Signal-to-noise ratio LW tuner Frequency range Usable sensitivity Signal-to-noise ratio KA Note 531 kHz to 1 602 kHz 25 LV (S/N: 20 dB) 62 dB (IEC-A networ) 153 kHz to 281 kHz 28 (S/N: 20 dB) 62 dB (IEC-A networ) Specifications and the design are subject to mod- ifications without notice due to improvements. (s)

+_ “PRODUIT LASER CLASSE 1"

+_“NASEPHPIA NPOAIYKT KNACCA 1"

KOMBTECS © MEPAMH NPEHOCTOPOXHOCTH

4-1, MEGURO 1-CHOME, MEGURO-KU
