MMM-06 - Mill MPM - Free user manual and instructions

Product Type	Electric meat grinder with shredder attachment
Brand	MPM
Model	MMM-06
Power Supply	220-240V ~ 50/60 Hz (typical household)
Continuous Operation	10 minutes (KB MAX)
Noise Level	80 dB (L_WA)
Power Cord Length	1.15 m
Mincing Screens	3 mm (fine), 4 mm (medium), 7 mm (coarse)
Included Accessories	Pusher, food tray, safety-lock button, mincing chamber, feed screw, stainless steel cutting blade, ring collar, sausage nozzle, two-piece pate attachment, three grater discs (small hole, shredding, large hole), shredder casing
Material	Plastic housing, stainless steel cutting blade and screens, aluminum grater parts
Safety Features	Safety-lock button, non-slip feet, automatic reverse function (R button) for clearing jams
Cleaning	Removable parts washable in warm soapy water; motor housing wiped with damp cloth
Usage	Household use only
Dimensions (approx.)	Not provided in manual; typical size for meat grinder
Weight (approx.)	Not provided in manual; typical weight ~3-4 kg

Frequently Asked Questions - MMM-06 MPM

How do I assemble the meat grinder?

First, insert the mincing chamber into the housing at a 45° angle and rotate until it locks with the safety-lock button. Then insert the feed screw, attach the cutting blade with sharp edges outward, choose a screen, and screw on the ring collar. Finally, attach the food tray.

Can I grind bones or nuts with this grinder?

No, the appliance is not designed for grinding bones, nut shells, or tough tendons. This may damage the blades or motor.

What should I do if the grinder gets jammed?

Immediately turn off the appliance and unplug it. Use the reverse function (set ON/OFF to OFF, press ON/R to R, then set ON/OFF to R) to clear the jam. If that fails, disassemble and remove the obstruction manually.

How do I make sausages using this appliance?

Remove the cutting blade and screen. Insert the feed screw, then the inner part of the pate attachment and the sausage nozzle. Tighten the ring collar. Soak sausage skins in warm water for 10 minutes, slide onto the nozzle, and feed seasoned meat using the pusher.

How do I clean the meat grinder?

Unplug the appliance. Disassemble all removable parts and wash them in warm soapy water. Do not immerse the motor housing; wipe it with a damp cloth. Dry all parts thoroughly and lightly oil the screens and blade to prevent rust.

Is the grinder dishwasher safe?

The manual does not specify dishwasher safety. It is recommended to hand wash all parts in warm soapy water to avoid damage.

What is the purpose of the reverse (R) button?

The R button reverses the feed screw direction to clear blockages or stuck meat. It should only be used momentarily when the appliance is jammed.

Can I use the grater attachment without removing the mincing chamber?

No, you must detach the mincing chamber and attach the shredder casing in its place. Then fit the desired grater disc and use the pusher.

How long can the appliance run continuously?

The maximum continuous operation time is 10 minutes (KB MAX). After that, let the appliance cool down before using again.

What safety precautions should I take?

Always unplug when not in use or before cleaning. Never feed food by hand; always use the pusher. Keep hands away from sharp blades. Do not immerse the motor housing. Keep children and pets away from the appliance during operation.

USER MANUAL MMM-06 MPM

White MPM feedstock with various kitchen utensils and a side view of its internal components (no text or symbols visible)

MONTÁŽ A POUŽITÍ STRUHADLA

▶ Please read all instructions before using.
▶Always unplug the appliance from a power outlet when not in use and before cleaning.
Before first use, make sure that the mains voltage matches the voltage shown on the appliance.

Do not let the power cord hang over sharp edges or touch hot surfaces.

▶ Never pull on the power cord to unplug the appliance.

Never leave the appliance unattended when in use.

Take special precautions when using the appliance near children.

Do not use the appliance if it appears to be faulty.

Do not use the appliance if the power cord or plug is damaged. In such case, return the appliance to an authorised service centre.

Using attachments not recommended by the manufacturer may result in damage to the appliance and/or personal injury.

Do not immerse the appliance, power cord or plug in water or other liquids. The power cord and plug must be dry at all times.

The appliance must only be used for its intended purpose.

This appliance is intended for household use only.

Always disconnect the appliance from a power outlet before assembly/disassembly accessories.

When moving the appliance, always hold too handle the motor housing.

▶ Never feed food into the appliance by hand. Always use the pusher.

This appliance is not intended for use by children under 8 years of age and individuals with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be carried out by children without supervision.

Make sure that children do not play with the appliance.

- Store the appliance and its cord out of reach of children under 8 years of age.

Do not put the unit on hot surfaces.

The unit is not designed to be used outdoors.

Before you start working with the unit, make sure all elements of the unit are correctly fastened.

▶ Never put the unit next to other electric units, burners, cookers, ovens etc.

Do not pull the plug by holding the power cord.

Do not connect the power plug with wet hands.

- Keep your children safe: do not leave any parts of the packaging readily accessible (i.e. plastic bags, cardboard boxes, polystyrene inserts, etc.).

NOTE: The cutting blades are very sharp, avoid touching them while emptying or cleaning the appliance - it may result in serious injury.

WARNING! Never let children play with plastic film or bags. Choking/asphyxiation hazard!

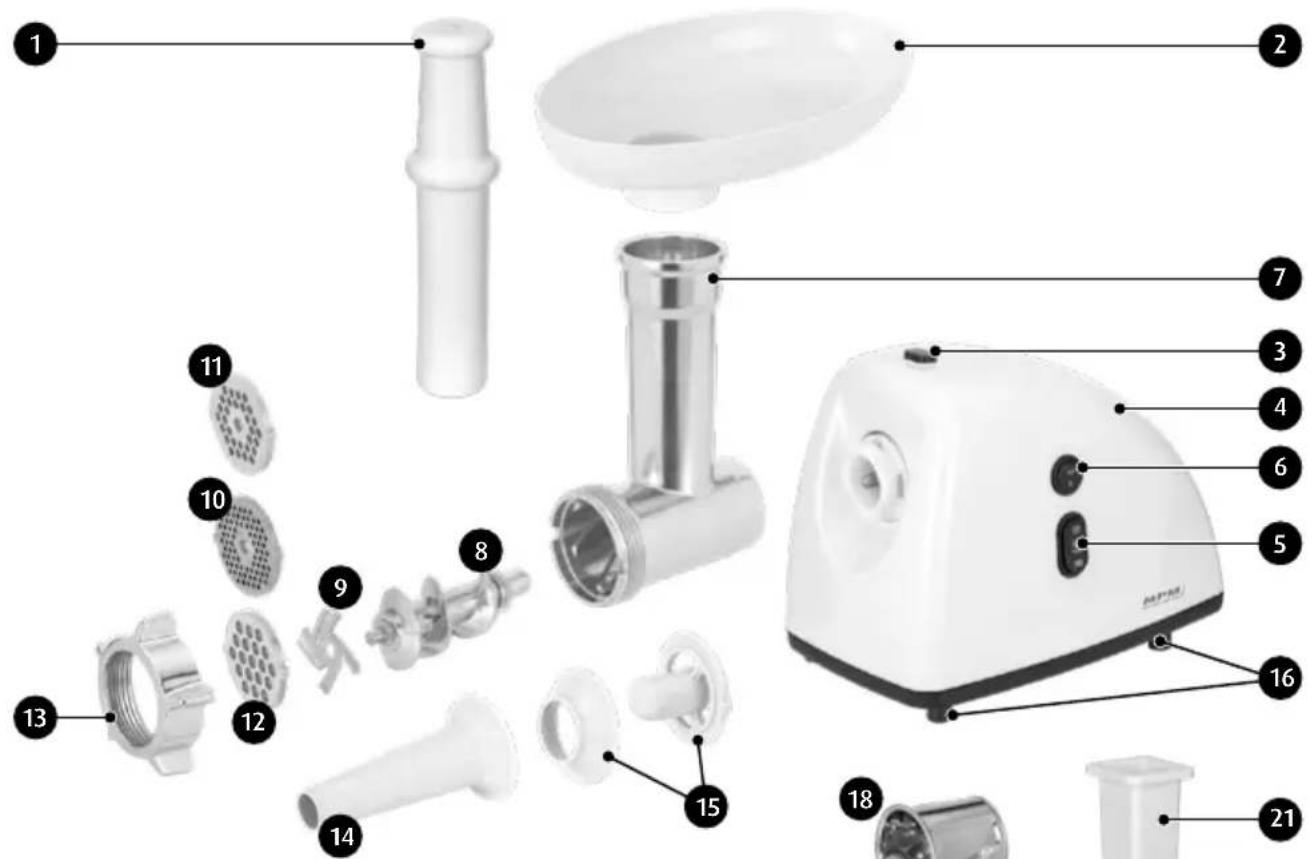

FEATURES

1. Pusher
2. Food tray
3. Safety-lock button
4. Housing
5. ON/OFF switch/R
6. ON/R switch
7. Mincing chamber
8. Feed screw
9. Stainless steel cutting blade
10. Fine mincer screen (3 mm holes)
11. Medium mincer screen (4 mm holes)
12. Coarse mincer screen (7 mm holes)
13. Ring collar
14. Sausage nozzle
15. Two-piece pate attachment

16. Non-slip feet

17. Small hole grater for vegetables and fruit

18. Vegetable slicing grater
19. Large hole grater for vegetables and fruit
20. Shredder casing
21. Pusher

BEFORE FIRST USE

1. Remove the appliance from the box. Remove all plastic sheets, bags and styrofoam inserts.
2. Wash all parts (except for the housing) in warm soapy water.
3. Make sure that your mains power supply corresponds to the voltage stated on the rating plate.
4. Make sure that the appliance is off before plugging.

ASSEMBLY

1. Place the appliance on a sturdy, level and dry surface
2. Insert the mincing chamber (7) into the housing (4) with the feed tube upwards and tilted 45^ to the right from the vertical as seen from the mincing chamber seat in the housing.
3. Press and hold the safety-lock button (3) of the mincing chamber, while turning the mincing chamber feed chute upward (7). Now, release the safety-lock button (3).
4. Insert the feed screw (8) into the mincing chamber (7) with the splined end to the inside (7). Next, mount the stainless steel cutting blade (9) on the feed screw (8) outer tip with the sharp edge blades outwards.
5. Next, fit one of the mincer screens (10), (11), (12) and screw on the ring collar (13).
6. When making sausage, replace the cutting blade (9) and one of the screens with the inner part of the pate attachment (15) and the sausage nozzle (14), and tighten the ring collar all the way up (13).
7. Fit the food tray (2) onto the mincing chamber in the right position.

MINCING MEAT

WARNING! Never use the appliance for mincing bones, nut shells and food with tough tendons.

WARNING! To avoid jamming, do not overload the appliance.

WARNING! If any hard material blocks the mincer screen or cutting blade, immediately switch off the appliance and remove the obstruction.

1. Cut meat into small chunks for easy feeding into the mincing chamber.
2. Plug in and switch on the appliance using the ON/OFF switch (5).
3. Guide seasoned meat through the feed tube using the pusher (1).
4. When finished mincing, switch the mincer off using the ON/OFF switch (5) and unplug it.
5. If the meat does not go through the mincer screen and the mincer runs heavy, turn the mincer off by setting the ON/OFF switch (5) OFF, set the ON/R button (6) R, and set the ON/OFF switch (5) R. When the meat moves back inside the mincing chamber, turn the mincer off by setting the ON/OFF switch (5) OFF. Next, clean the mincer parts of meat and strings.

MAKING SAUSAGES

1. Prepare the required amount of minced and seasoned meat. Fit the feed screw (8), the inner part of the pates attachment (15) and the sausage nozzle (14) inside the appliance and screw on the ring collar (13).

2. Soak the sausage skins in warm water for about 10 minutes. Pull the sausage skin onto the end of the nozzle (14).

3. Using the food pusher (1) gently guide the sausage filling into the mincing chamber. If necessary, wet the nozzle with some water.
4. The appliance is also provided with a pate attachment. To make pates, fit the pate attachment (15) inside the appliance and screw on the ring collar (13).

NOTE! When screwing on the ring collar, make sure not to screw it too tight as the feed screw may be blocked. The sausage nozzle and the pate attachment must not be used together with the cutting blade or the mincer screens.

ASSEMBLING AND USING THE GRATER

1. Detach the mincing chamber from meat mincer and attach the shredder casing (20) in its place.
2. Attach an appropriate grater (17), (18) or (19), onto the shredder casing (20)
3. Connect the mincer to mains outlet and turn it on with the switch.
4. Cut the products into pieces small enough to fit into the chamber. Do not shred stone fruits. Put products on the top hole and push with the pusher while operating the shredder (21).
5. After use, turn the mincer off, unplug it from the mains and detach the shredder from the mincer just like the mincing chamber. Clean all parts of the shredder.

WARNING! The blades of the cutter drum are extremely sharp. Handle carefully.

DISASSEMBLY

Disassembly is the reverse of assembly.

CLEANING AND MAINTENANCE

1. Do not use any sharp objects or harsh cleaners (such as solvents) for cleaning the appliance as they will permanently damage the mincer housing.
2. After each use, remove the remnants of minced products and wash all parts in contact with food in warm soapy water.
3. Using chlorine bleaching solutions will cause the aluminium parts to become discoloured.
4. Never immerse the motor housing in water or other liquids – wipe it with a damp cloth.
5. Never clean the appliance using any harsh cleaners which may cause damage to the appliance.
6. After washing, carefully dry all parts.
7. Wipe the mincer screens and the cutting blade with a light coating of vegetable oil to prevent rust developing.

Technical parameters are indicated on the product nameplate.

Noise level: L_WA = 80 dB

KB MAX: 10 min

Power cord lenght: 1,15 m

PROPER DISPOSAL OF THE PRODUCT (waste electrical and electronic equipment)

This symbol on the product indicates that the product, after its lifetime, should not be disposed with other household wastes. To avoid harmful influence on the environment and human health due to uncontrolled waste disposal, dispose the waste device to the service point of waste household appliances or report collecting it from home. In order to obtain detailed information about the location and how to dispose the

waste electrical and electronic equipment in a safe way, contact your retailer or local Department of Environmental Protection. Do not dispose the device with other municipal waste.

WSKAZÓWKI DOTYCZĄCE BEZPIECZEŃSTWA UŻYTKOWANIA

MONTÁŽ A POUŽITIE STRÚHADLA

We wish you satisfaction from using the product and invite you to check a wide range of other MPM appliances
