MMM-A/05 - Mill MPM - Free user manual and instructions

Product Type	Electric Mill (Spice/Coffee Grinder)
Brand	MPM
Model	MMM-A/05
Power Supply	220-240 V, 50/60 Hz
Rated Power	200 W
Capacity	75 g (for coffee beans) / 50 g (for spices)
Dimensions (W x D x H)	12 x 12 x 20 cm
Weight	0.8 kg
Bowl Material	Stainless steel
Lid Material	Transparent plastic with safety lock
Blade Type	Stainless steel double blade
Grinding Modes	Pulse function, continuous grinding
Safety Features	Lid safety switch, overload protection, non-slip feet
Cleaning	Remove lid and bowl, wipe with damp cloth; bowl and blade can be washed with mild detergent
Maintenance	Keep ventilation slots clean; do not immerse in water
Warranty	2 years (subject to manufacturer conditions)
Package Contents	Grinder unit, bowl with blade, lid, user manual

Frequently Asked Questions - MMM-A/05 MPM

How do I clean the MPM MMM-A/05 mill?

Can I grind both coffee beans and spices?

Why doesn't my mill start?

What is the maximum operating time?

Can I grind wet ingredients?

How much can I grind at once?

Is the blade removable?

What should I do if the mill smells like burning?

Can I replace the bowl or blade?

How should I store the mill?

USER MANUAL MMM-A/05 MPM

Three views of a plastic kitchen tool: cylindrical, perforated, and upright (no text or symbols visible)

MONTÁŽ A POUŽITÍ STRUHADLA

Since you will be using the shredding set with MMM-05 meat mincer it is necessary that you follow the instructions below regarding safe use.

Please read all instructions before using.
Always unplug the appliance from a power outlet when not in use and before cleaning.
Before first use, make sure that the mains voltage matches the voltage shown on the appliance.

Do not let the power cord hang over sharp edges or touch hot surfaces.

Never pull on the power cord to unplug the appliance.

Never leave the appliance unattended when in use.

Take special precautions when using the appliance near children.

Do not use the appliance if it appears to be faulty.

Do not use the appliance if the power cord or plug is damaged. In such case, return the appliance to an authorised service centre.

Using attachments not recommended by the manufacturer may result in damage to the appliance and/or personal injury.

Do not immerse the appliance, power cord or plug in water or other liquids. The power cord and plug must be dry at all times.

The appliance must only be used for its intended purpose.

This appliance is intended for household use only.

▶Always disconnect the appliance from a power outlet before assembly/disassembly.

When moving the appliance, always hold the motor housing with both hands.

▶ Never feed food into the appliance by hand. Always use the pusher.

When finished mincing, rewind the power cord into the motor housing.

This appliance is not intended for use by children under 8 years of age and individuals with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be carried out by children without supervision.

Make sure that children do not play with the appliance.

- Store the appliance and its cord out of reach of children under 8 years of age.

Do not put the unit on hot surfaces.

The unit is not designed to be used outdoors.

Before you start working with the unit, make sure all elements of the unit are correctly fastened.

▶ Never put the unit next to other electric units, burners, cookers, ovens etc.
Do not pull the plug by holding the power cord.
Do not connect the power plug with wet hands.
In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
WARNING! Do not allow small children to play with the foil as there is a danger of suffocation!

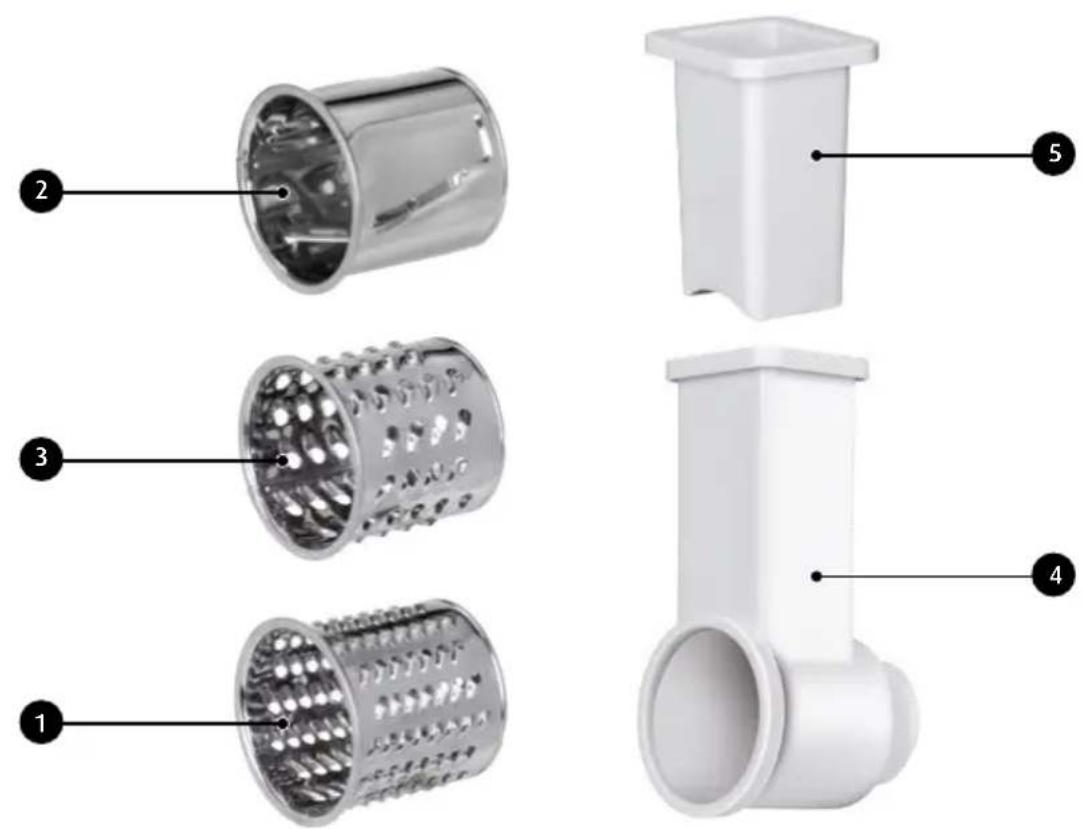

DESCRIPTION OF THE DEVICE

1. Small hole grater for vegetables and fruit

2. Vegetable slicing grater

3. Large hole grater for vegetables and fruit

4. Shredder casing
5. Pusher

ASSEMBLING AND USING THE GRATER

CAUTION! Before first use, clean all the elements of the grater in warm water with a detergent, then rinse and dry.

1. Detach the mincing chamber from your MMM-05 meat mincer and attach the shredder casing (4) in its place.
2. Attach an appropriate grater (1), (2) or (3), onto the shredder casing (4).

3. Connect the mincer to mains outlet and turn it on with the switch.

4. Cut the products into pieces small enough to fit into the chamber. Do not shred stone fruits. Push the products with the pusher while operating the shredder (5).

5. After use, turn the mincer off, unplug it from the mains and detach the shredder from the mincer just like the mincing chamber.
6. Clean all parts of the shredder.

CLEANING AND MAINTENANCE

CAUTION! The shredder must be detached from the mincer before cleaning. Do not clean the shredder still attached to the mincer. Do not immerse the meat mincer in water.

CAUTION! Take extreme care while cleaning the graters. Cutting risk.

1. Wash all parts of the shredder with lukewarm water and a detergent, rinse clean with water, and leave to dry.
2. Washing the shredder parts in a dishwasher is not recommended.
3. Graters do not require regeneration procedures.

CAUTION! MPM agd S.A. may change the technical features of the product without notice.

PROPER DISPOSAL OF THE PRODUCT (waste electrical and electronic equipment)

This symbol on the product indicates that the product, after its lifetime, should not be disposed with other household wastes. To avoid harmful influence on the environment and human health due to uncontrolled waste disposal, dispose the waste device to the service point of waste household appliances or report collecting it from home. In order to obtain detailed information about the location and how to dispose the waste electrical and electronic equipment in a safe way, contact your retailer or local Department of Environmental Protection. Do not dispose the device with other municipal waste.

MONTÁŽ A POUŽITIE STRÚHADLA

We wish you satisfaction from using the product and invite you to check a wide range of other MPM appliances
