Camileo P100 - Camcorder TOSHIBA - Free user manual and instructions

Product Type	Camcorder
Brand	Toshiba
Model	Camileo P100
Image Sensor	8 Megapixel CMOS
Optical Zoom	5x
Digital Zoom	16x
Advanced Zoom	Up to 10x (in VGA mode)
Display	3.0 inch (7.6 cm) color LCD touch screen (16:9)
Video Resolution	Full HD 1080p (1920x1080 at 30fps), HD 720p (1280x720 at 60/30fps), VGA 480p (640x480 at 30fps)
Photo Resolution	High: 4608x3456 (16MP interpolated), Standard: 3264x2448 (8MP), Low: 2048x1536 (3MP)
Storage Media	128MB built-in memory (partial used for firmware), SD/SDHC/SDXC card slot (up to 64GB)
Battery	Lithium-ion rechargeable (pre-installed)
Charging Time	Up to 3.5 hours via AC adaptor, up to 10.5 hours via USB
Dimensions (W x H x D)	68 x 111 x 32 mm (2.7 x 4.4 x 1.3 in)
Weight (without battery)	130 g (4.6 oz)
PC Interface	Mini USB 2.0
TV Out	Mini HDMI™ (cable sold separately)
White Balance	Auto, Daylight, Fluorescent, Tungsten
ISO	Auto, 800, 1600
Special Features	Webcam mode, built-in CAMILEO® Uploader, Motion Detection, Slow Motion, Time Lapse, Pre-Record
Supported Languages	Multiple (including English, Spanish, etc.)
Safety	Do not disassemble, avoid water, direct sunlight, use only supplied accessories

Frequently Asked Questions - Camileo P100 TOSHIBA

How do I charge the battery?

Turn off the camcorder. Connect the supplied AC adaptor or USB cable. The blinking light indicates charging; a solid light means full charge. Charging via AC takes about 3.5 hours, via USB up to 10.5 hours.

Why are my indoor photos blurry and dark?

In low light, the camcorder extends exposure time. Keep the camcorder and subject steady for a few seconds until the shutter sounds. Use a tripod or increase ISO (800 or 1600) in Photo Settings.

How do I transfer videos and photos to a computer?

Connect the camcorder to your computer using the supplied Mini USB 2.0 cable. The internal memory appears as 'DV' and the SD card as 'Removable Disk'. Navigate to DCIM/100MEDIA folder to copy files.

How do I use the CAMILEO Uploader to upload to the internet?

In Playback mode, press the Internet Upload button to tag files. Connect the camcorder to a Windows PC via USB, then press the Upload button again to launch the CAMILEO Uploader app. Select a website, log in, and upload.

Can I use the camcorder as a webcam?

Yes. Connect the camcorder to your computer via USB, then press the Playback button to switch to Webcam mode. The Multi-indicator light glows blue. Use with video conferencing software.

How do I format the SD card?

Go to Menu > Setup > Format. Select 'Yes' to erase all data on the card. Note: Formatting deletes all files; back up important data first. Do not format the internal 'DVAP' drive.

What memory cards are supported?

The camcorder supports SD, SDHC, and SDXC cards up to 64GB. Insert the card into the slot under the battery cover with the label facing outward.

How do I reset to factory settings?

Go to Menu > Setup > Default Setting. Choose 'Yes' to restore all settings to factory defaults, including resolution, light, and menu preferences.

Why does the LCD show an '!' symbol?

The '!' indicates a slow or corrupted SD card. Try formatting the card using the camcorder (not a computer). If the issue persists, replace the card with a high-speed one (Class 4 or higher).

How do I clean the camcorder?

Use the supplied cleaning cloth to wipe the exterior and lens gently. Do not use water or solvents. Keep the camcorder away from moisture and extreme temperatures.

USER MANUAL Camileo P100 TOSHIBA

Leading Innovation >>>

CAMILEO® P100 User's Manual

English/Espanol

Regulatory Information

FCC Information

Product Name: Camcorder

Model number: CAMILEO® P100

FCC notice “Declaration of Conformity Information”

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

◆ Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

▲WARNING

Changes or modifications made to this equipment, not expressly approved by TOSHIBA or parties authorized by TOSHIBA could void the user's authority to operate the equipment.

FCC Conditions

This equipment has been tested and found to comply with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.
(2) This device must accept any interference received. Including interference that may cause undesired operation.

Following information is only valid for EU-member States: Disposal of products

This symbol indicates that this product must not be disposed of with normal household waste. The product must be disposed of separately.

Contact

Address: TOSHIBA America Information Systems, Inc.

9740 Irvine Boulevard

Irvine, California 92618-1697

Telephone: [phone]

Safety Instructions

1 Do not drop, puncture or disassemble the camcorder; otherwise the warranty will be voided.
2 Avoid all contact with water, and dry hands before using.
3 Do not expose the camcorder to high temperature or leave it in direct sunlight. Doing so may damage the camcorder.
4 Use the camcorder with care. Avoid pressing hard on the camcorder body.
5 For your own safety, avoid using the camcorder when there is a storm or lightning.
6 Do not use batteries of different specifications. Doing so may lead to the potential for serious damage.
7 Remove the battery during long periods between usage, as a deteriorated battery may affect the functionality of the camcorder.
8 Remove the battery if it shows signs of leaking or distortion.
9 Use only the accessories supplied by the manufacturer.
10 Keep the camcorder out of the reach of infants.
11 Risk of explosion if battery is replaced by an incorrect type.

12 Dispose of used batteries according to the instructions.

About the battery

Use only batteries recommended by TOSHIBA as replacements. The battery is a lithium ion battery, which can explode if not replaced, used, handled or disposed of properly. Dispose of the battery as required by local ordinances or regulations.
Charge the battery only in an ambient temperature between 41 and 95 degrees Fahrenheit (5 and 35 degrees Celsius). Otherwise, the electrolyte solution might leak, battery performance might deteriorate and the battery life might be shortened.
- Never install or remove the battery without first turning off the power and disconnecting the USB and AC adaptor.
Only use the supplied AC adaptor or USB cable, or an optional Toshiba battery charger to charge the battery. Never attempt to charge the battery with any other charger.

Safety icons

This manual contains safety instructions that must be observed to avoid potential hazards that could result in personal injuries, damage to your equipment, or loss of data. These safety cautions have been classified according to the seriousness of the risk, and icons highlight these instructions as follows:

DANGER

Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

▲WARNING

Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

▲ CAUTION

Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

CAUTION

Indicates a potentially hazardous situation which, if not avoided, may result in property damage.

NOTE

Provides important information.

Additional Information

© Copyright 2011 TOSHIBA CORPORATION. All rights reserved. TOSHIBA reserves the right to make technical changes. TOSHIBA assumes no liability for damages incurred directly or indirectly from errors, omissions or discrepancies between this product and the documentation.

Trademarks

CAMILEO is a registered trademark of Toshiba America Information Systems, Inc. and/or Toshiba Corporation.

Adobe is either a registered trademark or trademark of Adobe Systems Incorporated in the United States and/or other countries.

ArcSoft and MediaImpression are registered trademarks of ArcSoft, Inc.

Facebook is a registered trademark of Facebook Inc.

HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC.

Intel, Intel Core, Celeron, Centrino and Pentium are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.

Mac is a trademark of Apple Inc., registered in the U.S. and other countries.

Microsoft, Windows, and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

Picasa is a trademark of Google Inc.

Secure Digital and SD are trademarks of SD Card Association.

YouTube and the YouTube logo are registered trademarks of Google, Inc.

All other brand and product names are trademarks or registered trademarks of their respective companies.

Contents

Chapter 1: Getting to Know Your Camcorder....9

Overview 9

Check the Components....10

System Requirements....11

Front/Side views 12

Rear view....13

Underside view 13

Chapter 2: Getting Started....14

Loading the battery....14

Charging the battery 15

Inserting and removing an SD™ Card

(optional) 20

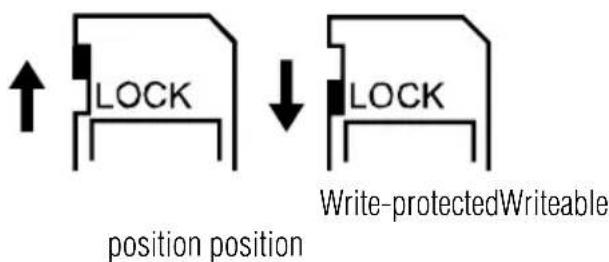

Protecting data on an SD™ Card....20

Turning the camcorder on and getting started......21

Turning off the camcorder 21

Chapter 3: Record Mode....22

Button functions 22

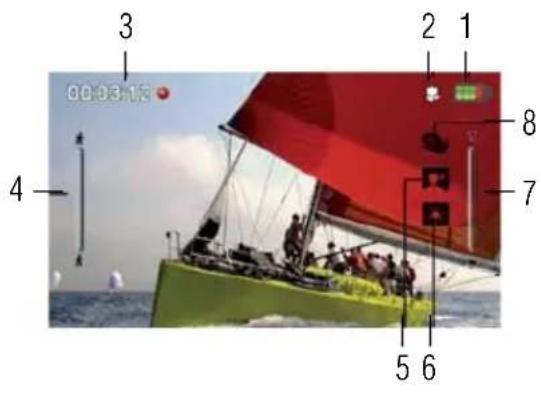

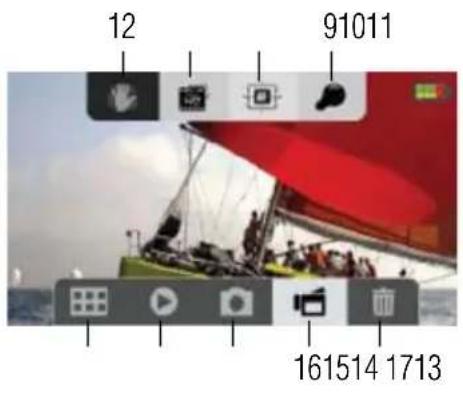

LCD touch screen information 23

Notification icons....23

Touch function icons 25

Video recording 26

Photo recording....27

Using the Zoom function .....27

Using the Advanced Zoom function .....28

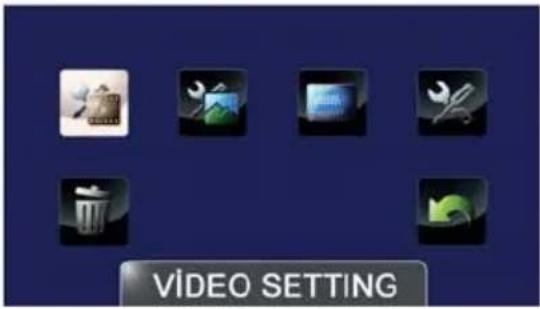

Menu options/operations....29

Video Setting options....30

Photo setting options....34

Effects....39

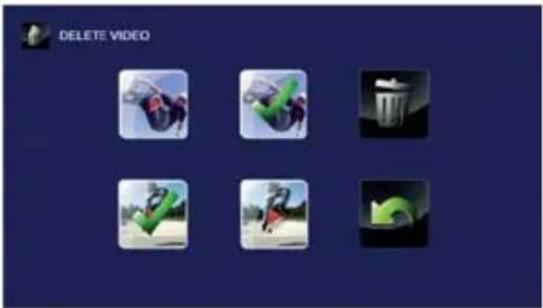

Deleting files 42

Chapter 4: Playback Mode.... 44

Button functions 44

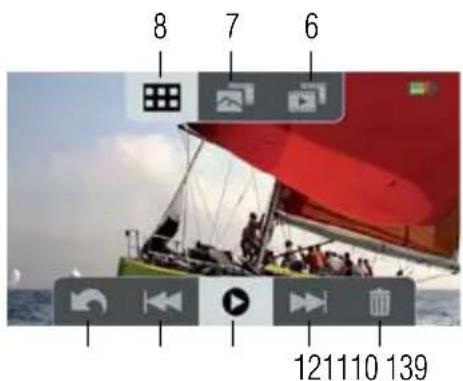

LCD touch screen information 45

Notification icons....45

Touch function icons 46

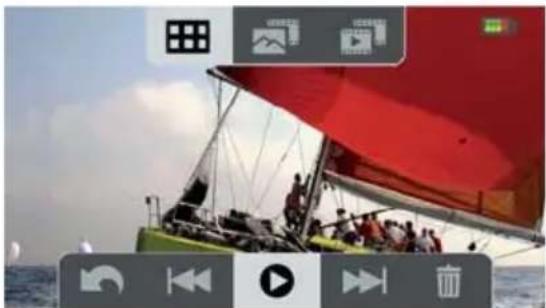

Playback mode operations....47

Video Playback....48

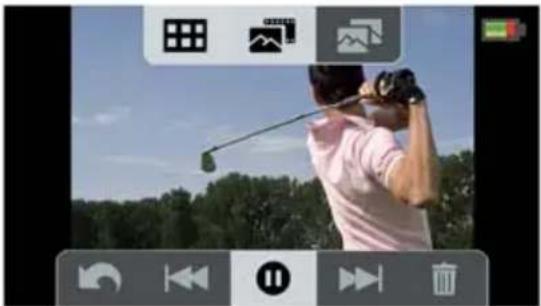

Photo Playback 48

Delete a file in Playback mode ....49

Chapter 5: Camcorder Settings .... 50

Setup Menu 50

Menu Sound 50

TV 51

Language 51

Time Settings....52

Format 52

Default Setting 53

Chapter 6: Viewing Photos and

Videos on TV.... 55

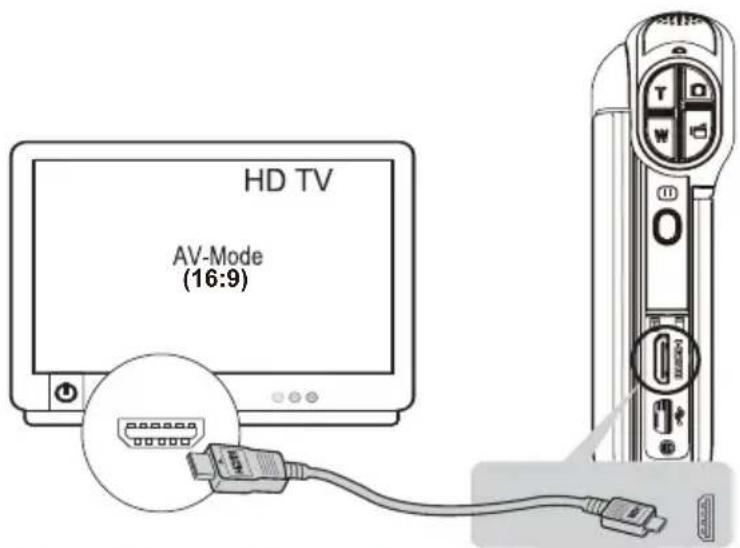

Connecting to a high-definition 16:9 (wide)

TV 55

Installing bundled software....56

Chapter 7: Viewing Photos and

Videos on a Computer.... 57

Transferring photos or videos to a computer......57

Chapter 8: Uploading Video and Photo Files to

the Internet....58

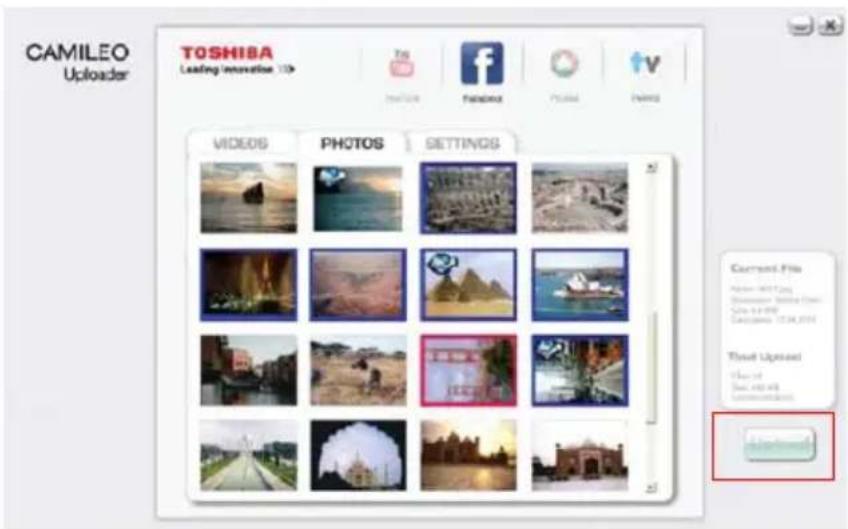

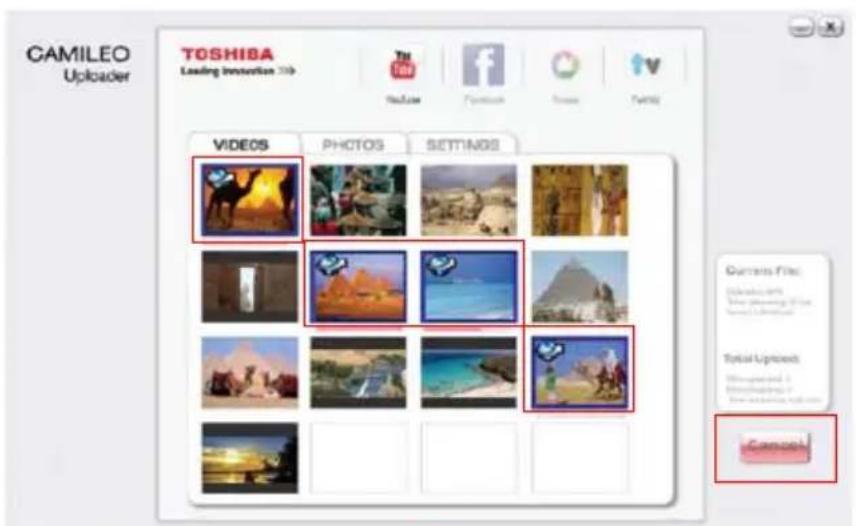

CAMILEO ^® Uploader ....58

To upload video/photo files selected manually to a Web site....60

Setting up your account information for a Web site....61

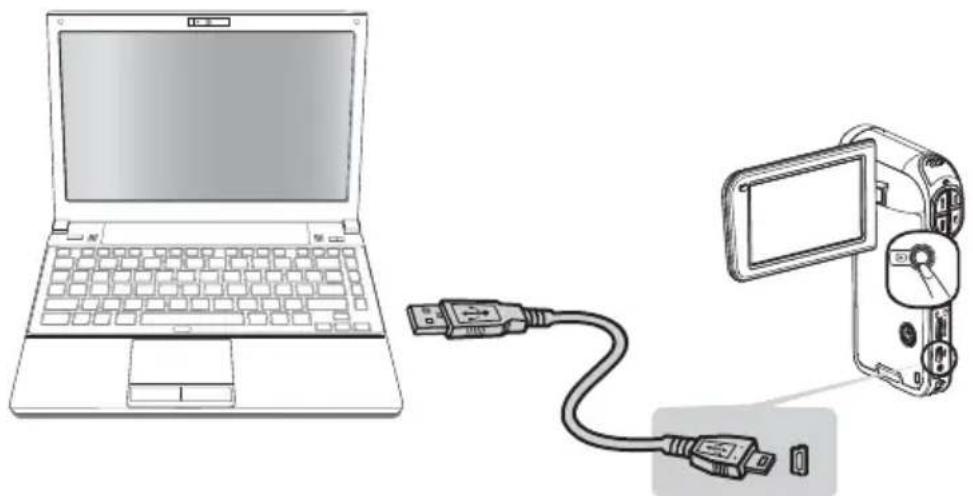

Webcam mode....62

ArcSoft MediaImpression ^® 63

Chapter 9: Specifications.... 66

Operating Environment Conditions ....67

Chapter 10: Troubleshooting.... 68

Chapter 11: Other Information....70

Toshiba Support ....70

Before you call 70

Contacting Toshiba 71

Toshiba's technical support Web site....71

Toshiba voice contact 71

Warranty....72

Online Warranty Information....72

Warranty Service 72

Chapter 1

Getting to Know Your Camcorder

Overview

Your Toshiba camcorder comes equipped with an 8 Megapixel CMOS sensor that can record H.264 format videos. This format allows for extended video recording with less memory.

Other features of your CAMILEO® P100 camcorder are:

◆High quality photos up to 16 megapixels (interpolated)
◆Color LCD touch screen for easy viewing of photos and videos
◆Video recording at full HD resolution of 1920 x1080p
◆5x optical zoom
◆8x advanced zoom (for 1080p)
16x digital zoom
HDTV connectivity via an HDMI ^TM cable (HDMI ^TM cable sold separately)
Easy playback of recorded high-definition videos on wide screen HDTV
Built-in CAMILEO ^® Uploader, allowing you to easily upload videos captured by the camcorder to the Internet (for Windows ^® based systems only)
- ISO and white balance can be set to automatic or may be manually adjusted
◆ Various effect options, such as Time Lapse and Slow Motion

Limited built-in memory allowing you to take photos and to record videos without a memory card

NOTE

A portion of the built-in memory is used for Firmware to operate the camcorder.

◆ Memory card slot allowing users to increase storage capacity
- Webcam for video conferencing

Check the Components

Unpack the box and make sure all listed items below are included:

Camcorder USB cable

AV Cable

AC adaptor

Lithium-ion Rechargeable battery*

Quick Start Guide

CD-ROM Software, User's Manual (this Manual), and Warranty information

Cleaning cloth Hand

strap

(Sample Illustration) Components

*Preinstalled in the camcorder

NOTE

Be sure to remove the protective film on the lens before using.

System Requirements

◆Microsoft ^® Windows ^® XP/Windows Vista ^® /Windows ^® 7
◆CPU Intel ^ Pentium ^ 4, 2.4 GHz or above
◆512 MB system memory
◆1 GB free HDD space
4x CD-ROM Drive
◆ Available USB 2.0 port

Mac compatibility

Mac OS 10.5 or above
CPU Intel ^® Pentium ^® 2 Duo 2.4 GHz or above
◆1 GB system memory
◆1 GB free HDD space
DVD-ROM
◆ Available USB 2.0 port

NOTE

The LCD touch screen is manufactured using extremely high-precision technology. However, some tiny black and/or bright dots (white, red, blue or green) may appear on the LCD touch screen. These dots are a normal result of the manufacturing process, and do not affect the recording.

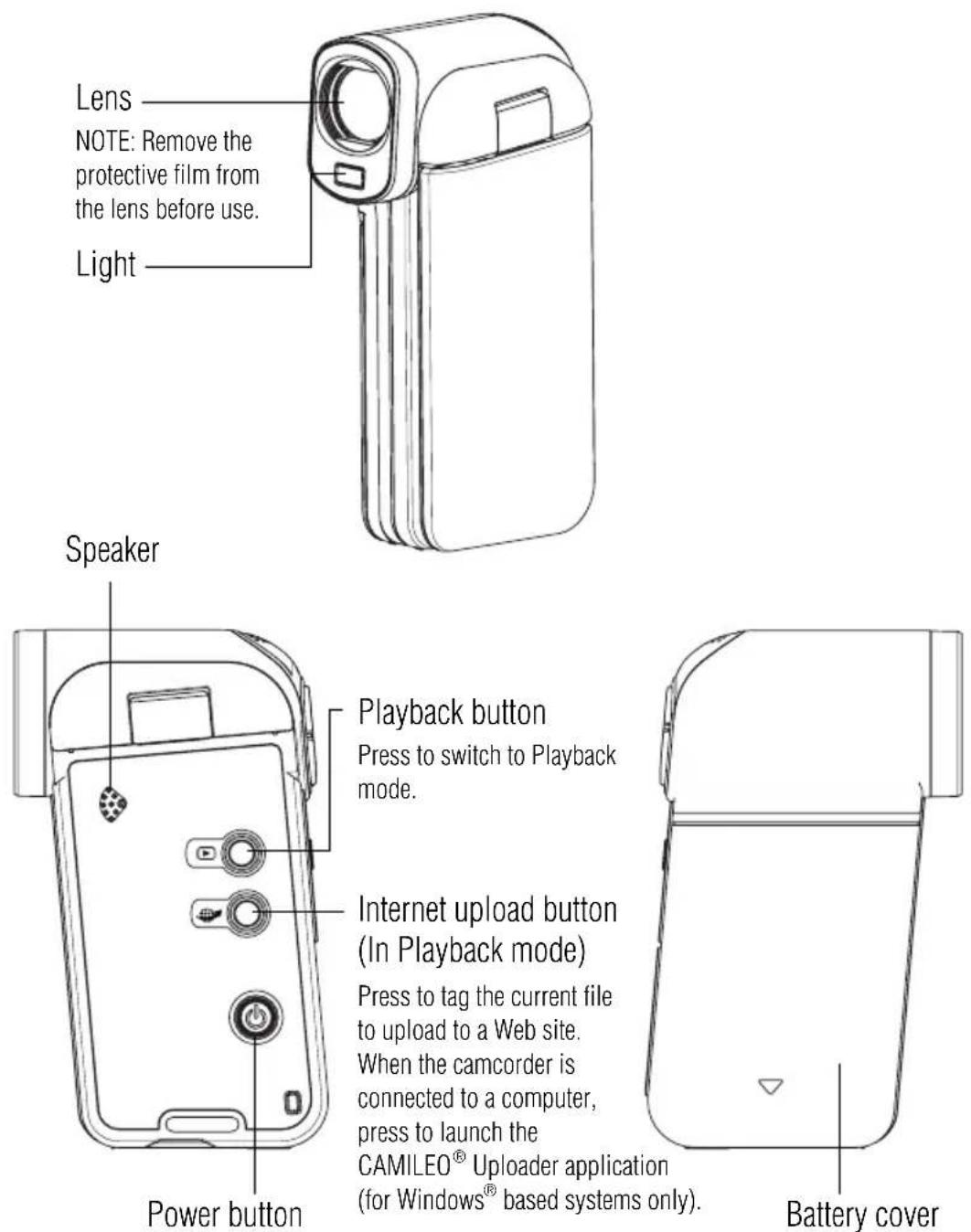

Front/Side views

Lens

NOTE: Remove the protective film from the lens before use.

Light

Playback button

Press to switch to Playback mode.

Internet upload button (In Playback mode)

Press to tag the current file to upload to a Web site. When the camcorder is connected to a computer, press to launch the CAMILEO ^® Uploader application (for Windows ^® based systems only).

(Sample Illustration) Front view

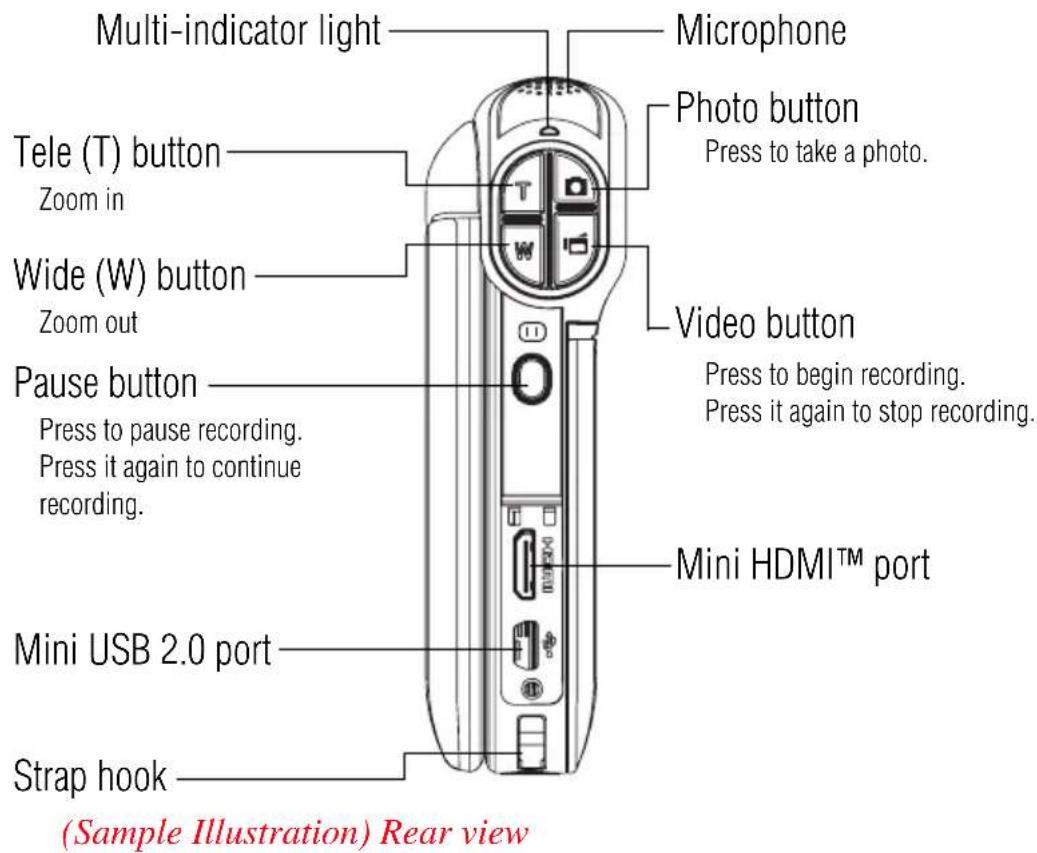

Rear view

For more detailed operational instruction, please see “Record Mode” on page 22 and “Playback Mode” on page 44.

Underside view

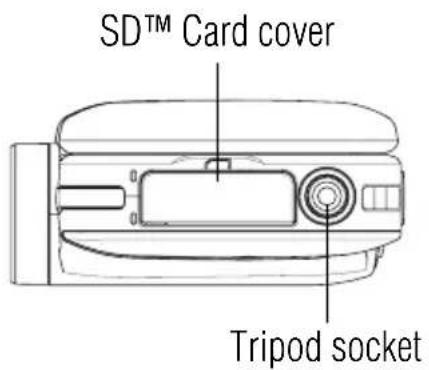

(Sample Illustration) Underside view

Chapter 2

Getting Started

Loading the battery

The battery comes pre-installed in the camcorder, however you must remove the protective film on the battery before use.

To properly connect the battery:

1 Slide the battery cover down and remove.
2 Remove the battery.

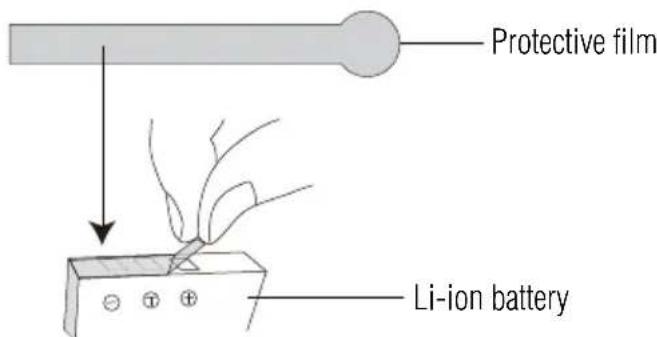

3 Pull the protective film off.

(Sample Illustration) Removing the protective film

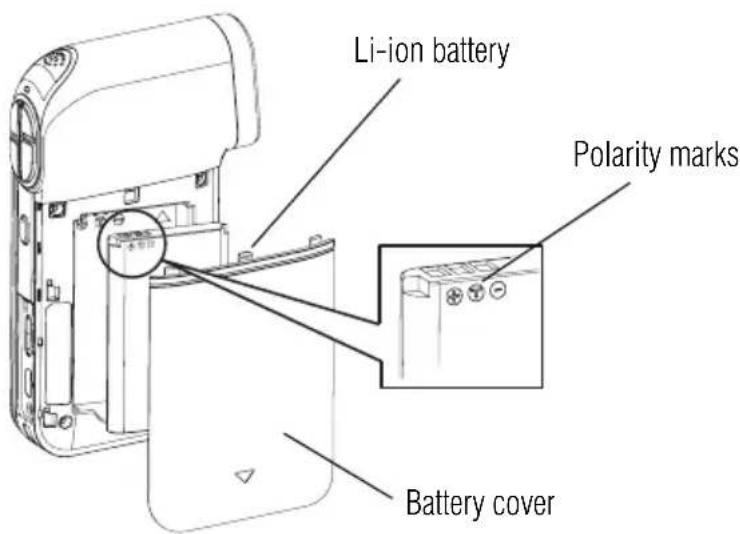

4 Reinsert the battery, making sure it is lined-up with the correct polarity marks.

(Sample Illustration) Inserting the battery

5 Reinstall the battery cover.

Charging the battery

You must use the supplied USB cable or AC adaptor to charge your camcorder before use. Turn off the camcorder. A blinking light indicates active charging and a solid light indicates that charging is complete. In AC charging mode, the light will turn off automatically after 5 minutes It may take up to 10.5 hours to charge the battery via USB and up to 3.5 hours via AC adaptor. (Actual time may vary.)

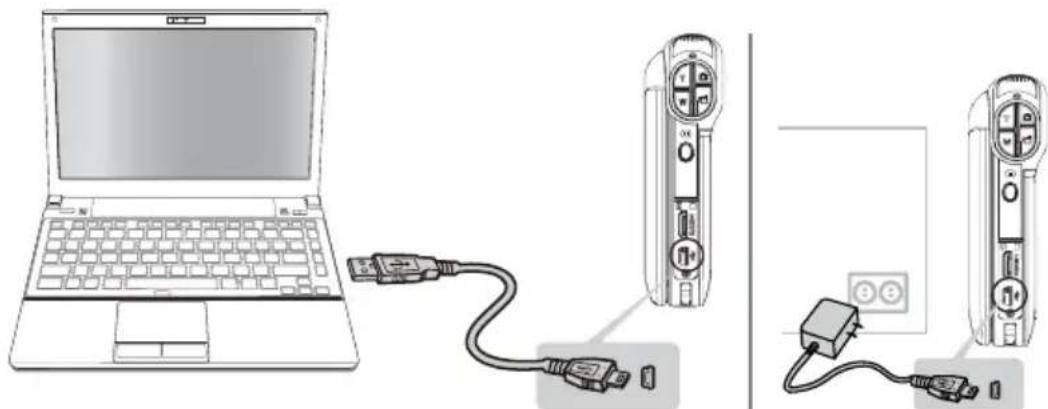

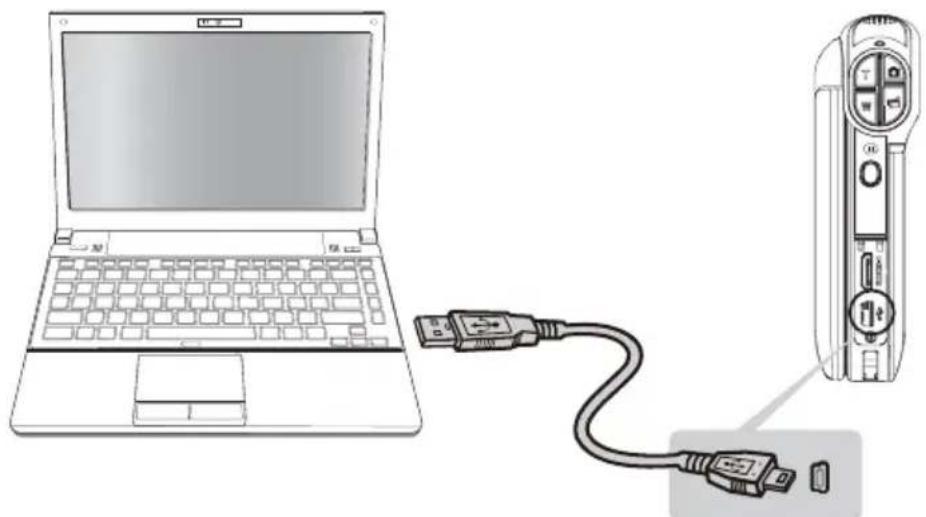

Line drawing showing a laptop connected to two remote control devices via cable (no text or symbols present)

(Sample Illustration) Charging the battery

▲WARNING

Handling of the battery

Never attempt to dispose of a battery by burning or by throwing it into a fire, and never allow exposure to a heating apparatus (e.g., microwave oven). Heat can cause a battery to explode and/or release caustic liquid, both which may possibly cause serious injury.
Never attempt to disassemble, tamper with or repair a battery. The battery could overheat and ignite. Leakage of the caustic alkaline solution or other electrolytic substances could cause fire, possibly resulting in death or serious injury.
Never short-circuit the battery by either accidentally or intentionally bringing the battery terminals in contact with another conductive object. This could cause serious injury or a fire, and could also damage the battery and product. Always wrap the battery in plastic (or place it in a plastic bag) whenever transporting it, to avoid exposing the terminals to another conductive object which could result in serious injury. Always cover the metal terminals with insulating tape when disposing of the battery, to prevent accidental short-circuiting which could result in serious injury.
Never drive a nail or any other sharp object into the battery, hit battery with a hammer or other object or step on it. Doing so could cause a fire or explosion possibly resulting in serious injury.
◆Never charge the battery by a method other than as instructed. Doing so could cause a fire or explosion possibly resulting in serious injury.
Never connect the battery to a plug socket or a car cigarette plug socket. The battery could rupture or ignite causing a fire or explosion possibly resulting in serious injury.
✿Never allow a battery to become wet. A wet battery will overheat or ignite causing rupture or fire, possibly resulting in death or serious injury.
Never store a battery in an area of high humidity. This could cause a fire or explosion possibly resulting in serious injury.

▲WARNING

Never expose a battery to abnormal shock, vibration or pressure. Never use a battery which has been exposed to abnormal shock even if the appearance is normal. The battery's internal protective device could fail, causing it to overheat or ignite resulting in caustic liquid leakage, or explosion or fire, possibly resulting in death or serious injury.
Never subject a battery to heat, and never store it or use it near a heat source. The battery could ignite or explode when heated or burned, possibly resulting in death or serious injury. Subjecting a battery to heat could also cause caustic liquid to leak. It can also cause failure, malfunction, or loss of stored data.

Use of correct battery

◆Always use the battery supplied. Other batteries have different voltage and terminal polarities. Use of non-conforming batteries could generate smoke or cause fire or rupture, possibly resulting in serious injury.

▲WARNING

Battery safety

Never allow caustic electrolyte fluid leaked from the battery to contact your eyes, body or clothing.
Use appropriate protective gloves when handling a damaged battery.
If caustic electrolyte fluid from the battery should contact your eyes, immediately wash your eyes with large amounts of running water and obtain prompt medical attention, to help prevent permanent eye damage.
If electrolyte fluid should contact any part of your body, immediately wash it off under running water to help prevent skin rashes.
If electrolyte fluid should contact your clothes, promptly remove them to help prevent the electrolyte fluid from contacting your body, possibly resulting in serious injury.

▲WARNING

Battery warning indicators

◆Always immediately turn the power off and disconnect the power cable/cord plug from the plug socket and stop using the battery if you observe any of the following conditions:
◆Offensive or unusual odor
Excessive heat
Discoloration
◆ Deformation, cracks or leaks
Smoke
- Other unusual event during use, such as abnormal sound In such an event, carefully and immediately remove the battery from the product. In some instances, you might have to wait for the product to cool down before removing the battery, in order to avoid any possible minor injury due to heat exposure. Do not turn on the product's power again until an authorized Toshiba service provider has checked it for safety. Continued use could cause a fire or rupture possibly resulting in serious injury or product failure including but not limited to the loss of data.

▲WARNING

Disposal of used batteries

Always dispose of used batteries in compliance with all applicable laws and regulations. Put insulating tape, such as cellophane tape, on the electrode during transportation to avoid a possible short circuit, fire or electric shock. Failure to do so could possibly result in serious injury.

▲WARNING

Make sure the battery is securely installed in the product before attempting to charge the battery.
- Improper installation could generate smoke or fire, or cause the battery to rupture.

▲ CAUTION

The battery is a lithium ion battery, which can explode if not replaced, used, handled or disposed of properly. Dispose of the battery as required by local ordinances or regulations. Use only batteries recommended by TOSHIBA as replacements.
Charge the battery only in an ambient temperature between 41 and 95 degrees Fahrenheit (5 and 35 degrees Celsius). Otherwise, the electrolyte solution might leak, battery performance might deteriorate and the battery life might be shortened.
✿Never install or remove the battery without first turning off the power and disconnecting the AC adaptor.

▲ CAUTION

Inserting the battery

When installing a battery or before moving the product, always make sure the battery is inserted correctly and securely. If the battery falls out, while you are carrying the product, you could be injured or the battery could be damaged.

CAUTION

Do not use an impaired or exhausted battery

Never continue to use a battery after its recharging capability has become impaired, or after the warning message indicating that the battery power is exhausted has been displayed. Continued use of an exhausted or impaired battery could result in the loss of data or damage to the product.

NOTE

Handling of the battery

◆Never attempt to install batteries in reverse polarity.

Inserting and removing an SD™ Card (optional)

NOTE

An SD ^™ Card must be purchased separately.

Your camcorder comes with internal memory that allows you to store photos and videos. You can expand the memory capacity by using an optional SD/SDHC/SDXC memory card.

1 Open the SD ^TM Card cover.

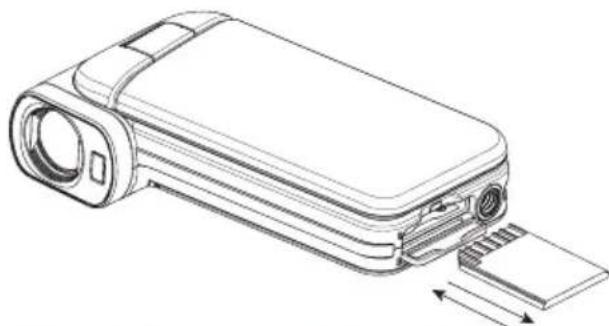

2 Insert the SD ^TM Card into the slot until it locks into place, as shown below.

Line drawing of a digital camera module with lens and external connector (no text or symbols)

To remove the SD™ Card, press inward to release it. When the card pops out, grasp it and pull it straight out.

(Sample Illustration) Inserting and removing an SD™ Card

NOTE

When a memory card is inserted, videos and photos are saved to the card rather than the built-in memory.

Protecting data on an SD™ Card

Photos or videos cannot be recorded on an SD ^TM Card when the card is locked (read only), however photos and videos can be viewed.

Make sure the lock is in the writeable position before recording photos and videos as shown below.

(Sample Illustration) Protecting data on an SD™ Card

Turning the camcorder on and getting started

To turn on the camcorder, either:

• Flip the LCD touch screen outward to turn on the camcorder automatically.
  Or press the Power (💡) button for approximately one second to turn it on.

To record videos: In Record mode, press the Video button to begin recording. Press it again to stop recording.

To take a photo: In Record mode, press the Photo button halfway down to focus until the focusing frame turns green. Then press it fully to take the photo.

Person shooting a golf club outdoors, wearing pink shirt and black pants (no visible text or symbols)

Person performing a golf swing on a field, viewed from behind (no visible text or symbols)

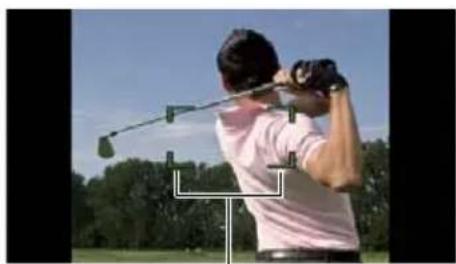

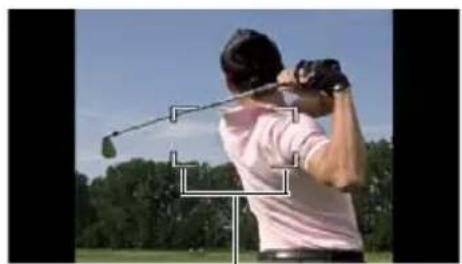

Focusing frame: White Focusing frame: Green

(Sample Image) Focusing frames (green and white)

Turning off the camcorder

To turn off the camcorder: You can either press the Power Ⓐ button for one second, or you can place the LCD touch screen back to its original position.

Chapter 3

Record Mode

Button functions

	Video button:1 Press to begin recording a video.2 Press it again to stop recording.
	Photo button:Press halfway down to focus, then press it fully to take the photo.
	Tele (T) button:Zoom in.Wide (W) button:Zoom out.
	Pause button:Press to pause recording, press it again to resume recording on the same file.
	Playback button:Switch to Playback mode.
	Power button:Press for one second to turn ON/OFF the camcorder.

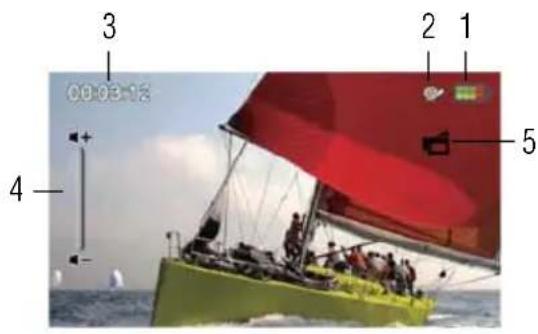

LCD touch screen information

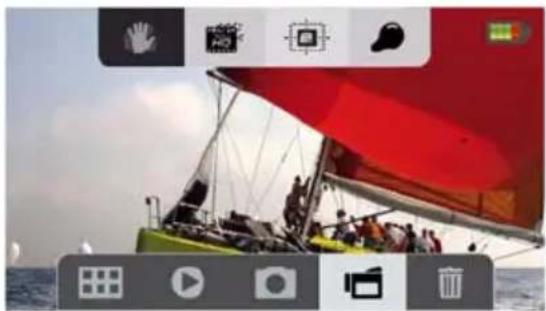

The indicators shown on the images below may appear on the LCD touch screen when videos and photos are recorded:

Onscreen notification icons Onscreen touch function icons

(Sample Image) LCD touch screen indicators

Notification icons

1		Battery: Full power
		Battery: Medium power
		Battery: Low power
		Battery: No power
		DC power mode
2	[067C]	Macro Position Focusing
3	00:03:12 [3WTZ]	Recording time
	00:03:12	Pause recording
	[7SZ7] 0	The remaining amount of photos that can be taken at the current resolution settings
	[8AAB] 1	Current number of photos taken
4	[HACK]	Motion Detection (Video Record mode only)

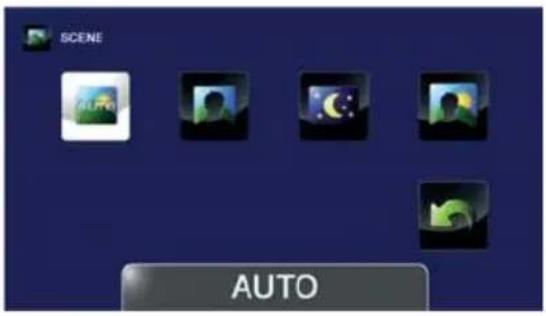

5	Scene
		Skin
		Night
		Backlight
6	Manual white balance
		Daylight
		Fluorescent
		Tungsten
7	--	Zoom meter:1x~80x (5x Optical Zoom, 16x Digital Zoom)1x~128x (8x Advanced Zoom, 16x Digital Zoom)(Available for Advanced Zoom activated in FULL HD 1080p/30 or HD 720p/30 video recording)1x~96x (6x Advanced Zoom, 16x Digital Zoom)(Available for Advanced Zoom activated in HD 720p/60 video recording)1x~160x (10x Advanced Zoom, 16x Digital Zoom)(Available for Advanced Zoom activated in VGA 480p/30 video recording)
8		Slow Motion (Video Record mode only)Note: Slow motion videos will be recorded in QVGA resolution (320 x 240 [QVGA]).
		Time Lapse (Video Record mode only)
		Pre-Record mode (Video Record mode only)

Touch function icons

9		Digital light ON
		Light ON
		Light OFF
10		8x Advanced Zoom ON (only available in FULL HD 1080p/30 or HD 720p/30)
		8x Advanced Zoom OFF
		6x Advanced Zoom ON (only available in HD 720p/60)
		6x Advanced Zoom ON (only available in HD 720p/60)
		6x Advanced Zoom OFF
		10x Advanced Zoom ON (only available in VGA 480p/30)
		10x Advanced Zoom OFF
	[SW3Z]
11	Video Resolution
		Full HD (1080p 30)
		HD60 (720p 60)
		HD30 (720p 30)
		VGA (480p 30)
		QVGA (while the Slow Motion function is active, the video resolution is 320 x 240 [QVGA])
	Photo Resolution
	[SHCY]	High-16MP
		Standard-8MP
		Low-3MP
12	Video Board mode
		Stabilization ON/OFF
	Photo Board mode
	[ZZGG]	Self-timer ON/OFF
13		Menu
14		Playback mode
15		Photo mode
16		Video mode
17		Delete mode

NOTE

Tap on the screen to close the touchable function bars. Tap again to show the bars.
Filter: Black & White/Classic/Negative can be previewed immediately without the indicator on the LCD screen.
Stabilization, Time Lapse, and Slow Motion functions cannot be used simultaneously.
◆Motion Detect, Time Lapse, and Slow Motion functions cannot be used simultaneously.
◆Motion Detect, Time Lapse, and Pause functions cannot be used simultaneously.
◆Motion Detect, Slow Motion, and Zooming functions cannot be used simultaneously.

Video recording

In Record mode, press the Video (☐) button to start recording. A time indicator displays on the LCD touch screen when a video is being recorded. Press the Video button again to stop recording.

To pause recording, press the Pause ( ^as ) button. To continue recording, press it again.

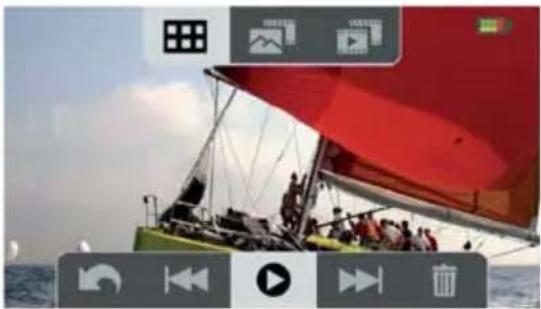

Touch the onscreen Playback (icon to view a recorded video.

The resolution settings available are:

Video Quality
	Full HD 1080/30: 1920 x 1080p 30fps
	HD60 720/60: 1280 x 720p 60fps
	HD30 720/30: 1280 x 720p 30fps
	VGA 480/30: 640 x 480p 30fps

Photo recording

In Record mode, press the Photo (button) halfway down until the focusing frame turns from white to green. Then press it fully down to take a photo.

Touch the onscreen (icon to view the photo.

The Resolution settings available are:

Image Quality
	High-16 MP: 4608 x 3456
	Standard-8 MP: 3264 x 2448
	Low-3 MP: 2048 x 1536

Using the Zoom function

The Zoom function magnifies images when recording Videos or taking Photos.

◆Press the Tele/Wide (T/W) buttons to zoom in/out.

The camcorder zooms in by Optical Zoom first. When the Optical Zoom factor is at maximum, zooming stops temporarily. Press and hold the Tele (T) button when you want to zoom in beyond the Optical Zoom range. The Digital Zoom is activated and zooming continues.

The Zoom function can be set from 1x\~80x (5x Optical Zoom and 16x Digital Zoom).

Using the Advanced Zoom function

In addition to the 5x Optical Zoom range, the advanced sensor increases the 5x Optical Zoom to the higher Advanced Zoom.

Advanced Zoom obtains a larger zoom range without deterioration of video quality.

When recording a video, touch the onscreen icon to activate Advanced Zoom.

		The magnification is approximately 1.6 times and the lens is enhanced to 8x Advanced Zoom.When recording video, press the Tele/Wide button and it can be set from 1x~128x (8x Advanced Zoom and 16x Digital Zoom)
		The magnification is approximately 1.2 times and the lens is enhanced to be 6x Advanced Zoom.When recording video, press the Tele/Wide button and it can be set from 1x~96x (6x Advanced Zoom and 16x Digital Zoom)
		The magnification is approximately double and the lens is enhanced to 10x Advanced Zoom.When recording video, press the Tele/Wide button and it can be set from 1x~160x (10x Advanced Zoom and 16x Digital Zoom)

Normal 5x Optical	Zoom Advanced Zoom

(Sample Image) Advanced Zoom function settings

NOTE

Advanced Zoom is only available for video recording.

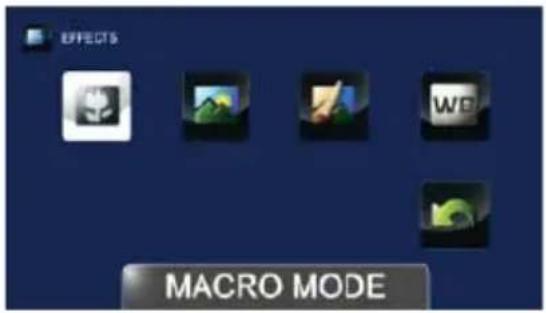

Menu options/operations

Video Settings	Photo Settings Effects Setup* Delete
Light Resolution Stabilization Motion Detect Slow Motion Pre-Record Time Lapse Continuous Play	Light Resolution Self-Timer Face Tracking Date Printing ISO Slideshow	Macro mode Scene Filter White Balance	Menu Sound TV Language Time Setting Format Default Setting	Delete Video Delete Photo Select and Delete Delete All

*Please see “Camcorder Settings” on page 50 for more information about Setup.

Operation Screen

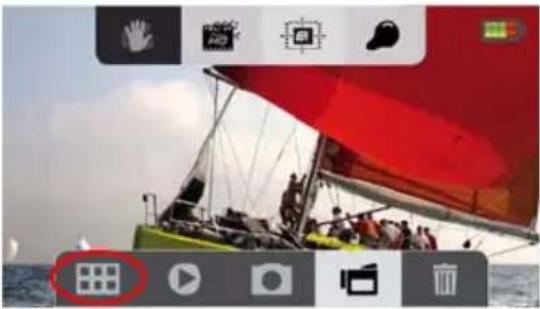

1 Touch the onscreen ( ) icon.The Menu screen appears.The available options are Video Setting, Photo Setting, Effects, Setup, and Delete.
2 Touch the desired onscreen icon twice.The options menu appears.3 Touch to select the specific option you want to change and touch it again to enter its settings menu.4 Touch twice to validate the new setting.5 Touch the Return/Exit ( 📄on twice, or hold it down to exit.

Video Setting options

Operation Screen

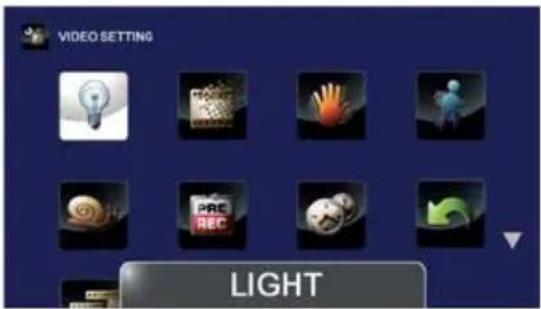

1 Touch the onscreen ( ) icon.The Menu screen appears.2 Touch the Video Setting icon twice to enter the Video Setting menu.The Video Setting menu appears.3 The Video Setting menu options are: Light, Resolution, Stabilization, Motion Detect, Slow Motion, Pre-Record, Time Lapse, and Continuous Play.

NOTE

Touch the icon once to view the description, touch twice to activate.

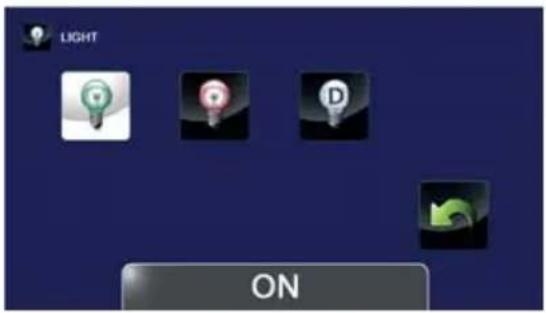

Light

In this option select a mode to brighten the shooting area or to extend the brightness of objects. The Light settings available are:

	ON Turns the light ON, providing illumination when recording.
	OFF Turns the light OFF.
	Digital Light	Extends the dynamic range of high contrast and backlight, so objects appear brighter and clearer.

Operation Screen
1 In the Video Setting menu, touch the Light icon twice.2 Touch to select the desired option.3 Touch again to validate the new setting.4 Touch the Return/Exit ( ) icon twice, or hold it down to exit.

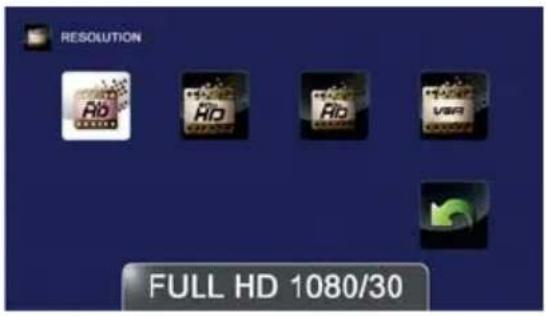

Resolution

The Resolution settings available are:

	Full HD 1080/30 Record videos at 1920 x 1080p 30fps resolution.
	HD 720/60 Record videos at 1280 x 720p 60fps resolution.
	HD 720/30 Record videos at 1280 x 720p 30fps resolution.
	VGA 480/30 Record videos at 640 x 480p 30fps resolution.

Operation Screen
1 In the Video Setting menu, touch the Resolution icon twice.2 Touch to select the desired option.3 Touch again to validate the new setting.4 Touch the Return/Exit (icon twice, or hold it down to exit.

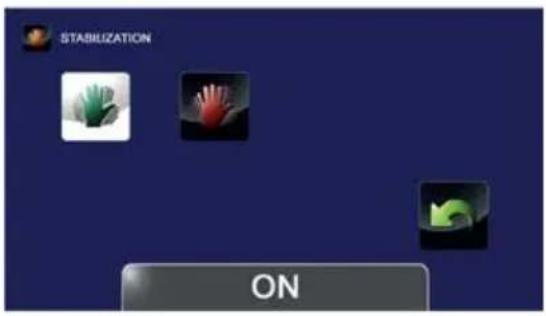

Stabilization

Your camcorder provides a feature that steadies the image to help reduce blurry photos and create clearer videos.

Operation Screen
1 In the Video Setting menu, touch the Stabilization icon twice.2 Touch to select the desired option.3 Touch again to validate the new setting.4 Touch the Return/Exit ( ) on twice, or hold it down to exit.

Motion detection

This option allows the camcorder to automatically record videos when the camcorder detects movement.

Operation Screen
1 In the Video Setting menu, touch the Motion Detect icon twice.2 Touch to select the desired option.3 Touch again to validate the new setting.4 Touch the Return/Exit ( ) on twice, or hold it down to exit.The camcorder will begin recording automatically if movement is detected. It stops recording when movement stops.

Slow motion

This option allows recording of videos with a slow motion effect. When the video is played, the playback time will be longer than the actual recording time.

Operation Screen
1 In the Video Setting menu, touch the Slow Motion icon twice.2 Touch to select the desired option.3 Touch again to validate the new setting.4 Touch the Return/Exit ( )on twice, or hold it down to exit.

NOTE

While using the Slow Motion setting, audio is not recorded and zoom is disabled.
The view angle may become smaller when the Slow Motion function is activated.
When the Slow Motion function is activated, the video resolution is QVGA.

Pre-Record

The Pre-record function allows the camcorder to begin recording one second before the Record button is pressed.

NOTE

Touch the icon once to view the description, touch twice to activate.

Operation Screen
1 In the Video Setting menu, touch the Pre-Record icon twice.2 Touch to select the desired option.3 Touch again to validate the new setting.4 Touch the Return/Exit ( )on twice, or hold it down to exit.

NOTE

The Time Lapse function cannot be used when the Pre-Record function is activated.
The Pre-Record function is disabled when another video setting is activated.

Time Lapse

This option allows the camcorder to record still images at specific time intervals that can then be then played back as one video file. The Time Lapse settings available are:

	OFF Disables Time Lapse.
	1 second Record one frame per second.
	3 seconds Record one frame every three seconds.
	5 seconds Record one frame every five seconds.
Operation Screen

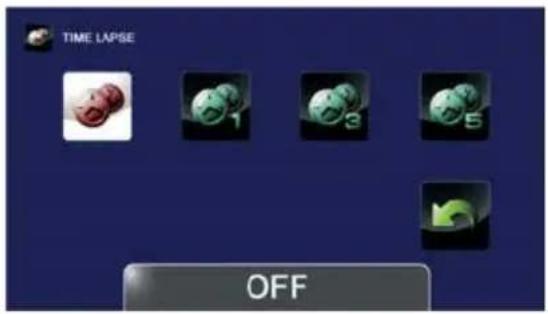

1 In the Video Setting menu, touch the Time Lapse icon twice.2 Touch to select the desired option.3 Touch again to validate the new setting.4 Touch the Return/Exit ( ) on twice, or hold it down to exit.

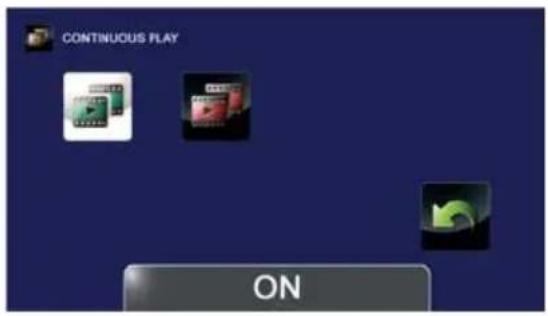

Continuous Play

This option allows you to playback files continuously.

Operation Screen
1 In the Video Setting menu, touch the Continuous Play icon twice.2 Touch to select the desired option.3 Touch again to validate the new setting.4 Touch the Return/Exit ( ) on twice, or hold it down to exit.

Photo setting options

Operation Screen

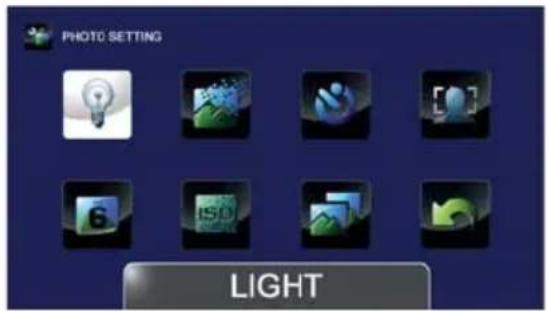

1 Touch the onscreen ( ) icon.The Menu screen appears.2 Touch the Photo Settings icon twice to enter the Photo Setting menu.The Photo Setting Menu appears.3 The Photo Setting menu options are: Light, Resolution, Self-Timer, Face Tracking, Date Printing, ISO, and Slideshow.

Light

In this option select a mode to brighten the shooting area or to extend the brightness of objects. The Light settings available are:

	ON Turns the light ON, providing illumination when recording.
	OFF Turns the light OFF.
	Digital Light	Extends the dynamic range of high contrast and backlight, so objects appear brighter and clearer.

Operation Screen
1 In the Photo Setting menu, touch the Light icon twice.2 Touch to select the desired option.3 Touch again to validate the new setting.4 Touch the Return/Exit ( 📄 on twice, or hold it down to exit.

Resolution

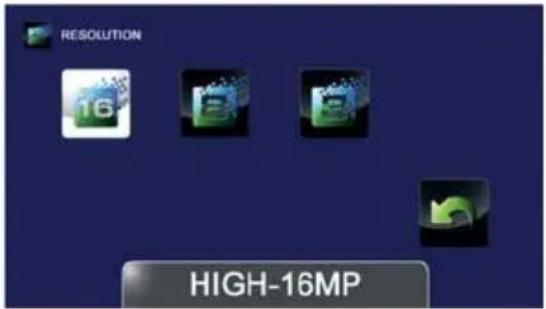

The Resolution settings available are:

	High-16M Take photos at 4608 x 3456, 16 MP quality.
	Standard-8M Take photos at 3264 x 2448, 8 MP quality.
	Low-3M Take photos at 2048 x 1536, 3 MP quality.

Operation Screen
1 In the Photo Setting menu, touch the Resolution icon twice.2 Touch to select the desired option.3 Touch again to validate the new setting.4 Touch the Return/Exit (icon twice, or hold it down to exit.

Self-timer

The self-timer allows you to take photos with a ten-second time delay. The self-timer light on the front of the camcorder blinks to indicate the feature is activated. The blinking speed increases just before the photo is taken.

Operation Screen
1 In the Photo Setting menu, touch the Self-Timer icon twice.2 Touch to select the desired option.3 Touch again to validate the new setting.4 Touch the Return/Exit ( )on twice, or hold it down to exit.

Face Tracking

The camcorder detects and focuses on face(s) automatically. This function works in Photo mode to capture portraits in backlit conditions.

Operation Screen
1 In the Photo Setting menu, touch the Face Tracking icon twice.2 Touch to select the desired option.3 Touch again to validate the new setting.4 Touch the Return/Exit ( )on twice, or hold it down to exit.

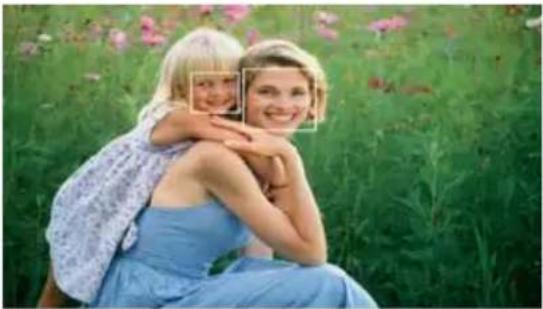

In Photo mode, when the camcorder is aimed at face(s), the face frame(s) appear.

Date Printing

With this option, you can imprint the date and time on each photo.

Operation Screen
1 In the Photo Setting menu, touch the Date Printing icon twice.2 Touch to select the desired option.3 Touch again to validate the new setting.4 Touch the Return/Exit ( )on twice, or hold it down to exit.
When this function is activated, the date appears on the corner of each photo.

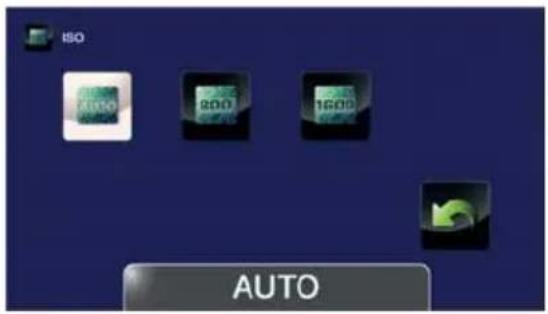

ISO

The camcorder automatically adjusts the ISO setting of images. Two manual ISO sensitivity settings are also available (800 and 1600). Use the higher setting to take a photo in the dark or in a poorly lit location, or for an subject moving at a high rate of speed.

	Auto	Sets the ISO setting automatically according to conditions.
	800 ISO 800
	1600 ISO 1600

Operation Screen
1 In the Photo Setting menu, touch the ISO icon twice.2 Touch to select the desired option.3 Touch again to validate the new setting.4 Touch the Return/Exit (icon twice, or hold it down to exit.

NOTE

The image may become grainy with a higher ISO setting.

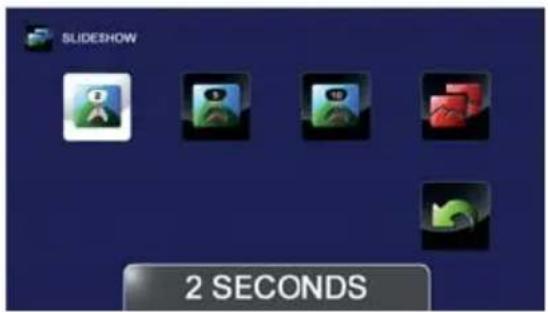

Slideshow

Photos can be viewed one after another in a slideshow in a chosen interval of time. The Slideshow settings available are:

	2 seconds Displays one photo every two seconds.
	5 seconds Displays one photo every five seconds.
	10 seconds Displays one photo every ten seconds.
	OFF Disables Slideshow.

Operation Screen
1 In the Photo Setting menu, touch the Slideshow icon twice.2 Touch to select the desired option.3 Touch again to validate the new setting.4 Touch the Return/Exit ( )on twice, or hold it down to exit.

Effects

Operation Screen
1 Touch the onscreen ( ) icon.The Menu screen appears.2 Touch the Effects icon twice to enter its settings menu.3 The Effects menu options are: Macro mode, Scene, Filter, and White Balance.

Macro mode

The camcorder adjusts the focus automatically. When this function is activated, the camcorder adjusts the focus with priority on close-up objects that are at a distance of approximately 0.39 - 3.94 ins. (0.99 - 10cm).

Operation Screen
1 In the Effects Setting menu, touch the Macro mode icon twice.2 Touch to select the desired option.3 Touch again to validate the new setting.4 Touch the Return/Exit ( )on twice, or hold it down to exit.

Scene

You can select a mode according to the scene and conditions. The Scene settings available are:

_	Auto Automatically adjusts to current conditions.
_	Skin Adjusts skin tones to appear more natural.
_	Night Use in low light conditions or at night.
_Operation Screen	Backlight Use when the subject is brightly lit from behind.
1 In the Effects Setting menu, touch the Scene icon twice.2 Touch to select the desired option.3 Touch again to validate the new setting.4 Touch the Return/Exit ( ) on twice, or hold it down to exit.

NOTE

To avoid blurry photos when taking photos in Night mode, place the camcorder on a flat, steady surface, or use a tripod.

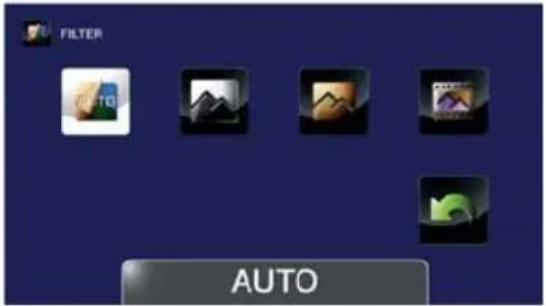

Filter

You can select a special filter effect for videos and photos. The Filter settings available are:

	Auto No filter effects.
	Black & White The image is converted to black and white.
	Classic The image is converted to sepia.
	Negative The image is converted to a negative of the original.

Operation Screen
1 In the Effects Setting menu, touch the Filter icon twice.2 Touch to select the desired option.3 Touch again to validate the new setting.4 Touch the Return/Exit ( ) on twice, or hold it down to exit.

NOTE

Scene/Filter: B/W / Classic / Negative effect can be previewed immediately without icons appearing on the LCD touch screen.

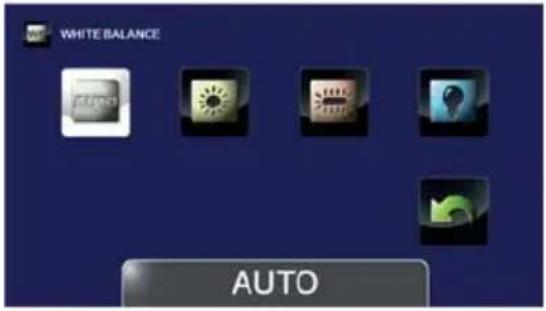

White Balance

The camcorder adjusts the white balance of images automatically. The White Balance settings available are:

	Auto Automatically adjusts white balance.
	Daylight Use in outdoor conditions.
	Fluorescent Use in Fluorescent lighting.
	Tungsten Use in tungsten lighting.

Operation Screen
1 In the Effects Setting menu, touch the White Balance icon twice.2 Touch to select the desired option.3 Touch again to validate the new setting.4 Touch the Return/Exit ( ) on twice, or hold it down to exit.

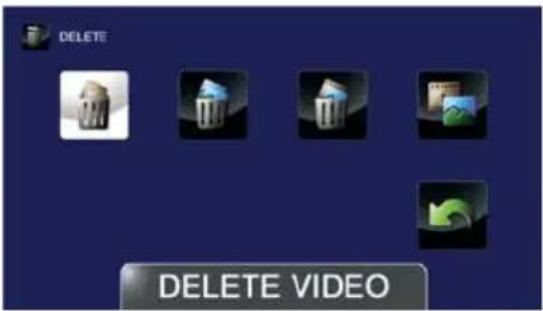

Deleting files

Operation Screen
1 Touch the onscreen ( ) icon.The Menu screen appears.2 Touch the Delete icon twice to enter its settings menu.3 The Delete menu options are: Delete Video, Delete Photo, Select & Delete, and Delete All.

Deleting Video(s)

Operation Screen
1 In the Delete menu, touch the Video icon twice.2 Touch to select the desired thumbnail video(s).Check mark(s) will indicate the selected file(s).3 Touch the Delete icon to delete the selected video(s).4 Touch the Return/Exit ( ) on twice, or hold it down to exit.

Deleting Photo(s)

Operation Screen
1 In the Delete menu, touch the Photo icon twice.2 Touch to select the desired thumbnail photo(s).Check mark(s) will indicate the selected file(s).3 Touch the Delete icon to delete the selected photo(s).4 Touch the Return/Exit ( ) on twice, or hold it down to exit.

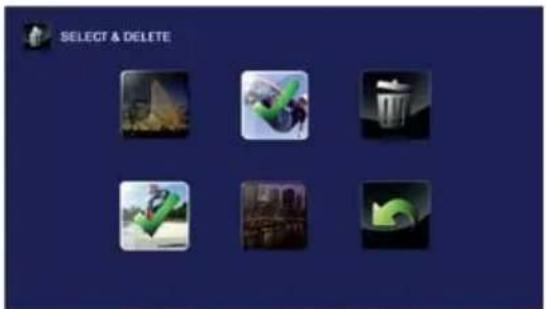

Select & Delete

Operation Screen
1 In the Delete menu, touch the Select & Delete icon twice.2 Touch to select the desired thumbnail photo(s) and video(s).Check mark(s) will indicate the selected file(s).3 Touch the Delete icon to delete the selected photo(s) and video(s).4 Touch the Return/Exit ( ) on twice, or hold it down to exit.

Delete All

Use this option to delete all videos and photos

	Yes	Delete all videos and photos in the built-in memory (when no SDTM Card is installed), or delete all videos and photos on the installed SDTM Card.
	No	Do not delete all videos and photos in the built-in memory (when no SDTM Card is installed), or do not delete all videos and photos on the installed SDTM Card.

Operation Screen
1 In the Delete menu, touch the Delete All icon twice.2 Touch to select the desired option.3 Touch again to validate the new setting.4 Touch the Return/Exit ( )on twice, or hold it down to exit.

NOTE

When an SD™ Card has been installed, only the videos and photos stored on the card are deleted.
Videos or photos cannot be deleted if the card is write-protected.

Chapter 4

Playback Mode

Button functions

The buttons have the following functions in Playback mode.

	Video button:1 Press to enter Video Record mode.
	Photo button:1 Press to enter Photo Record mode
	Tele (T) button:Increase volume.Wide (W) button:Decrease volume.
	Pause button:1 Press to pause video playback.2 Press it again to resume video playback.
	Internet upload button:In Playback mode. Press to tag the current video/photo to upload to the Internet (for Windows® based systems only).

LCD touch screen information

The indicators shown below may appear on the LCD touch screen while in Playback mode:

Onscreen notification icons Onscreen touch function icons

(Sample Image) LCD touch screen indicators

Notification icons

1		Battery: Full power
		Battery: Medium power
		Battery: Low power
		Battery: No power
		DC power mode.
2		The current video or photo file is selected to upload to the Internet.
3	00:03:12	Playback time counter.
	▲321	Current number of photos taken.
	▽250	The remaining amount of photos that can be taken at the current resolution settings.
4	###	Volume control.
5		Video Playback mode.
		Photo Playback mode.

Touch function icons

6	Video Playback mode
		Continuous play ON/OFF.
	Photo Playback mode
		Slideshow ON/OFF.
7	[T3ZC]	Select & Play thumbnail screen ON.
8		Menu ON.
9		Return to Record mode.
10		Return to the previous file. Video fast rewind.
11		Play a video or photo file.
		Pause.
12		Advance to the next file. Video fast forward.
13		Delete the current file.
		Stop video play. Stop photo slideshow.

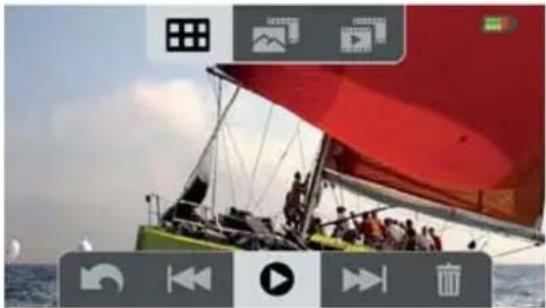

Playback mode operations

To view and manage videos and photos in the built-in memory or on an SD ^TM Card, use the Playback mode.

Operation Screen
1 In Record mode, press the Playback button or touch the onscreen ( ) icon to switch to Playback mode.2 Touch the onscreen ( ) icon to view the previous video/photo, or touch the onscreen ( ) icon to view the next video/photo.3 Touch the onscreen ( ) icon.The Menu screen appears.
4 Touch the onscreen ( ) icon to open the thumbnail screen for videos and photos.The Select & Play screen appears.5 In the Select & Play screen, select the file(s) you want to play, and then touch ( ) to confirm. Check marks appear on the selected file(s).
6 Touch the onscreen ( ) icon to play the selected files. (Video: full length. Photo: displays for 2 seconds.)

Video Playback

Operation Screen

1 In the Video Playback mode, touch the ( ) or ( ) icon to play or pause the video.2 Touch the ( ) icon to view the previous video, or touch the ( ) icon to view the next video. While playing a video, touch the ( ) or ( ) icon to fast rewind/forward the video.3 In the Continuous Play On mode the ( ) icon is highlighted. Touch the ( ) icon to play all video files continuously. Touch the ( ) icon to stop the video.4 Use the Tele/Wide buttons to adjust the volume.5 Press the Internet upload button to select the current video to upload to the Internet (for Windows® based systems only).

Photo Playback

Operation Screen
1 In the Photo Playback mode, touch the ( )icon to view the previous photo, or touch the ( )icon to view the next photo.2 In the Slideshow On mode the ( )icon is highlighted. Touch the ( )or ( ) icon to play or pause the slideshow. Touch the ( )icon to stop the slideshow.3 Press the Internet upload button to select the current photo to upload to the Internet (for Windows® based systems only).

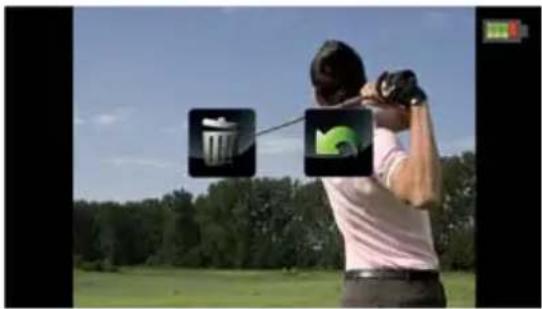

Delete a file in Playback mode

Operation Screen
1 In the Playback mode, touch the ( )icon.2 Touch the ( )on to delete the current photo.3 Touch the Return/Exit ( )on twice, or hold it down to exit.

NOTE

When an SD™ Card has been installed, only the videos and photos stored on the card are deleted.
Videos or photos cannot be deleted if the card is write-protected.

Chapter 5

Camcorder Settings

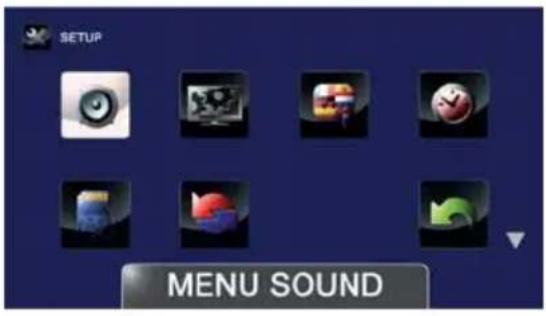

Setup Menu

Operation Screen
1 Touch the onscreen ( ) icon.The Menu screen appears.2 Touch the Setup ( ) on twice to enter its settings menu.3 The Setup Menu options are: Sound (operation sound), TV, Language, Time Setting, Format, and Default Setting.

Menu Sound

You can enable or disable tone and operation sounds.

Operation Screen
1 In the Setup menu, touch the Menu Sound icon twice.The Menu screen appears.2 Touch to select the desired option.3 Touch again to validate the setting.4 Touch the Return/Exit ( ) on twice, or hold it down to exit.

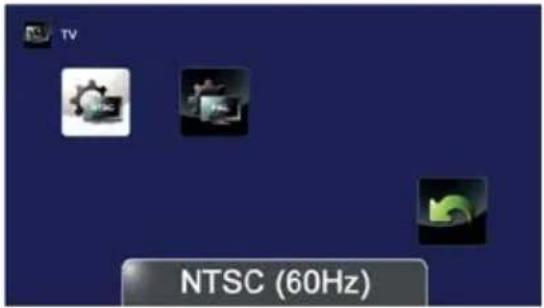

TV

Use this function to select the appropriate TV standard for your area, either NTSC or PAL.

An incorrect TV system setting may cause the image to flicker.

	NTSC (60Hz) USA, Canada, Japan, South Korea, Taiwan, etc.
	PAL (50Hz) UK, Europe, China, Australia, Singapore, Hong Kong, etc.

Operation Screen
1 In the Setup menu, touch the TV icon twice.The Menu screen appears.2 Touch to select the desired option.3 Touch again to validate the setting.4 Touch the Return/Exit ( ) on twice, or hold it down to exit.

Language

Use this option to select the language of the user interface.

Operation Screen
1 In the Setup menu, touch the Language icon twice.The Menu screen appears.2 Touch to select the desired option.3 Touch again to validate the setting.4 Touch the Return/Exit ( )on twice, or hold it down to exit.

Time Settings

Operation Screen
1 In the Setup menu, touch the Time Setting icon twice.The Menu screen appears.2 Touch the Year, Month, Day, Hour, or Minute to set.3 Touch the up/down arrows to adjust the numeric value.4 Touch the (icon to validate the setting.5 Touch the Return/Exit (on twice, or hold it down to exit.

Format

Use this option to delete all data in the built-in memory or on the SD ^TM Card.

	Yes	Delete all videos and photos in the built-in memory (when no SDTM Card is installed), or delete all videos and photos on the installed SDTM Card.
	No	Do not delete all videos and photos in the built-in memory (when no SDTM Card is installed), or do not delete all videos and photos on the installed SDTM Card.

Operation Screen
1 In the Setup menu, touch the Format icon twice.The Menu screen appears.2 Touch to select the desired option.3 Touch again to validate the setting.4 Touch the Return/Exit ( ) on twice, or hold it down to exit.

CAUTION

All data will be erased if the SD ^™ Card is formatted. Make sure all data is copied to your computer or other media before formatting the SD ^™ Card.

Default Setting

To restore the default factory setting, select this option.

	Yes Restore to default factory setting.
	No Do not restore to default factory setting.

Operation Screen
1 In the Setup menu, touch the Default Setting icon twice.The Menu screen appears.2 Choosing Yes performs the operation, and No cancels the operation.3 Touch the Return/Exit ( ) on twice, or hold it down to exit.

The following table lists the camcorder's default settings:

Setting Default Factory Setting
Resolution	Video: Full HD 1080p/30Photo: Standard-8M
Light OFF
Stabilization ON
Motion Detection OFF
Slow Motion OFF
Time Lapse OFF
Pre-Record OFF
Continuous Play	OFF
Self-Timer	OFF
Face Tracking	OFF
Date Printing	OFF
ISO	Auto
Slideshow	OFF
Macro Mode OFF
Scene	Auto
Filter	Auto
White Balance Auto
Menu Sound ON
TV NTSC
Language English
Volume Level 4

Chapter 6

Viewing Photos and Videos on TV

Connecting to a high-definition 16:9 (wide) TV

To view images or videos from your camcorder on a TV:

1 Connect the HDMI™ cable (HDMI™ cable sold separately) to your camcorder's HDMI™ Out port.
2 Connect the other end of the cable to a television.
3 Set the video input source of your TV to HDMI ^TM .

(Sample Image) Connecting a high-definition TV

4 The steps for viewing stored photos and videos on a TV are the same steps used for viewing them on the LCD screen.

NOTE

The LCD touch screen does not display when the camcorder is connected to an HDTV.

NOTE

Some functions may not be accessible while the camcorder is connected to a TV or an HDTV.

Installing bundled software

The CD-ROM supplied with your camcorder contains two software applications.

• ArcSoft MediaImpression ^® is a user-friendly application that helps manage your media, and upload videos to the Internet easily.
  Adobe ^® Reader ^® is a popular program that is needed to view the User's Manual. Many users will find they already have this software installed on their computer.

To install the bundled software:

1 Insert the CD-ROM into your computer's optical disc drive. The autorun screen appears.
2 Click “Install Application Software”. Follow the onscreen instructions to complete the installation.

NOTE

Detailed information can be found in the online help of all the bundled software.

Viewing Photos and Videos on a Computer

NOTE

It may be necessary to install the bundled software application, ArcSoft MedialImpression ^® to view videos properly on your computer.

Transferring photos or videos to a computer

You can transfer photos or videos stored on your camcorder to a computer and send them via email to friends or post them on the Internet.

To do this:

1 Connect the computer and camcorder with the supplied mini USB 2.0 cable.

The multi-indicator light blinks.

2 To access photos and videos on your SD™ Card: Videos and photos can be found on your computer at

My Computer\ SD\DCIM\100MEDIA (path will vary depending on name of SD™ Card).

3 To access photos and videos in the camcorder's internal memory: Videos and photos can be found on your computer at My Computer\DV\DCIM\100MEDIA

4 In this folder, you can view, delete, move, or copy any video/photo you want.

5 Use the bundled ArcSoft MediaImpression ^® application software to edit the videos or photos.

Uploading Video and Photo Files to the Internet

The built-in CAMILEO ^® Uploader application offers an easy way to upload video clips and photos to social media Web sites instantly, allowing you to share them with your family and friends on these Web sites. The bundled software, ArcSoft MediaImpression ^® , can also be used to upload video clips to these Web sites.

NOTE You must have Internet access to upload videos to a Web site.

NOTE CAMILEO Uploader for Windows ^® based systems only.

CAMILEO® Uploader

To upload files to the Internet:

1 Select files in Video/Photo Playback mode by pressing the Internet upload ( ) button.

The selected files appear in blue frames on the CAMILEO ^® Uploader screen.

2 Connect the camcorder to the computer by using the supplied USB cable.

Line drawing of a laptop connected to a device via cable (no text or symbols)

(Sample Illustration) Connecting the camcorder to a computer

3 Press the Internet upload (☐) button on the camcorder to launch the CAMILEO® Uploader application automatically (for Windows® based systems only).

NOTE

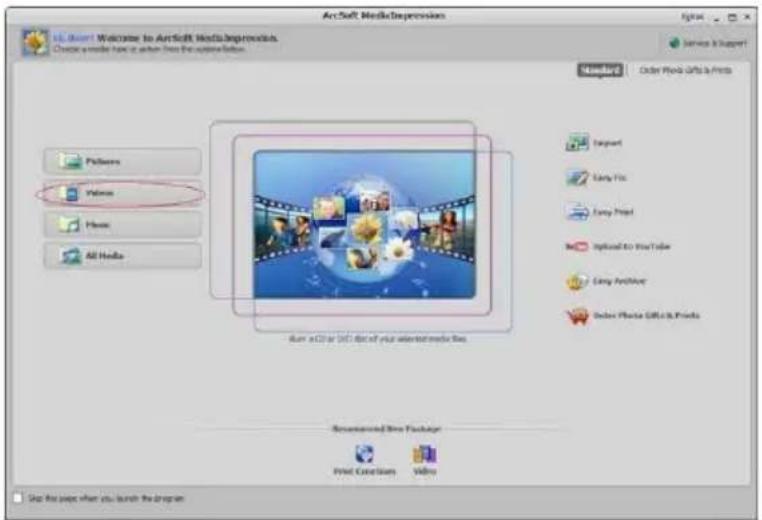

It may be necessary to first install ArcSoft MedialImpression® onto your computer to view videos/photos in the CAMILEO® Uploader. If ArcSoft MedialImpression® is not installed, you may be asked to install the H.264 Codec (ffdshow-a free software under GPL license) to view videos on CAMILEO Uploader correctly.

4 Choose the Web site you wish to upload to.

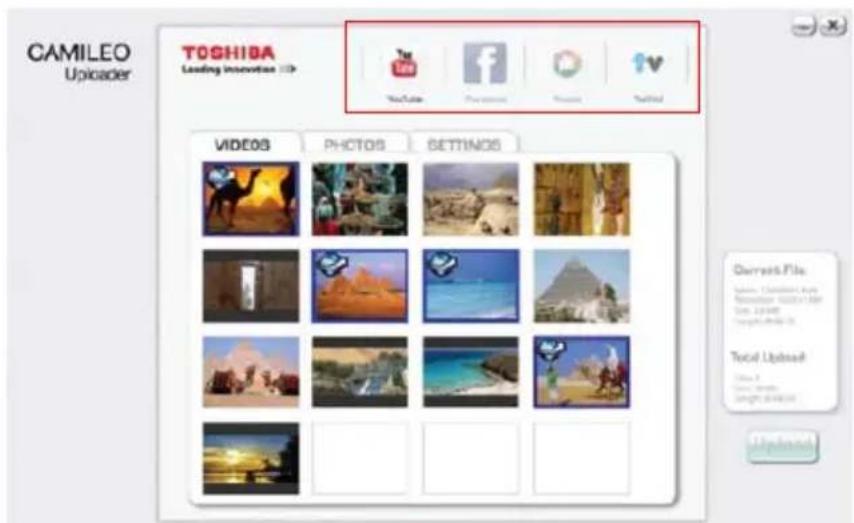

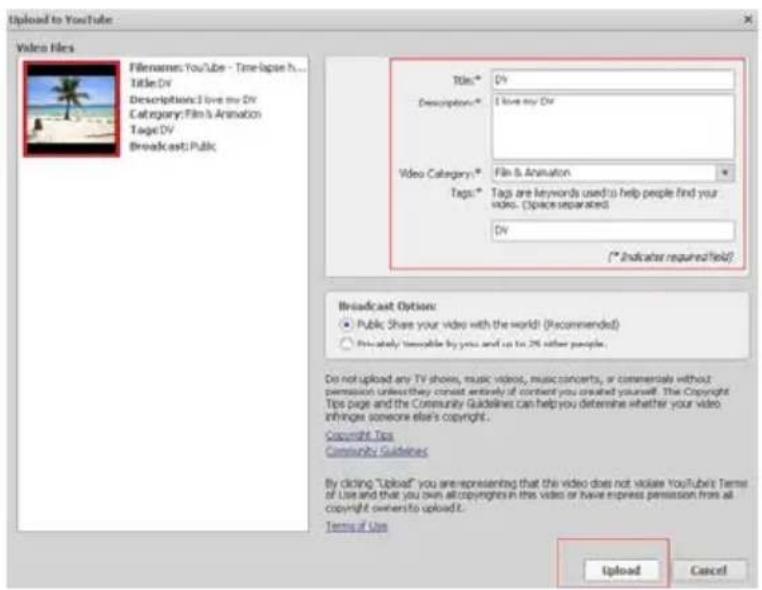

(Sample Image) CAMILEO ^® Uploader main screen

NOTE

Some social media Web sites may not be accessible in certain regions.

5 Press the Internet ( ) button on the camcorder again.

The files marked with the (icon and framed in blue are uploaded to the Web site automatically. (You may be asked to fill in your account information and check Remember password on the Settings screen before uploading).

Click CANCEL to stop uploading.

(Sample Image) CAMILEO® Uploader screen - Cancel

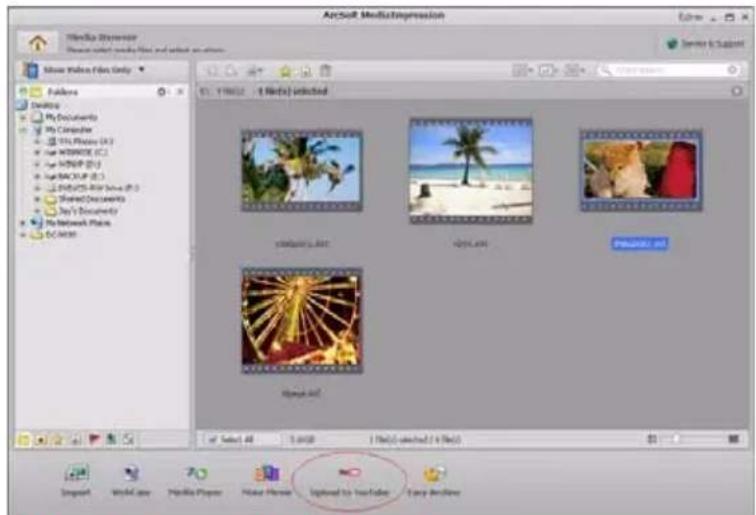

To upload video/photo files selected manually to a Web site

1 Follow steps 2 and 3 in "CAMILEO® Uploader" on page 58.
2 Choose the Web site you wish to upload to.
3 Click on the Videos or Photos tab to view the Videos/Photos thumbnail page, using the scroll bar to change pages.
4 Click on the files you wish to upload to the Internet. The selected Video/Photo file(s) appear in a blue frame.

5 Click UPLOAD to begin uploading.

(Sample Image) CAMILEO ^® Uploader screen - Upload videos

Setting up your account information for a Web site

NOTE

You need to activate your Facebook® account by email after registering it.

If the privacy setting of your Facebook® account is set to the highest security level, you may have limited access to the CAMILEO Uploader.

1 Choose the Web site.
2 Click the Settings tab to view the setup screen.
3 Fill in your account information, and then click Save.
4 To save your account information and avoid re-entering your login information, check Remember password.

Webcam mode

Connect the camcorder to your computer, using the supplied USB 2.0 cable. Press the Playback button to switch to the Webcam mode. The Multi-indicator light glows blue. In this mode, you can implement live video conference meetings and multimedia communications.

Line drawing of a laptop connected to a digital camera via USB cable (no text or symbols)

(Sample Illustration) Connecting the camcorder to a computer

ArcSoft MedialImpression®

To upload video files to the Internet:

1 Install ArcSoft MediaImpression ^® .

2 Click Start, (All) Programs, and then ArcSoft MediaImpression®.

The ArcSoft MediaImpression ^® main screen appears on your desktop.

3 Click Videos.

(Sample Image) ArcSoft MediaImpression ^® main screen

4 The operation screen appears:

Select the folder that contains the video files you want to upload.
Select the files in the display area.

Click Upload to the Internet on the bottom menu.

(Sample Image) Selecting files

5 Fill in your site account information in the blanks, and then click Login.

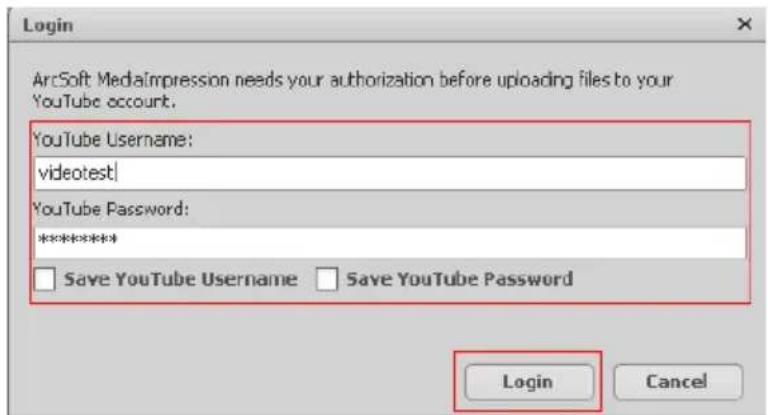

(Sample Image) Entering account information

6 Fill in the information on the video clips, and then click Upload.

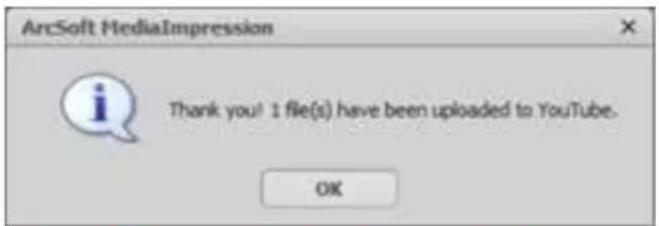

(Sample Image) Uploading to the Internet

Chapter 9

Specifications

Image sensor	8 Megapixel CMOS sensor
Operations modes	Video Record, Photo Record
Lens types	5x Optical Zoom
Lens	Auto focus lens (F 3.5-F 3.7)
Focus range	Macro mode:Wide: 0.39 in. (1cm) - 3.9 in. (10cm)Tele: 31.5 in. (80cm)Normal mode:Wide: 3.9 in. (10cm) ~ InfinityTele: 31.5 in. (80cm) ~ Infinity
Zoom	1x~16x (16x Digital zoom)
Shutter	Electronic
LCD touch screen	3 in. (7.6cm) LCD touch screen (16:9)
Storage media	Built-in 128MB memory (partial memory is used for firmware code),SD/SDHC/SDXC card slot support (up to 64GB)
Image resolution	High: 4608 x 3456 (16M pixels) (Interpolated)Standard: 3264 x 2448 (8M pixels)Low: 2048 x 1536 (3M pixels)
Video resolution	Full HD 1080/30: 1920 x 1080 (30fps)HD 720/60: 1280 x 720 (60fps)HD 720/30: 1280 x 720 (30fps)VGA 480/30: 640 x 480 (30fps)
White balance	Auto/Manual (Daylight, Fluorescent, Tungsten)
ISO	Auto/800/1600
Self-timer	10 second delay
Light	Light ON/Light OFF/Digital Light ON
File format	Photo: JPGVideo: MP4 (H.264)
Image play	Single image/Slideshow
PC interface	Mini USB 2.0 port
TV out	Mini HDMITM
Battery	Lithium-ion rechargeable battery
Dimensions	2.7 (W) x 4.4 (H) x 1.3 in. (D)68 (W) x 111 (H) x 32mm (D)
Weight	4.6 oz. (130g) (without battery)

Operating Environment Conditions

Operating temperature: 14^ to 104^ F ( -10^ to 40^ C)

Operating humidity: 20 to 85% (no condensation allowed)

Chapter 10

Troubleshooting

1 If the LCD touch screen preview is not clear while shooting, how can the focus be adjusted?

Try switching between Macro and Normal modes.

2 The files on the memory card do not display properly when the LCD touch screen shows the “!” marking.

The “!” symbol indicates that the SD ^TM Card is too low a speed or contains corrupted files. To solve this, format the SD ^TM Card using the camcorder instead of a computer (For more information, see “Format” on page 52).

3 Why do some of my indoor photos look blurry and dark?

The camcorder extends photo exposure time under low-light/indoor conditions. Keep the camcorder (and the target subject) steady for several seconds when taking photos. The shutter sounds when a photo is taken.

4 How do I charge the battery?

You must use the supplied AC adaptor or the USB cable.

The camcorder must be turned OFF. A blinking light confirms the camcorder is currently charging. A steady light indicates that charging is complete. The light turns off automatically after 5 minutes (In AC charging mode).

5 After connecting the USB cable to the computer:

◆“DV” indicates the internal memory of the camcorder.
“Removable Disk” indicates the external memory (SD/SDHC/SDXC card installed in the camcorder) (path will vary depending on name of SD™ Card).
◆“DVAP” indicates the built-in CAMILEO ^® Uploader (for Windows ^® based systems only).

CAUTION

Do not format the disk or delete the application. The CAMILEO ^® Uploader application may not function.

Chapter 11

Other Information

Toshiba Support

If you require help or are having problems operating your product, you may need to contact Toshiba for additional technical assistance.

Before you call

Since some problems may be related to software, it is important that you investigate other sources of assistance first. Try the following before contacting Toshiba:

◆ Review the documentation supplied with your product.
If a problem occurs when you are running software applications, consult the software documentation for troubleshooting suggestions. Contact the software company's technical support department for assistance.
Consult the reseller or dealer from whom you purchased your product. They are your best resource for current information and support.

Contacting Toshiba

Toshiba's technical support Web site

For technical support, or to stay current on the most recent software and hardware options for your CAMILEO ^® product and for other product information, be sure to regularly check the Toshiba Web site at www.support.toshiba.com.

Toshiba voice contact

For technical support, call the Toshiba Customer Support Center:

Within the United States at [phone]

Outside the United States at [phone]

Toshiba Phone Service Center for Latin America Specialized technical service in Spanish.

Hours:

Monday through Friday from 8:00 a.m. to 9:00 p.m. EST:

Argentina: 0-800-666-3701

Chile: 800-64-6526

Costa Rica: 0-800-011-1123

El Salvador: 800-6601

Honduras: 949-587-6836*

Panama: 00-8000-44-7813

Peru: 0-800-5-3817

Uruguay: 000-411-002-2297

Bolivia: 800-100-684

Colombia: 01-800-912-0539

Ecuador: 949-587-6834*

Guatemala: 949-587-6835*

Nicaragua: 949-587-6843*

Paraguay: 009-800-441-0059

Dominican Republic: 1-888-862-3225

Venezuela: 0-800-100-8819

*Phone charges apply.

Warranty

Online Warranty Information

This product comes with a One (1) Year Standard Limited Warranty. The One (1) Year Standard Limited Warranty for Toshiba Computer Accessories can be found online at http://pcsupport.toshiba.com/accessories1yr.

Warranty Service

Customers located in the fifty (50) United States and District of Columbia may obtain warranty service by visiting the Toshiba Acclaim Web site at www.acclaim.toshiba.com or by contacting the telephone support center at 1-888-592-0944.

Customers located outside the fifty (50) United States and District of Columbia may obtain warranty service by contacting the telephone support center at 1-949-583-3305.

TOSHIBA

Leading Innovation >>>

Diagram showing a laptop connected to two remote control devices via cable (no text or symbols present)

Line drawing of a digital camera with lens and external connector (no text or symbols)

Person golfing outdoors with racket and binoculars, viewed from behind (no text or symbols visible)

Person performing a golf swing outdoors, viewed from behind (no text or symbols visible)

Line drawing of a laptop connected to a device via USB cable (no text or symbols)

Line drawing of a laptop connected to a digital camera via USB cable (no text or symbols)

(Imagen de muestra) Pantalla principal de ArcSoft MediaImpression®
