Product Type	Camcorder (Full HD 1080p)
Brand	Toshiba
Model	Camileo X416
Image Sensor	5 Megapixel BSI CMOS
Optical Zoom	23x
Digital Zoom	120x
Display	3" (7.6 cm) LCD touch screen (16:9)
Built-in Memory	16 GB (partial memory used for firmware)
Memory Card Support	SD/SDHC/SDXC up to 128 GB
Video Resolution	1920x1080p @30fps, 1280x720p @60fps, 1280x720p @30fps, 640x480p @30fps
Photo Resolution	16 MP (4608x3456 interpolated), 5 MP (2592x1944), 3 MP (2048x1536)
Battery	Lithium-ion rechargeable, 1.1 oz (31 g)
Battery Life	1 hour 40 minutes (with LCD on)
Charging Time	Approximately 4 hours (with AC adaptor)
Dimensions (W x H x D)	4.7 x 2.1 x 2.4 in (120 x 54 x 62 mm)
Weight (without battery)	10.5 oz (297 g)
Connectivity	Mini USB 2.0, Mini HDMI, AV (via mini USB)

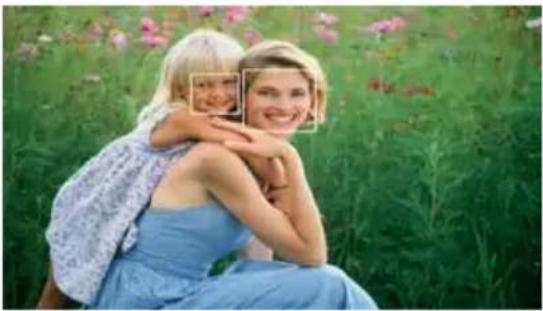

Additional Features	Image stabilization, face tracking, smile detection, motion detection, pre-record, time lapse, slow motion, webcam mode, built-in uploader
Cleaning and Maintenance	Use dry cloth; avoid water and high temperature; keep out of reach of infants
Spare Parts and Repairability	Battery is replaceable; use only Toshiba recommended parts; do not disassemble

Frequently Asked Questions - Camileo X416 TOSHIBA

How do I charge the battery?

Use the supplied AC adaptor or USB cable. Turn off the camcorder. A blinking light indicates charging; a solid light indicates full charge. Full charge takes about 4 hours.

How do I record a video?

Press the Video button to start recording, and press it again to stop. You can pause by pressing the Pause button. Touch the playback icon to view recorded videos.

How do I set the date and time?

Go to Setup Menu > Time Settings. Touch the month, day, year, hour, or minute and use the up/down arrows to adjust. Confirm by touching the OK icon.

Can I use an external memory card?

Yes, the camcorder supports SD/SDHC/SDXC cards up to 128 GB. Insert the card into the SD card slot. When a card is inserted, files are saved to the card instead of built-in memory.

How do I delete files?

In Record mode, touch the Menu icon > Delete. You can delete videos, photos, select multiple files, or delete all. In Playback mode, touch the trash icon to delete the current file.

How do I connect the camcorder to a TV?

Use the supplied mini HDMI cable to connect to an HDTV. Set the TV source to HDMI. The camcorder screen turns off when connected. Alternatively, use the AV cable (mini USB to AV) for standard TVs.

How do I upload videos to the Internet?

Connect the camcorder to a computer via USB. The built-in CAMILEO Uploader will launch (Windows only). Select the video files and click Upload to share on social media sites like Facebook and YouTube.

How do I use the webcam mode?

Connect the camcorder to a computer via USB. Press the Video button to switch to Webcam mode. The multi-indicator light glows blue. The camcorder will function as a webcam for video calls.

Why are my indoor pictures blurry and dark?

Under low-light conditions, the camcorder extends exposure time. Keep the camcorder and subject steady for a few seconds. You can also enable the Light or Night mode for better results.

What is the built-in memory size?

The Toshiba Camileo X416 has 16 GB of built-in memory. A portion is used for firmware. You can expand storage with an SD card up to 128 GB.

USER MANUAL Camileo X416 TOSHIBA

Leading Innovation >>>

CAMILEO® X400 Series User's Guide

English/Espanol

Regulatory Information

FCC Information

Product Name: Camcorder

Model number: CAMILEO® X400 Series

FCC notice “Declaration of Conformity Information”

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

◆ Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

▲WARNING

Changes or modifications made to this equipment, not expressly approved by TOSHIBA or parties authorized by TOSHIBA could void the user's authority to operate the equipment.

FCC Conditions

This equipment has been tested and found to comply with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.
(2) This device must accept any interference received. Including interference that may cause undesired operation.

Contact

Address: TOSHIBA America Information Systems, Inc.

9740 Irvine Boulevard

Irvine, California 92618-1697

Telephone: [phone]

Safety Instructions

1 Do not drop, puncture or disassemble the camcorder; otherwise the warranty will be voided.
2 Avoid all contact with water, and dry hands before using.
3 Do not expose the camcorder to high temperature or leave it in direct sunlight. Doing so may damage the camcorder.
4 Use the camcorder with care. Avoid pressing hard on the camcorder body.
5 For your own safety, avoid using the camcorder when there is a storm or lightning.
6 Do not use batteries of different specifications. Doing so may lead to the potential for serious damage.
7 Remove the battery during long periods between usage, as a deteriorated battery may affect the functionality of the camcorder.
8 Remove the battery if it shows signs of leaking or distortion.
9 Use only the accessories supplied by the manufacturer.
10 Keep the camcorder out of the reach of infants.
11 Risk of explosion if battery is replaced by an incorrect type.
12 Dispose of used batteries according to the instructions.

About the battery

Use only batteries recommended by TOSHIBA as replacements. The battery is a lithium ion battery, which can explode if not replaced, used, handled or disposed of properly. Dispose of the battery as required by local ordinances or regulations.
Charge the battery only in an ambient temperature between 41 and 95 degrees Fahrenheit (5 and 35 degrees Celsius). Otherwise, the electrolyte solution might leak, battery performance might deteriorate and the battery life might be shortened.
Never install or remove the battery without first turning off the power and disconnecting the AC adaptor.
Only use the supplied AC adaptor or USB cable, or an optional Toshiba battery charger to charge the battery. Never attempt to charge the battery with any other charger.

About the remote control battery

▲WARNING

Chemical burns and choking hazard due to battery ingestion

The remote control supplied with this camcorder contains a button cell battery. Keep the button cell battery out of reach of children. If swallowed, the button cell battery can cause serious injury or death. Severe burns can occur within hours of ingestion. If you suspect that a button cell battery has been swallowed, seek immediate medical attention.

Use care when changing the button cell battery. Keep all new and used button cell batteries out of reach of children and ensure that the battery compartment is completely secure after replacing the battery. If the battery compartment cannot be completely secured, discontinue use of the remote control and contact the manufacturer.

▲ CAUTION

Use only button cell batteries recommended by the manufacturer as replacements. The button cell battery can explode if not replaced, used, handled, or disposed of properly. Dispose of the button cell battery as required by local ordinances or regulations.

California Perchlorate Information:

Products containing CR (manganese dioxide) lithium coin cell batteries may contain perchlorate. Perchlorate Material – special handling may apply. See http://www.dtsc.ca.gov/hazardouswaste/perchlorate.

Safety icons

This manual contains safety instructions that must be observed to avoid potential hazards that could result in personal injuries, damage to your equipment, or loss of data. These safety cautions have been classified according to the seriousness of the risk, and icons highlight these instructions as follows:

⚠️ DANGER	Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
⚠️ WARNING	Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
⚠️ CAUTION	Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
CAUTION	Indicates a potentially hazardous situation which, if not avoided, may result in property damage.
NOTE	Provides important information.

Additional Information

© Copyright 2011 TOSHIBA CORPORATION. All rights reserved. TOSHIBA reserves the right to make technical changes. TOSHIBA assumes no liability for damages incurred directly or indirectly from errors, omissions or discrepancies between this product and the documentation.

Trademarks

CAMILEO is a registered trademark of Toshiba America Information Systems, Inc. and/or Toshiba Corporation.

Adobe and Adobe Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.

ArcSoft, MediaImpression, and MediaConverter are registered trademarks of ArcSoft, Inc.

Facebook is a registered trademark of Facebook Inc.

HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC.

Intel, Intel Core, Celeron, Centrino and Pentium are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.

Mac is a trademark of Apple Inc., registered in the U.S. and other countries.

Microsoft, Windows, and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

Picasa is a trademark of Google Inc.

Secure Digital and SD are trademarks of SD Card Association.

YouTube and the YouTube logo are registered trademarks of Google, Inc.

All other brand and product names are trademarks or registered trademarks of their respective companies.

Contents

Chapter 1: Getting to Know Your Camcorder.... 10

Overview 10

Check the components .....11

System requirements....11

Front view 12

Rear view....12

Side view 13

Underside view 13

Chapter 2: Getting Started....14

Loading the battery....14

Charge your battery 16

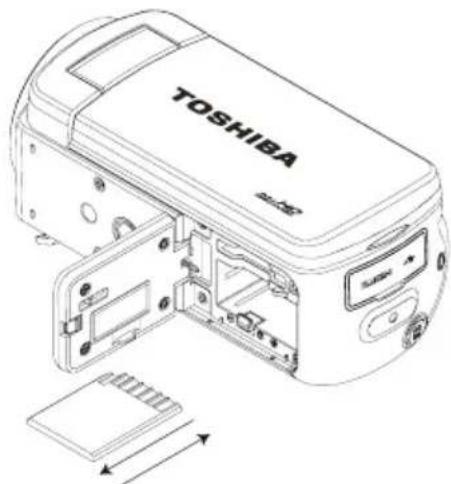

Inserting and removing an SD™ Card (optional).....20

Protecting data on an SD™ Card....21

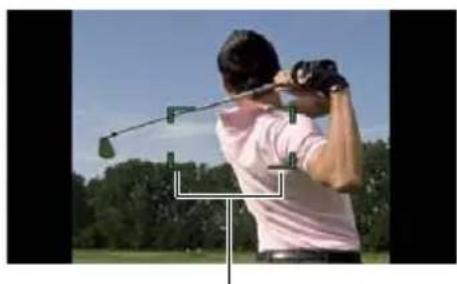

Turning the camcorder on and getting started .....22

Turning off the camcorder 22

Chapter 3: Record Mode.... 23

Button functions 23

LCD touch screen information 24

Notification icons....24

Touch function icons ....26

Video recording 27

Photo recording....28

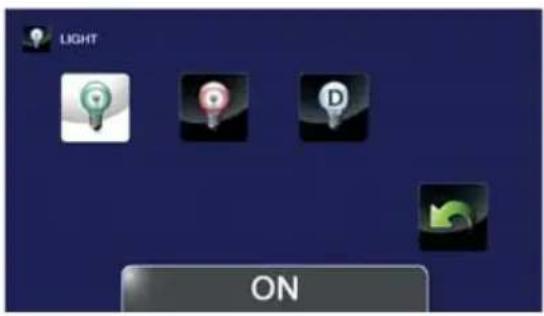

Using Digital Light or Light function .....28

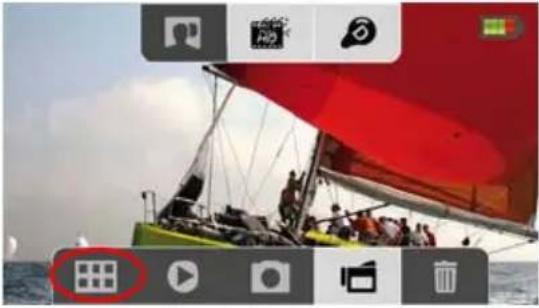

Using the Zoom function .....28

Menu options/operations....29

Video Setting options....30

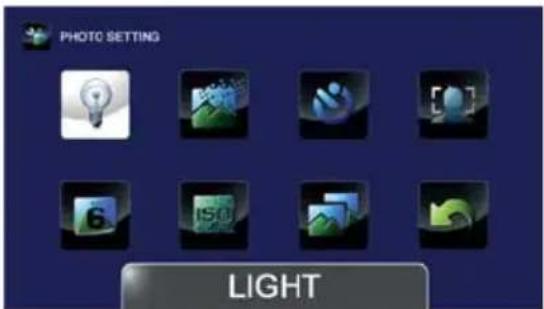

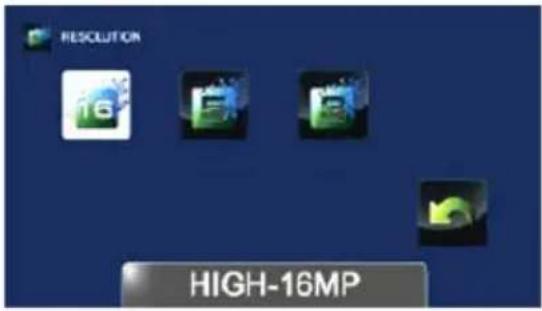

Photo Setting options ....36

Effects....40

Deleting files ....43

Chapter 4: Playback Mode.... 46

Button functions 46

LCD touch screen information ....47

Notification icons....47

Touch function icons 48

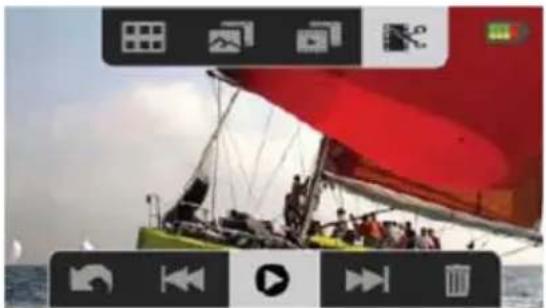

Playback mode operations....49

Video Playback....50

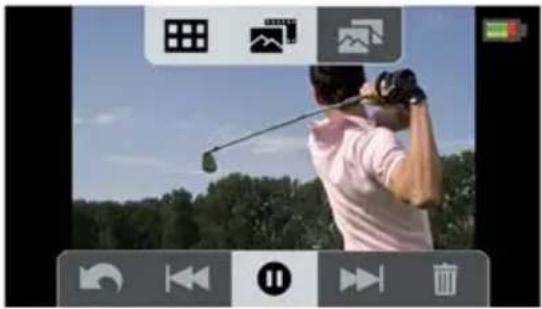

Photo Playback ....50

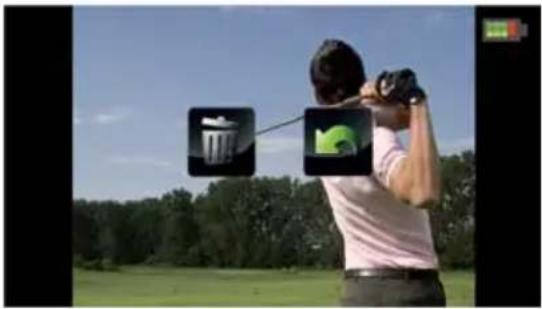

Delete a file in Playback mode....50

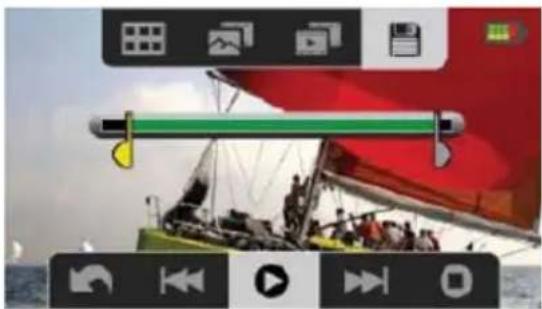

Video Trim ....51

Chapter 5: Camcorder Settings .... 52

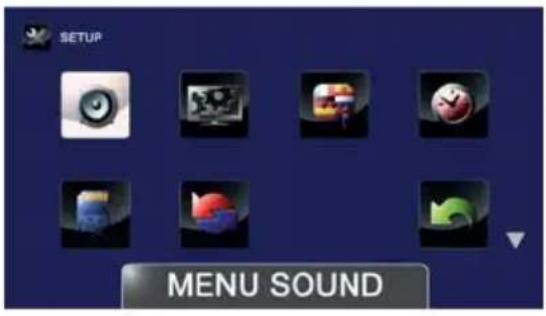

Setup Menu 52

Menu Sound ....52

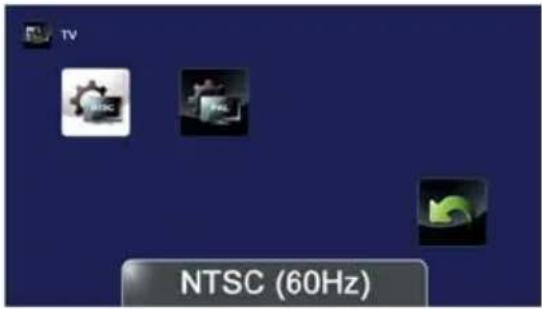

TV 53

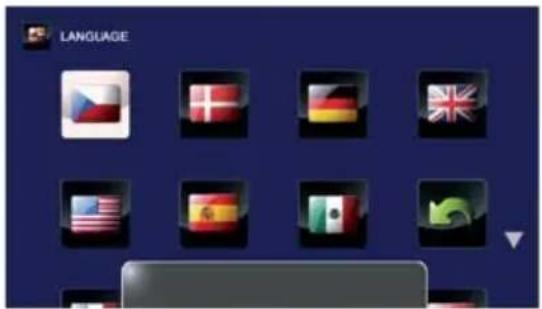

Language 53

Time Settings....54

Format 54

Default Setting 55

Chapter 6: Viewing Photos and

Videos on TV.... 57

Connecting to a high-definition 16:9

(wide) TV 57

Chapter 7: Viewing Photos and

Videos on a Computer.... 59

Installing bundled software....59

Transferring photos or videos to a computer......60

Chapter 8: Uploading Video and Photo Files to the

Internet....61

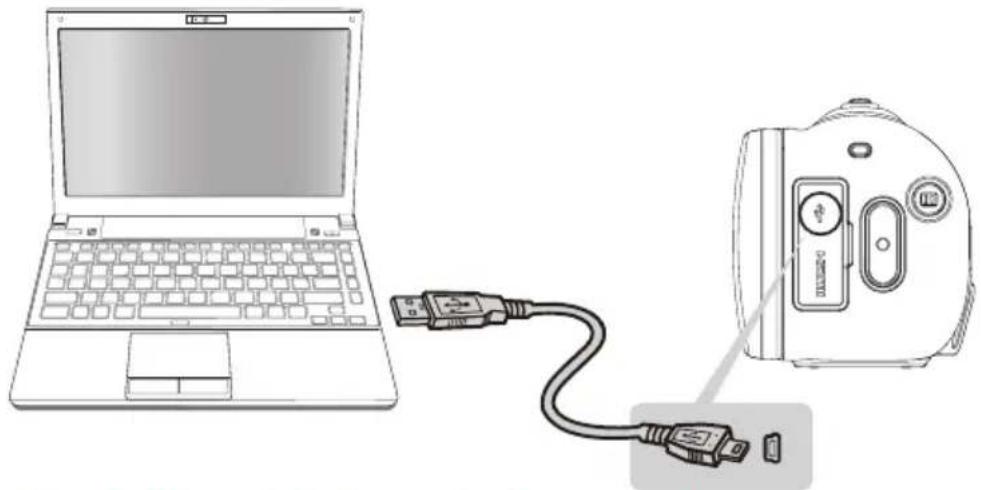

CAMILEO ^® Uploader ....62

Setting up your account information for a Web site....64

Chapter 9: Webcam Mode....66

Chapter 10: Specifications .... 67

Operating Environment Conditions ....68

Chapter 11: Troubleshooting .... 69

Chapter 12: Other Information....71

Toshiba Support 71

Before you call 71

Contacting Toshiba 72

Toshiba's technical support Web site......72

Toshiba voice contact 72

Warranty....73

Online Warranty Information....73

Warranty Service 73

Chapter 1

Getting to Know Your Camcorder

Overview

Your Toshiba camcorder comes equipped with a 5MP sensor that can record H.264 format movies. This format allows for extended video recording with less memory.

Other features of your CAMILEO® X400 Series camcorder are:

◆23x optical zoom

◆120x digital zoom

◆High quality images up to 16 megapixels

- 3" color LCD touch screen for easy viewing of video, pictures and onscreen menus

◆On-screen video trimming

◆Video recording at full HD resolution of 1920 x 1080p

◆Pause button to record multiple moments in a single file

Electronic Image Stabilization to record smoother videos

HDTV connectivity via a mini HDMI™ cable

Built-in CAMILEO ^® Uploader, allowing you to easily upload videos captured by the camcorder to the Internet (for Windows ^® based systems only)

◆ Various effect options, such as Time Lapse and Slow Motion

Built-in memory allowing you to take pictures and to record movies without a memory card.

NOTE

A portion of the built-in memory is used for Firmware to operate the camcorder.

◆ Memory card slot allowing you to increase storage capacity.

Check the components

Unpack the box and make sure all items listed below are included:

Camcorder Mini USB cable Mini HDMI™ cable AC adaptor

Lithium-ion rechargeable battery*

Lens cover set (lens cover and strap)

Quick Start CD-ROM

Guide

Software,

Cleaning cloth

User's

Deluxe soft case Remote control AV to mini USB

cable

Guide (this document),

and Warranty information

(Sample Illustration) Components

*Preinstalled in the camcorder

NOTE

Be sure to remove the protective film on the lens before using.

System requirements

◆Microsoft ^® Windows ^® XP/Windows Vista ^® /Windows ^® 7
Intel ^® Pentium ^® 4, 2.4 GHz or above
512 MB RAM
◆1 GB free HDD space
4x CD-ROM Drive
Available USB 2.0 port

Mac compatibility

Mac OS 10.6 or above
CPU Intel ^ Core ^TM 2 Duo 2.4 GHz or above
◆1 GB system memory
◆1 GB free HDD space
DVD-ROM
Available USB 2.0 port

NOTE

The LCD touch screen is manufactured using extremely high-precision technology. However, some tiny black and/or bright dots (white, red, blue or green) may appear on the LCD touch screen. These dots are a normal result of the manufacturing process, and do not affect the recording.

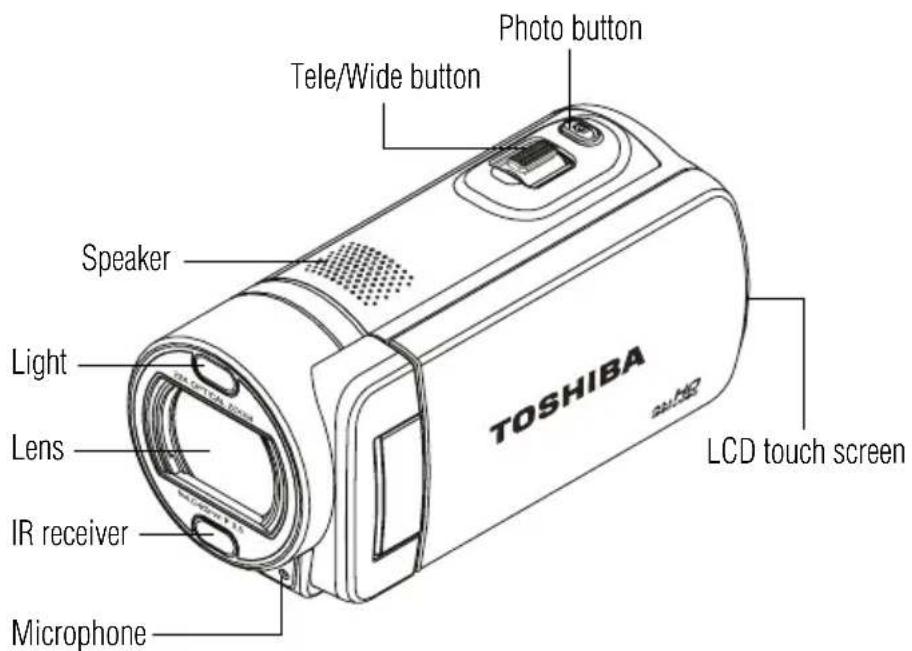

Front view

(Sample Illustration) Front view

Rear view

(Sample Illustration) Rear view

Side view

(Sample Illustration) Side views

Underside view

(Sample Illustration) Underside view

Chapter 2

Getting Started

Loading the battery

Before using the camcorder, you will need to remove the protective film from the battery. To do so, remove the battery, then remove the film, and replace the battery as shown below.

The battery comes pre-installed in the camcorder, however, you must remove the protective film on the battery before use.

To properly connect the battery:

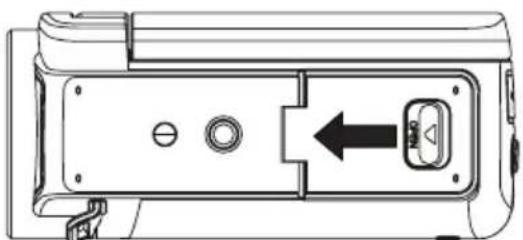

1 Slide the safety latch and open the battery cover.

Technical line drawing of a device rear panel with a directional arrow indicating left control (no text or symbols)

(Sample Illustration) Opening the battery cover

2 Remove the battery.

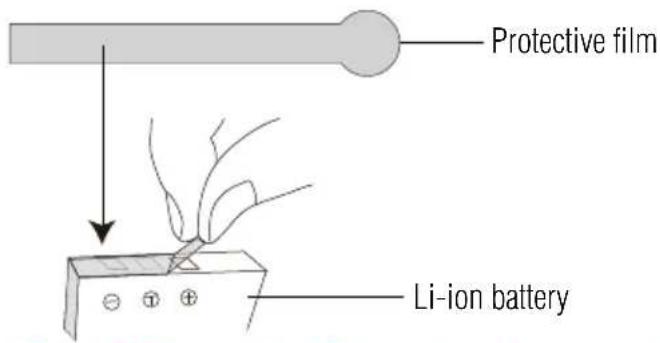

3 Pull the protective film off.

(Sample Illustration) Removing the protective film

4 Reinsert the battery, making sure it is lined-up with the correct polarity marks.

(Sample Illustration) Reinserting the battery

NOTE

Be sure the orange latch is engaged after inserting the battery.

5 Close the battery cover.

Charge your battery

You must use the supplied AC adaptor or the USB cable to charge your camcorder before use. Turn off the camcorder. A blinking light indicates active charging, and a solid light indicates that charging is complete. In AC charging mode, the light will turn off automatically after the battery is fully charged. The full charge time is approximately 4 hours.

Line drawing of a laptop connected to two electronic devices (no text or symbols present)

(Sample Illustration) Charging the battery

WARNING

Handling of the battery

Never attempt to dispose of a battery by burning or by throwing it into a fire, and never allow exposure to a heating apparatus (e.g., microwave oven). Heat can cause a battery to explode and/or release caustic liquid, both which may possibly cause serious injury.
Never attempt to disassemble, tamper with or repair a battery. The battery could overheat and ignite. Leakage of the caustic alkaline solution or other electrolytic substances could cause fire, possibly resulting in death or serious injury.
Never short-circuit the battery by either accidentally or intentionally bringing the battery terminals in contact with another conductive object. This could cause serious injury or a fire, and could also damage the battery and product. Always wrap the battery in plastic (or place it in a plastic bag) whenever transporting it, to avoid exposing the terminals to another conductive object which could result in serious injury. Always cover the metal terminals with insulating tape when disposing of the battery, to prevent accidental short-circuiting which could result in serious injury.

▲WARNING

Never drive a nail or any other sharp object into the battery, hit battery with a hammer or other object or step on it. Doing so could cause a fire or explosion possibly resulting in serious injury.
✿Never charge the battery by a method other than as instructed. Doing so could cause a fire or explosion possibly resulting in serious injury.
✿Never connect the battery to a plug socket or a car cigarette plug socket. The battery could rupture or ignite causing a fire or explosion possibly resulting in serious injury.
✿Never allow a battery to become wet. A wet battery will overheat or ignite causing rupture or fire, possibly resulting in death or serious injury.
Never store a battery in an area of high humidity. This could cause a fire or explosion possibly resulting in serious injury.
Never expose a battery to abnormal shock, vibration or pressure. Never use a battery which has been exposed to abnormal shock even if the appearance is normal. The battery's internal protective device could fail, causing it to overheat or ignite resulting in caustic liquid leakage, or explosion or fire, possibly resulting in death or serious injury.
Never subject a battery to heat, and never store it or use it near a heat source. The battery could ignite or explode when heated or burned, possibly resulting in death or serious injury. Subjecting a battery to heat could also cause caustic liquid to leak. It can also cause failure, malfunction, or loss of stored data.

Use of correct battery

◆Always use the battery supplied. Other batteries have different voltage and terminal polarities. Use of non-conforming batteries could generate smoke or cause fire or rupture, possibly resulting in serious injury.

WARNING

Battery safety

✿Never allow caustic electrolyte fluid leaked from the battery to contact your eyes, body or clothing.

Use appropriate protective gloves when handling a damaged battery.

If caustic electrolyte fluid from the battery should contact your eyes, immediately wash your eyes with large amounts of running water and obtain prompt medical attention, to help prevent permanent eye damage.

If electrolyte fluid should contact any part of your body, immediately wash it off under running water to help prevent skin rashes.

If electrolyte fluid should contact your clothes, promptly remove them to help prevent the electrolyte fluid from contacting your body, possibly resulting in serious injury.

Battery warning indicators

◆Always immediately turn the power off and disconnect the power cable/cord plug from the plug socket and stop using the battery if you observe any of the following conditions:

◆Offensive or unusual odor
Excessive heat
Discoloration
◆Deformation, cracks or leaks
Smoke

- Other unusual event during use, such as abnormal sound In such an event, carefully and immediately remove the battery from the product. In some instances, you might have to wait for the product to cool down before removing the battery, in order to avoid any possible minor injury due to heat exposure. Do not turn on the product's power again until an authorized Toshiba service provider has checked it for safety. Continued use could cause a fire or rupture possibly resulting in serious injury or product failure including but not limited to the loss of data.

WARNING

Disposal of used batteries

◆Always dispose of used batteries in compliance with all applicable laws and regulations. Put insulating tape, such as cellophane tape, on the electrode during transportation to avoid a possible short circuit, fire or electric shock. Failure to do so could possibly result in serious injury.

▲ CAUTION

Inserting the battery

When installing a battery or before moving the product, always make sure the battery is inserted correctly and securely. If the battery falls out, while you are carrying the product, you could be injured or the battery could be damaged.

CAUTION

Do not use an impaired or exhausted battery

Never continue to use a battery after its recharging capability has become impaired, or after the warning message indicating that the battery power is exhausted has been displayed. Continued use of an exhausted or impaired battery could result in the loss of data or damage to the product.

NOTE

Handling of the battery

◆Never attempt to install batteries in reverse polarity.

▲WARNING

- Make sure the battery is securely installed in the product before attempting to charge the battery. - Improper installation could generate smoke or fire, or cause the battery to rupture.

▲ CAUTION

The battery is a lithium ion battery, which can explode if not replaced, used, handled or disposed of properly. Dispose of the battery as required by local ordinances or regulations. Use only batteries recommended by TOSHIBA as replacements.
Charge the battery only in an ambient temperature between 41 and 95 degrees Fahrenheit (5 and 35 degrees Celsius). Otherwise, the electrolyte solution might leak, battery performance might deteriorate and the battery life might be shortened.
✿Never install or remove the battery without first turning off the power and disconnecting the AC adaptor.

Inserting and removing an SD™ Card (optional)

NOTE

An SD ^™ Card may need to be purchased separately.

Your camcorder comes with internal memory that allows you to store pictures and movies. You can expand the memory capacity by using an optional SD/SDHC/SDXC memory card.

1 Slide the safety latch and open the SD ^TM Card cover.

Technical line drawing of a device rear panel with internal components and a directional arrow (no text or symbols)

(Sample Illustration) Opening the SD ^TM Card cover

2 Insert the memory card into the slot until it locks in place as shown below.

To remove the

SD ^TM Card, press

inward to release

it. When the card

pops out, grasp

it and pull it

straight out.

(Sample Illustration) Inserting and removing an SD ^TM Card

▲ CAUTION

To prevent data corruption, it is recommended that you format the SD™ Card in the camcorder before using.

CAUTION

All data will be erased if the SD ^™ Card is formatted. Make sure all data is copied to your computer or other media before formatting the SD ^™ Card.

NOTE

When a memory card is inserted, photos and videos are saved onto the card rather than the built-in memory.

Protecting data on an SD™ Card

Photos or videos cannot be recorded on an SD ^TM Card when the card is locked (read only); however, photos and videos can be viewed.

Make sure the lock is in the writable position before recording photos and videos as shown below.

position position

(Sample Illustration) Protecting data on an SD ^TM Card

Turning the camcorder on and getting started

To turn on the camcorder, either:

• Flip the LCD touch screen outward to turn on the camcorder automatically.
  Or press the Power (💡) button for approximately one second to turn it on.

To record videos: Press the Video ⏻ button to begin recording. Press it again to stop recording.

To take a still photo while recording a video: Press the Photo ( ) button.

To take a photo: Press the Photo ( ) button halfway down to focus until the focusing frame turns green. Then press it fully to take the photo.

Person using binoculars in a field, viewed through a perspective frame (no text or symbols visible)

Person performing a golf swing outdoors, viewed from behind with no visible text or symbols

Focusing frame: White Focusing frame: Green

(Sample Image) Focusing frames (green and white)

To view stored movies and pictures: Press the Playback (●) button or touch the onscreen icon to switch to Playback mode.

Turning off the camcorder

To turn off the camcorder, either press the Power (button for one second, or place the LCD touch screen back to its original position.

Chapter 3

Record Mode

Button functions

	Video button:1 Press to begin recording a video.2 Press it again to stop recording.
	Pause button:1 Press to pause recording.2 Press it again to resume recording on the same file.
	Photo button:1 Press halfway down to focus, then press it fully to take the photo.2 To take a photo during video recording press the photo button to capture the image.Note: The photo resolution will be the same as the video resolution.
	Tele (T) button:Zoom in.Wide (W) button:Zoom out.
	Power button:Press for one second to turn the camcorder ON/OFF.
	Playback button:Switch between Record/Playback mode.
	Light button:Press to toggle the Light settings (Light ON, Light OFF, Digital light).

NOTE

Touch the LCD touch screen to show the status of the setting.

LCD touch screen information

The indicators shown on the images below may appear on the LCD touch screen when photos and videos are recorded:

Onscreen notification icons Onscreen touch function icons

(Sample Image) LCD touch screen indicators

Notification icons

1		Battery: Full power
		Battery: Medium power
		Battery: Low power
		Battery: No power
		DC power mode
2	[cotc]	Macro mode for close ups
3	00:03:12	Recording time
	00:03:12	Pause recording
	▽250	The remaining amount of photos that can be taken at the current resolution settings
	▲321	Current number of photos taken
4	(D47Y)	Motion Detection (Video Record mode only)

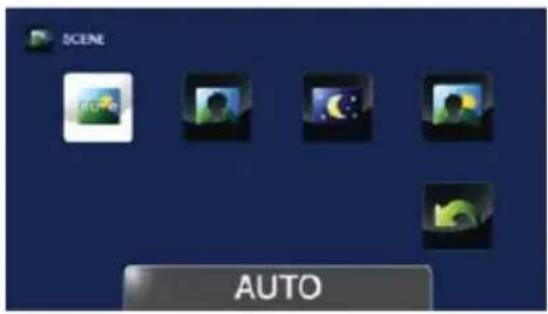

5	Scene
		Skin
		Night
	[S44Z]	Backlight

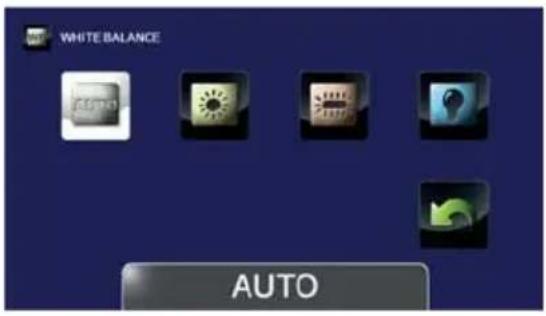

6	White balance
		Auto
		Daylight
		Fluorescent
		Tungsten
7	ON	Zoom meter:1x~2700x (23x Optical Zoom, 120x Digital Zoom)
8		Slow Motion (Video Record mode only)Note: Slow motion videos will be recorded in WQVGA resolution (432 x 240 [WQVGA]).
		Time Lapse (Video Record mode only)
		Pre-Record mode (Video Record mode only)

Touch function icons

9		Digital light ON
		Light ON
		Light OFF
10	Video Resolution
		Full HD (1080p 30)
		HD60 (720p 60)
	[BXC8]	HD30 (720p 30)
		VGA (480p 30)
		WQVGA (while the Slow Motion function is active, the video resolution is 432 x 240 [QVGA])
	Photo resolution
		High-16MP
		Standard-5MP
		Low-3MP
11	Video Record mode
		Backlight ON/OFF
	Photo Record mode
		Self-timer ON/OFF
12		Menu
13		Playback mode
14		Photo mode
15		Video mode
16		Delete mode

NOTE

Tap on the screen to close the touchable function bars. Tap again to show the bars.
Filter: Black & White/Classic/Negative can be previewed immediately without the indicator on the LCD screen.
❖Stabilization, Time Lapse, and Slow Motion functions can not be used simultaneously.
❖Stabilization and Night mode functions can not be used simultaneously.
◆Pre-Record, Motion Detection, Time Lapse, and Slow Motion functions can not be used simultaneously.
The camcorder does not power off automatically in DC power mode.

Video recording

Press the Video Ⓞ button to start recording. A time indicator displays on the LCD touch screen while recording a video. Press the Video button again to stop recording.

To pause recording, press the Pause ⏻button. To continue recording, press it again.

To take a still photo while recording a video, press the Photo ( ) button.

Touch the onscreen Playback (icon to view a recorded video.

The resolution settings available are:

Video Quality
	Full HD 1080/30: 1920 x 1080p 30fps
	HD60 720/60: 1280 x 720p 60fps
	HD30 720/30: 1280 x 720p 30fps
	VGA 480/30: 640 x 480p 30fps

NOTE

The image resolution captured during video recording is the same as the video resolution.

Photo recording

Press the Photo ( ) button halfway down until the focusing frame turns from white to green. Then press it fully down to take a photo.

Press the Playback button or touch the onscreen (icon to view the photo.

The Resolution settings available are:

Image Quality
18	High-16MP: 4608 x 3456
6	Standard-5MP: 2592 x 1944
3	Low-3MP: 2048 x 1536

Using Digital Light or Light function

This setting allows you to brighten the subject or extend the dynamic range of high contrast and backlight, so objects appear brighter and clearer.

1 Press the Light button.

The Digital Light ( ) icon appears on the screen.

2 Press the Light button again.

The Light ( ) icon appears on the screen. The light turns ON, providing illumination while recording.

3 Press the Video/Photo button to start recording or to take a photo.

4 Press the Light button again to turn it OFF.

NOTE

The light is disabled automatically when battery power is low.

Using the Zoom function

The Zoom function magnifies images when recording Videos or taking Photos.

◆Press the Tele/Wide (T/W) buttons to zoom IN/OUT.

The camcorder zooms in by Optical Zoom first. When the Optical Zoom factor is at maximum, zooming stops temporarily. Press and hold the Tele (T) button when you want to zoom in beyond the Optical Zoom range. The Digital Zoom is activated and zooming continues.

The Zoom function can be set from 1x\~2700x (23x Optical Zoom and 120x Digital Zoom).

Menu options/operations

Video Setting Photo Setting Effects Setup* Delete
LightResolutionStabilizationMotion DetectionFace TrackingSlow MotionPre-RecordTime LapseDate PrintingContinuous Play	LightResolutionSelf-TimerSmile DetectionDate PrintingISOSlideshow	Macro modeExposure MeasureSceneFilterWhite Balance	Menu SoundTVLanguageTime SettingFormatDefault Setting	Delete VideoDelete PhotoSelect & DeleteDelete All

*Please see “Camcorder Settings” on page 52 for more information about Setup.

Operation Screen
1 Touch the onscreen ( ) icon.The Menu screen appears.The available options are Video Setting, Photo Setting, Effects, Setup, and Delete.
2 Touch the desired onscreen icon twice.The options menu appears.3 Touch to select the specific option you want to change, and touch it again to enter its settings menu.4 Touch twice to validate the new setting.5 Touch the Return/Exit ( )on twice, or hold it down to exit.

Video Setting options

Operation Screen
1 Touch the onscreen ( ) icon.The Menu screen appears.2 Touch the Video Setting icon twice.The Video Setting menu appears.3 The Video Setting menu options are:Light, Resolution, Stabilization, Motion Detection, Face Tracking, Slow Motion, Pre-Record, Time Lapse, Date Printing, and Continuous Play.

NOTE

Touch the icon once to view the description, touch twice to activate.

Light

In this option, select a mode to brighten the shooting area or to extend the brightness of objects. The Light settings available are:

	ON Turns the light ON, providing illumination when recording.
	OFF Turns the light OFF.
	Digital Light	Extends the dynamic range of high contrast and backlight, so objects appear brighter and clearer.

Operation Screen
1 In the Video Setting menu, touch the Light icon twice.2 Touch to select the desired option.3 Touch again to validate the new setting.4 Touch the Return/Exit ( )on twice, or hold it down to exit.

Resolution

The Resolution settings available are:

	Full HD 1080/30 Records videos at 1920 x 1080p 30fps resolution.
	HD 720/60 Records videos at 1280 x 720p 60fps resolution.
	HD 720/30 Records videos at 1280 x 720p 30fps resolution.
	VGA 480/30 Records videos at 640 x 480p 30fps resolution.

Operation Screen
1 In the Video Setting menu, touch the Resolution icon twice.2 Touch to select the desired option.3 Touch again to validate the new setting.4 Touch the Return/Exit (icon twice, or hold it down to exit.

Stabilization

Your camcorder provides a feature that steadies the image to help create clearer videos.

Operation Screen
1 In the Video Setting menu, touch the Stabilization icon twice.2 Touch to select the desired option.3 Touch again to validate the new setting.4 Touch the Return/Exit ( ) on twice, or hold it down to exit.

Motion detection

This option allows the camcorder to automatically record videos when the camcorder detects movement.

Operation Screen
1 In the Video Setting menu, touch the Motion Detect icon twice.2 Touch to select the desired option.3 Touch again to validate the new setting.4 Touch the Return/Exit ( )on twice, or hold it down to exit.The camcorder will begin recording automatically if movement is detected. It stops recording when movement stops.

Face Tracking

The camcorder detects and focuses on face(s) automatically. This function helps to capture subjects in backlit conditions.

Operation Screen
1 In the Video Setting menu, touch the Face Tracking icon twice.2 Touch to select the desired option.3 Touch again to validate the new setting.4 Touch the Return/Exit ( )on twice, or hold it down to exit.
In Record mode, when the camcorder is aimed at face(s), the face frame(s) appear.

Slow motion

This option allows recording of videos with a slow motion effect. When the video is played, the playback time will be longer than the actual recording time.

Operation Screen
1 In the Video Setting menu, touch the Slow Motion icon twice.2 Touch to select the desired option.3 Touch again to validate the new setting.4 Touch the Return/Exit ( )on twice, or hold it down to exit.

NOTE

◆While using the Slow Motion setting, audio is not recorded and zoom is disabled.
The view angle may become smaller when the Slow Motion function is activated.
When the Slow Motion function is activated, the video resolution is WQVGA.

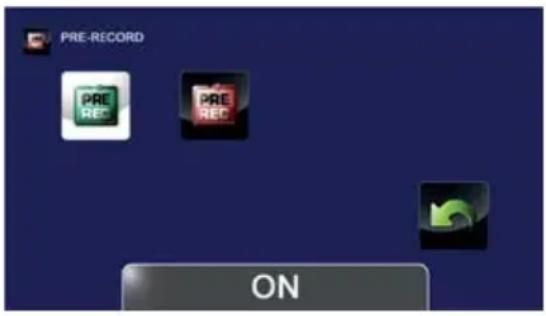

Pre-Record

The Pre-Record function allows the camcorder to begin recording a few seconds before the Record button is pressed.

NOTE

Touch the icon once to view the description, touch twice to activate.

Operation Screen
1 In the Video Setting menu, touch the Pre-Record icon twice.2 Touch to select the desired option.3 Touch again to validate the new setting.4 Touch the Return/Exit ( )on twice, or hold it down to exit.

NOTE

◆Be sure to aim the camcorder at the subject and position it securely before the Video button is pressed
The Pre-Record function is disabled when another video setting is activated.

Time Lapse

This option allows the camcorder to record still images at specific time intervals that can then be played back as one video file. The Time Lapse settings available are:

	OFF Disables Time Lapse.
	1 second Records one frame per second.
	3 seconds Records one frame every three seconds.
	5 seconds Records one frame every five seconds.

Operation Screen
1 In the Video Setting menu, touch the Time Lapse icon twice.2 Touch to select the desired option.3 Touch again to validate the new setting.4 Touch the Return/Exit ( ) on twice, or hold it down to exit.

Date Printing

This option imprints the date and time on each video.

Operation Screen
1 In the Video Setting menu, touch the Date Printing icon twice.2 Touch to select the desired option.3 Touch again to validate the new setting.4 Touch the Return/Exit ( )on twice, or hold it down to exit.
When this function is activated, the date appears on the corner of the video.

Continuous Play

This option allows you to playback files continuously.

Operation Screen
1 In the Video Setting menu, touch the Continuous Play icon twice.2 Touch to select the desired option.3 Touch again to validate the new setting.4 Touch the Return/Exit ( )on twice, or hold it down to exit.

Photo Setting options

Operation Screen
1 Touch the onscreen ( ) icon.The Menu screen appears.2 Touch the Photo Settings icon twice.The Photo Setting Menu appears.3 The Photo Setting menu options are: Light, Resolution, Self-Timer, Smile Detection, Date Printing, ISO, and Slideshow.

Light

In this option, select a mode to brighten the shooting area or to extend the brightness of objects. The Light settings available are:

	ON Turns the light ON, providing illumination when recording.
	OFF Turns the light OFF.
	Digital Light	Extends the dynamic range of high contrast and backlight, so objects appear brighter and clearer.

Operation Screen
1 In the Photo Setting menu, touch the Light icon twice.2 Touch to select the desired option.3 Touch again to validate the new setting.4 Touch the Return/Exit (icon twice, or hold it down to exit.

Resolution

The Resolution settings available are:

	High-16MP Takes photos at 4608 x 3456, 16MP quality.
	Standard-5MP Takes photos at 2592 x 1944, 5MP quality.
	Low-3MP Takes photos at 2048 x 1536, 3MP quality.

Operation Screen
1 In the Photo Setting menu, touch the Resolution icon twice.2 Touch to select the desired option.3 Touch again to validate the new setting.4 Touch the Return/Exit (icon twice, or hold it down to exit.

Self-Timer

The Self-Timer allows you to take photos with a ten-second time delay.

Operation Screen
1 In the Photo Setting menu, touch the Self-Timer icon twice.2 Touch to select the desired option.3 Touch again to validate the new setting.4 Touch the Return/Exit ( )on twice, or hold it down to exit.

Smile Detection

The camcorder automatically takes the photo when it detects a smile.

Operation Screen
1 In the Photo Setting menu, touch the Smile Tracking icon twice.2 Touch to select the desired option.3 Touch again to validate the new setting.4 Touch the Return/Exit ( )on twice, or hold it down to exit.
In Photo mode, when the camcorder is aimed at face(s), the face frame(s) appear around a smiling face and automatically take the photo.

Date Printing

This option imprints the date and time on each photo.

Operation Screen
1 In the Photo Setting menu, touch the Date Printing icon twice.2 Touch to select the desired option.3 Touch again to validate the new setting.4 Touch the Return/Exit ( ) on twice, or hold it down to exit.
When this function is activated, the date appears on the corner of each photo.

ISO

The camcorder automatically adjusts the ISO setting of images. Four manual ISO sensitivity settings are also available (800/1600/3200/6400). Use the higher setting to take a photo in the dark or in a poorly lit location, or for a subject moving at a high rate of speed.

	Auto	Sets the ISO setting automatically according to conditions.
	800 ISO 800
	1600 ISO 1600
	3200 ISO 3200
	6400 ISO 6400

Operation Screen
1 In the Photo Setting menu, touch the ISO icon twice.2 Touch to select the desired option.3 Touch again to validate the new setting.4 Touch the Return/Exit (icon twice, or hold it down to exit.

NOTE

The image may become grainy with a higher ISO setting.

Slideshow

Photos can be viewed one after another in a slideshow in a chosen interval of time. The Slideshow settings available are:

	2 seconds Displays one photo every two seconds.
	5 seconds Displays one photo every five seconds.
	10 seconds Displays one photo every ten seconds.
	OFF Disables Slideshow.
Operation Screen
1 In the Photo Setting menu, touch the Slideshow icon twice.2 Touch to select the desired option.3 Touch again to validate the new setting.4 Touch the Return/Exit ( ) icon twice, or hold it down to exit.

Effects

Operation Screen
1 Touch the onscreen ( ) icon.The Menu screen appears.2 Touch the Effects icon twice.The Effects menu screen appears.3 The Effects menu options are: Macro mode, Exposure Measure, Scene, Filter, and White Balance.

Macro mode

The camcorder adjusts the focus automatically. When this function is activated, the camcorder adjusts the focus with priority on close-up objects that are at a distance of approximately 0.39 - 47.24 ins. (1 - 120cm).

Operation Screen
1 In the Effects menu, touch the Macro mode icon twice.2 Touch to select the desired option.3 Touch again to validate the new setting.4 Touch the Return/Exit ( ) on twice, or hold it down to exit.

Exposure Measure

The camcorder adjusts the exposure (amount of light the camcorder receives from the scene) automatically. The Exposure settings available are:

	Auto	The camcorder meters the light in an average value for the overall scene and adjusts the exposure automatically. This setting is suitable for normal conditions.
	Center	The camcorder still meters the light in an average value for the entire scene, but gives greater weight to the center. This way, the center of the image appears more clear, while the surrounding may appear darker.
	Spot	The camcorder only meters the light in the middle spot of the scene. This setting is typically used, for example, in capturing the light of a candle.

Operation Screen
1 In the Effects menu, touch the Exposure Measure icon twice.2 Touch to select the desired option.3 Touch again to validate the new setting.4 Touch the Return/Exit ( ) on twice, or hold it down to exit.

Scene

You can select a mode according to the scene and conditions. The Scene settings available are:

	Auto Automatically adjusts to current conditions.
	Skin Adjusts skin tones to appear more natural.
	Night Use in low light conditions or at night.
	Backlight Use when the subject is brightly lit from behind.
Operation Screen
1 In the Effects menu, touch the Scene icon twice.2 Touch to select the desired option.3 Touch again to validate the new setting.4 Touch the Return/Exit ( ) on twice, or hold it down to exit.

NOTE

To avoid blurry photos when taking photos in Night mode, place the camcorder on a flat, steady surface, or use a tripod.

Filter

You can select a special filter effect for photos and videos. The Filter settings available are:

	Auto No filter effects.
	Black & White The image is converted to black and white.
	Classic The image is converted to sepia.
	Negative The image is converted to a negative of the original.

Operation Screen
1 In the Effects menu, touch the Filter icon twice.2 Touch to select the desired option.3 Touch again to validate the new setting.4 Touch the Return/Exit ( ) on twice, or hold it down to exit.

NOTE

Scene/Filter: B/W / Classic / Negative effect can be previewed immediately without icons appearing on the LCD touch screen.

White Balance

The camcorder adjusts the white balance of images automatically. The White Balance settings available are:

	Auto Automatically adjusts white balance.
	Daylight Use in outdoor conditions.
	Fluorescent Use in fluorescent lighting.
	Tungsten Use in tungsten lighting.

Operation Screen
1 In the Effects menu, touch the White Balance icon twice.2 Touch to select the desired option.3 Touch again to validate the new setting.4 Touch the Return/Exit ( ) on twice, or hold it down to exit.

Deleting files

Operation Screen
1 Touch the onscreen ( ) icon.The Menu screen appears.2 Touch the Delete icon twice.3 The Delete menu appears.4 The Delete menu options are: Delete Video, Delete Photo, Select & Delete, and Delete All.

Deleting Video(s)

Operation Screen
1 In the Delete menu, touch the Delete Video icon twice.2 Touch to select the desired thumbnail video(s).Check mark(s) will indicate the selected file(s).3 Touch the Delete icon to delete the selected video(s).4 Touch the Return/Exit ( ) on twice, or hold it down to exit.

Deleting Photo(s)

Operation Screen
1 In the Delete menu, touch the Delete Photo icon twice.2 Touch to select the desired thumbnail photo(s).Check mark(s) will indicate the selected file(s).3 Touch the Delete icon to delete the selected photo(s).4 Touch the Return/Exit ( ) on twice, or hold it down to exit.

Select & Delete

Operation Screen
1 In the Delete menu, touch the Select & Delete icon twice.2 Touch to select the desired thumbnail photo(s) and video(s).Check mark(s) will indicate the selected file(s).3 Touch the Delete icon to delete the selected photo(s) and video(s).4 Touch the Return/Exit ( ) on twice, or hold it down to exit.

Delete All

Use this option to delete all photos and videos.

	Yes	Deletes all photos and videos in the built-in memory (when no SDTM Card is installed), or delete all photos and videos on the installed SDTM Card.
	No	Does not delete all photos and videos in the built-in memory (when no SDTM Card is installed), or do not delete all photos and videos on the installed SDTM Card.

Operation Screen
1 In the Delete menu, touch the Delete All icon twice.2 Touch to select the desired option.3 Touch again to validate the new setting.4 Touch the Return/Exit ( )on twice, or hold it down to exit.

NOTE

When an SD™ Card has been installed, only the photos and videos stored on the card are deleted.
Videos or photos cannot be deleted if the card is write-protected.

Chapter 4

Playback Mode

Button functions

The buttons have the following functions in Playback mode.

	Video button:1 Press to enter Video Record mode.
	Photo button:1 Press to enter Photo Record mode
	In Video Playback Mode Tele (T) button: Increase volume. Wide (W) button: Decrease volume.	In Photo Playback Mode Tele (T) button: Zoom in. Wide (W) button: Zoom out.
	NOTE Double tap the LCD touch screen to reset the zoom.
	Power button:Press for one second to turn the camcorder ON/OFF.
	Playback button:Switch between Record/Playback mode.
	Pause button:1 Press to pause video playback.2 Press it again to resume video playback.

LCD touch screen information

The indicators shown below may appear on the LCD touch screen while in Playback mode:

Onscreen notification icons Onscreen touch function icons

(Sample Image) LCD touch screen indicators

Notification icons

1		Battery: Full power
		Battery: Medium power
		Battery: Low power
		Battery: No power
		DC power mode.
2	00:03:12	Playback time counter.
		Current number of photos taken.
		The remaining amount of photos that can be taken at the current resolution settings.
3		Volume control.
4		Video Playback mode.
		Photo Playback mode.

Touch function icons

5		Video Trim mode
6	Video Playback mode
		Continuous play ON/OFF.
	Photo Playback mode
		Slideshow ON/OFF.
7	—	Select & Play thumbnail screen ON.
8		Menu ON.
9		Return to Record mode.
10		Go to the previous file. Fast rewind Videos.
11		Play the file.
		Pause.
12	[XABW]	Advance to the next file. Video fast forward.
13		Delete the current file.
		Stop video play.

NOTE

Tap the screen to display the Menu icons. Tap again to hide the icons.

Playback mode operations

To view and manage photos and videos in the built-in memory or on an SD ^TM Card, use the Playback mode.

Operation Screen
1 In Record mode, press the Playback button or touch the onscreen ( ) icon to switch to Playback mode.2 Touch the onscreen ( ) icon to view the previous video/photo, or touch the onscreen ( ) icon to view the next video/photo.
3 Touch the onscreen ( ) icon.The Menu screen appears.4 Touch the onscreen ( ) icon to open the thumbnail screen for photos and videos.The Select & Play screen appears.5 In the Select & Play screen, select the file(s) you want to play, and then touch ( ) to confirm. Check marks appear on the selected file(s).
6 Touch the onscreen ( ) icon to play the selected files. (Video: full length. Photo: displays for 2 seconds.)

Video Playback

Operation Screen

1 In the Video Playback mode, touch the ( )or ( ) icon to play or pause the video.2 Touch the ( )icon to view the previous video, or touch the ( )icon to view the next video.3 While playing a video, touch the ( ) r ( ) i c rewind/forward the video.4 In the Continuous Play On mode the ( )icon is highlighted. Touch the ( )icon to play all video files continuously. Touch the ( )icon to stop the video.5 Use the Tele/Wide buttons to adjust the volume.

Photo Playback

Operation Screen
1 In the Photo Playback mode, touch the ( )icon to view the previous photo, or touch the ( )icon to view the next photo.2 In the Slideshow On mode the ( )icon is highlighted. Touch the ( )or ( ) icon to play or pause the slideshow. Touch the ( )icon to stop the slideshow.

Delete a file in Playback mode

Operation Screen
1 In the Playback mode, touch the ( )icon.2 Touch the ( )on to delete the current photo.3 Touch the Return/Exit ( )on twice, or hold it down to exit.

NOTE

When an SD™ Card has been installed, only the photos and videos stored on the card are deleted.
Videos or photos cannot be deleted if the card is write-protected.

Video Trim

Use this option to trim the beginning and/or end of the recorded video and save it as a new video clip.

Operation Screen
1 In Video Playback mode, touch the onscreen (icon.
2 Touch the Dividing (icon (the icon turns yellow) to indicate the beginning/end.3 Touch the Rewind/Forward (icon to fine-tune the dividing point.4 To preview the video, touch the onscreen (or ( ) icon to play or pause the video. Touch the ( ) icon to stop the video.5 Touch the Save As New ( ) icon to trim the video at the black portion of the bar, leaving the green portion as a new video file.6 Touch the Return/Exit (on twice, or hold it down to exit.
Video Flow:Specify the Dividing (where the video clip is to be cut Portions A and C will be cut, and portion B will be saved as the new video clip.

Chapter 5

Camcorder Settings

Setup Menu

Operation Screen
1 Touch the onscreen ( ) icon.The Menu screen appears.2 Touch the Setup ( ) on twice to enter its settings menu.3 The Setup Menu options are: Menu Sound (operation sound), TV, Language, Time Setting, Format, and Default Setting.

Menu Sound

You can enable or disable tone and operation sounds.

Operation Screen
1 In the Setup menu, touch the Menu Sound icon twice.The Menu screen appears.2 Touch to select the desired option.3 Touch again to validate the setting.4 Touch the Return/Exit ( ) on twice, or hold it down to exit.

TV

Use this function to select the appropriate TV standard for your area, either NTSC or PAL.

An incorrect TV system setting may cause the image to flicker.

	NTSC (60Hz) USA, Canada, Japan, South Korea, Taiwan, etc.
	PAL (50Hz) UK, Europe, China, Australia, Singapore, Hong Kong, etc.

Operation Screen
1 In the Setup menu, touch the TV icon twice.2 Touch to select the desired option.3 Touch again to validate the setting.4 Touch the Return/Exit ( ) on twice, or hold it down to exit.

Language

Use this option to select the language of the user interface.

Operation Screen
1 In the Setup menu, touch the Language icon twice.2 Touch to select the desired option.3 Touch again to validate the setting.4 Touch the Return/Exit ( ) on twice, or hold it down to exit.

Time Settings

Operation Screen
1 In the Setup menu, touch the Time Setting icon twice.2 Touch the Month, Day, Year, Hour, or Minute to set.3 Touch the up/down arrows to adjust the numeric value.4 Touch the ( )on to validate the setting.5 Touch the Return/Exit ( )on twice, or hold it down to exit.

Format

Use this option to delete all data in the built-in memory or on the SD ^TM Card.

	YES	Deletes all photos and videos in the built-in memory (when no SDTM Card is installed), or delete all photos and videos on the installed SDTM Card.
	NO	Does not delete all photos and videos in the built-in memory (when no SDTM Card is installed), or do not delete all photos and videos on the installed SDTM Card.

Operation Screen
1 In the Setup menu, touch the Format icon twice.2 Touch to select the desired option.3 Touch again to validate the setting.4 Touch the Return/Exit ( )on twice, or hold it down to exit.

CAUTION

All data will be erased if the SD™ Card is formatted. Make sure all data is copied to your computer or other media before formatting the SD™ Card.

Default Setting

To restore the default factory setting, select this option.

	YES Restores to default factory setting.
	NO Does not restore to default factory setting.

Operation Screen
1 In the Setup menu, touch the Default Setting icon twice.2 Choosing YES performs the operation, and NO cancels the operation.3 Touch the Return/Exit ( ) on twice, or hold it down to exit.

The following table lists the camcorder's default settings:

Setting Default Factory Setting
Resolution	Video: Full HD 1080p/30Photo: Standard-5M
Light OFF
Stabilization ON
Motion Detection OFF
Face Tracking OFF
Slow Motion OFF
Pre-Record OFF
Time Lapse OFF
Continuous Play OFF
Self-Timer	OFF
Smile Detection	OFF
Date Printing	OFF
ISO	Auto
Slideshow	OFF
Macro Mode OFF
Exposure Measure	Auto
Scene Auto
Filter Auto
White Balance Auto
Menu Sound ON
TV NTSC
Language English
Volume Level 4

Chapter 6

Viewing Photos and Videos on TV

Connecting to a high-definition 16:9 (wide) TV

To view images or videos from your camcorder on a TV:

1 Connect the mini HDMI™ cable to your camcorder's mini HDMI™ Out port.
2 Connect the other end of the cable to a television.
3 Set the video input source of your TV to HDMI ^TM .

(Sample Image) Connecting a high-definition TV

4 The steps for viewing stored photos and videos on a TV are the same steps used for viewing them on the LCD screen.

NOTE

The LCD touch screen does not display when the camcorder is connected to an HDTV.

NOTE

Some functions may not be accessible while the camcorder is connected to a TV or an HDTV.

Viewing Photos and Videos on a Computer

NOTE

It may be necessary to install the bundled software application, ArcSoft MedialImpression ^® to view videos properly on your computer.

Installing bundled software

The CD-ROM supplied with your camcorder contains two software applications.

• ArcSoft MediaImpression ^® is a user-friendly application that helps manage your media, and upload videos to the Internet easily.
  Adobe ^® Reader ^® is a popular program that is needed to view the User's Manual. Many users will find they already have this software installed on their computer.

To install the bundled software:

1 Insert the CD-ROM into your computer's optical disc drive. The autorun screen appears.
2 Click "Install Application Software". Follow the onscreen instructions to complete the installation.

NOTE

Detailed information can be found in the online help of all the bundled software.

Transferring photos or videos to a computer

You can transfer photos or videos stored on your camcorder to a computer and send them via email to friends or post them on the Internet.

To do this:

1 Connect the computer and camcorder with the supplied mini USB 2.0 cable.
The multi-indicator light blinks.
2 To access photos and videos on your SD™ Card: Videos and photos can be found on your computer at "My Computer\Removable Disk\DCIM\100MEDIA."
3 To access photos and videos in the camcorder's internal memory: Videos and photos can be found on your computer at "My Computer\DV\DCIM\100MEDIA"
4 In this folder, you can view, delete, move, or copy any video/photo you want.

Uploading Video and Photo Files to the Internet

The built-in CAMILEO ^® Uploader application offers an easy way to upload video clips and photos to social media Web sites instantly, allowing you to share them with your family and friends on these Web sites. The bundled software, ArcSoft MediaImpression ^® , can also be used to upload video clips to these Web sites.

NOTE

You must have Internet access to upload videos to a Web site.

NOTE

CAMILEO Uploader for Windows ^® based systems only.

CAMILEO® Uploader

To upload files to the Internet:

1 Connect the camcorder to the computer by using the supplied USB cable.

Line drawing of a laptop connected to a device via cable (no text or symbols)

(Sample Illustration) Connecting the camcorder to a computer

2 When the USB connection has been made, the CAMILEO ^® Uploader application AutoPlay window appears on your computer screen. (If the AutoPlay window does not appear, click My Computer > DVAP > DVAP.exe to execute the application.)

NOTE

It may be necessary to first install ArcSoft MediaImpression® onto your computer to view videos/photos in the CAMILEO® Uploader. If ArcSoft MediaImpression is not installed, you may be asked to install the H.264 Codec (ffdshow-a free software under GPL license) to view videos on CAMILEO Uploader correctly.

3 Choose the Web site you wish to upload to.

(Sample Image) CAMILEO ^® Uploader main screen

NOTE

Some social media Web sites may not be accessible in certain regions.

4 Click the Videos or Photos tab to go to the videos/photos thumbnail page.

Use the scroll bar to view the next/previous page.

5 Click the files you wish to upload. Click Select All/Deselect All to select/deselect all video or photo files shown on the current page.

(Sample Image) CAMILEO® Uploader screen - Upload videos/photos

6 Click Upload to begin uploading your files.

Click CANCEL to stop the uploading process.

(Sample Image) CAMILEO ^® Uploader screen - Cancel

Setting up your account information for a Web site

NOTE

You need to activate your Facebook account by email after registering it.

If the privacy setting of your Facebook account is set to the highest security level, you may have limited access to the CAMILEO ^® Uploader.

1 Choose the Web site.
2 Click the Settings tab to view the setup screen.
3 Fill in your account information, and then click Save.
4 To save your account information and avoid re-entering your login information, check Remember password.

5 If you have not previously set up an account with the Web site, one will first need to be created.

(Sample Image) CAMILEO ^® Uploader screen - Sign up for new account

NOTE

Some social media Web sites may not be accessible in certain regions. You must have Internet access to upload files to a Web site.

Chapter 9

Webcam Mode

Connect the camcorder to your computer, using the supplied USB 2.0 cable. Press the Video button to switch to the Webcam mode. The Multi-indicator light glows blue. In this mode, you can implement live video conference meetings and multimedia communications.

Line drawing of a laptop connected to a camera module via cable (no text or symbols)

(Sample Illustration) Connecting the camcorder to a computer

Chapter 10

Specifications

Image sensor 5 Megapixel BSI CMOS sensor
Operations modes Video record, Photo record, Webcam
Lens types 23x Optical zoom
Lens Auto focus lens (F3.5 - 4.1)
Focus range	Macro mode: wide: 0.39" (1cm) ~ 47.24" (120cm)Normal mode: 0.39" (1cm) ~ infinity
Zoom 1x ~ 120x (120x)	Digital zoom)
Shutter Electronic
LCD touch screen 3" (7.6 cm) LCD touch screen (16:9)
Storage media	CAMILEO® X400: Built-in 128MB memory (partial memory is used for firmware code).CAMILEO® X416: Built-in 16GB memory (partial memory is used for firmware code).SD/SDHC/SDXC Card slot support (up to 128GB)
Image resolution	16MP: 4608 x 3456 (Interpolated)5MP: 2592 x 19443MP: 2048 x 1536
Video resolution	Full HD (1080/30): 1920 x 1080 (30fps)HD (720/60): 1280 x 720 (60fps)HD (720/30): 1280 x 720 (30fps)VGA (480/30): 640 x 480p (30fps)

Approximate recording length (1GB)

Resolution:	1920 x 1080(FHD1080p/30fps)	1280 x 720(HD720p/60fps)	1280 x 720(HD720p/30fps)	640 x 480(VGA/30fps)
Recording length: ~00	11:30 ~00:11:30 ~00:17:15 ~00:34:30

Approximate photo capacity (1GB)

Resolution: 16MP 5MP 3MP

Photo capacity: ~426 photos ~817 photos ~1090 photos

White balance Auto, Daylight, Fluorescent, Tungsten
ISO Auto/800/1600/3200/6400
Exposure Measure Auto/Center/Spot
Self-timer 10 second delay
Light Light ON/Light OFF/Digital Light
File format	Photo: JPGVideo: MP4 (H.264)
Image play Single image/slideshow
PC interface Mini USB 2.0 port
TV out	Mini HDMITM port/AV via mini USB port
Battery	Lithium-ion rechargeable batteryBattery weight: 1.1 oz. (31g)Battery charging time: 4 hours with AC adaptorBattery life: 1 hour 40 minutes with LCD on
Dimensions	4.7" (L) x 2.1" (W) x 2.4" (H)120 (L) x 54 (W) x 62 (H) mm
Weight	CAMILEO X400: 10.4 oz. (295g) (without battery)CAMILEO X416: 10.5 oz. (297g) (without battery)

Operating Environment Conditions

Operating temperature: 14^ to 104^ F ( -10^ to 40^ C)

Operating humidity: 20 to 85% (no condensation allowed)

Chapter 11

Troubleshooting

1 If the LCD screen preview is not clear while shooting, how can the focus be adjusted?

Try switching between Macro and Normal modes.

2 The files on the memory card do not display properly when the LCD touch screen shows the “!” marking.

The “!” symbol indicates that the SD ^TM Card is too low of a speed or contains corrupted files. To solve this problem, format the SD ^TM Card using the camcorder instead of a computer (Refer to “Format” on page 54).

Change the SD/SDHC/SDXC card to a high speed card.

3 Why do some of my indoor pictures look blurry and dark?

The camcorder extends picture exposure time under low-light/indoor conditions. Keep the camcorder (and the target subject) steady for several seconds when taking pictures. The shutter sounds when a picture is taken.

4 How do I charge the battery?

You must use the supplied AC adaptor or the USB cable.

The camcorder must be turned OFF. A blinking light confirms the camcorder is currently charging. A steady light indicates that charging has been completed. The light turns off automatically after battery is fully charged (In AC charging Mode).

5 After connecting the USB cable to the computer:

◆“DV” indicates the internal memory of the camcorder.
◆“Removable Disk” indicates the external memory (SD/SDHC/SDXC card installed in the camcorder) (path will vary depending on name of SD™ Card).
◆“DVAP” indicates the built-in CAMILEO ^® Uploader (for Windows ^® based systems only).

CAUTION

Do not format the disk or delete the application. The CAMILEO ^® Uploader application may not function.

Chapter 12

Other Information

Toshiba Support

If you require help or are having problems operating your product, you may need to contact Toshiba for additional technical assistance.

Before you call

Since some problems may be related to software, it is important that you investigate other sources of assistance first. Try the following before contacting Toshiba:

◆Review the documentation supplied with your product.
If a problem occurs when you are running software applications, consult the software documentation for troubleshooting suggestions. Contact the software company's technical support department for assistance.
Consult the reseller or dealer from whom you purchased your product. They are your best resource for current information and support.

Contacting Toshiba

Toshiba's technical support Web site

For technical support, or to stay current on the most recent software and hardware options for your CAMILEO ^® product and for other product information, be sure to regularly check the Toshiba Web site at www.support.toshiba.com.

Toshiba voice contact

For technical support, call the Toshiba Customer Support Center:

Within the United States at [phone]

Outside the United States at [phone]

Toshiba Phone Service Center for Latin America Specialized technical service in Spanish.

Hours:

Monday through Friday from 8:00 a.m. to 9:00 p.m. EST:

Argentina: 0-800-666-3701

Bolivia: 800-10-0684

Chile: 800-646526

Colombia: 01-800-912-0539

Costa Rica: 0-800-011-1123

Ecuador: 00-1-949-587-6834*

El Salvador: 800-6601

Guatemala: 1-800-624-0114

Honduras: 00-1-949-587-6836*

Nicaragua: 00-1-949-587-6843*

Panamá: 008-000447813

Paraguay: 009-800-4410059

Perú: 0-800-5-3817

República Dominicana: 1-888-862-3225

Uruguay: 000-411-002-2297

Venezuela: 0800-1008819

*Phone charges apply.

Warranty

Online Warranty Information

This product comes with a One (1) Year Standard Limited Warranty. The One (1) Year Standard Limited Warranty for Toshiba Computer Accessories and Electronics can be found online at http://pcsupport.toshiba.com/accessories1yr.

Warranty Service

Customers located in the fifty (50) United States and District of Columbia may obtain warranty service by visiting the Toshiba Acclaim Web site at www.acclaim.toshiba.com or by contacting the telephone support center at 1-888-592-0944.

Customers located outside the fifty (50) United States and District of Columbia may obtain warranty service by contacting the telephone support center at 1-949-583-3305.

TOSHIBA

Leading Innovation >>>

Technical line drawing of a device rear panel with labeled ports and components (no text or symbols)

Technical line drawing of a device rear panel with a directional arrow indicating left control (no text or symbols)

Diagram of a device rear panel showing internal components and a directional arrow (no text or symbols)

Person playing golf outdoors under clear sky, no visible text or symbols

Person golfing outdoors with racket and motion blur, no visible text or symbols

Line drawing of a laptop connected to a device via cable, showing internal components (no text or symbols)

Line drawing of a laptop connected to a camera module via cable (no text or symbols)
