Introduction

Congratulations on purchasing the Samson Concert 99 wireless system. The Concert 99 is the ideal solution for the active performer who needs a reliable, great sounding system for wireless applications. Featuring an large backlit LCD display, simple operation with auto-scan channel selection, and infrared set for syncing the transmitter and receiver channel, the Concert 99 is simple and easy to set up and operate. The Concert 99 system ensures clear, interruption-free performance by utilizing a True RF Diversity design with a pilot tone-key and auto-mute function. This configuration provides maximum operating distance along with eliminating any background noise when the transmitter is out of range or powered off.

The Concert 99 comes in four configurations. The vocal handheld system includes the CH99 handheld transmitter with Samson's Q8 premium dynamic microphone capsule. The CB99 belt pack system can be configured with either the SE10 earset microphone, LM10 lavalier microphone, or a 14 " instrument cable. The Concert 99 includes a standard 19" rackmount kit for permanent installations or transporting in a mobile rack.

In these pages, you'll find a detailed description of the features of the Concert 99 wireless system, as well as step-by-step instructions for its setup and use. If your wireless system was purchased in the United States, you'll also find a registration card enclosed—don't forget to follow the instructions so that you can receive online technical support and so that we can send you updated information about this and other Samson products in the future. Also, be sure to check out our website www.samsontech.com for complete information about our full product line.

We recommend you keep the following records for reference, as well as a copy of your sales receipt:

Receiver Serial number: ____

Transmitter Serial number: ____

Date of purchase: ____

With proper care and maintenance, your Concert 99 wireless system will operate trouble-free for many years. Should your wireless system ever require servicing, a Return Authorization (RA) number must be obtained before shipping your unit to Samson. Without this number, the unit will not be accepted. Please call Samson at 1-800-3SAMSON (1-800-372-6766) for an RA number prior to shipping your unit. Please retain the original packing materials and, if possible, return the unit in its original carton. If your Concert 99 system was purchased outside of the United States, contact your local distributor for warranty details and service information.

System Features

• Professional wireless system for use in both live sound and sound contracting applications
- True RF Diversity technology maximizes active range (up to 300 feet) and reduces potential interference
- 80 available channels operating in the UHF band designed for maximum system compatibility in the same location without interference
- The CR99 receiver is a metal half-rack unit that can be used freestanding or can be mounted in any standard 19" rack using the included rack kit, making it easy to integrate into any traveling or fixed installation audio system
- Tone-key and auto-mute ensures clear, interruption-free performance allowing only the transmitter's audio to pass through the receiver, and mutes the output if the transmitter is powered off or out of range.
- Up to 300-foot range (line-of-sight)
- Up to eight hours of battery life, using two standard AA batteries

CR99 Receiver - Front Callouts

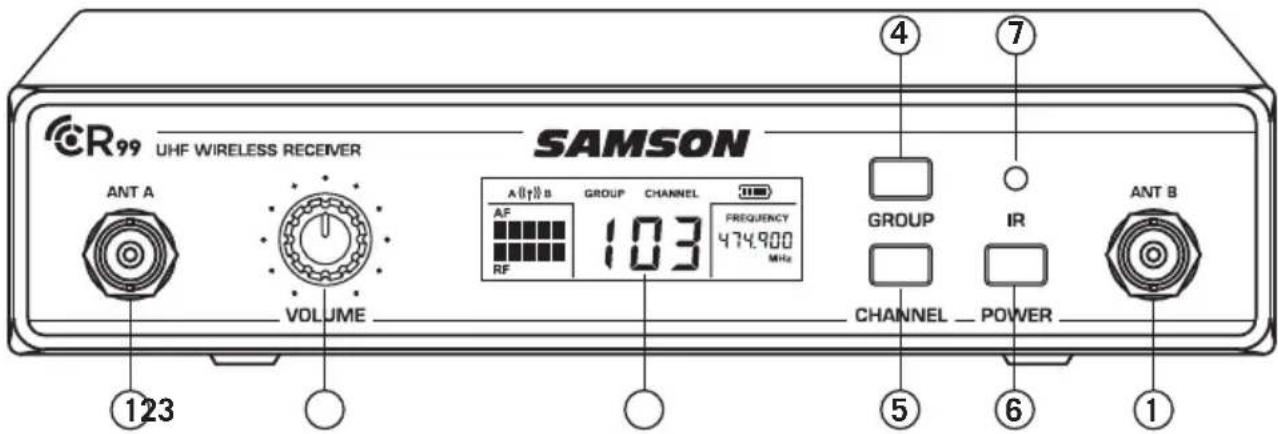

CR99 UHF WIRELESS RECEIVER ANT A VOLUME SAMSON A (↑) B GROUP CHANNEL AF 103 FREQUENCY 474.900 MHz RF CHANNEL POWER GROUP IR ANT B ①23 ④ ⑦ ⑤ ⑥ ①

  1. Antenna Jacks - The front BNC antenna jacks allow full rotation for optimum placement. In normal operation, both antennas should be placed in a vertical position.

  2. VOLUME Control - This knob sets the level of the audio signal being output through both the balanced and unbalanced output jacks on the rear panel. Reference level is obtained when the knob is turned fully clockwise (to its "10" setting).

  3. LCD Display - Displays transmitter and receiver settings.

  4. GROUP Button - Press and release button to cycle through the available groups. Press and hold button to scan for available channels within the selected group.

  5. CHANNEL Button - Press and release to cycle through available channels within a group. Press and hold button to enter IR Set which is used to set the operating channel of the transmitter.

  6. POWER Button - Press and hold to turn the CR99 power on and off.

  7. IR Transmitter - During "IR SET" an infrared light is used to set the transmitter channel.

Receiver Display

A. Group - Displays the selected group

B. Channel - Displays the selected channel

C. Frequency - Indicates the operating frequency of the selected Group and Channel.

D. Antenna Indicator - Indicates the active antenna (A or B).

E. Transmitter Battery Level - Indicates the battery level of the transmitter.

F. Audio Meter - Indicates the strength of the incoming audio signal.

G. RF Signal Meter - Indicates the strength of the incoming radio signal.

A (↑) B AF RF GROUP CHANNEL 103 F G A B C E FREQUENCY 474.900 MHz

CR99 Receiver - Rear Callouts

12V==OUT 150 mA POWER DC IN 1GND 2HOT 3COLD BALANCED OUTPUT CE0197 FC N382 UNBALANCED OUTPUT DESIGNED AND ENGINEERED BY SAMSON TECHNOLOGIES samsontech.com 12V==OUT 150 mA ANTENNA B 11234 MADE IN CHINA ANTENNA A

  1. Antenna Jacks - The rear BNC antenna jacks allow full rotation for optimum placement. In normal operation, both antennas should be placed in a vertical position.

  2. DC Input - Connect the supplied power adapter here, using the strain relief as shown in the illustration below. WARNING: Do not substitute any other kind of power adapter. Doing so can cause severe damage to the CR99 and will void your warranty.

  3. BALANCED OUTPUT - Use this electronically balanced low impedance (600 Ohm) XLR jack when connecting the CR99 to professional (+4dBu) audio equipment. Pin wiring is as follows: Pin 1 ground, Pin 2 high (hot), and Pin 3 low (cold).

  4. UNBALANCED OUTPUT - Use this unbalanced high impedance (5K Ohm) 14 " jack when connecting the CR99 to consumer (-10dBV) audio equipment. Wiring is as follows: tip hot, sleeve ground.

POWER DC IN

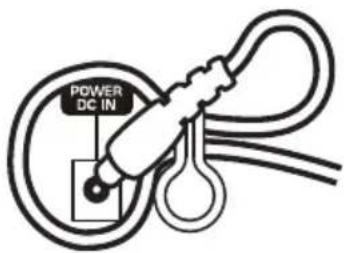

Using the strain relief: Gather up a loop of wire and pass it through the strain relief, then pass the adapter plug through the loop in order to create a knot.

CB99 Belt Pack Transmitter - Callouts

  1. Input Connector - Connect the input device via the mini-XLR connector. The CB99 is supplied with either a lavalier, headset microphone or 14 " instrument cable.

  2. Status Indicator - This LED displays the operation mode:

GREEN Normal Operation
RED Mute
Flashing GREEN Low Battery

  1. Power/Mute Switch - Press and hold to turn the unit on or off. Press and release to mute or unmute the transmitter.

  2. Belt Clip - Use this clip to fasten the CB99 transmitter to a belt or guitar strap.

  3. Battery Cover Release - Push in both sides and pull back to open the CB99 battery cover.

  4. Antenna - This permanently attached transmitter antenna should be fully extended during normal operation.

  5. Input GAIN Control - This control adjusts the transmitter input sensitivity to work with microphone and instruments inputs. For optimal performance, using the included screwdriver, set the input GAIN control to where you see the CR99 Audio Meter maximum indicator start to light under high levels, then turn down slowly until the maximum indicator stops lighting.

  6. Battery Holder - Insert two standard AA (LR6) batteries here, being sure to observe the plus and minus polarity markings shown. Although rechargeable NiCad and NiMH batteries can be used, they do not supply adequate current for more than four hours. WARNING: Do not insert the batteries backwards; doing so can cause severe damage to the CB99 and will void your warranty.

  7. IR Lens - This window is used to capture the infrared signal sent from the CR99 receiver during the IR SET to channelize the transmitter.

  8. Plastic Screwdriver - Designed for use in adjusting the CB99 input GAIN (#7) control.

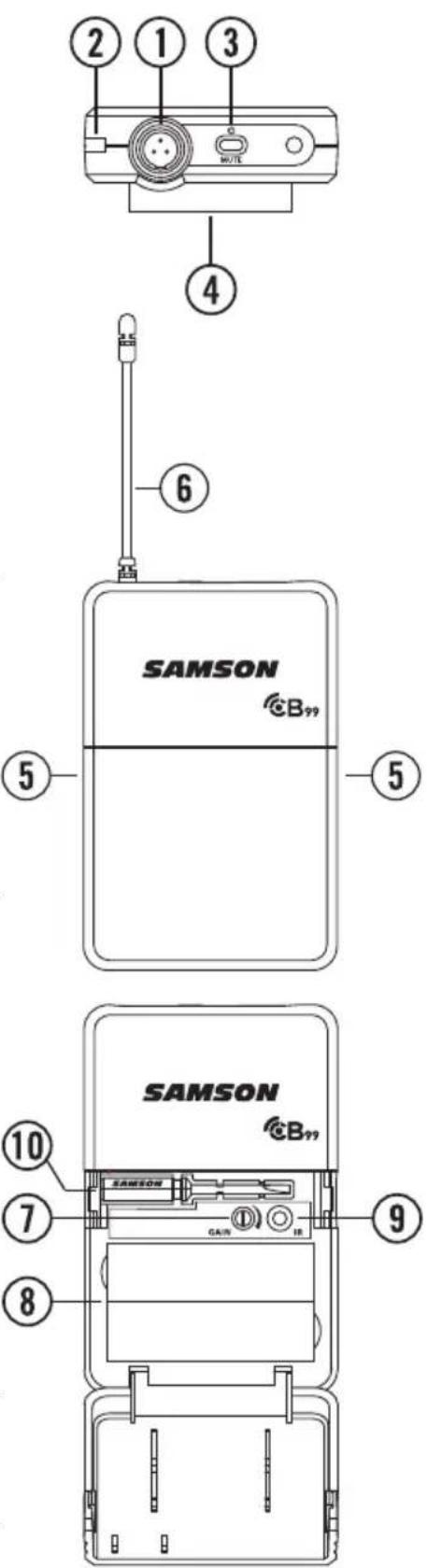

2 1 3 NOTE 4 6 SAMSON CB99 5 5 SAMSON CB99 10 7 8 GA/N IR 9

CH99 Handheld Transmitter - Callouts

  1. Status Indicator - This LED displays the operation mode:
GREEN Normal Operation
RED Mute
Flashing GREENLow Battery
  1. Power/Mute Switch - Press and hold to turn the unit on or off. Press and release to mute or unmute the transmitter.
  2. Battery Cover - Unscrew the battery cover and slide down to open the CH99 battery compartment.
  3. Battery Holder - Open the battery holder by pressing the tab and lifting the cover. Insert two standard AA (LR6) batteries here, being sure to observe the plus and minus polarity markings shown. Although rechargeable NiCad and NiMH batteries can be used, they do not supply adequate current for more than four hours. WARNING: Do not insert the batteries backwards; doing so can cause severe damage to the CH99 and will void your warranty.
  4. Input GAIN Control - This control adjusts the transmitter input sensitivity. For optimal performance, using the included screwdriver, set the input GAIN control to where you see the CR99 Audio Meter maximum indicator

start to light under high levels, then turn down slowly until the maximum indicator stops lighting.

  1. IR Lens - This window is used to capture the infrared signal sent from the CR99 during the IR SET to channelize the transmitter. The battery cover must be open and the IR Lens facing towards the receiver to load the selected channel.
  2. Plastic Screwdriver - Designed for use in adjusting the CB99 input GAIN control (See #5 Input GAIN Control HH).

SAMSON ① ② ③ ④ ⑤ ⑥ ⑦

SAMSON 4CH ④

Quick Start

In order for your wireless system to work correctly, both the receiver and transmitter must be set to the same channel. Follow this basic procedure for setting up and using your Concert 99 wireless system:

  1. Physically place the CR99 receiver where it will be used, and extend the antennas vertically. The general rule of thumb is to maintain “line of sight” between the receiver and transmitter so that the person using or wearing the transmitter can see the receiver.

  2. With the CR99 powered off, connect the included power adapter. Turn the CR99 on momentarily to confirm that the unit is receiving power. Then turn the CR99 power off.

SAMSON Concert 99 - Quick Start - 1

natural_image Diagram showing connections between a power outlet, connected to an electronic device with two antennas and a cable (no text or symbols visible)
  1. With your amplifier or mixer off and volume control all the way down, connect the CR99 receiver output jack to the mic or line level input of a mixer or amplifier using the balanced XLR output or unbalanced 14 " line level output. Turn the Level knob on the CR99 completely counterclockwise, then turn its power on.

Diagram of an electronic device with labeled ports and wiring, showing connections between two antennas and a control panel.

  1. Press and hold the GROUP button on the front of the CR99 receiver to scan for an available channel within the selected group.

SAMSON VOLUME 103

Quick Start

  1. With the transmitter powered off, install two fresh AA batteries into the CB99 belt pack or CH99 handheld transmitter. Leave the battery compartment open.

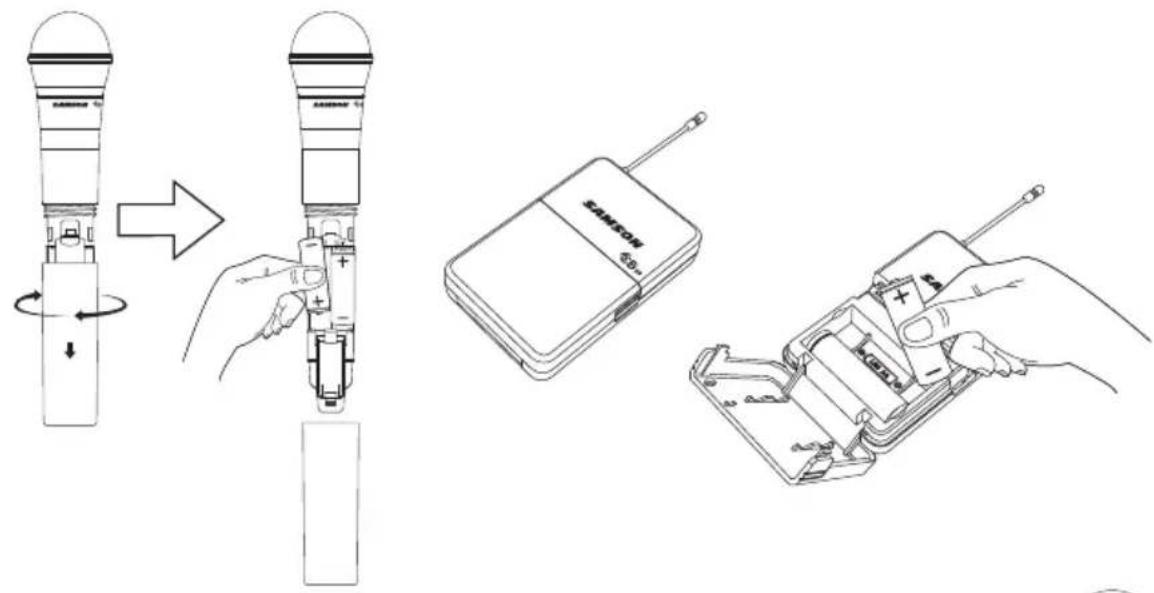

Diagram illustrating the step-by-step installation of a wireless device, showing hand positioning and battery charging process.

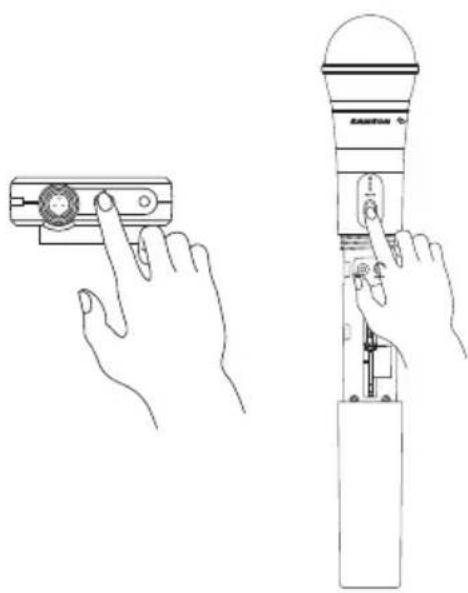

  1. Turn on the power to the transmitter by pressing and holding Power switch; the indicator LED will light green.

SAMSON Concert 99 - Quick Start - 2

natural_image Line drawings of two hands operating a device: one pointing at a button, the other holding a microphone (no text or symbols present)

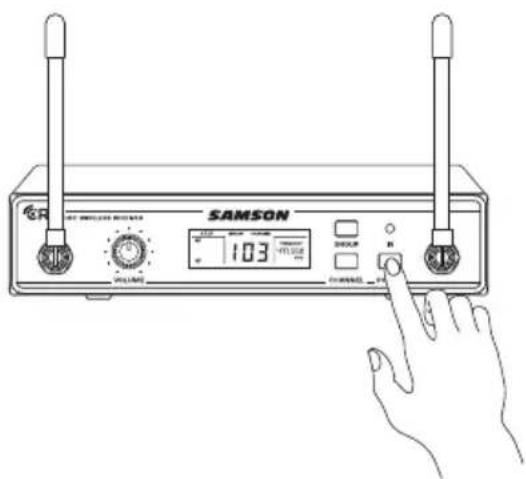

  1. Press and hold the CR99 CHANNEL button to execute an IR Set which synchronizes the transmitter to the same channel as the receiver via infrared transmission.

SAMSON 103 R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R SAMSUNG

Quick Start

  1. Position the transmitter about 6-12" (15-30 cm) from the front of the CR99 with the transmitter's IR window facing the IR transmitter on the front panel of the CR99 receiver.

Technical diagram showing wireless device connections with labeled components and ports

  1. When the transmission is complete, the CR99 will receive RF signal and the tone key from the transmitter. The RF meter on the CR99 will light indicating that it is receiving wireless signal from the transmitter.

  2. Turn on your connected amplifier or mixer, but keep the volume all the way down. Set the Volume knob on the CR99 fully clockwise (to its "10" setting). This is unity gain.

SAMSON 103 SAMSUNG POWER

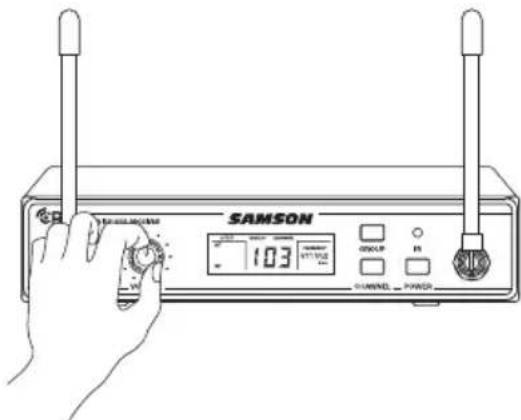

  1. Speak or sing into the microphone, or if you are using the transmitter with a connected instrument, play the instrument at normal performance level. Slowly raise the volume of your amplifier or mixer until the desired level is reached.

  2. Walk around the performance area to ensure the coverage is consistent throughout. If you find the system has noticeable dropouts, reduced overall working range, or unexpected noise bursts, change the operating channel of the system using the steps above.

When using multiple systems, each system must be set to a different operating channel. Set all additional transmitters and receivers to the same Group in order to maximize the number of compatible channels. When setting an additional transmitters, make sure to close all other transmitter battery compartments to ensure that the IR Lens is covered. Perform a channel scan for each transmitter to select the optimal channel.

Rack Mounting

The CR99 receiver can be installed into a standard 19" rack for transport or permanent installation using the included rack ears. Follow the simple steps below to mount the CR99:

Attach the included rack ears by screwing each rack ear into either side of the CR99.

SAMSON Concert 99 - Rack Mounting - 1

natural_image Technical line drawing of a mechanical bracket assembly with no visible text or symbols

Position the CR99 receiver into an available rack space and slide in until the rack ears are touching the rails of the rack case and are aligned with the rack rail holes.

Mount the receiver into the rack using the appropriate size rack screws (not included). To ensure equal tension and balance when installing the receiver, you should secure screws in a crisscross pattern of opposite corners: top left -> bottom right -> top right -> bottom left.

SAMSON Concert 99 - Rack Mounting - 2

natural_image Technical line drawing of a rectangular electronic device with two ports and a central control panel (no text or symbols)

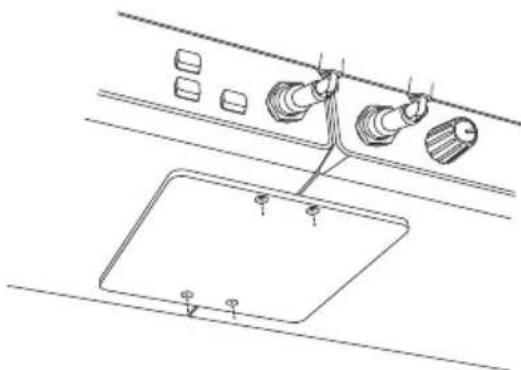

In order to mount two CR99 receivers in one rack space, the system includes a center connection piece. Screw the center connection piece into bottom of each receiver and attach the short rack ears to each receiver.

SAMSON Concert 99 - Rack Mounting - 3

natural_image Line drawing of a kitchen sink with hanging fixtures and a piping system (no text or symbols)

Mount the receivers into the rack using the crisscross pattern described above.

SAMSON Concert 99 - Rack Mounting - 4

natural_image Illustration of a rack-mounted industrial control unit with two main modules and three side fans, enclosed in a transparent enclosure (no text or symbols visible)

Channel Plans

Group K 470–494MHz
Channel
Group 00 01 02 03 04 05 06 07
0 473.050 474.425 474.900480.475 484.075 486.975 487.975492.425
1 470.125 471.500 471.975477.550 481.150 484.050 485.050489.500
2 470.525 471.900 472.375477.950 481.550 484.450 485.450489.900
3 471.075 472.450 472.925478.500 482.100 485.000 486.000490.450
4 471.475 472.850 473.325478.900 482.500 485.400 486.400490.850
5 472.025 473.400 473.875479.450 483.050 485.950 486.950491.400
6 472.425 473.800 474.275479.850 483.450 486.350 487.350491.800
7 473.375 474.750 475.225480.800 484.400 487.300 488.300492.750
8 473.925 475.300 475.775481.350 484.950 487.850 488.850493.300
9 474.325 475.700 476.175481.750 485.350 488.250 489.250493.700
Group D 542-566MHz
Channel
Group 00 01 02 03 04 05 06 07
0 545.050 546.425 546.900552.475 556.075 558.975 559.975564.425
1 542.125 543.500 543.975549.550 553.150 556.050 557.050561.500
2 542.525 543.900 544.375549.950 553.550 556.450 557.450561.900
3 543.075 544.450 544.925550.500 554.100 557.000 558.000562.450
4 543.475 544.850 545.325550.900 554.500 557.400 558.400562.850
5 544.025 545.400 545.875551.450 555.050 557.950 558.950563.400
6 544.425 545.800 546.275551.850 555.450 558.350 559.350563.800
7 545.375 546.750 547.225552.800 556.400 559.300 560.300564.750
8 545.925 547.300 547.775553.350 556.950 559.850 560.850565.300
9 546.325 547.700 548.175553.750 557.350 560.250 561.250565.700

Channel Plans

Group F* 606–630MHz
Channel
Group 00 01 02 03 04 05 06 07
0 609.050 610.425 610.900616.475 620.075 622.975 623.975628.425
1 606.125 607.500 607.975613.550 617.150 620.050 621.050625.500
2 606.525 607.900 608.375613.950 617.550 620.450 621.450625.900
3 607.075 608.450 608.925614.500 618.100 621.000 622.000626.450
4 607.475 608.850 609.325614.900 618.500 621.400 622.400626.850
5 608.025 609.400 609.875615.450 619.050 621.950 622.950627.400
6 608.425 609.800 610.275615.850 619.450 622.350 623.350627.800
7 609.375 610.750 611.225616.800 620.400 623.300 624.300628.750
8 609.925 611.300 611.775617.350 620.950 623.850 624.850629.300
9 610.325 611.700 612.175617.750 621.350 624.250 625.250629.700
Group L* 823-832MHz
Channel
Group 00 01 02 03 04 05 06 07
0 823.125 824.125 825.325826.725 827.925 828.325 829.700830.800
1 823.225 824.225 825.425826.825 828.025 828.425 829.800830.900
2 823.325 824.325 825.525826.925 828.125 828.525 829.900831.000
3 823.425 824.425 825.625827.025 828.225 828.625 830.000831.100
4 823.525 824.525 825.725827.125 828.325 828.725 830.100831.200
5 823.625 824.625 825.825827.225 828.425 828.825 830.200831.300
6 823.725 824.725 825.925827.325 828.525 828.925 830.300831.400
7 823.825 824.825 826.025827.425 828.625 829.025 830.400831.500
8 823.925 824.925 826.125827.525 828.725 829.125 830.500831.600
9 824.025 825.025 826.225827.625 828.825 829.225 830.600831.700
Group G* 863–865MHz
Channel
Group 00 01 02 03 04 05 06 07
0 863.050 863.250 863.550863.750 864.050 864.250 864.550864.750
1 863.100 863.300 863.600863.800 864.100 864.300 864.600864.800
2 863.150 863.350 863.650863.850 864.150 864.350 864.650864.850
3 863.200 863.400 863.700863.900 864.20 864.400 864.700 864.950

* Not for use in the USA and Canada. For questions regarding available channels in your area contact your local Samson distributor.

Troubleshooting

Issue Solutions
No audioMake sure that the transmitter and receiver are both powered on.
Ensure the transmitter's batteries are installed correctly.
Check that the transmitter is not muted.
Confirm that the CR99 receiver adapter is correctly connected and plugged into an electrical outlet.
Make sure the audio output cables are securely connected to the CR99 receiver.
Ensure that the receiver and transmitter are in line of sight with one another.
Check the receiver and audio input device level controls.
Ensure that the transmitter and receiver are set to the same operating channel. If unsure, reset the channel by performing an IR set.
Distorted audioThe receiver output level or audio input device level may be too high.
Check the transmitters batteries, and replace if low.
The input gain on the transmitter or audio source level may be too high.
Audio dropoutThe transmitter may be too far away from the receiver. Move it closer to the receiver, or reposition the antennas.
Remove any sources that may cause RF interference such as cell phones, cordless phones, lighting equipment, computers, metal structures, etc.
Move receiver to the top space of the equipment rack or place on top of equipment to ensure there are no obstructions blocking line of sight from the transmitter.
Receiver will not power onCheck the adapter to ensure it is properly connected and plugged into an outlet providing power.
Transmitter will not power onReplace the transmitter batteries.
Unwanted noise or interferenceIf using multiple systems, make sure none of the systems are operating on the same channel. If the problem persists, change one or all of the systems channels.
If using multiple systems, set all receivers to the same Group. Perform a channel scan within the Group to select the optimum Channels.

Specifications

System

Working Range 300' (100m) line of sight

Audio Frequency Response 50 Hz - 15 kHz

T.H.D. (Overall) <1% (@AF 1 kHz, RF 46 dBu)

Dynamic Range >103 dB A-weighted

Signal to Noise >90 dB

Operating Temperature -10^ ( 14^ ) to +60^ (+ 140^ )

Tone Key Frequency 35.000 kHz

CB99 Belt pack Transmitter

Input Connector Mini-XLR (P3)

Input Impedance 1MΩ

Input Gain Range 38 dB

RF Power 10 mW EIRP

Power Requirements Two AA (LR6) alkaline batteries

Battery Life 8 hours

Dimensions (HxLxD) 3.75" x 2.44" x 0.75"

96mm x 62mm x 18.5mm

Weight 0.2 lb / 93 g

CH99 Handheld Transmitter

Microphone Element Dynamic

Input Gain Range 28 dB

RF Power 10 mW EIRP

Power Requirements Two AA (LR6) alkaline batteries

Battery Life 8 hours

Dimensions (Hx∅) 10.23" x 2.1"

260mm x 54mm

Weight 0.48 lb / 218 g

CR99 Receiver

Audio Output Level - Unbalanced +14 dBu

Audio Output Level - Balanced +9 dBu

Audio Output Impedance - Unbalanced 810 Ohms

Audio Output Impedance - Balanced 240 Ohms

Sensitivity -100 dBm

Image Rejection >50 dB

Operating Voltage 15 VDC 200mA

Dimensions (LxWxH) 7.87" x 5.9" x 1.6"

200mm x 150mm x 42mm

Weight 2.08lb / 0.946kg

At Samson, we are continually improving our products, therefore specifications and images are subject to change without notice.

R&TTE Declaration of Conformity

In accordance with EN ISO 17050:2005

We, Samson Technologies Corporation, located at 45 Gilpin Ave, Hauppauge, NY 11788 USA declare under our own responsibility that the products:

Product Name: Concert 99 Wireless Microphone

Trade Name: Samson

Type or Model: CR99 (Receiver), CH99 (Handheld Transmitter), CB99 (Belt Pack Transmitter)

are in conformity with the essential requirements of the following EC Directive(s) when installed in accordance with the installation instructions contained in the product documentation:

2006/95/EC - LVD Directive

2004/108/EC - EMC Directive

1999/5/EC - R&TTE Directive

The product is in conformity with the following standards and/or other normative documents:

EN60065:2014 Audio, video and similar electronic apparatus - Safety requirements

EN301 489-1 V1.9.1 Common technical requirements.

EN301 489-9 V1.4.1 Specific conditions for wireless microphones, similar Radio

Frequency (RF) audio link equipment, cordless audio and in-ear monitoring.

EN300 422-1 V1.5.1 Technical characteristics and methods.

EN300 422-2 V1.4.1 Harmonized EN covering essential requirements of article 3.2

of the R&TTE directive

EN62479:2010 Harmonized EN covering essential requirements of article 3.1a

of the R&TTE directive

Year of CE Marking (Low Voltage Directive): 2015

Identification Mark: 0197 (Notified body number)

This equipment will also carry the Class 2 equipment identifier:

Dyrs Bynd

Signed on behalf of the manufacturer:

Authorized Representative: Douglas Bryant

Position: Vice President Engineering

Date: 12/5/2015

C€0197①

Hereby, Samson Technologies Corp., declares that this CR99, CH99, CB99 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The declaration of conformity may be consulted at:

www.samsontech.com/samson/products/wireless-systems/concert-99/concert99hh/#downloads-and-manuals-tab

natural_image Diagram showing connections between a power outlet, cable, and wireless device (no text or symbols visible)
natural_image Line drawings of two hands operating a device with a knob and a microphone (no text or symbols)

Démarrage rapide

natural_image Technical line drawing of a mechanical bracket assembly with no visible text or symbols
natural_image Technical line drawing of a rectangular electronic device with two ports and a central control panel (no text or symbols)
natural_image Line drawing of a kitchen sink with hanging kitchen handles and a tray, no text or symbols present
natural_image Technical line drawing of a rack-mounted electronic device with two ports and two side connectors, enclosed in a transparent enclosure (no text or symbols)

Plans des canaux

Groupe K 470–494 MHz
Canal
Groupe 00 01 02 03 04 05 06 07
0 473,050 474,425 474,900 480,475 484,075 486,975 487,975 492,425
1 470,125 471,500 471,975 477,550 481,150 484,050 485,050 489,500
2 470,525 471,900 472,375 477,950 481,550 484,450 485,450 489,900
3 471,075 472,450 472,925 478,500 482,100 485,000 486,000 490,450
4 471,475 472,850 473,325 478,900 482,500 485,400 486,400 490,850
5 472,025 473,400 473,875 479,450 483,050 485,950 486,950 491,400
6 472,425 473,800 474,275 479,850 483,450 486,350 487,350 491,800
7 473,375 474,750 475,225 480,800 484,400 487,300 488,300 492,750
8 473,925 475,300 475,775 481,350 484,950 487,850 488,850 493,300
9 474,325 475,700 476,175 481,750 485,350 488,250 489,250 493,700
Groupe D 542–566 MHz
Canal
Groupe 00 01 02 03 04 05 06 07
0 545,050 546,425 546,900 552,475 556,075 558,975 559,975 564,425
1 542,125 543,500 543,975 549,550 553,150 556,050 557,050 561,500
2 542,525 543,900 544,375 549,950 553,550 556,450 557,450 561,900
3 543,075 544,450 544,925 550,500 554,100 557,000 558,000 562,450
4 543,475 544,850 545,325 550,900 554,500 557,400 558,400 562,850
5 544,025 545,400 545,875 551,450 555,050 557,950 558,950 563,400
6 544,425 545,800 546,275 551,850 555,450 558,350 559,350 563,800
7 545,375 546,750 547,225 552,800 556,400 559,300 560,300 564,750
8 545,925 547,300 547,775 553,350 556,950 559,850 560,850 565,300
9 546,325 547,700 548,175 553,750 557,350 560,250 561,250 565,700

Plans des canaux

Groupe F* 606–630 MHz
Canal
Groupe 00 01 02 03 0405 06 07
0 609,050 610,425610,900 616,475 620,0775 622,975 623,975 628,425
1 606,125 607,500607,975 613,550 617,150 620,050 621,050 625,500
2 606,525 607,900608,375 613,950 617,550 620,450 621,450 625,900
3 607,075 608,450608,925 614,500 618,100 621,000 622,000 626,450
4 607,475 608,850609,325 614,900 618,500 621,400 622,400 626,850
5 608,025 609,400609,875 615,450 619,050 621,950 622,950 627,400
6 608,425 609,800610,275 615,850 619,450 622,350 623,350 627,800
7 609,375 610,750611,225 616,800 620,400 623,300 624,300 628,750
8 609,925 611,300611,775 617,350 620,950 623,850 624,850 629,300
9 610,325 611,700612,175 617,750 621,350 624,250 625,250 629,700
Groupe L* 823–832 MHz
Canal
Groupe 00 01 02 03 04 05 06 07
0 823,125 824,125 825,325 826,725 827,925 828,325 829,700 830,800
1 823,225 824,225 825,425 826,825 828,025 828,425 829,800 830,900
2 823,325 824,325 825,525 826,925 828,125 828,525 829,900 831,000
3 823,425 824,425 825,625 827,025 828,225 828,625 830,000 831,100
4 823,525 824,525 825,725 827,125 828,325 828,725 830,100 831,200
5 823,625 824,625 825,825 827,225 828,425 828,825 830,200 831,300
6 823,725 824,725 825,925 827,325 828,525 828,925 830,300 831,400
7 823,825 824,825 826,025 827,425 828,625 829,025 830,400 831,500
8 823,925 824,925 826,125 827,525 828,725 829,125 830,500 831,600
9 824,025 825,025 826,225 827,625 828,825 829,225 830,600 831,700

Puissance RF 10 mW EIRP

Puissance RF 10 mW EIRP

2004/108/CE - Directive CEM

1999/5/CE - Directive R&TTE

www.samsontech.com/samson/products/wireless-systems/concert-99/concert99hh/#downloads-and-manuals-tab

natural_image Diagram showing connections between a power outlet, cable, and wireless device (no text or symbols visible)
natural_image Line drawings of two hands operating a device: one pointing at a button, the other holding a microphone (no text or symbols present)

Kurzanleitung

natural_image Technical line drawing of a mechanical bracket assembly with mounting holes and a knob (no text or symbols)
natural_image Technical line drawing of a device enclosure with two sensors and a central control panel (no text or symbols)
natural_image Line drawing of a kitchen sink with hanging fixtures and a tray (no text or symbols)
natural_image Technical line drawing of a rack-mounted electronic device with two switches and two ports, enclosed in a rectangular enclosure (no text or symbols)

Kanalpläne

Gruppe K 470–494 MHz
Kanal
Gruppe 0001 02 03 0405 06 07
0 473,050 474,425474,900 480,475 484,075486,975 487,975 492,425
1 470,125 471,500471,975 477,550 481,150484,050 485,050 489,500
2 470,525 471,900472,375 477,950 481,550484,450 485,450 489,900
3 471,075 472,450472,925 478,500 482,100485,000 486,000 490,450
4 471,475 472,850473,325 478,900 482,500485,400 486,400 490,850
5 472,025 473,400473,875 479,450 483,050485,950 486,950 491,400
6 472,425 473,800474,275 479,350 483,450486,350 487,350 491,800
7 473,375 474,750475,225 480,300 484,400487,300 488,300 492,750
8 473,925 475,300475,775 481,350 484,950487,850 488,850 493,300
9 474,325 475,700476,175 481,750 485,350488,250 489,250 493,700
Gruppe D 542–566 MHz
Kanal
Gruppe 00 01 02 03 04 05 06 07
0 545,050 546,425546,900 552,475 556,07558,975 559,975 564,425
1 542,125 543,500543,975 549,550 553,15056,050 557,050 561,500
2 542,525 543,900544,375 549,950 553,55056,450 557,450 561,900
3 543,075 544,450544,925 550,500 554,10057,000 558,000 562,450
4 543,475 544,850545,325 550,900 554,50057,400 558,400 562,850
5 544,025 545,400545,875 551,450 555,05057,950 558,950 563,400
6 544,425 545,800546,275 551,850 555,45058,350 559,350 563,800
7 545,375 546,750547,225 552,800 556,40059,300 560,300 564,750
8 545,925 547,300547,775 553,850 556,95059,850 560,850 565,300
9 546,325 547,700548,175 553,750 557,35060,250 561,250 565,700

Kanalpläne

Gruppe F 606-630 MHz
Kanal
Gruppe 00 01 02 03 04 05 06 07
0 609,050 610,425610,900 616,475 620,075622,975 623,975 628,425
1 606,125 607,500607,975 613,550 617,150620,050 621,050 625,500
2 606,525 607,900608,375 613,950 617,550620,450 621,450 625,900
3 607,075 608,450608,925 614,500 618,100621,000 622,000 626,450
4 607,475 608,850609,325 614,900 618,500621,400 622,400 626,850
5 608,025 609,400609,875 615,450 619,050621,950 622,950 627,400
6 608,425 609,800610,275 615,350 619,450622,350 623,350 627,800
7 609,375 610,750611,225 616,300 620,400623,300 624,300 628,750
8 609,925 611,300611,775 617,350 620,950623,850 624,850 629,300
9 610,325 611,700612,175 617,750 621,350624,250 625,250 629,700
Gruppe L* 823-832 MHz
Kanal
Gruppe 00 01 02 03 04 05 06 07
0 823,125 824,125825,325 826,725 827,925828,325 829,700 830,800
1 823,225 824,225825,425 826,825 828,025828,425 829,800 830,900
2 823,325 824,325825,525 826,925 828,125828,525 829,900 831,000
3 823,425 824,425825,625 827,025 828,225828,625 830,000 831,100
4 823,525 824,525825,725 827,125 828,325828,725 830,100 831,200
5 823,625 824,625825,825 827,225 828,425828,825 830,200 831,300
6 823,725 824,725825,925 827,825 828,525828,925 830,300 831,400
7 823,825 824,825826,025 827,425 828,625829,025 830,400 831,500
8 823,925 824,925826,125 827,525 828,725829,125 830,500 831,600
9 824,025 825,025826,225 827,625 828,825829,225 830,600 831,700

Position: Vice President Engineering

Datum: 05.12.2015

C€0197①

www.samsontech.com/samson/products/wireless-systems/concert-99/concert99hh/#downloads-and-manuals-tab

SAMSON ④

Inicio rápido

natural_image Diagram showing connections between a power outlet, cable, and wireless device (no text or symbols visible)
natural_image Line drawings of two hands operating a device: one pointing at a button, the other holding a microphone (no text or symbols present)

Inicio rápido

natural_image Technical line drawing of a mechanical bracket assembly with no visible text or symbols
natural_image Technical line drawing of a rectangular electronic device with two ports and a central control panel (no text or symbols)
natural_image Technical line drawing of a kitchen sink with hanging kitchen handles and a tray (no text or symbols)
natural_image Technical line drawing of a rack-mounted electronic device with two main modules and two side connectors, enclosed in a transparent enclosure (no text or symbols visible)

Planes de canal

Grupo K 470-494MHz
Canal
Grupo 0001 02 03 0405 06 07
0 473,050 474,425474,900 480,475 484,075486,975 487,975 492,425
1 470,125 471,500471,975 477,550 481,150484,050 485,050 489,500
2 470,525 471,900472,375 477,950 481,550484,450 485,450 489,900
3 471,075 472,450472,925 478,500 482,100485,000 486,000 490,450
4 471,475 472,850473,325 478,900 482,500485,400 486,400 490,850
5 472,025 473,400473,875 479,450 483,050485,950 486,950 491,400
6 472,425 473,800474,275 479,850 483,450486,350 487,350 491,800
7 473,375 474,750475,225 480,800 484,400487,300 488,300 492,750
8 473,925 475,300475,775 481,350 484,950487,850 488,850 493,300
9 474,325 475,700476,175 481,750 485,350488,250 489,250 493,700
Grupo D 542-566MHz
Canal
Grupo 0001 02 03 0405 06 07
0 545,050 546,425546,900 552,475 556,075 558,975 559,975 564,425
1 542,125 543,500543,975 549,550 553,1550 556,050 557,050 561,500
2 542,525 543,900544,375 549,950 553,5550 556,450 557,450 561,900
3 543,075 544,450544,925 550,500 554,1050 557,000 558,000 562,450
4 543,475 544,850545,325 550,900 554,5050 557,400 558,400 562,850
5 544,025 545,400545,875 551,450 555,0550 557,950 558,950 563,400
6 544,425 545,800546,275 551,850 555,4550 558,350 559,350 563,800
7 545,375 546,750547,225 552,800 556,4050 559,300 560,300 564,750
8 545,925 547,300547,775 553,350 556,9550 559,850 560,850 565,300
9 546,325 547,700548,175 553,750 557,3550 560,250 561,250 565,700

Planes de canal

Grupo F* 606-630MHz
Canal
Grupo 0001 02 03 0405 06 07
0 609,050 610,425610,900 616,475 620,0775 622,975 623,975 628,425
1 606,125 607,500607,975 613,550 617,150 620,050 621,050 625,500
2 606,525 607,900608,375 613,950 617,550 620,450 621,450 625,900
3 607,075 608,450608,925 614,500 618,100 621,000 622,000 626,450
4 607,475 608,850609,325 614,900 618,500 621,400 622,400 626,850
5 608,025 609,400609,875 615,450 619,050 621,950 622,950 627,400
6 608,425 609,800610,275 615,850 619,450 622,350 623,350 627,800
7 609,375 610,750611,225 616,800 620,400 623,300 624,300 628,750
8 609,925 611,300611,775 617,350 620,950 623,850 624,850 629,300
9 610,325 611,700612,175 617,750 621,350 624,250 625,250 629,700
Grupo L* 823-832MHz
Canal
Grupo 0001 02 03 0405 06 07
0 823125 824,125825,325 826725 827,925828,325 829700 830,800
1 823225 824,225825,425 826825 828,025828,425 829800 830,900
2 823325 824,325825,525 826925 828,125828,525 829900 831,000
3 823425 824,425825,625 827025 828,225828,625 830000 831,100
4 823525 824,525825,725 827125 828,325828,725 830100 831,200
5 823625 824,625825,825 827225 828,425828,825 830200 831,300
6 823725 824,725825,925 827325 828,525828,925 830300 831,400
7 823825 824,825826,025 827425 828,625829,025 830400 831,500
8 823925 824,925826,125 827525 828,725829,125 830500 831,600
9 824025 825,025826,225 827625 828,825829,225 830600 831,700

96mm x 62mm x 18,5mm

0,2 lb / 93 g

200mm x 150mm x 42mm

2,08lb / 0,946kg

www.samsontech.com/samson/products/wireless-systems/concert-99/concert99hh/#downloads-and-manuals-tab

natural_image Line drawing of a wireless device with two connected ports, a power outlet, and a CD107-branded network (no text or symbols visible)

Guida rapida

natural_image Line drawings of two hands operating a device with a knob and a microphone (no text or symbols)

Guida rapida

natural_image Technical line drawing of a mechanical bracket assembly with labeled parts (no text or symbols present)
natural_image Technical line drawing of a rectangular electronic device with two vertical sensors and a central control panel (no text or symbols)
natural_image Line drawing of a kitchen sink with hanging kitchen handles and a drain (no text or symbols)
natural_image Illustration of a rack-mounted device with two fans and two switches, enclosed in a transparent enclosure (no text or symbols visible)

Piani canale

Gruppo K 470-494MHz
Canale
Gruppo 00 01 02 03 04 05 06 07
0 473,050 474,425474,900 480,475 484,075486,975 487,975 492,425
1 470,125 471,500471,975 477,550 481,150484,050 485,050 489,500
2 470,525 471,900472,375 477,950 481,550484,450 485,450 489,900
3 471,075 472,450472,925 478,500 482,100485,000 486,000 490,450
4 471,475 472,850473,325 478,900 482,500485,400 486,400 490,850
5 472,025 473,400473,875 479,450 483,050485,950 486,950 491,400
6 472,425 473,800474,275 479,350 483,450486,350 487,350 491,800
7 473,375 474,750475,225 480,300 484,400487,300 488,300 492,750
8 473,925 475,300475,775 481,350 484,950487,850 488,850 493,300
9 474,325 475,700476,175 481,750 485,350488,250 489,250 493,700
Gruppo D 542-566MHz
Canale
Gruppo 00 01 02 03 04 05 06 07
0 545,050 546,425546,900 552,475 556,07558,975 559,975 564,425
1 542,125 543,500543,975 549,550 553,15056,050 557,050 561,500
2 542,525 543,900544,375 549,950 553,55056,450 557,450 561,900
3 543,075 544,450544,925 550,500 554,10057,000 558,000 562,450
4 543,475 544,850545,325 550,900 554,50057,400 558,400 562,850
5 544,025 545,400545,875 551,450 555,05057,950 558,950 563,400
6 544,425 545,800546,275 551,850 555,45058,350 559,350 563,800
7 545,375 546,750547,225 552,800 556,40059,300 560,300 564,750
8 545,925 547,300547,775 553,850 556,95059,850 560,850 565,300
9 546,325 547,700548,175 553,750 557,35060,250 561,250 565,700

Piani canale

Gruppo F* 606–630MHz
Canale
Gruppo 00 01 02 03 04 05 06 07
0 609,050 610,425610,900 616,475 620,075622,975 623,975 628,425
1 606,125 607,500607,975 613,550 617,150620,050 621,050 625,500
2 606,525 607,900608,375 613,950 617,550620,450 621,450 625,900
3 607,075 608,450608,925 614,500 618,100621,000 622,000 626,450
4 607,475 608,850609,325 614,900 618,500621,400 622,400 626,850
5 608,025 609,400609,875 615,450 619,050621,950 622,950 627,400
6 608,425 609,800610,275 615,350 619,450622,350 623,350 627,800
7 609,375 610,750611,225 616,300 620,400623,300 624,300 628,750
8 609,925 611,300611,775 617,350 620,950623,850 624,850 629,300
9 610,325 611,700612,175 617,750 621,350624,250 625,250 629,700
Gruppo L* 823-832MHz
Canale
Gruppo 00 01 02 03 04 05 06 07
0 823,125 824,125825,325 826,725 827,925828,325 829,700 830,800
1 823,225 824,225825,425 826,825 828,025828,425 829,800 830,900
2 823,325 824,325825,525 826,925 828,125828,525 829,900 831,000
3 823,425 824,425825,625 827,025 828,225828,625 830,000 831,100
4 823,525 824,525825,725 827,125 828,325828,725 830,100 831,200
5 823,625 824,625825,825 827,225 828,425828,825 830,200 831,300
6 823,725 824,725825,925 827,825 828,525828,925 830,300 831,400
7 823,825 824,825826,025 827,425 828,625829,025 830,400 831,500
8 823,925 824,925826,125 827,525 828,725829,125 830,500 831,600
9 824,025 825,025826,225 827,625 828,825829,225 830,600 831,700

200mm x 150mm x 42mm

Peso 0,946kg / 2.08lb

www.samsontech.com/samson/products/wireless-systems/concert-99/concert99hh/#downloads-and-manuals-tab

Samson Technologies Corp.

278B Duffy Ave

Hicksville, New York 11801

Phone: 1-800-3-SAMSON (1-800-372-6766)

Fax: 631-784-2201

www.samsontech.com

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : SAMSON

Model : Concert 99

Category : Microphone
