Brand	SilverCrest
Model	SMTS 2017 A1
Product Type	Wireless Keyboard
Connectivity	2.4 GHz RF via USB receiver
Layout	QWERTY (US/International)
Number of Keys	104 keys including multimedia functions
Dimensions (W x D x H)	440 x 140 x 25 mm
Weight	500 g (including batteries)
Power Supply	2 x AAA batteries (not included)
Battery Life	Approximately 12 months under normal use
Operating Range	Up to 10 meters
Compatible Systems	Windows 10/11, macOS, Linux (some keys may differ)
Multimedia Keys	10 shortcut keys for volume, media playback, etc.
Key Switch Type	Membrane (rubber dome)
Wireless Encryption	AES 128-bit
Included Accessories	USB receiver, user manual
Material	ABS plastic
Color	Black
Cable Length (if wired)	N/A (wireless)
Operating Temperature	0°C to 40°C
Storage Humidity	10% to 90% non-condensing
Warranty	2 years (standard)
Repairability	Batteries replaceable; receiver replaceable separately
Cleaning Instructions	Wipe with a soft, dry cloth; do not use liquids
Safety Certifications	CE, RoHS

Frequently Asked Questions - SMTS 2017 A1 SILVERCREST

How do I pair the SilverCrest SMTS 2017 A1 keyboard with my computer?

Insert the USB receiver into a USB port on your computer. The keyboard should automatically connect. If not, press the Connect button on the underside of the keyboard.

What batteries does the keyboard use and how long do they last?

The keyboard requires 2 x AAA batteries (not included). Battery life is approximately 12 months under normal usage.

Can I use this keyboard with a tablet or smartphone?

The keyboard uses a USB receiver, so it only works with devices that have a USB-A port (e.g., PCs, laptops). It is not compatible with tablets or phones unless they support USB OTG.

How do I clean the keyboard?

Turn off the keyboard and remove batteries. Wipe with a soft, dry cloth. Do not use water, solvents, or abrasive cleaners. Avoid moisture getting into the keys.

What should I do if some keys are not responding?

First, check the batteries. If low, replace them. Try reconnecting the USB receiver. If the issue persists, the keyboard may need cleaning (see cleaning FAQ). Ensure the receiver is within 10 meters range.

Is the keyboard spill-resistant?

No, the keyboard is not spill-resistant. Keep liquids away to avoid damage. If spilled, turn off immediately, remove batteries, and dry thoroughly before use.

How do I replace the USB receiver if lost?

SilverCrest sells replacement receivers. Contact customer support or check the brand's official website. Note that the receiver is paired to the keyboard and may require reprogramming.

Does the keyboard work on macOS?

Yes, it works on macOS, but some multimedia keys may have different functions. The basic typing keys will work.

Can I pair the keyboard with multiple devices?

No, the keyboard can only connect to one device at a time via its USB receiver. It does not have Bluetooth multipoint.

What is the warranty period and how to claim?

The warranty is 2 years from purchase. To claim, contact SilverCrest customer service with proof of purchase. Normal wear and tear or battery issues are not covered.

USER MANUAL SMTS 2017 A1 SILVERCREST

includes wireless mouse and USB nano receiver

Wireless Keyboard includes wireless mouse and USB nano receiver

User manual and service information

White desktop computer keyboard and mouse on a plain surface (no text or symbols visible)

Black desktop computer keyboard and mouse with a small USB port, shown against a white background (no text or symbols visible)

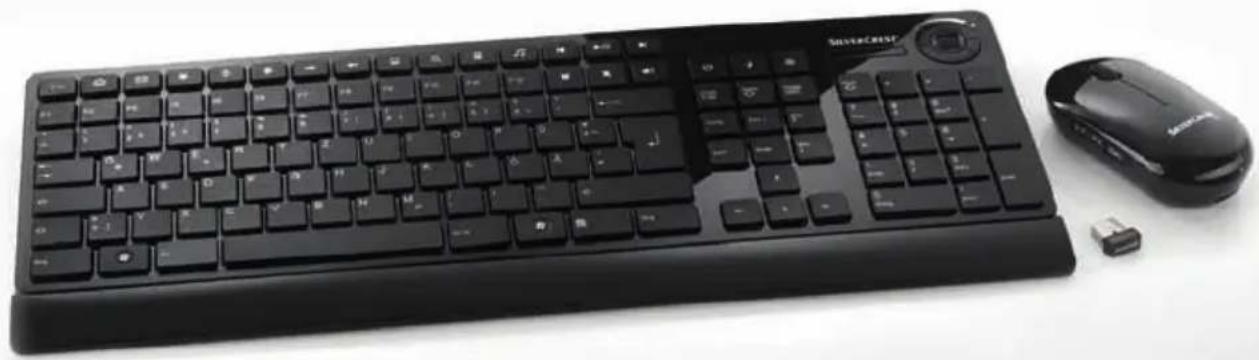

Wireless design keyboard with wireless mouse and USB nano receiver

STMS 2017 A1

Package Contents

A

B

White computer mouse with 'SiSourceCast' branding and a small electronic component labeled 'C' (no text or symbols on the device itself)

A Wireless keyboard STMS 2017 A1
B Wireless Mouse STMS 2017 A1
C USB nano receiver STMS2017A1-R (inserted into the wireless mouse by default)
D 2 AAA-type batteries, 1.5V (Micro) for wireless keyboard (not illustrated)
E 2 AAA-type batteries, 1.5V (Micro) for wireless mouse (not illustrated)
F CD-ROM with software (not shown)
G User's manual (not shown)

System Requirements

• Intel® Pentium® III / AMD Athlon™ or higher
• 1 free USB-2.0 port
• Microsoft ^® Windows ^® XP, Windows Vista ^® or Windows ^® 7
• CD-ROM drive or DVD drive for installing the software

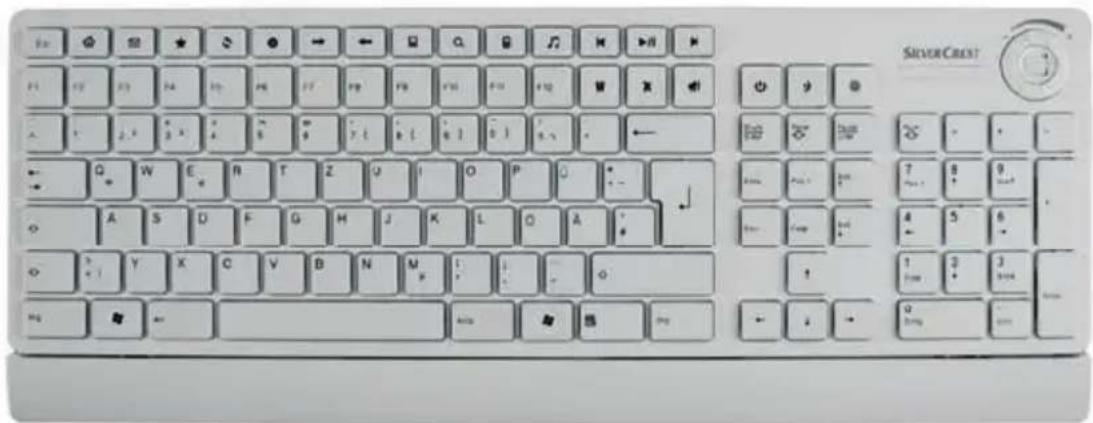

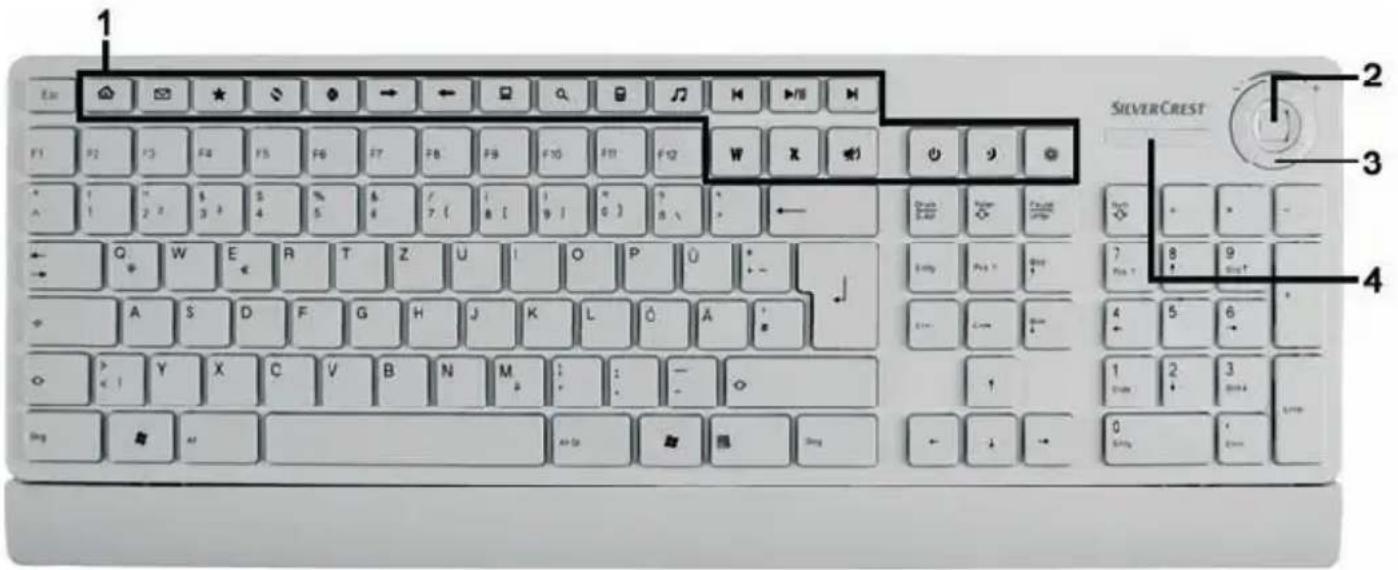

Overview

1 Special buttons (hotkeys)
2 Scroll wheel
3 Volume control
4 Battery level indicator*

* After inserting the batteries into the keyboard, the indicator will flash several times during automatic synchronisation with the USB receiver. When the synchronisation is completed, the status indicator will stop lighting.

5 Left mouse button
6 Right mouse button
7 Zoom - (default mode) Play / Pause (media mode)
8 Zoom + (default mode) Launch Media Player (media mode)
9 Tilt wheel (4-way scroll wheel) Volume control and mute (media mode)
10 Battery level indicator
11 Back (default) Previous title (media mode)
12 Forward (default) Next title (media mode)
13 800/1600 cpi toggle switch (press briefly) Standard / media mode toggle switch (keep pressed for 3 seconds)
14 Battery compartment lock (on the back)

Contents

Package Contents 1

System Requirements 2

Overview 2

Contents 4

Important Safety Information 5

Children and Persons with Disabilities....5

Batteries 6

R/F Interface....6

Operating Environment 6

Intended Use....7

Care and Repair 8

Copyright 8

Storing When Not Using the Product 8

CE Declaration of Conformity Notice 9

Appliance Disposal....9

Introduction 9

Hardware Installation 10

Inserting the Batteries 10

Connecting the USB Nano Receiver....12

The Wristpad....13

Software Installation 14

Task Bar Symbols 16

Configuration 16

Toggling between Operating Modes 16

Configuring the Wireless Mouse 17

Configuring the Wireless Keyboard.... 18

Attachment 20

Troubleshooting....20

Technical Data 21

Warranty Information 22

Important Safety Information

Before first using the device read the following instructions carefully and take note of the safety warnings, even if you are familiar with using electronic devices. Keep this manual in a safe place for future reference. If you sell or pass on the appliance, you should absolutely ensure to hand over these instructions as well.

This icon denotes important information for the safe operation of the product and for the user's safety.

This icon alerts about a strong light source.

This symbol denotes further information on the topic.

Avoid harm to the eyes. Never look directly into the LED beam.

Children and Persons with Disabilities

Electrical appliances do not belong in the hands of children. Also people with disabilities shall use electrical devices accordingly. Do not allow children or persons with disabilities to use electrical devices when not under supervision. These people may not comprehend the presence of potential risks. Batteries and small parts represent potential choking hazards. Keep the batteries out of reach. If a battery is swallowed, seek medical help immediately. Keep the packaging away from children and persons with disabilities too. as there is danger of suffocation.

Batteries

Please always insert the batteries with the poles pointing in the proper direction. Never attempt to recharge the batteries and under no circumstances try to incinerate them. Do not use different batteries (e.g. old and new, alkaline and carbon, etc.) simultaneously. Remove batteries if appliance is not being used for any longer periods of time. Inappropriate battery use may result in explosion and leakage risks.

R/F Interface

Please switch off the appliance in airplanes, hospitals, operating theatres and in the vicinity of medical electronic system. The radio waves transmitted could impair the functionality of sensitive appliances. Observe a minimum distance of 20 cm between the appliance and any pacemaker as the radio waves could impair the function of the pacemaker. The transmitted radio waves may create interference noises in hearing aids. Do not allow the appliance to be introduced in the vicinity of inflammable gases or in environments subject to a risk of explosion (e.g. paint shops) as long as the radio component is switched on, because the transmitted radio waves could trigger an explosion or fire. The coverage/range of the radio waves varies depending on the surrounding and environmental conditions. In any data exchange via wireless connections, unauthorized third parties are also able to receive the data. Targa GmbH is not liable for any radio or television interference caused by unauthorized modifications of this appliance. Targa furthermore accepts no liability for the replacement or exchange of connection cables and appliances not specified by Targa GmbH. The user is solely responsible for the elimination of interferences caused by such an unauthorized modification, as well as for the replacement or exchange of the appliances concerned.

Operating Environment

Position the device on a firm, even surface and do not place any objects on top of it. The appliance is not designed for operation in spaces subject to high humidity or temperatures (e.g. bathrooms) or in excessively dusty locations. Operating temperature and air humidity: 5°C to 40°C, max. relative air humidity 90%.

Please ensure that:

• the appliance is not exposed to direct sources of heat (e.g. heating elements);
• the appliance is not exposed to direct sunlight or artificial light;
• any contact with splashes and/or drips of water and other liquids is avoided and the device is not operated near water; in particular, the appliance may never be submerged (do not place water-filled objects such as vases or open drinks containers on top of or near the appliance);
• the appliance is not placed in the direct vicinity of magnetic fields (e.g. loudspeakers);
• no sources of open flame (e. g. lighted candles) are placed on top of or near the appliance;
• the appliance is not penetrated by foreign objects;
• the appliance is not exposed to strong temperature fluctuations;
• the appliance is not subjected to excessive shaking or vibration.

Intended Use

This Keyboard and Mouse Set, consisting of a wireless keyboard, wireless mouse and USB nano receiver, is an IT device. The device may not be used outdoors or in tropical climates. This product has not been designed for corporate or commercial applications. Use the product in domestic environments for private applications only. Any use other than that mentioned above does not correspond to the intended use. Only external devices may be used that comply with safety standards and the electromagnetic compatibility and shielding quality of this device. This device fulfils all that relates to CE Conformity, relevant norms and standards. Any modifications to the equipment other than recommended changes by the manufacturer may result in these directives no longer being met. The manufacturer is not liable for any damage or interference caused by unauthorized modifications. Only use the accessories recommended by the manufacturer.

If you are not using the appliance within the Federal Republic of Germany you are bound by the state regulations and/or legislation applicable in the country of operation.

Care and Repair

Repair activities are required if the appliance has been damaged, liquids or objects have penetrated the casing, the appliance has been exposed to rain or moisture, the appliance is not working properly or if it has been dropped. If you notice any smoke developing, unusual noises or scents, please switch off the appliance immediately. In such cases the appliance may not be operated until a professional specialist has checked it. Any repairs are only to be performed by qualified professional technicians. Never open the casing of the appliance or of any accessories. Only clean the appliance with a clean and dry cloth, never using any aggressive liquids.

Copyright

The entire content of this User's Manual is copyrighted and is provided to the reader for information purposes only.

Copying data and information without the prior written and explicit authorization from the author is strictly forbidden. This also applies to any commercial use of the contents and information.

All texts and figures are up-to-date as per the date of print release. We assume no liability for any changes.

Storing When Not Using the Product

When left unused for a long period of time, remove the batteries from the wireless keyboard and from the wireless mouse. Remove the USB nano receiver from your computer's USB port and insert it into the storage compartment of the mouse. Also make sure that the storage temperature is maintained between 5 °C and 40 °C. The humidity must not exceed 90% relative humidity.

CE Declaration of Conformity Notice

The mouse and keyboard set complies with the basic and other relevant requirements of the R&TTE Directive 99/5/EC. The corresponding Declaration of Conformity can be found at the end of this User's Manual.

Appliance Disposal

All appliances labelled with this symbol are subject to the European directive 2002/96/EC. All electrical and electronic appliances need to be disposed off separately via the facilities provided for this purpose by the authorities and may not be included in the domestic waste. The USB nano receiver is also an electronics device and must be properly disposed of.

The proper disposal of old appliances helps to protect the environment and prevents risks for your personal health. For further information about proper disposal, contact your local government, disposal bodies or the shop where you bought the device.

Also recycle the packaging material properly. Cardboard packaging can be taken to paper recycling containers or public collection points for recycling. Any films or plastic contained in the packaging should be taken to your public collection points.

Please take care to protect the environment. Used batteries do not belong in the domestic waste and need to be handed in at a collection point for used batteries instead.

Introduction

Thank you for purchasing the wireless design keyboard with wireless mouse and USB nano receiver STMS 2017 A1. The devices feature a SmartLink technology that makes any manual synchronisation obsolete. Several special keys and buttons on both appliances help you adapt the operation of the mouse and keyboard to your personal wishes. The mouse features a tilt wheel (4-way scroll wheel) enabling you to scroll horizontally as well as vertically.

Hardware Installation

Unpack all the devices and use the package contents checklist on page 1 to verify that you have received all items listed.

Inserting the Batteries

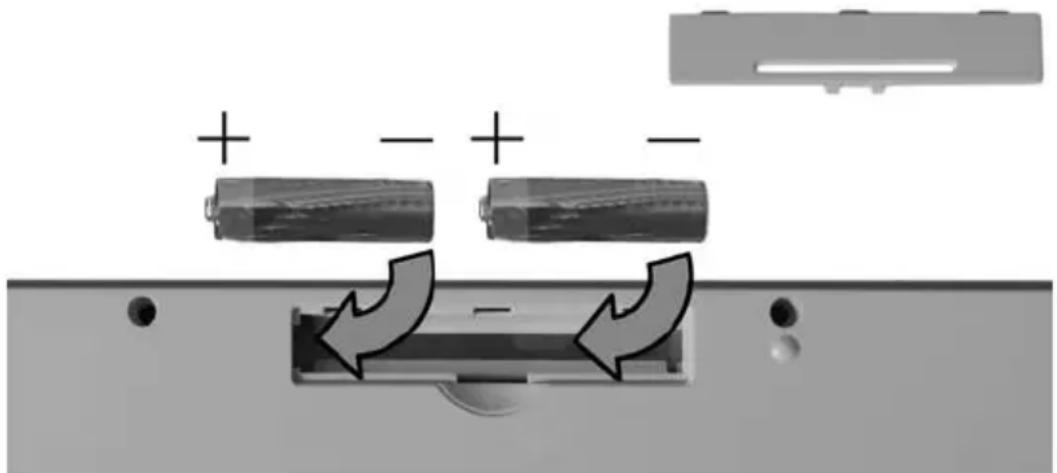

Insert the batteries into the wireless keyboard and wireless mouse as shown in the following figures. Take care to insert the batteries into the device observing the correct polarity (+ and -) The correct polarity is labelled on the batteries and inside the battery compartment.

Fig.: Detailed view of bottom of the keyboard

• Open the battery compartment of the wireless mouse and insert the batteries. Then close the battery compartment.
• Remove the bottom part of the wireless mouse. To do this, press the unlock button (14) on the back of the wireless mouse. The lock will release and you can open and remove the bottom part.
• Insert the batteries.
• Remove the USB nano receiver (C) from its storage compartment (17).
• Close the wireless mouse. To do this, insert the noses on the bottom part into the hole located on the front of the wireless mouse. Then close the bottom part on the wireless mouse until the unlock button (14) clicks into place.

- Press the On/Off switch (15) to position "ON" to power the wireless mouse on.

3D rendering of a gray oval-shaped mechanical component with cutouts and mounting holes (no text or symbols)

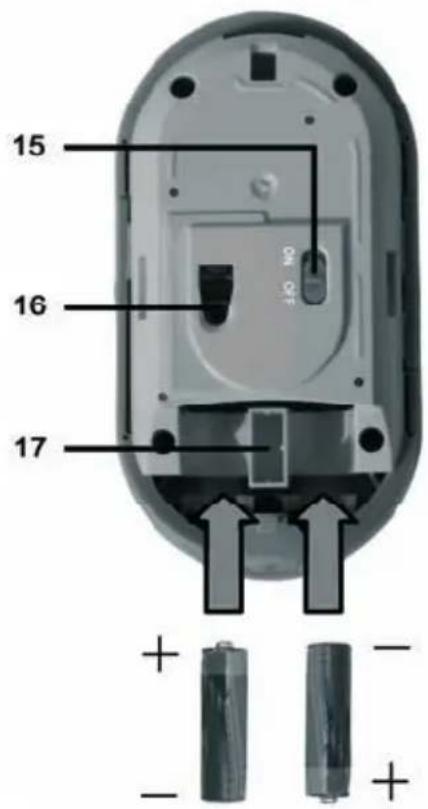

Fig.: Detailed view of the opened mouse

15 On/off button of the wireless mouse
16 Optical sensor
17 USB nano receiver storage compartment

The wireless mouse features an automatic standby function. When not using the wireless mouse for a certain time, it will power off. Move the wireless mouse or press any mouse button to power it back on (the drivers must be installed).

The devices feature a battery level indicator (4 and 10). As soon as they light-up, the batteries of the respective device are exhausted. When this happens, replace the batteries with new batteries of the same type.

Connecting the USB Nano Receiver

If you still have your old keyboard and mouse connected to the computer, please shut down your computer, disconnect the corresponding devices from the PC and restart the computer.

Remove the USB nano receiver from its storage compartment (see the chapter “Inserting the Batteries”).

Plug the USB nano receiver into a free USB port on your powered-on computer.

Fig.: Miniature USB Receiver

The operating system will automatically recognize the new hardware and install the required drivers. Depending on the operating system installed, the following screen messages may appear:

Windows ^® XP

When the receiver is connected for the first time, the operating system Windows ^® 2000/XP displays the message „New hardware detected“. Wait until the message „The new hardware has been installed and is now ready for use“ is displayed before using your mouse and keyboard.

Windows Vista ^® , Windows ^® 7

When the receiver is connected for the first time, the operating system Windows Vista ^® displays the message „Installation of appliance driver software“. Wait until the message „The appliances are ready for use now“ appears. The mouse and keyboard are now operational and ready to be used.

If the connection to the nano receiver is interrupted or if it is not possible to establish a connection, remove the batteries from the mouse and keyboard and re-insert them.

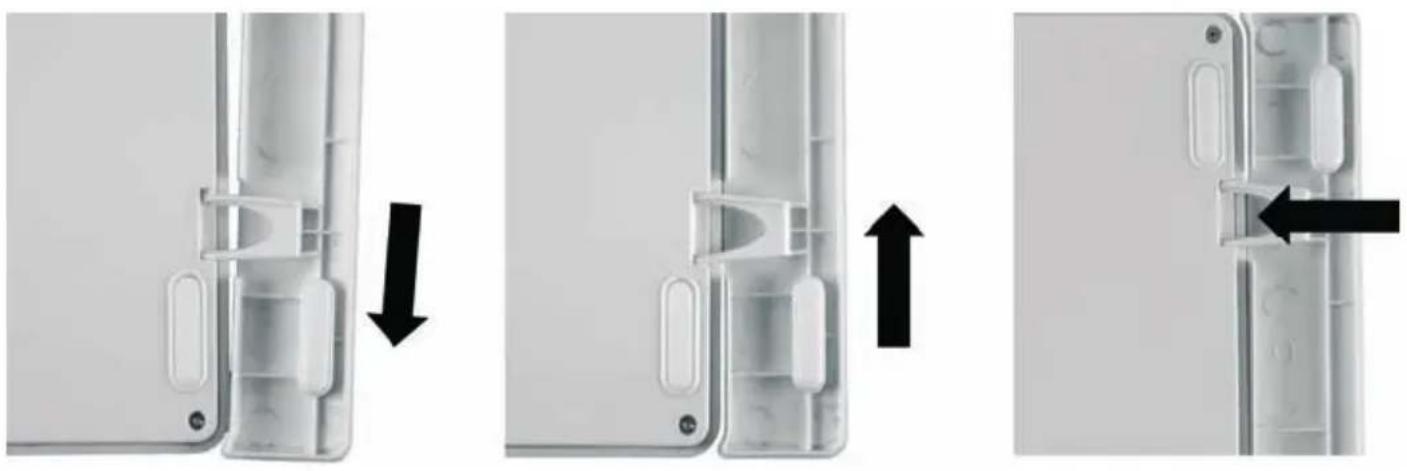

The Wristpad

If necessary, you can attach the supplied wristpad to the bottom of the keyboard. Turn the wireless keyboard and the wristpad upside down. Preferably lay a cloth under it to avoid any damage.

• Carefully slide one part of the first clip into the hole on the bottom of the keyboard by applying slight pressure only (see the following figure on the left).
• Release the pressure so that the other side of the clip clicks into the hole (see the following figure in the middle).
• The second clip is now positioned in front of the other hole. Press the clip of the wristpad carefully into the hole (see the following figure on the right). The clips will release and click into the hole.

Three-step diagram showing a mechanical assembly with arrows indicating direction of movement (no text or symbols present)

To release the wristpad, turn the wireless keyboard over with the wristpad upside down. Preferably lay a cloth under it to avoid any damage.

- Carefully swivel the wristpad upwards (towards the bottom of the wireless keyboard) by slightly pulling it at the same time. The clips will release from their holes.

Software Installation

In order to be able to use the full function-capabilities of your wireless keyboard and wireless mouse, you must install the supplied software. Insert the included CD-ROM in the CD-ROM drive of your computer. The installation process should start automatically, failing that, start the CD-ROM file "SilverCrest STMS 2017 A1 Driver Setup V1.0.exe" manually by double-clicking it.

Only with the operating system Windows Vista ^® / Windows ^® 7 the installation will initially be stopped by the user account control function with the message: „An unidentified program is attempting to access the computer”. Click on „OK“ to continue with the installation.

The following installation illustrations correspond to the operating system Windows ^® 7. The windows displayed in the operating systems Windows ^® XP/Vista ^® are slightly different, but their content is the same.

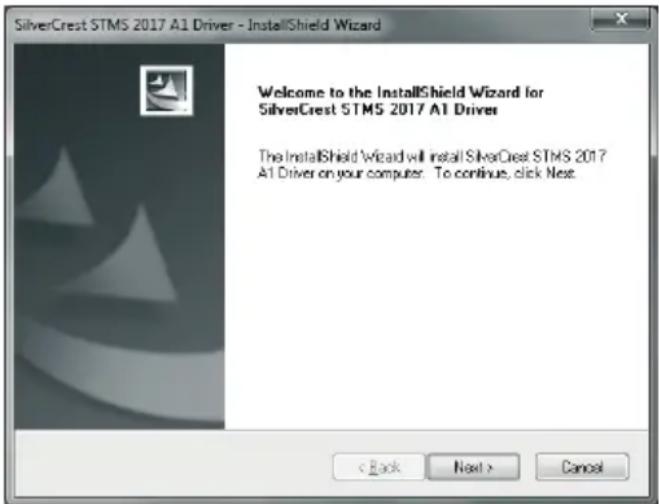

Click on Next to start the installation.

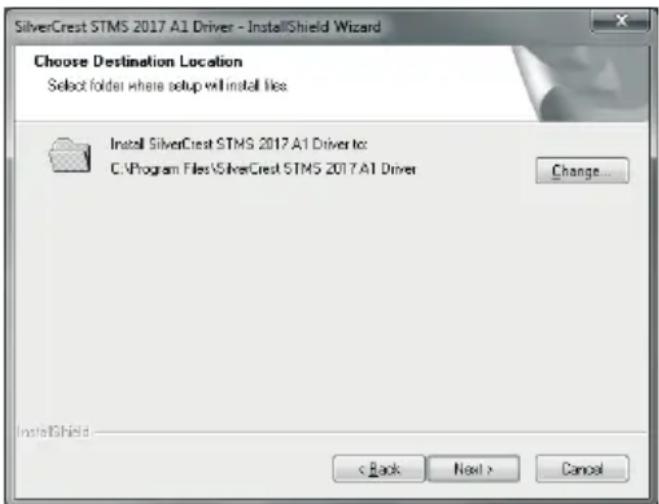

Here you can select the target folder for the installation via the Change button or use the suggested folder. Click on Next to proceed with the installation.

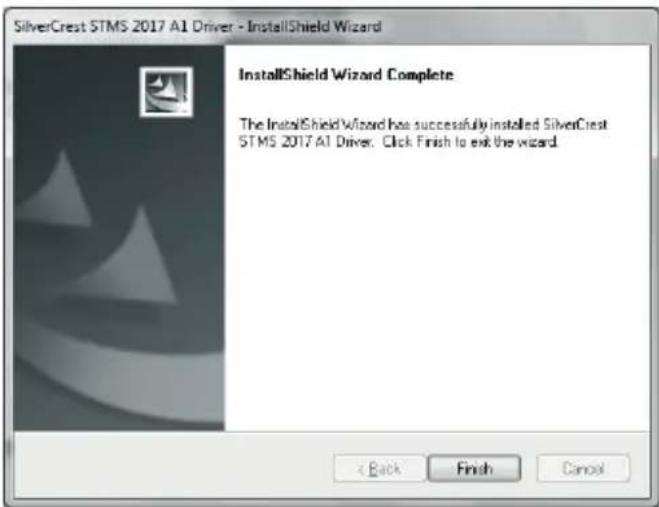

Click Finish to finish the setup programme.

If you are prompted to restart your computer, restart it before using the software.

Task Bar Symbols

A double click on this symbol opens the configuration menu for the optical mouse (see page 17 – “Configuration of the Optical Mouse” for a description).

A double click on this symbol opens the configuration menu for the keyboard (see page 18 – “Configuration of the Keyboard” for a description).

Right-click on the corresponding icon to open a menu showing the following options:

Open Opens the configuration menu of the corresponding device.

Info Shows information about the version of the installed driver.

Exit Exits the function. If necessary, you can open the applications again from the Start menu of your operating system.

The operating systems default settings will hide disabled icons in the task bar. It is recommended to be disabled the “Hide inactive icons” option in task bar properties.

Configuration

Toggling between Operating Modes

Use the CPI button (13) to quickly toggle between 800 cpi and 1600 cpi resolution for optical tracking. Tracking at 1600 cpi offers a higher accuracy.

If you would like to toggle between standard operation and media operation on the mouse, press the CPI button (13) and keep it pressed for a minimum of 3 seconds until the power control lamp (10) briefly lights up. Please see the list on page 3 for information on the functions available in the media operation mode. In

media operating mode you can press the tilt wheel (9) to the left or right to adjust the sound volume. While in standby mode the Windows audio volume can still be adjusted by turning the scroll wheel, as long as the volume window has been enabled in the taskbar.

Configuring the Wireless Mouse

Double-click on the 📊 icon in the task bar (lower-right corner on your screen, near the system clock). Or right-click on the 📊 icon and select "Open" from the context menu.

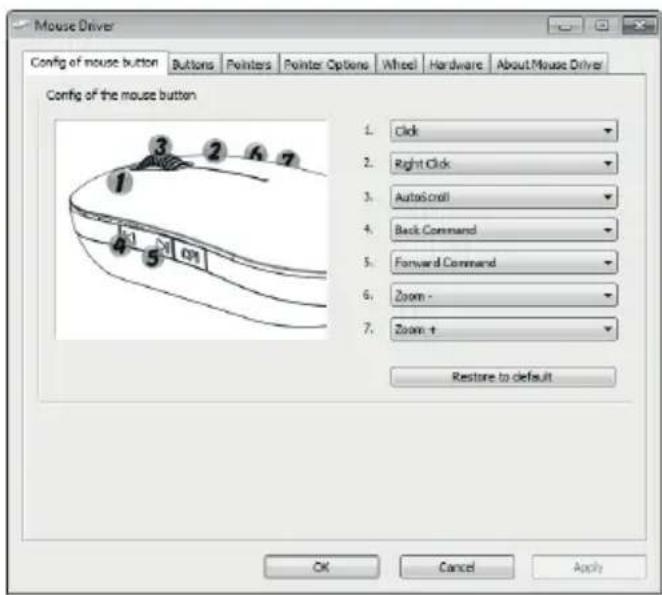

The mouse configuration menu will appear.

Here you can specify functions for selected mouse buttons. Simply click on the selection switch next to the corresponding mouse button and select a function from the menu by clicking on it with the left mouse button.

You can restore the mouse to its original state by clicking the „Restore to default“ button.

All selected options apply to the default mode. The button assignments for media mode cannot be modified.

If you would like to apply your changes, please click on the „Apply“ button (the window will remain open) or the „OK“ button (the window will close).

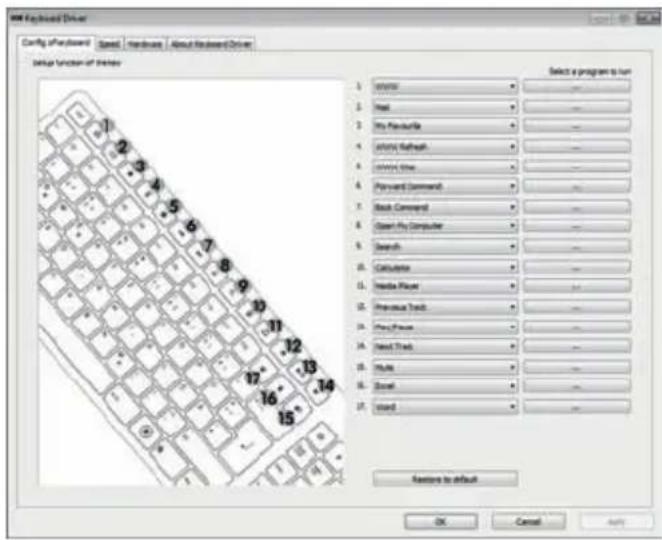

Configuring the Wireless Keyboard

The wireless keyboard features 20 hotkeys (quick access keys), a volume adjustment button and a scroll wheel. Following software installation, the special keys offer the following standard functions. 17 hotkeys can furthermore be freely programmed according to your requirements.

Hotkey Description

	Standard internet browser (e.g. Internet Explorer)
	Standard email programme (e.g. Microsoft® Outlook)
★	Internet-browser favourites
	Update display
	Stops loading the page in your Web Browser.
→	Forward (e.g. Internet Explorer)
	Back (e.g. Internet Explorer)
	Open desktop
	Search
	Start pocket calculator
	Starts the standard media player (e.g. Microsoft® Media Player)
	Previous title
	Play / Pause
	Next title
	Sound on/off
	Start Microsoft® Word (needs to be installed)
	Start Microsoft® Excel (needs to be installed)
	Switch computer on/off *(Many mainboards feature a BIOS setting such as, for example, „Boot on USB“, „Power on by USB“, or a corresponding setting). Activate this function in order to be able to switch the computer on and off via the keyboard. Please also consult the documentation of your computer or main board before activating the BIOS setting.
	Initiate sleep mode *
	Starting from sleep mode *

* not freely programmable

Double-click on this symbol 📄 in the task bar to configure the programmable hotkeys (bottom right of your screen, next to the system clock). Or right-click on the 📄 icon and select "Open" from the context menu.

The following menu opens:

Here you can assign a function for the highlighted keyboard keys. Click on the radio button corresponding to the key and select the desired function from the menu.

The following option “Select a program to run” ( [ ... ] button) lets you select any executable file on the hard disk of your computer which will be run by pressing the corresponding function button.

To do this, click the [ ... ] button next to the desired function button. The program browse dialog box will open. Browse for the desired executable file and confirm the settings. This procedure depends on the operating system.

By using the "Restore All To Default" you can return all modified functions to factory default.

Attachment

Troubleshooting

If after installation the wireless keyboard and the wireless mouse do not respond, please test the following:

☑ Check that the batteries have been inserted properly (with the poles pointing in the right direction).
☑ Check that the USB Nano Receiver is connected to the computer properly (see page 12 – Connecting the USB Nano Receiver).
☑ Try another USB port.
☑ Please note that when using multiple sets the different components such as the wireless mouse, wireless keyboard and USB nano receiver cannot be swapped.
☑ Check the battery power (insert new batteries, if required).
☑ Please note that you need to use a mat (e.g. mouse pad) if you intend to use the mouse on a glass surface or glossy surface.

If the icons for "Num Lock", "Caps Lock" and/or "Scroll Lock" do not appear in the task bar, please try the following:

☑ Check the taskbar settings to see if inactive icons are hidden. Disable this function to show all icons at all times.

Technical Data

• 2.4 GHz radio frequency
• SmartLink technology (dispenses with the need to connect the receiver and mouse/keyboard manually)
• Range up to 5m

Keyboard

• 20 special keys (hotkeys), 17 of which are programmable
• Volume control
• Scroll wheel
• 446 mm x 172 mm x 28 mm (LxWxH, with wristpad), 446 mm x 143 mm x 28 mm (LxWxH, without wristpad)
• 6 35 g (without batteries, with wristpad)
• 2 batteries type AAA, 1,5V (Micro)

Mouse

• Optical sensor with selectable resolution of 800 cpi and 1600 cpi
• 8 buttons, 7 of which are programmable
• Tilt wheel (4-way scroll wheel)
• 107 mm x 57 mm x 32 mm (LxWxH)
• 68 g (without batteries)
• 2 batteries type AAA, 1,5V (Micro)

USB Nano Receiver

• 15.5 mm x 7 mm x 18 mm (LxWxH)
• 2 g

Warranty Information

36 month warranty from date of purchase

UK

Important warranty information

SILVER CREST®

Dear Customer,

Thank you for purchasing a Silvercrest product.

We ask you to read carefully through the enclosed documentation or online help before putting your Silvercrest product into service. If you have a problem, which can not be solved in this way, please contact our hotline.

In case that trouble solving over the telephone is not possible, our hotline will arrange the service depending on the fault of the device. This will contain the elimination of defects by production and material at no charge.

Up-to-date information and answers to the most frequently asked questions are available on the internet from: www.silvercrest.cc

This guarantee is valid in United Kingdom.

Your statutory guarantees from the seller are in addition to this warranty and are not limited by it.

Hotline number

0207 - 36 50 744

(Please have your serial number at hand!)

Manufacturer:

TARGA GmbH

Postfach 22 44

D-59482 Soest

www.silvercrest.cc

Close-up of a computer mouse with a vertical scroll wheel and 'SurreCrest' branding (no additional text or symbols visible)

C

A Безжична клавиатура STMS 2017 A1
В Безжична мишка STMS 2017 A1
C USB нано-приемник STMS2017A1-R (вложен в безжичната мишка по подразбиране)
D 2 батерии тип AAA, 1.5V (микро) за безжична клавиатура (не са показани)
E 2 батерии тип AAA, 1.5V (микро) за безжична мишка (не са показани)
F CD-ROM със софтуер (не е показан)
G Ръководство за потребителя (не е показано)

Системни изисквания

3D rendering of a gray oval-shaped mechanical component with a central hole and four side slots (no text or symbols)

Three-step diagram showing a device's internal structure before and after assembly, with arrows indicating transformation (no text or symbols)

Close-up of a computer mouse with a vertical scroll wheel and 'SurreCrest' branding (no additional text or symbols visible)

C

3D rendered image of a gray oval-shaped mechanical component with cutouts and mounting holes (no text or symbols)

White Silver Crest USB flash drive with metallic casing (no text or symbols visible)

Three-step diagram showing a mechanical assembly with arrows indicating direction of movement (no text or symbols present)

EC - Declaration of Conformity

Address:

Targa GmbH

Lange Wende 41

59494 Soest, Germany

Product:

Mouse Keyboard Set

Model:

SILVERCREST STMS 2017 A1

The product complies with the requirements of the following European directives:

1999/5/EC

R&TTE

Compliance was proved by the application of the following standards:

RF:

EN 300 440-2 V 1.3.1

EMC:

EN 301 489-1 V 1.8.1

EN 301 489-3 V 1.4.1

Safety:

EN 60950-1: 2006 + A11:2009

Human exposure:

EN 50371:2002-03

Authorised signature

Matthias Klauke, Managing Director

TARGA GmbH

Lange Wende 41

D-59494 Soest

www.silvercrest.cc

CE

Mat-No: GB 1631427 1631598

BG 1631597 1631640

GR 1631596 1631629

CY 1631595 1631627
